Refrigerants: R404A; R507

Gross weight	13.48 Kg
Net weight	13.48 Kg
Oil	POE
Height total [mm]	219 mm
Applications	LBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]	13.7 Ohm
Amount of oil	550 cm3
Capacity of capacitor B	80 uF
Capacity control	Fixed speed
Refrigerant charge [kg] [Max]	1.3 kg
Color	Black
Comments on the suction connection	Cover of The
Comments on the discharge connection	Cover of The
Comments on the process connection	Cover of The
Current connection HST [A]	20.4 To
Configuration code	Individual
Description	SC15CL
Description	SC
Discharge connection height [mm]	110 mm
Diameter of the suction connection [mm]	10.2 mm
Diameter discharge connection [mm]	6.2 mm
Economizer	Not
Packaging format	Industrial package
Frequency [Hz]	Fifty
Height from baseplate [mm]	213 mm
LRA HST [A]	20.4 To
Material of the discharge connection	Steel-plated Cu
Material of the process connection	Steel-plated Cu
Merged Approval standard and	CE en 60335-2-34 with Annex AA
N. º of phases (compressor)	One
N. º of phases (fan)	One
Energy level of the application	Compressor LBP standard
Number of scheme	Eight thousand two hundred fifty eight
Model number	SC15CL
Oil charge [L]	550 L
Phase	One
Process connection diameter [mm]	6.2 mm
Refrigerants	R404A R507
Resistance of the primary winding for compressors in single-phase [Ohm]	3.7 Ohm
RLA	3.9 To
Start capacitor capacitance	80 µF
Suction connection height [mm]	193 mm
Swept volume [cm3]	15.28 cm3
Technology	Alternative
Temperature of the winding, the short-term [°C] [Max]	135 °C
Winding temperature, stable [°C] [Max]	125 °C
Voltage, 50 Hz [V]	220 V
Voltage, 50 Hz [V] [max.]	240 V
Engine type	CSIR
Type of motherboard	Universal
Type designation	Compressor
Technique of the brand	Reciprocating compressors, type
Units of packing	Eighty
Use of segment	Refrigeration LT
High value of nominal voltage at 50 Hz [V]	230 V
High value of the nominal voltage at 60 Hz [V]	0 V
High value of voltage range at 50hz [V]	254 V
High value of the voltage range at 60 Hz [V]	0 V
Low value of the rated voltage at 50 Hz [V]	220 V
Low value of the nominal voltage at 60 Hz [V]	0 V
Low value of voltage range at 50hz [V]	198 V
Low value of the voltage range at 60 Hz [V]	0 V
Rotation speed at 50 Hz [rpm]	2900 rpm
Rotation speed at 60 Hz [rpm]	0 rpm
Volume of free gas [cm3]	1510 cm3
Angle of the connection suction [°]	37 °
Angle of the discharge connection [°]	37 °
Angle of the connection process	37 °

Application:	Refrigerator
	Cooling table
	Warming display cabinet
	rapid chiller
	Fridge/freezer
	Freezer
	Freezer table
Design type:	fully hermetic
CODE:	104L2853
Type of use:	LBP
Frequency:	50Hz
Displacement:	15.28 cm³
Height:	219mm
Refrigerant:	R404a/R507
Perfomance:	1/2 HP
Performance at -10°C:	1,251W
Performance at -15°C:	1,017W
Performance at -20°C:	813W
Performance at -25°C:	637W
Performance at -30°C:	486W
Performance at -35°C:	358W
Performance at -40°C:	175W
Performance at -5°C:	1,699W
Engine system:	CSIR
Tension:	220-240V
Test procedure:	ASHRAE

Application:

• laboratory and medical equipment
• compressed air dryers
• glass door merchandisers
• display cabinets
• freezers and fridge
• ice cream cabinets
• vending machines
• drinks dispensers
• ice making machines
• bottle coolers
• heat pumps
• milk cooling tanks
• wine cellars

Description:

hermetic, piston, refrigeration compressor type LBP / MBP, for R404A / R507 refrigerant p>

Specification:

• application: LBP/MBP compressor
• refrigerants: R404A, R507
• power: 220-240V, 50Hz
• displacement: 15.28 cm³
• oil quantity: 550 ml
• oil type: polyolester
• winding resistance (main): 3.7 Ohm
• winding resistance (start): 14.4 Ohm
• evaporating temperature: -40°C to -5°C
• cooling capacity range: 151 – 1458 W
• cooling capacity depending on the evaporation temperature (EN 12900, 50Hz):
  • -40°C: 151 W
  • -35°C: 299 W
  • -30°C: 452 W
  • -25°C: 615 W
  • -23.3°C: 673 W
  • -20°C: 792 W
  • -15°C: 988 W
  • -10°C: 1208 W
  • -6.7°C: 1370 W
  • -5°C: 1458 W
• compressor weight: 13.8 kg
• singlepack kit weight: 14.4 kg

Additional information:

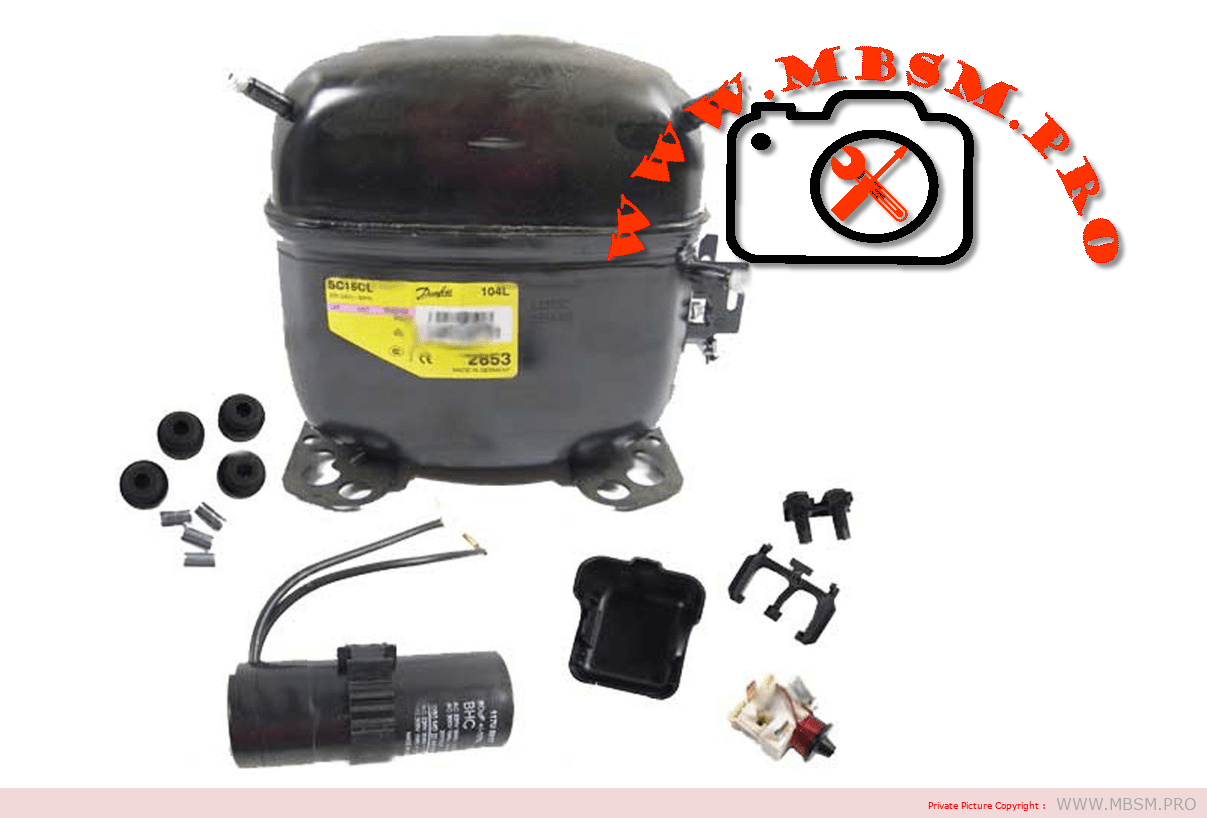

kit includes:

• compressor: [104L2853]
• starting device: [117U6019]
• cover: [103N2009]
• run capacitor: 80μF [117U5017]
• cord relief: [103N1004]
• mounting accessories: [118-1917]

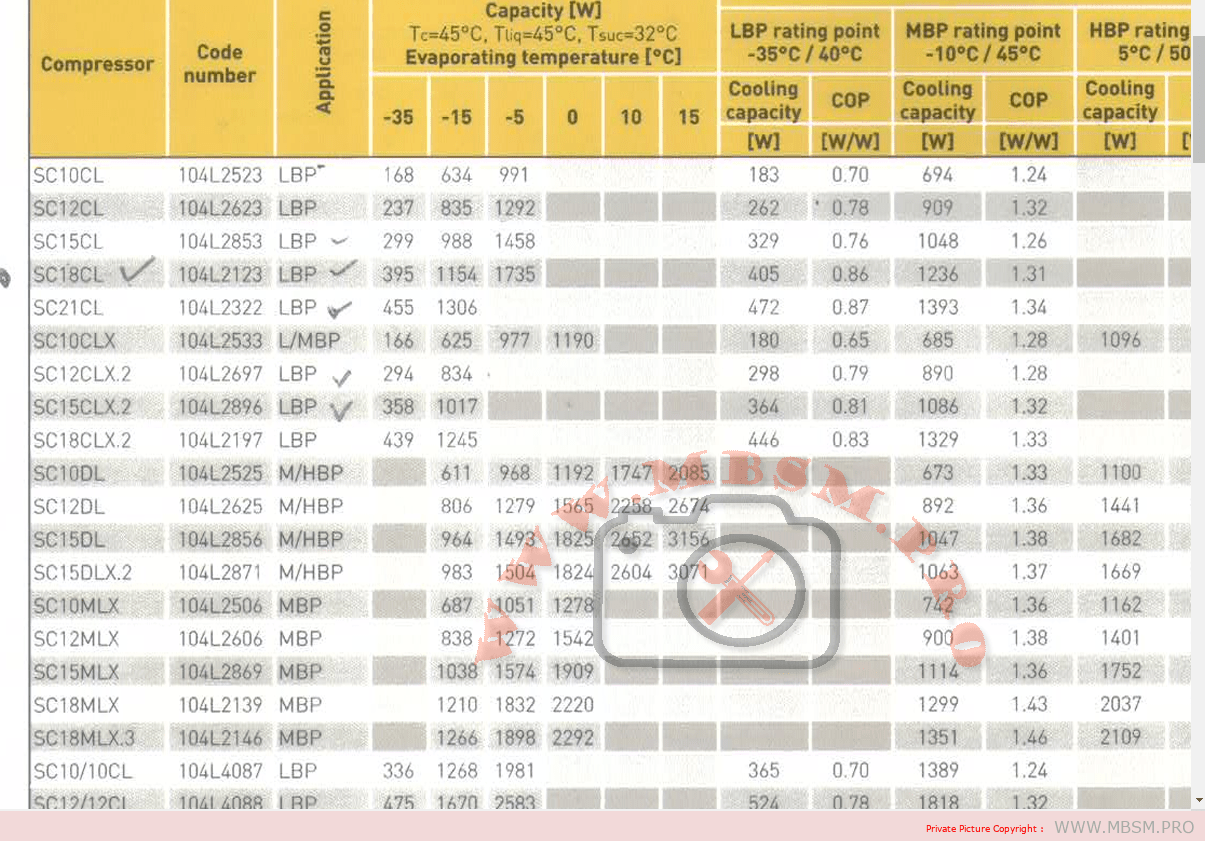

NL10FT 105G6829 105G6839 3/8 113 158 213 235 281 361 455 217 327 10.10

SC12FT 104G8205 104G8215 3/8 103 163 233 259 314 408 517 645 265 380 12.87

SC15FT 104G8505 1/2 126 197 280 311 376 489 620 772 311 451 15.28

SC18FTX 104G8805 5/8 144 229 325 361 437 567 719 896 365 517 17.68

SC21FTX 104G8105 3/4 192 296 415 460 553 713 901 1119 428 613 20.95

60 Hz

PL35G 101G0250 1/16 34 39 48 64 82 104 52 79 2.00

TL2.5G 102G4251 1/16 14 27 42 48 60 80 105 134 67 96 2.61

TL3G 102G4350 1/12 30 47 54 69 95 125 70 111 3.13

TL4G 102G4452 1/10 48 70 78 96 127 166 87 135 3.86

TL5G 102G4550 1/8 65 92 102 123 162 207 106 170 5.08

FR6G 103G6660 1/6 51 93 108 141 199 266 119 197 6.23

FR7.5G 103G6680 103G6690 1/5 67 112 130 166 228 300 138 229 6.93

FR8.5G 103G6780 103G6790 1/4 92 138 156 195 263 345 164 273 7.95

FR10G 103G6880 103G6890 1/3 99 153 173 217 292 381 194 314 9.05

SC12FT 104G8205 104G8215 1/2 125 192 272 302 366 477 608 761 298 458 12.87

SC15FT 104G8505 5/8 154 235 330 365 441 571 724 904 356 537 15.28

SC18FTX 104G8805 3/4 187 280 390 432 520 675 857 1071 420 622 17.68

SC21FTX 104G8106 7/8 240 345 470 518 620 800 1012 1262 475 707 20.95

R404A/R507

50 Hz

TL4CL 102U2071 1/8 52 65 84 110 142 155 182 230 286 352 140 198 3.86

FR6CL 103U2670 1/6 77 108 145 189 243 263 307 383 473 578 242 353 6.23

FR7.5CL 103U2790 1/5 86 114 154 202 262 285 333 418 515 630 267 395 6.93

FR8.5CL 103U2890 1/4 99 126 168 222 290 317 372 468 577 315 472 7.95

NL7CLX 105F3710 1/3 102 146 199 263 340 369 430 536 657 796 274 381 7.27

SC10CLX 104L2533 1/3 166 255 360 400 483 625 789 977 352 508 10.29

SC12CL 104L2623 3/8 58 140 237 353 490 541 650 835 1048 1292 445 654 12.87

SC12CLX.2 104L2697 1/2 130 205 294 399 522 569 666 834 1026 475 659 12.87

SC15CL 104L2853 1/2 151 299 452 615 673 792 988 1208 1458 560 790 15.28

SC15CLX.2 104L2896 1/2 159 250 358 486 637 694 813 1017 1251 1519 565 783 15.28

SC18CL 104L2123 5/8 167 271 395 542 715 781 918 1154 1425 1735 615 894 17.68

SC18CLX.2 104L2197 3/4 194 306 439 595 780 849 995 1245 1532 680 949 17.68

SC21CL 104L2322 7/8 226 325 455 617 813 887 1042 1306 1606 702 989 20.95

GS26CLX 107B0500 1 325 497 703 949 1240 1348 1580 1974 2427 888 1285 26.30

GS34CLX 107B0501 1 1/4 729 1003 1330 1715 1857 2165 2687 3289 1196 1721 33.80

60 Hz

SC10CLX 104L2533 3/8 224 335 455 499 588 738 906 1096 430 623 10.29

SC12CLX 104L2695 1/2 146 282 429 590 649 770 972 1200 540 748 12.87

SC12CLX.2 104L2697 1/2 155 233 343 473 626 683 804 1011 1248 541 777 12.87

SC15CLX 104L2854 5/8 179 351 530 720 788 928 1158 1417 610 864 15.28

SC15CLX.2 104L2897 5/8 194 305 437 593 776 846 991 1239 1525 611 848 15.28

SC18CLX.2 104L2195 7/8 113 338 542 737 938 1010 1157 1410 1708 752 990 17.68

GS21CLX  107B0506 1 475 674 905 1172 1270 1480 1873 2246 868 1180 21.20

R290

50 Hz

TL3CN  102H4380 1/10 106 200 106 140 3.13

TL4CN  102H4490 1/8 56 126 255 128 155 3.86

TL5CN 102H4590 1/6 81 109 143 183 198 230 283 345 416 162 211 5.08

NL7CN 105H6756 1/4 118 166 223 290 315 368 458 561 679 221 291 7.27

NL9CN 105H6856 1/3 138 194 259 335 364 423 526 643 778 250 334 8.35

SC10CNX 104H8065 1/3 126 179 245 325 355 420 531 660 809 274 362 10.29

SC12CNX 104H8265 3/8 178 250 331 426 462 540 678 846 1050 344 456 12.87

SC12CNX.2 104H8266 3/8 186 258 346 453 493 578 725 895 379 502 12.87

SC15CNX 104H8565 1/2 195 297 415 550 601 707 887 1093 1328 420 560 15.28

SC15CNX.2 104H8566 1/2 252 332 434 560 609 714 900 1120 445 610 15.28
