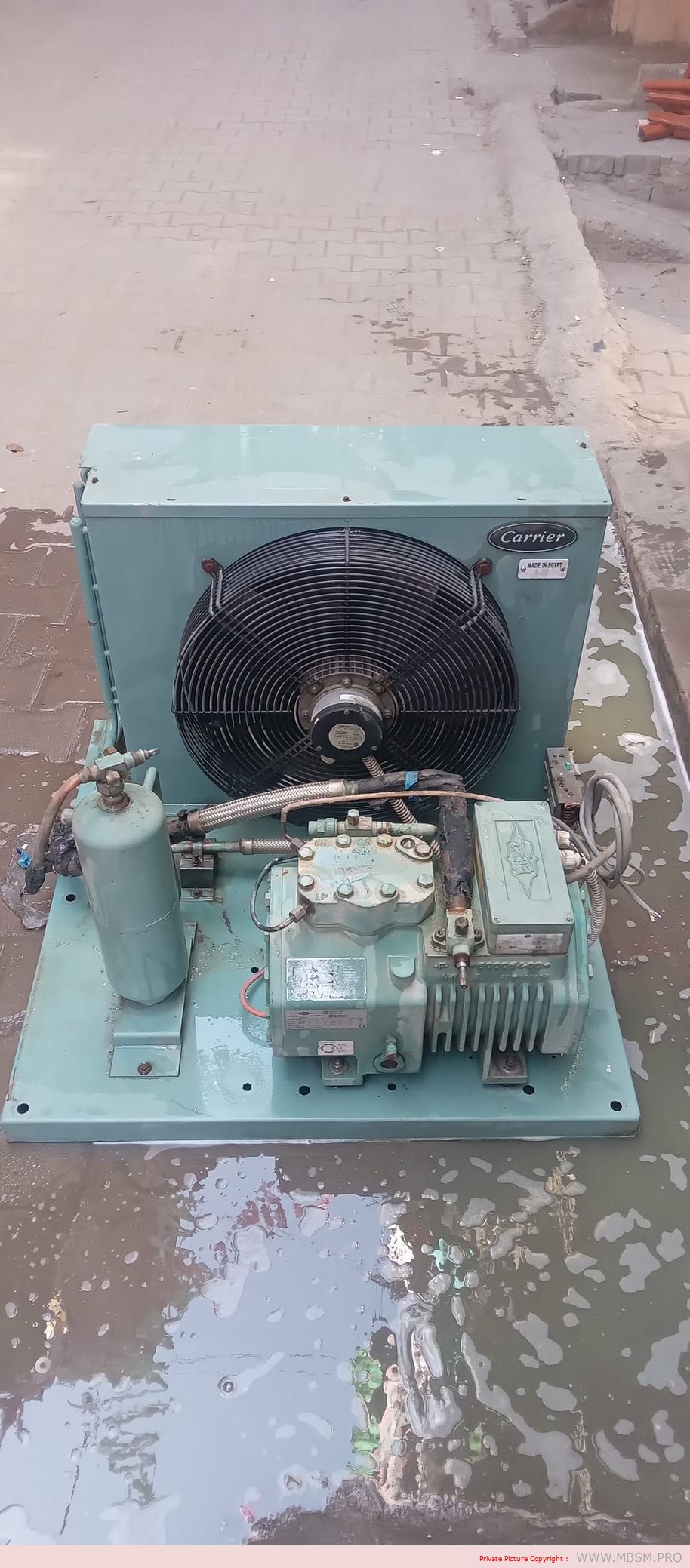

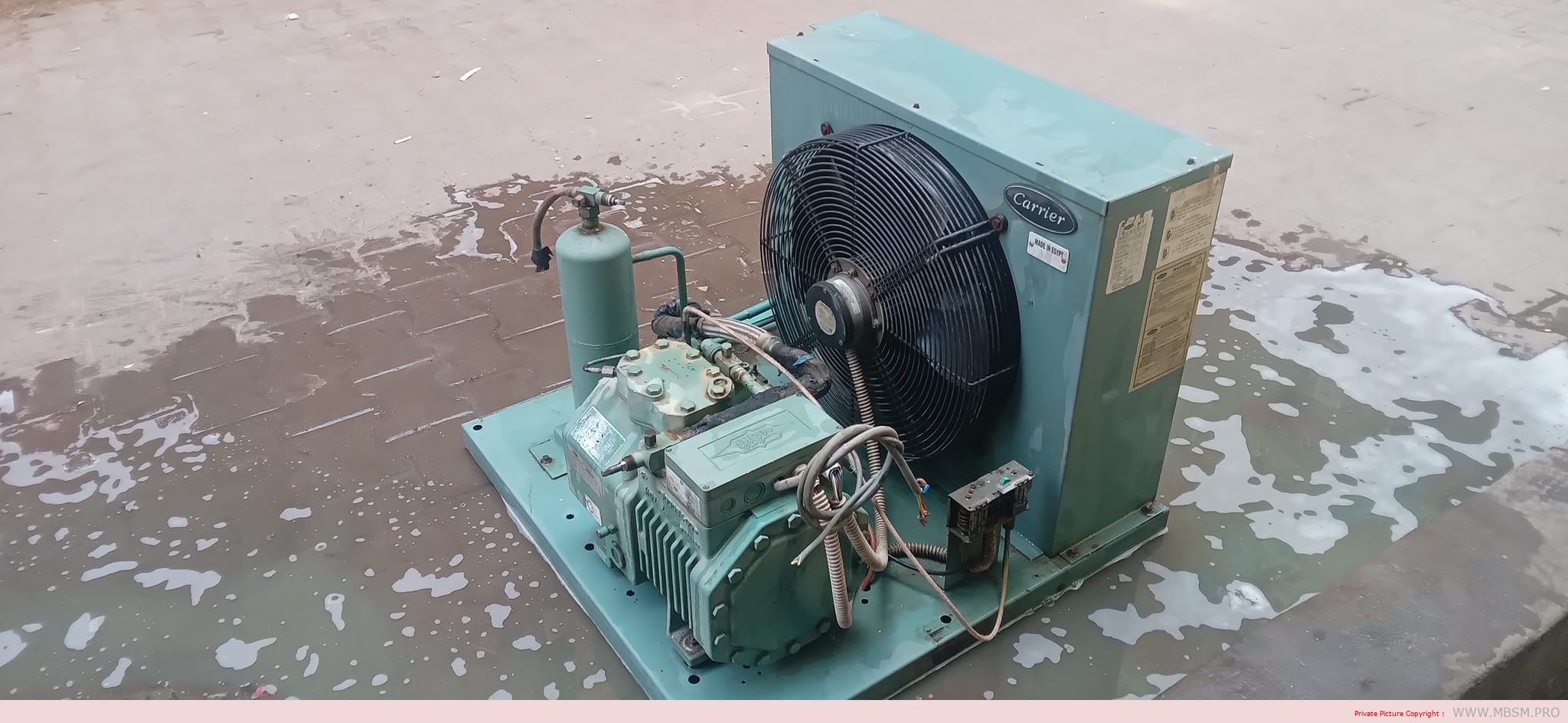

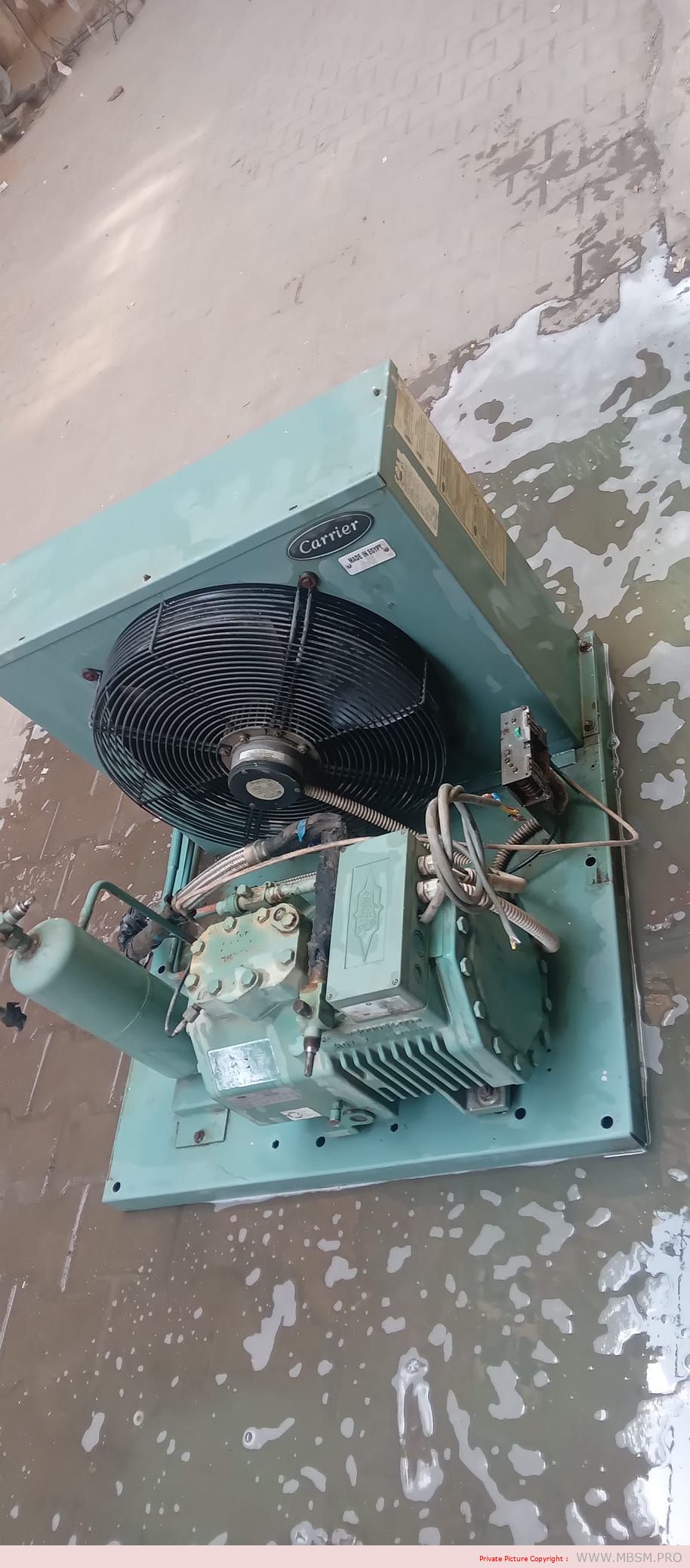

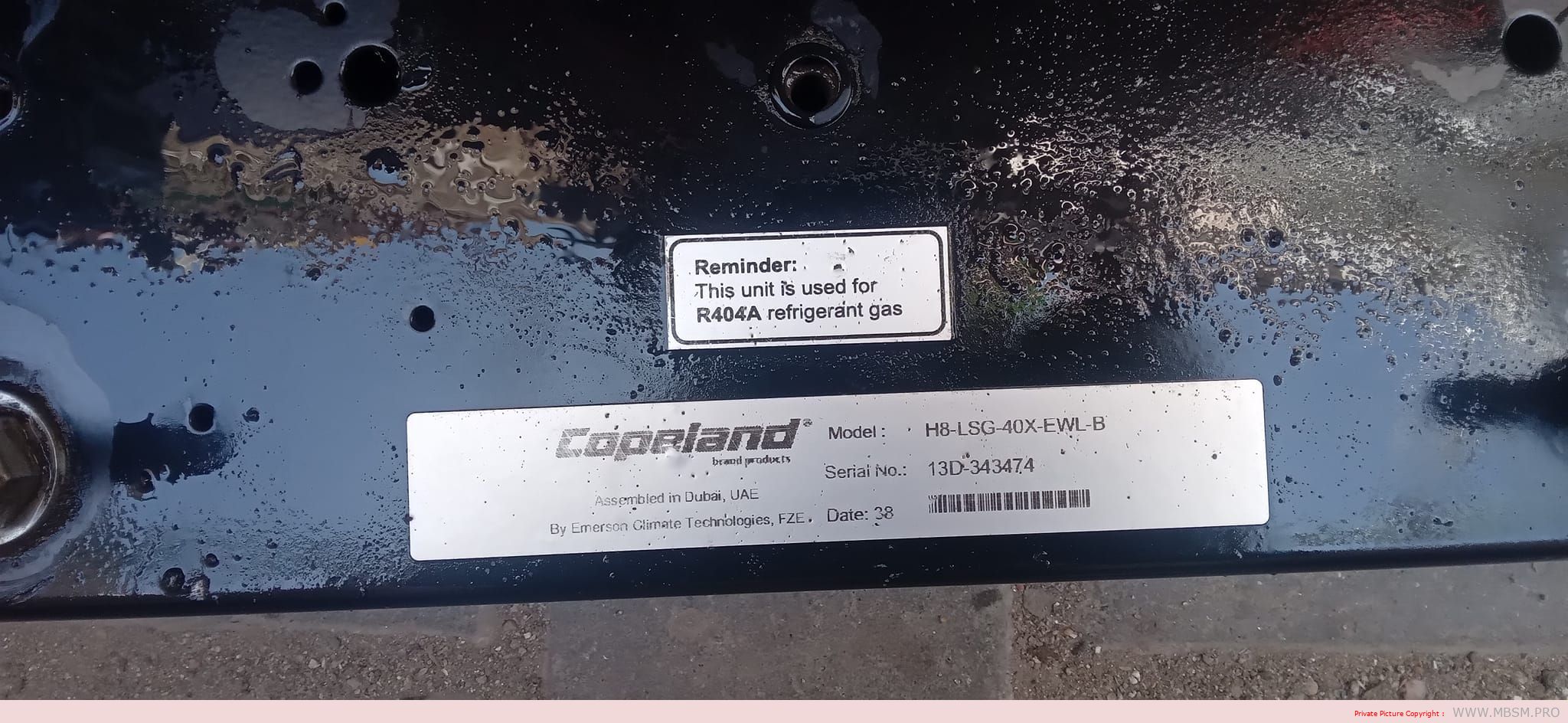

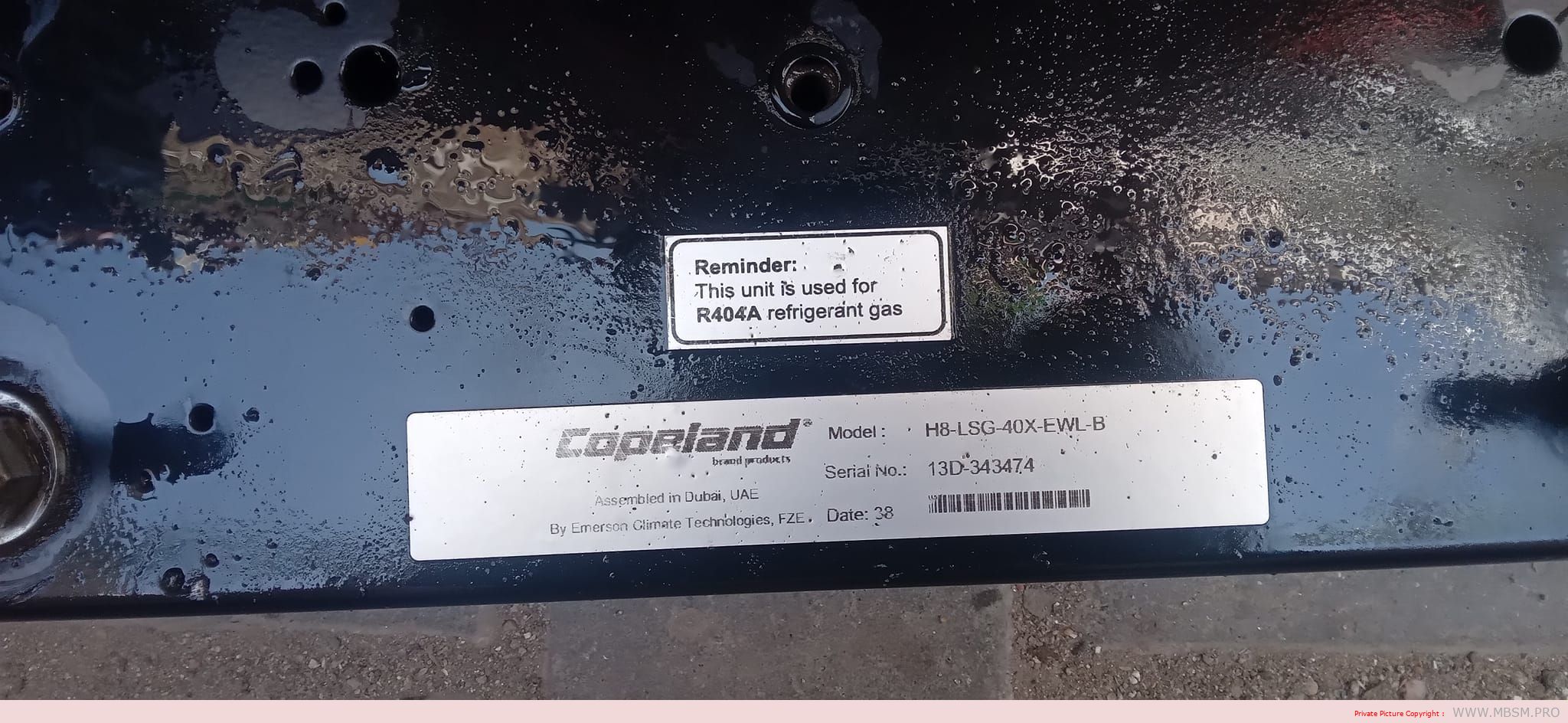

Mbsm.pro, compressor, 2DC-2.2Y-40S, Bitzer, semi-hermetic, h8-lsg-40x-ewl-b, 2 hp, 400 v

31 March 2023
 |  No Comments

Download Attachments

image_pdfimage_print

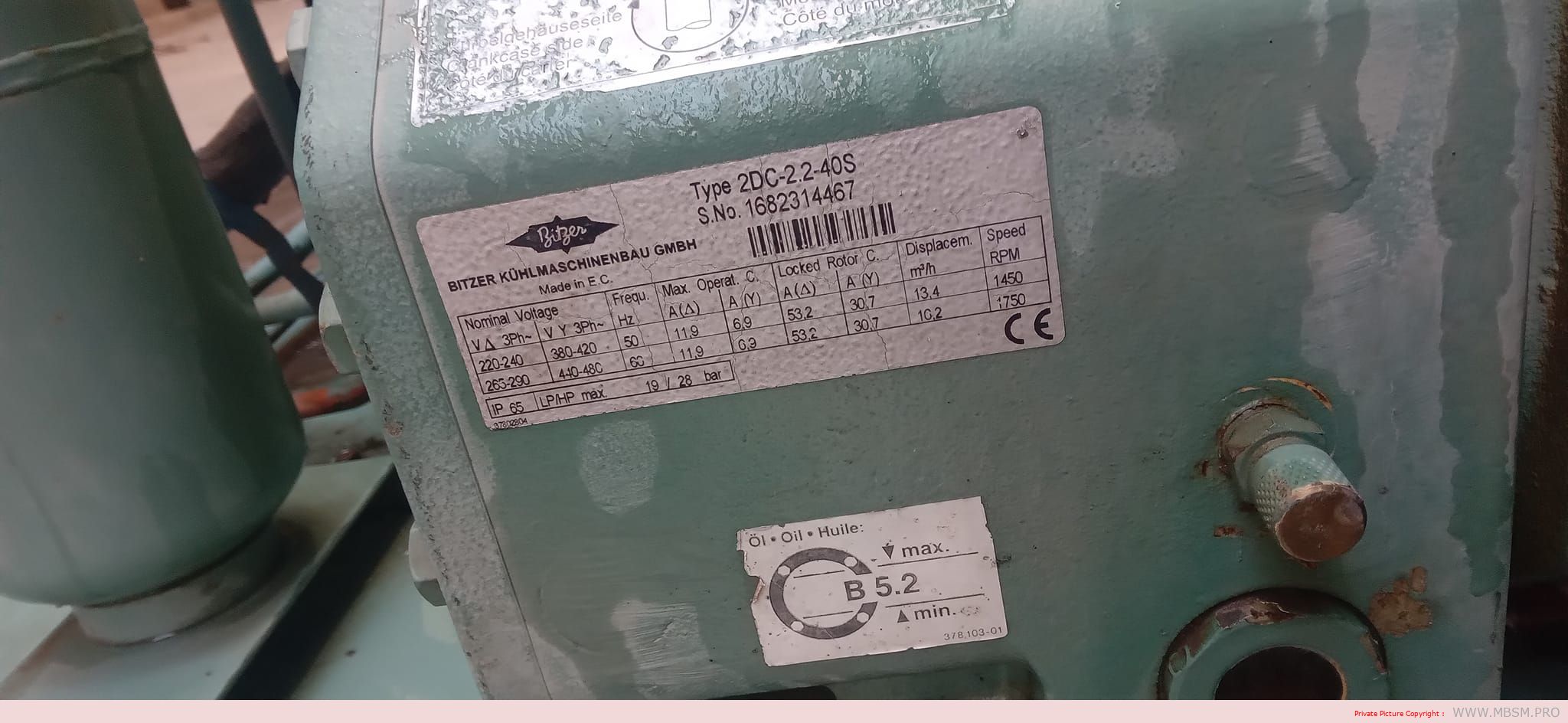

B itzer Semi-Hermetic Refrigeration Compressor 2DC-2.2Y-40S/2DES-2

Based on one technical concept, our semi-hermetic reciprocating compressors cover the entire spectrum of applications of conventional, chlorine-free HFC as well as natural refrigerants.They distinguish themselves by a robust valve plate design, a high quality and wear resistant drive gear, are easy-to-service and offer good speed control at minimum energy requirements as well as extremely smooth running. In addition, they incorporate an efficient, suction gas cooled integrated motor.

The OCTAGON series of compressors additionally excels by extremely compact dimensions and even further increased smooth running.

Model Cond temp. The Evaporation Temperature (R404/50HZ)
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
2KC-05.2Y 40 3850 3520 2920 2390 1940 1540 1200 900 650 435 255 1000
2JC-07.2Y 40 5180 4740 3950 3260 2660 2130 1680 1290 960 675 440 240
2HC-1.2Y 40 4090 3340 2700 2140 1650 1240 890 595 345
2HC-2.2Y 40 6620 6070 5060 4190 3430 2760 2190 1700 1270 915 610
2GC-2.2Y 40 7540 6910 5780 4790 3930 3190 2450 1990 1520 1110 775 490
2FC-2.2Y 40 5950 4900 3980 3190 2500 1920 1420 1000 650
2FC-3.2Y 40 9450 8670 7250 6020 4950 4010 3210 2520 1930 1420 1000
2EC-2.2Y 40 7270 5980 4860 3900 3060 2350 1750 1240 810
2EC-3.2Y 40 11620 10660 8930 7420 6100 4960 3970 3120 2390 1770 1250
2DC-2.2Y 40 8490 6980 5670 4530 3560 2720 2020 1420 920
2DC-3.2Y 40 13510 12390 10380 8610 7080 5750 4600 3610 2760 2040 1430
2CC-3.2Y 40 10510 8650 7040 5640 4440 3420 2550 1810 1200
2CC-4.2Y 40 16470 15110 12660 10520 8660 7050 5650 4450 3420 2540 1810
4FC-3.2Y 40 11560 9520 7740 6200 4880 3750 2790 1980 1310
4FC-5.2Y 40 18240 16740 14026 11650 9580 7790 6240 4900 3760 2790 1970
4EC-4.2Y 40 1440 11870 9650 7720 6070 4650 3450 2440 1590
4EC-6.2Y 40 23150 21250 17780 14750 12120 9840 7860 5160 4700 3470 2420
4DC-5.2Y 40 17650 14520 11810 9460 7440 5720 4250 3010 1980
4DC-7.2Y 40 27500 25200 21100 14790 14350 11630 9270 7250 5510 4040 2800
4CC-6.2Y 40 21100 17420 14200 11420 9030 6930 5240 3770 2540
4CC-9.2Y 40 32850 30150 25300 21100 17410 14210 11440 9050 7000 5250 3700
4VCS-6.2Y 40 22750 18670 15140 12090 9470 7230 5320 3720 2380
4VCS-10.2Y 40 36100 33100 27600 22850 18680 15070 11950 9260 6960 5000 3350
4TCS-8.2Y 40 27750 22800 18480 14760 11560 8830 3520 4580 2960
4TCS-12.2Y 40 43500 39580 33300 27550 22600 18260 14530 11320 8590 6270 4320
4PCS-10.2Y 40 32300 26500 21500 17130 13400 10220 7520 5240 3350
4PCS-15.2Y 40 52200 47850 39950 33050 27050 21850 17360 13490 10190 7390 5020
4NCS-12.2Y 40 37300 30600 24800 19810 15510 11840 8740 6120 3950
4NCS-20.2Y 40 60500 55400 46250 38200 31250 25200 20000 15530 11730 8510 5820
4J-13.2Y 40 42800 35250 28700 23000 18150 14000 10470 7500 5020
4J-22.2Y 40 67100 61500 51500 42700 35100 25800 22800 17870 13670 10110 7120
4H-15.2Y 40 49850 41150 33600 27100 21500 16730 12660 9420 6380
4H-25.2Y 40 77400 71000 59500 49400 409650 33000 26450 20800 19530 11800 8320
4G-20.2Y 40 57200 47300 38700 31200 24800 19250 14540 10540 7160
4G-30.2Y 40 98100 81800 68600 57000 47000 38250 30700 24200 18610 13860 9850
6J-22.2Y 40 63800 52600 42800 34350 27100 20900 15640 11210 7510
6J-33.2Y 40 101500 93000 77700 64300 52700 42600 33900 26400 20050 14640 10110
6H-25.2Y 40 74000 61600 50200 40400 31900 24700 18590 13440 9130
6H-35.2Y 40 116300 1E+06 89300 74100 60900 49450 39600 31100 23800 17670 12480
6G-30.2Y 40 84000 69300 56600 45500 36050 27900 21000 15130 10210
6G-40.2Y 40 133440 122400 102700 85400 70300 57300 46000 36300 28000 20900 14940
6F-40.2Y 40 100900 83100 67600 54300 42800 32950 24600 17570 11680
6F-50.2Y 40 157900 145000 121700 101300 83600 68300 55000 43600 3850 25600 18620
8GC-60.2Y 40 188400 173100 145400 121200 10000 81500 65400
8FC-70.2Y 40 223000 204900 172100 143500 118400 96500 77400
