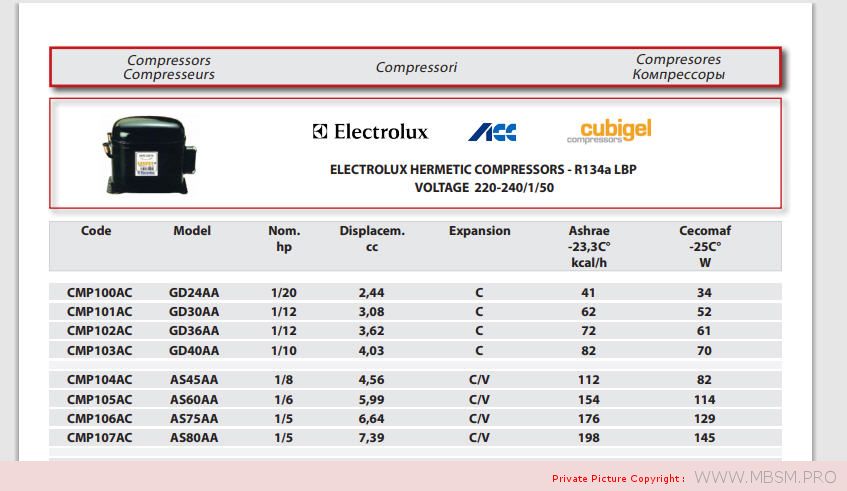

Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP100AC GD24AA 1/20 2,44 C 41 34
CMP101AC GD30AA 1/12 3,08 C 62 52
CMP102AC GD36AA 1/12 3,62 C 72 61
CMP103AC GD40AA 1/10 4,03 C 82 70
CMP104AC AS45AA 1/8 4,56 C/V 112 82
CMP105AC AS60AA 1/6 5,99 C/V 154 114
CMP106AC AS75AA 1/5 6,64 C/V 176 129
CMP107AC AS80AA 1/5 7,39 C/V 198 145
CMP108AC GL45AA 1/8 4,55 C 96 81
CMP109AC GL50AA 1/7 5,12 C 107 91
CMP110AC GL60AA 1/6 5,99 C 126 107
CMP111AC GL70AA 1/5 6,65 C 142 121
CMP112AC GL75AA 1/5 7,39 C 155 132
CMP113AC GL80AA 1/5 8,10 C 170 144
CMP114AC GL90AA 1/5 9,08 C 193 165
CMP115AC GL99AA 1/4 9,93 C 205 175
CMP116AC GP12FB 1/3 12,00 C/V 225 190
CMP117AC GP14FB 3/8 14,00 C/V 270 228
CMP118AC GP16FB 3/8 16,14 C/V 315 266
CMP119AC GP18FB 3/7 18,40 C/V 345 291
CMP120AC GP21FB 2/3 20,72 C/V 415 351
CMP121AC GVY35AA 1/10 3,36 C/V 84 62
CMP122AC GVY40AA 1/9 3,87 C/V 107 79
CMP123AC GVY44AA 1/8 4,38 C/V 122 91
CMP124AC GVY57AA 1/7 5,73 C/V 150 109
CMP125AC GVY66AA 1/5 7,00 C/V 181 132
CMP126AC GVY75AA 1/5 7,52 C/V 205 150
CMP127AC GQY35AA 1/10 3,66 C/V 91 67
CMP128AC GQY40AA 1/9 4,01 C/V 104 76
CMP129AC GQY45AA 1/8 4,56 C/V 121 90
CMP130AC GQY55AA 1/7 5,46 C/V 148 109
CMP131AC GQY60AA 1/6 5,99 C/V 162 119
CMP132AC GQY70AA 1/5 6,64 C/V 179 132
CMP133AC GQY75AA 1/5 7,39 C/V 200 148
CMP134AC GQY80AA 1/5 8,10 C/V 222 165
CMP135AC GQY90AA 1/4 9,05 C/V 251 188
CMP136AC GVM40AA – 3,87 – 107 79
Compressors
Compresseurs
Compresores
Компрессоры Compressori
ELECTROLUX HERMETIC COMPRESSORS – R134a LBP
VOLTAGE 220-240/1/50
Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP137AC GVM57AA – 5,73 – 153 113
CMP138AC GVM66AA – 7,00 – 181 133

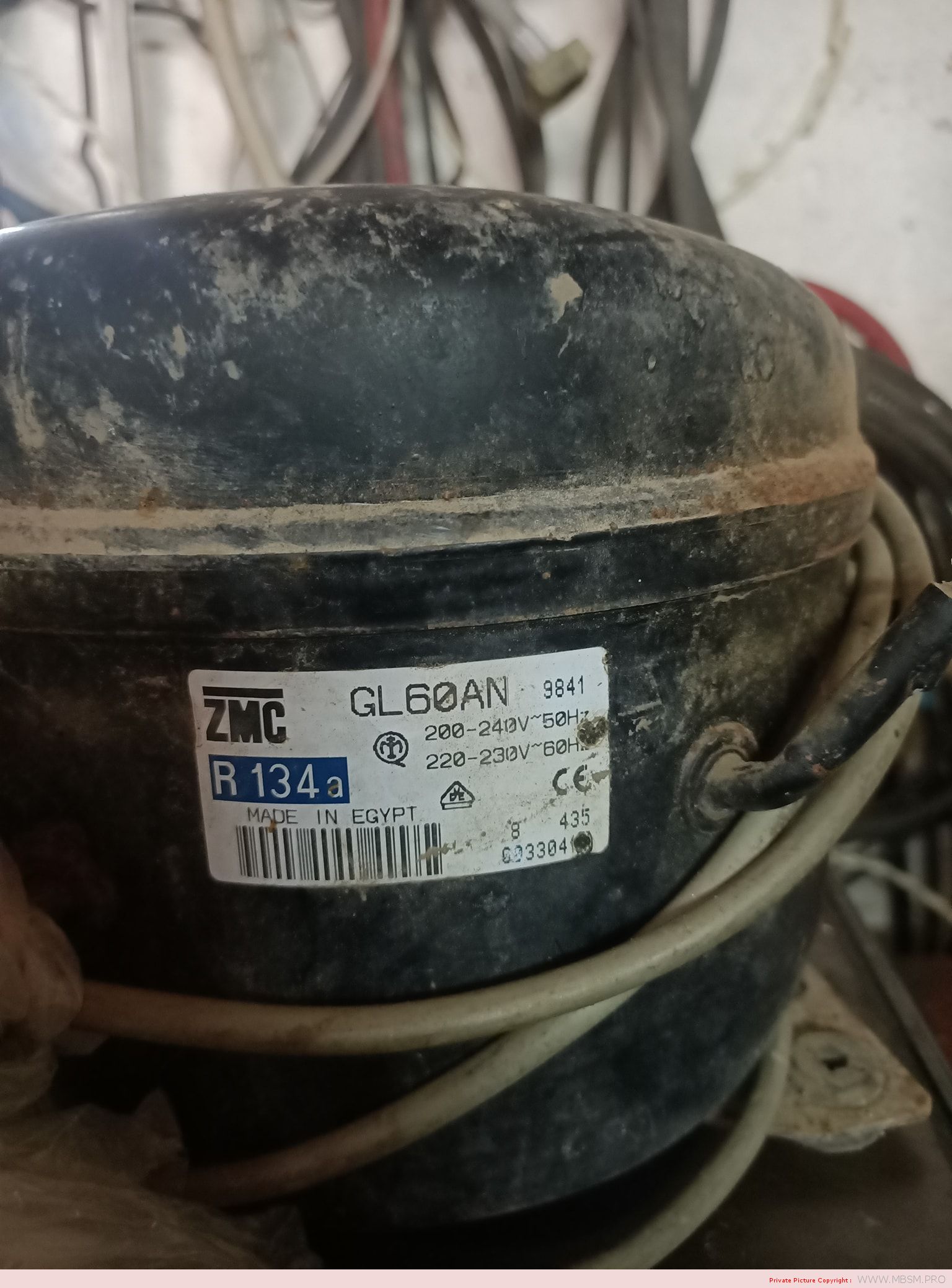

CMP139AC GL45AN 1/8 4,55 C 110 93
CMP140AC GL60AN 1/6 5,99 C 153 131
CMP141AC GL70AN 1/5 6,65 C 151 129
CMP142AC GL80AN 1/5 8,10 C 174 148
CMP143AC GL90AN 1/4 9,08 C 191 163
