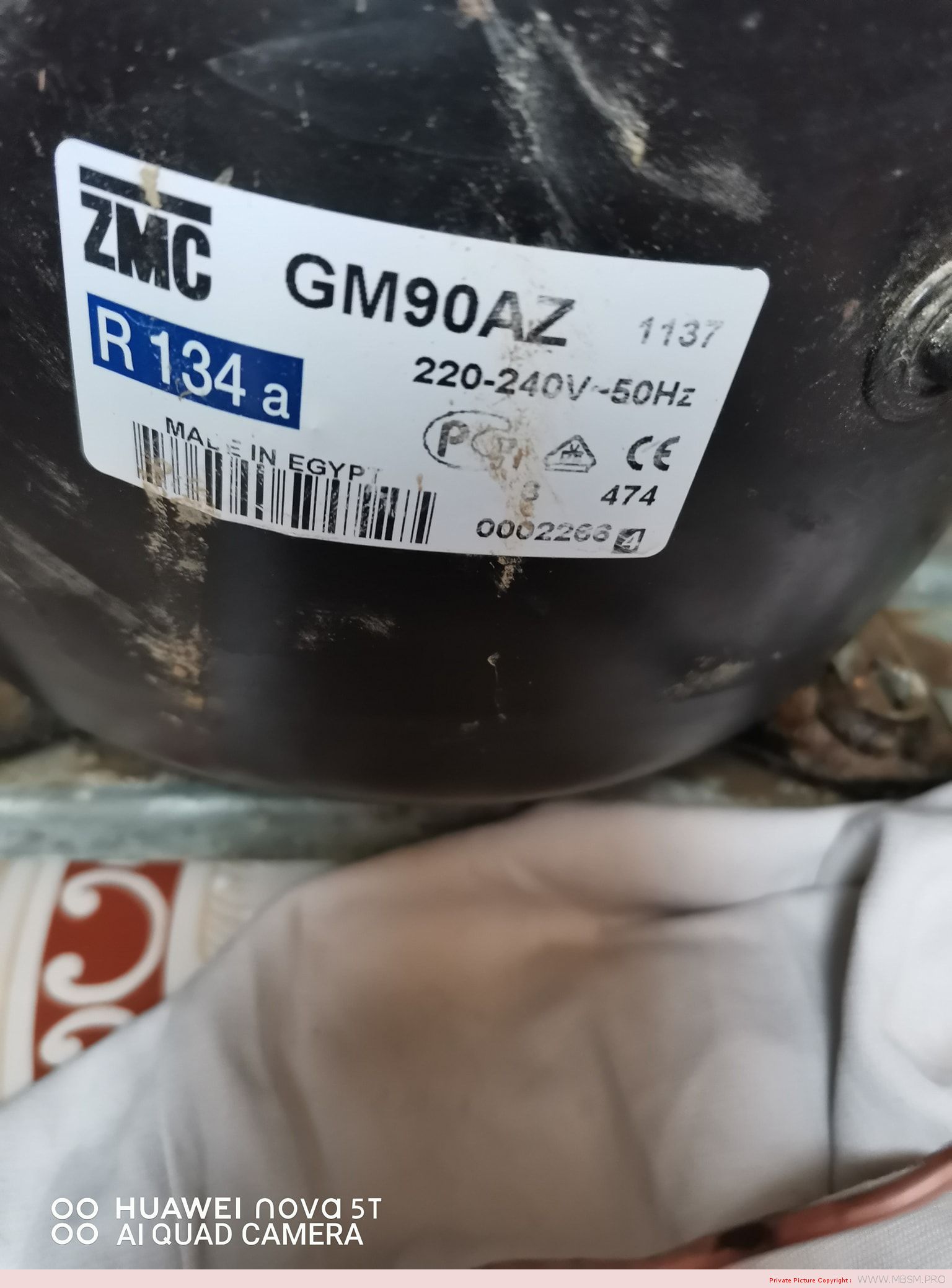

COMPRESSOR TECHNICAL DATA
General Data
| Refrigerant: | R134a |
| Application: | LBP |
| Evaporating Temperature Range: | -30°C to -10°C |
| Voltage/Frequency: | 220/240V/50 HZ |
| Compressor Cooling: | Static |
| Expansion Device: | Capillary Tube |
| Packaging Quantity: | Multi – 96:120 pcs |
| Approvals: | CE-VDE-GOST |
Mechanical Data
| Oil Charge: | 300 cm3 |
| Oil Type Configuration: | ester |
| Oil Type Viscosity: | 19 cSt |
| Weight: | 10 kg |
Electrical Data
| Motor Type: | RSIR / RSCR* |
| Voltage working range at 50 Hz: | 187-264V |
| Maximum Motor Temperature: | 130°C |
| Locked Rotor Current: | 14.46 / 9.86 A |
| Start Winding Resistance: | 23.40Ω at 25°C |
| Run Winding Resistance: | 8.08 Ω at 25°C |
| Phase: | 1 ph |
External Characteristics
| Internal Diameter | (mm) |
| Suction Connector | 6.5 |
| Discharge Connector | 4.9 |
| Process Connector | 6.5 |
| Material | Copper |
Electrical Components
| Starting Device: | PTC 14Ω |
| Motor Protection: | T0490/xx |
