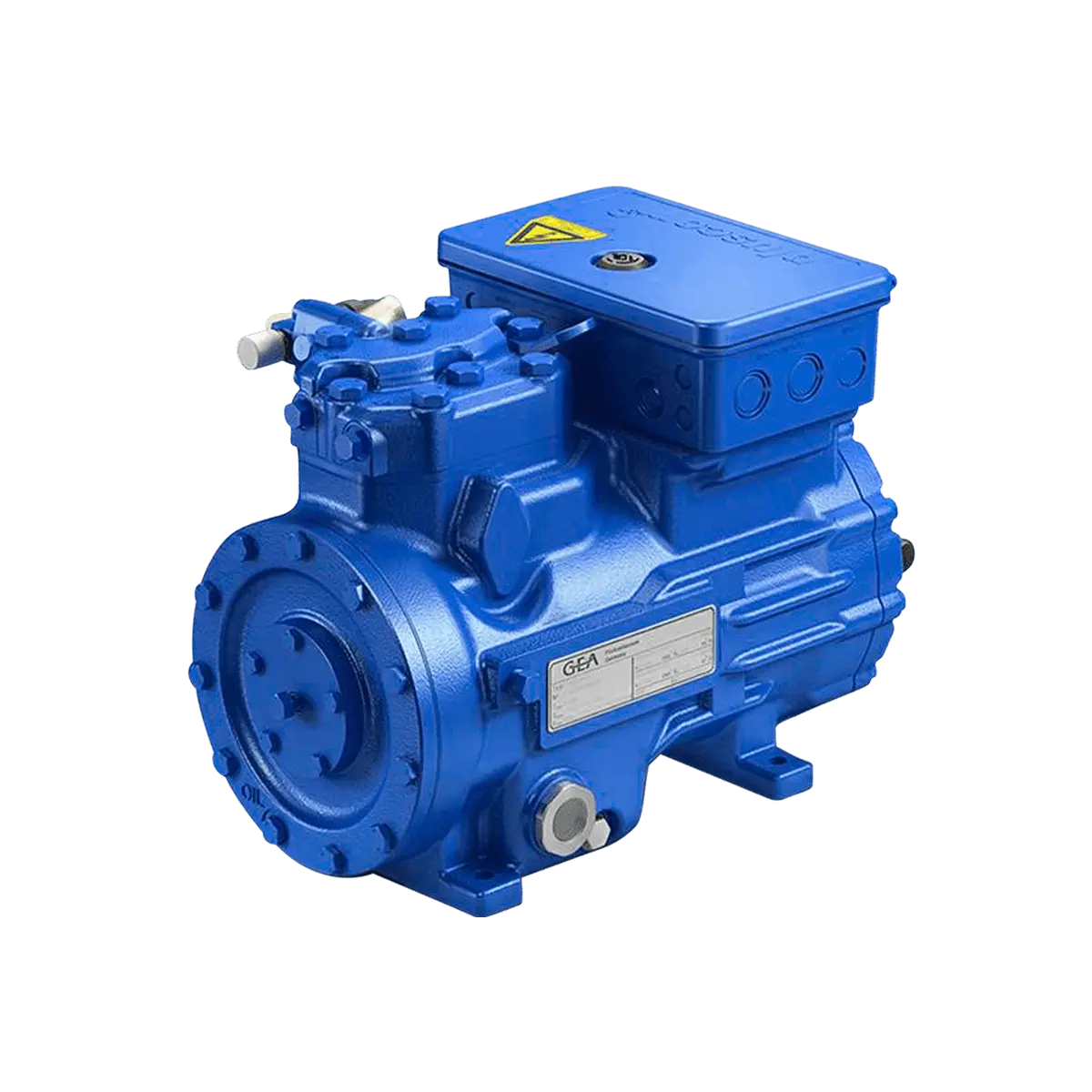

HGX12P/75-4, R410A, compressor, semi-hermétique, BOCK, 25,0 hp

20 December 2021

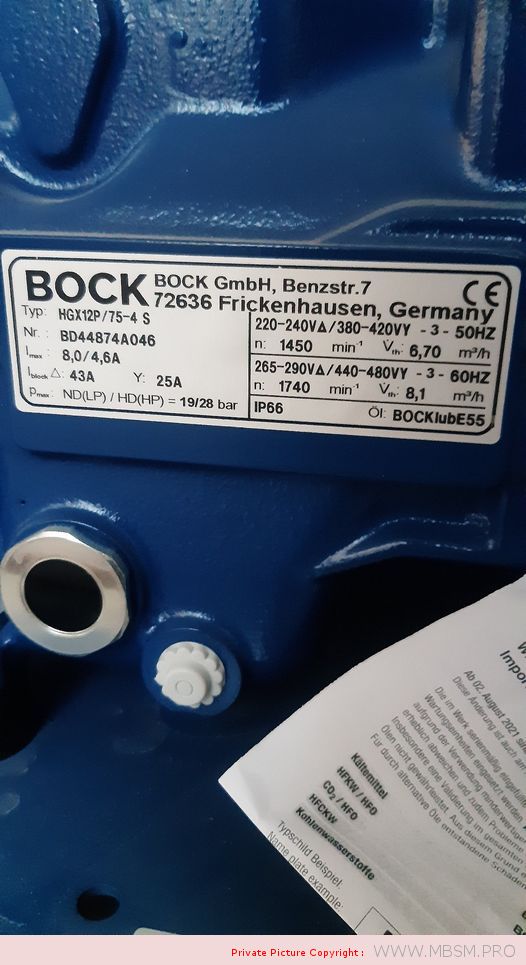

HGX12P/75-4 R410A

Power supply	220/240 V-380/420 V-50 Hz-3 ph (265/290 V-440/480 V-60 Hz-3 ph) Δ Y
Horsepower	25,0 hp
Displacement	6,70 m3
Cooling capacity at Refrigeration conditions, R407C	3,39 kW
Cooling capacity at Refrigeration conditions, R404A	3,97 kW
Refrigerant	R134a, R404A, R407C, R407F, R448A, R449A, R507, R513A
Suction pipe	5/8″
Discharge pipe	1/2″
Weight	49 kg
LRA (Δ/y)	43/25 A
MCC (Δ/y)	8,0/4,6 A
Type of oil	FUCHS Reniso Triton SE 55
Other remarks	Available in ATEX version, Electronic frequency control (30-70 Hz), Equipped with oil pump without connections to the differential oil pressure switch
Accessories	Control Capacity 50/100%, Crankcase heater 50-120 W, Thermal protection thermostat (PTC sensor)
Application	MHBP
Technology	Fixed speed
Lubrication mode	Oil pump
Low pressure design	19 bar
High pressure design	28 bar
Type of motor cooling	Suction gas
Protection type	IP 66
Motor protection type	INT69 G
Speed	1450 rpm

Number of cylinders / Bore / Stroke	2 / 38 mm / 34 mm
Displacement 50/60 Hz (1450/1740 ¹/min)	6,70 / 8,10 m³/h
Voltage ¹⁾	220-240V Δ / 380-420V Y -3- 50Hz
	265-290V Δ / 440-480V Y -3- 60Hz
Max. working current ²⁾	7.1 / 4.1 A
Max. power consumption ²⁾	2.3 kW
Starting current (rotor blocked) ²⁾	40.0 / 23.0 A
Motor protection	INT69 G
Protection terminal box	IP 66
Weight	49 kg
Max. permissible pressure (LP/HP) ³⁾	19 / 28 bar
Connection suction line SV	16 mm – 5/8 “
Connection discharge line DV	12 mm – 1/2 “
Lubrication	Oil pump
Oil type R290, R600a, R1270	FUCHS Reniso SYNTH 68
Oil charge	0,8 Ltr.
Dimensions Length / Width / Height	411 / 223 / 280 mm

¹⁾
