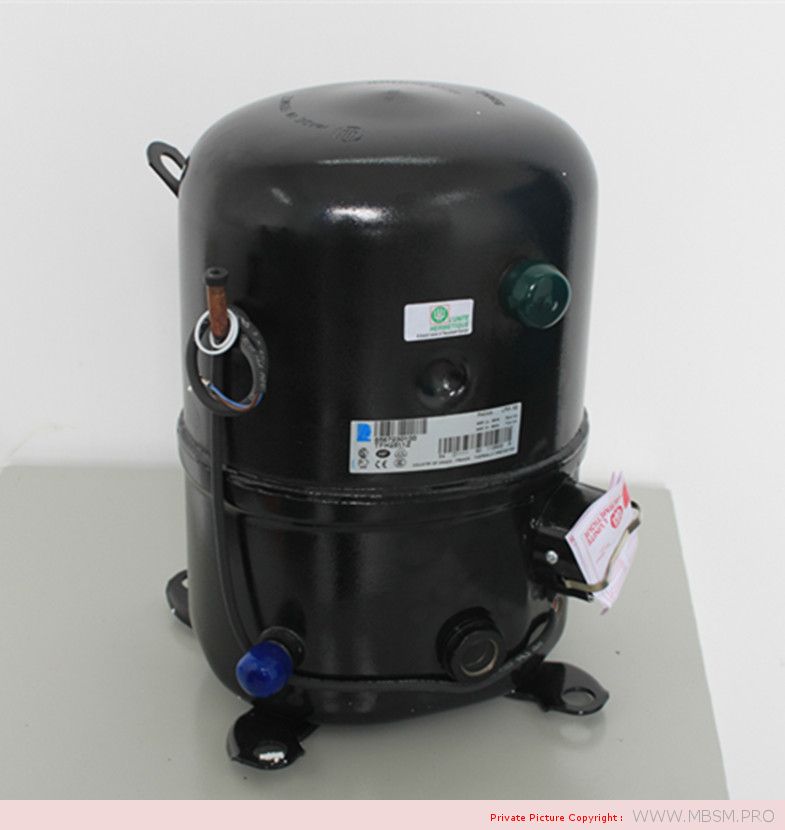

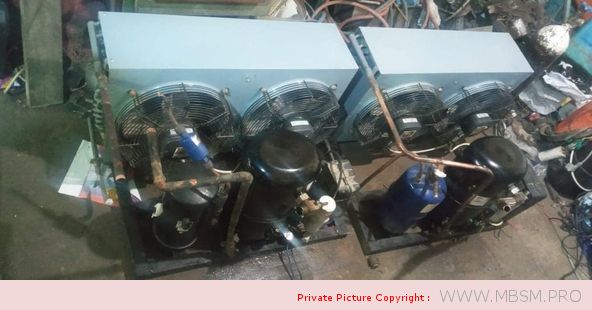

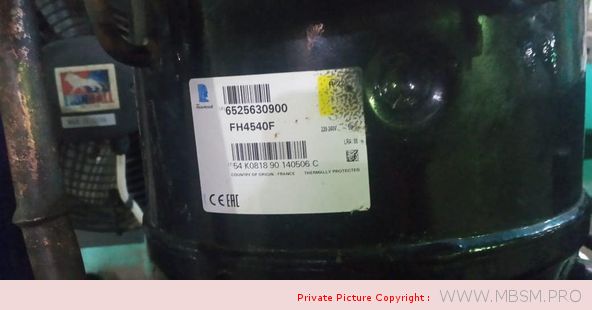

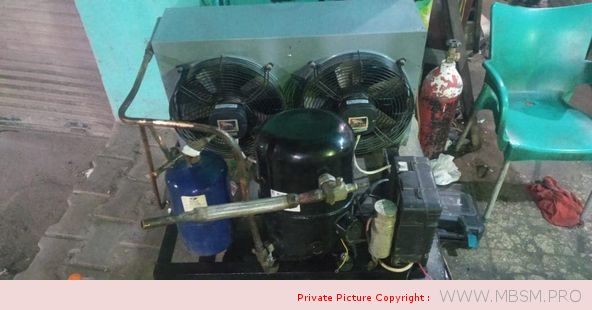

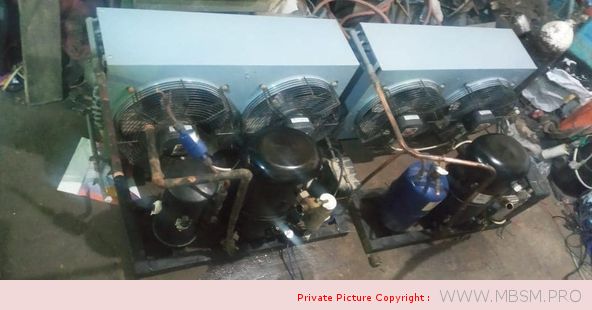

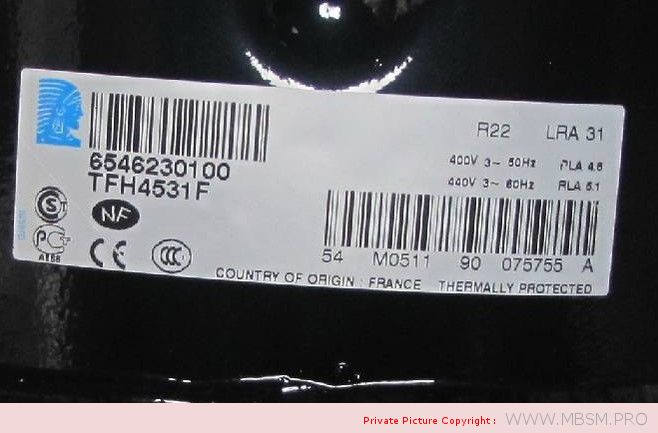

Mbsm.pro, TECUMSEH, Compressor, Condensing, Units, AHC4540EFZ, FH4540F, FH4524F, FH4528F, FH4531F, FH4540F, R22, 3-1/2 HP, hbp, CSR, 220V ~ 50HZ

15 January 2022
 |  No Comments
image_pdfimage_print

Performance

ConditionTest Voltage(R) Btu/h(R) kcal/h(R) W(I) W(E) Btu/Wh(E) kcal/WhW/WEVAP TEMPCOND TEMPAMBIENT TEMPRETURN GASLIQUID TEMP
EN12900220V ~ 50HZ314607927921735808.782.212.575°C (41°F)50°C (122°F)32°C (90°F)20°C (68°F)50°C (122°F)

General

Evaporating Temp. Range:-6.7°C to 12.8°C (20°F to 55°F)
Motor Torque:High Start Torque (HST)
Compressor Cooling:Fan

Mechanical

Weight:37
Weight Unit of Measure:KG
Displacement (cc):74.25
Oil Type:Polyolester
Viscosity (cSt):32
Oil Charge (cc):1480

Electrical

Voltage Range (50 Hz):198-253
Voltage Range (60 Hz):N/A
Locked Rotor Amps (LRA):94
Rated Load Amps (RLA 50 Hz):18.6
Rated Load Amps (RLA 60 Hz):0
Max. Continuous Current (MCC in Amps):30.5
Motor Resistance (Ohm) – Main:.6
Motor Resistance (Ohm) – Start:3
MotorType:CSR
Overload Type:N/A
Relay Type:N/A

Agency Approval

R134a, Room Temperature -25℃~10℃

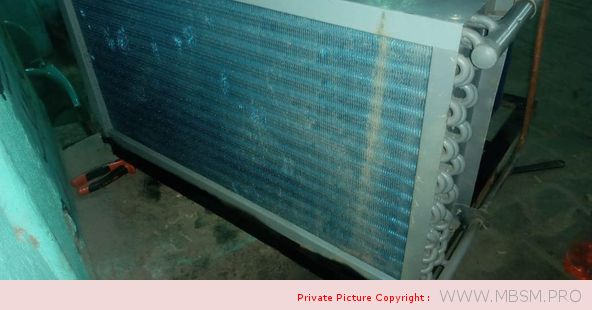

Unit Model Compressor Condenser
ModelCapacity (HP)Power Qty*Dia Air Flow (m³/h)Fan Power (W) Fan Voltage
CE-THB4410YTHB4410Y1/8220-240V/1/50HZ1*φ20056038220V
CE-THB4413YTHB4413Y1/4220-240V/1/50HZ1*φ20056038220V
CE-THB4415YTHB4415Y1/6220-240V/1/50HZ1*φ20056038220V
CE-THB4419YTHB4419Y1/5220-240V/1/50HZ1*φ20056038220V
CE-THB4422YTHB4422Y1/5220-240V/1/50HZ1*φ20056038220V
CE-AE4425YAE4425Y1/5220-240V/1/50HZ1*φ20056038220V
CE-AE4430YAE4430Y1/4220-240V/1/50HZ1*φ20056038220V
CE-AE4440YAE4440Y1/3220-240V/1/50HZ1*φ20056038220V
CE-AE4450YAE4450Y3/8220-240V/1/50HZ1*φ20056038220V
CE-AE4456YAE4456Y7/16220-240V/1/50HZ1*φ20056038220V
CE-AE4460YAE4460Y1/2220-240V/1/50HZ1*φ20056038220V
CE-CAJ4452YCAJ4452Y3/7220-240V/1/50HZ1*φ20056038220V
CE-CAJ4461YCAJ4461Y1/2220-240V/1/50HZ1*φ250115065220V
CE-TAJ4461YCTAJ4461Y1/2400V/3/50HZ1*φ250115070380V
CE-CAJ4476YCAJ4476Y5/8220-240V/1/50HZ1*φ3002100115220V
CE-CAJ4492YCAJ4492Y3/4220-240V/1/50HZ1*φ3002100115220V
CE-TAJ4492YTAJ4492Y3/4400V/3/50HZ1*φ3002150120380V
CE-CAJ4511YCAJ4511Y1220-240V/1/50HZ1*φ3502980138220V
CE-TAJ4511YTAJ4511Y1400V/3/50HZ1*φ3502980138380V
CE-CAJ4513YCAJ4513Y1-1/8220-240V/1/50HZ1*φ3502980138220V
CE-FH4518YFH4518Y1-1/2220-240V/1/50HZ1*φ3502980138220V
CE-TFH4518YTFH45181-1/2400V/3/50HZ1*φ3503110145380V
CE-FH4525YFH4525Y2220-240V/1/50HZ1*φ3502980138220V
CE-TFH4525YTFH4525Y2400V/3/50HZ1*φ3503110145380V
CE-TAG4528YTAG4528Y2-1/2400V/3/50HZ1*φ4003900190380V
CE-TAG4534YTAG4534Y2-1/2400V/3/50HZ1*φ4003900190380V
CE-TAG4537YTAG4537Y3-1/4400V/3/50HZ1*φ4003900190380V
CE-TAH4543YTAG4543Y3-1/2400V/3/50HZ2*φ3506220290380V

R404A, Room Temperature -25℃~10℃

Unit Model Compressor Condenser
ModelCapacity (HP)Power Qty*Dia Air Flow (m³/h)Fan Power (W) Fan Voltage
CE-FH4522ZFH4522Z2220-240V/1/50HZ1*φ3502980138220V
CE-TFH4522ZTFH4522Z2400V/3/50HZ1*φ3502980138380V
CE-FH4524ZFH4524Z2220-240V/1/50HZ1*φ3502980138220V
CE-TFH4524ZTFH4524Z2400V/3/50HZ1*φ3502980138380V
CE-FH4531ZFH4531Z2-3/4220-240V/1/50HZ2*φ3505960276220V
CE-TFH4531ZTFH4531Z2-3/4400V/3/50HZ2*φ3505960276380V
CE-FH4540ZFH4540Z3-1/2220-240V/1/50HZ2*φ3505960276220V
CE-TFH4540ZTFH4540Z3-1/2400V/3/50HZ2*φ3505960276380V
CE-TAG4546ZTAG4546Z4400V/3/50HZ2*φ3505960276380V
CE-TAG4553ZTAG4553Z4-1/2400V/3/50HZ2*φ4007800380380V
CE-TAG4561ZTAG4561Z5400V/3/50HZ2*φ4007800380380V
CE-TAG4568ZTAG4568Z6400V/3/50HZ2*φ4007800380380V
CE-TAG4573ZTAG4573Z6400V/3/50HZ2*φ4007800380380V
CE-TAG4581ZTAG4581Z6-3/4400V/3/50HZ2*φ4007800380380V

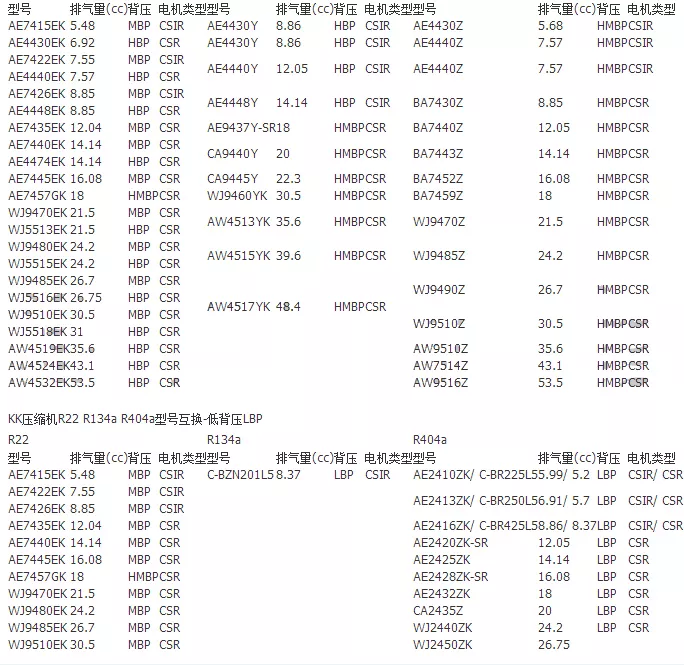

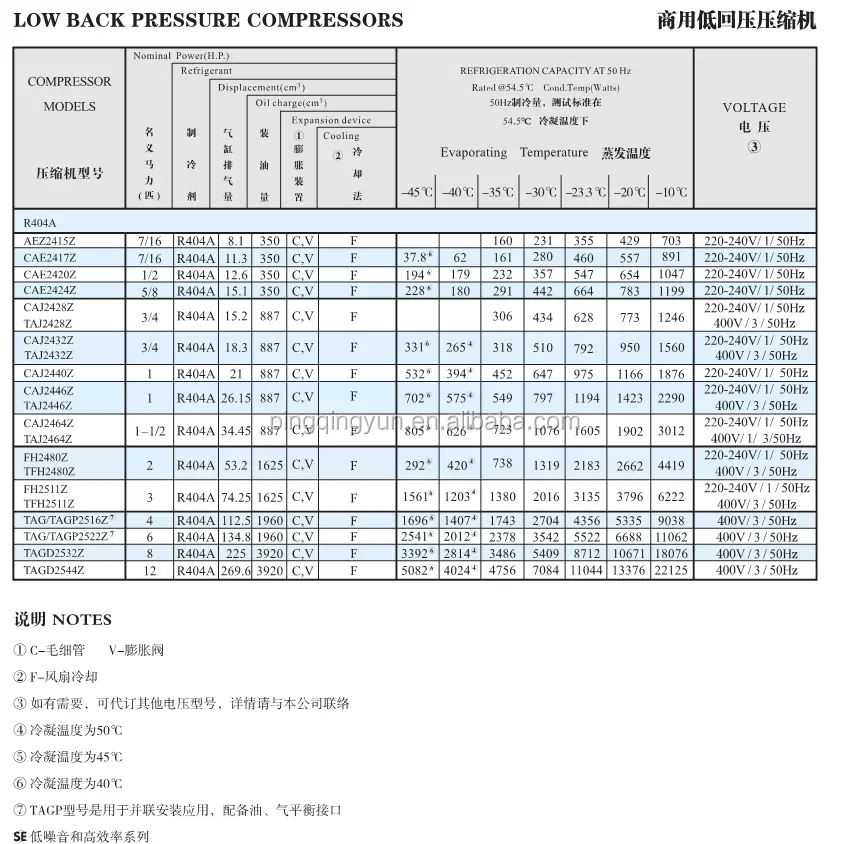

R404A, Room Temperature -30℃~ -10℃

Unit Model Compressor Condenser
ModelCapacity (HP)Power Qty*Dia Air Flow (m³/h)Fan Power (W) Fan Voltage
CE-THB2360ZTHB2360Z1/5220-240V/1/50HZ1*φ3502980138220V
CE-THB2378ZTHB2378Z1/5220-240V/1/50HZ1*φ20045529220V
CE-THB2396ZTHB2396Z1/5220-240V/1/50HZ1*φ20045529220V
CE-AE2410ZAE2410Z1/4220-240V/1/50HZ1*φ20045529220V
CE-AE2415ZAE2415Z3/8220-240V/1/50HZ1*φ20045529220V
CE-AE2420ZAE2420Z1/2220-240V/1/50HZ1*φ250100070220V
CE-AE2425ZAE2425Z5/8220-240V/1/50HZ1*φ300166485220V
CE-TYA2431ZKSTYA2431ZKS1220-240V/1/50HZ1*φ300166485220V
CE-TYA2438ZKSTYA2438ZKS1-1/4220-240V/1/50HZ1*φ3502980138220V
CE-TYA2431ZKSTYA2431ZKS1-1/3220-240V/1/50HZ1*φ3502980138220V
CE-CAJ2428ZCAJ2428Z3/4220-240V/1/50HZ1*φ3002100115220V
CE-TAJ2428ZTAJ2428Z3/4400V/3/50HZ1*φ3002150120380V
CE-CAJ2432ZCAJ2432Z3/4220-240V/1/50HZ1*φ3002100115220V
CE-TAJ2432ZTAJ2432Z3/4400V/3/50HZ1*φ3002150120380V
CE-CAJ2440ZCAJ2440Z1220-240V/1/50HZ1*φ3002100115220V
CE-CAJ2446ZCAJ2446Z1220-240V/1/50HZ1*φ3002100115380V
CE-TAJ2446ZTAJ2446Z1400V/3/50HZ1*φ3002150120220V
CE-CAJ2464ZCAJ2464Z1-1/2220-240V/1/50HZ1*φ3502980138380V
CE-TAJ2464ZTAJ2464Z1-1/2400V/3/50HZ1*φ3503110145220V
CE-FH2480ZFH2480Z2220-240V/1/50HZ1*φ3502980138220V
CE-TFH2480ZTFH2480Z2400V/3/50HZ1*φ3503110145380V
CE-FH2511ZFH2511Z3220-240V/1/50HZ2*φ3505960276220V
CE-TFH2511ZTFH2511Z3400V/3/50HZ2*φ3506220290380V
CE-TAG2513ZTAG2513Z3-1/4400V/3/50HZ2*φ3506220290380V
CE-TAG2516ZTAG2516Z4400V/3/50HZ2*φ3506220290380V
CE-TAG2522ZTAG2522Z6400V/3/50HZ2*φ4007800380380V
CE-TAG2525ZTAG2525Z6-1/4400V/3/50HZ2*φ4007800380380V

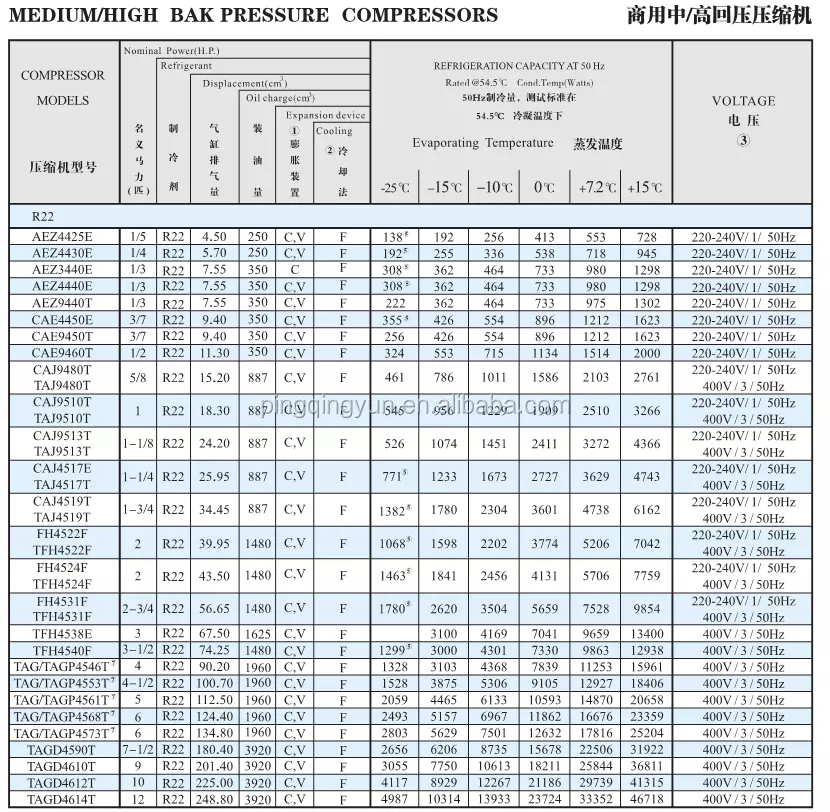

R22, Room Temperature -25℃~10℃

Unit Model Compressor Condenser
ModelCapacity (HP)Power Qty*Dia Air Flow (m³/h)Fan Power (W) Fan Voltage
CE-AE4425EAE4425E1/5220-240V/1/50HZ1*φ20045529220V
CE-AE4430EAE4430E1/4220-240V/1/50HZ1*φ20045529220V
CE-AEZ4440EAEZ4440E1/3220-240V/1/50HZ1*φ20045529220V
CE-CAE4450ECAE4450E7/16220-240V/1/50HZ1*φ250100070220V
CE-CAE4460ECAE4460E1/2220-240V/1/50HZ1*φ250100070220V
CE-CAJ9480TCAJ9480T5/8220-240V/1/50HZ1*φ3002100115220V
CE-TAJ9480TTAJ9480T5/8400V/3/50HZ1*φ3002150120380V
CE-CAJ9510TCAJ9510T1220-240V/1/50HZ1*φ3002100115220V
CE-TAJ9510TTAJ9510T1400V/3/50HZ1*φ3002150120380V
CE-CAJ9513TCAJ9513T1-1/8220-240V/1/50HZ1*φ3502980138220V
CE-TAJ9513TTAJ9513T1-1/8400V/3/50HZ1*φ3503110145380V
CE-CAJ4517ECAJ4517E1-1/4220-240V/1/50HZ1*φ3502980138220V
CE-TAJ4517TTAJ4517T1-1/4400V/3/50HZ1*φ3503110145380V
CE-CAJ4519TCAJ4519T1-3/4220-240/1/50HZ1*φ3502980138220V
CE-TAJ4519TTAJ4519T1-3/4400V/3/50HZ1*φ3503110145380V
CE-FH4522FFH4522F2220-240V/1/50HZ1*φ4003900180220V
CE-TFH4522FTFH4522F2400V/3/50HZ1*φ4003900190380V
CE-FH4524FFH4524F2220-240V/1/50HZ1*φ4003900180220V
CE-TFH4524FTFH4524F2400V/3/50HZ1*φ4003900190380V
CE-FH4531FFH4531F2-3/4220-240V/1/50HZ1*φ4003900180220V
CE-TFH4531FTFH4531F2-3/4400V/3/50HZ1*φ4003900190380V

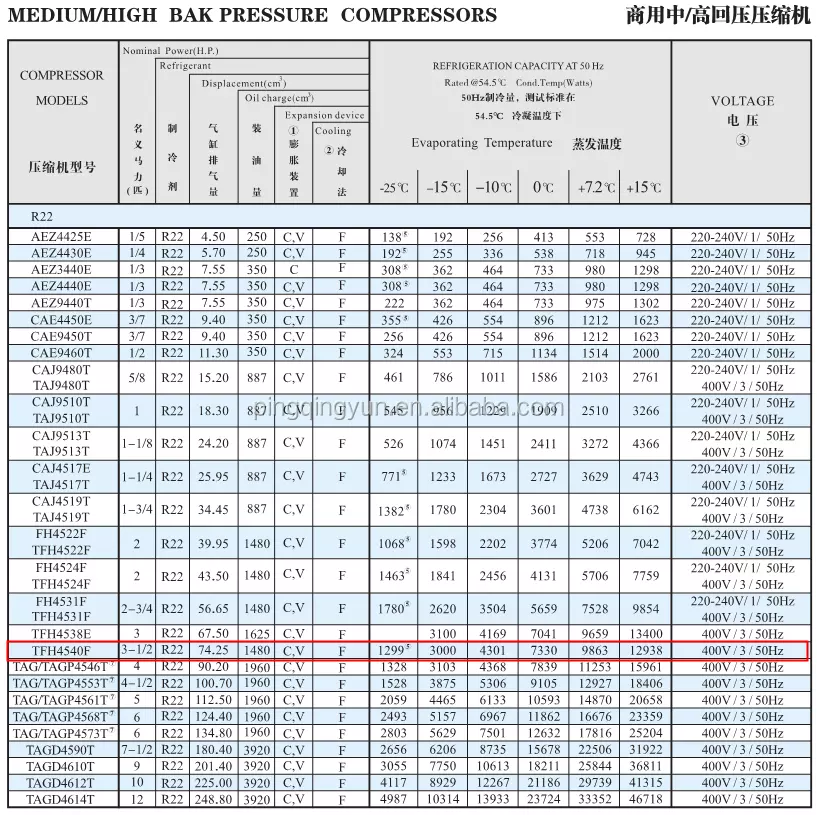

CE-FH4540FFH4540F3-1/2220-240V/1/50HZ2*φ3505960276220V
CE-TFH4540FTFH4540F3-1/2400V/3/50HZ2*φ3506220290380V
CE-TAG4546TTAF4546T4400V/3/50HZ2*φ4007800380380V
CE-TAG4553TTAF4553T4-1/2400V/3/50HZ2*φ4007800380380V
CE-TAG4561TTAG4561T5400V/3/50HZ2*φ4007800380380V
CE-TAG4568TTAG4568T6400V/3/50HZ2*φ4007800380380V
CE-TAG4573TTAF4573T6400V/3/50HZ2*φ4007800380380V
CE-AJ5512EAJ5512E1220-240V/1/50HZ1*φ300166485220V
CE-AJ5515EAJ5515E1-1/4220-240V/1/50HZ1*φ3502980138220V
CE-TAJ5515ETAJ5515E1-1/4400V/3/50HZ1*φ3503110145380V
CE-AJ5519EAJ5519E1-1/2220-240V/1/50HZ1*φ3502980138220V
CE-TAJ5519ETAJ5519E1-1/2400V/3/50HZ1*φ3503110145380V
CE-FH5524EFH5524E2220-240V/1/50HZ1*φ4003900180220V
CE-TFH5524ETFH5524E2400V/3/50HZ1*φ4003900190380V
CE-FH5531EFH5531E2-3/4220-240V/1/50HZ1*φ4003900180220V
CE-TFH5531ETFH5531E2-3/4400V/3/50HZ1*φ4003900190380V
CE-FH5540EFH5540E3-1/3220-240V/1/50HZ2*φ3505960276220V
CE-TFH5540ETFH5540E3-1/3400V/3/50HZ2*φ3506220290380V
CE-TAG5546ETAG5546E3-5/6400V/3/50HZ2*φ4007800380380V
CE-TAG5553ETAG5553E4-1/2400V/3/50HZ2*φ4007800380380V
CE-TAG5561ETAG5561E5400V/3/50HZ2*φ4007800380380V
CE-TAG5568ETAG5568E5-2/3400V/3/50HZ2*φ4007800380380V
CE-TAG5573ETAG5573E6400V/3/50HZ2*φ4007800380380V

　　
