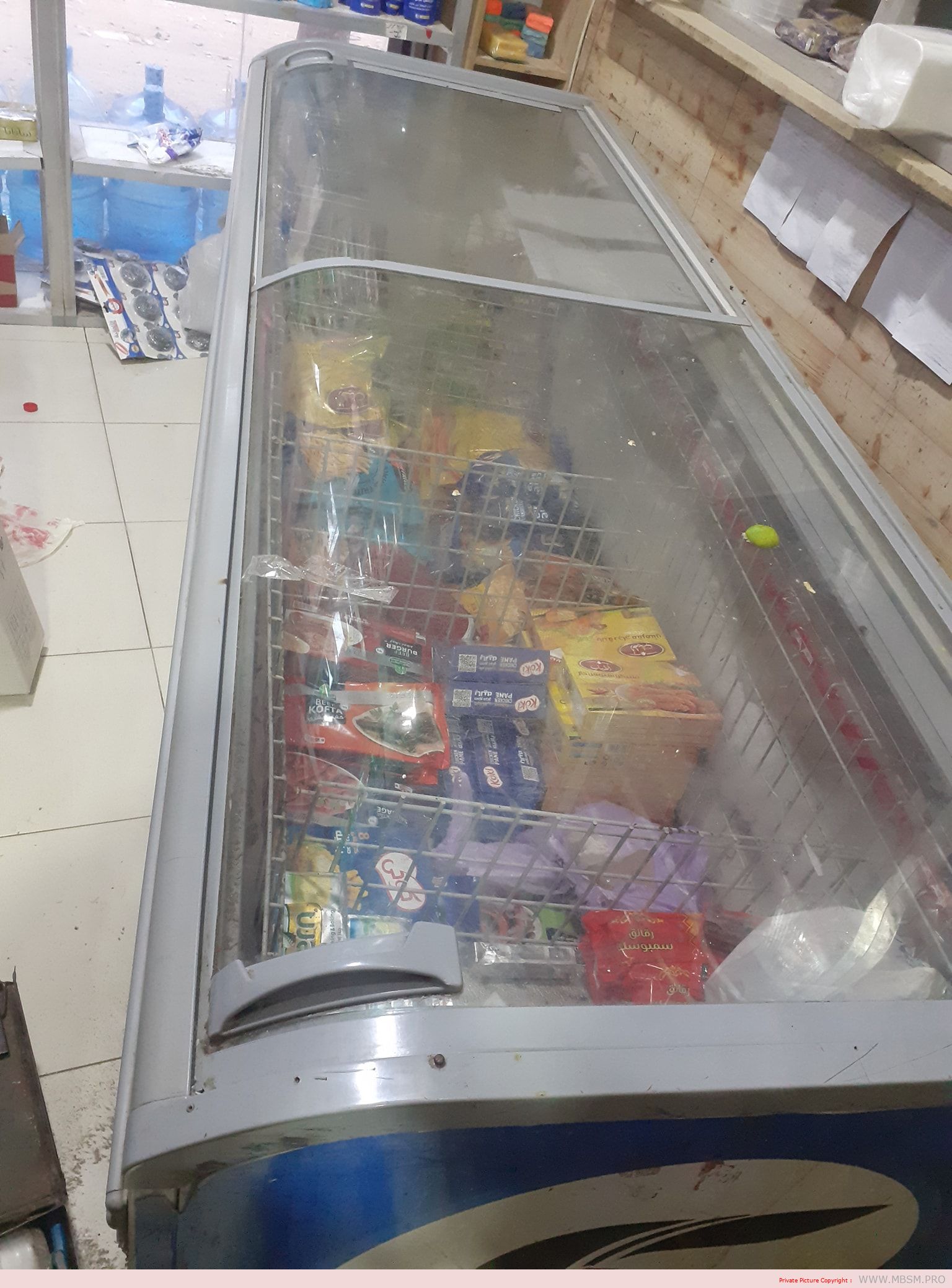

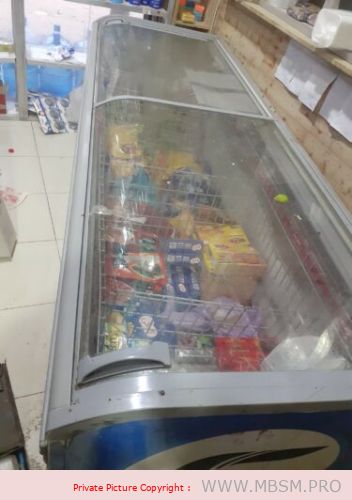

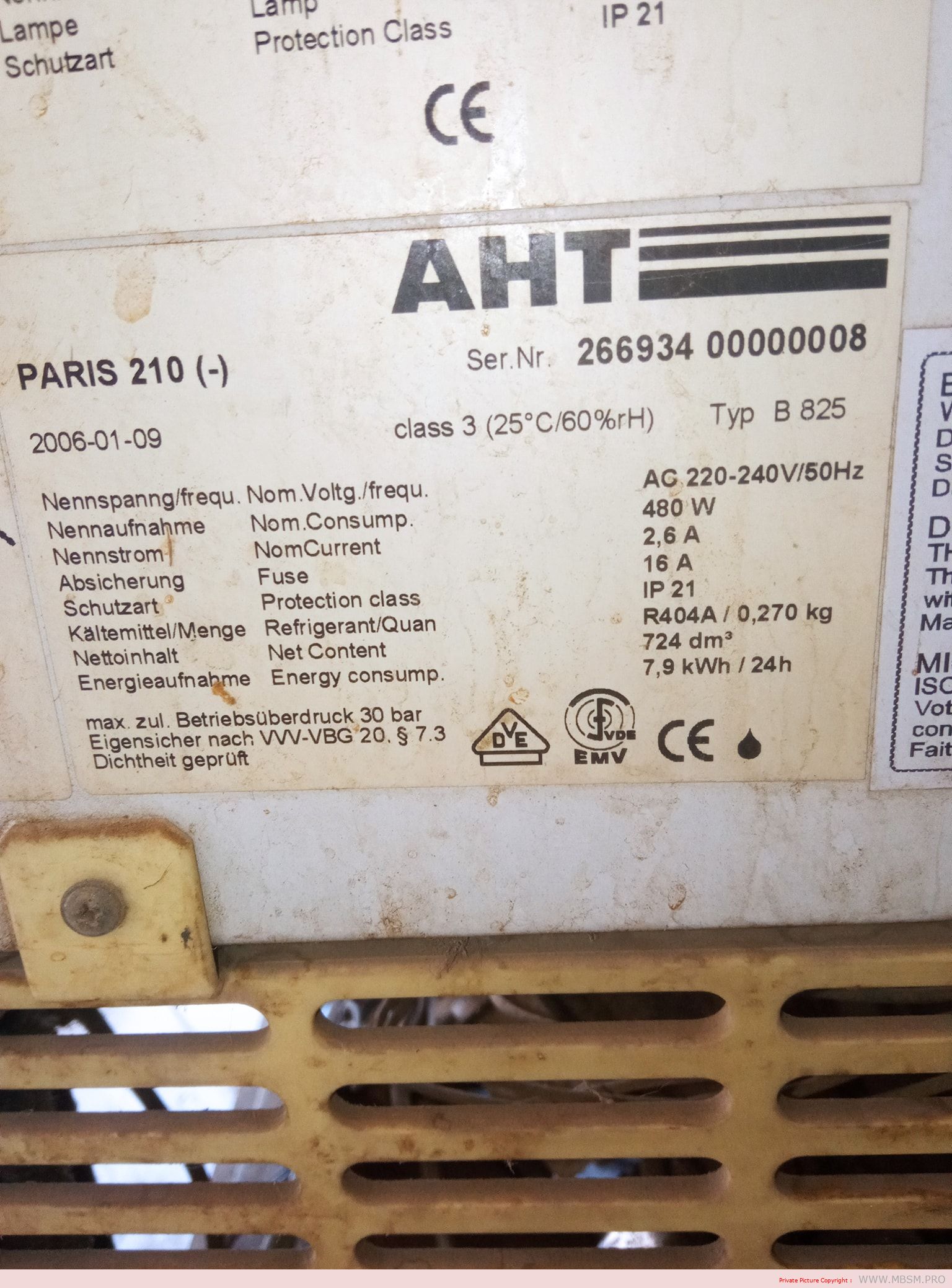

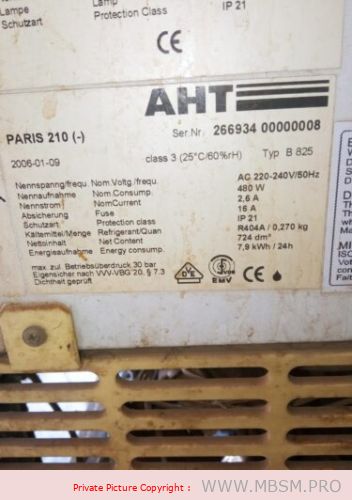

Mbsm.pro, Compressor, 7/8 HP, R404A, Secop ,Commercial Freezer, Sc21cl, 104L2322, Sc21cl104L2322, 104L2322, 104L 2322, LBP, 2322

14 February 2022
 |  No Comments
image_pdfimage_print
Model Gas HP Voltage Code Details
SC10C R22 1/3 1ph/220V-240/50HZ 104L2516 MLBP HST
SC12C R22 3/8 1ph/220-240V/50HZ 104L2674 MLBP HST
SC15CM R22 1/2 1ph/220V-240V/50HZ 104L2848 MLBP HST
SC18CM R22 5/8 1ph/220-240V/50HZ 104L2120 MLBP HST
SC10D  R22 3/8 1ph/220-240V/50HZ 104L2529 MHBP HST
SC12D R22 1/2 1ph/220-240V/50HZ 104L2694 MHBP HST
SC15D R22 5/8 1ph/220-240V/50HZ 104L2859 MHBP HST
SC10CL R404A 1/3 1ph/220-240V/50HZ 104L2523 LMBP HST
SC12CL R404A 3/8 1ph/220-240V/50HZ 104L2623 LMBP HST
SC15CL R404a 1/2 1ph/220-240V/50HZ 104L2853 LMBP HST
SC18CL R404a 5/8 1ph/220V-240V/50HZ 104L2123 LMBP HST

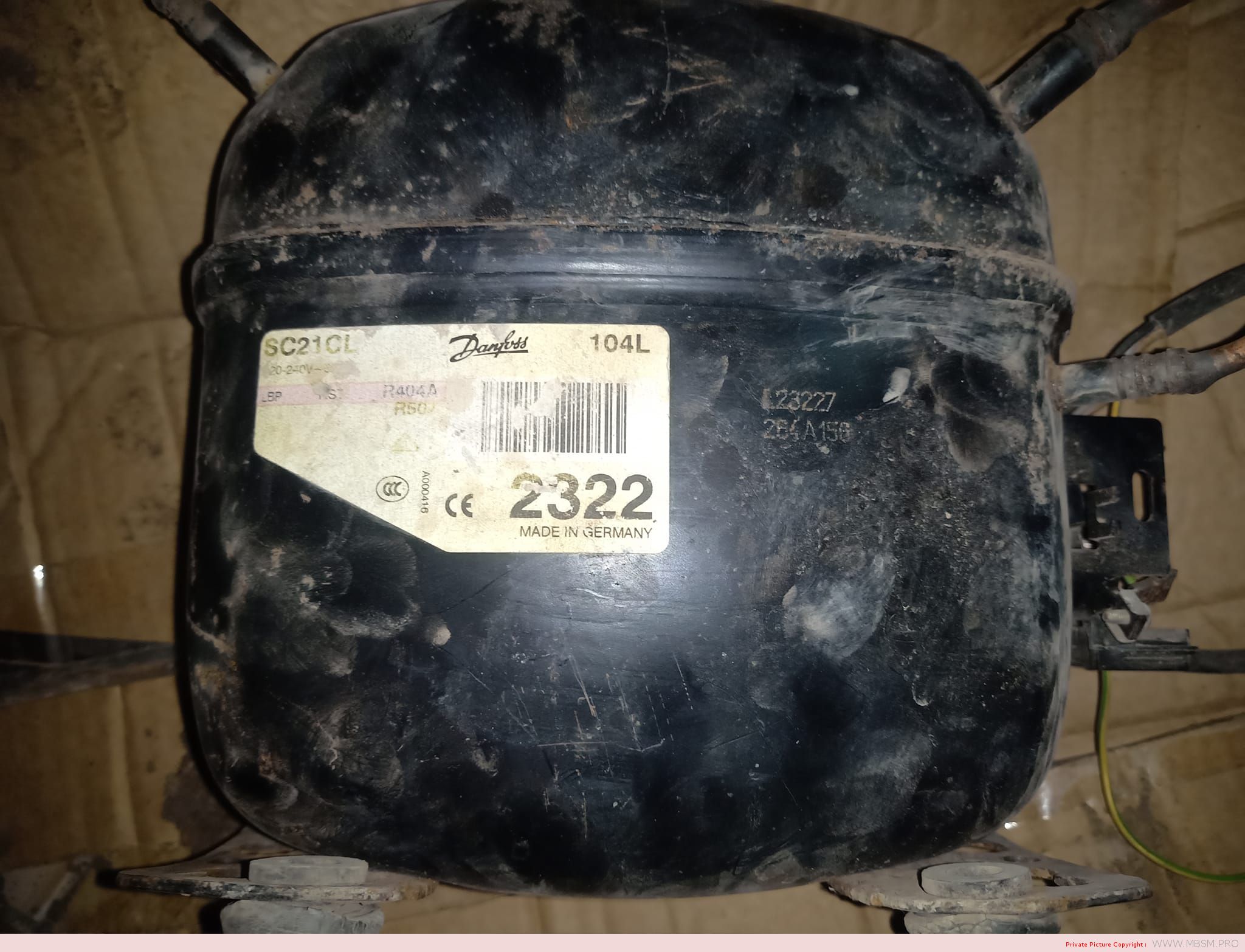

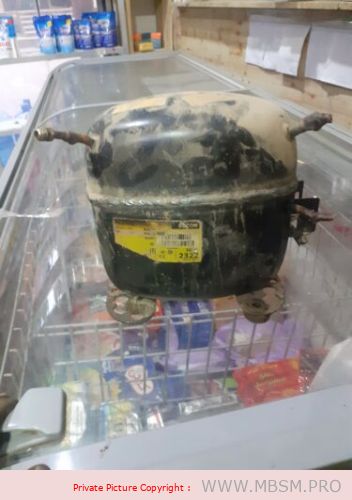

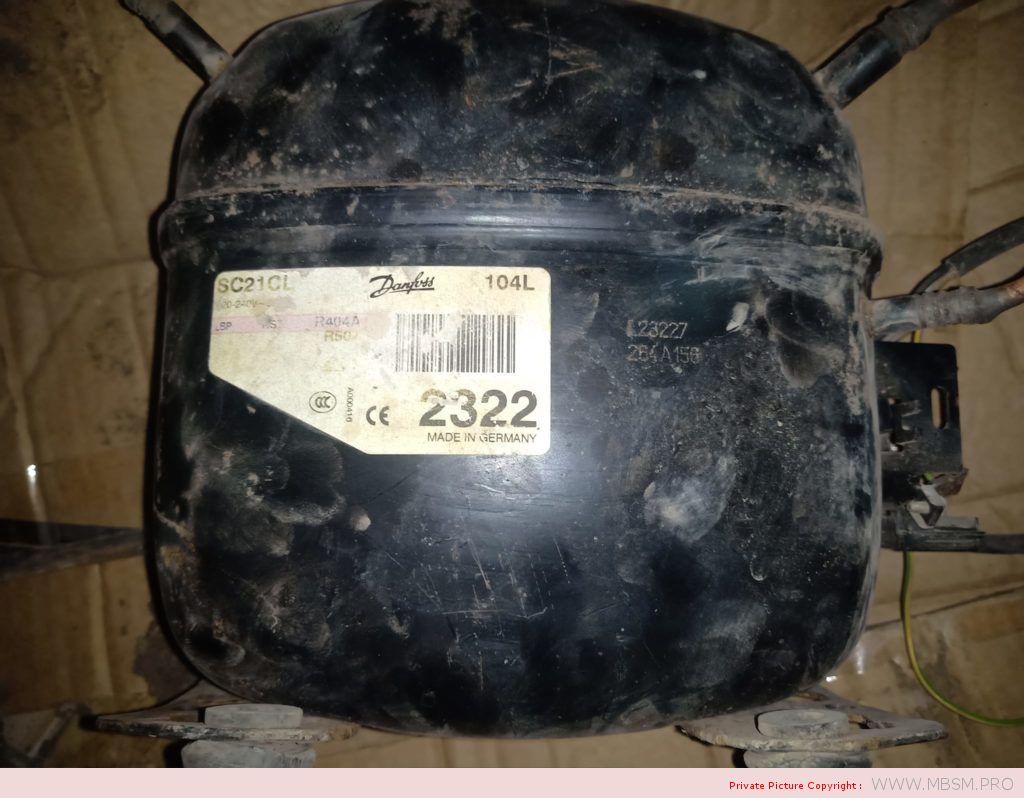

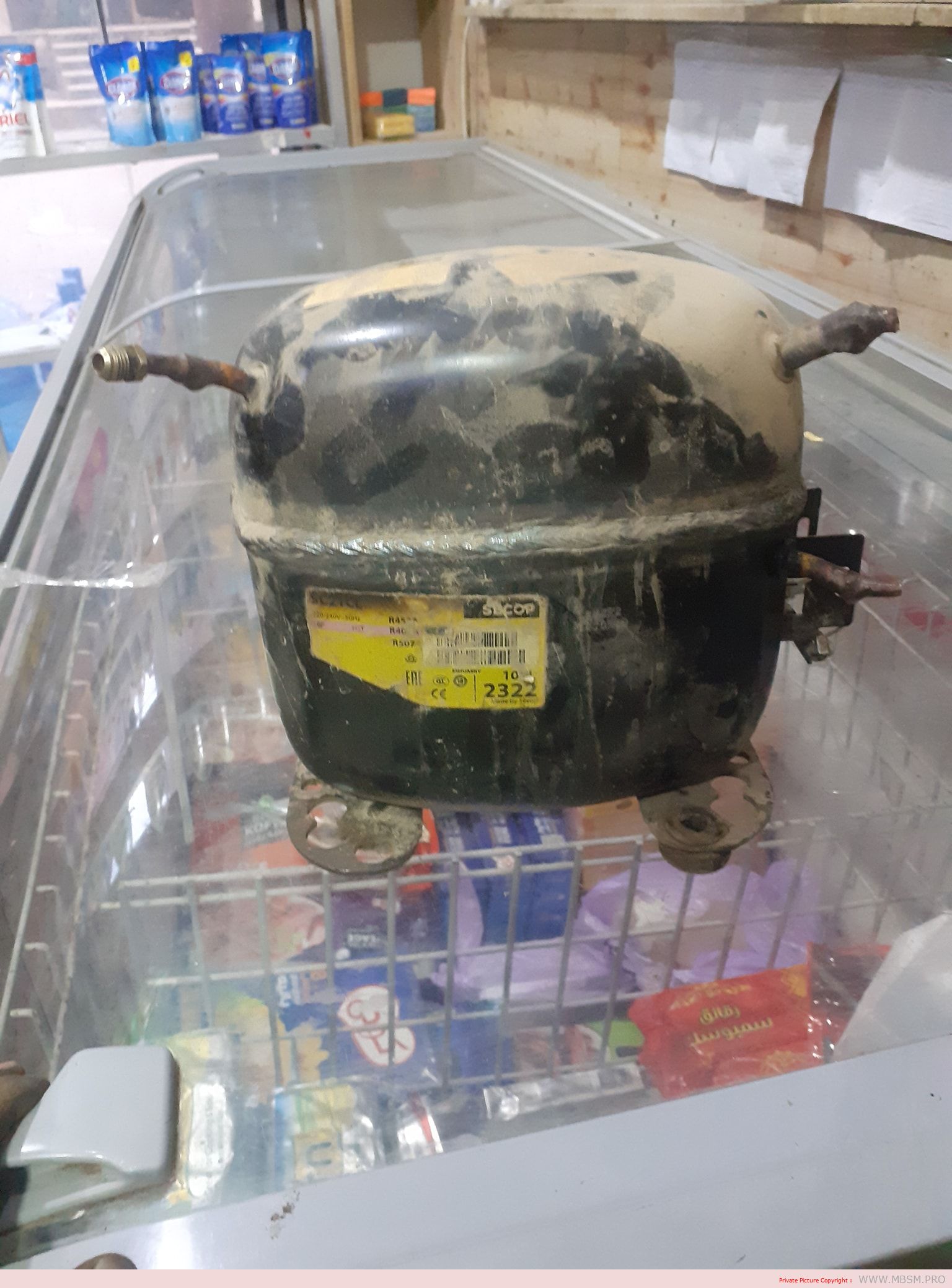

SC21CL R404a 7/8 1ph/220-240V/50HZ 104L2322 LBP HST
SC10G R134a 5/16 1ph/220-240V/50HZ 104G8000 LMHBP HST
SC12G R134a 1/3 1ph/220-240V/50HZ 104G8240 LMHBP HST
SC15G R134a 3/8 1ph/220V-240V/50HZ 104G8520 LMHBP HST
SC18G  R134a 1/2 1ph/220-240V/50HZ 104G8820 LMHBP HST
SC21G  R134a 5/8 1ph/220-240V/50HZ 104G8140 LMHBP HST

Table of Contents

Product details

Gross weight 14.03 kg
Net weight 14.03 kg

Gross weight 14.03 kg
Net weight 14.03 kg



Application energy level Standard LBP
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 13.6 Ohm
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 13.6 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Cut in current HST [A] 23.6 A
Description SC21CL
Discharge connection angle [°] 37 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 6.2 mm
Discharge connection height [mm] 100 mm
Discharge connection material Copper
Economizer No
Free gas volume [cm3] 1410 cm3
Frequency [Hz] 50
Height from baseplate [mm] 203 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 264 V
High value of voltage range at 60Hz [V] 0 V
Length [mm] 255 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 0 V
LRA HST 60Hz [A] 23.6 A
LRA HST [A] 23.6 A
Main winding resistance for single-phase compressors [Ohm] 3.3 Ohm
Model number SC21CL
Motor type CSR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil quantity [cm3] 550 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 37 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection height [mm] 183 mm
Process connection material Copper
Refrigerant R404A
R507
Refrigerant charge [kg] [Max] 1.3 kg
RLA 4.00 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Run capacitor capacitance 10 µF
Segment usage Refrigeration LT
Start capacitor capacitance 80 µF
Suction connection angle [°] 37 °
Suction connection comments Rubber plug
Suction connection diameter [mm] 10.2 mm
Suction connection height [mm] 183 mm
Suction connection material Copper
Swept volume [cm3] 20.95 cm3
Technology Reciprocating
Total height [mm] 209 mm
Type SC
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Width [mm] 151 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C

Application energy level Standard LBP
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 13.6 Ohm
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 13.6 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Cut in current HST [A] 23.6 A
Description SC21CL
Discharge connection angle [°] 37 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 6.2 mm
Discharge connection height [mm] 100 mm
Discharge connection material Copper
Economizer No
Free gas volume [cm3] 1410 cm3
Frequency [Hz] 50
Height from baseplate [mm] 203 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 264 V
High value of voltage range at 60Hz [V] 0 V
Length [mm] 255 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 0 V
LRA HST 60Hz [A] 23.6 A
LRA HST [A] 23.6 A
Main winding resistance for single-phase compressors [Ohm] 3.3 Ohm
Model number SC21CL
Motor type CSR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil quantity [cm3] 550 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 37 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection height [mm] 183 mm
Process connection material Copper
Refrigerant R404A
R507
Refrigerant charge [kg] [Max] 1.3 kg
RLA 4.00 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Run capacitor capacitance 10 µF
Segment usage Refrigeration LT
Start capacitor capacitance 80 µF
Suction connection angle [°] 37 °
Suction connection comments Rubber plug
Suction connection diameter [mm] 10.2 mm
Suction connection height [mm] 183 mm
Suction connection material Copper
Swept volume [cm3] 20.95 cm3
Technology Reciprocating
Total height [mm] 209 mm
Type SC
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Width [mm] 151 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C

Refrigerant: R404A; R507, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 220-240/1/50
