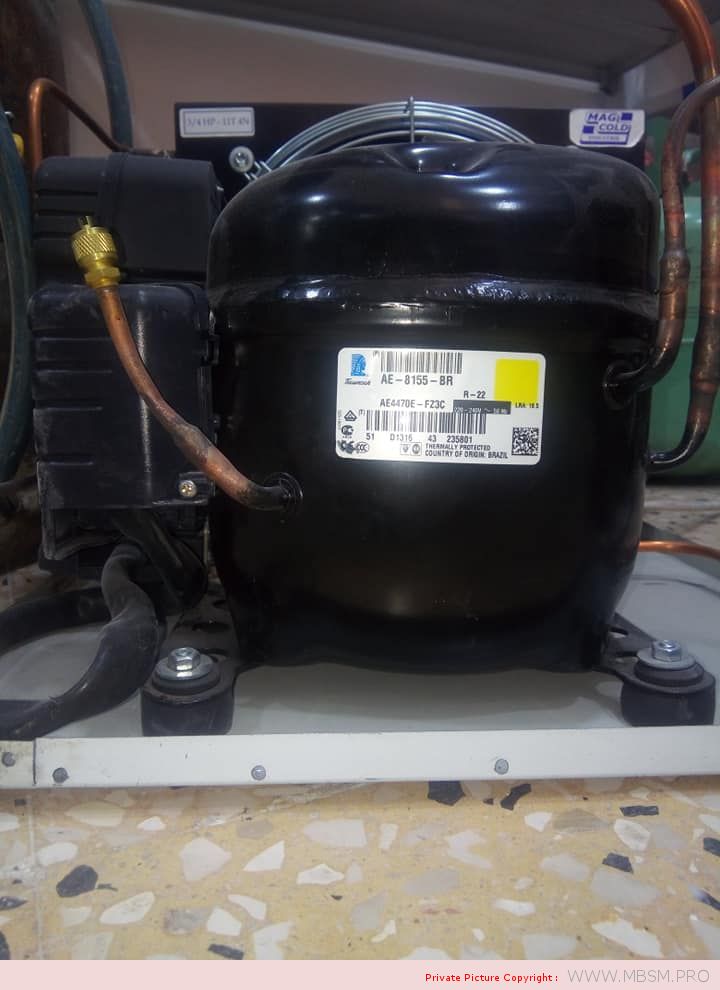

Tecumseh Compressor AE4470E-FZ3C
Product Description:
Type: Reciprocating Compressors
Application: HBP/CBP – High/Commercial Back
Product Description: R-22
Voltage/Frequency: 220-240V ~ 50Hz
Version: N/A
Product Specifications
Performance:
General
Evaporating Temp. Range: -15°C to 15°C (5°Fto 59°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan
Mechanical
Weight: 11
Weight Unit of Measure: KG
Displacement (cc): 13.24
Oil Type: Synthetic Alkylate
Viscosity(cSt): 32
Oil Charge (cc): 380
Electrical
Voltage Range (50 Hz): 198-253
Voltage Range (60 Hz):
Locked Rotor Amps (LRA): 18.5
Rated Load Amps (RLA 50 Hz): 3.76
Rated Load Amps (RLA 60 Hz): 0
Max. Continuous Current (MCCin Amps): 0
Motor Resistance (Ohm) – Main: 5.69
Motor Resistance (Ohm) – Start: 10.93
MotorType: CSR
Overload Type:
Relay Type:
Tecumseh Reciprocating Model Compressors :
| MODEL | DIPLACEMENT (Cm3) | CURRENT AMPS | DIAMETER CONNECTION (INCH) | BERAT (KG) | ||
| I NOM | I MAX | SUCTION | DISCHARGE | |||
| AE1390Y-FZ | 8.02 | 1.4 | 1.7 | 1/4 | 3/16 | 9.5 |
| AE2390Y-FZ | 8.02 | 1.3 | 1.7 | 1/4 | 3/16 | 9.5 |
| AE2410Y-FZ | 9.39 | 1.4 | 1.7 | 5/16 | 1/4 | 9.5 |
| AE2413Y-FZ | 12.01 | 1.8 | 2.8 | 5/16 | 1/4 | 11.2 |
| AE2415Y-GH | 12.48 | 1.8 | 3 | 5/16 | 1/4 | 12.1 |
| AE4425Z-FZ | 4.24 | 1.8 | 2.8 | 1/4 | 3/16 | 9.9 |
| AE4430Z-FZ | 5.16 | 2.1 | 2.9 | 1/4 | 3/16 | 10.2 |
| AE4440Z-FZ | 6.69 | 2.7 | 3.7 | 3/8 | 1/4 | 10.5 |
| AE4450Z-FZ | 8.85 | 3.4 | 5.1 | 3/8 | 1/4 | 10.8 |
| AE4460Z-FZ | 10.33 | 4.3 | 5.9 | 3/8 | 1/4 | 11.6 |
| AE4470Z-FZ | 12.01 | 3.7 | 5.3 | 3/8 | 1/4 | 12.4 |
| AE4425Y-FZ | 6.69 | 1.6 | 2.4 | 1/4 | 3/16 | 9.2 |
| AE4430Y-FZ | 8.02 | 2.1 | 3.1 | 1/4 | 3/16 | 9.7 |
| AE4440Y-FZ | 10.33 | 2.5 | 3.7 | 5/16 | 1/4 | 9.8 |
| AE4450Y-FZ | 13.24 | 3.1 | 4.6 | 3/8 | 1/4 | 11.5 |
| AE4456Y-FZ | 14.51 | 3.6 | 8 | 3/8 | 1/4 | 11.5 |
| AE4460Y-FZ | 15.09 | 3 | 4.7 | 3/8 | 1/4 | 12.2 |
| AE4425E-FZ | 4.24 | 1.7 | 2.7 | 1/4 | 3/16 | 9.6 |
| AE4430E-FZ | 5.16 | 2 | 2.8 | 1/4 | 3/16 | 10 |
| AE4440E-FZ | 6.69 | 2.4 | 3.4 | 3/8 | 1/4 | 10.2 |
| AE4450E-FZ | 8.02 | 3 | 4.7 | 3/8 | 1/4 | 11.2 |
| AE4460E-FZ | 10.33 | 3.7 | 5.3 | 3/8 | 1/4 | 11.2 |
| AE4470E-FZ | 12.01 | 3.8 | 5.4 | 3/8 | 1/4 | 11.1 |
