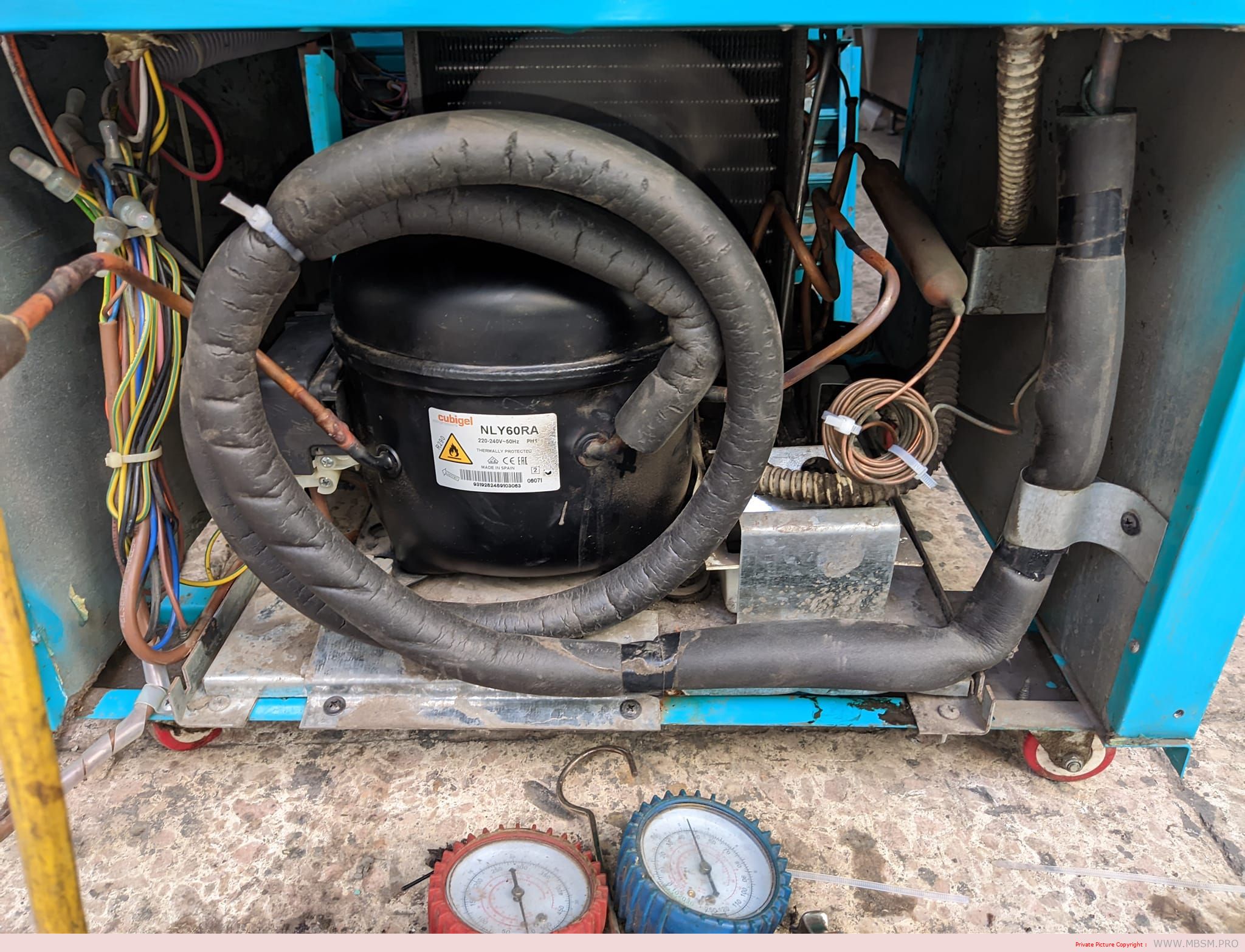

NLY60LAa; Cubigel / Huayi NLY60LAa compressor, LBP – R290, 220 – 240V / 1 / 50Hz, 1/5 [HP], displacement 5.98 [cm3], engine type CSIR, oil type ISO VG 32 mineral, oil volume 295 [cm3] , 198 [W] at -25 / +55 [°], power 194 [W], 1.38 [A], use with capillary or valve, fan cooling, weight: 9.67 [kg]
COMPRESSORS
| Compressor type | hermetic – piston |
| Refrigerant | R290 |
| Application | LBP |
| Compressor power supply | 220 – 240V |
| Frequency | 50 Hz |
| Engine type | CSIR |
| Producer | Cubigel / Huayi / ZEM |
