Technical data

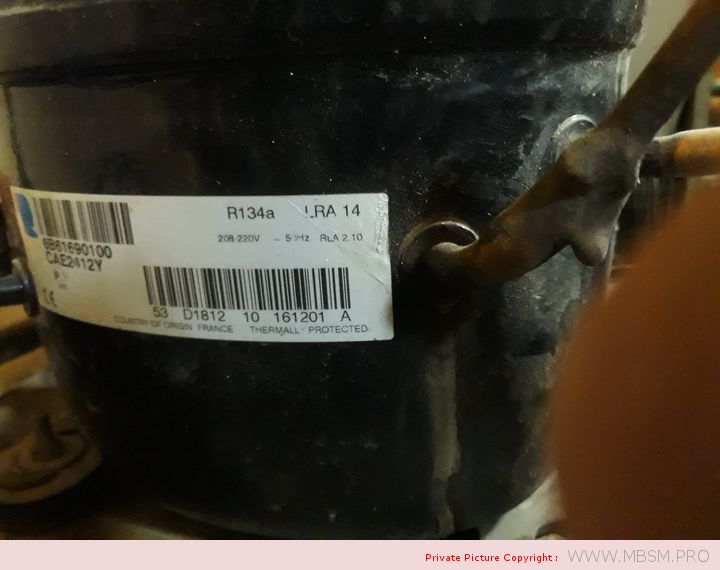

- Model: CAE2412Y
- Refrigerant Gas: R-134a
- Pression/temperature: LBP
- Power: 1/3 HP
- Voltage: 230 V
- Current Type: Single-Phase
- Frequency: 50 Hz
- Compressor Type: Hermetic
- Displacement: 14.20 cm³
- Power Cons. -35°C: 191 W
- Power Cons. -25°C: 270 W
- Power Cons. -10°C: 397 W
- T° Condensation: 40 °C
- Cooling Cap. -35°C: 116 Kcal/h
- Cooling Cap. -30°C: 195 Kcal/h
- Cooling Cap. -25°C: 287 Kcal/h
- Cooling Cap. -20°C: 392 Kcal/h
- Cooling Cap. -15°C: 509 Kcal/h
- Cooling Cap. -10°C: 639 Kcal/h
- Test Type: Standard TE
Product Description
| Hermetique R22 HBP | |||||||||
| For Air Conditioning Applications. | |||||||||
| Features: | |||||||||
| Anti Vibration mounts supplied | |||||||||
| Charged with mineral oil and dry nitrogen | |||||||||
| Crankcase heater on TAG models | |||||||||
| Fan cooling required on all models | |||||||||
| Specifications: | |||||||||
| Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46.2°C Liquid entering Expansion Valve. | |||||||||
| Current FLA are given at nominal voltage, rated conditions and 7.2°C Evaporating Temperature. | |||||||||
| Motor Types: | |||||||||
| PSC = Permanent Split Capacitor, 1 Phase, 50 Hz. 220-240 Volt | |||||||||
| 3Ø: 3 Phase, 50 Hz, 400 Volt | |||||||||
| Expansion Device: | |||||||||
| C = Capillary Tube | |||||||||
| C/V = Capillary Tube or Expansion Valve | |||||||||
| R22 Hermetic | |||||||||
| Model No. | Nominal HP | Displ. cm³/rev | Motor Type | Nominal Current FLA | Exp. Device | Oil Charge cm³ | Connections: inches | ||
| cm³ | Discharge | Proc. | |||||||
| AE 5465E | 1/2 | 12.05 | PSC | 3.2 | C | 450 | 3/8 Tube | 1/4 Tube | 3/8 Tube |
| AJ 5510F | 3/4 | 18.6 | PSC | 5.2 | C | 887 | 3/8 Tube | 1/4 Tube | 1/4 Tube |
| AJ 5512E | 1 | 21.75 | PSC | 5.9 | C | 887 | 3/8 Tube | 1/4 Tube | 1/4 Tube |
| AJ 5513E | 1 | 24.2 | PSC | 6 | C | 887 | 3/8 Tube | 1/4 Tube | 1/4 Tube |
| AJ 5515E | 1 1/4 | 25.95 | PSC | 7.2 | C | 887 | 1/2 Tube | 5/16 Tube | 1/4 Tube |
| AJ 5518E | 1 1/2 | 32.7 | PSC | 9.3 | C | 887 | 1/2 Tube | 5/16 Tube | 1/4 Tube |
| AJ 5519E | 1 1/2 | 34.45 | PSC | 9.96 | C | 887 | 1/2 Tube | 5/16 Tube | 1/4 Tube |
| FH 5522E | 1 3/4 | 39.95 | PSC | 9 | C | 1330 | 5/8 Tube | 3/8 Tube | 5/16 Tube |
| TFH 5522E | 1 3/4 | 39.95 | 3Ø | 3.8 | C/V | 1330 | 5/8 Tube | 3/8 Tube | 5/16 Tube |
| FH 5524E | 2 | 43.5 | PSC | 10 | C | 1330 | 5/8 Tube | 3/8 Tube | 5/16 Tube |
| TFH 5524E | 2 | 43.5 | 3Ø | 4 | C/V | 1330 | 5/8 Tube | 3/8 Tube | 5/16 Tube |
| FH 5527E | 2 1/4 | 49.1 | PSC | 12 | C | 1330 | 5/8 Tube | 3/8 Tube | 5/16 Tube |
| TFH 5527E | 2 1/4 | 49.1 | 3Ø | 4.2 | C/V | 1330 | 5/8 Tube | 3/8 Tube | 5/16 Tube |
| FH 5531E | 2 1/2 | 56.65 | PSC | 14.1 | C | 1330 | 3/4 Tube | 3/8 Tube | 5/16 Tube |
| TFH 5531E | 2 1/2 | 56.65 | 3Ø | 8 | C/V | 1330 | 3/4 Tube | 3/8 Tube | 5/16 Tube |
| FH5540E | 3 | 74.25 | PSC | 18.6 | C | 1330 | 3/4 Tube | 3/8 Tube | 5/16 Tube |
| TFH 5540E | 3 | 74.25 | 3Ø | 6 | C/V | 1330 | 3/4 Tube | 3/8 Tube | 5/16 Tube |
| TFH 5540E | 3 | 74.25 | 3Ø | 6 | C/V | 1330 | 78 | 1/2 Valve | 5/16 Tube |
| TAG 5546E | 3 3/4 | 90.2 | 3Ø | 6.6 | C/V | 1960 | 7/8 Tube | 1/2 Tube | 3/8 Tube |
| TAG 5553E | 4 | 100.7 | 3Ø | 7.4 | C/V | 1960 | 7/8 Tube | 1/2 Tube | 3/8 Tube |
| TAG 5561E | 5 | 112.5 | 3Ø | 9 | C/V | 1960 | 7/8 Tube | 1/2 Tube | 3/8 Tube |
| TAG 5568E | 6 | 124.4 | 3Ø | 9.6 | C/V | 1960 | 7/8 Tube | 1/2 Tube | 3/8 Tube |
| TAG 5573E | 6 1/2 | 134.8 | 3Ø | 11 | C/V | 1960 | 7/8 Tube | 1/2 Tube | 3/8 Tube |
| Hermetique R22 M/HBP | |||||||||
| For Medium / High Temperature Applications | |||||||||
| Features: | |||||||||
| Anti-Vibration mounts supplied | |||||||||
| Charged with mineral oil and dry nitrogen | |||||||||
| Rotalock suction valve on CAJ/TAJ models | |||||||||
| Crankcase heater on FH/TFH and TAG models | |||||||||
| Oil sight glass on FH/TFH and TAG models | |||||||||
| Fan cooling required on all models | |||||||||
| All models suit capillary tube or expansion valve operation | |||||||||
| Rotalock suction and discharge valves on FH/TFH and TAG models | |||||||||
| Specifications: | |||||||||
| Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46°C Liquid entering Expansion Valve. | |||||||||
| Current FLA are given at nominal voltage, rated conditions and 7.2°C evaporating temperature. | |||||||||
| Motor Types: | |||||||||
| CSIR: Capacitor start, Induction run } 1 Phase, 50 Hz, 220-240 Volt | |||||||||
| CSR: Capacitor start and run | |||||||||
| 3Ø: 3 Phase, 50 Hz, 400 Volt | |||||||||
| Conversion: Watts x 3.412 = BTU/Hr BTU/Hr x 0.293 = Watts | |||||||||
| R22 Hermetic | |||||||||
| Model No. | Nominal HP | Displ. cm³/rev | Motor Type | Nominal Current FLA | Oil Charge cm³ | Connections: inches | |||
| Suction | Discharge | ||||||||
| AEZ 4425E | 1/5 | 4.5 | CSIR | 1.75 | 450 | 1/4 Tube | 3/16 Tube | ||
| AEZ 4430E | 1/4 | 5.7 | CSIR | 2.2 | 450 | 1/4 Tube | 3/16 Tube | ||
| AEZ 4440E | 1/3 | 7.55 | CSIR | 2.6 | 450 | 1/4 Tube | 3/16 Tube | ||
| AEZ 9440T | 1/3 | 7.55 | CSR | 2.03 | 450 | 3/8 Tube | 1/4 Tube | ||
| CAE 4450E | 3/8 | 9.4 | CSIR | 3.3 | 450 | 3/8 Tube | 1/4 Tube | ||
| CAE 9450T | 3/8 | 9.5 | CSR | 2.6 | 450 | 3/8 Tube | 1/4 Tube | ||
| CAE 9460T | 1/2 | 11.3 | CSR | 3.2 | 450 | 3/8 Tube | 1/4 Tube | ||
| CAJ 9408T | 5/8 | 15.2 | CSR | 3.68 | 887 | 1/2 Valve | 5/16 Tube | ||
| CAJ 9510T | 1 | 18.3 | CSR | 4.8 | 887 | 5/8 Valve | 5/16 Tube | ||
| CAJ 9513T | 1 1/8 | 24.2 | CSR | 5.9 | 887 | 5/8 Valve | 5/16 Tube | ||
| CAJ 4517E | 1 1/4 | 25.95 | CSR | 6.1 | 887 | 5/8 Valve | 3/8 Tube | ||
| TAJ 4517T | 1 1/2 | 25.95 | 3Ø | 2.5 | 887 | 5/8 Valve | 3/8 Tube | ||
| TAJ 4519T | 1 1/2 | 34.45 | 3Ø | 3.5 | 887 | 5/8 Valve | 1/2 Valve | ||
| FH 4524F | 2 | 43.5 | CSR | 9.55 | 1480 | 5/8 Valve | 1/2 Valve | ||
| TFH 4524F | 2 | 4.35 | 3Ø | 3.9 | 1480 | 7/8 Valve | 1/2 Valve | ||
| FH 4531F | 2 1/2 | 56.65 | CSR | 12.6 | 1480 | 7/8 Valve | 1/2 Valve | ||
| TFH4531F | 2 1/2 | 56.65 | 3Ø | 4.75 | 1480 | 7/8 Valve | 1/2 Valve | ||
| TFH 4540F | 3 | 74.25 | 3Ø | 6.08 | 1480 | 7/8 Valve | 1/2 Valve | ||
| TAG 4546T | 4 | 90.2 | 3Ø | 6.6 | 1960 | 7/8 Valve | 5/8 Valve | ||
| TAG 4553T | 4 1/2 | 100.7 | 3Ø | 7.4 | 1960 | 7/8 Valve | 5/8 Valve | ||
| TAG 4561T | 5 | 112.5 | 3Ø | 9 | 1960 | 1 7/8 Valve | 5/8 Valve | ||
| TAG 4568T | 6 | 124.4 | 3Ø | 9.6 | 1960 | 1 7/8 Valve | 5/8 Valve | ||
| TAG 4573T | 6 1/2 | 134.8 | 3Ø | 11 | 1960 | 1 7/8 Valve | 5/8 Valve | ||
| Tecumseh Hermetique R134a | |||||||||
| The world renowned L’Unite Hermetique compressors are manufactured by Tecumseh. | |||||||||
| Features: | |||||||||
| Charged with polyolester oil and dry nitrogen | |||||||||
| Crankcase heater on FH/TFH and TAG models | |||||||||
| Oil sight glass on FH/TFH and TAG models | |||||||||
| Rotalock valves are included for all valve connection compressors | |||||||||
| Anti-vibration mounts supplied | |||||||||
| Single Phase – Medium High SST | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| CAJ4476Y | 5/8 | 21.75 | Fan | 887 | |||||
| CAJ4492Y | 3/9 | 25.95 | Fan | 887 | |||||
| CAJ4511Y | 1 | 32.7 | Fan | 887 | |||||
| FH4518Y | 1 1/2 | 53.2 | Fan | 1480 | |||||
| FH4525Y | 2 | 74.25 | Fan | 1480 | |||||
| Three Phase – Medium High SST | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| TAJ4511Y | 1 | 32.7 | Fan | 887 | |||||
| TFH4518Y | 1 1/2 | 53.2 | Fan | 1480 | |||||
| TFH4525Y | 2 | 74.25 | Fan | 1480 | |||||
| TAG4528Y | 2 1/2 | 90.2 | Fan | 1960 | |||||
| TAG4534Y | 2 3/4 | 100.7 | Fan | 1960 | |||||
| TAG4537Y | 3 | 112.5 | Fan | 1960 | |||||
| TAG4543Y | 3 1/2 | 124.4 | Fan | 1960 | |||||
| Superceded Models | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| AEZ4425Y | 1/5 | 7.55 | Fan | 450 | |||||
| AEZ4430Y | 1/4 | 8.85 | Fan | 450 | |||||
| CAE4440Y | 3/8 | 12.05 | Fan | 450 | |||||
| CAE4448Y | 1/3 | 14.15 | Fan | 450 | |||||
| CAJ4452Y | 1/3 | 15.2 | Fan | 887 | |||||
| CAE4456Y | 1/2 | 16 | Fan | 450 | |||||
| CAJ4461Y | 1/2 | 18.3 | Fan | 887 | |||||
| Tecumseh Hermetique R404A | |||||||||
| The world renowned L’Unite Hermetique compressors are manufactured by Tecumseh. | |||||||||
| Features: | |||||||||
| Charged with polyolester oil and dry nitrogen | |||||||||
| Crankcase heater on FH/TFH and TAG models | |||||||||
| Oil sight glass on FH/TFH and TAG models | |||||||||
| Rotalock valves are included for all valve connection compressors | |||||||||
| Anti-vibration mounts supplied | |||||||||
| Specifications: | |||||||||
| Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46°C Liquid entering Expansion Valve. | |||||||||
| Current FLA are given at nominal voltage, rated conditions and 7.2°C Evaporating Temperature. | |||||||||
| Motor Types: | |||||||||
| CSIR: Capacitor Start, Induction Run 1 Phase, 50 Hz, 220-240 Volt | |||||||||
| CSR: Capacitor Start and Run | |||||||||
| 3Ø: 3 Phase, 50 Hz, 400 Volt | |||||||||
| All models are also suitable for operation with R507 | |||||||||
| Single Phase – Medium High SST | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| CAJ9480Z | 5/8 | 15.2 | Fan | 887 | |||||
| CAJ9510Z | 1 | 18.3 | Fan | 887 | |||||
| CAJ9513Z | 1 1/8 | 24.2 | Fan | 887 | |||||
| CAJ4517Z | 1 1/4 | 25.95 | Fan | 887 | |||||
| CAJ4519Z | 1 1/2 | 34.45 | Fan | 887 | |||||
| FH4522Z | 1 3/4 | 39.95 | Fan | 1480 | |||||
| FH4524Z | 2 | 43.5 | Fan | 1480 | |||||
| FH4531Z | 2 1/2 | 56.65 | Fan | 1480 | |||||
| FH4540Z | 3 | 74.25 | Fan | 1480 | |||||
| Three Phase – Medium High SST | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| TAJ9480Z | 5/8 | 15.2 | Fan | 887 | |||||
| TAJ9510Z | 1 | 18.3 | Fan | 887 | |||||
| TAJ9513Z | 1 1/8 | 24.2 | Fan | 887 | |||||
| TAJ4517Z | 1 1/4 | 25.95 | Fan | 887 | |||||
| TAJ4519Z | 1 1/2 | 34.45 | Fan | 887 | |||||
| TFH4522Z | 1 3/4 | 39.95 | Fan | 1480 | |||||
| TFH4524Z | 2 | 43.5 | Fan | 1480 | |||||
| TFH4531Z | 2 1/2 | 56.65 | Fan | 1480 | |||||
| TFH4540Z | 3 | 74.25 | Fan | 1480 | |||||
| TAG4546Z | 4 | 90.2 | Fan | 1960 | |||||
| TAG4553Z | 4 1/2 | 100.7 | Fan | 1960 | |||||
| TAG4561Z | 5 | 112.5 | Fan | 1960 | |||||
| TAG4568Z | 6 | 124.4 | Fan | 1960 | |||||
| TAG4573Z | 6 1/2 | 134.8 | Fan | 1960 | |||||
| Single Phase – Low SST | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| CAE2417Z | 1/3 | 11.3 | Fan | 450 | |||||
| CAE2420Z | 1/2 | 12.54 | Fan | 450 | |||||
| CAE2424Z | 5/8 | 15 | Fan | 450 | |||||
| CAJ2428Z | 1/2 | 15.2 | Fan | 887 | |||||
| CAJ2432Z | 5/8 | 18.3 | Fan | 887 | |||||
| CAJ2446Z | 3/4 | 26.15 | Fan | 887 | |||||
| CAJ2464Z | 1 1/2 | 34.45 | Fan | 887 | |||||
| FH2480Z | 2 | 53.2 | Fan | 1625 | |||||
| FH2511Z | 2 1/2 | 74.25 | Fan | 1625 | |||||
| Three Phase – Low SST | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Cooling | Oil Charge: ml | |||||
| TAJ2464Z | 1 1/2 | 34.45 | Fan | 887 | |||||
| TFH2480Z | 2 | 53.2 | Fan | 1625 | |||||
| TFH2511Z | 2 1/2 | 74.25 | Fan | 1625 | |||||
| TAG2516Z | 4 | 112.5 | Fan | 1960 | |||||
| TAG2522Z | 5 1/2 | 134.8 | Fan | 1960 | |||||
| Three Phase – Parallel Applications | |||||||||
| Model No. | Nominal HP | Displacement: cm3/rev | Application: SST | Cooling | Oil Charge: ml | ||||
| TAGP4546Z | 4 | 90.2 | Medium | Fan | 1960 | ||||
| TAGP4553Z | 4 1/2 | 100.7 | Medium | Fan | 1960 | ||||
| TAGP4561Z | 5 | 112.5 | Medium | Fan | 1960 | ||||
| TAGP4568Z | 6 | 124.4 | Medium | Fan | 1960 | ||||
| TAGP4573Z | 6 1/2 | 134.8 | Medium | Fan | 1960 | ||||
| TAGP2516Z | 4 | 112.5 | Low | Fan | 1960 | ||||
| TAGP2522Z | 5 1/2 | 134.8 | Low | Fan | 1960 | ||||
EN12900 ASERCOM 220V ~ 60HZ 877 221 257 321 2.73 .69 .8 -25° C ( -13° F) 55° C ( 131° F) 32° C ( 90° F) 32° C ( 90° F) 55° C ( 131° F)
General
Evaporating Temp. Range:
-40° C to -12.2° C ( -40° F to 10° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
10.81
Weight Unit of Measure:
KG
Displacement ( cc) :
14.15
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
250
Electrical
Voltage Range ( 50 Hz) :
N/ A
Voltage Range ( 60 Hz) :
187-242
Locked Rotor Amps ( LRA) :
17
Rated Load Amps ( RLA 50 Hz) :
2.3
Rated Load Amps ( RLA 60 Hz) :
2.3
Max. Continuous Current ( MCC in Amps) :
4
Motor Resistance ( Ohm) – Main:
3.8
Motor Resistance ( Ohm) – Start:
23.2
Motor Type:
CSIR
Overload Type:
EXTERNAL
