Type: Hermetic piston compressors
Producer: ACC
Series: HMBP

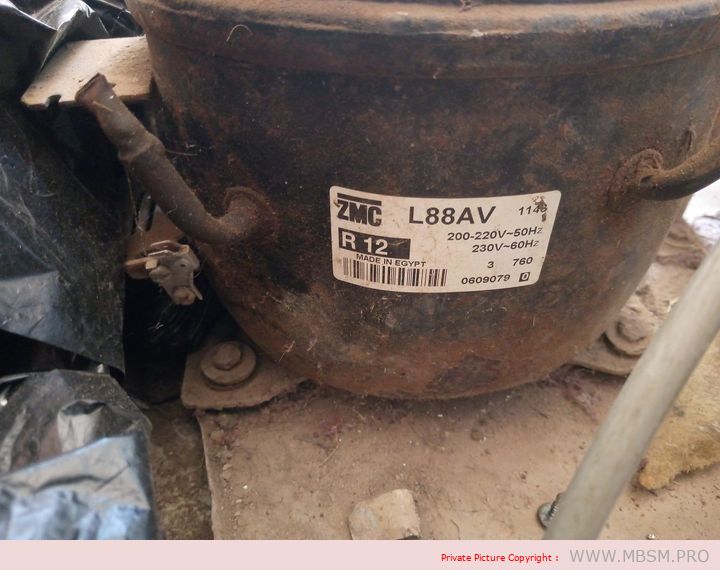

Model: L88AV
General data
| Refrigerant: | R12 | |
| Discharge element: | C | |
| Cooling: | S | |
| Maximum ambient temperature [ºC]: | 43 |
Compressor’s data
| Cylinder capacity [cm³]: | 8,9 | |
| Displacement [m³/h]: | 1,5 | |
| Weight [kg]: | 10,8 | |
| Oil charge [cm³]: | 600 | |
| Oil type: | ISO VG 46 MINERAL |
Engine’s data
| Engine type: | RSIR | |
| Power [KM]: | 1/4 | |
| Starting element: | LST | |
| Power supply: | 220V 50Hz | |
| Voltage range: | 198-264 | |
| Locked rotor current [A]: | 10,9 | |
| Running winding resistance (25ºC) [Ω]: | 10,09 | |
| Starting winding resistance (25ºC) [Ω]: | 22,64 |
Electrical data
| Relays: | 3003 | |
| Shielding element: | T0082 | |
| Starting capacitor volume [μF]: | No |
Connections
| milimeters | inches | ||
| Suction/service tube: | 6,5 | ||
| Service/suction tube: | 6,5 | ||
| Discharge tube: | 4,9 |
