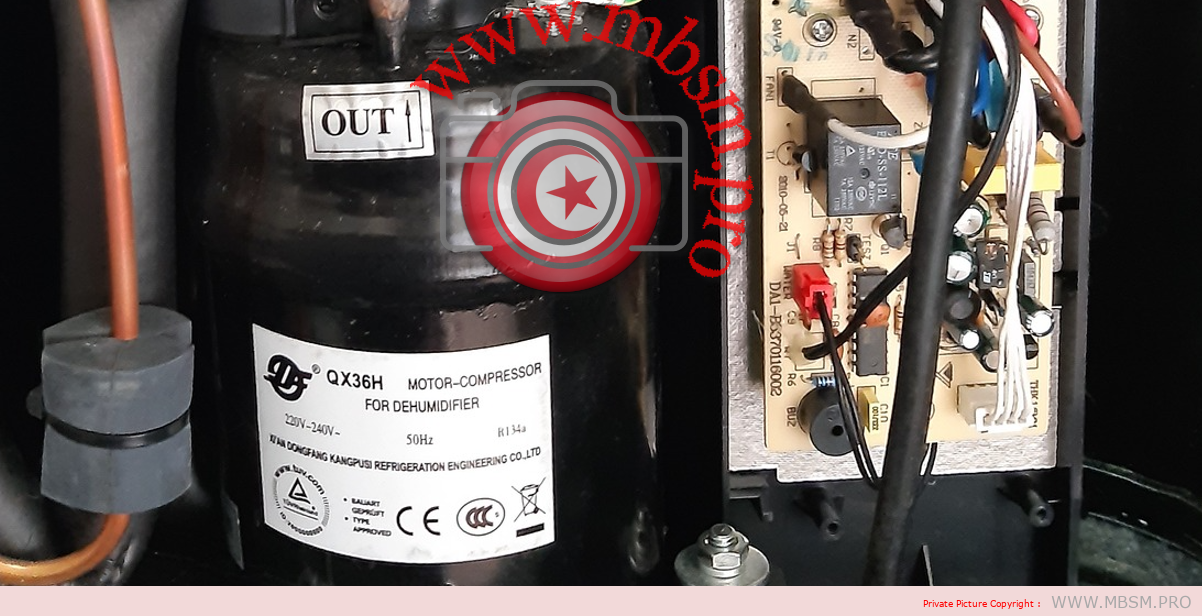

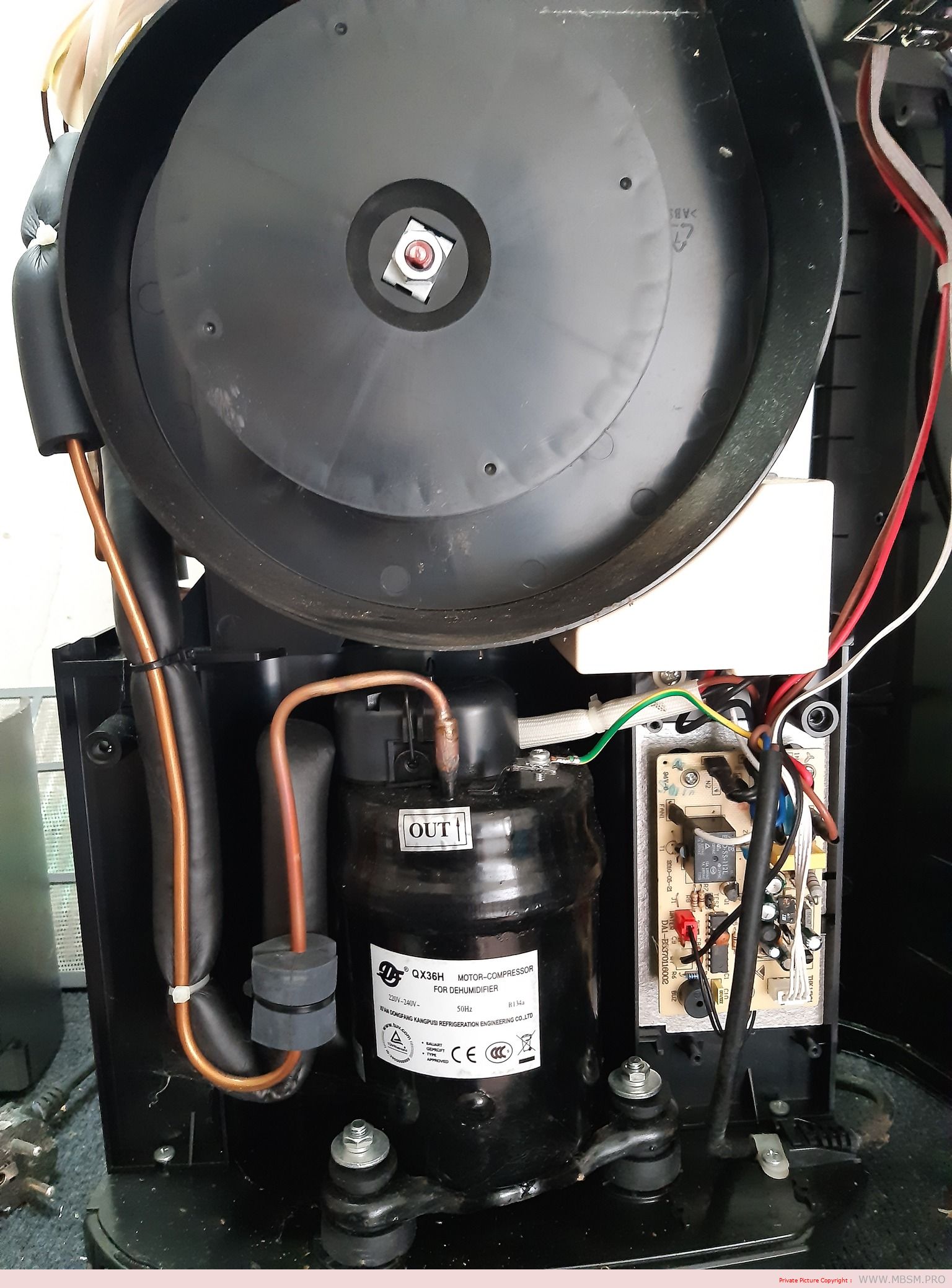

Mbsm.pro, Compressor, bsa357cv-r1an, Highly, Hitachi, R134a, Rotary Compressor, for Air Condition, 220/240V, 1245BTU, run capacitor 5 mF/38, replaced by qx36h
Hitachi Compressor BSA357CV-R1AN
| Brand : | Hitachi |
| Model : | BSA357CV-R1AN |
| Refrigerant/use : | R134A |
| Number of Cylinder : | S |
| Series : | A |
| Displacement : | 357m³/rev |
| Compressor performance scale : | Standard |
| Power : | 220V 220-240, 50Hz |
| Starting method : | KP (1 ᴓ) |
| Compressor base type : | R |
| Dimension accumulator : | 1A |
| Angle φ of Triangle Base &Accumulator : | U |
| Special Specification : | N/A |
| Color : | Black |
| After service : | no |
| Place of origin : | China |
| Model | Displacement | Cooling capacity(W) | Cooling capacity (Btu/h) | COP | Capacitor (uf/v) | Height |
| BSA357CV | 3.57 | 365 | 1245 | 2.15 | 4.7 | 143 |
Applications:
+ Industrial cabinets
Highly Rotary Compressor BSA357CV-R1AN
1.Super efficiency
2.Ultra stability and high reliability
3.Varied power sources
4.Refrigerant:R134a
5.More Highly Rotary Compressor details as below:
| Model | Displacement | Cooling capacity(W) | Cooling capacity (Btu/h) | COP | Capacitor (uf/v) | Height |
| BSA272CV | 2.72 | 280 | 955 | 2.20 | 4 | 143 |
| BSA357CV | 3.57 | 365 | 1245 | 2.15 | 4.7 | 143 |
| BSA418CV | 4.18 | 440 | 1501 | 2.10 | 6.5 | 143 |
| BSA460CV | 4.60 | 490 | 1672 | 2.28 | 6.5 | 169 |
| BSA586CV | 5.86 | 640 | 2184 | 2.40 | 8 | 169 |
| BSA645CV | 6.45 | 692 | 2361 | 2.35 | 6.5 | 169 |
| SD074CV | 7.40 | 1210 | 4129 | 2.90 | 13 | 205 |
| SD086CV | 8.60 | 1410 | 4811 | 2.94 | 15 | 205 |
| SD091CV | 9.10 | 1490 | 5084 | 2.94 | 13 | 205 |
| SD104CV | 10.40 | 1740 | 5937 | 3.03 | 15 | 232.9 |
| SD122CV | 12.20 | 2040 | 6960 | 2.96 | 17 | 232.9 |
| SD145CV | 14.50 | 2480 | 8462 | 3.04 | 20 | 232.9 |
| SD156CV | 15.60 | 2650 | 9042 | 3.05 | 25 | 232.9 |
