Mbsm.pro, Compressor, Cubigel, MP12FB, MPT12LA, SC12CL, 3/8 hp, R404A / R507, lbp

image_pdfimage_print

Compressor coolant R404a/R507 type MP12FB 220-240V 50Hz refrigeration 12kg 3/8HP power input 431W

Compressor ACC Cubigel Huayi Electrolux ZEM MP12FB / MPT12LA, LBP – R404A, R507, 220 – 240V/1/50Hz, 3/8 HP, discharge 12.05 cm3, motor type CSIR, oil type ISO VG 46 ester, oil charge 400 cm3, 351 W at -25 / +55 °, input power, current 429 W, 2.67 A, expansion device: capillar or valve, cooling: fan, weight 12 kg

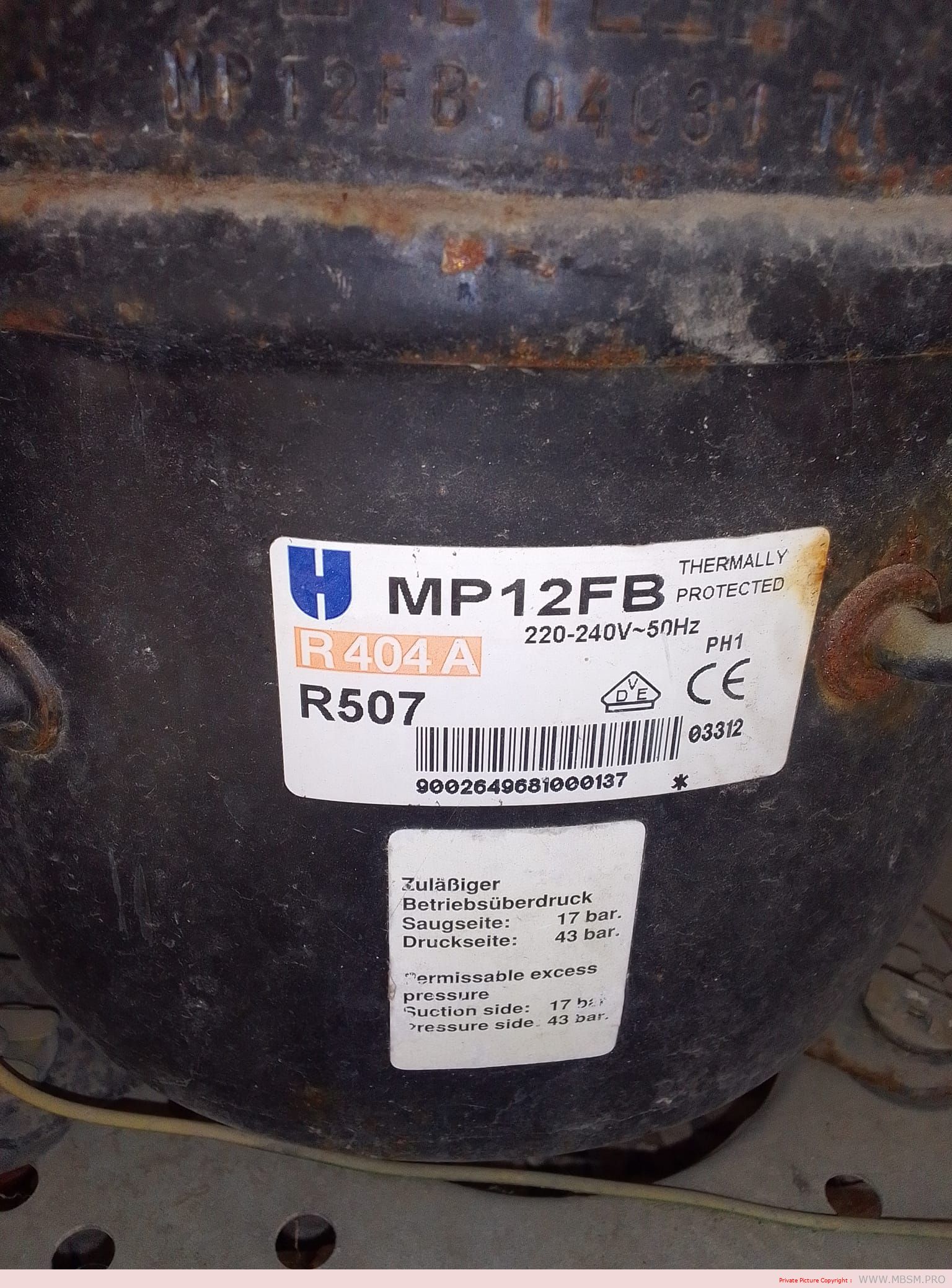

MP12FB Cubigel Compressor 3/8 Hp

3/8 HP R404 LBP Compressor

  • Height: 216 mm
  • Width: 240 mm
  • Depth: 170 mm
  • Weight: 13.2 Kg
  • Weight: 13.2 kg
  • Application: R404A LBP
  • Displacement 12 cc
  • Suction Connector 3/8
  • Discharge Connector 1/4
  • Capacitor 47-56 mfd
  • Displacement : 12 cc
