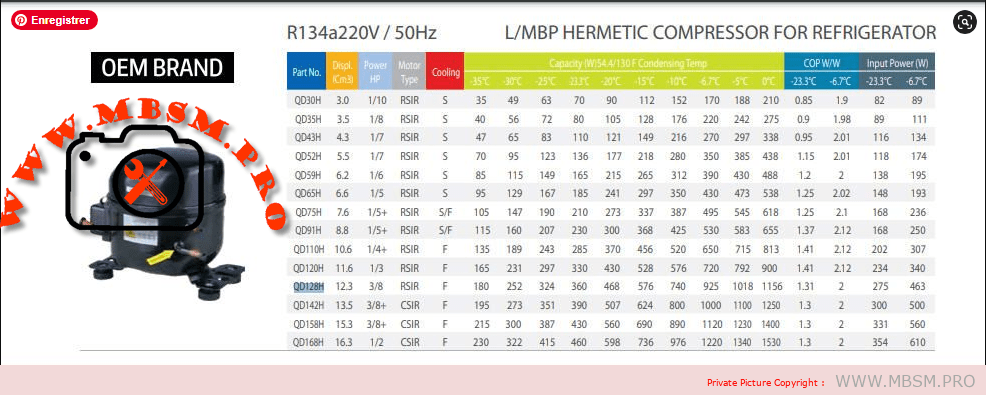

Technical Data Of R134a Series Refrigeration Compressor (MBP)
| Model | Displace(cm3) | MotorType | Cooling | Capacity(W) | Input Power(W) | Rated Current(A) | COP(W/W) | VOL/FREV/Hz | |
| QD52H | 1/6HP | 5.20 | RSIR | S | 428 | 124 | 1.05 | 1.09 | 220/50 |
| QD59H | 1/6HP+ | 5.90 | RSIR | S | 442 | 119 | 1.00 | 1.13 | 220/50 |
| QD65H | 1/5HP | 6.50 | RSIR | S | 467 | 137 | 1.05 | 1.15 | 220/50 |
| FN77H | 1/4HP | 7.70 | RSIR | S | 502 | 152 | 1.35 | 1.16 | 220/50 |
| FN91H | 1/4HP+ | 9.10 | RSIR | S/F | 543 | 187 | 1.40 | 1.18 | 220/50 |
| FN110H | 1/3HP | 11.00 | RSIR | F | 619 | 225 | 1.60 | 1.20 | 220/50 |
| QD128H | 3/8HP | 12.80 | RSIR | F | 688 | 260 | 2.00 | 1.18 | 220/50 |
| QD142H | 1/2HP | 14.20 | CSIR | F | 774 | 280 | 2.10 | 1.19 | 220/50 |
| Test Conditions:(1)Evaporating Temp.= -5°C(2)Ambient Temp.=32.2°C (3)Condensing Temp.=54.4°C(4)Suction Temp.=32.2°C (5)Sub-cooling Temp.=32.2°C | Conversion Table:1. 1watt=3.41BTU/h2. 1watt=0.86Kcal/h3.1Kcal/h=3.97BTU/h | ||||||||
| Tolerance of performance data:(1)Capacity≥95%(2)Input Power≤115%(3)Current≤110%(4)COP≥93% | Cooling Type:S——Static CoolingF——Fan CoolingH——R406a RefrigerationL——LBP | ||||||||
| The compressor is the same with refrigeration implement which usually include refrigerator, refrigeration deepfreeze, kitchen refrigeration, display case, revelation tank, dehumidify appliance etc. The main feature: light compact, high efficiency, good reliability, low noise vibration. | |||||||||
