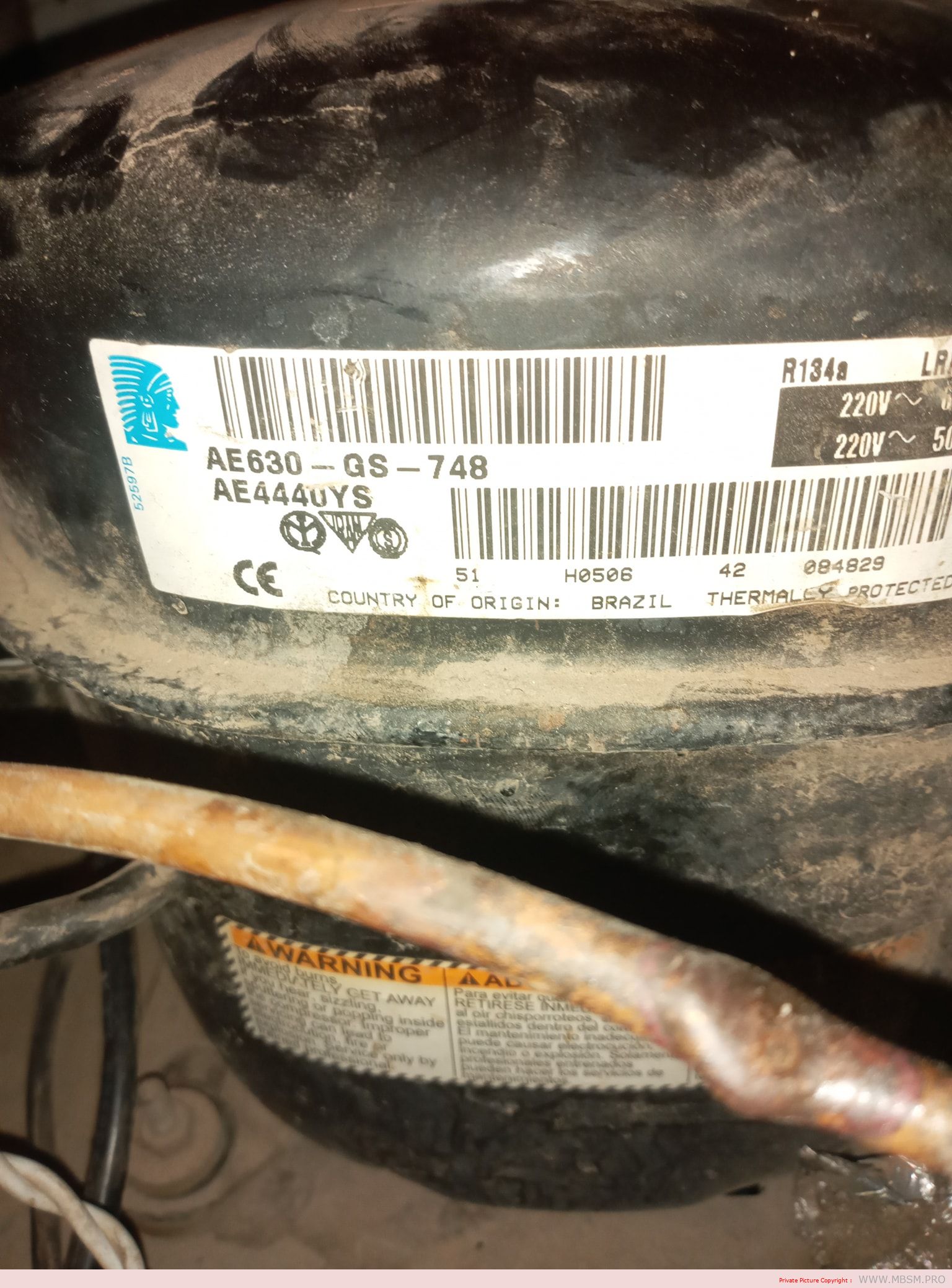

Tecumseh/Taikang piston compression AEA4440YES/AE4440YS detailed parameters:
product description
| Product number | product type | application | refrigerant | Mains voltage/frequency | Version |
| AEA4440YES (AE4440YS) | Piston | HBP – High Back Pressure | R-134a | 220V~60Hz | N/A |
Performance/Performance
| condition | Test voltage | Cooling capacity | input power | efficiency | Evaporation temperature | condensation temperature | ambient temperature | Return air temperature | liquid temperature | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Btu/h | kcal/h | W | W | Btu/Wh | kcal/Wh | W/W | |||||||
| ASHRAE | 220V ~ 60HZ | 4200 | 1058 | 1231 | 632 | 6.65 | 1.67 | 1.95 | 7.2°C (45°F) | 54°C (130°F) | 35°C (95°F) | 35°C (95°F) | 46°C (115°F) |
General/General
| Evaporation temperature range: | -6.7°C to 12.8°C (20°F to 55°F) |
| Motor torque: | High Start Torque (HST) |
| Compressor cooling: | fan |
Mechanical/mechanical properties
| weight: | 11 |
| Weight unit: | KG |
| Displacement (cc): | 12.04 |
| Oil type: | N/A |
| Viscosity (cSt): | N/A |
| Oil volume (cc): | 0 |
Electrical/electricity
| Voltage range (50 Hz): | N/A |
| Voltage range (60 Hz): | 187-242 |
| Locked Rotor Ampere (LRA): | 18 |
| Rated load current (RLA 50 Hz): | 0 |
| Rated load current (RLA 60 Hz): | 3.93 |
| Maximum Continuous Current (MCC in Amps): | 0 |
| Motor resistance (ohms) – Mainly: | 4.58 |
| Motor resistance (ohms) – starting: | 18.82 |
| Motor type: | CSIR |
| Overload type: | N/A |
| Relay type: | N/A |
Agency Approval/Agency Approval
