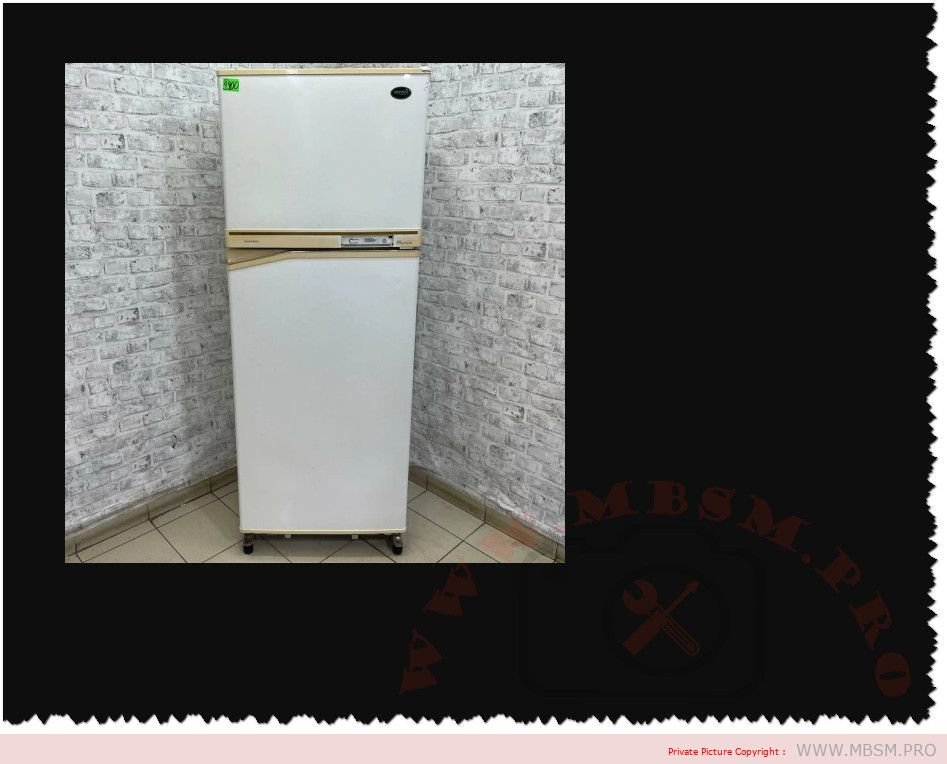

Daewoo FR-3501 refrigerator

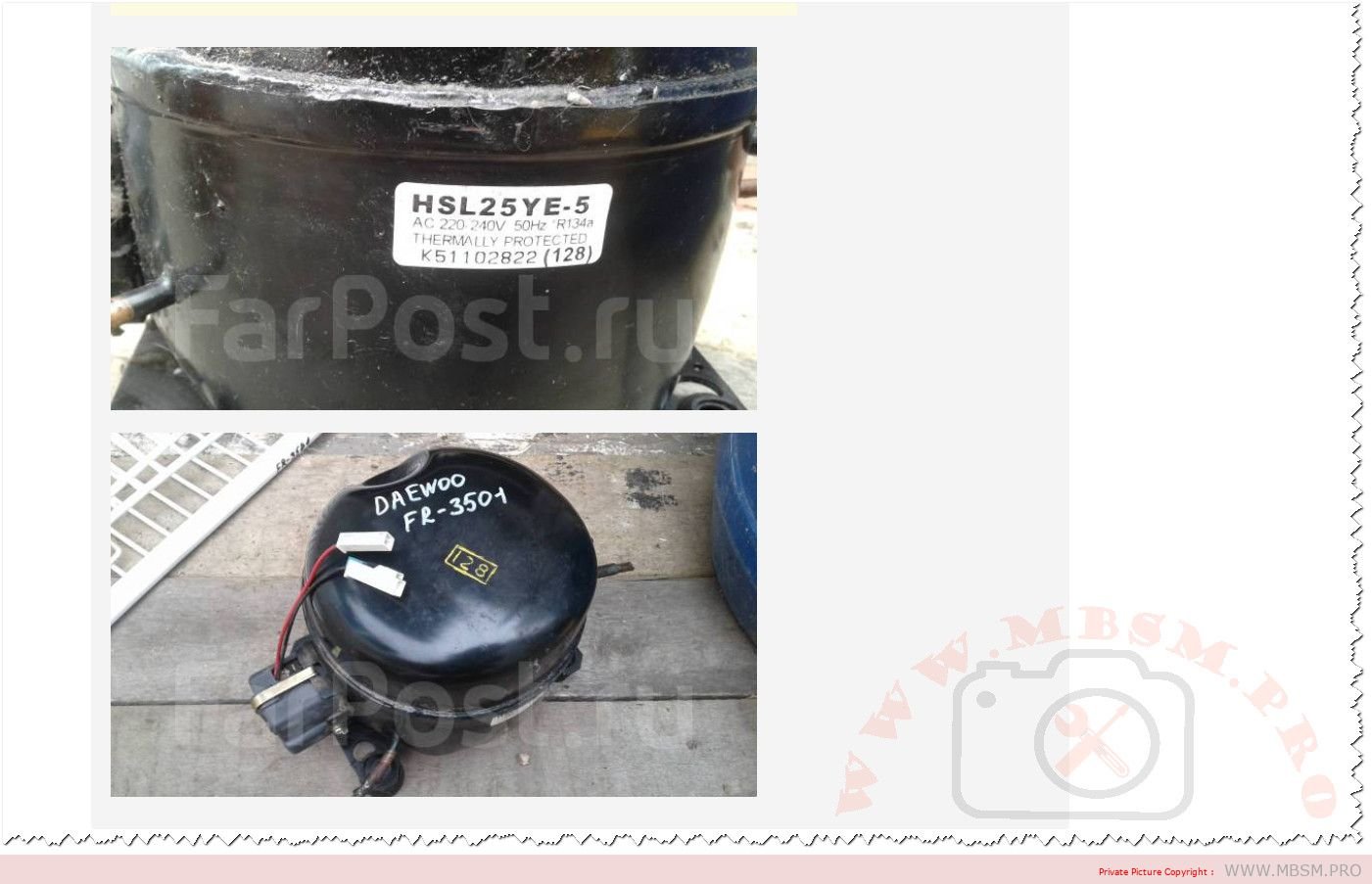

DAEWOO Compressor , HSL25YE-5, 1/5 hp++, 1/4HP– , 1PH, R134a ,220-240V 50Hz,Puissance frigorifique 176 W ,690 BTU

Specifications:

• Capacity: 350 liters (total), with 73 liters (freezer) and 204 liters (refrigerator)
• Cooling system: Fan-forced convection
• Defrost system: Automatic forced fin evaporator
• Cold control: Adjustable dial
• Dimensions: Width 667mm, Depth 625mm, Height 1677mm
• Net weight: 60 kg

Additional details:

• This model appears to be discontinued, but you might still find it used or refurbished.
• Some online sellers offer spare parts for the FR-3501, such as the impeller for the compressor/condenser arc engine.

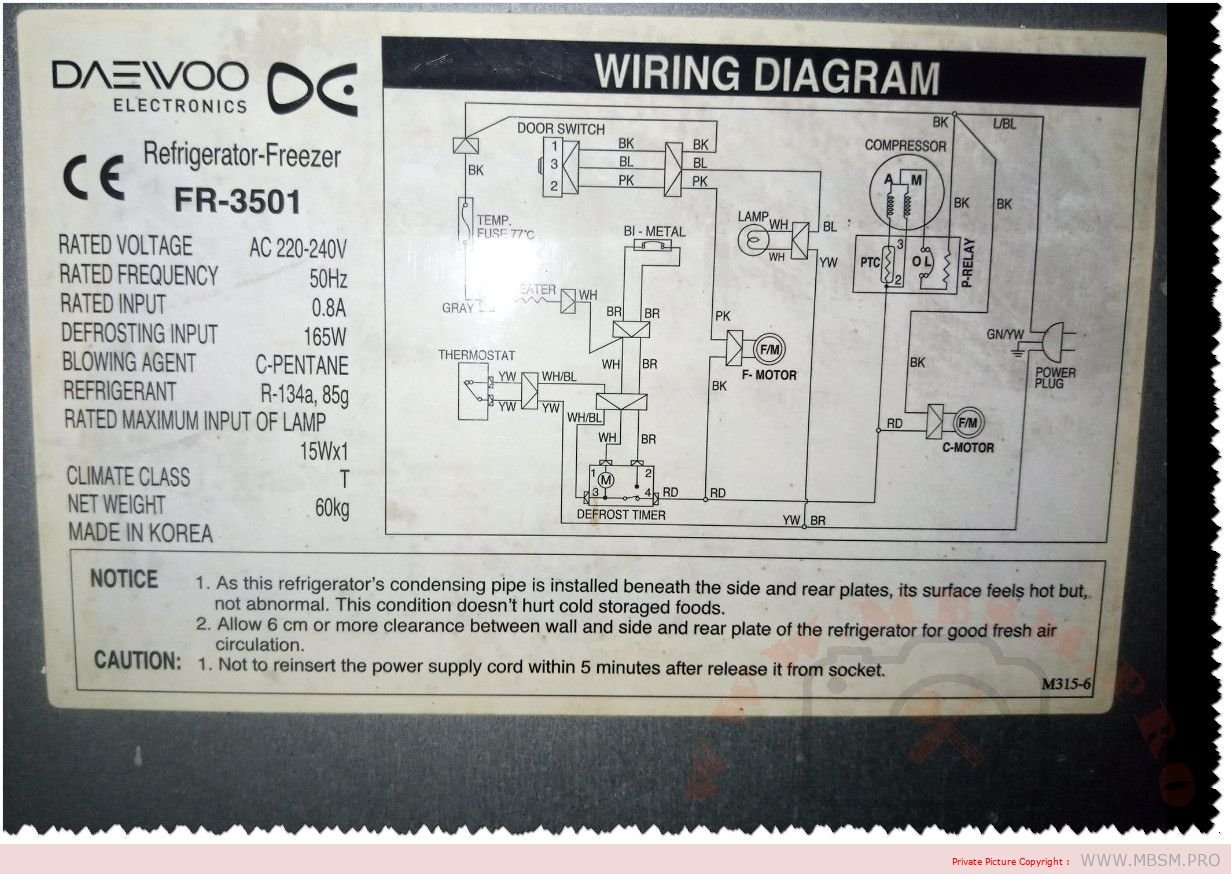

• You can find a service manual for the FR-3501 online, which includes diagrams, specifications, and troubleshooting tips.
