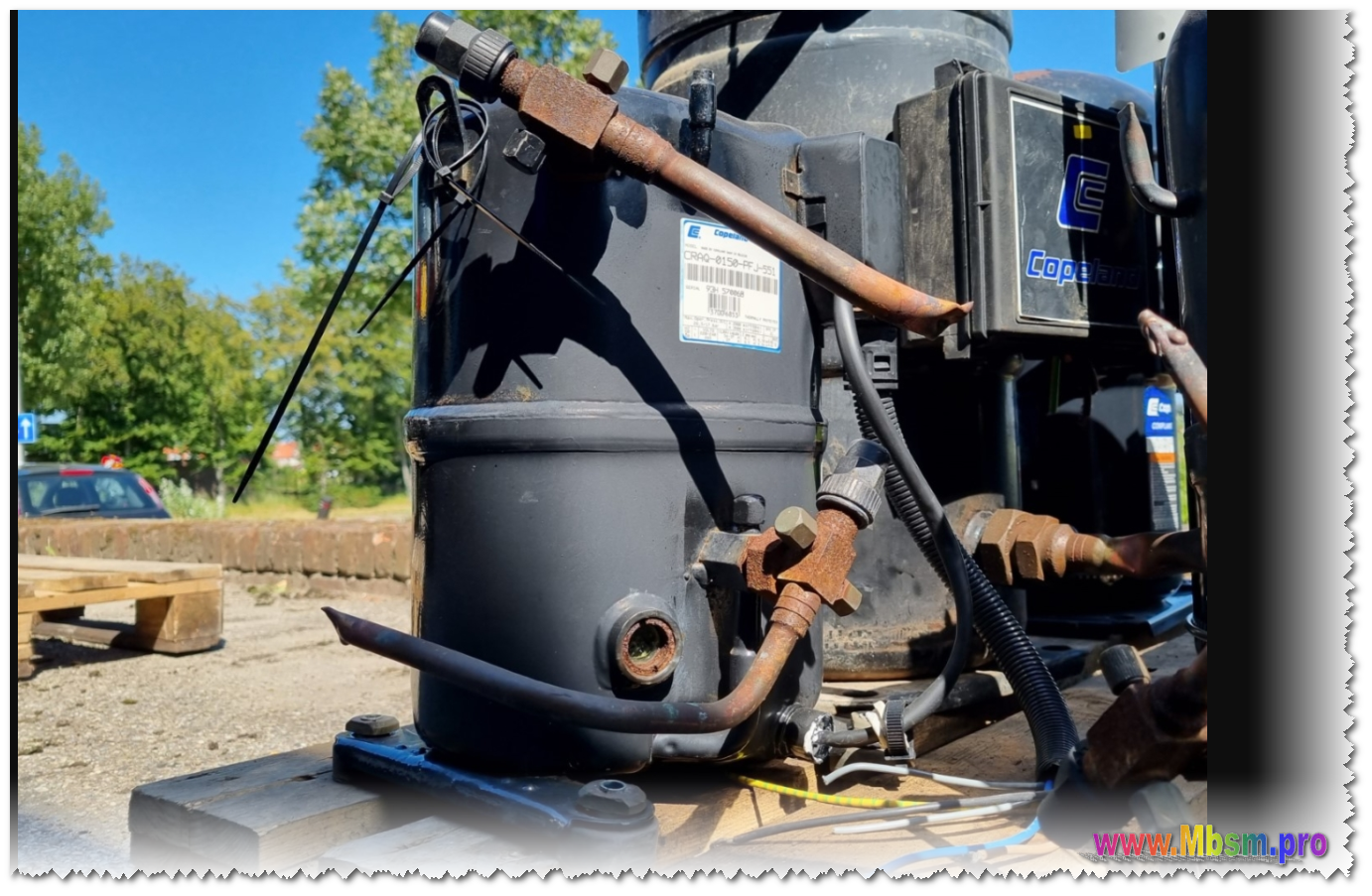

The compressor model CRAQ-0150-PFV-501 is a Hermetic compressor manufactured by Copeland. It is a 1-phase, 208/230V compressor designed for air conditioning applications. The compressor uses HCFC or R-22 refrigerant and operates at 60Hz.

Here are some of the key specifications of the CRAQ-0150-PFV-501 compressor:

  • Capacity: 18,300 – 23,900 BTU/hr
  • Power: 1,910 – 1,520 W
  • Current: 8.8 – 7.0 Amps
  • EER: 9.6 – 15.7 BTU/Wh
  • Mass Flow: 268 – 308 lbs/hr
  • Sound Power: 72 – 77 dBA
  • Vibration: 1.7 – 2.7 mils (peak-peak)
  • Displacement: 2.00 in^3/Rev
  • Overall Length: 9.44 in
  • Overall Width: 9.13 in
  • Overall Height: 13.56 in
  • Mounting Length: 7.50 in
  • Mounting Width: 7.50 in
  • Mounting Height: 13.94 in
  • Suction Size: 5/8 in
  • Discharge Size: 3/8 in
  • Initial Oil Charge: 55 oz
  • Oil Recharge: 51 oz
  • Net Weight: 61.0 lbs
  • Internal Free Volume: 345.0 in^3

This compressor is no longer in production and has been replaced by newer, more efficient models. However, it is still a popular choice for replacement applications due to its reliability and performance.
