CO-CR18K6-PFJ-525, CO-CR18K6-TFD-525, CO-CR24K6M-PFZ-102, CO-CR24K6M-TFD-102, CO-CR34K6M-PFZ-102, CO-CR37K6M-PFZ-102, CO-CR37K6M-TFD-102, CO-CR53KQM-TFD-202, CO-CR57KQM-TFD-202, CO-CR62KQM-TFD-202
The Copeland CR62KQM-TFD-202 is a hermetic reciprocating compressor designed for refrigeration applications. Here are its key specifications and features:
Specifications

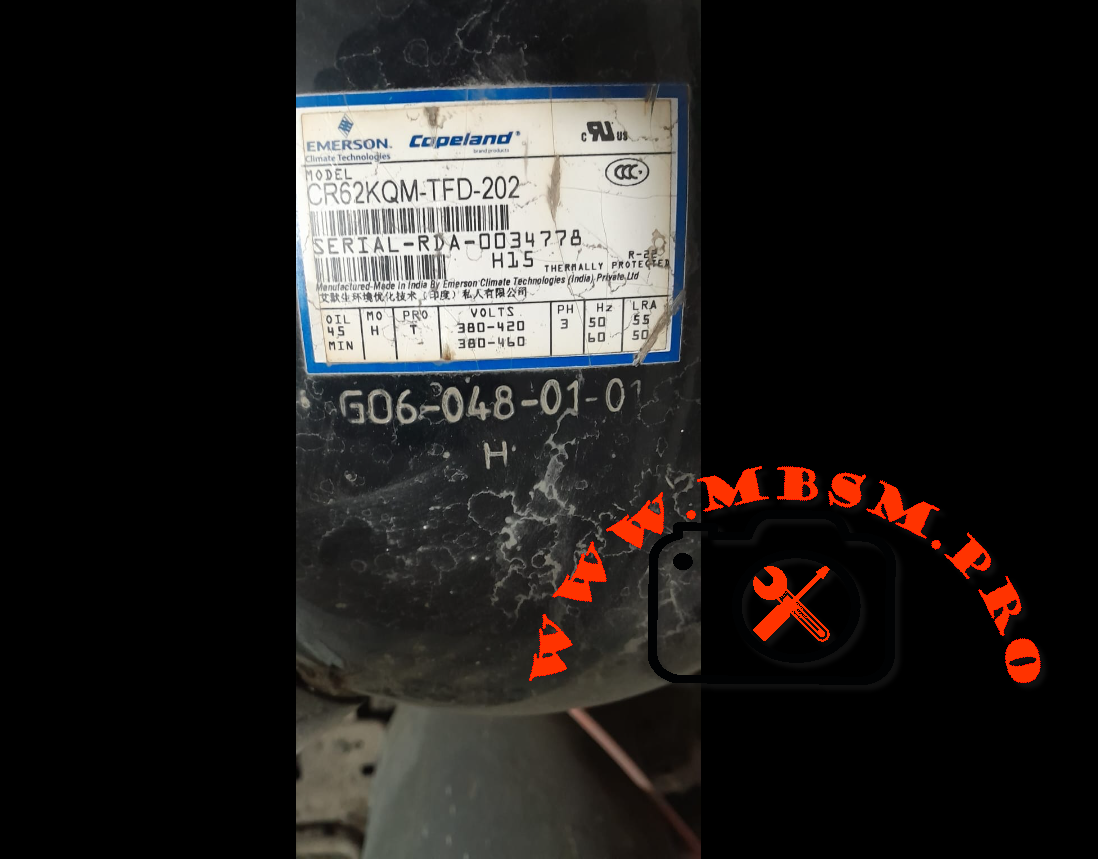

- Model: CR62KQM-TFD-202
- Horsepower (HP): 5 HP
- Refrigerant: R22
- Voltage Rating: 380-420 V, 3-phase, 50 Hz
- Cooling Capacity: Approximately 61,300 BTU/hr
- Input Power: 6,075 Watts
- Rated Load Amps (RLA): 8.8 A
- Locked Rotor Amps (LRA): 55 A
- Energy Efficiency Ratio (EER): 10.10
Performance Characteristics
This compressor is engineered for high efficiency and reliability, making it suitable for various refrigeration applications, including cold storage and commercial refrigeration systems. It is optimized to handle high ambient conditions (up to 55°C) and has strong liquid handling capabilities.
Additional Features
- Design: Rugged reciprocating technology.
- Mounting Configuration: Multiple foot mounting configurations available.
- Certifications: ULand and IECEE certified.
The CR62KQM-TFD-202 is a robust choice for those seeking reliable refrigeration solutions in demanding environments.
