The GMCC PZ80E1F and its related models are mini refrigeration compressors widely used in various cooling applications. Here’s a summary of the specifications and features for the PZ80E1F along with its comparable models:
GMCC PZ80E1F Specifications
- Model: PZ80E1F
- Horsepower: 1/5 HP
- Cooling Capacity: Approximately 137W to 147W
- Refrigerant: R600a, suitable for low back pressure (LBP) applications.
- Voltage/Frequency: 220V-240V / 50Hz.
- Displacement: 8.0 cm³/rev.
- Weight: Approximately 7 kg.
Related Models
GMCC PZ80E1D
- Similar specifications to the PZ80E1F, often used in similar applications.
GMCC PZ80E1C
- Also shares comparable features, focusing on energy efficiency and compact size.

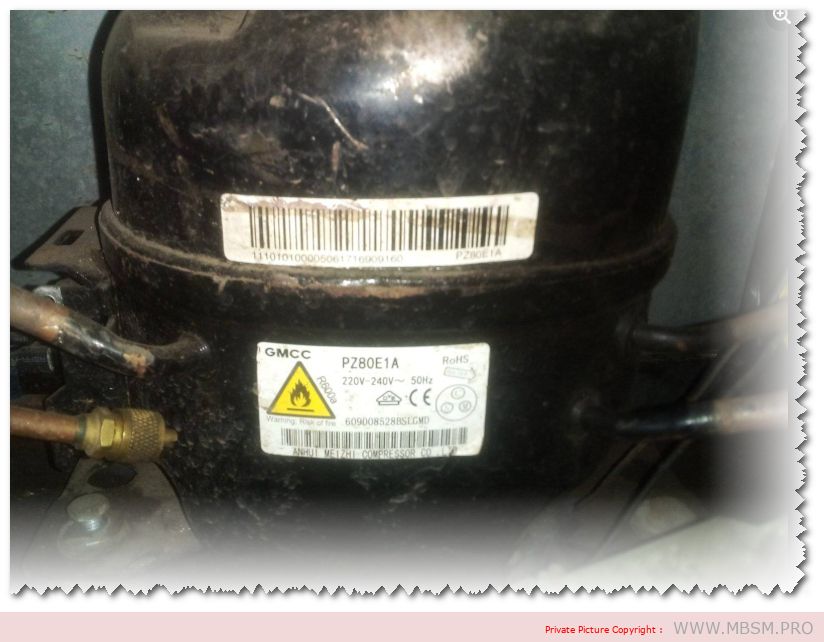

GMCC PZ80E1A
- Designed for low power consumption with a similar cooling capacity and refrigerant type.
GMCC PZ80E1Z
- Another variant that maintains similar performance metrics.
GMCC PZ80H1Z and PZ80H1Y
- These models may offer different horsepower ratings or slight variations in cooling capacity but are generally aligned with the specifications of the E1 series.
Summary Table
| Model | Horsepower | Cooling Capacity | Refrigerant | Voltage/Frequency |
|---|---|---|---|---|
| PZ80E1F | 1/5 HP | 137W – 147W | R600a | 220V/50Hz |
| PZ80E1D | Similar | Similar | R600a | 220V/50Hz |
| PZ80E1C | Similar | Similar | R600a | 220V/50Hz |
| PZ80E1A | Similar | Similar | R600a | 220V/50Hz |
| PZ80E1Z | Similar | Similar | R600a | 220V/50Hz |
| PZ80H1Z | Similar | Similar | R600a | 220V/50Hz |
| PZ80H1Y | Similar | Similar | R600a | 220V/50Hz |
These compressors are highly efficient and suitable for various refrigeration systems, particularly in domestic and light commercial applications.
