CML45FB3N, CML60FB3N, CML80FB3N, CML90FB3N, CMP12FB3N, CMP14FB3N, CMX18FB3N, CMR22FB3N, CMS26FB3N, CMS3OFB3N, CML40TB3N, CML45TB3N, CML60TB3N, CML80TB3N, CML90TB3N, CMP12TB3N, CMP14TB3N, CMX16TB3N, CMX18TB3N, CMR22TB3N, CMS26TB3N, CGL40TB3NR, CGL45TB3NR, CGL60TB3NR, CGL90TB3NR, CGP10RB3N, CGP12TB3NR, CGP14TB3NR, CGX18TB3N, CGX21TB3N, CGS26TB3N, CGS30TB3N, CGS34TB3N
https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-Electrolux-Compressor-Data.pdf
1. Table of Contents:
- Page 1: Compressors and condensing units for low-temperature applications using R404a refrigerant.
- Page 2: Compressors and condensing units for medium/high-temperature applications using R404a refrigerant.
- Page 3: Compressors and condensing units for medium/high-temperature applications using R134a refrigerant.
2. Key Technical Data:
- Compressor Type: Compressors are classified based on displacement (cm³/rev) and motor power (HP).
- Motor Type: CSIR (Capacitor Start Induction Run).
- Electrical Power: Measured in watts (Watts) and electrical current (FLA) in amperes.
- Cooling Capacity: Measured in watts (Watts) and varies based on ambient temperature and evaporating temperature.
- Dimensions and Weight: Dimensions (length, width, height) are provided in millimeters, and weight is given in kilograms.
3. Illustrative Tables:
Table 1: Compressors for Low-Temperature Applications (R404a)
| Model | Displacement (cm³/rev) | Motor Power (HP) | Motor Type | Electrical Power (Watts) | Electrical Current (Amps) | Ambient Temp. (°C) | Cooling Capacity (Watts) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| CM1A5FB3N | 4.6 | 1/6 | CSIR | 226 | 1.6 | 40 | 95 – 370 | 425x325x220 | 14.5 |
| CM1B0FB3N | 6.0 | 1/5 | CSIR | 270 | 1.8 | 38 | 122 – 454 | 425x325x220 | 16.5 |
| CM1B0FB3N | 8.1 | 1/4 | CSIR | 345 | 2.2 | 38 | 159 – 548 | 425x325x220 | 17.2 |
| CM1B0FB3N | 8.6 | 1/3 | CSIR | 358 | 2.2 | 38 | 195 – 679 | 425x335x245 | 19.2 |
| CM1P12FB3N | 12.0 | 3/8 | CSIR | 219 | 2.9 | 32 | 263 – 965 | 425x335x245 | 22.3 |
| CM1P14FB3N | 14.0 | 1/2 | CSIR | 572 | 3.4 | 32 | 264 – 999 | 425x335x245 | 22.3 |
| CMX13RF3N | 18.4 | 5/8 | CSIR | 718 | 3.6 | 32 | 358 – 1351 | 510x350x275 | 28.0 |
| CM1B22FB3N | 21.8 | 2/3 | CSIR | 754 | 3.8 | 32 | 355 – 1712 | 540x385x300 | 34.0 |
| CMS26FB3N | 26.2 | 3/4 | CSIR | 890 | 4.7 | 32 | 369 – 2218 | 525x425x355 | 39.0 |
| CM53GFB3N | 30.0 | 7/8 | CSIR | 1130 | 5.6 | 32 | 618 – 2385 | 545x425x350 | 39.0 |

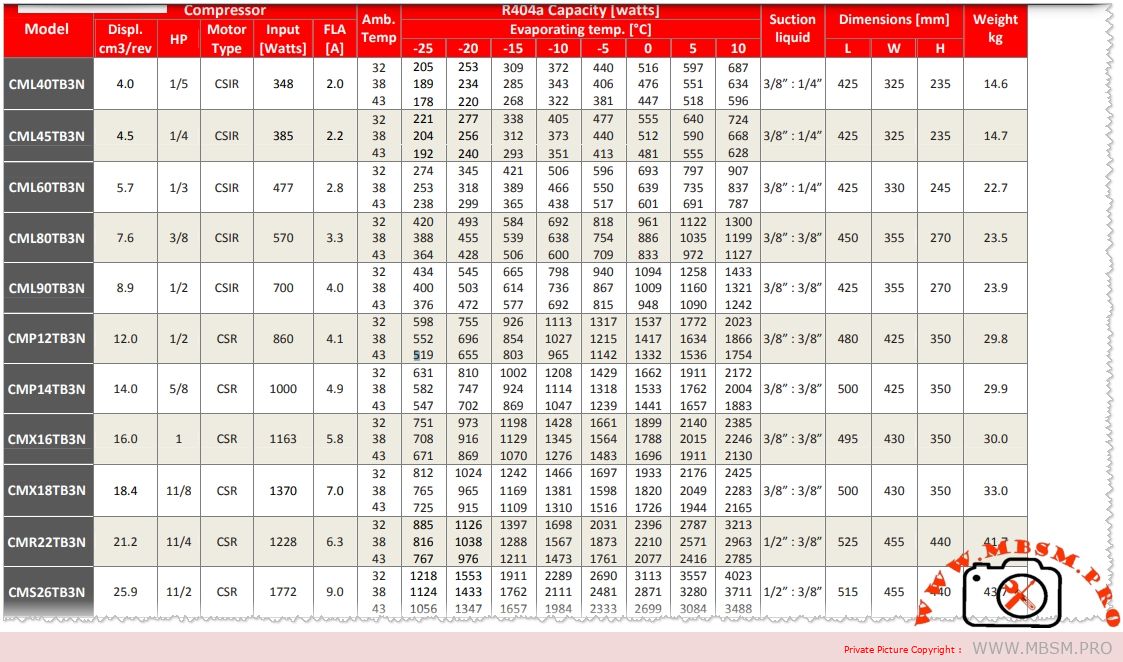

Table 2: Compressors for Medium/High-Temperature Applications (R404a)
| Model | Displacement (cm³/rev) | Motor Power (HP) | Motor Type | Electrical Power (Watts) | Electrical Current (Amps) | Ambient Temp. (°C) | Cooling Capacity (Watts) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| CM140TB3N | 4.0 | 1/5 | CSR | 348 | 2.0 | 32 | 205 – 687 | 425x325x235 | 14.6 |
| CM145TB3N | 4.5 | 1/4 | CSR | 385 | 2.2 | 32 | 221 – 728 | 425x325x235 | 14.7 |
| CM160TB3N | 5.7 | 1/3 | CSR | 477 | 2.8 | 32 | 274 – 907 | 425x330x245 | 22.7 |
| CM180TB3N | 7.6 | 3/8 | CSR | 570 | 3.3 | 32 | 420 – 1300 | 450x355x270 | 23.5 |
| CM190TB3N | 8.9 | 1/2 | CSR | 700 | 4.0 | 32 | 434 – 1433 | 425x335x270 | 23.9 |
| CMIP12TB3N | 12.0 | 1/2 | CSR | 860 | 4.1 | 32 | 598 – 2023 | 450x355x350 | 29.8 |
| CMIP14TB3N | 14.0 | 5/8 | CSR | 1000 | 4.9 | 32 | 631 – 2172 | 450x355x350 | 29.9 |
| CMX16TB3N | 16.0 | 1 | CSR | 1163 | 5.8 | 32 | 751 – 2385 | 450x355x350 | 30.0 |
| CMX18TB3N | 18.4 | 11/8 | CSR | 1370 | 7.0 | 32 | 812 – 2425 | 450x355x350 | 30.0 |
| CMR22TB3N | 21.2 | 11/4 | CSR | 1228 | 6.3 | 32 | 885 – 3213 | 450x355x350 | 30.0 |
| CM52BTB3N | 25.9 | 11/2 | CSR | 1772 | 9.0 | 32 | 1218 – 4023 | 450x355x350 | 30.0 |
Table 3: Compressors for Medium/High-Temperature Applications (R134a)
| Model | Displacement (cm³/rev) | Motor Power (HP) | Motor Type | Electrical Power (Watts) | Electrical Current (Amps) | Ambient Temp. (°C) | Cooling Capacity (Watts) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| CG1401r83NR | 4.0 | 1/8 | CSIR | 219 | 1.4 | 32 | 87 – 455 | 425x325x210 | 14.5 |
| CG1451r83NR | 4.5 | 1/6 | CSIR | 237 | 1.4 | 32 | 111 – 503 | 425x325x210 | 14.5 |
| CG1601r83NR | 5.7 | 1/5 | CSIR | 270 | 1.7 | 32 | 154 – 623 | 425x325x235 | 17.0 |
| CG1301r83NR | 8.8 | 1/4 | CSIR | 385 | 2.3 | 32 | 717 – 945 | 425x340x245 | 18.5 |
| CGP10RB3N | 10.2 | 1/3 | CSIR | 452 | 2.7 | 32 | 502 – 1123 | 425x350x270 | 19.5 |
| CGP12T83NR | 12.1 | 3/8 | CSIR | 602 | 3.6 | 32 | 529 – 1229 | 425x350x270 | 20.0 |
| CGP14T83NR | 14.0 | 3/8 | CSIR | 665 | 4.0 | 32 | 301 – 1354 | 425x350x270 | 21.5 |
| CGX18T83N | 18.4 | 1/2 | CSIR | 845 | 5.1 | 32 | 394 – 1811 | 510x361x297 | 26.0 |
| CGX21T83N | 20.7 | 5/8 | CSIR | 1001 | 5.8 | 32 | 454 – 2057 | 480x450x312 | 29.0 |
| CGS26T83N | 25.9 | 3/4 | CSIR | 1120 | 6.85 | 32 | 541 – 3182 | 525x425x355 | 36.0 |
| CGS30T83N | 30.0 | 7/8 | CSIR | 1170 | 6.4 | 32 | 627 – 3340 | 545x425x350 | 39.0 |
| CGS34T83N | 34.4 | 1 | CSIR | 1352 | 7.0 | 32 | 707 – 3340 | 545x425x350 | 39.0 |
4. Explanations and Analysis:
A. Compressor Applications:
- Low-Temperature Applications: These compressors are used in refrigeration systems that require low temperatures, such as refrigerators and freezers. The refrigerant used is R404a.
- Medium/High-Temperature Applications: These compressors are used in air conditioning and refrigeration systems that operate at higher temperatures, such as air conditioners and commercial refrigeration systems. The refrigerants used are R404a and R134a.
B. Cooling Capacity:
- Cooling capacity varies based on ambient temperature and evaporating temperature. The lower the evaporating temperature, the lower the cooling capacity of the compressor.
- Larger compressors (with higher displacement) provide higher cooling capacity.
C. Dimensions and Weight:
- Larger compressors weigh more and take up more space, requiring appropriate system design for installation.
D. Compatibility with Other Refrigerants:
- All models are suitable for use with R507 and R407B refrigerants, providing flexibility in refrigerant selection based on application and local regulations.
5. Conclusion:
- Electrolux offers a wide range of compressors and condensing units to meet various cooling needs, whether for low-temperature or medium/high-temperature applications.
- The provided technical data helps in selecting the appropriate compressor based on required cooling capacity, environmental conditions, and available installation space.
