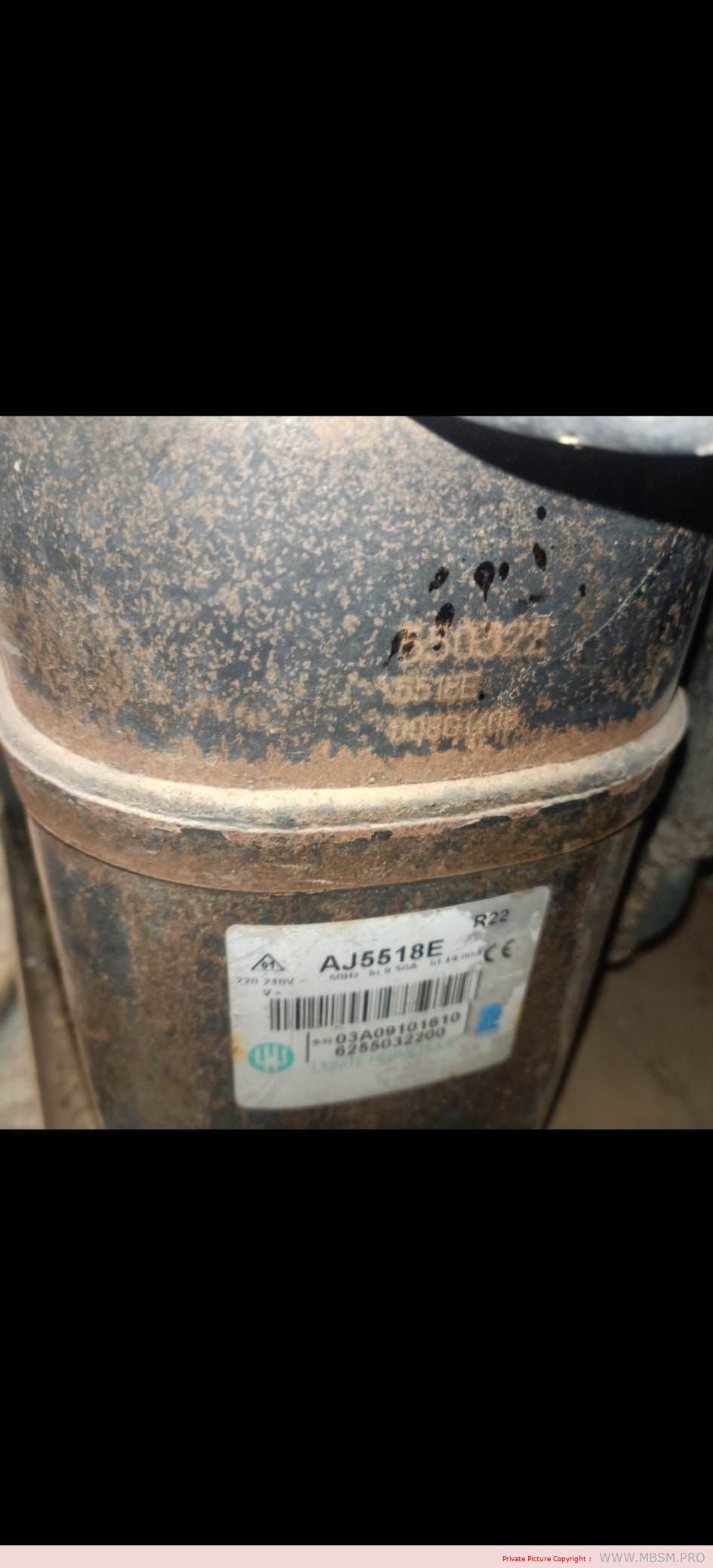

AG5518E is a model number for a Tecumseh compressor . It is available in different variants such as AJ5518E-FZ3C , AJ5518E-CZ3C and AJ5518E. It is a hermetic compressor that is used in refrigeration and air conditioning systems. The compressor has a power of 1.5 HP and a displacement of 32.7 cm3/rev. It is compatible with refrigerants such as R22 , R417A and R422B. The compressor is available for purchase from various suppliers and online stores
AG5518E is a product code for a Tecumseh 220V unit. BTU is a unit of energy used to measure heating and cooling capacity. For example, a GE window air conditioner with heating and cooling capacity of 8,000 BTUs and 3,800 BTUs respectively can cool and heat small rooms up to 350 square feet.. A Gree Capacité de 18 000 BTU mini AC split is also available.
Product Specifications
| Condition |
Test Voltage |
(R) Btu/h |
(R) kcal/h |
(R) W |
(I) W |
(E) Btu/Wh |
(E) kcal/Wh |
W/W |
EVAP TEMP |
COND TEMP |
AMBIENT TEMP |
RETURN GAS |
LIQUID TEMP |
| EN12900 |
230V ~ 60HZ |
16981 |
4279 |
4975 |
2221 |
7.64 |
1.92 |
2.24 |
5?C (41?F) |
50?C (122?F) |
32?C (90?F) |
15?C (59?F) |
50?C (122?F) |
| EN12900 |
208V ~ 50HZ |
14426 |
3635 |
4226 |
1844 |
7.82 |
1.97 |
2.29 |
5?C (41?F) |
50?C (122?F) |
32?C (90?F) |
15?C (59?F) |
50?C (122?F) |
| EN12900 |
230V ~ 60HZ |
16981 |
4279 |
4975 |
2221 |
7.64 |
1.92 |
2.24 |
5?C (41?F) |
50?C (122?F) |
32?C (90?F) |
15?C (59?F) |
50?C (122?F) |
| EN12900 |
208V ~ 50HZ |
14426 |
3635 |
4226 |
1844 |
7.82 |
1.97 |
2.29 |
5?C (41?F) |
50?C (122?F) |
32?C (90?F) |
15?C (59?F) |
50?C (122?F) |
(R) Refrigeration Capacity
(I) Input Power
(E) Efficiency
General
Evaporating Temp. Range:
|
-15°C to 15°C (5°F to 59°F) |
Motor Torque:
|
Low Start Torque (LST) |
Compressor Cooling:
|
Fan |
Mechanical
Weight:
|
21 |
Weight Unit of Measure:
|
KG |
Displacement (cc):
|
32.7 |
Oil Type:
|
Mineral |
Viscosity (cSt):
|
68 |
Oil Charge (cc):
|
475 |
Electrical
Voltage Range (50 Hz):
|
187-230 |
Voltage Range (60 Hz):
|
207-253 |
Locked Rotor Amps (LRA):
|
57 |
Rated Load Amps (RLA 50 Hz):
|
11 |
Rated Load Amps (RLA 60 Hz):
|
11 |
Max. Continuous Current (MCC in Amps):
|
0 |
Motor Resistance (Ohm) – Main:
|
0.9 |
Motor Resistance (Ohm) – Start:
|
5.6 |
MotorType:
|
PSC |
Overload Type:
|
N/A |
Relay Type:
|
N/A |
