Tecumseh Hermetic R134A / R404a / R22 piston compressor

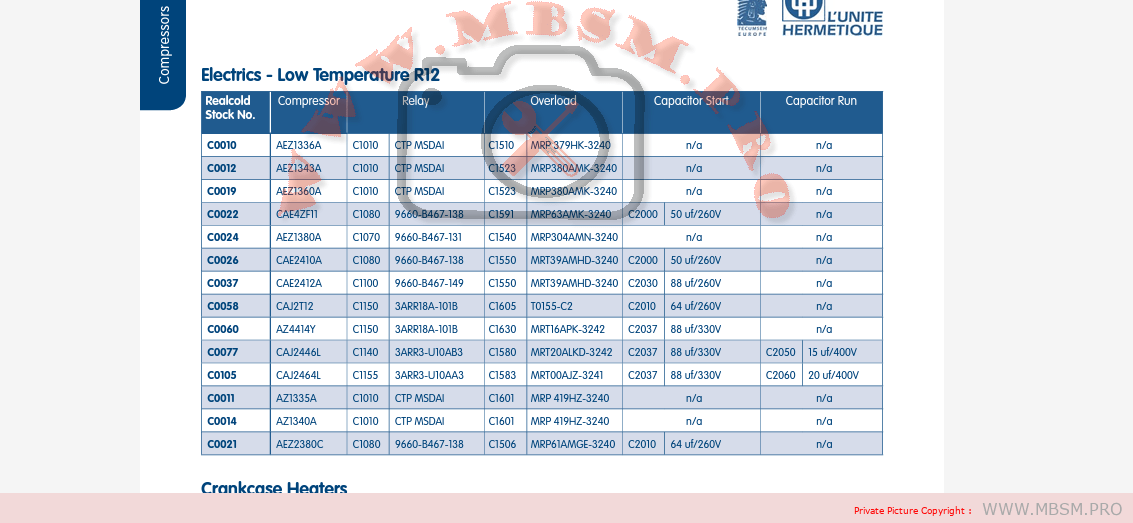

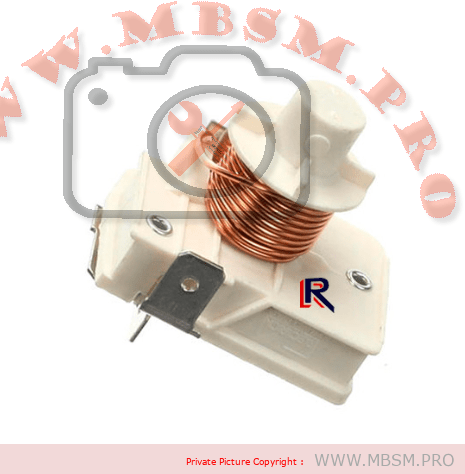

| R22 Hermetique HBP | |||||||||
| For air conditioning applications. | |||||||||
| Features: | |||||||||
| Supports anti vibration fourni | |||||||||
| Charged with mineral oil and dry nitrogen | |||||||||
| Crankcase heater on Beacon models | |||||||||
| Fan cooling required on all models | |||||||||
| Specifications: | |||||||||
| Base rating capacity: 35°C ambient temperature, 11K gas return overheat, 54.5°C condensation, 46.2°C liquid entering expansion valve. | |||||||||
| Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature. | |||||||||
| Engine types: | |||||||||
| = PSC permanent split capacitors, 1 phase, 50 Hz. 220-240 Volt | |||||||||
| Phase 3Ø : 3, 50 Hz, 400 volts | |||||||||
| Expansion device: | |||||||||
| C = the capillary tube | |||||||||
| C/V = capillary tube or expansion valve | |||||||||
| R22 airtight | |||||||||
| Model No. | HP nominal | Displ. cm³/rev | Type of engine | FLA rated current | Exp. Device | Oil charge cm³ | Connections: inches | ||
| Cm³ | Discharge | Proc. | |||||||
| AE 5465E | 1/2 | 12.05 | Cfp | 3.2 | C | 450 | Tube 3/8 | Tube 1/4 | Tube 3/8 |
| AJ 5510F | 3/4 | 18.6 | Cfp | 5.2 | C | 887 | Tube 3/8 | Tube 1/4 | Tube 1/4 |
| AJ 5512E | 1 | 21,75 | Cfp | 5.9 | C | 887 | Tube 3/8 | Tube 1/4 | Tube 1/4 |
| AJ 5513E | 1 | 24.2 | Cfp | 6 | C | 887 | Tube 3/8 | Tube 1/4 | Tube 1/4 |
| AJ 5515E | 1 1/4 | 25.95 | Cfp | 7.2 | C | 887 | Tube 1/2 | 5/16 Tube | Tube 1/4 |
| AJ 5518E | 1 1/2 | 32,7 | Cfp | 9.3 | C | 887 | Tube 1/2 | 5/16 Tube | Tube 1/4 |
| AJ 5519E | 1 1/2 | 34.45 | Cfp | 9.96 | C | 887 | Tube 1/2 | 5/16 Tube | Tube 1/4 |
| FH 5522E | 1 3/4 | 39.95 | Cfp | 9 | C | 1330 | Tube 5/8 | Tube 3/8 | 5/16 Tube |
| TFH 5522E | 1 3/4 | 39.95 | 3Ø | 3.8 | C/V | 1330 | Tube 5/8 | Tube 3/8 | 5/16 Tube |
| FH 5524E | 2 | 43,5 | Cfp | 10 | C | 1330 | Tube 5/8 | Tube 3/8 | 5/16 Tube |
| TFH 5524E | 2 | 43,5 | 3Ø | 4 | C/V | 1330 | Tube 5/8 | Tube 3/8 | 5/16 Tube |
| FH 5527E | 2 1/4 | 49.1 | Cfp | 12 | C | 1330 | Tube 5/8 | Tube 3/8 | 5/16 Tube |
| TFH 5527E | 2 1/4 | 49.1 | 3Ø | 4.2 | C/V | 1330 | Tube 5/8 | Tube 3/8 | 5/16 Tube |
| FH 5531E | 2 1/2 | 56,65 | Cfp | 14.1 | C | 1330 | Tube 3/4 | Tube 3/8 | 5/16 Tube |
| TFH 5531E | 2 1/2 | 56,65 | 3Ø | 8 | C/V | 1330 | Tube 3/4 | Tube 3/8 | 5/16 Tube |
| FH5540E | 3 | 74.25 | Cfp | 18.6 | C | 1330 | Tube 3/4 | Tube 3/8 | 5/16 Tube |
| TFH 5540E | 3 | 74.25 | 3Ø | 6 | C/V | 1330 | Tube 3/4 | Tube 3/8 | 5/16 Tube |
| TFH 5540E | 3 | 74.25 | 3Ø | 6 | C/V | 1330 | 78 | Distributor 1/2 | 5/16 Tube |
| TAG 5546E | 3 3/4 | 90.2 | 3Ø | 6.6 | C/V | 1960 | Tube 7/8 | Tube 1/2 | Tube 3/8 |
| TAG 5553E | 4 | 100,7 | 3Ø | 7.4 | C/V | 1960 | Tube 7/8 | Tube 1/2 | Tube 3/8 |
| TAG 5561E | 5 | 112,5 | 3Ø | 9 | C/V | 1960 | Tube 7/8 | Tube 1/2 | Tube 3/8 |
| TAG 5568E | 6 | 124,4 | 3Ø | 9.6 | C/V | 1960 | Tube 7/8 | Tube 1/2 | Tube 3/8 |
| TAG 5573E | 6 1/2 | 134,8 | 3Ø | 11 | C/V | 1960 | Tube 7/8 | Tube 1/2 | Tube 3/8 |
| Hermetic R22 M/RAP | |||||||||
| For medium/high temperature applications | |||||||||
| Features: | |||||||||
| Anti-vibration dampers provided | |||||||||
| Charged with mineral oil and dry nitrogen | |||||||||
| Rotalock suction valve on CAJ/TAJ models | |||||||||
| Crankcase heater on FH/ESS and Beacon models | |||||||||
| Oil light on FH/ESS and Beacon models | |||||||||
| Fan cooling required on all models | |||||||||
| All models fit capillary tube or regulator operation | |||||||||
| Rotalock suction and discharge valves on FH/ESS and Beacon models | |||||||||
| Specifications: | |||||||||
| Base rating of capacity: 35°C ambient temperature, 11K Overheat gas return, 54.5°C condensation, 46°C liquid entering expansion valve. | |||||||||
| Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature. | |||||||||
| Engine types: | |||||||||
| CSIR: start capacitor, induction run } 1 phase, 50 Hz, 220-240 Volt | |||||||||
| CSR: Capacitor start and run | |||||||||
| Phase 3Ø : 3, 50 Hz, 400 volts | |||||||||
| Conversion : watts x = 3.412 BTU/hr Btu/hr x = 0.293 Watts | |||||||||
| R22 airtight | |||||||||
| Model No. | HP nominal | Displ. cm³/rev | Type of engine | FLA rated current | Oil charge cm³ | Connections: inches | |||
| L’aspiration | Discharge | ||||||||
| AEZ 4425E | 1/5 | 4.5 | The CSIR | 1.75 | 450 | Tube 1/4 | 3/16 Tube | ||
| AEZ 4430E | 1/4 | 5.7 | The CSIR | 2.2 | 450 | Tube 1/4 | 3/16 Tube | ||
| AEZ 4440E | 1/3 | 7.55 | The CSIR | 2.6 | 450 | Tube 1/4 | 3/16 Tube | ||
| AEZ 9440T | 1/3 | 7.55 | CSR | 2.03 | 450 | Tube 3/8 | Tube 1/4 | ||
| CAE 4450E | 3/8 | 9.4 | The CSIR | 3.3 | 450 | Tube 3/8 | Tube 1/4 | ||
| CAE 9450T | 3/8 | 9.5 | CSR | 2.6 | 450 | Tube 3/8 | Tube 1/4 | ||
| FIELD 9460T | 1/2 | 11.3 | CSR | 3.2 | 450 | Tube 3/8 | Tube 1/4 | ||
| Le CAJ 9408T | 5/8 | 15.2 | CSR | 3.68 | 887 | Distributor 1/2 | 5/16 Tube | ||
| The CAJ 9510T | 1 | 18.3 | CSR | 4.8 | 887 | Distributor 5/8 | 5/16 Tube | ||
| Le CAJ 9513T | 1 1/8 | 24.2 | CSR | 5.9 | 887 | Distributor 5/8 | 5/16 Tube | ||
| Le CAJ 4517E | 1 1/4 | 25.95 | CSR | 6.1 | 887 | Distributor 5/8 | Tube 3/8 | ||
| TAJ 4517T | 1 1/2 | 25.95 | 3Ø | 2.5 | 887 | Distributor 5/8 | Tube 3/8 | ||
| TAJ 4519T | 1 1/2 | 34.45 | 3Ø | 3.5 | 887 | Distributor 5/8 | Distributor 1/2 | ||
| FH 4524F | 2 | 43,5 | CSR | 9.55 | 1480 | Distributor 5/8 | Distributor 1/2 | ||
| TFH 4524F | 2 | 4.35 | 3Ø | 3.9 | 1480 | Distributor 7/8 | Distributor 1/2 | ||
| FH 4531F | 2 1/2 | 56,65 | CSR | 12.6 | 1480 | Distributor 7/8 | Distributor 1/2 | ||
| TFH4531F | 2 1/2 | 56,65 | 3Ø | 4.75 | 1480 | Distributor 7/8 | Distributor 1/2 | ||
| TFH 4540F | 3 | 74.25 | 3Ø | 6.08 | 1480 | Distributor 7/8 | Distributor 1/2 | ||
| TAG 4546T | 4 | 90.2 | 3Ø | 6.6 | 1960 | Distributor 7/8 | Distributor 5/8 | ||
| TAG 4553T | 4 1/2 | 100,7 | 3Ø | 7.4 | 1960 | Distributor 7/8 | Distributor 5/8 | ||
| TAG 4561T | 5 | 112,5 | 3Ø | 9 | 1960 | 1 7/8 valve | Distributor 5/8 | ||
| TAG 4568T | 6 | 124,4 | 3Ø | 9.6 | 1960 | 1 7/8 valve | Distributor 5/8 | ||
| DAY 4573T | 6 1/2 | 134,8 | 3Ø | 11 | 1960 | 1 7/8 valve | Distributor 5/8 | ||
| Tecumseh Hermetique R134a | |||||||||
| The world famous Unite Hermetique compressors are manufactured by Tecumseh. | |||||||||
| Features: | |||||||||
| Loaded with polyolester oil and dry nitrogen | |||||||||
| Crankcase heater on FH/ESS and Beacon models | |||||||||
| Oil light on FH/ESS and Beacon models | |||||||||
| Rotalock valves are included for all compressors valve connection | |||||||||
| Supports anti-vibration fourni | |||||||||
| Single phase – moderately high SST | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| Le CAJ4476Y | 5/8 | 21,75 | The fan | 887 | |||||
| The CAJ4492Y | 3/9 | 25.95 | The fan | 887 | |||||
| Le CAJ4511Y | 1 | 32,7 | The fan | 887 | |||||
| FH4518Y | 1 1/2 | 53,2 | The fan | 1480 | |||||
| FH4525Y | 2 | 74.25 | The fan | 1480 | |||||
| Three Phase – Medium High SST | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| TAJ4511Y | 1 | 32,7 | The fan | 887 | |||||
| TFH4518Y | 1 1/2 | 53,2 | The fan | 1480 | |||||
| TFH4525Y | 2 | 74.25 | The fan | 1480 | |||||
| TAG4528Y | 2 1/2 | 90.2 | The fan | 1960 | |||||
| TAG4534Y | 2 3/4 | 100,7 | The fan | 1960 | |||||
| TAG4537Y | 3 | 112,5 | The fan | 1960 | |||||
| TAG4543Y | 3 1/2 | 124,4 | The fan | 1960 | |||||
| Models replaced | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| Zae4425Y | 1/5 | 7.55 | The fan | 450 | |||||
| AEZ4430/Y | 1/4 | 8.85 | The fan | 450 | |||||
| CAE4440Y | 3/8 | 12.05 | The fan | 450 | |||||
| CAE4448Y | 1/3 | 14.15 | The fan | 450 | |||||
| And CAJ4452Y | 1/3 | 15.2 | The fan | 887 | |||||
| CAE4456Y | 1/2 | 16 | The fan | 450 | |||||
| The CAJ4461Y | 1/2 | 18.3 | The fan | 887 | |||||
| Tecumseh Hermetique R404A | |||||||||
| The world famous Unite Hermetique compressors are manufactured by Tecumseh. | |||||||||
| Features: | |||||||||
| Loaded with polyolester oil and dry nitrogen | |||||||||
| Crankcase heater on FH/ESS and Beacon models | |||||||||
| Oil light on FH/ESS and Beacon models | |||||||||
| Rotalock valves are included for all compressors valve connection | |||||||||
| Supports anti-vibration fourni | |||||||||
| Specifications: | |||||||||
| Base rating of capacity: 35°C ambient temperature, 11K Overheat gas return, 54.5°C condensation, 46°C liquid entering expansion valve. | |||||||||
| Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature. | |||||||||
| Engine types: | |||||||||
| CSIR: Start Capacitor, Induction Run 1 Phase, 50 Hz, 220-240 Volt | |||||||||
| CSR: Capacitor start and run | |||||||||
| Phase 3Ø : 3, 50 Hz, 400 volts | |||||||||
| All models are also suitable for operation with R507 | |||||||||
| Single phase – moderately high SST | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| The CAJ9480Z | 5/8 | 15.2 | The fan | 887 | |||||
| The CAJ9510Z | 1 | 18.3 | The fan | 887 | |||||
| The CAJ9513Z | 1 1/8 | 24.2 | The fan | 887 | |||||
| The CAJ4517Z | 1 1/4 | 25.95 | The fan | 887 | |||||
| And CAJ4519Z | 1 1/2 | 34.45 | The fan | 887 | |||||
| FH4522Z | 1 3/4 | 39.95 | The fan | 1480 | |||||
| FH4524Z | 2 | 43,5 | The fan | 1480 | |||||
| FH4531Z | 2 1/2 | 56,65 | The fan | 1480 | |||||
| FH4540Z | 3 | 74.25 | The fan | 1480 | |||||
| Three Phase – Medium High SST | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| TAJ9480Z | 5/8 | 15.2 | The fan | 887 | |||||
| TAJ9510Z | 1 | 18.3 | The fan | 887 | |||||
| TAJ9513Z | 1 1/8 | 24.2 | The fan | 887 | |||||
| TAJ4517Z | 1 1/4 | 25.95 | The fan | 887 | |||||
| TAJ4519Z | 1 1/2 | 34.45 | The fan | 887 | |||||
| TFH4522Z | 1 3/4 | 39.95 | The fan | 1480 | |||||
| TFH4524Z | 2 | 43,5 | The fan | 1480 | |||||
| TFH4531Z | 2 1/2 | 56,65 | The fan | 1480 | |||||
| TFH4540Z | 3 | 74.25 | The fan | 1480 | |||||
| TAG4546Z | 4 | 90.2 | The fan | 1960 | |||||
| TAG4553Z | 4 1/2 | 100,7 | The fan | 1960 | |||||
| TAG4561Z | 5 | 112,5 | The fan | 1960 | |||||
| TAG4568Z | 6 | 124,4 | The fan | 1960 | |||||
| TAG4573Z | 6 1/2 | 134,8 | The fan | 1960 | |||||
| Single Phase – Low SST | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| CAE2417Z | 1/3 | 11.3 | The fan | 450 | |||||
| CAE2420Z | 1/2 | 12.54 | The fan | 450 | |||||
| CAE2424Z | 5/8 | 15 | The fan | 450 | |||||
| The CAJ2428Z | 1/2 | 15.2 | The fan | 887 | |||||
| The CAJ2432Z | 5/8 | 18.3 | The fan | 887 | |||||
| The CAJ2446Z | 3/4 | 26,15 | The fan | 887 | |||||
| The CAJ2464Z | 1 1/2 | 34.45 | The fan | 887 | |||||
| FH2480Z | 2 | 53,2 | The fan | 1625 | |||||
| FH2511Z | 2 1/2 | 74.25 | The fan | 1625 | |||||
| Three Phase – Low SST | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | The recooling | : Ml charging oil | |||||
| TAJ2464Z | 1 1/2 | 34.45 | The fan | 887 | |||||
| TFH2480Z | 2 | 53,2 | The fan | 1625 | |||||
| TFH2511Z | 2 1/2 | 74.25 | The fan | 1625 | |||||
| TAG2516Z | 4 | 112,5 | The fan | 1960 | |||||
| TAG2522Z | 5 1/2 | 134,8 | The fan | 1960 | |||||
| Three Phase – Parallel Applications | |||||||||
| Model No. | HP nominal | Displacement: cm3/rev | Application : SST | The recooling | : Ml charging oil | ||||
| TAGP4546Z | 4 | 90.2 | Averages | The fan | 1960 | ||||
| TAGP4553Z | 4 1/2 | 100,7 | Averages | The fan | 1960 | ||||
| TAGP4561Z | 5 | 112,5 | Averages | The fan | 1960 | ||||
| TAGP4568Z | 6 | 124,4 | Averages | The fan | 1960 | ||||
| TAGP4573Z | 6 1/2 | 134,8 | Averages | The fan | 1960 | ||||
| TAGP2516Z | 4 | 112,5 | Weak | The fan | 1960 | ||||
| TAGP2522Z | 5 1/2 | 134,8 | Weak | The fan | 1960 | ||||
