Product Specifications
Mbsm_dot_pro_private_PDF_AWZ5538EXN
Performance
| Condition | Test Voltage | (R) Btu/h | (R) kcal/h | (R) W | (I) W | (E) Btu/Wh | (E) kcal/Wh | W/W | EVAP TEMP | COND TEMP | AMBIENT TEMP | RETURN GAS | LIQUID TEMP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASHRAE | 230V ~ 60HZ | 38000 | 9576 | 11137 | 3800 | 10 | 2.52 | 2.93 | 7.2?C (45?F) | 54?C (130?F) | 35?C (95?F) | 35?C (95?F) | 46?C (115?F) |
| ASHRAE | 230V ~ 60HZ | 38000 | 9576 | 11137 | 3800 | 10 | 2.52 | 2.93 | 7.2?C (45?F) | 54?C (130?F) | 35?C (95?F) | 35?C (95?F) | 46?C (115?F) |
General
Evaporating Temp. Range: |
-23.3°C to 12.8°C (-10°F to 55°F) |
Motor Torque: |
Low Start Torque (LST) |
Compressor Cooling: |
Fan |
Mechanical
Weight: |
30 |
Weight Unit of Measure: |
KG |
Displacement (cc): |
63 |
Oil Type: |
Mineral |
Viscosity (cSt): |
37 |
Oil Charge (cc): |
1140 |
Electrical
Voltage Range (50 Hz): |
N/A |
Voltage Range (60 Hz): |
197-254 |

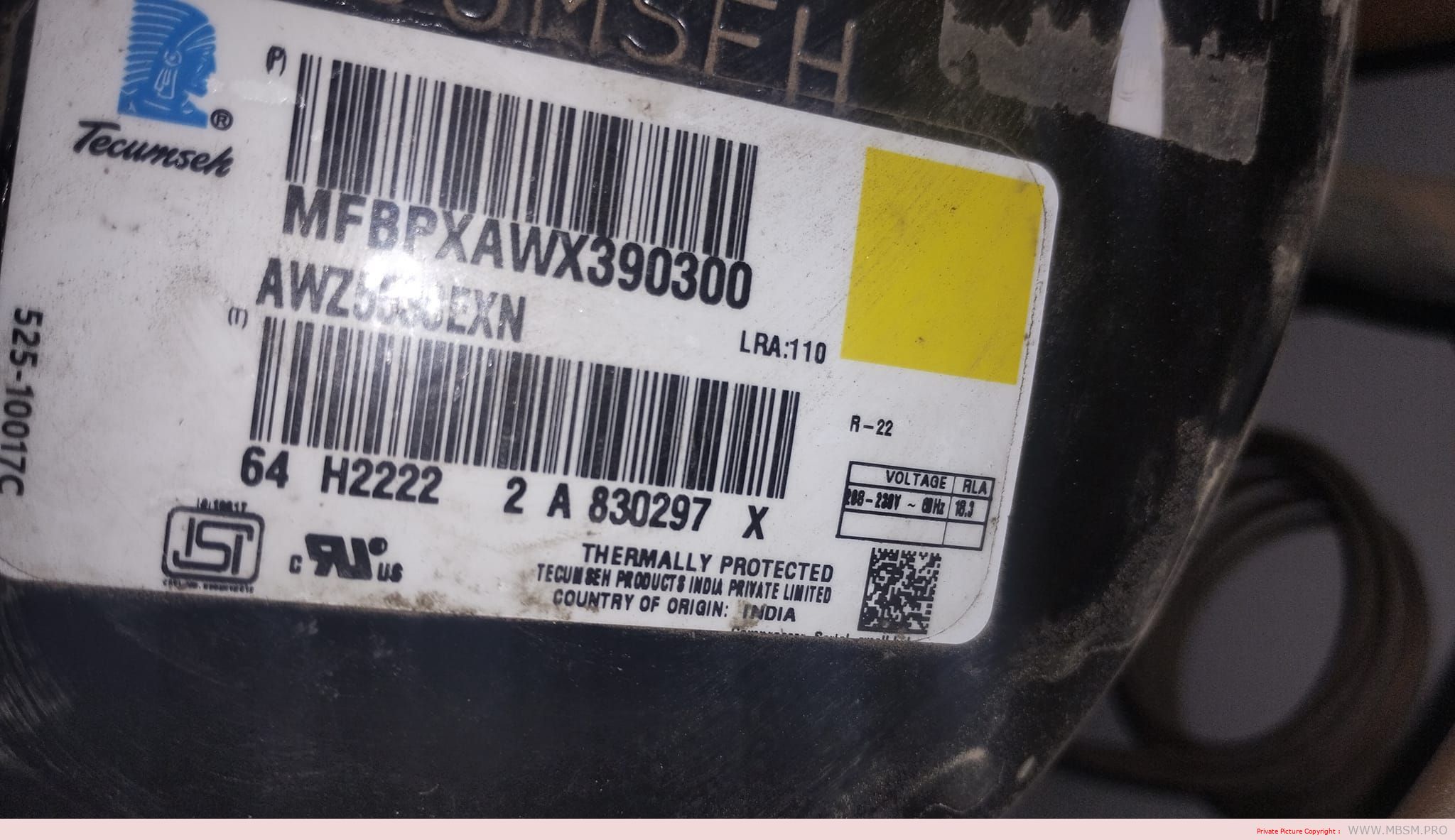

Locked Rotor Amps (LRA): |
110 |
Rated Load Amps (RLA 50 Hz): |
0 |
Rated Load Amps (RLA 60 Hz): |
18.3 |
Max. Continuous Current (MCC in Amps): |
29.5 |
Motor Resistance (Ohm) – Main: |
0.52 |
Motor Resistance (Ohm) – Start: |
2.32 |
MotorType: |
PSC |
Overload Type: |
N/A |
Relay Type: |
N/A |
