Scroll Compressor Specification Sheet
|
||
|
model
|
C-SBX215H38P | |
|
application
|
||
|
Evaporation temperature range
|
(°C)
|
-15~12 |
|
The refrigerant
|
R22 | |
|
compressor cooling
|
Natural Cooling | |
|
Rated performance
|
||
|
Cooling capacity
|
(W)
|
17800 |
|
input power
|
(W)
|
5350 |
|
current
|
(A)
|
9.4 |
|
noise
|
(dB(A))
|
62max |
|
Test Conditions
|
||
|
power supply
|
3ph, 50Hz, 380-415V | |
|
Evaporation temperature
|
(°C)
|
7.2 |
|
Condensing temperature
|
(°C)
|
54.4 |
|
Suction temperature
|
(°C)
|
18.3 |
|
subcooled liquid temperature
|
(°C)
|
46.1 |
|
ambient temperature
|
(°C)
|
35 |
|
compressor
|
||
|
type
|
Hermetic Scroll | |
|
Exhaust volume
|
(cm3/rev)
|
100 |
|
Suction pipe size
|
(Φmm OD)
|
22.23 |
|
Exhaust pipe size
|
(Φmm OD)
|
12.7 |
|
Refrigeration oil model
|
L-DRC/B56 | |
|
oil filling amount
|
(ml)
|
1700 |
|
Weight (including refrigeration oil)
|
(kg)
|
40 |
|
motor
|
||
|
Motor type
|
3Ph-Induction Motor | |
|
Rotating speed
|
(min-1)
|
2900 |
|
voltage range
|
(V)
|
342~456 |
|
start capacitor
|
MFD/V
|
n/a |
|
Running capacitor
|
MFD/V
|
n/a |
|
RLA
|
(A)
|
|
|
MCC
|
(A)
|
|
|
LRA
|
(A)
|
73 |
Basic Info.
Model NO.
C-SBX215H38P
Lubrication Style
Lubricated
Cooling System
Air Cooling
Cylinder Arrangement
Balanced Opposed Arrangement
Cylinder Position
Vertical
Structure Type
Closed Type
Compress Level
Single-Stage
Refrigerant Type
Freon
Place of Origin
Liaoning, China (Mainland)
Brand Name
SANYO/Panasonic
Model Number
C-Sb C-Sc C-SD
Certification
Ce
Color
Black
Price
Best
Type
Refrigeration Compressor
Performance
Low Noise
Drive Mode
Electric
Power Source
AC Power
Trademark
Panasonic/Sanyo
Transport Package
Pallets with Cartons
Specification
10HP
Origin
China (Mainland)
HS Code
8414301900
Product Description
Specifications
*High & low pressure baffle
*Low sound float valve
*Tip seal made of PPS resin
*Direct power breakdown for motor protection
Sanyo air-conditioning scroll compressors can be used for R22,R410a,R407C, power can be 220-240/50Hz,380-415/50Hz, 440-460/60Hz,208-230V/60Hz,,EVI models, T3 models, Hi-COP models,SPA models,Inverter Drive models,
| HP | Model | Freon | |
| 3.5 | C-SBN263H8A | R407C | |
| 4 | C-SBN303H8A | R407C | |
| 4.5 | C-SBN353H8A | R407C | |
| 5 | C-SBN373H8A | R407C | |
| 6 | C-SBN453H8A | R407C | |
| 7 | C-SBS235H38A | R407C | |
| 8 | C-SCN603H8H | R407C | |
| 10 | C-SCN753H8H | R407C | |
| 12 | C-SCN903H8H | R407C | |
| 3.5 | C-SBN261H5A | R407C | |
| 4 | C-SBN301H5A | R407C | |
| 4.5 | C-SBN351H5A | R407C | |
| 5 | C-SBN371H5A | R407C | |
| 4 | C-SBN303H5A | R407C | |
| 5 | C-SBN373H5A | R407C | |
| 6 | C-SBN373H5A | R407C | |
| 8 | C-SCN603H5H | R407C | |
| 10 | C-SCN753H5H | R407C | |
| 12 | C-SCN903H5H | R407C | |
| 3.5 | C-SBS120H16A | R407C | |
| 4 | C-SBS145H16A | R407C | |
| 4.5 | C-SBS165H16A | R407C | |
| 3.5 | C-SBN263H6B | R407C | |
| 4 | C-SBN303H6B | R407C | |
| 4.5 | C-SBN353H6B | R407C | |
| 5 | C-SBN373H6B | R407C | |
| 6 | C-SBN453H6B | R407C | |
| 3.5 | C-SBN263H9A | R407C | |
| 4 | C-SBN303H9A | R407C | |
| 4.5 | C-SBN353H9A | R407C | |
| 5 | C-SBN373H9A | R407C | |
| 6 | C-SBN453H9A | R407C | |
| 3.5 | C-SBN263H8D | R410a | |
| 4 | C-SBN303H8D | R410a | |
| 4.5 | C-SBN353H8D | R410a | |
| 5 | C-SBN373H8D | R410a | |
| 6 | C-SBN453H8D | R410a | |
| 7 | C-SBN523H8D | R410a | |
| 8 | C-SCP270H38A | R410a | |
| 10 | C-SCP315H38A | R410a | |
| 11 | C-SCP360H38A | R410a | |
| 12 | C-SCP400H38A | R410a | |
| 3.5 | C-SB261H5A | R22 | |
| 4 | C-SB301H5A | R22 | |
| 4.5 | C-SB351H5A | R22 | |
| 5 | C-SB371H5A | R22 | |
| 4 | C-SB303H5A | R22 | |
| 5 | C-SB373H5A | R22 | |
| 6 | C-SB373H5A | R22 | |
| 8 | C-SC603H5H | R22 | |
| 10 | C-SC753H5H | R22 | |
| 12 | C-SC903H5H | R22 | |
| 3.5 | C-SB261H6A | R22 | |
| 4 | C-SB301H6B | R22 | |
| 4.5 | C-SB351H6A | R22 | |
| 5 | C-SB371H6A | R22 | |
| 3.5 | C-SB263H6B | R22 | |
| 4 | C-SB303H6B | R22 | |
| 4.5 | C-SB353H6B | R22 | |
| 5 | C-SB373H6B | R22 | |
| 6 | C-SB453H6B | R22 | |
| 7 | C-SBR235H36A | R22 | |
| 8 | C-SC603H6H | R22 | |
| 10 | C-SC753H6H | R22 | |
| 12 | C-SC903H6H | R22 | |
| 3.5 | C-SB263H9A | R22 | |
| 4 | C-SB303H9A | R22 | |
| 4.5 | C-SB353H9A | R22 | |
| 5 | C-SB373H9A | R22 | |
| 6 | C-SB453H9A | R22 | |
| 8 | C-SC603H9H | R22 | |
| 10 | C-SC753H9H | R22 | |
| 12 | C-SC903H9H | R22 | |
| C-SBS120H38Q |
| C-SBS145H38Q |
| C-SBS180H38Q |
| C-SBS205H38Q |
| C-SCS295H38Q |
| C-SCS370H38Q |
| C-SCS435H38Q |

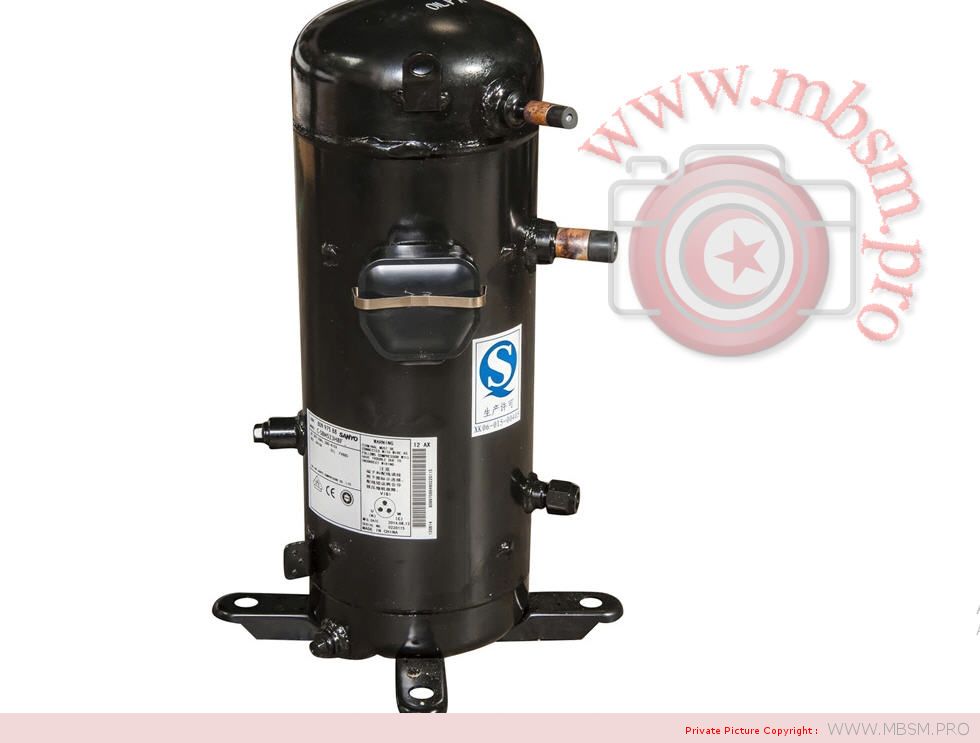

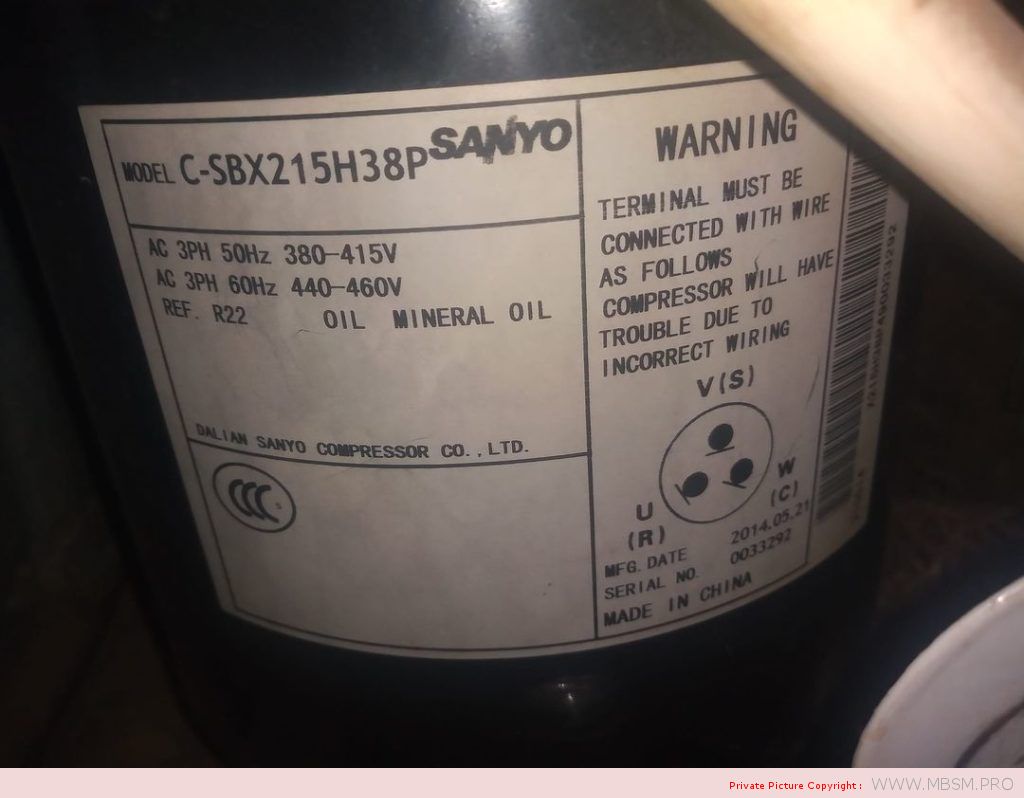

Sanyo C-SB Scroll Compressor C-SBX215H38P
Phase : 3
Output (HP) : 6
Displac ement (cm3/rev) : 100.0
Compressor Model : C-SBX215H38P
Compressor Code : –
Starting Method : –
Outline Graph Code : A
| 50Hz | |||
|---|---|---|---|
| Nominal Capacity | COP | ||
| kW | kBTU/h | W/W | BTU/Wh |
| 17.7 | 60.4 | 3.33 | 11.4 |
| 60Hz | |||
|---|---|---|---|
| Nominal Capacity | COP | ||
| kW | kBTU/h | W/W | BTU/Wh |
| 21.5 | 73.4 | 3.33 | 11.4 |
