Mbsm.pro, Freezer, 200 L, SL-G200, compressor, Gml200a, 150w, r134a, 100g, LBP, 1.1 a
Mbsm.pro, UPRIGHT, FREEZET, g185, 185 L, r134a, 120g, Compressor, 1/6 hp, Lbp, 118 w
Mbsm.pro, Freezer, Ch650, 650 L, Mondial For. Home Appliances, Compressor, r134a, 240 g, Lbp, 1/3 hp, 230 w, 1.9 A
Mbsm.pro, Freezer, GR-EF40, TOSHIBA REFRIGERATOR-FREEZER, 335 L, Qb73c15gax5 ,R134a , Refrigeration Compressor ,1/4 Hp, Panasonic, QB series , 1Ph , 220V 50Hz
Mbsm.pro, DAEWOO, Refrigerator-Freezer, 350 l, FR-3501, AC 220-240V, 0.8 a, 165 w, compressor, 1/5 hp, R-134a, 85g, HSL25YE-5, lbp, R-134a, 85g
Daewoo FR-3501 refrigerator
Specifications:
- Capacity: 350 liters (total), with 73 liters (freezer) and 204 liters (refrigerator)
- Cooling system: Fan-forced convection
- Defrost system: Automatic forced fin evaporator
- Cold control: Adjustable dial
- Dimensions: Width 667mm, Depth 625mm, Height 1677mm
- Net weight: 60 kg
Additional details:
- This model appears to be discontinued, but you might still find it used or refurbished.
- Some online sellers offer spare parts for the FR-3501, such as the impeller for the compressor/condenser arc engine.
- You can find a service manual for the FR-3501 online, which includes diagrams, specifications, and troubleshooting tips.
Mbsm.pro, Freezer, 203L, Compressor, ES241-BK, refrigerante, R600a, A140CY1, Donper, 140W, 1/6HP, RSIR, 8,4cm³, 7,5kg, lbp

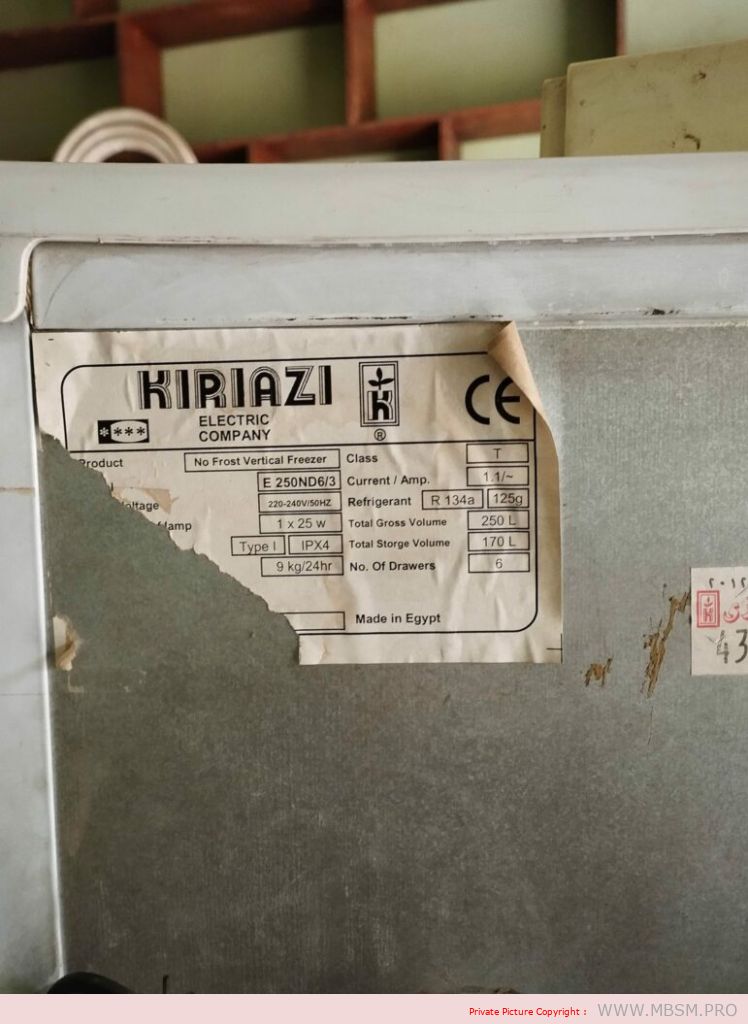

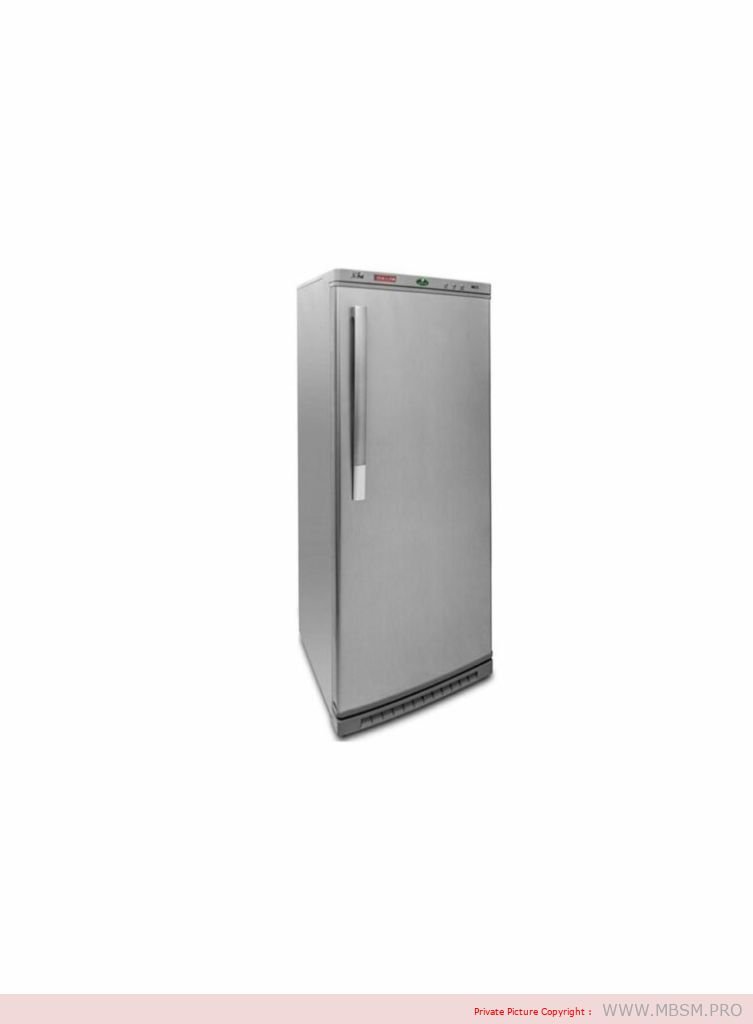

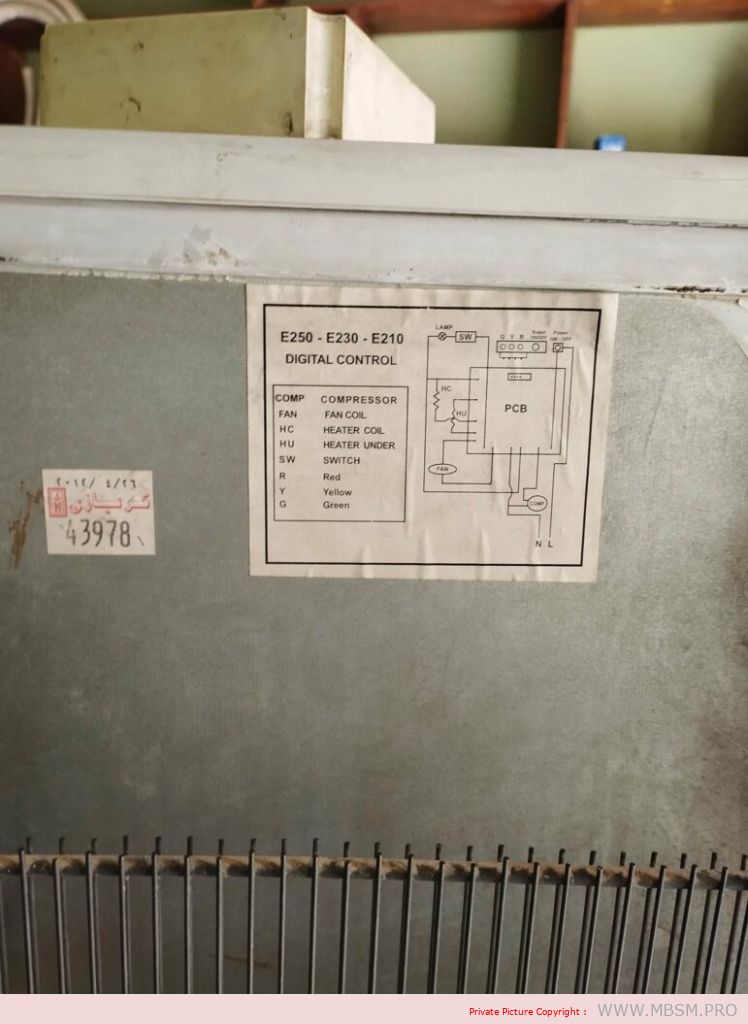

Mbsm.pro, Kiriazi, No Frost, Digital, Deep Freezer, 6 Drawers , 250 L, E250N, E250N 6/3, compressor, gl60an, 1/6, hmbp, r134a, 125g

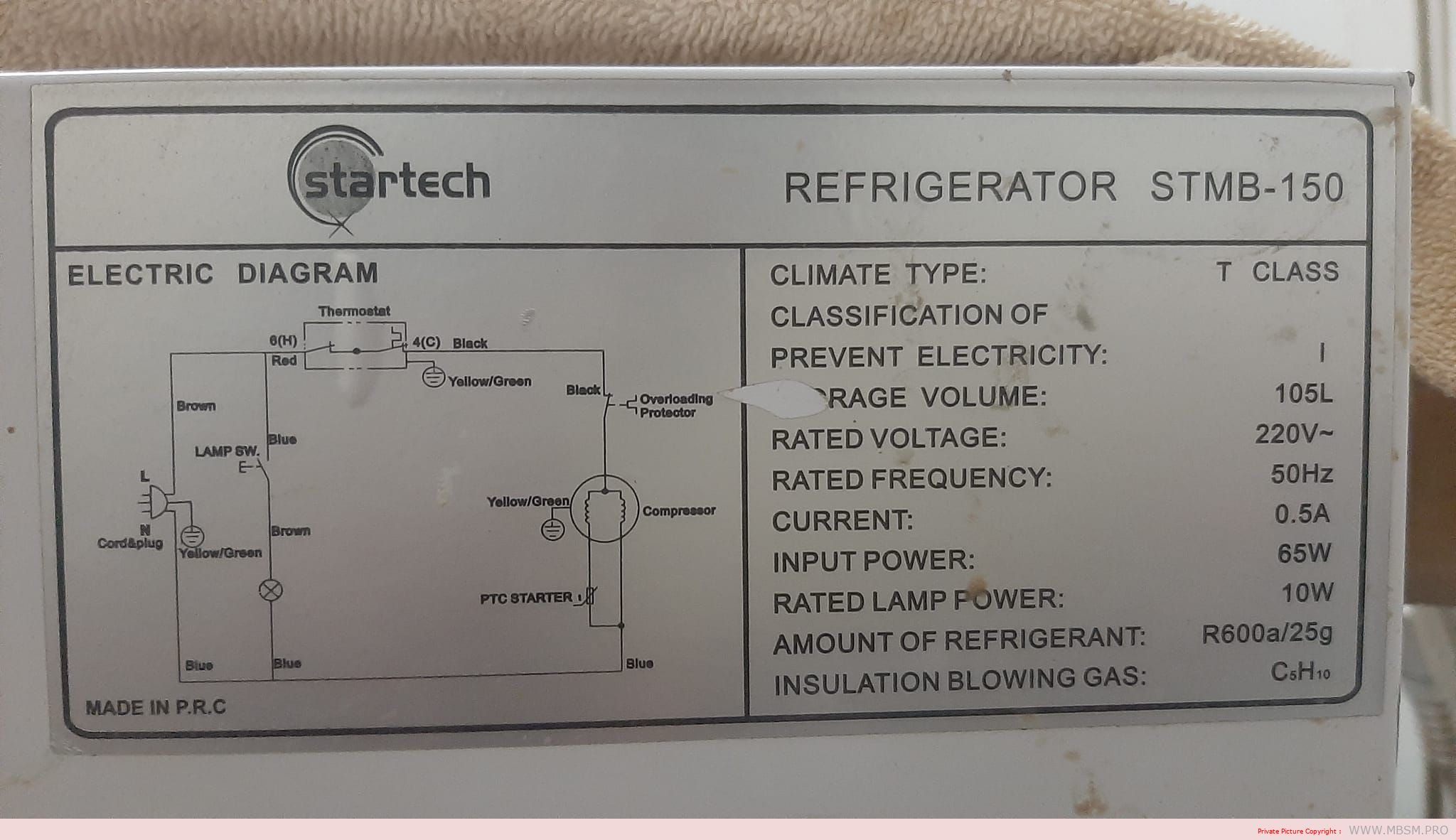

Mbsm.pro, Refrigeration, compressor, CSB Series, freezer, 100W, R600a, 5.7cm3, 1PH, Beko, Candy, LG, CSB057NJEG (1/10HP), CSB069NJEG (1/8HP), Lbp, small compressor, Water Purifier Commercial Refrigeration, SMTB-150, 105 L, r600a/25 g, T class, 0.5 A
Parameter
Product type | Reciprocating Compressor |
Series | CSB Series |
Speed type | Fixed speed |
Size | Small |
Displacement | 5.7 cc/rev |
Refrigerants | R600a |
Improvement order | Al Wire |
Rated voltage | 220-240 V |
Frequency | 50 Hz |
Operating type | RSIR |
Cooling Capacity | 100 W |
Application | LBP, Water Purifier Commercial Refrigeration |
Test condition | ASHRAE |
Evaporating temperature | -23.3°C |
Condensing temperature | 54.4°C |
Ambient temperature | 32.2°C |
