www.mbsm.pro, GREE , Mini Split , Air Conditioner ,Error Codes E6 , How To Fix

written by Jamila | 8 September 2018

The error E6 comes from the engine, it is the electronic engine card if it is an inverter range.

Communication error E6  Between Outside and inside

* Test cable connection
* Test Inside Unit First without cable
* Test Outside unit without cable
* Check Fluid Pressure
* Test Fan Rotation
* Test Condensateur fonction

www.mbsm.pro, FN66Q14G ,Refrigerator Compressors, equivalent in 1/5 HP ,R12, Powerful

written by Lilianne | 8 September 2018

1)SO60LKAA OR equivalent in 1/10 HP

2)FN43Q88G OR equivalent in 1/8 HP

3)FN51Q10G OR equivalent in 1/6 HP

4)FN57Q12G OR equivalent in 1/5 HP

5)FN66Q14G OR equivalent in 1/5 HP Powerful

6)FN77Q17G OR equivalent in 1/4 HP

7)FN91Q20G OR equivalent in 1/4 HP Powerful

8)FN110Q24G OR equivalent in 1/3 HP

www.mbsm.pro, COMPRESSOR , 1/5Hp ,EGL75AA , R134A, 155W, LBP, 7.39CM3

written by Lilianne | 8 September 2018

Compressor ZMC EGL75AA for refrigerator, cylinder volume 7.39cm ³

Make: ZMC
Model: EGL75AA

Low-temperature refrigerator compressor with a cylinder capacity of 7.39cm ³ and a cooling capacity of 155W. Works with refrigerant R134a.

Compressor ZMC EGL75AA – technical characteristics:

Parameter	Size
Refrigerant type	R134a
Refrigeration power	155W
Power Consumption	153W
Rated voltage	220V ÷ 240V, 50Hz
Cylinder volume	7.39cm ³
Type	LBP
Evaporating temperature range	-30 ^o C to -10 ^o C

Origin: Egypt

Mbsm_dot_pro_private_PDF_GL75AA Télécharger

www.mbsm.pro, Compresseur THG1365YGS, R134a ,1/5HP ,230V ,148W

written by Jamila | 8 September 2018

www.mbsm.pro, Compresseur THG1365YGS, R134a ,1/5HP ,230V ,148W

Product Specifications

Performance

		Refrigeration Capacity			Input Power	Efficiency			EVAP TEMP	COND TEMP	AMBIENT TEMP	RETURN GAS	LIQUID TEMP
Condition	Test Voltage	Btu/h	kcal/h	W	W	Btu/Wh	kcal/Wh	W/W	EVAP TEMP	COND TEMP	AMBIENT TEMP	RETURN GAS	LIQUID TEMP
ASHRAE	220V ~ 50HZ	570	144	167	148	3.85	.97	1.13	-23°C (-10°F)	54°C (130°F)	32°C (90°F)	32°C (90°F)	32°C (90°F)
ASHRAE	220V ~ 60HZ	640	161	188	151	4.24	1.07	1.24	-23°C (-10°F)	54°C (130°F)	32°C (90°F)	32°C (90°F)	32°C (90°F)

General

Evaporating Temp. Range:	-34.4°C to -12.2°C (-30°F to 10°F)
Motor Torque:	Low Start Torque (LST)
Compressor Cooling:	Static

Mechanical

Weight:	8
Weight Unit of Measure:	KG
Displacement (cc):	5.9
Oil Type:	Polyolester
Viscosity (cSt):	10
Oil Charge (cc):	243

Electrical

Voltage Range (50 Hz):	180-242
Voltage Range (60 Hz):	187-242
Locked Rotor Amps (LRA):	12.2
Rated Load Amps (RLA 50 Hz):	1.25
Rated Load Amps (RLA 60 Hz):	1.07
Max. Continuous Current (MCC in Amps):	0
Motor Resistance (Ohm) – Main:	10.34
Motor Resistance (Ohm) – Start:	31.18
Motor Type:	PTCS_IR
Overload Type:	N/A
Relay Type:	N/A

Agency Approval

CE Listed, IRAM Listed, SGS Listed, VDE Listed

Mbsm_dot_pro_private_PDF_THG1365YGS Télécharger

www.mbsm.pro, Compresseur THG1340YKS R-134a 1/8HP 230V U.H.

written by Jamila | 8 September 2018

Gamme: Froid Commercial / Industriel
Type de machine: Divers
Type de produit: Compresseur
Sous-type de produit: Compresseur
Marque: Tecumseh
Original

Calcul consommation electrique par Mbsmgroup 100w max

www.mbsm.pro, Branchement Unité extérieure , LG ,Media , Général , Samsung, Haier , Galanze ,Gree ,Maxwelle, Vestel

written by Jamila | 8 September 2018

www.mbsm.pro, Branchement Unité extérieure , LG ,Media , Général , Samsung, Haier , Galanze ,Gree ,Maxwelle, Vestel

WARNING:

Any fault in installing electrical connections ... the consequences will be dire

www.mbsm.pro ,Panasonic , Tested OK ,Refrigeration Compressors ,Industrial Devices

written by Jamila | 8 September 2018

HVAC/R & Appliance Devices: Refrigeration Compressors

Panasonic is known throughout the world for manufacturing high quality, reliable products. Our line of refrigeration compressors continues this tradition. Panasonic provides premium compressors for refrigerator manufacturers all over the world. Our compressors are recognized for superior construction, low noise, and most of all reliable performance. From our high efficiency inverter drive compressors to our high capacity QA series, our complete line of compressors are designed to meet the needs for nearly all refrigeration applications.

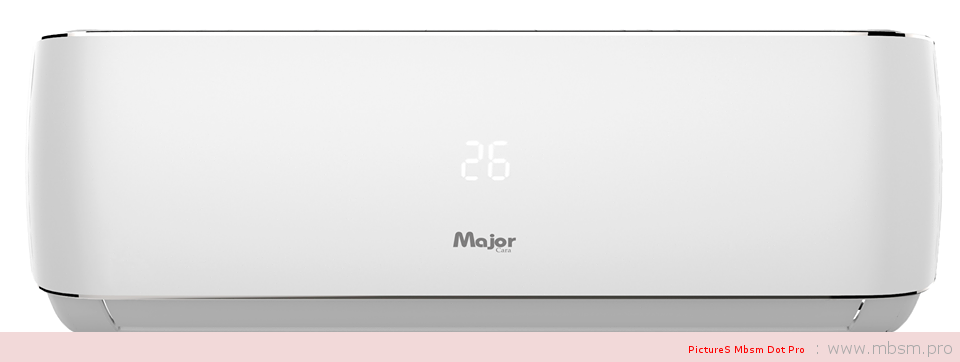

www.mbsm.pro , Major Cara, climatiseurs , Code Erreur EC , Solution Tester

written by Jamila | 8 September 2018

Les codes erreurs donnent une approche du type de dysfonctionnement. Faire appel à un professionnel pour les interpréter.
Un code peut provenir de plusieurs causes différentes.
Un dysfonctionnement peut être indiqué par plusieurs codes erreurs

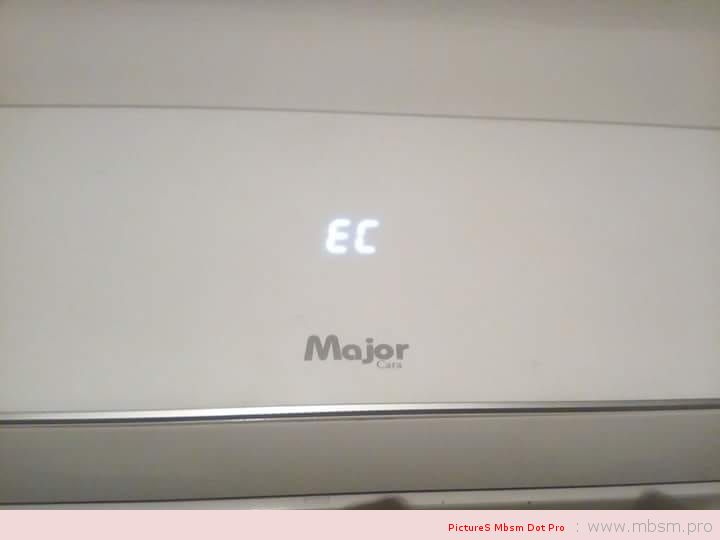

Code Erreur EC ( Le Climatiseur démarre normallement , Aprés 5 minutes l’unitée éxterrieur s’arrète ) (Erreur Compresseur)

Manque de fluide
Communication groupe extérieur
Sonde extérieure
Echauffement unité extérieur

Solution

Faire Vide Et Charger le Fluide 4.5 Bar pour R22 et 7.5 Bar pour R410a
Tester les sendes
Tester Fan exterieur

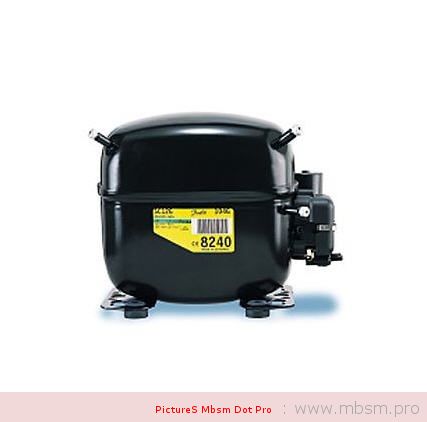

www.mbsm.pro, Danfoss SC12G 104G8240 ,Refrigerator 1/3 HP++, R134a, HMBP, Compressor, Cooling solution for Refrigerators

written by Lilianne | 8 September 2018

Technical details
220/230V 50/60Hz
power 1/3 Hp – displacement 12.87 cc
gas R134a HMBP
104G8240-HST DANFOSS

CORECO
Coreco Display cabinet refrigerated ACM 1303, ACM 1304, ACR 1302, ACR 1303, ACR 1304, ACRV 751, ADP 1303, ADP 1304, AGM 1003, AGM 1004, AGP 1003, AGP 1004, AGR 1002, AGR 1003, AGR 1004, AGRE 1002, VC 14I, VC 14M, VC 20I, VC 20M

Coreco Neutral counter refrigerated FMRV 150, MF 140, MF 140 CAJONERA DOBLE, MFB 225 CAJONERA DOBLE, MFB 225 CAJONERA SIMPLE, MFB 225 CON PUERTAS, MFE 150, MFE4 150, MFEI 150, MFEI4 150, MFEIV 150, MFEV 150, MFP 140, MFP 140 CAJONERA DOBLE, MFS 140, MFS 140 CAJONERA DOBLE, MR60 150, MR70 225, MRG 200, MRG 250, MRG 300, MRGV 150, MRGV 200, MRSF 150, MRSV 150

Coreco Refrigerated cupboard FMR 200, MRG 150, MRS 150

FAGOR
Fagor Display cabinet AEP-1402, AEP-1602

Fagor Display cabinet refrigerated VC-14-I, VC-14-M, VC-20-I, VC-20-M, VM-100-I, VM-100-M, VM-135-I, VM-135-M

Fagor Domestic refrigerator AF-1403-C, AF-1403-P, AF-1404-C, AF-1404-P, AFP-1402, AFP-1403, AFP-1404, AFP-1404-USMC, AFP-1602, AFP-1602-2, AFP-1603, AFP-1603-2, AFP-1604, AP-701, APP-701, BFP-250, BFP-300

Fagor Refrigerated cupboard MEP-180, MFP-225-B, MFP-270-B, MPZ1-200

MCC TRADING INTERNATIONAL
Mcc Trading International Domestic refrigerator RC700

…and other devices

– AHT – ASCASO – CORECO
104G8240 – DANFOSS
SC12G – DANFOSS – EPMS – EUNASA – FAGOR
605087 – GEV – GORENJE – MTH
SC12G-HST – SECOP

DANFOSS Compressor SC12G SC12G220-240/1/50 VOLTS1/3 HPR134a

Compressor Danfoss Supplier Distributor in Dubai | Call: +96894157430

Compressor Danfoss FR6G

Mbsm_dot_pro_private_PDF_104G8240-1 Télécharger

Mbsm_dot_pro_private_PDF_104G8240 Télécharger

R134A/ 220V-240V, 50HZSmall light commercial reciprocating Compressor Danfoss for low, medium and high temperatures. R134a, 220-240V/60Hz. T: Capacity LBP -25/55°C: 40 W. Capacity HBP 5/55°C: 20 – 230 W. N: Capacity LBP -25/55°C: 130 – 200 W. Capacity HBP 5/55°C: 570 – 1090 W. F: Capacity LBP -25/55°C: 90 – 150 W. Capacity HBP 5/55°C: 600 W. S: Capacity LBP -25/55°C: 490 – 270 W. Capacity HBP 5/55°C: 850 – 1500 W. Test conditions: EN 12900/CECOMAF.

R404A/R507, 220-240V, 50Hz

Small light commercial reciprocating Compressor Danfoss for high temperature. R404A/R507, 220-240V/50Hz F: Capacity HBP 5/45°C: 840 W. G: Capacity HBP 5/45°C: 3211 – 5060 W. N: Capacity HBP 5/45°C: 945 – 1125 W. S: Capacity HBP 5/45°C: 1450 – 4420 W. T: Capacity HBP 5/45°C: 527 W.

Sr	Material	Material Description	Capacity	Cons. Watts -25
		R134a
1	103G6660	Danfoss Compressor FR 6G	1/6 HP	119 W
2	103G6680	Danfoss compressor FR 7.5G	1/5 HP	138 W
3	103G6780	Danfoss compressor FR 8.5G	1/4 HP	164 W
4	103G6880	Danfoss compressor FR 10G	1/3 HP	194 W
		R12a
5	103G2630	Danfoss compressor FR 6S	1/6 HP	119 W
6	103U2730	Danfoss compressor FR 7.5S	1/5 HP	138 W
7	103U2830	Danfoss compressor FR 8.5S	1/4 HP	164 W
8	103U2930	Danfoss compressor FR 10S	1/3 HP	194 W
		R134a
9	104G8240	Danfoss compressor SC 12G	1/3 HP	298 W
10	104G8520	Danfoss compressor SC 15G	1/2 HP	356 W
11	104G8820	Danfoss compressor SC 18G	5/8 HP	615 W
12	104G8140	Danfoss compressor SC 21G	7/8 HP	702 W
		R404a / R507a
13	104L2523	Danfoss Compressor SC 10CL	1/3 HP	352 W
14	104L2623	Danfoss Compressor SC 12CL	3/8 HP	445 W
15	104L2853	Danfoss Compressor SC 15CL	1/2 HP	560 W
16	104L2123	Danfoss Compressor SC 18CL	5/8 HP	615 W
17	104L2322	Danfoss Compressor SC 21CL	7/8 HP	702 W

www.mbsm.pro, Electrolux GL75AA Refrigerator 1/5 HP, Compressor Cooling solution for Refrigerators

written by Jamila | 8 September 2018

www.mbsm.pro, Electrolux GL75AA Refrigerator 1/5 HP, Compressor Cooling solution for Refrigerators

Type: Hermetic piston compressors

Producer: ACC

Series: HMBP

Model: GL75AA

General data


Refrigerant:	R134a
Discharge element:	C
Cooling:	S
Maximum ambient temperature [ºC]:	43

Compressor’s data


Cylinder capacity [cm³]:	7,4
Displacement [m³/h]:	1,3
Weight [kg]:	9,9
Oil charge [cm³]:	345
Oil type:	ISO VG 19 ESTER

Engine’s data


Engine type:	RSIR
Power [KM]:	1/5
Starting element:	LST
Power supply:	220V 50Hz
Voltage range:	187-264
Locked rotor current [A]:	11,5
Running winding resistance (25ºC) [Ω]:	11,62
Starting winding resistance (25ºC) [Ω]:	21,21

Electrical data


Relays:	3003
Shielding element:	MRP317LZ, T0502, AF15BW
Starting capacitor volume [μF]:

Connections

	milimeters	inches
Suction tube:	6,5
Service tube:	6,5
Discharge tube:	4,9

Cooling capacity [W]

t_c \ t_e	-35	-30	-25	-20	-15	-10
40	97	134	180	235	299	372
45	87	121	164	216	277	347
50	78	108	148	197	254	321
55	68	95	132	178	232	296
60	58	83	116	158	210	271

Power input [W]

t_c \ t_e	-35	-30	-25	-20	-15	-10
40	106	121	139	160	185	212
45	104	121	141	164	190	219
50	102	121	143	167	195	226
55	101	121	144	171	200	233
60	99	121	146	174	206	240

Current [A]

t_c \ t_e	-35	-30	-25	-20	-15	-10
40	0.86	0.92	0.99	1.07	1.16	1.25
45	0.85	0.92	1.00	1.08	1.18	1.28
50	0.85	0.93	1.01	1.10	1.20	1.30
55	0.85	0.93	1.02	1.11	1.22	1.33
60	0.85	0.93	1.03	1.13	1.24	1.36

Mass flow [kg/s]

t_c \ t_e	-35	-30	-25	-20	-15	-10
40	7.15	10.58	15.13	20.78	27.56	35.44
45	6.35	9.61	13.99	19.48	26.09	33.82
50	5.54	8.64	12.86	18.19	24.63	32.19
55	4.73	7.67	11.72	16.89	23.17	30.57
60	3.92	6.70	10.59	15.59	21.71	28.94

C.O.P. [W/W]

t_c \ t_e	-35	-30	-25	-20	-15	-10
40	0.92	1.11	1.29	1.47	1.62	1.76
45	0.84	1.00	1.16	1.32	1.46	1.58
50	0.76	0.90	1.04	1.18	1.30	1.42
55	0.68	0.79	0.91	1.04	1.16	1.27
60	0.59	0.68	0.79	0.91	1.02	1.13
