Panasonic Refrigerator Compressor QB91C24GAXO :
1.Horsepower:1/4+HP
2.Voltage:220v,50HZ or 220V/60HZ
3.Refrigerant: R12,R134a
4,Capacity: 255W

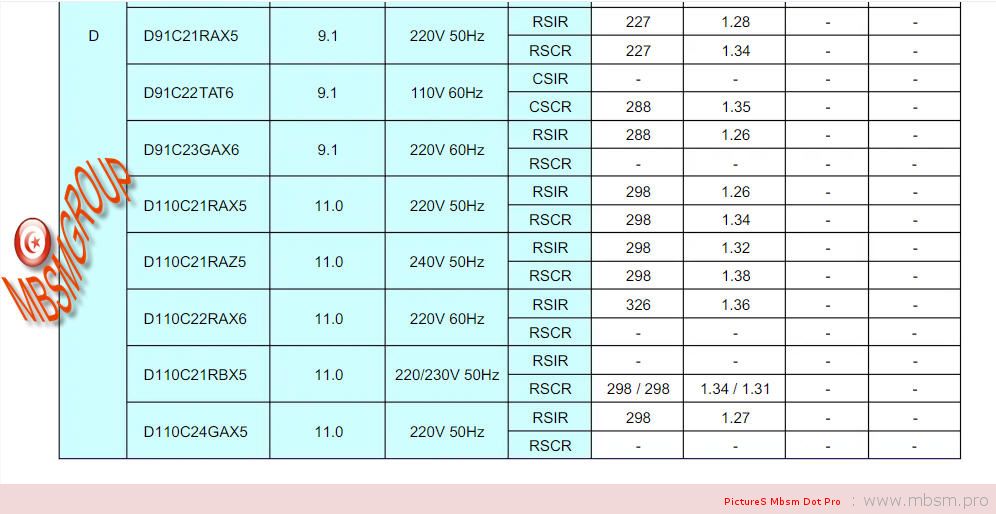

| number | Model | HP | K Cal/hr | BTU/HR | W (cooling) | displacement cm3 |
| 1 | D51C10RAW5 | 1/6 | 116 | 461 | 135 | 5.1 |
| 2 | D51C90RAW5 | 1/6 | 116 | 461 | 135 | 5.1 |
| 3 | D57C10RAW5 | 1/6 | 121 | 481 | 141 | 5.7 |
| 4 | D57C13RAX5 | 1/6 | 121 | 481 | 141 | 5.7 |
| 5 | D66C10RAW5 | 1/5 | 138 | 546 | 160 | 6.6 |
| 6 | D66C10RAX5 | 1/5 | 130 | 515 | 151 | 6.6 |
| 7 | D77C10RAW5 | 1/5 | 160 | 635 | 186 | 7.7 |
| 8 | D77C10RAX5 | 1/5 | 160 | 635 | 186 | 7.7 |
| 9 | D91C10RAW5 | 1/4 | 195 | 774 | 227 | 9.1 |
| 10 | D91C10RAX5 | 1/4 | 195 | 774 | 227 | 9.1 |
| 11 | D51C21RAX5 | 1/3 | 256 | 1017 | 298 | 11.0 |
| 12 | D110C21RA25 | 1/3 | 256 | 1017 | 298 | 11.0 |
| 13 | D110C21RBX5 | 1/3 | 256 | 1017 | 298 | 11.0 |
| 14 | D110C24GAX5 | 1/3 | 256 | 1017 | 298 | 11.0 |
Attachments in this post:
| Type | Link/Name |
|---|---|
| Image Attachment | |
| Image Attachment | |
| Image Attachment | |
| Image Attachment | |
| Image Attachment |  |
| Image Attachment | |
| Image Inside Post | |
| Image Inside Post |  |
| Image Inside Post | |
| Image Inside Post | |
| Link | https://www.mbsm.pro/wp-content/uploads/2020/04/Mbsm_dot_pro_private_picture__d110c24gax5.jpg |
ممكن رقم الكابستور لهذا الموتور
10 micro شكرا لمروركم
ممكن حجم الموتور
شكرا لكم
