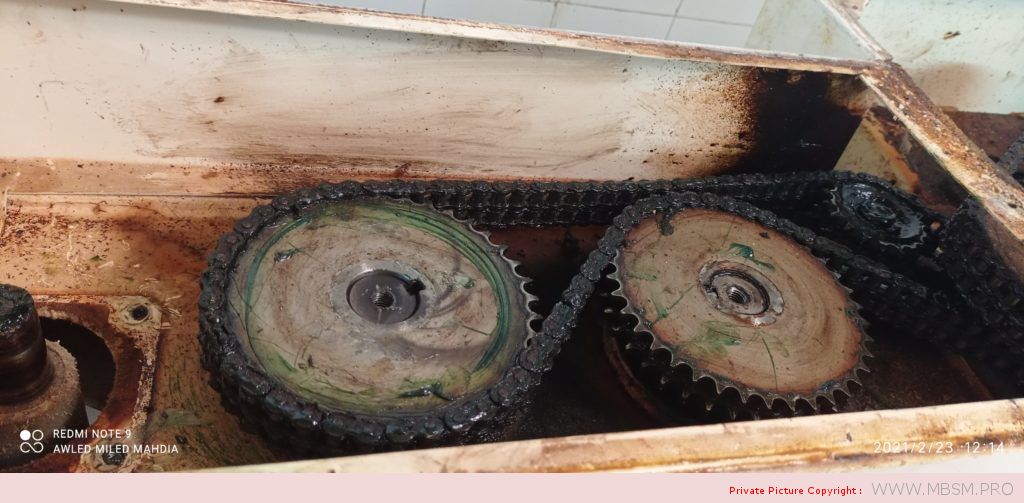

Maintenance et réparation MG rouleuse de pate cc900
Moteur, bolt f180E, motorisé, télécommandé, Moteur central, Porte Rideau 180Kg, installation, Réglage, carte de commande Somefy Double commande
Description rapide
- Garantie:
-
Plus de 5 Ans
- Service après – vente:
-
Support technique en ligne
- Solution de projet Capacité:
-
Conception graphique
- Application:
-
Entrepôt
- Style de conception:
-
Traditionnel
- Point d’origine:
-
China
- Marque nom:
-
Simple
- Numéro de Type:
-
BOLT F180E
- Type:
-
door motor, Door & Window Rollers
- usage:
-
rolling door
- Model:
-
autmatic gate roller
- Rated torque:
-
120N.m
- R.P.M:
-
10
- Limit switch:
-
6m
- Cut out tempreture:
-
4min
- Power:
-
670w
- Consumption:
-
2.9A
- Weight:
-
8~9kg
Capacité d’approvisionnement
- Capacité d’approvisionnement:
- 8000 Set/Sets per Month we will delivery roller shutter gear within 25days
Emballage et livraison
- Détails d’emballage
- Détails d’emballage: carton d’exportation navigable et palette
- Port
- Ningbo/Shanghai
- Délai : :
-
Quantité(Sets) 1 – 1 2 – 200 >200 Durée estimée (jours) 7 15 À négocier
Réservoirs encastrés Geberit, installation, Photos
Geberit International Sales AG est une société du groupe Geberit chargée du secteur Moyen-Orient / Afrique, nouveaux marchés et marchés en expansion. Son siège principal se situe à Rapperswil, en Suisse.
HERMETIC, Freezer, COMPRESSOR, ZEL, GTH86AA, R134A, 1/4 Hp, Lbp, 230W, 8.6CC
COMPRESSOR ZEL GTH86AA
APPLICATION: LBP
FREON: R134A
DISPLACEMENT: 8.6CC
POWER SUPPLY: 220V
POWER: 1 / 4HP – 230W
APPLICATION: UNIVERSAL
Specifications
Description
Detailed Product Description
1.Low levels of noise and vibration
2.Standard,medium,high and very high levels of efficiency
| R134a 220-240V/50HZ | ||||||||||
| Model | Displ.(cm3) | Motor Type | Cooling capacity(w) | Input Power | COP | Run Capacltor | Start Capacltor | Height(mm) | ||
| without RC(w) | with RC(w) | without RC(w/w) | with RC(w/w) | |||||||
| Standard Efficiency Range | ||||||||||
| OF789 | 4.4 | RSIR | 110 | 102 | 1.08 | 174 | ||||
| OF1033A | 5.7 | RSIR | 141 | 118 | 1.19 | 174 | ||||
| OF1350A | 7.5 | RSIR | 178 | 158 | 1.13 | 183 | ||||
| GTH86AA | 8.6 | RSIR/RSCR | 230 | 161 | 153 | 1.43 | 1.50 | 5 | 174 | |
| GTH93AA | 9.3 | RSIR/RSCR | 260 | 182 | 173 | 1.43 | 1.50 | 5 | 183 | |
| Medium Efficiency Range | ||||||||||
| GTM40AT | 4.0 | RSIR | 102 | 91 | 1.12 | 163 | ||||
| GTM57AT | 5.7 | RSIR | 156 | 128 | 1.21 | 183 | ||||
| GTM60AT | 6.0 | RSIR | 165 | 136 | 1.27 | 163 | ||||
| GVY75AT | 7.5 | RSIR/RSCR | 200 | 149 | 139 | 1.34 | 1.44 | 5 | 183 | |
| GTM75AA | 7.5 | RSIR | 200 | 166 | 1.20 | 50 | 183 | |||
| GTM93AA | 9.3 | RSIR | 270 | 220 | 1.35 | 183 | ||||
| GTM10AA | 11.0 | RSIR/RSCR | 300 | 222 | 1.35 | 50 | 183 | |||
| GTM12AA | 12.0 | RSIR/RSCR | 330 | 241 | 1.37 | 50 | 183 | |||
Photos, Assemblage Machine A Linge, LG, 10kg

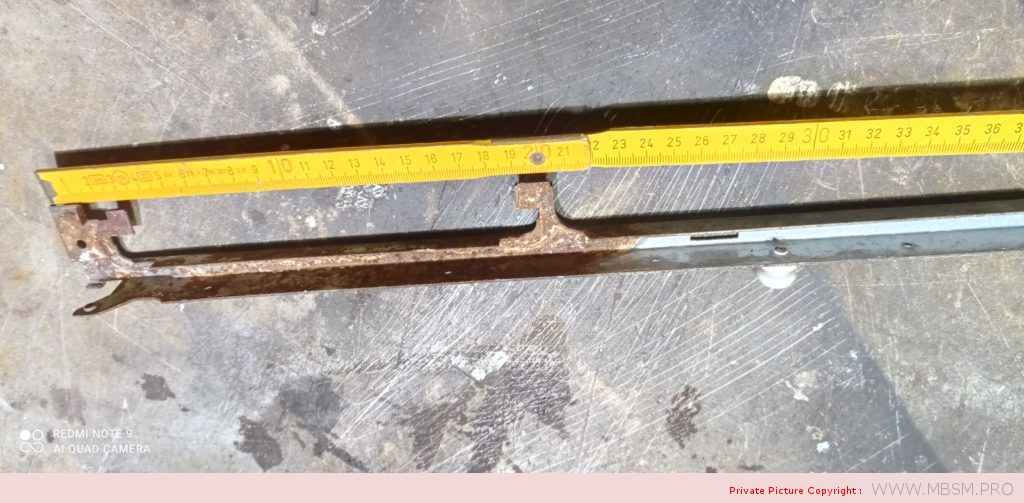

Traverse métallique haut de machine lave linge 10kg, Mesure et photos
Compressor, NL7.3FT, SECOP, 105G6726, DANFOSS, 6726, 105G, 105 G 6726, 105G 6726, 1/5 HP, 180W, LBP, Zanussi, Kiriazi Electric Company, TGV 335L, NO FROST, TSV 320L, FC 83L , R134A, 125G, 220-240V 50Hz, CSIR
R134a is a low pressure refrigerant, very efficient for high temperature applications.
This makes it ideal in air conditioning applications that may leak refrigerant like car air conditioning.
Now it is being phased out because of its high global warming potential and replaced by R134
R404a is a high pressure refrigerant ideal for applications in low and medium temperature.
You want low pressure refrigerants in household applications like refrigerators that may be inside kitchens with (possible) high ambient temperature, so you make sure nothing will blow up. For the same reason you want R134a in your car air conditioning.
R404a instead has pressures slightly above atmospheric in low temperature applications where R134a would have negative pressures and its heat transmission coefficients would be much lower.
Type de gaz |
App |
HP |
Watt |
Modèle |
TL |
R134A |
LBP |
1/6 |
134 |
TLY5.1FK |
|
R134A |
LBP |
1/4 |
183 |
TLES7FT.4 |
|
R134A |
LBP |
1/5 |
156 |
NL6FT.2 |
NL |
R134A |
LBP |
1/5 |
185 |
NL7.3FT (RSIR) |
|
R134A |
LBP |
+ 1/4 |
219 |
NL9FT.2 (RSIR) |
|
R134A |
LBP |
1/4 |
185 |
NL7.3FT (CSIR) |
|
R134A |
LBP |
+ 1/4 |
219 |
NL9FT.2 (CSIR) |
|
R134A |
LBP |
1/3 |
284 |
NL10FT |
|
R134A |
MBP |
1/3 |
621 |
NL11MF |
|
R404A |
LBP |
1/3 |
433 |
NL7CLX |
|
R404A |
LBP |
1/3 |
471 |
NL8.4CLX |
|
R134A |
LBP |
1/4 |
187 |
NLY6F |
|
R134A |
LBP |
+ 4 / (1) |
213 |
NLY7F |
|
R134A |
LBP |
1/3 |
237 |
NLY9FK |
|
R600A |
LBP |
+ 1/4 |
227 |
NLE13KTK.2 |
|
R600A |
LBP |
1/3 |
253 |
NLE15KTK.2 |
|
R600A |
LBP |
+ 1/4 |
225 |
NLX13KK.3 |
|
R600A |
LBP |
1/3 |
254 |
NLX15KK.3 |
|
R134A |
LBP / MBP / HBP |
1/3 |
264 |
SC12G |
SC |
R134A |
LBP / MBP / HBP |
1/2 |
392 |
SC18G |
|
R134A |
LBP / MBP / HBP |
3/4 |
456 |
SC21G |
|
R134A |
MBP |
3/4 |
1073 |
SC21MFX |
|
R134A |
LBP |
3/4 |
567 |
SC21FTX |
|
R404A |
LBP |
1 |
1033 |
ST21CL |
|
R404A |
LBP |
1 |
986 |
SC18CLX.2 |
|
R404A |
MBP |
1/2 |
359/650 |
SC15MLX |
|
R404A |
MBP |
7/8 |
762/1584 |
SC18MLX |
Refrigeration, Compressor, K270CZ1, 1/3++, DONPER, Dongbei , K325CZ1, K375CZ1 ,freezer, R134a, White HIK-BD-500 Chest Freezers, Top Open Door, -18 degrees to +10 degrees, 500L
Quick Details
- Temperature:
-
-25℃ ~ +15℃
- Cooling Capacity:
-
1ton
- Panel Thickness:
-
50mm
- Applicable Industries:
-
Retail
- After Warranty Service:
-
Online support
- Local Service Location:
-
None
- Showroom Location:
-
None
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
220V, 220V/50HZ
- Dimension(L*W*H):
-
10-10*10
- Weight:
-
15KGS
- Certification:
-
CE ROHS
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Online support, No overseas service provided
- Key Selling Points:
-
Sustainable
- Machinery Test Report:
-
Not Availabl
- Video outgoing-inspection:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor
- Color:
-
Balck
- Product name:
-
Refrigerator Compressor
- Refrigerant:
-
R134a
- model:
-
K270CZ1
- Cooling capacity:
-
230W
Product Description
|
Refrigerant
|
R134a
|
Cooling capicity
|
270W
|
|
Input power
|
220W
|
Hose Power
|
220W
|
|
Temperature application
|
L/MBP
|
Displacement
|
9.5cm³
|
|
Working Current
|
1.5A
|
Voltage
|
220V~240V/50Hz
|
|
COP
|
1.3W/W
|
Motor type
|
RSIR
|
|
Cylinder capacity
|
9.5cm³
|
Weight
|
9.8±0.4kg
|
Structure
Product Specification
| Capacity | 500 L |
| Type | Top Open |
| Temperature Range | -18 degrees to +10 degrees |
| Model Number | HIK-BD-500 |
| Model Number/Name | HIK-BD-500 |
| Energy Consumption | 2.02 kWh/24hr |
| Product Dimensions | 1650 x 755 x 830mm |
| Door Type | Top Open Door |
| Color | White |
| Door No. | 2 |
| Features | Adjustable Temperature Control,Digital Display,75mm Insulation Wall Thickness,Defrost Water Drain |
| Usage/Application | Freezer/Chiller |
| Weight | 73kg |
| Depth | 755mm |
| Refrigerant Used | R134a |
| Number Of Basket | 2 |
| Height | 830 mm |
| Power Source | Electric |
| Energy Efficiency | 2.02 kWh/24hr |
| Compressor Brand | Donper |
| Compressor Model | K270CZ1 |
| Power | 255 W |
| Width | 1650 mm |
| Colour | White |
| Refrigerant | R134a |
| No of Doors | 1 |
| Number of Baskets | 2 |
Product Description
Haikawa now launches its latest range of Chest Freezers in 200 L, 300 L, 400 L and 500 L variants. The freezers come with an Adjustable Temperature Comtrol, enabling its use as a freezer (-18 degrees to 0 degrees) or as a chiller (0 degrees to 10 degrees), depending on requirement. The 75mm Insulation Wall Thickness helps improve energy efficiency, while the unique digital display brings in a whole new level of convenience. The Chest freezers come with removable baskets and a defrost water drain. The Inner PP lining improves hygiene while a lock and key mechanism ensures maximum safety. Insulation: Cyclopentane. Refrigerant: R134a. The HIK-BD-500 model has a rated current of 1.5A, thus lowering the power consumption. The Chest Freezer is packed with the following features:
- Adjustable Temperature Control
- Electronic Controller with Digital Display
- 75mm Insulation Wall Thickness
- Low Power Consumption
- Inner PP Lining for Improved Hygiene
- Store-More Removable Basket
- Defrost Water Drain
- Lid Handle
- Lock and Key Safety Mechanism
Additional Information
| Packaging Details | Box Dimensions: 1695 x 760 x 880mm Included:1 Chest Freezer/ 1 Instruction Manual/ 2 Keys/ 2 Inner Metal Trays |
Compresseur de réfrigérant R134a Donper K375CZ1 220-240V 50Hz SC-SD-388Y
Description
Compresseur de réfrigérant R134a Donper K375CZ1 220-240V 50Hz SC-SD-388Y
Réfrigérant: R134a
Tension: 220 V ~ 240 V / 50 HZ
Puissance en chevaux: 1/2 ph
Puissance d’entrée: 235 W
Capacité de refroidissement: 325 W
Cylindre de capacité: 11,4 centimètres cubes
Courant de travail: 1.6A
Type de moteur: CSIR
Poids: 9,9 ± 0 4 kg
schéma électrique d’ installation double va et vient
– schéma électrique d’ installation double va et vient
– schéma de branchement double va et vient
– exemple de câblage et raccordement les différents types interrupteurs double va et vient
schéma electrique minuterie unipolaire
– schéma electrique minuterie unipolaire
-branchement et installation d’une minuterie a 3 fils
-câblage et raccordement les différent types minuterie schneider, hager , legrand , theben …
