Mbsm.pro, aj600ft-352, 12400Btu, Window clim, AJB5515EXD, 208-230V ~ 60Hz 200V ~ 50Hz, HBP/AC – Air Conditioning, R-22/R-407C

written by Lilianne | 22 December 2021

Product Specifications

Performance

Condition	Test Voltage	(R) Btu/h	(R) kcal/h	(R) W	(I) W	(E) Btu/Wh	(E) kcal/Wh	W/W	EVAP TEMP	COND TEMP	AMBIENT TEMP	RETURN GAS	LIQUID TEMP
ASHRAE (R-22)	230V ~ 60HZ	15000	3780	4395	1800	8.33	2.1	2.44	7.2°C (45°F)	54°C (130°F)	35°C (95°F)	35°C (95°F)	46°C (115°F)

General

Evaporating Temp. Range:	-23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque:	Low Start Torque (LST)
Compressor Cooling:	Fan

Mechanical

Weight:	49
Weight Unit of Measure:	LB
Displacement (cc):	26.122
Oil Type:	Polyolester
Viscosity (cSt):	32
Oil Charge (cc):	781

Electrical

Voltage Range (50 Hz):	180-220
Voltage Range (60 Hz):	197-254
Locked Rotor Amps (LRA):	41
Rated Load Amps (RLA 50 Hz):	0
Rated Load Amps (RLA 60 Hz):	8.5
Max. Continuous Current (MCC in Amps):	12.6
Motor Resistance (Ohm) – Main:	1.49
Motor Resistance (Ohm) – Start:	7.77
MotorType:	PSC
Overload Type:	N/A
Relay Type:	N/A

Agency Approval

cURus Recognized

OEM

AJ600FT-299-A4

Dimensions – Height:	10.719
Dimensions – Width:	7.25
Dimensions – Length:	9.343
Dimensions Unit of Measure:	IN
Market:	OEM
Overload #:	8300CRAA46
Replacement Overload Kit #:	K90-34
Replacement Relay Kit #:	K71-19
Overload Spring:	26056
Cover Gasket:	30640
Terminal Cover:	70492
Bale Strap:	70491
Discharge Line Size:	0.3125 IN
Suction Line Size:	0.5 IN

Wholesale/Distribution

AJ600FT-205-J7

Dimensions – Height:	10.719
Dimensions – Width:	6.594
Dimensions – Length:	11.696
Dimensions Unit of Measure:	IN
Market:	Wholesale/Distribution
Overload #:	8300CRAA46
Replacement Overload Kit #:	K90-34
Replacement Relay Kit #:	K71-19
Overload Spring:	26056
Cover Gasket:	30640
Terminal Cover:	70492
Bale Strap:	70491
Discharge Line Size:	0.3125 IN
Suction Line Size:	0.5 IN
Loose Part Kit:	LP121

Mbsm_dot_pro_private_PDF_aj600ft-352-Tecumseh-Compressor-Product-Range Télécharger

Mbsm_dot_pro_private_PDF_aj600ft-352-tecumseh_to_tecumseh_cross_ref Télécharger

Mbsm.pro, AJ4519Z-KZ1C, TAJ4519Z, 1.5hp, 1.1/2hp++, AJ42R1TF707, Haute Pression , R404A – R452A, R449A, R448A

written by Lilianne | 22 December 2021

Spécifications du produit

Performance

Données techniques

Modèle: TAJ4519Z
Gaz: R-404a
Température/Pression: Haute Pression
Puissance: 1 1/2 HP
Type De Courant: Trois Phases
Fréquence: 50/60 Hz
Type De Compresseur: Hermétique
Décalage: 34.45 cm³
Cons.Énergie -10ºC: 1466 W
Cons.Énergie -5ºC: 1592 W
Cons.Énergie 0ºC: 1715 W
Cons.Énergie +5ºC: 1834 W
Cons.Énergie +10ºC: 1949 W
T° De Condensation: 40 °C
Capacidad Frigorífica -20°C: 1590 Kcal/h
Capacidad Frigorífica -15°C: 2037 Kcal/h
Capacidad Frigorífica -10°C: 2543 Kcal/h
Capacidad Frigorífica -5°C: 3118 Kcal/h
Capacidad Frigorífica 0°C: 3770 Kcal/h
Capacidad Frigorífica 5°C: 4512 Kcal/h
Capacidad Frigorífica 10°C: 5352 Kcal/h
Tipo Test: EN.12900

Température d’évaporation Intervalle:	-15°C to 15°C (5°F to 59°F)
Couple moteur:	High Start Torque (HST)
Refroidissement par compresseur:	Fan

Mécanique

Poids:	21
Unité de mesure du poids:	KG
Déplacement (cc):	34.45
Type d’huile:	Polyolester
Viscosité (cSt):	32
Charge d’huile (cc):	475

Électrique

Gamme de tension (50 Hz):	180-253
Gamme de tension (60 Hz):	187-264
Amplis à rotor bloqué (LRA):	48
Charge nominale ampères (RLA 50 Hz):	7.5
Charge nominale ampères (RLA 60 Hz):	8.3
Max. Courant Continu (MCC en Ampères):	11.1
Résistance Moteur (Ohm) – Principal:	2.13
Résistance Moteur (Ohm) – Début:	2.13
Type de moteur:	3PH
Type de surcharge:	N/A
Type de relais:	N/A

Mbsm_dot_pro_private_PDF_taj4519Z-Tecumseh-2016-FR Télécharger

Mbsm_dot_pro_private_PDFtaj4519Z Télécharger

LG, compressor, 1/10 ,1/8 ,1/6 ,1/5 ,1/4 ,1/3 , hp power, wattage, capillary, amperes

written by Lilianne | 22 December 2021

Refrigerator compressor LG India full data HP codes,amperes,capillary tube,wattage trace Hp power and connect size wise capillary tube

High, Efficiency, R134a, Hermetic, Compressor, GPY16AF, RoHS, 3/8hp, csir, lbp, 220v, 380w

written by Lilianne | 22 December 2021

R134a GPY16AF series sealed refrigeration compressor 220-240v/50Hz

The main feature:

strong loading capacity,
high efficiency,
low noise,
light vibration,
good reliability.

suitable for mid-size refrigerators, freezers, displayers, beer displayers and other mid-size refrigeration appliances. The structure form is hermetical crank connecting-rod reciprocating piston type.

They are the best selling high-tech compressors sold in the world. They are ideal for domestic refrigeration and also for small commercial applications. They are small, have low noise and vibration levels, they achieve the highest levels of efficiency available in the market for this category.

KONOR	Displ.	power	Motor type	V/Hz	Cooling capacity W	Net Weight KG
GQR60AA	6	1/6	RSIR	220-240V/50Hz	140	9.4
GQR70AA	6.6	1/5	RSIR	220-240V/50Hz	165	9.4
GQR80AA	8.1	1/4	RSIR	220-240V/50Hz	198	9.4
GQR90AA	9.1	1/4	RSIR	220-240V/50Hz	220	10.1
GQY99AA	9.9	1/4	RSIR	220-240V/50Hz	270	10.9
GQY12AF	11.8	1/3	CSIR	220-240V/50Hz	325	10.56
GQY16AF	16.2	3/8	CSIR	220-240V/50Hz	380	12.1
GP16MG	16.2	5/8	CSIR	220-240V/50Hz	870	12.5
GP12MG	11.8	5/8	CSIR	220-240V/50Hz	656	10.9
GP12TG	11.8	3/8	CSIR	220-240V/50Hz	1140	11.8
GQR80TG	8.1	1/4	CSIR	220-240V/50Hz	730	9.8
GQR90TG	9.1	1/4	CSIR	220-240V/50Hz	830	10.5
GQR60TG	6	1/5	CSIR	220-240V/50Hz	520	9.8

Specification

Hermetic motor driven the piston connecting rod type compressor. With relay start-up of hammer type, and equipped with overload protector.

Application

Widely used in homeand commercial refrigerator,air-curtain cabinet, display showcase, ice maker, chiller freezer, dehumidifier, etc.

R134a LBP Fan Cooling Compressor

Model:GPY16AF

Power:3/8HP

Displacement:16.2cm3

Capacity:380w

COP:1.3W

Voltage:200-240V/50HZ

Motor Way:CSIR

Application:LBP

Cooling Type:Fan Cooling

Height:210mm

Net Weight:12.9kg

Dimension:210*162*237.2(mm)

Test Conditions(ASHRAE)

Evaporating temperature -23.3ºC

Condensing temperature 54.4ºC

Subcooling temperature 32.2ºC

Suction temperature 32.2ºC

Ambient temperature 32.2ºC

Conversion:
1watt=3.41Btu/h=0.86kcal/h

Mbsm_dot_pro_private_PDF_gpy16f Télécharger

L111CYA, COMPRESSOR, ASSY, Indesit , Ariston, whirlpool, 1/5hp, lbp, 180W, r600a

written by Lilianne | 22 December 2021

Mbsm_dot_pro_private_PDF_L111CYA Télécharger

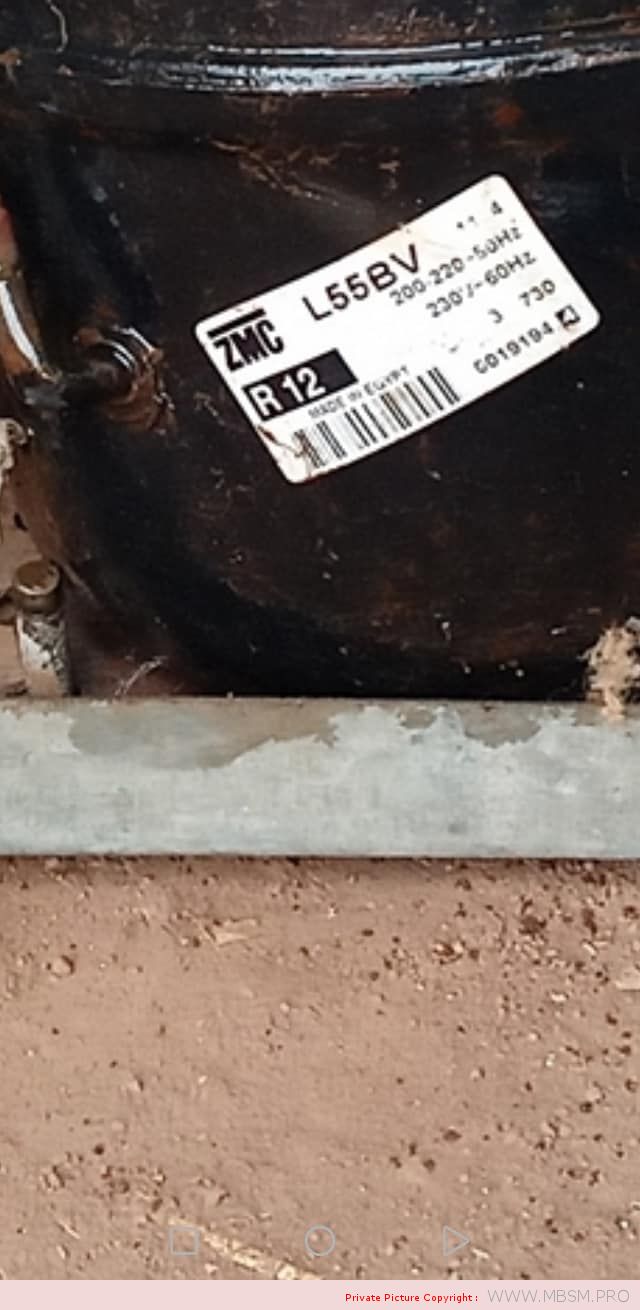

Hermetic compressors, Cubigel Compressors, LBP , L55BV, 1/6hp, r12

written by Lilianne | 22 December 2021

Mbsm_dot_pro_private_PDF_l55bv Télécharger

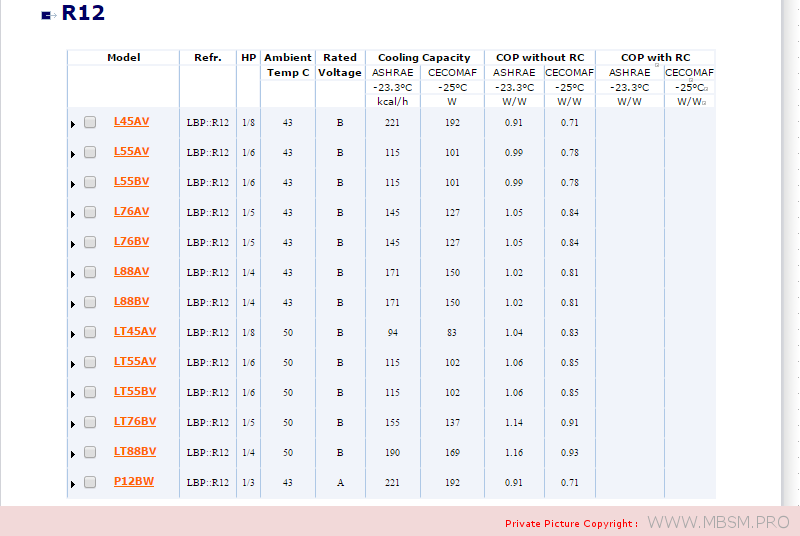

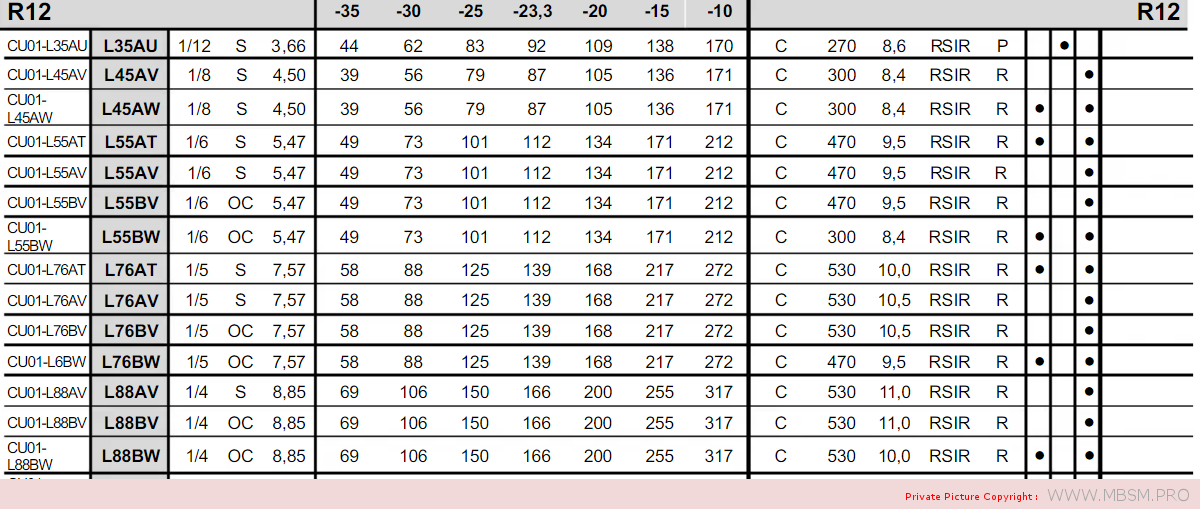

Type: Hermetic piston compressorsProducer: ACCSeries: HMBP
Model: L55BV
General data


Refrigerant:	R12
Discharge element:	C
Cooling:	OC
Maximum ambient temperature [ºC]:	43

Compressor’s data


Cylinder capacity [cm³]:	5,5
Displacement [m³/h]:	0,9
Weight [kg]:	9,5
Oil charge [cm³]:	470
Oil type:	ISO VG 46 MINERAL

Engine’s data


Engine type:	RSIR
Power [KM]:	1/6
Starting element:	LST
Power supply:	200V 50Hz
Voltage range:	180-242
Locked rotor current [A]:	10,9
Running winding resistance (25ºC) [Ω]:	10,81
Starting winding resistance (25ºC) [Ω]:	34,36

Electrical data


Relays:	9660 B 118, MTRP 33
Shielding element:	MRP63AMK, T0069
Starting capacitor volume [μF]:

Connections

	milimeters	inches
Suction/service tube:	6,5
Service/suction tube:	6,5
Discharge tube:	4,9
Oil cooler tube:		4,9

All Compressor Note, Speed and reliable informations

written by Jamila | 22 December 2021

L’attribut alt de cette image est vide, son nom de fichier est Mbsm_dot_pro_private_picture_ma57ljjg.png.


Compresor, Refrigerante, R600a, Donper, L118CY1, 220-240V, 50Hz, 1PH, LC-318, 1/4 hp, 193 w, LBP, original Donper S80 S96 L118CY1 new model H200CY1 refrigerator compressor H200CY1(Old model L118CY1)
Toshiba Compressor PZ130H1D-P , R600a LBP, 1/4Hp, 220V~50Hz https://www.mbsm.pro/wp-content/uploads/2020/12/Mbsm_dot_pro_private_PDF_pe50h1f-9.pdf
Mbsm.pro, Compressor, HTK80AA, SECOP, KAPPA, Compressor, R600a, 1/7hp https://www.mbsm.pro/wp-content/uploads/2021/12/Mbsm_dot_pro_private_PDF_htk80aa-1.pdf https://www.mbsm.pro/wp-content/uploads/2021/12/Mbsm_dot_pro_private_PDF_htk80aa.pdf
Huayi HYE 60 YL 63 1/5 Hp 146Kcal R134a 220V Huayi HYE 69 YL 1/4 Hp 168Kcal R134a 220V Huayi HYE 55 YL 63 1/6 Hp 129Kcal R134a 220V Huayi HY 81 Y 1/4+ Hp 202Kcal R134a 220V كتالوج ضواغط HUAYI COMPRESSOR
R134a 1/3HP 270W Refrigerator Compressor HY90yG https://www.mbsm.pro/wp-content/uploads/2020/06/Mbsm_dot_pro_private_PDF_HY69Y63_R134a.pdf Fitre 20 G

LG, MA57LJJG, Refrigerator, Compressor, 1/5hp, LBP, r134a, 160w, 548btu

HGX12P/75-4, R410A, compressor, semi-hermétique, BOCK, 25,0 hp

written by Lilianne | 22 December 2021

HGX12P/75-4 R410A

Data Sheet

Power supply	220/240 V-380/420 V-50 Hz-3 ph (265/290 V-440/480 V-60 Hz-3 ph) Δ Y
Horsepower	25,0 hp
Displacement	6,70 m3
Cooling capacity at Refrigeration conditions, R407C	3,39 kW
Cooling capacity at Refrigeration conditions, R404A	3,97 kW
Refrigerant	R134a, R404A, R407C, R407F, R448A, R449A, R507, R513A
Suction pipe	5/8″
Discharge pipe	1/2″
Weight	49 kg
LRA (Δ/y)	43/25 A
MCC (Δ/y)	8,0/4,6 A
Type of oil	FUCHS Reniso Triton SE 55
Other remarks	Available in ATEX version, Electronic frequency control (30-70 Hz), Equipped with oil pump without connections to the differential oil pressure switch
Accessories	Control Capacity 50/100%, Crankcase heater 50-120 W, Thermal protection thermostat (PTC sensor)
Application	MHBP
Technology	Fixed speed
Lubrication mode	Oil pump
Low pressure design	19 bar
High pressure design	28 bar
Type of motor cooling	Suction gas
Protection type	IP 66
Motor protection type	INT69 G
Speed	1450 rpm

Number of cylinders / Bore / Stroke	2 / 38 mm / 34 mm
Displacement 50/60 Hz (1450/1740 ¹/min)	6,70 / 8,10 m³/h
Voltage ¹⁾	220-240V Δ / 380-420V Y -3- 50Hz
	265-290V Δ / 440-480V Y -3- 60Hz
Max. working current ²⁾	7.1 / 4.1 A
Max. power consumption ²⁾	2.3 kW
Starting current (rotor blocked) ²⁾	40.0 / 23.0 A
Motor protection	INT69 G
Protection terminal box	IP 66
Weight	49 kg
Max. permissible pressure (LP/HP) ³⁾	19 / 28 bar
Connection suction line SV	16 mm – 5/8 “
Connection discharge line DV	12 mm – 1/2 “
Lubrication	Oil pump
Oil type R290, R600a, R1270	FUCHS Reniso SYNTH 68
Oil charge	0,8 Ltr.
Dimensions Length / Width / Height	411 / 223 / 280 mm

¹⁾

Mbsm_dot_pro_private_PDF_HGX12P Télécharger

Table of characteristics of compressors for refrigerators

written by Lilianne | 22 December 2021

If it is necessary to replace the compressor in the refrigerator, it is necessary to choose the right analogue.

Compressors are designed for different types of application, namely, they are classified according to the temperature range.

LBP (Low Suction Pressure) indicates a range of low evaporating temperatures, typically -10 ° C to -35 ° C or even -45 ° C, these compressors are designed for use in freezers or fridge freezers.

MBP (Medium Suction Pressure) indicates a range of average evaporating temperatures, typically -20 ° C to 0 ° C. These compressors are used in refrigerated cabinets, milk coolers, ice makers and water dispensers.

HBP (High Suction Pressure) indicates a range of high evaporating temperatures, typically -5 ° C to + 15 ° C, and is used, for example, in dryers and standalone liquid chillers. The additional T indicates a “tropical” compressor design. This means that the compressor is designed for high ambient temperatures and can operate with unstable power supplies.

Also, when repairing refrigerators, it is important to take into account the peculiarities of the length and diameter of the capillary tube.

Capillary tubes play an important role. It is always necessary to correctly select the diameter and length of the capillary; their values cannot be changed arbitrarily.

About capillary tube problems.

One of the most common problems is clogging of the capillary tubes, they must be replaced with the same length and diameter.

If you install a capillary tube with a larger diameter than the one originally installed, the system will work, but the cooling efficiency will be lower.

Typically, capillaries are installed in compressors as follows:

The 73W compressors are fitted with a 0.63 mm (0.025 in) capillary tube.

92W compressors are fitted with a 0.71 mm (0.028 in) capillary tube.

The 122W compressors are fitted with a 0.71 mm (0.028 in) capillary tube.

184W compressors are fitted with a 0.8 mm (0.031 in) capillary tube.

245W compressors are fitted with a 0.1 mm (0.039 in) capillary tube.

The 368W compressors are fitted with a 1.4 mm (0.055 in) capillary tube.

Capillary tube fitting errors …

Capillary tube parameters – inner diameter and length. In order for the capillary tube to match the capacity of the refrigeration system and the freon flow rate, which is determined by the piston volume, the diameter changes the freon flow rate.

For example, changing the diameter from 0.63 to 0.71 mm means that increasing the diameter by 0.127 mm doubles the freon flux. In addition, the longer the capillary tube, the slower the flow, and conversely, the shorter the length, the greater the flow.

For example, if you replace the capillary tube without taking into account the old section, what happens?

The first case: a smaller diameter or a longer length, this means a large resistance to the flow of freon inside the capillary tube, which leads to a shortage of freon in the evaporator, so the inlet pressure decreases and the superheat increases. The pressure in the condenser or receiver increases, the efficiency of the compressor decreases, its temperature rises, and overload may occur.

The second case: larger diameter or shorter length, which means little resistance to the flow of Freon inside the capillary tube, which increases the flow, and this causes high suction pressure, low superheating and the risk of liquid returning to the compressor inlet. At the same time, the liquid in the condenser easily passes through the capillary tube, causing a lower discharge pressure. This reduces the compression ratio of the piston, and over time the compressor can be damaged due to the overflow (through the discharge valve) of liquid freon from the condenser to the piston area during the compressor standstill.

Below is a table of characteristics of compressors for refrigerators:

MODEL	200 / 220 / 50 HZ
compressor CUBIGEL				COOLING CAPACITY	application
	IN	Displ.CC Displacement (cm³)	Ampere, RLA	k CAL/HR	B T U	In -23	W -5	In 7.2+
L 88AV / BV / AV61		8 ٫ 80		171	679	199			LBP	R12
L 88CV / BV11 // BV21		8 ٫ 80		171	679	199			LBP	R12
L T88BV		8 ٫ 80		190	754	221			LBP	R12
L 88BV12 / BV22		8 ٫ 80		200	794	233			LBP	R12
L 88AV22 / CV22		8 ٫ 80		200	794	233			LBP	R12
L T88BV22		8 ٫ 80		222	881	258			LBP	R12
P 12BW		12 ٫ 00		221	877	257			LBP	R12

MODEL	200 / 220 / 50 HZ
compressor panasonic				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
D 51C10RAW5		5 ٫ 1		116	461	135			LBP	R 134 a
D 51C90RAW5		5 ٫ 1		116	461	135			LBP	R 134 a
D 57C10RAW5		5 ٫ 7		121	481	141			LBP	R 134 a
D 57C13RAX5		5 ٫ 7		121	481	141			LBP	R 134 a
D 66C13RAW5		6 ٫ 6		138	546	160			LBP	R 134 a
D 66C13RAX5		6 ٫ 6		130	515	151			LBP	R 134 a
D 77C15RAW5		7 ٫ 7		160	635	186			LBP	R 134 a
D 77C18RAX5		7 ٫ 7		160	635	186			LBP	R 134 a
D 91C18RAW5		9 ٫ 1		195	774	227			LBP	R 134 a
D 91C21RAX5		9 ٫ 1		195	774	227			LBP	R 134 a
D 110C21RAX5		11		256	1017	298			LBP	R 134 a
D 110C21RAZ5		11		256	1017	298			LBP	R 134 a
D 110C21RBX5		11		256	1017	298			LBP	R 134 a
D 110C24GAX5		11		256	1017	298			LBP	R 134 a

MODEL	200 / 220 / 50 HZ
compressor panasonic				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
DA 57C11RAY5		5 ٫ 7		140	556	163			LBP	R 134 a
DA 66C12RAY5		6 ٫ 6		158	628	184			LBP	R 134 a
DA 77C15RAY5		7 ٫ 7		184	730	214			LBP	R 134 a
DB 66C10RAW5		6 ٫ 6		161	638	187			LBP	R 134 a
DB 66C12RAY5		6 ٫ 6		158	628	184			LBP	R 134 a
DB 66C14RBX5		6 ٫ 6		158	628	184			LBP	R 134 a
DB 73C13RAY5		7 ٫ 3		175	696	204			LBP	R 134 a
DB 77C14RAY5		7 ٫ 7		184	730	214			LBP	R 134 a
DB 77C16RBX5		7 ٫ 7		184	730	214			LBP	R 134 a
DB 86C16RAY5		8 ٫ 6		207	822	241			LBP	R 134 a
DB 91C14RAW5		9 ٫ 1		218	863	253			LBP	R 134 a
DB 91C19RAY5		9 ٫ 1		220	873	256			LBP	R 134 a
DB 91C21RAX5		9 ٫ 1		220	873	256			LBP	R 134 a
DB 110C19RAW5		11		260	1030	302			LBP	R 134 a
DB 110C22RAW5		11		260	1030	302			LBP	R 134 a


MODEL	200 / 220 / 50 HZ
Matsushita				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
DD 57C10RAW5		5 ٫ 7		140	556	163			LBP	R 134 a
DD 57C12GAX5		5 ٫ 7		140	556	163			LBP	R 134 a
DD 66C13RAW5		6 ٫ 6		158	628	184			LBP	R 134 a
DD 66C14GAX5		6 ٫ 6		157	624	183			LBP	R 134 a
DD 77C15GAX5		7 ٫ 7		183	727	213			LBP	R 134 a
DD 77C15RAW5		7 ٫ 7		184	730	214			LBP	R 134 a
DD 86C18RAW5		8 ٫ 6		207	822	241			LBP	R 134 a
									LBP	R 134 a
DG									LBP	R 134 a
DG 51C89RAW5		5 ٫ 1		125	495	145			LBP	R 134 a
DG 57C90GCW5		5 ٫ 7		144	573	168			LBP	R 134 a
DG 57C96RAW5		5 ٫ 7		144	573	168			LBP	R 134 a
DG 66C11RAW5		6 ٫ 6		161	638	187			LBP	R 134 a
DG 66C13GAX5		6 ٫ 6		161	638	187			LBP	R 134 a
DG 73C12RAW5		7 ٫ 3		182	723	212			LBP	R 134 a
DG 77C14RAW5		7 ٫ 7		193	768	225			LBP	R 134 a
DG 77C16GAX5		7 ٫ 7		193	768	225			LBP	R 134 a
DG 91C18RAW5		9 ٫ 1		223	884	259			LBP	R 134 a
DG 91C21RAX5		9 ٫ 1		223	884	259			LBP	R 134 a

MODEL
compressor panasonic	200/2			COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
DGH 66C13GAX		6 ٫ 6		163	645	189			LBP	R 134 a
DGH 66C96RAW		6 ٫ 6		163	648	190			LBP	R 134 a
DGH 73C14RAE		7 ٫ 3		185	734	215			LBP	R 134 a
DGH 73C15GAX		7 ٫ 3		185	734	215			LBP	R 134 a
DGH 73C15RAX		7 ٫ 3		185	734	215			LBP	R 134 a
DGH 77C13RAW		7 ٫ 7		191	757	222			LBP	R 134 a
DGH 86C16RAW		8 ٫ 6		213	846	248			LBP	R 134 a
DGH 86C19GAX		9 ٫ 6		224	887	260			LBP	R 134 a
									LBP	R 134 a
DGK									LBP	R 134 a
DGK 57C97RLX		5 ٫ 7		145	577	169			LBP	R 134 a
DGK 66C90RPW		6 ٫ 6		165	655	192			LBP	R 134 a
									LBP	R 134 a
D H S									LBP	R 134 a
DHS 51C74RAW		5 ٫ 1		132	525	154			LBP	R 134 a
DHS 57C80RAW		5 ٫ 7		148	587	172			LBP	R 134 a
DHS 66C10RAW		6 ٫ 6		163	648	190			LBP	R 134 a
DHS 66C88RAW		6 ٫ 6		163	648	190			LBP	R 134 a
DHS 73C10RAW		7 ٫ 3		181	716	210			LBP	R 134 a
DHS 73C13RAW		7 ٫ 3		191	757	222			LBP	R 134 a
DHS 86C15RAW		8 ٫ 6		213	846	248			LBP	R 134 a
									LBP	R 134 a
DKK									LBP	R 134 a
DKK 57C11RAE		5 ٫ 7		145	577	169			LBP	R 134 a
DKK 66C13RAE		6 ٫ 6		167	662	194			LBP	R 134 a

MODEL	200 / 220 / 50 HZ
compressor panasonic				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
QA 66C12GAX5		6 ٫ 6		125	495	145			LBP	R 134 a
QA 66C14GAX5		6 ٫ 6		125	495	145			LBP	R 134 a
QA 66C15GAX5		6 ٫ 6		125	495	145			LBP	R 134 a
QA 77C17GAX5		7 ٫ 7		151	600	176			LBP	R 134 a
QA 91C22GAX5		9 ٫ 1		178	706	207			LBP	R 134 a

MODEL
compressor panasonic	200/2			COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
QB 51C74GAW5		5 ٫ 1		110	437	128			LBP	R 134 a
QB 51C95GPW5		5 ٫ 1		110	437	128			LBP	R 134 a
QB 51C99GAW0		5 ٫ 1		110	437	128			LBP	R 134 a
QB 51C99GLX5		5 ٫ 1		110	437	128			LBP	R 134 a
QB 57C11GAX0		5 ٫ 7		126	498	146			LBP	R 134 a
QB 57C11GLX5		5 ٫ 7		126	498	146			LBP	R 134 a
QB 57C11GPX5		5 ٫ 7		126	498	146			LBP	R 134 a
QB 57C86GAX0		5 ٫ 7		126	498	146			LBP	R 134 a
QB 57C87GAW5		5 ٫ 7		126	498	146			LBP	R 134 a
QB 66C13GAX5		6 ٫ 6		142	563	165			LBP	R 134 a
QB 66C13GLX5		6 ٫ 6		142	563	165			LBP	R 134 a
QB 66C13GPX5		6 ٫ 6		142	563	165			LBP	R 134 a
QB 66C16GAX0		6 ٫ 6		142	563	165			LBP	R 134 a
QB 66C97GAW5		6 ٫ 6		142	563	165			LBP	R 134 a
QB 73C12GAW5		7 ٫ 3		159	631	185			LBP	R 134 a
QB 73C15GAX5		7 ٫ 3		159	631	185			LBP	R 134 a
QB 73C16GAX5		7 ٫ 3		159	631	185			LBP	R 134 a
QB 77C13GAW5		7 ٫ 7		174	689	202			LBP	R 134 a
QB 77C16GAX5		7 ٫ 7		174	689	202			LBP	R 134 a
QB 77C16GLX5		7 ٫ 7		174	689	202			LBP	R 134 a
QB 77C16GPX5		7 ٫ 7		174	689	202			LBP	R 134 a
QB 77C18GAX0		7 ٫ 7		174	689	202			LBP	R 134 a
QB 86C13GAW5		8 ٫ 6		191	757	222			LBP	R 134 a
QB 86C18GAX5		8 ٫ 6		191	757	222			LBP	R 134 a
QB 91C16GAW5		9 ٫ 1		203	805	236			LBP	R 134 a
QB 91C18GAX0		9 ٫ 1		203	805	236			LBP	R 134 a
QB 91C19GAX5		9 ٫ 1		203	805	236			LBP	R 134 a
QB 91C21RPX5		9 ٫ 1		203	805	236			LBP	R 134 a
QB 91C24GAX0		9 ٫ 1		203	805	236			LBP	R 134 a
QB 110C19GAW5		11		235	931	273			LBP	R 134 a
QB 110C25CAX0		11		235	931	273			LBP	R 134 a
QB 110C25GAX5		11		235	931	273			LBP	R 134 a

MODEL
compressor panasonic	200/2			COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
QBH 51C90GLX		5 ٫ 1		122	484	142			LBP	R 134 a
QBH 57C10GLX		5 ٫ 7		139	553	162			LBP	R 134 a
QBH 57C10GPX		5 ٫ 7		139	553	162			LBP	R 134 a
QBH 57C15RLX		5 ٫ 7		139	553	162			LBP	R 134 a
QBH 66C13GPX		6 ٫ 6		153	607	178			LBP	R 134 a
QBH 66C13RLX		6 ٫ 6		153	607	178			LBP	R 134 a
QBH 73C13GAE		7 ٫ 3		174	689	202			LBP	R 134 a
QBH 73C15RLX		7 ٫ 3		174	689	202			LBP	R 134 a
QBH 73C16GPX		7 ٫ 3		174	689	202			LBP	R 134 a
QBH 73C20RLX		7 ٫ 3		174	689	202			LBP	R 134 a
QBH 77C16RLX		7 ٫ 7		189	751	220			LBP	R 134 a
QBH 86C19RLX		8 ٫ 6		206	819	240			LBP	R 134 a
QBH 86C19RPX		8 ٫ 6		206	819	240			LBP	R 134 a

MODEL	200 / 220 / 50 HZ
compressor panasonic				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
QA 43K11CAS0		4 ٫ 3						385	HBP	R 134 a
QA 51K13GAW5		5 ٫ 1						450	HBP	R 134 a
QA 77K18CAW5		7 ٫ 7						680	HBP	R 134 a
QA 77K18CAX0		7 ٫ 7						680	HBP	R 134 a
QA 91K21CAW5		9 ٫ 1						800	HBP	R 134 a
QA 110K23CAW5		11						980	HBP	R 134 a
QA 125K26CAW5		12 ٫ 5						1100	HBP	R 134 a
QA 125K29CAX5		12 ٫ 5						1100	HBP	R 134 a

MODEL	200 / 220 / 50 HZ
Secop (Danfoss)				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
TL 2.5 F		2 ٫ 61		40	157	46	112		L / MBP	134 a
TL 3F		3 ٫ 13		51	201	59	141		L / MBP	134 a
TL 4F		3 ٫ 86		72	287	84			L B P	134 a
TL 5F		5 ٫ 08		97	386	113			L B P	134 a
TL 4G		3 ٫ 86		70	276	81	187	347	L /M /HBP	134 a
TL 5G		5 ٫ 08		94	372	109	234	412	L /M /HBP	134 a
TLS 3FT		3 ٫ 13		59	235	69			L B P	134 a
TLS 4FT		3 ٫ 86		76	300	88			L B P	134 a
TLS 5FT		5 ٫ 08		115	457	134			L B P	134 a
TLS 5F		5 ٫ 08		115	457	134			L B P	134 a
TLS 6F		5 ٫ 70		123	488	143			L B P	134 a
TLS 7F		6 ٫ 49		142	563	165			L B P	134 a
TLES 3F		3 ٫ 13		60	239	70	161		L / MBP	134 a
TLES 4F		3 ٫ 86		83	331	97			LBP	134 a
TLES 5F		5 ٫ 08		115	457	134			LBP	134 a
TLES 6F		5 ٫ 70		123	488	143			LBP	134 a
TLES 5.7 FT.3		5 ٫ 70		140	556	163			LBP	134 a
TLES 6.5 FT.3		6 ٫ 49		157	624	183			LBP	134 a
TLES 7 FT.4		6..49		157	624	183			LBP	134 a
TLY 4F		3 ٫ 86		85	338	99			LBP	134 a
TLY 5FK		5 ٫ 08		115	457	134			LBP	134 a




MODEL	200 / 220 / 50 HZ
Secop (Danfoss)				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
NL 6 F		6 ٫ 13		131	519	152			LBP	134 a
NL 7 F		7 ٫ 27		161	638	187			LBP	134 a
NL 8 F		7 ٫ 95		173	686	201			LBP	134 a
NL 9 F		8 ٫ 35		183	727	213			LBP	134 a
NL 11 F		11 ٫ 15		236	935	274			LBP	134 a


NF 7FX		7 ٫ 27		177	703	206	441	781	L / MBP	134 a
NF 9FX		8 ٫ 34		197	781	229	485	874	L / MBP	134 a
NF 10FX		10 ٫ 09		230	911	267	567	1011	L / MBP	134 a
NF 11FX		11 ٫ 15		253	1003	294	612	1092	L / MBP	134 a


NL 6F		6 ٫ 13		131	519	152			LBP	134 a
NL 6FT		6 ٫ 13		135	536	157			LBP	134 a
NL 6.1FT		6 ٫ 13		135	536	157			LBP	134 a
NL 6.1MF		6 ٫ 13		0	0		326	597	MBP	134 a
NL Y6F		6 ٫ 70		162	641	188			LBP	134 a
NL 7FT		7 ٫ 27		160	635	186			LBP	134 a
NL 7.3 FT		7 ٫ 27		160	635	186			LBP	134 a
NL 7.3 MF		7 ٫ 27		0	0		402	731	MBP	134 a
NL 7 F		7 ٫ 27		161	638	187			LBP	134 a
NLY 7 F		7 ٫ 27		184	730	214			LBP	134 a
NL 8 F		7 ٫ 95		173	686	201			LBP	134 a
NL 8.4 FT		8 ٫ 35		189	751	220			LBP	134 a
NL 8.4 MF		8 ٫ 35		0	0		465	839	MBP	134 a
NL 9 F		8 ٫ 35		183	727	213			LBP	134 a
NL 9 FT		8 ٫ 35		189	751	220			LBP	134 a
NLY 9 FK		8 ٫ 35		205	812	238			LBP	134 a
NL 10 FT		10 ٫ 09		245	972	285			LBP	134 a
NL 10 MF		10 ٫ 09		0	0		580	1040	MBP	134 a
NLE 10 MF		10 ٫ 09		230	914	268	579	1044	MBP	134 a
NLE 10 MF.2		10 ٫ 09		249	989	290	608	1097	L / MBP	134 a
NL 11 F		11 ٫ 15		236	935	274			LBP	134 a
NL 11 MF		11 ٫ 15		0	0		638	1144	M/HBP	134 a
NL 11 MF.2		11 ٫ 15		285	1129	331	680	1211	MBP	134 a
NLE 12.6 MFT		12 ٫ 55		305	1211	355	738	1341	L / MBP	134 a
NLE 12.6 MF.2		12 ٫ 55		305	1211	355	738	1341	L / MBP	134 a


MODEL	200 / 220 / 50 HZ
Danfoss				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
FR 6G		6 ٫ 23		141	558	121	302	560	L/M/HBP	134 a
FR 7GH		6 ٫ 93		141	558	121	341	658	HBP	134 a
FR 7.5G		6 ٫ 93		164	651	141	338	626	L/M/HBP	134 a
FR 8.5G		7 ٫ 95		200	794	172	397	732	L/M/HBP	134 a
FR 10G		9 ٫ 05		220	872	189	429	789	L/M/HBP	134 a
FR 11G		11 ٫ 15		274	1089	236	523		L/M/HBP	134 a




MODEL	200 / 220 / 50 HZ
Secop				COOLING C							run capacitor
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
GTK 55 AT		5 ٫ 60		198	785	170	302	560	LBP	134 a	CR MF 4
GTK 70 AT		6 ٫ 64		238	946	205	341	658	LBP	134 a	CR MF 4
GTK 80 AT		7 ٫ 70		270	1071	232	338	626	LBP	134 a	CR MF 4


GS 26 MFX		26 ٫ 30		0	0		1592		MBP	134 a	CR MF 10
GS 26 GHX		26 ٫ 30		0	0		1472	2664	MBP	134 a	CR MF 10
GS 34 MFX		33 ٫ 80					2079	3799	HBP	134 a	CR MF 20

MODEL	200 / 220 / 50 HZ
Secop				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
SC 10G		10 ٫ 29		145	577	169	502	942	L/M/HBP	134 a
SC 10GH		10 ٫ 29		0	0		490	944	HBP	134 a
SC 10GHH		0 ٫ 33		0	0		481	950	HBP	134 a	M F 5
SC 12G		12 ٫ 87		214	850	249	626	1194	L/M/HBP	134 a
SC 12GH		12 ٫ 87		0	0		594	1199	HBP	134 a
SC 12FT		12 ٫ 87		277	1099	322	678		LBP	134 a
SC 15F		15 ٫ 28		279	1105	324	759		LBP	134 a
SC 15G		15 ٫ 28		224	890	261	760	1369	L/M/HBP	134 a
SC 15GH		15 ٫ 28		0	0		751	1415	HBP	134 a
SC 15GHH		15 ٫ 28		0	0		753	1410	HBP	134 a	M F 10
SC 15FT		15 ٫ 28		332	1317	386	811		LBP	134 a
SC 15MFX		15 ٫ 28		280	1112	326	800	1436	MBP	134 a
SC 18F		17 ٫ 69		334	1327	389	879		LBP	134 a
SC 18G		17 ٫ 69		342	1358	398	910	1645	L/M/HBP	134 a
SC 18GH		17 ٫ 79		0	0		892	1665	HBP	134 a	M F 10
SC 18FTX		17 ٫ 69		385	1529	448	942		LBP	134 a
SC 18MFX		17 ٫ 69		373	1481	434	933	1694	MBP	134 a
SC 21F		20 ٫ 95		394	1563	458	1026		LBP	134 a
SC 21FTX		20 ٫ 95		490	1945	570	1178		LBP	134 a
SC 21MFX		20 ٫ 95		458	1819	533	1101	1969	MBP	134 a
SC 21G		20 ٫ 95		397	1576	462	1059	1928	L/M/HBP	134 a	M F 10

SC 12/12G		25 ٫ 74		427	1696	four hundred ninety seven	1252	2355	L/M/HBP	134 a
SC 15/15G		30 ٫ 56		449	1781	522	1519	2737	L/M/HBP	134 a
SC 18/18G		35 ٫ 38		673	2671	783	1808	3291	L/M/HBP	134 a
SC 21/21G		41 ٫ 90			0	923	2116	3855	L/M/HBP	134 a

MODEL	200 / 220 / 50 HZ
EMBRACO				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
IN 20HHR		2 ٫ 27	0 ٫ 5	43	171	50	135	246	L/M/HBP	134 a
EMI 28HER		3	0 ٫ 56	62	246	72			LBP	134 a
EMI 30HER		3	0 ٫ 56	62	246	72			LBP	134 a
IN 30HHR		3	0 ٫ 6	65	259	76	207	343	L/M/HBP	134 a
EMU 30HER		3	0 ٫ 55	70	276	81			LBP	134 a
EMI 40HNR		3 ٫ 77	0 ٫ 72	77	304	89			LBP	134 a
IN 45HNR		3 ٫ 77	0 ٫ 89	83	331	97			LBP	134 a
EMI 45HER		3 ٫ 77	0 ٫ 77	86	341	100			LBP	134 a
IN 45HHR		3 ٫ 77	0 ٫ 86	88	348	102	256	440	L/M/HBP	134 a
EMU 45HEP		3 ٫ 77	1 ٫ 52	89	351	103			LBP	134 a
EMU 45HER		3 ٫ 77	0 ٫ 74	92	365	107			LBP	134 a
EMY45HSC		3 ٫ 77	0 ٫ 33	94	372	109			LBP	134 a
EMU 45HSC		3 ٫ 77	0 ٫ 36	94	372	109			LBP	134 a
EMT 45HDR		3 ٫ 97	1 ٫ 08					479	HBP	134 a
EM 55HNR		4 ٫ 6	1	106	420	123			LBP	134 a
EMI 55HER		4 ٫ 6	0 ٫ 75	106	420	123			LBP	134 a
EM 50HNP		4 ٫ 99	0 ٫ 82	107	426	125			LBP	134 a
EMI 60HER		4 ٫ 99	1 ٫ 05	119	471	138			LBP	134 a
IN 60HNP		5 ٫ 54	0 ٫ 83	122	484	142			LBP	134 a	CR 2MF
EMY60HSC		4 ٫ 99	0 ٫ 43	124	491	144			LBP	134 a	C R 5MF
EM 65HNR		5 ٫ 54	1 ٫ 05	131	519	152			LBP	134 a
IN 65HHR		5 ٫ 54	1 ٫ 42					639	HBP
EMI 70HER		5 ٫ 89	1 ٫ 08	143	566	166			LBP	134 a
EMY 65HLC		5 ٫ 96	0 ٫ 53	159	631	185			LBP	134 a	C.R 4MF


MODEL	200 / 220 / 50 HZ
EMBRACO				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
EGAS 70HLR		5 ٫ 56	0 ٫ 96	141	560	164			LBP	134 a	C.R 4MF
EGZS 70HLC		5 ٫ 56	0 ٫ 46	141	560	164			LBP	134 a
EGAS 80HLR		6 ٫ 36	1 ٫ 07	168	665	195			LBP	134 a	C.R 4MF
EGAS 80HLC		6 ٫ 36	0 ٫ 57	168	665	195			LBP	134 a
EGYS 90HLP		7 ٫ 15	0 ٫ 92	194	771	226				134 a	C.R 4MF
EGZS 90HLC		7 ٫ 15	0 ٫ 71	194	771	226				134 a
EGAS 100HLR		7 ٫ 95	1 ٫ 36	216	856	251				134 a
EGAS 100HLP		7 ٫ 95	0 ٫ 99	216	856	251				134 a	C.R 4MF
EGAS 100HLC		7 ٫ 95	0 ٫ 79	216	856	251				134 a
EG 80HLR		7 ٫ 15	1 ٫ 24	176	699	205				134 a
EG 100HLR		9 ٫ 04	1 ٫ 5	222	880	258				134 a


FG 65HAK		6 ٫ 76	0 ٫ 88	143	566	166			LBP	134 a
FFV 6HAK		6 ٫ 23	1 ٫ 06	144	570	167			LBP	134 a
FFI 6HAK		6 ٫ 23	1 ٫ 37	146	580	170	437		L / MBP	134 a	C.R 5MF
FGS 70HA		6 ٫ 36	0 ٫ 58	151	600	176			LBP	134 a
FFU 70HAK		6 ٫ 36	1 ٫ 07	159	631	185	471		L / MBP	134 a
FFI 7.5HAK		6 ٫ 76	1 ٫ 3	163	648	190	470		L / MBP	134 a
FFV 7.5HAK		6 ٫ 76	1 ٫ 13	163	648	190	479		L / MBP	134 a
EG 70HLR		6 ٫ 76	1 ٫ 11	165	655	192			LBP	134 a
FG 75HAK		7 ٫ 95	1 ٫ 07	166	658	193			LBP	134 a	C.R 5MF
FF 8.5HBK		7 ٫ 95	1 ٫ 45	167	662	194	507	844	L / MBP	134 a
FGU 80HA		6 ٫ 76	0 ٫ 64	170	676	198			LBP	134 a
FFU 80HAK		6 ٫ 76	1 ٫ 3	171	679	199	499		L / MBP	134 a	C.R 5MF
FGS 80HA		7 ٫ 15	0 ٫ 65	175	696	204			LBP	134 a
FFI 8.5HAK		7 ٫ 15	1 ٫ 35	176	699	205	508		L / MBP	134 a
FFV 8.5HAK		7 ٫ 15	1 ٫ 3	176	699	205	493		L / MBP	134 a
FG 8.5HAK		9 ٫ 04	1 ٫ 2	195	774	227			LBP	134 a	C.R 5MF
FGS 90HA		7 ٫ 95	0 ٫ 78	201	798	234			LBP	134 a
FG 95HAK		10 ٫ 61	1 ٫ 54	222	880	258			LBP	134 a
100HAK FUEL		7 ٫ 95	1 ٫ 69	206	815	239	594		L / MBP	134 a
FGS 100HA		9 ٫ 04	1 ٫ 36	214	850	249			LBP	134 a
FFI 10HAK		9 ٫ 04	1 ٫ 73	214	850	249	636		L / MBP	134 a
FU 130HAX		10 ٫ 61	1 ٫ 88	266	1054	309	764		L / MBP	134 a	C.R 4MF
FGS 130HA		11 ٫ 14	1 ٫ 12	273	1082	317			LBP	134 a
FFI 12HBK		11 ٫ 14	1 ٫ 96	274	1088	319	790	1269	L / MBP	134 a

MODEL	200 / 220 / 50 HZ
LG				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
MA 42 LFJG		4 ٫ 2		92	365	107			LBP	134 a
MA 42 LFJM		4 ٫ 2		92	365	107			LBP	134 a	VS . R 5 MF
MA 42 LDJG		4 ٫ 2		88	348	102			LBP	134 a
MA 42 LBJG		4 ٫ 2		95	379	111			LBP	134 a
MA 42 LHJG		4 ٫ 2		92	365	107			LBP	134 a
MA 42 LEJG		4 ٫ 2		92	365	107			LBP	134 a
MA 42 LHJM		4 ٫ 2		92	365	107			LBP	134 a	VS . R 5 MF


MA 45 LDJG		4 ٫ 5		99	392	115			LBP	134 a
MA 45 LCJM		4 ٫ 5		99	392	115			LBP	134 a	VS . R 5 MF
MA 45 LBJM		4 ٫ 5		99	392	115			LBP	134 a	VS . R 5 MF
MA 45 LDJM		4 ٫ 5		99	392	115			LBP	134 a	VS . R 5 MF
MA 45 LFJM		4 ٫ 5		101	403	118			LBP	134 a	VS . R 5 MF


MA 53 NEWS		5 ٫ 3		125	495	145			LBP	134 a	VS . R 5 MF
MA 53 LBJG		5 ٫ 3		125	495	145			LBP	134 a
MA 53 LBJM		5 ٫ 3		125	495	145			LBP	134 a	VS . R 5 MF
MA 53 LATG		5 ٫ 3		124	491	144			LBP	134 a


MA 57 LBJG		5 ٫ 7		138	546	160			LBP	134 a
MA 57 LCJG		5 ٫ 7		144	573	168			LBP	134 a	VS . R 5 MF
MA 57 LDJM		5 ٫ 7		144	573	168			LBP	134 a
MA 57 LATG		5 ٫ 7		138	546	160			LBP	134 a


MA 62 LBJG		6 ٫ 2		150	594	174			LBP	134 a
MA 62 LDJM		6 ٫ 2		150	594	174			LBP	134 a	VS . R 5 MF
MA 62 LBEG		6 ٫ 2		150	594	174			LBP	134 a
MA 62 LCEG		6 ٫ 2		150	594	174			LBP	134 a
MA 62 LATG		6 ٫ 2		150	594	174			LBP	134 a


HAS 69 LAY		6 ٫ 9		172	682	200			LBP	134 a
MA 69 LAEM		6 ٫ 9		172	682	200			LBP	134 a	VS . R 5 MF
MA 69 LAEP		6 ٫ 9		169	672	197			LBP	134 a
MA 69 LCJM		6 ٫ 9		172	682	200			LBP	134 a	VS . R 5 MF
MA 69 LBJG		6 ٫ 9		172	682	200			LBP	134 a
MA 69 LATG		6 ٫ 9		172	682	200			LBP	134 a


MA 72 LBJG		7 ٫ 2		180	713	209			LBP	134 a
MA 72 LBJM		7 ٫ 2		180	713	209			LBP	134 a	VS . R 5 MF
MA 72 LBEG		7 ٫ 2		139	553	162			LBP	134 a
MA 72 LAEP		7 ٫ 2		189	751	220			LBP	134 a


MA 88 LATP		8 ٫ 8		235	931	273			LBP	134 a
MA 88 LAEP		8 ٫ 8		235	931	273			LBP	134 a


MA 42 HAEG		4 ٫ 2						412	HBP	134 a
MA 53 HAEF		5 ٫ 3						510	HBP	134 a
MA 53 HAEG		5 ٫ 3						510	HBP	134 a
MA 62 HAEG		6 ٫ 2						603	HBP	134 a
MA 72 HAEP		7 ٫ 2						731	HBP	134 a
MA 88 HAEP		8 ٫ 8						858	HBP	134 a



MODEL	200 / 220 / 50 HZ
Samsung				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
CD124H-L1Z2	2 ٫ 4			43	171	50			LBP	134 a
CD130H-L1Z2	3			60	239	70			LBP	134 a
CD137H-L1UB	3 ٫ 7			75	297	87			LBP	134 a
CD143H-L1UA	4 ٫ 3			98	389	114			LBP	134 a
CD152H-S1UB	5 ٫ 2			120	478	140			LBP	134 a
CD162H-L1UB	6 ٫ 2			146	580	170			LBP	134 a
SK170H-L1UB	7			168	665	195			LBP	134 a
SK172H-L1UB	7 ٫ 2			176	699	205			LBP	134 a
SK182H-L2UB	8 ٫ 2			203	805	236			LBP	134 a
SK190H-L2UB	9			227	901	264			LBP	134 a


CD 124 Q-L1Z2	2 ٫ 4			43	171	50			LBP	134 a
CD 130 Q-L1Z2	3			58	229	67			LBP	134 a
CD 130 Q-S1ZA	3			58	229	67			LBP	134 a
CD 137 Q-S1U2	3 ٫ 7			72	287	84			LBP	134 a
SD 137 Q-L1ZB	3 ٫ 7			75	297	87			LBP	134 a
SD 137 Q-L1UB	3 ٫ 7			75	297	87			LBP	134 a
SD 143 Q-L1U2	4 ٫ 3			1212	4811	1410			LBP	134 a
MSA 143 Q-S1Z	4 ٫ 3			96	382	112			LBP	134 a
SD 152 Q-L1UB	5 ٫ 2			120	478	140			LBP	134 a
MD 152 Q-L1U2	5 ٫ 2			118	467	137			LBP	134 a
SD 162 Q-L1UB	5 ٫ 2			146	580	170			LBP	134 a


CD 124 H-L1Z2	2 ٫ 4			43	171	50			LBP	134 a
CD 124 H-L1ZA	2 ٫ 4			42	167	49			LBP	134 a
CD 130 H-L1Z2	3			58	229	67			LBP	134 a
SD 137 H-L1ZB	3 ٫ 7			75	297	87			LBP	134 a
SD 137 H-L1UB	3 ٫ 7			75	297	87			LBP	134 a
SD 143 H-L1UA	4 ٫ 3			98	389	114			LBP	134 a
SD 152 H-S1UB	5 ٫ 2			120	478	140			LBP	134 a
SD 162 H-L1UB	6 ٫ 2			146	580	170			LBP	134 a
SK 170 H-L1UB	7			168	665	195			LBP	134 a
MSA 170 H-L1B	7			173	686	201			LBP	134 a
MSA 170 H-L1G	7			173	686	201			LBP	134 a


MK 172 H-L1U	7 ٫ 2			176	699	205			LBP	134 a
MK 172 H-L1UB	7 ٫ 2			176	699	205			LBP	134 a
SK 182 H-L2UA	8 ٫ 2			203	805	236			LBP	134 a
SK 182 H-L2UB	8 ٫ 2			203	805	236			LBP	134 a
MK 183 H-L2UB	8 ٫ 3			203	805	236			LBP	134 a
SK 190 H-S2U	9			227	901	264			LBP	134 a
SK 190 H-L2UA	9			227	901	264			LBP	134 a
SK 190 H-L2UB	9			227	901	264			LBP	134 a
MK 190 H-L2U	9			225	894	262			LBP	134 a


MSS 151 G-L1U	5 ٫ 1			125	495	145			LBP	134 a
MSA 151 G-L1B	5 ٫ 1			125	495	145			LBP	134 a
MSA 162 G-L1B	6 ٫ 2			151	600	176			LBP	134 a
MSS 170 G-L1U	7			153	607	178			LBP	134 a
MK 183 G-L2U	8 ٫ 3			203	805	236			LBP	134 a
MK 190 G-L2U	9			225	894	262			LBP	134 a


MK 162 Q-L1UA	6 ٫ 2			145	577	169			LBP	134 a
MSS 162 Q-L1U	6 ٫ 2			151	600	176			LBP	134 a
MSA 162 Q-L1G	6 ٫ 2			151	600	176			LBP	134 a
SK 170 Q-L1U	7			168	665	195			LBP	134 a
MSA 170 Q-L1B	7			173	686	201			LBP	134 a
MSA 170 Q-L1G	7			173	686	201			LBP	134 a
MK 172 Q-L2UB	7 ٫ 2			176	699	205			LBP	134 a
SK 182 Q-L2U	8 ٫ 2			203	805	236			LBP	134 a
MK 183 Q-L2UB	8 ٫ 3			203	805	236			LBP	134 a
SK 190 Q-L2U	9			227	901	264			LBP	134 a


CD 124 K-S1ZA	2 ٫ 4			42	167	49			LBP	134 a
CD 130 K-S1ZA	3			58	229	67			LBP	134 a
MSA 143 K-S1B	4 ٫ 3			96	382	112			LBP	134 a
SK 170 K-T1UA	7			168	665	195			LBP	134 a
SK 170 K-S1UB	7			168	665	195			LBP	134 a
MSA 170 K-S1G	7			173	686	201			LBP	134 a
MK 172 K-S1U	7			176	699	205			LBP	134 a


SD 643 Q-H2Z2	4 ٫ 3							430	HBP	134 a
SD 652 Q-H2Z2	5 ٫ 2							523	HBP	134 a
SK 670 Q-H2S	7							698	HBP	134 a
SK 670 Q-H2Z	7							692	HBP	134 a
SK 682 Q-H2Z	8 ٫ 2							814	HBP	134 a
SK 6A1 Q-S2S	10 ٫ 68							1047	HBP	134 a
HK 672 Q2Z	7 ٫ 2							709	HBP	134 a
HK 680 Q2Z	8							814	HBP	134 a
HK 690 Q2Z	9							907	HBP	134 a
HK 6A1 Q2Z	1 ٫ 68							1058	HBP	134 a
HK 6A3 Q2U	12 ٫ 52							1221	HBP	134 a




MODEL	200 / 220 / 50 HZ
Tecumseh				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
THD 1330 Y	3 ٫ 14			72	287	84			LBP	134 a
THD 1335 Y	3 ٫ 4			79	314	92			LBP	134 a
THG 1340 Y	3 ٫ 79			89	355	104			LBP	134 a
THB 1346 Y	4 ٫ 23			101	399	117			LBP	134 a
THB 1352 Y	5 ٫ 01			116	461	135			LBP	134 a
THB 1358 Y	5 ٫ 6			132	525	154			LBP	134 a
THD 1365 Y	5 ٫ 9			144	570	167			LBP	134 a
THB 1374 Y	6 ٫ 95			165	655	192			LBP	134 a


TSB 1355 Y	4 ٫ 59			120	478	140			LBP	134 a
TSB 1360 Y	5 ٫ 23			128	508	149			LBP	134 a
TSB 1374 Y	5 ٫ 65			144	570	167			LBP	134 a
TSB 1380 Y	6 ٫ 53			164	652	191			LBP	134 a
TSB 1390 Y	7 ٫ 28			185	734	215			LBP	134 a


TPH 1380 Y	6 ٫ 53			175	696	204			LBP	134 a
TPH 1410 Y	8 ٫ 37			232	921	270			LBP	134 a
TPH 1413 Y	10 ٫ 86			271	1075	315			LBP	134 a
TPH 1415 Y	12 ٫ 52			312	1239	363			LBP	134 a



MODEL	200 / 220 / 50 HZ
Lanhai				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
LAW QD 25 HHP	2 ٫ 50			65	259	76			LBP	134 a
LAW QD 30 HHP	3 ٫ 00			65	259	76			LBP	134 a
LAW QD 35 HHP	3 ٫ 50			77	304	89			LBP	134 a
LAW QD 43 HHP	4 ٫ 30			90	358	105			LBP	134 a
LAW QD 52 HHP	4 ٫ 00			99	392	115			LBP	134 a
LAF QD 59 HHP	5 ٫ 50			105	416	122			LBP	134 a
LAF QD 65 HHP	6 ٫ 20			116	461	135			LBP	134 a
LAF QD 75 HHP	7 ٫ 20			129	512	150			LBP	134 a
LAF QD 91 HHP	8 ٫ 80			152	604	177			LBP	134 a

MODEL	200 / 220 / 50 HZ
Wansheng (China)				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
QD 43 H.	4 ٫ 30			95	375	110	320		L / MBP	134 a
QD 52 H	5 ٫ 20			115	457	134	358		L / MBP	134 a
QD 59 H	5 ٫ 90			125	495	145	415		L / MBP	134 a
QD 65H	6 ٫ 50			146	580	170	435		L / MBP	134 a
QD 75 H.	7 ٫ 50			159	631	185	510		L / MBP	134 a
QD 91 H.	9 ٫ 10			189	751	220	625		L / MBP	134 a
QD 110 H	11 ٫ 00			245	972	285	680		L / MBP	134 a
QD 128 H.	12 ٫ 80			310	1228	360	830		L / MBP	134 a
QD 142 H.	14 ٫ 20			340	1348	395	890		L / MBP	134 a
QD 158 H	15 ٫ 80			387	1535	450	980		L / MBP	134 a


MAW QD 30 HHP	3 ٫ 00			71	280	82	89		L / MBP	134 a
MAW QD 35 HHP	3 ٫ 50			77	304	89	111		L / MBP	134 a
MAM QD 43 HHP	4 ٫ 30			100	396	116	134		L / MBP	134 a
MAF QD 52 HHP	5 ٫ 50			101	403	118	174		L / MBP	134 a
MAF QD 59 HHP	6 ٫ 20			122	484	142	194		L / MBP	134 a
MAF QD 65 HHP	6 ٫ 60			135	536	157	193		L / MBP	134 a
MAF QD 75 HHP	7 ٫ 60			150	597	175	241		L / MBP	134 a
MAF QD 91 HHR	8 ٫ 80			163	645	189	252		L / MBP	134 a
MAL QD 75 HHR	7 ٫ 60			132	525	154	235		L / MBP	134 a
MAL QD 91 HHR	8 ٫ 80			154	611	179	250		L / MBP	134 a
MAL QD 91 HGR	9 ٫ 30			164	652	191	270		L / MBP	134 a
MAL QD 110 HHR	11 ٫ 10			201	798	234	337		L / MBP	134 a
MAQ QD 128 HHR	12 ٫ 30			236	938	275	463		L / MBP	134 a
MAQ QD 142 HHM	13 ٫ 50			258	1024	300	500		L / MBP	134 a
MAQ QD 158 HHM	15 ٫ 30			285	1129	331	560		L / MBP	134 a
MAQ QD 168 HHM	16 ٫ 30			304	1208	354	610		L / MBP	134 a


F . N
FN 57 H	5 ٫ 70			114	454	133	360		L / MBP	134 a
FN 66 H	6 ٫ 60			142	563	165	410		L / MBP	134 a
FN 77 H	7 ٫ 70			159	631	185	526		L / MBP	134 a
FN 91 H	9 ٫ 10			176	699	205	570		L / MBP	134 a
FN 110 H	11 ٫ 00			232	921	270	685		L / MBP	134 a

MODEL	200 / 220 / 50 HZ
Wansheng (China)				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
HQD 43 H	4 ٫ 30						238	404	M/HBP	125 a
HQD 52 H	5 ٫ 20						290	492	M/HBP	126 a
HQD 59 H	5 ٫ 90						332	563	M/HBP	127 a
HQD 65 H	6 ٫ 50						368	625	M/HBP	128 a
HQD 75 H	7 ٫ 50						430	730	M/HBP	129 a
HQD 91 H	9 ٫ 10						535	908	M/HBP	130 a
HQD 110 H	11 ٫ 00						654	1110	M/HBP	131 a
HQD 128 H	12 ٫ 80						766	1300	M/HBP	132 a
HQD 142 H	14 ٫ 20						859	1459	M/HBP	133 a


HAW QD 30 HHP	3 ٫ 00						100	138	M/HBP	134 a
HAW QD 35 HHP	3 ٫ 50						111	152	M/HBP	134 a
HAM QD 43 HHP							134	182	M/HBP	134 a
HAF QD 52 HHP	4 ٫ 90						154	207	M/HBP	134 a
HAF QD 59 HHP	5 ٫ 50						173	234	M/HBP	134 a
HAF QD 65 HHR	6 ٫ 20						190	265	M/HBP	134 a
HAF QD 75 HHR	7 ٫ 20						205	277	M/HBP	134 a
HAL QD 75 HHR	7 ٫ 20						205	275	M/HBP	134 a
HAL QD 91 HHR	8 ٫ 80						250	331	M/HBP	134 a
HAL QD 110 HHM	10 ٫ 60						307	408	M/HBP	134 a
HAL QD 120 HHM	11 ٫ 60						348	516	M/HBP	134 a
HAQ QD 128 HHM	12 ٫ 30						411	559	M/HBP	134 a
HAQ QD 142 HHM	13 ٫ 60						455	618	M/HBP	134 a
HAQ QD 158 HHM	15 ٫ 30						499	675	M/HBP	134 a

MODEL	200 / 220 / 50 HZ
China				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
TAW QD 30 HHP	3 ٫ 00			65	259	76	103	145	L/M/HBP	134 a
TAW QD 35 HHP	3 ٫ 50			72	287	84	111	152	L/M/HBP	134 a
TAF QD 43 HHP	4 ٫ 30			84	334	98	134	182	L/M/HBP	134 a
TAF QD 52 HHP	4 ٫ 90			96	382	112	154	207	L/M/HBP	134 a
TAF QD 59 HHP	5 ٫ 50			104	413	121	173	234	L/M/HBP	134 a
TAF QD 65 HHP	6 ٫ 20			120	474	139	190	251	L/M/HBP	134 a
TAF QD 75 HHP	7 ٫ 20			119	471	138	205	278	L/M/HBP	134 a
TAL QD 75 HHR	7 ٫ 20			118	467	137	205	276	L/M/HBP	134 a
TAL QD 91 HHR	8 ٫ 80			141	560	164	259	339	L/M/HBP	134 a
TAL QD 110 HHM	10 ٫ 60			171	679	199	307	420	L/M/HBP	134 a
TAL QD 120 HHM	11 ٫ 60			212	839	246	256	485	L/M/HBP	134 a
TAQ QD 128 HHM	12 ٫ 30			233	925	271	381	515	L/M/HBP	134 a
TAQ QD 142 HHM	13 ٫ 60			249	989	290	413	557	L/M/HBP	134 a
TAQ QD 158 HHM	15 ٫ 30			278	1102	323	458	619	L/M/HBP	134 a


TAX FN 57 HHR	5 ٫ 70			99	392	115	175	236	L/M/HBP	134 a
TAX FN 66 HHR	6 ٫ 60			103	409	120	195	263	L/M/HBP	134 a
TAX FN 77 HHR	7 ٫ 70			114	454	133	209	278	L/M/HBP	134 a
TAX FN 91 HHR	9 ٫ 10			135	536	157	248	333	L/M/HBP	134 a
TAX FN 110 HHR	11 ٫ 00			168	665	195	308	414	L/M/HBP	134 a



MODEL	200 / 220 / 50 HZ
Daewoo				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
HSL 11 YE-5	4 ٫ 51			80	317	93			LBP	134 a
HSL 13 YE-5	4 ٫ 62			93	368	108			LBP	134 a
HSL 15 YE-5	5 ٫ 12			107	423	124			LBP	134 a
HSL 17 YE-5	5 ٫ 55			126	498	146			LBP	134 a
HSL 19 YE-5	5 ٫ 84			130	515	151			LBP	134 a
									LBP	134 a
									LBP	134 a
HSL 21 YE-5	149			151	600	176			LBP	134 a
HSL 23 YE-5	161			155	614	180			LBP	134 a
HSL 25 YE-5	176			174	689	202			LBP	134 a
HSL 27 YE-5	196			197	781	229			LBP	134 a
HSL 30 YE-5	253			230	911	267			LBP	134 a


HSL 5 Y-5P	2 ٫ 29			35	140	41			LBP	134 a
HPL 7 Y-5	2 ٫ 65			50	198	58			LBP	134 a
HSL 7 Y-5	2 ٫ 65			48	191	56			LBP	134 a
HSL 9 Y-5	3 ٫ 43			58	229	67			LBP	134 a
HSL 11 Y-5	4 ٫ 51			80	317	93			LBP	134 a
HSL 11Y -5-K	4 ٫ 51			84	334	98			LBP	134 a
HSL 11 Y-5-L	4 ٫ 51			80	317	93			LBP	134 a
HPL 11 Y-5-K	4 ٫ 51			80	317	93			LBP	134 a
HPL 13 JE-5	4 ٫ 62			93	368	108			LBP	134 a
HPL 15 JE-5	5 ٫ 12			107	423	124			LBP	134 a
HSL 15 JE-5	5 ٫ 12			108	430	126			LBP	134 a
HSL 15 JE-5C	5 ٫ 12			108	430	126			LBP	134 a
HSL 17 JE-5	5 ٫ 55			126	502	147			LBP	134 a
HPL 19 JE-5	5 ٫ 84			134	532	156			LBP	134 a
HSL 19 JE-5	5 ٫ 84			130	515	151			LBP	134 a
HSL 19 JE-5A	5 ٫ 84			135	536	157			LBP	134 a


HPL 17 YH-5	5 ٫ 5			129	512	150			LBP	134 a
HPL 19 YH-5	5 ٫ 84			136	539	158			LBP	134 a
HPL 21 YH-5	6 ٫ 73			152	604	177			LBP	134 a
HPL 23 YH-5	7 ٫ 03			166	658	193			LBP	134 a
HPL 25 YH-5	7 ٫ 96			194	771	226			LBP	134 a
HPL 25 YH-5-K	7 ٫ 96			188	747	219			LBP	134 a
HPL 26 YH-5	8 ٫ 25			192	761	223			LBP	134 a
HPL 26 YH-5-K	8 ٫ 25			192	761	223			LBP	134 a
HPL 30 YH-5	9 ٫ 92			229	908	266			LBP	134 a
YX 51 LHS5	5 ٫ 1			122	484	142			LBP	134 a
YX 58 LHP5	5 ٫ 84			141	560	164			LBP	134 a
HPL 25 YG1-5	7 ٫ 68			180	713	209			LBP	134 a
HPL 25 YG2-5	7 ٫ 68			180	713	209			LBP	134 a
HPL 27 YG1-5	8 ٫ 69			206	819	240			LBP	134 a
HPL 30 YG-5	9 ٫ 92			235	931	273			LBP	134 a
HPL 30 YG-5A	9 ٫ 92			228	904	265			LBP	134 a
HPL 21 YE-5-K	6 ٫ 72			148	587	172			LBP	134 a
HPL 21 YE-5-L	6 ٫ 73			152	604	177			LBP	134 a
HSL 21 YE-5	6 ٫ 73			151	600	176			LBP	134 a
HPL 23 YE-5	7 ٫ 03			166	658	193			LBP	134 a
HPL 23 YE-5-K0	7 ٫ 03			162	641	188			LBP	134 a
HSL 23 YE-5	7 ٫ 03			155	614	180			LBP	134 a
HKL 25 YE-5	7 ٫ 68			177	703	206			LBP	134 a
HPL 25 YE-5-K	7 ٫ 68			175	693	203			LBP	134 a
HPL 25 YE-5-L	7 ٫ 68			180	713	209			LBP	134 a
HSL 25 YE-5	7 ٫ 68			174	689	202			LBP	134 a
HKL 27 YE-5	8 ٫ 69			200	795	233			LBP	134 a
HPL 27 YE-5	8 ٫ 69			204	809	237			LBP	134 a
HPL 27 YE-5-K	8 ٫ 69			199	788	231			LBP	134 a
HSL 27 YE-5	8 ٫ 69			197	781	229			LBP	134 a
HSL 27 YE-5A	8 ٫ 69			195	774	227			LBP	134 a
HKL 30 YE-5	9 ٫ 92			236	935	274			LBP	134 a
HPL 30 YE-5	9 ٫ 92			228	904	265			LBP	134 a
HPL 30 YE-5-K	9 ٫ 92			221	877	257			LBP	134 a
HSL 30 YE-5	9 ٫ 92			230	911	267			LBP	134 a
DH 70 LHP5	7 ٫ 03			161	638	187			LBP	134 a
DH 80 LHP5	7 ٫ 89			189	751	220			LBP	134 a
DH 90 LHK5	8 ٫ 93			203	805	236			LBP	134 a
DH 90 LHP5	8 ٫ 93			205	812	238			LBP	134 a
DH 120 LHG5	12			270	1071	314			LBP	134 a
DH 126 LHG5	12 ٫ 6			290	1150	337			LBP	134 a


JX 41 LHP5-K	4 ٫ 09			88	348	102			LBP	134 a
JX 41 LHS5	4 ٫ 09			89	355	104			LBP	134 a
JX 46 LHS5	4 ٫ 6			100	396	116			LBP	134 a
JX 51 LHS5-K	5 ٫ 12			114	454	133			LBP	134 a
JX 51 LHS5	5 ٫ 12			121	481	141			LBP	134 a
JX 51 LHT5	5 ٫ 12			115	457	134			LBP	134 a
JX 55 LHP5-K	5 ٫ 55			128	508	149			LBP	134 a
JX 55 LHS5-K	5 ٫ 55			126	498	146			LBP	134 a
JX 58 LHK5	5 ٫ 84			141	560	164			LBP	134 a
JX 58 Film Festival	5 ٫ 84			140	556	163			LBP	134 a
JX 58 LHP5-K	5 ٫ 84			140	556	163			LBP	134 a
JX 58 LHS5	5 ٫ 84			141	560	164			LBP	134 a
JX 58 LHS5-K	5 ٫ 84			140	556	163			LBP	134 a
JX 58 LHS5A	5 ٫ 84			140	556	163			LBP	134 a



MODEL	200 / 220 / 50 HZ
HUAYI CUBIGEL				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
HY 69 YG		6 ٫ 9		168	665	195			LBP	134 a
HYE 60 YX		6		159	631	185			LBP	134 a
HYE 69 YS		6 ٫ 7		168	665	195			LBP	134 a
HYE 55 YL63		5 ٫ 5		129	512	150			LBP	134 a
HYE 60 YL63		6		146	580	170			LBP	134 a
HYE 69 YL		6 ٫ 7		168	665	195			LBP	134 a
HYE 60 YKL		6		155	614	180			LBP	134 a
HYE 69 YKL		6		168	665	195			LBP	134 a
HYB 41 YL		4 ٫ 1		95	375	110			LBP	134 a


HY 69 YH		6 ٫ 9		168	665	195			LBP	134 a
HYB 30 YL63		3 ٫ 1		73	290	85			LBP	134 a
HY90Y		9		228	904	265			LBP	134 a
HYE 90 YG		9 ٫ 4		232	921	270			LBP	134 a
HYE 81 YG		8 ٫ 1		202	802	235			LBP	134 a
HY 81 YTL		8 ٫ 1		202	802	235			LBP	134 a
HY 81 YGL		8 ٫ 1		202	802	235			LBP	134 a
HY 69 YGL		6 ٫ 9		168	665	195			LBP	134 a
HY 90 YL		9		228	904	265			LBP	134 a
HY 113 Y		11 ٫ 3		284	1126	330			LBP	134 a
HYB 25 Y63a		2 ٫ 5		56	222	65			LBP	134 a


HYE 52 YK63a		5 ٫ 1		129	512	150			LBP	134 a
HY 69 Y63		6 ٫ 9		168	665	195			LBP	134 a
HYS 45 Y		4 ٫ 5		107	426	125			LBP	134 a
HYB 35 Y		3 ٫ 4		77	307	90			LBP	134 a
HYE 55 YG63		5 ٫ 5		129	512	150			LBP	134 a
HYE 55 Y		5 ٫ 5		129	512	150			LBP	134 a
HYE 60 Y63		6		146	580	170			LBP	134 a
HYE 69 Y		6 ٫ 7		163	648	190			LBP	134 a
HYE 60 YS		6		155	614	180			LBP	134 a
HYE 60 YG63		6		146	580	170			LBP	134 a


HYE 55 YT		5 ٫ 5		133	529	155			LBP	134 a
HYE 55 YT63		5 ٫ 5		155	614	180			LBP	134 a
HYE 69 YG		6 ٫ 7		163	648	190			LBP	134 a
HYE 69 Y63		6 ٫ 7		163	648	190			LBP	134 a
HYE 69 YK		6 ٫ 7		168	665	195			LBP	134 a
HYE 60 YK		6		150	597	175			LBP	134 a
HYE 60 YG		6		146	580	170			LBP	134 a
HYE 60Y		6		146	580	170			LBP	134 a
HYE 81 MSU		8 ٫ 1		122	484	142			LBP	134 a
HYE 90 MSU		8 ٫ 9		131	519	152			LBP	134 a


HY113YZ		11 ٫ 3		860	3412			1000	M/HBP	134 a
HYE 69 YZ63a▲		6 ٫ 9		619	2457			720	M/HBP	134 a
HY 69 YZ		6 ٫ 9		555	2201			645	M/HBP	134 a
HYE 69 YZ		6 ٫ 9		619	2457			720	M/HBP	134 a
HY 94 YZ		9 ٫ 4		739	2934			860	M/HBP	134 a
HY 131 YZ		13 ٫ 1		997	3958			1160	M/HBP	134 a
HY 153 YZ		15 ٫ 3		1118	4435			1300	M/HBP	134 a
HYE 81 YZ		8 ٫ 1		714	2832			830	M/HBP	134 a
HYE 81 YZ63a▲		8 ٫ 1		714	2832			830	M/HBP	134 a
HY81YZ		8 ٫ 1		641	2542			745		134 a

MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
AE 123 YES / YP / YT / YC		5 ٫ 75		106	420	123			LBP	134 a
AE 148 YES / YP / YT / YC		6 ٫ 91		127	505	148			LBP	134 a
AE 176 Y / YP / YT / YC		7 ٫ 94		151	600	176			LBP	134 a
AE 196 YD /YP/YT/YC/YK		8 ٫ 99		169	669	196			LBP	134 a
AE 230/YC		14 ٫ 17		198	785	230			LBP	134 a
AE 282 YC		16 ٫ 13		242	962	282			LBP	134 a


TE 150 YP / YT		6 ٫ 36		128	508	149			LBP	134 a
TE 165 YP / YT		6 ٫ 91		142	563	165			LBP	134 a
TE 180 YP / YT		7 ٫ 50		156	618	181			LBP	134 a
TE 195 YP / YT		7 ٫ 94			658	193			LBP	134 a
TE 215 YP / YT		8 ٫ 99		187	740	217			LBP	134 a


MTE 160 YP / YT		6 ٫ 36		138	546	160			LBP	134 a
MTE 175 YP / YT		6 ٫ 91		150	594	174			LBP	134 a
MTE 190 YP / YT		7 ٫ 50		163	645	189			LBP	134 a
MTE 205 YP / YT		7 ٫ 94		176	699	205			LBP	134 a
MTE 225 YP / YT		8 ٫ 99		193	768	225			LBP	134 a


AZ 47 YD / YP / YT		2 ٫ 80		40	160	47			LBP	134 a
AZ 68 YD / YP / YT		3 ٫ 59		58	232	68			LBP	134 a
AZ 82 YD / YP / YT		4 ٫ 00		71	280	82			LBP	134 a
AZ 90 YD / YP / YT		5 ٫ 00		77	307	90			LBP	134 a
AZ 107 YD / YP / YT		5 ٫ 59		92	365	107			LBP	134 a
AZ 121 YD / YP / YT		5 ٫ 90		104	413	121			LBP	134 a


THA 65 YP / YT		3 ٫ 08		56	222	65			LBP	134 a
THA 80 YP / YT		3 ٫ 59		70	276	81			LBP	134 a
THA 90 YP / YT		3 ٫ 80		76	300	88			LBP	134 a
THA 100 YP / YT		4 ٫ 23		85	338	99			LBP	134 a
THA 110 YP / YT		5 ٫ 00		94	372	109			LBP	134 a
THA 125 YP / YT		5 ٫ 59		108	430	126			LBP	134 a
THA 138 YP / YT		5 ٫ 90		119	471	138			LBP	134 a


THB 55 YP / YT		2 ٫ 80		46	184	54			LBP	134 a
THB 75 YP / YT		3 ٫ 59		65	259	76			LBP	134 a
THB 85 YP / YT		3 ٫ 80		73	290	85			LBP	134 a
THB 95 YP / YT		4 ٫ 23		81	321	94			LBP	134 a
THB 105 YP / YT		5 ٫ 00		91	362	106			LBP	134 a
THB 118 YP / YT		5 ٫ 59		101	403	118			LBP	134 a
THB 130 YP / YT		5 ٫ 90		113	447	131			LBP	134 a
				0	0

									LBP	134 a
MTH 75 YP / YT		3 ٫ 09		63	249	73			LBP	134 a
MTH 85 YP / YT		3 ٫ 59		74	293	86			LBP	134 a
MTH 95 YP / YT		3 ٫ 80		81	321	94			LBP	134 a
MTH 105 YP / YT		4 ٫ 23		90	358	105			LBP	134 a
MTH 115 YP / YT		5 ٫ 00		104	413	121			LBP	134 a
MTH 135 YP / YT		5 ٫ 59		110	437	128			LBP	134 a
MTH 145 YP / YT		5 ٫ 90		128	508	149			LBP	134 a


AE 560 Y / YP / YC		7 ٫ 57						560	HBP	134 a
AE 666 YC / YK		8 ٫ 84						666	HBP	134 a
AE 881 YC / YK		12 ٫ 04						881	HBP	134 a
AE 1024 YC / YK		14 ٫ 17						1024	HBP	134 a

MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
D 30 CZC		3		64	256	75			LBP	134 a
DK 30 CZ1		3		60	239	70			LBP	134 a
S 65 CZ1		6 ٫ 5		146	580	170			LBP	134 a
LK 65 CZ1		6 ٫ 5		150	597	175			LBP	134 a	VS . R MF 4
LM 65 CZ		6 ٫ 5		150	597	175			LBP	134 a	VS . R MF 4
LJ 65 CZ		6 ٫ 5		150	597	175			LBP	134 a	VS . R MF 4
LU 70 CZ		7		163	648	190			LBP	134 a	VS . R MF 5
S 70 CZ1		7 ٫ 2		168	665	195			LBP	134 a
LK 70 CZ1		7 ٫ 2		168	665	195			LBP	134 a	VS . R MF 4
LM 70 CZ		7 ٫ 2		168	665	195			LBP	134 a	VS . R MF 4
L 76 CZ1		7 ٫ 6		185	734	215			LBP	134 a
L 83 CZ1		8 ٫ 3		198	785	230			LBP	134 a
KK 230 CZ1		8 ٫ 3		198	785	230			LBP	134 a	VS . R MF 5
KM 230 CZ		8 ٫ 3		198	785	230			LBP	134 a	VS . R MF 5
K 270 CZ1		9 ٫ 5		232	921	270			LBP	134 a
KK 270 CZ1		9 ٫ 5		232	921	270			LBP	134 a	VS . R MF 5
K 325 CZ1		11 ٫ 4		279	1109	325			LBP	134 a
K 375 CZ1		12 ٫ 7		322	1279	375			LBP	134 a
K 400 CZ1		14 ٫ 3		344	1365	400			LBP	134 a	VS . R MF 6


MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
D 5136 CZ1		4 ٫ 1		361	1433			420	M/HBP	134 a
S 5 150 CZ1		6		559	2218			650	M/HBP	134 a
S 6160 CZ`		7 ٫ 2		645	2559			750	M/HBP	134 a
L 6170 CZ		7 ٫ 9		731	2900			850	M/HBP	134 a	VS . S MF 50
NE 5170 CZ		9 ٫ 8		800	3173			930	M/HBP	134 a
BN 6188 CZ		12		946	3753			1100	M/HBP	134 a	VS . S MF 75
K 6210 CZ		11 ٫ 4		1032	4094			1200	M/HBP	134 a	VS . S MF 75





MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
N 1080 Y		5 ٫ 5		82	324	95			LBP	R 134 a
N 1090 Y		6		86	341	100			LBP	R 134 a
N 1110 Y		6 ٫ 7		98	389	114			LBP	R 134 a
N 1111 Y		7 ٫ 2		112	444	130			LBP	R 134 a
N 1112 Y		8 ٫ 1		120	478	140			LBP	R 134 a
N 1113 Y		8 ٫ 9		132	525	154			LBP	R 134 a
N 1114 Y		9 ٫ 6		144	573	168			LBP	R 134 a

NT 1112 Y		8 ٫ 1		120	478	140			LBP	R 134 a	4
NT 1113 Y		8 ٫ 9		132	525	154			LBP	R 134 a	4
NT 1114 Y		9 ٫ 6		146	580	170			LBP	R 134 a	4.0 / 4.5
NT 1117 Y		11 ٫ 2		170	676	198			LBP	R 134 a	4

NOW 1080 Y		5 ٫ 5		82	324	95			LBP	R 134 a	3
NOW 1090 Y		6		88	348	102			LBP	R 134 a	4
NOW 1110 Y		6 ٫ 7		99	392	115			LBP	R 134 a	4
NOW 1111 Y		7 ٫ 2		112	444	130			LBP	R 134 a	3.5 / 4.0
NOW 1112 Y		8 ٫ 1		120	478	140			LBP	R 134 a	4
NOW 1113 Y		8 ٫ 9		132	525	154			LBP	R 134 a	4
NU 1114Y		9 ٫ 6		146	580	170			LBP	R 134 a	4.0 / 4.5
NOW 1116 Y		10 ٫ 5		160	635	186			LBP	R 134 a	4 ٫ 5
NOW 1112 GY		8 ٫ 1		120	478	140			LBP	R 134 a	3.5 / 4.0
NOW 1113 GY		8 ٫ 9		132	525	154			LBP	R 134 a	4

NS 1060 Y		4 ٫ 2		56	222	65			LBP	R 134 a	2
NS 1080 Y		5 ٫ 5		82	324	95			LBP	R 134 a	3
NS 1090 Y		6		90	358	105			LBP	R 134 a	2.0 / 3.0
NS 1110 Y		6 ٫ 7		100	396	116			LBP	R 134 a	3.0 / 4.0
NS 1111 Y		7 ٫ 2		112	444	130			LBP	R 134 a	3.5 / 4.0
NS 1112 Y		8 ٫ 1		122	484	142			LBP	R 134 a	3.5 / 4.0
NS 1113 Y		8 ٫ 9		133	529	155			LBP	R 134 a	4
NS 1114 Y		9 ٫ 6		148	587	172			LBP	R 134 a	4
NS 1116 Y		10 ٫ 5		160	635	186			LBP	R 134 a	4.0 / 5.0
NS 1117 Y		11 ٫ 2		170	676	198			LBP	R 134 a	4

NC 1090 Y		6		90	358	105			LBP	R 134 a	2 ٫ 5
NC 1110 Y		6 ٫ 7		100	396	116			LBP	R 134 a	3.0 / 4.0
NC 1111 Y		7 ٫ 2		110	437	128			LBP	R 134 a	4
NC 1112 Y		8 ٫ 1		122	484	142			LBP	R 134 a	4
NC 1113 Y		8 ٫ 9		133	529	155			LBP	R 134 a	4
NC 1114 Y		9 ٫ 6		148	587	172			LBP	R 134 a	3.0 / 4.0
NC 1116 Y		10 ٫ 5		160	635	186			LBP	R 134 a	3

NX 1080 Y		5 ٫ 5		83	328	96			LBP	R 134 a	2
NX 1090 Y		6		93	368	108			LBP	R 134 a	2 ٫ 5
NX 1110 Y		6 ٫ 7		101	399	117			LBP	R 134 a	2 ٫ 5
NX 1111 Y		7 ٫ 2		112	444	130			LBP	R 134 a	3
NX 1112 Y		8 ٫ 1		125	495	145			LBP	R 134 a	3
NX 1113 Y		8 ٫ 9		133	529	155			LBP	R 134 a	2 ٫ 5
NX 1114 Y		9 ٫ 6		148	587	172			LBP	R 134 a	4

NB 1080 Y		5 ٫ 5		83	328	96			LBP	R 134 a	2
NB 1090 Y		6		93	368	108			LBP	R 134 a	2 ٫ 5
NB 1110 Y		6 ٫ 7		101	399	117			LBP	R 134 a	2 ٫ 5
NB 1111 Y		7 ٫ 2		112	444	130			LBP	R 134 a	3
NB 1112 Y		8 ٫ 1		125	495	145			LBP	R 134 a	3
NB 1113 Y		8 ٫ 9		133	529	155			LBP	R 134 a	2 ٫ 5
NB 1114 Y		9 ٫ 6		148	587	172			LBP	R 134 a	4
NB 1116 Y		10 ٫ 5		160	635	186			LBP	R 134 a	4

NE 1080 Y		5 ٫ 5		83	328	96			LBP	R 134 a	2
NE 1090 Y		6		93	368	108			LBP	R 134 a	2 ٫ 5
NE 1110 Y		6 ٫ 7		101	399	117			LBP	R 134 a	2 ٫ 5
NE 1111 Y		7 ٫ 2		112	444	130			LBP	R 134 a	3
NE 1112 Y		8 ٫ 1		125	495	145			LBP	R 134 a	3


MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
AE 1360 Y		6 ٫ 91	1	136	539	158			LBP	134 a
AE 1370 Y		8 ٫ 12	1 ٫ 2	160	635	186			LBP	134 a
AE 1390 Y		9 ٫ 42	1 ٫ 3	217	860	252			LBP	134 a
AE 1390 Y-6		9 ٫ 42	1 ٫ 6	228	904	265			LBP	134 a
AE 1411 Y		14 ٫ 14	2	256	1017	298			LBP	134 a
AE 2340 Y		5 ٫ 11	0 ٫ 8	95	375	110			LBP	134 a
AE 2360 Y		6 ٫ 91	1	136	539	158			LBP	134 a
AE 2370 Y		8 ٫ 12	1 ٫ 2	159	631	185			LBP	134 a
AE 2390 Y		9 ٫ 42	1 ٫ 4	206	819	240			LBP	134 a
AE 2417 Y		18	1 ٫ 2	344	1365	400			LBP	134 a


AEA 2410 AND		12 ٫ 05	2	232	921	270			LBP	134 a
AEA 2413 AND		14 ٫ 14	2	301	1194	350			LBP	134 a
AEA 2415 AND		18 ٫ 6	1 ٫ 3	318	1262	370			LBP	134 a	C R5 MF 8


AE 6412 Y		5 ٫ 99	1 ٫ 2	267	1061		311		MBP	134 a
AE 7415 Y		7 ٫ 55	1 ٫ 8	317	1259		369		MBP	134 a
AE 7423 Y		12 ٫ 05	2 ٫ 3	494	1958		574		MBP	134 a
AE 7426 Y		14 ٫ 14	2 ٫ 5	550	2184		640		MBP	134 a
AE 7430 Y		16 ٫ 08	2 ٫ 2	641	2542		745		MBP	134 a	C R5 MF 8


AE 3414 Y		4 ٫ 49	1 ٫ 3	318	1262			370	HBP	134 a
AE 3417 Y		5 ٫ 68	1 ٫ 6	430	1706			500	HBP	134 a
AE 3425 Y		7 ٫ 55	202	628	2491			730	HBP	134 a
AE 3430 Y		8 ٫ 86	2 ٫ 5	731	2900			850	HBP	134 a
AE 3435 Y		9 ٫ 42	2 ٫ 7	767	3043			892	HBP	134 a
AE 3440 Y		12 ٫ 05	3	916	3634			1065	HBP	134 a
AE 3448 Y		14 ٫ 14	3 ٫ 5	1032	4094			1200	HBP	134 a
AE 4414 Y		4 ٫ 49	1 ٫ 3	318	1262			370	HBP	134 a
AE 4425 Y		7 ٫ 55	2 ٫ 2	602	2388			700	HBP	134 a
AE 4430 Y		8 ٫ 86	2 ٫ 5	705	2798			820	HBP	134 a
AE 4430 Y		8 ٫ 86	1 ٫ 6	684	2716			796	HBP	134 a	C R5 MF 8
AE 4435 Y		9 ٫ 42	2 ٫ 7	776	3078			902	HBP	134 a
AE 4440 Y		12 ٫ 05	3 ٫ 1	924	3668			1075	HBP	134 a
AE 4440 Y		12 ٫ 05	2 ٫ 2	924	3668			1075	HBP	134 a	C R5 MF 8
AE 4448 Y		14 ٫ 14	3 ٫ 6	1023	4060			1190	HBP	134 a
AE 4448 Y		14 ٫ 14	2 ٫ 4	1049	4162			1220	HBP	134 a	C R5 MF12
AE 4459 Y		16 ٫ 08	3	1247	4947			1450	HBP	134 a	C R5 MF 15


MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
AZ A 1320 UN		2 ٫ 5	0 ٫ 4	49	194	57			LBP	134 a	C R5 MF 4
AZ A 1327 UN		3 ٫ 28	0 ٫ 5	63	249	73			LBP	134 a	C R5 MF 4
AZ A 1330 UN		3 ٫ 69	0 ٫ 5	68	270	79			LBP	134 a	C R5 MF 4
AZ A 1335 UN		3 ٫ 8	0 ٫ 6	71	280	82			LBP	134 a	C R5 MF 4
AZ A 1340 UN		4	0 ٫ 7	79	314	92			LBP	134 a	C R5 MF 4
AZ A 1350 UN		5	0 ٫ 8	94	372	109			LBP	134 a	C R5 MF 4
AZ A 1360 UN		5 ٫ 59	0 ٫ 5	92	365	107			LBP	134 a	C R5 MF 4
AZ A 1370 UN		6	1	118	467	137			LBP	134 a	C R5 MF 4


AZ A 0413 UN		6	1 ٫ 5	183	727	213			LBP	134 a
AZ A 4913 UN		6	1 ٫ 6	183	727	213			LBP	134 a


AW 4495 YK		30	3 ٫ 5	585	2320		680		MBP	134 a	C R5 MF20
AW 4513 YK		35 ٫ 6	3 ٫ 9	638	2532		742		MBP	134 a	C R5 MF30
AW 4514 YK		37 ٫ 5	3 ٫ 9	641	2542		745		MBP	134 a	C R5 MF35
AW 4515 YK		39 ٫ 6	4 ٫ 2	728	2890		847		MBP	134 a	C R5 MF35
AW 4517 YK		48 ٫ 4	4 ٫ 9	903	3582		1050		MBP	134 a	C R5 MF20



MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
L QD 25 HG	52	2 ٫ 5	0 ٫ 55	47	188	55			LBP	134 a
L / QD 30 HG	62	3	0 ٫ 63	56	222	65			LBP	134 a
L / QD 35 HG	71	3 ٫ 5	0 ٫ 68	64	256	75			LBP	134 a
L / ADW 43	100	4 ٫ 3	1	95	375	110			LBP	134 a
L / ADW 57	104	5 ٫ 1	1 ٫ 1	107	426	125			LBP	134 a
L / ADW 57	112	5 ٫ 7	1 ٫ 15	116	461	135			LBP	134 a

MS / ADW 43	100	4 ٫ 3	1	95	375	110			LBP	134 a
MS / ADW 43	104	5 ٫ 1	1 ٫ 1	107	426	125			LBP	134 a
MS / ADW 57	112	5 ٫ 7	1 ٫ 15	116	461	135			LBP	134 a
MS / ADW 66	132	6 ٫ 6	1 ٫ 2	142	563	165			LBP	134 a
MS / ADW 77	148	7 ٫ 7	1 ٫ 4	159	631	185			LBP	134 a
MS / ADW 86	160	8 ٫ 6	1 ٫ 45	172	682	200			LBP	134 a
MS / ADW 91	176	9 ٫ 1	1 ٫ 65	189	751	220			LBP	134 a

MK / ADW 66	132	6 ٫ 6	1 ٫ 2	142	563	165			LBP	134 a
MK / ADW 77	148	7 ٫ 7	1 ٫ 4	159	631	185			LBP	134 a
MK / ADW 86	160	8 ٫ 6	1 ٫ 45	172	682	200			LBP	134 a
MK / ADW 91	176	9 ٫ 1	1 ٫ 65	189	751	220			LBP	134 a
MK ADW 110	215	11	2 ٫ 05	232	921	270			LBP	134 a

WQ / ADW 91	176	9 ٫ 1	1 ٫ 65	189	751	220			LBP	134 a
WQ / ADW 110	215	11	2 ٫ 05	232	921	270			LBP	134 a
WQ / ADW 128	256	12 ٫ 8	2 ٫ 3	275	1092	320			LBP	134 a	C S M F 80
WQ / ADW 142	280	14 ٫ 2	2 ٫ 6	301	1194	350			LBP	134 a	C S M F 81
WQ / AD W 153	304	15 ٫ 3	2 ٫ 8	327	1297	380			LBP	134 a	C S M F 82



MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
OF 605		3 ٫ 4		77	307	90			LBP	134 a
OF 700		3 ٫ 9		86	341	100			LBP	134 a	CR MF 2
OF 789		3 ٫ 9		95	375	110			LBP	134 a	CR MF 2.5
OF 1033 A		5 ٫ 3		120	478	140			LBP	134 a
OF 1350 A		7		155	614	180			LBP	134 a


GVY 35 AA		3 ٫ 4		69	273	80			LBP	134 a	CR MF 2
GVY 40 AA		4		94	372	109			LBP	134 a	CR MF 3
GVY 44 AA		4 ٫ 4		112	444	130			LBP	134 a	CR MF 3
GVY 44 AG		4 ٫ 4				132
GVY 53 AA		5 ٫ 3		120	478	140			LBP	134 a	CR MF 3
GVY 53 AG		5 ٫ 3		119	471	138
GVY 57 AA		5 ٫ 7		138	546	160			LBP	134 a	CR MF 4
GVY 57 AG		5 ٫ 7		132	525	154
GVY 61 AA		6 ٫ 1		146	580	170			LBP	134 a	CR MF 4
GVY 66 AA		6 ٫ 6		163	648	190			LBP	134 a	CR MF 4
		7 ٫ 5		177	703	206			LBP	134 a	CR MF 4
GVY 75 AG		7 ٫ 5		173	686	201


GTH 86 AA		8 ٫ 6		206	819	240			LBP	134 a	CR MF 5
GTH 93 AA		9 ٫ 3		224	887	260			LBP	134 a	CR MF 5


GTT 66 AA		6 ٫ 6		172	682	200			LBP	134 a	CR MF 4
GTT 75 AA		7 ٫ 5		181	716	210			LBP	134 a	CR MF 4


GKD 86 AA		8 ٫ 6		219	870	255			LBP	134 a	CR MF 6
GKD 93 AA		9 ٫ 3		232	921	270			LBP	134 a	CR MF 6


MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
GML 70 A		2 ٫ 8		58	232	68			LBP	134 a
GML 90 A		3 ٫ 4		79	314	92			LBP	134 a	CR MF 2
GML 110 A		4 ٫ 1		97	386	113			LBP	134 a	CR MF 2.5
GML 125 A		4 ٫ 1		103	409	120			LBP	134 a
GML 140 A		4 ٫ 9		120	478	140			LBP	134 a
GML 140 A/I		4 ٫ 9		120	478	140			LBP	134 a	CR MF 5
GML 160 A		5 ٫ 7		138	546	160
GML 180 A		6 ٫ 5		155	614	180			LBP	134 a	CR MF 5
GML 200 A		7		172	682	200			LBP	134 a	CR MF 5
GML 200 A/I		7		181	716	210			LBP	134 a	CR MF 6


GTM 26 AA		2 ٫ 6				65
GTM 75 AA		7 ٫ 5				200
GTM 93 AA		10				280
GTM 10 AA		10 ٫ 6				300
GTM 12 AA		12				320


GDL160 A		5 ٫ 7		144	570	167			LBP	134 a	CR MF 4
GDL200 A		6 ٫ 5		142	563	165			LBP	134 a	CR MF 5
GXL100 A		4 ٫ 1		91	362	106			LBP	134 a	CR MF 4
GXL125 A		4 ٫ 3		106	420	123			LBP	134 a	CR MF 5
GXL140 A		4 ٫ 6		119	471	138			LBP	134 a	CR MF 5
GXL160 A		5 ٫ 7		138	546	160			LBP	134 a	CR MF 4
GXL 200 A		7		168	665	195			LBP	134 a	CR MF 5
GXL 240 A		8 ٫ 6		206	819	240			LBP	134 a	CR MF 5




MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
GL 60 TP		5		464	1842			540
GL 80 TP		8		636	2525			740
GL 90 TP		9 ٫ 3		739	2934			860	HBP	134 a	CS MF 50
GL 90 TP/I		9 ٫ 3		739	2934			860	HBP	134 a	CS MF 50
GL 10 TP		9 ٫ 3		757	3002			880	HBP	134 a	CS MF 50
GL 12 TP		12		972	3855			1130	HBP	134 a	CS MF 50
GHP 16 AA		16		1118	4435			1300	HBP	134 a	CS MF 100
GHP 18 AA		18		1376	5459			1600	HBP	134 a	CS MF 100
GHP 21 AA		21		1634	6483			1900	HBP	134 a	CS MF 100
GTM 93 AA		10		241	955			280	HBP	134 a	CS MF 50
GTM 10 AA		10 ٫ 6		258	1024			300	HBP	134 a	CS MF 50
GTM 12 AA		12		275	1092			320	HBP	134 a	CS MF 50


MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
S43C80KA				77	307	90				134 a
S48C95KA				90	358	105				134 a
D66C13RA				125	495	145				134 a
D77C15RA				155	614	180				134 a
D91C18RA				172	682	200				134 a

MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
BP1046Z				40	157	46				134 a
BP1058Z				45	177	52				134 a
BP1072Z				57	225	66				134 a
BP1084Z				66	263	77				134 a
BP1111Z				81	321	94				134 a
B1112Z				88	348	102				134 a
B2112Z				88	348	102				134 a
B1116Z				117	464	136				134 a
B2116Z				117	464	136				134 a
B1118Z				131	519	152				134 a
B2118Z				131	519	152				134 a
E1121Z				165	655	192				134 a
BK1086Z				90	358	105				134 a
BK1112Z				96	382	112				134 a
BK1114Z				111	440	129				134 a
BK1116Z				132	525	154				134 a

MODEL	200 / 220 / 50 HZ
				COOLING C
	IN	Displ.CC	R L A	k CAL/HR	B T U	In -23	W -5	In 7.2+
ETR3				52	205	60				134 a
ETR3.5				64	256	75				134 a
ETR4				75	297	87				134 a
ESC5				92	365	107				134 a
ETR5				101	399	117				134 a
ETR5.5				112	444	130				134 a
ESC7				126	502	147				134 a
ESC8				148	587	172				134 a
ESC8.5				160	635	186				134 a
ESC9				176	699	205				134 a
ESC11				212	839	246				134 a

Compressor, R134A, GLY12RGA, 10,7cm³, HMBP, 230V, 3/8HP, CUBIGEL, HUAYI

written by Lilianne | 22 December 2021

Displacement (cm³)	Refrigerant	Application	Compressor Cooling	Voltage/Frequency	Frequency (Hz)	Motor Type	Cooling (kCal/h)	COP (W/W)	Cooling (W)	COP (W/W)	Technical Data Sheet (*)
GL45MG	4,56	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	352	1,95	340	1,67	GL45MG
GL45MG	4,56	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	412	1,92	398	1,65	GL45MG
GL60MG	5,98	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	520	2,02	499	1,73	GL60MG
GL60MG	5,98	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	445	1,99	427	1,70	GL60MG
GL80MG	7,57	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	702	2,15	674	1,84	GL80MG
GL80MG	7,57	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	600	2,10	576	1,78	GL80MG
GL90MG	8,85	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	685	2,10	661	1,79	GL90MG
GL90MG	8,85	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	800	2,11	772	1,83	GL90MG
GLY12RAa	10,70	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	900	2,30	867	1,97	GLY12RAa
GLY12RAb	10,70	R134a	HBP	F	220-240V 50Hz ~1	50	CSR	900	2,57	867	2,20	GLY12RAb
GLY12RGa	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	50	CSIR	900	2,19	867	1,87	GLY12RGa
GLY12RGa	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	60	CSIR	1.038	2,22	1.007	1,90	GLY12RGa
GLY12RGb	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	50	CSR	900	2,32	867	1,98	GLY12RGb
GLY12RGb	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	60	CSR	1.038	2,40	1.007	2,07	GLY12RGb
GP14TB	14,17	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.030	2,03	998	1,76	GP14TB
GP16TB	16,15	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.240	2,09	1.204	1,80	GP16TB
GP16TE	16,15	R134a	HBP	F	115V 60Hz ~1	60	CSIR	1.450	1,96	1.408	1,69	GP16TE
GP16TG	16,15	R134a	HBP	F	200-220/230V 50/60Hz ~1	50	CSIR	1.240	2,09	1.204	1,81	GP16TG
GP16TG	16,15	R134a	HBP	F	200-220/230V 50/60Hz ~1	60	CSIR	1.450	2,00	1.408	1,74	GP16TG
GPM16RA	16,15	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.351	2,09	1.317	1,79	GPM16RA

(*) Under standard conditions

Additional information

Voltage (V)	230Vac
Frequency (hz)	50
Range	MBP
Displacement (cm3)	10,7 cm³
Cooling capacity (W)	608W
Conditions (°C)	-10 / +45C
Refrigerant	R134A
Suction line	8.1mm juotettava
Liquid line	6,5mm juotettava
Height (mm)	198mm
Weight (kg)	10,43kg
Oil	ISO VG 32 Ester

Technical data

Model: GLY12RAa
Refrigerant Gas: R-134a
Pression/temperature: HBP
Power: 3/8 HP
Voltage: 230 V
Current Type: Single-Phase
Frequency: 50 Hz
Compressor Type: Hermetic
Displacement: 10.7 cm³
Power Cons. -10°C: 293 W
Power Cons. -5°C: 322 W
Efficiency 0°C: 351 W
Power Cons. +5°C: 380 W
Power Cons. +7,2°C: 392 W
T° Condensation: 40 °C
Cooling Cap. -15°C: 408 Kcal/h
Cooling Cap. -10°C: 512 Kcal/h
Cooling Cap. -5°C: 642 Kcal/h
Cooling Cap. 0°C: 797 Kcal/h
Cooling Cap. 5°C: 977 Kcal/h
Cooling Cap. 7.2°C: 1065 Kcal/h
Cooling Cap. 10°C: 1184 Kcal/h
Test Type: Ashare 46

Mbsm_dot_pro_private_PDF_pdf-GLY12RAa Télécharger
