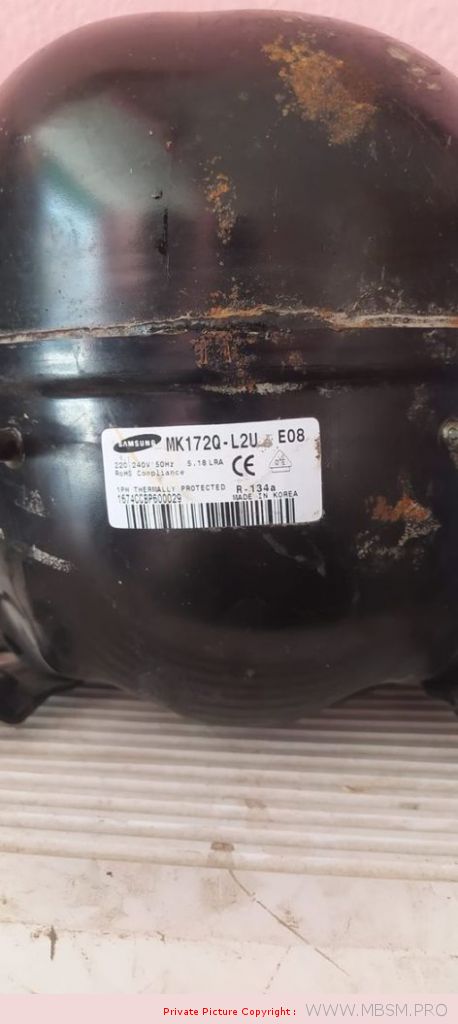

Mbsm.pro, Compressor, Mk172Q-L2U, 1/4 Hp, 205 W, 699 BTu/H, Samsung Compressor, Mk Serie, R134A, 7.21 cc, 220-240 v, LBP, Static Compressor, RSIR

written by Lilianne | 7 February 2022

Mbsm_dot_pro_private_PDF_Mk172Q-L2UTélécharger


Mbsm.pro, Compressor, Embraco, Aspera, NEK6214Z, HBP, R134a, 220 – 240V/1/50Hz, 1/2 HP, CSIR, HBP, Big ++

written by Lilianne | 7 February 2022
Compressor Embraco Aspera NEK6214Z, HBP – R134a, 220 – 240V/1/50Hz, 1/2 HP, discharge 16.8 cm3, LRA 21.2 A, motor type CSIR, lubricant type POE 22, lubricant charge 350 ml, 1310 W at +5 / +54.4 °, expansion device: capillary or valve, cooling: fan cooling, weight 11.6 kg substitution for T6213Z.
Refrigerant: R134a
Power range(W): 701 – 1000 W 1 – 1,5 kW
Performance range (C): -15 C to +10 C
Working area: HBP
Design type: Hermetic
Model series: NEK
Use with: Expansion/Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: POE22
Engine type: CSIR
Article condition: New
Info: Oil filled
Shipping weight: 13,60 Kg
Dimensions ( length × width × height ): 24,20 × 17,80 × 20,60 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: Embraco Aspera
Model: NEK6214Z
Stroke volume (cm3): 16,8
Performance condition: +5°C tk +54,4 °C
Power (W): 1310
Cooling capacity (W): 745
Power (HP): 0,5
Max. Starting current (A): 21,2
Engine type: CSIR
Note: Fan cooling necessary
Oil quantity (l): 0,35
Compressor type: Piston
Power range: -15 C to +10 C
Alternative: T6213Z



Mbsm_dot_pro_private_PDF_NEK6214ZTélécharger


Mbsm.pro, Compressor, Copeland, ZR90K3-TWD-551, ZR90K3TWD551, 7.5 Hp, R22, 380-420/3/50Hz

written by Lilianne | 7 February 2022

Features:

1,Super efficiency

The efficiency is 12% higher than the most advanced piston type compresor in the market.

2,Crackajack reliability
less movement parts ,shaft direction and radial with copeland patent soft designe,to supply high fluidimpact and abide impurity resistent.
3,Inner motor turnoff device
it can protect motor to avoid broken by high-temperature and high –current .

 4,Low-noise/low-exhaust impulse
the noise is 5Db lower than piston-type compressor and more.
5,Predigest system desige
Blue-chip uninstall operate design,make single-phase compressor no need to operate capacitance/relay.
6,Nearly 100% cubage efficiency bring super heating ability.



Technical Datas:

Model

Power (HP)

Exhaust cpacity M3/h

Air condition(7.2/54.4°C)

Weight( Kg)

Height (mm)

Refrigeration

Capacity( W)

Input power (W)

Single phase

ZR16K3-PFJ

1.33

3.97

4010

1320

25.9

370.4

ZR18K3-PFJ

1.50

4.37

4400

1440

25.9

370.4

ZR20K3-PFJ

1.69

4.76

4890

1600

25.9

370.4

ZR22K3-PFJ

1.83

5.34

5330

1730

25.9

382.8

ZR24K3-PFJ

2.00

5.92

5920

1870

26.3

382.8

ZR26K3-PFJ

2.17

6.27

6330

2000

25.9

382.8

ZR28K3-PFJ

2.33

6.83

6910

2150

27.2

382.8

ZR30K3-PFJ

2.50

7.30

7380

2290

28.5

405.5

ZR32K3-PFJ

2.67

7.55

7760

2410

28.1

405.5

ZR34K3-PFJ

2.83

8.02

8200

2520

29.5

405.5

ZR36K3-PFJ

3.00

8.61

8790

2700

29.5

405.5

ZR40K3-PFJ

3.33

9.43

9670

2970

29.9

419.3
Mbsm_dot_pro_private_PDF_ZR90K3-TWDTélécharger


Mbsm.pro, Compressor, 1/11 Hp, 67 W, 110-120V, R600A

written by Lilianne | 7 February 2022
Description


Basic Info
  • Model NO.: QD35Y11G
  • Door Number: Single Door
  • Door Type: Swing Door
  • Temperature Control: Mechanical Thermostat
  • Defrost Type: Auto Defrost
  • Certification: CE, RoHS, UL, ISO, CCC, CB, ETL
  • Motor Type: Rscr
  • Frenquency: 50-60Hz
  • Cooling Capacity: 67W
  • Starting Capacitor: No
  • Cooling Type: Static
  • Transport Package: 1PC/CTN, 100ctns/Pallet
  • Origin: China
  • Capacity: 101-200L
  • Type: Chest/Deep Freezer
  • Power Source: Electricity
  • Temperature Type: Double-temperature
  • Function: Freezing
  • Displacement: 3.5cm3
  • Voltage: 110-120V
  • Refrigerant: R600A
  • Starting Device: PTC
  • Running Capacitor: 6UF
  • Trademark: SIKELAN
  • Specification: 1/12hp
  • HS Code: 8414301100
Product Description
1. Product Performance
 1)QD35Y11G, L series, use R600A refrigerant;
 2)Voltage application 110V to 120V;
 3)Frequency for 50/60HZ;
 4)Motor type: RSCR;
 5)Cooling type: ST;
 6)Starting device is PTC Relay;
 7)Application: Low Back Pressure;
 8)Nominal power is 1/12 HP;
 9)COP is 1.20 with the cooling capacity 67W.

Basing on Test Condition(ASHRAE)
 Evaporating Temperature: -23.3 degree
 Ambient Temperature: 32.2 degree
 Subcooling Temperature: 32.2 degree
 Condensing Temperature: 54.4 degree
 Suction Temperature: 32.2 degree

2.Compressor Specification

Serial Model HP Voltage/   Frequency (V/Hz) Displacement (cm3) Cooling Capacity ASHRAE Motor type Starting Device Starting capacitor (uF) Running capacitor (uF) Cooling Type
-35ºC (-31F) -30ºC(-22F) -25ºC(-13F) Test Conditions:-23.3ºC(-10F) -20ºC(-4F) -15ºC(5F) -10ºC(10F) -5ºC(23F) 0ºC(32F)
W Btu/h W Btu/h W Btu/h Capacity (W) Capacity (Btu/h) lnput Power(W) Current  (A) COP EER W Btu/h W Btu/h W Btu/h W Btu/h W Btu/h
L QD35Y11G 1/12 110-120V/50-60Hz 3.5 31 106 40 136 52 177 67 229 56 0.4 1.2 4.08 84 287 105 358 131 447 164 560 205 699 RSCR PTC Starting Relay / 6 ST
QD43Y11G 1/11 4.3 41 140 53 181 69 235 90 307 75 0.6 1.2 4.09 113 386 141 481 176 601 220 751 275 938 RSCR / 6 ST
MS QD53Y11G 1/9 5.3 47 160 61 208 79 270 102 348 78 1.1 1.3 4.46 128 437 159 543 199 679 249 850 311 1061 RSCR / 6 ST
QD65Y11G 1/7 6.5 60 205 78 266 102 348 132 450 101 1.45 1.3 4.46 165 563 206 703 258 880 322 1099 403 1375 RSCR / 6 ST
QD75Y11G 1/6- 7.5 71 242 92 314 120 409 156 532 120 1.65 1.3 4.44 195 665 244 833 305 1041 381 1300 476 1624 RSCR / 6 ST
LM QD43Y11G 1/11 4.3 41 140 53 181 69 235 90 307 75 0.6 1.2 4.09 113 386 141 481 176 601 220 751 275 938 RSCR / 6 ST
QD53Y11G 1/9 5.3 47 160 61 208 79 270 102 348 78 1.1 1.3 4.46 128 437 159 543 199 679 249 850 311 1061 RSCR / 6 ST
QD65G11G 1/7 6.5 60 205 78 266 102 348 132 450 102 1.45 1.3 4.42 165 563 206 703 258 880 322 1099 403 1375 RSCR / 6 ST
QD75Y11G 1/6- 7.5 71 242 92 314 120 409 156 532 120 1.65 1.3 4.44 195 665 244 833 305 1041 381 1300 476 1624 RSCR / 6 ST
MK QD75Y11G 1/6- 7.5 71 242 92 314 120 409 156 532 120 1.65 1.3 4.44 195 665 244 833 305 1041 381 1300 476 1624 RSCR / 6 ST
QD85Y11G 1/6 8.5 79 270 103 351 134 457 174 594 134 1.68 1.3 4.43 218 744 272 928 340 1160 425 1450 531 1812 RSCR / 6 ST
QD91Y11G 1/5 9.1 85 290 110 375 143 488 186 635 124 1.7 1.5 5.12 233 795 291 993 363 1239 454 1549 568 1938 RSCR / 6 ST
QD103Y11G 1/4- 10.3 92 314 119 406 155 529 201 686 134 1.83 1.5 5.12 251 856 314 1071 393 1341 491 1675 613 2092 RSCR / 6 ST
QD110Y11G 1/4 11.0 100 341 130 444 169 577 220 751 147 1.95 1.5 5.11 275 938 344 1174 430 1467 537 1832 671 2289 RSCR / 6 ST
WQ QD128Y11G 1/3- 12.8 120 409 156 532 203 693 264 901 182 2.05 1.45 4.95 330 1126 413 1409 516 1761 645 2201 806 2750 RSCR / 6 F
QD142Y11G 1/3 14.2 130 444 169 577 219 747 285 972 197 2.16 1.45 4.94 356 1215 445 1518 557 1900 696 2375 870 2968 RSCR / 6 F
QD153Y11G 1/3+ 15.3 142 485 185 631 240 819 312 1065 215 2.25 1.45 4.95 390 1331 485 1655 609 2078 762 2600 952 3248 RSCR / 6 F



Mbsm.pro, AC Motor Full Load Amperes, Fla, F.L.A, Fla / Hp, F.L.A / Hp

written by Lilianne | 7 February 2022

AC Motor Full Load Amperes

HP 200 Volts 208 Volts 220-240 Volts 380-415 Volts 440-480 Volts 550-600 Volts
1/2 2.5 2.4 2.2 1.3 1.1 0.9
3/4 3.7 3.5 3.2 1.8 1.6 1.3
1 4.8 4.6 4.2 2.3 2.1 1.7
1.5 6.9 6.6 6 3.3 3.0 2.4
2 7.8 7.5 6.8 4.3 3.4 2.7
3 11 10.6 9.6 6.1 4.8 3.9
5 17.5 16.7 15.2 9.7 7.6 6.1
7.5 25.3 24.2 22 14 11 9
10 32.2 30.8 28 18 14 11
15 48.3 46.2 42 27 21 17
20 62.1 59.4 54 34 27 22
25 78.2 74.8 68 44 34 27
30 92 88 80 51 40 32
40 120 114 104 66 52 41
50 150 143 130 83 65 52
60 177 169 154 103 77 62
75 221 211 192 128 96 77
100 285 273 248 165 124 99
125 359 343 312 208 156 125
150 414 396 360 240 180 144
200 552 528 480 320 240 192
250 – – 604 403 302 242
300 – – 722 482 361 289
350 – – 828 560 414 336
400 – – 954 636 477 382
450 – – 1030 – 515 412
500 – – 1180 786 590 472
HP 110-120 Volts 220-240 Volts
1/10 3 1.5
1/8 3.8 1.9
1/6 4.4 2.2
1/4 5.8 2.9
1/3 7.2 3.6
1/2 9.8 4.9
3/4 13.8 6.9
1 16 8
1.5 20 10
2 24 12
3 34 17
5 56 28
7.5 80 40
10 100 50


Mbsm.pro, Compressor, Bristol, Compressor, H20J283ABC, 28000 BTU/HR, H29B18UABCC, 20000 BTU/HR, H29B18UABH, 18000 BTU/HR, H29B35UABCA, 35000 BTU/HR, R22, 1 PH, 208/230 V

written by Lilianne | 7 February 2022

Bristol Compressor H20J283ABC

Brand name : Bristol
Series : H20J
Model : H20J283ABC
Refrigeration application : High temperature
Refrigerant : R22
Generation :
Family : Model J
Capacity : 28000 BTU/HR
Motor type : PSC Permanent split capacitor
Motor protector : Internal line break
Electrical characteristics : 230/208-1-60
Color : black

About this product

Product Identifiers

  • BrandBristol
  • MPNH29B18UABCA
  • eBay Product ID (ePID)839548071

Product Key Features

  • Power SourceCorded Electric
  • RefrigerantR-22
  • Number of Compressors1
  • Year Manufactured2020
  • Power Phase1 Phase
  • Capacity16,100-20,000 BTUh
  • Voltage208/230 V
  • Compressor TypeReciprocating
  • ColorBlack
  • ModelH29B18UABCA

BRISTOL – H29B18UABH

265 Volts – 1 phase  |  BTU/H : 18000

@45/130 @45/100
Capacity Motor Input WATTS EER/COp Capacity Motor Input WATTS EER
BTU/H WATTS BTU/WH W/W BTU/H BTU/WH
18000 5282 1680 10.7 3.1 24267 1386 17.5
Electrical Data Displacement
RLA LRA MCC IN3/REV CM3/REV
6.5 44 11.5 2.03 33.25
Mbsm_dot_pro_private_PDFBristol-Compressors-CatalogTélécharger
Mbsm_dot_pro_private_PDF_H20J283ABCCTélécharger


Mbsm.pro, Compressor, CRJQ-0300-PFV-593, CRJQ 0300, Copeland, 3-1/4 HP, 208-230V, 1 PH, R22, R407C, Hermetic Compressor, 3300BTU, 9170W

written by Lilianne | 7 February 2022

Copeland compressor Features:



Copeland Model is from 2HP-30JP with high machining accuracy and numerous advantages: small volume, light weight, high efficiency, low vibration and high reliability which will largely replace the traditional piston compressor and has been widely used in the developed countries.



1.With high and low voltage protection, relief valve, the motor overload protection device etc.



2.Easier maintenance, longer service life, design life of 15 years.



3.No internal reciprocating motion mechanism, so the simple structure, small volume, light weight.



4.Less Parts (especially vulnerable part), all parts are sealed inside the acoustic enclosure, at the bottom of the compressor is equipped with elastic damping device; Minimize the noise problem.



5.Torque changes little, high balance, little vibration, stable running, within the scope of its adaptive capacity have higher efficiency.



6.Compact structure, light weight, large capacity, power consumption province, can work continuously for a long time.





Compressor

Code

 Capacity Input Current Weight Height

Norminal

Power

 Power Supply
BTU W KW A kg mm HP
CR37KQ 27000 9170 3.13 9.4 31.8 376 3

220V/380V

50HZ-60HZ
CR47KQ 31500 11300 3.81 11.5 33.6 388 3.5

220V/380V

50HZ-60HZ
CR53KQ 36000 12400 4.3 12 33.6 388 4

220V/380V

50HZ-60HZ
CRGQ-0250 22500 7850 2.76 8.52 30.4 375 2.5

220V/380V

50HZ-60HZ
CRHQ-0275 24750 8200 2.89 9.38 30.4 375 2.75

220V/380V

50HZ-60HZ
CRJQ-0300 27000 9170 3.13 10.23 31.8 381 3

220V/380V

50HZ-60HZ
CRPQ-0450 40500 13400 4.56 14.6 38.1 428 4.5

380V

50HZ-60HZ
CRNQ-0500 45000 15000 5.02 13.4 38.1 409 5

380V

50HZ-60HZ
QR90K1 67500 21700 7.58 22.1 67.6 468 7.5

380V

50HZ-60HZ
QR12M1 90000 28200 10.1 29.5 69.4 468 10

380V

50HZ-60HZ
QR15M1 108000 34900 12.9 38.6 72.6 468 12

380V

50HZ-60HZ



Description

Copeland Hermetic Compressor CRJQ-0300-PFV

Note: Product image may vary and is for your reference only.

Get to know our wide range of Copeland Hermetic Compressors, Copeland Semi-Hermetic Compressors, Copeland Discus Compressors, Copeland Scroll Compressors (Tandem and trio), and Copeland Screw Compressors. We have for sale all its components, accessories and parts for their repair and replacement.

We have Repair and Remanufacturing in Semi-hermetic and Screw-type models.

Copeland Hermetic Compressor CRJQ-0300-PFV

Technical Data
CRJQ-0300-PFV

HCFC, R-22, 50 Hz, 1 -phase, 200 V

Air conditioning

Performance

Evaporator Temp(ºF) 45  45

Condensing Temp(ºF)  130   100

Return Gas (ºF) 65    65

Liquid Temp (ºF)  115   85

Capacity (Btu/hr)  31200    42300

Power (W): 3130    2600

Current (Amps): 16.9    14.2

EER (Btu/Wh): 10.0 16.3

Mass Flow (Ibs/hr): 457    545

Sound Data

Sound Power (dBA): 72 Avg  77 Max

Vibration (mils(peak-peak)): 1.8 Avg   2.8 Max

Record Date: 2004-08-19

Mechanical

Displ(in^3/Rev):  4.18

Displ(ft^3/hr): 420.47

Overall Length (in): 9.44

Overall Width (in): 9.13

Overall Height (in): 14.81

Mounting Length (in): 7.50

Mounting Width (in): 7.50

Mounting Height (in): 15.19*

Suction Size (in): 3/4 trozo

Discharge Size (In): 3/8 trozo

Initial Oil Charge (oz): 55

Oil Recharge (oz): 51

Net Weight (ibs): 69.0

Internal Free Volume (in^3): 395.0

Horse Power: NA

*Overall compressor height on Copeland Brand Product´s specified mounting grommets.

Electrical

LRA-High*: 93.0

LRA Low *: NA

LRA-Half Winding: NA

MCC (Amps): 31.5

Max Operating Current: NA

RLA(=MCC/1.4;use for contactor selection): 22.5

RLA(=MCC/1.56;use for breaker & wire size selection): 20.2

RPM: 2900

UL File No: SA-2337

UL File Date: 1984-12-28

*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.

Capacitors

Type: Start Capacitor

Part No: 014-0008-65

Low MFD: 64.0

High MFD: 77.0

Volts: 330

User Description: LOW TORQUE

Type: Start Capacitor

Part No: 014-0008-71

Low MFD: 189.0

High MFD: 227.0

Volts: 220

User Description: ALTO BY

Type: Run Capacitor

Part No: 014-0037-11

Low MFD: 35.0

High MFD: 0.0

Volts: 370

User Description: NA

Alternate Applications

Refrigerant: R-22 HCFC

Voltage: 208/230

Phase 1

Freq (Hz): 60

Application: Air Conditioning

Copeland Hermetic Compressor CRJQ-0300-PFV



Mbsm.pro, Compressor, BP1072Z, 221CA32, 1/10 Hp, 66W, EMBRACO, ASPERA, r134A, Lbp, HERMETIC COMPRESSORS, Oil 200 cc, 220 V/ 60 Hz

written by Lilianne | 7 February 2022
Compressor EMBRACO
Template BP1072Z
Height (mm)
Gas R134a
Voltage 220-240V 50Hz
Application LBP (Low Back Pressure)
Test Condition ASHRAE LBP 32
Displacement 4.15 of the Italian Civil Code
Motor RSIR


Mbsm_dot_pro_private_PDF_Comparati-DANFOSSTélécharger
