Mbsm.pro, Compressors, LG, CMA series, CMA053LHEG, 1/6 HP, Cma069lhem, 1/4 HP, Lbp, 195W, 667BTU, 220-240V 50Hz, 1 ph, Refrigerator, 19 Cf, T wansa 530, WRTW-530-NFSSC5, 530 L, 200 w, R134a, 153 G

written by Lilianne | 22 March 2022

Information on Wansa Top Mount Refrigerator 19 Cft:

Brand WANSA
Article Number 125822
Model Number WRTW-530-NFSSC5

General

Features Reversible Door
Energy Efficiency Rating A+
Size (Cubic Feet) 19 CFT
Capacity Litres / Kilograms 530 Litre
No. of Wired Shelves 3
Mbsm_dot_pro_private_PDF_Refrigerator_Compressor_151207-2Télécharger
Mbsm_dot_pro_private_PDF_CMA069LHEMTélécharger

Compressor LG CMA053LHEG

The LG CMA053LHEG 1 / 6HP Compressor is made of innovative, durable and highly efficient materials. The compressor uses pistons driven by a crankshaft to provide high-pressure refrigerant from the low to high side of a cooling system.

  • Manufacturer: LG
  • Model: CMA053LHEG
  • Cooling Capacity HP: 1 / 6HP
  • Cooling Capacity: 150W / 512BTU
  • Refrigerant Gas: R134A
  • Country of Manufacture: China

The package includes:

  • Compressor LG CMA053LHEG
  • PTC Relay
  • Over Load Protector (OLP)
  • Capacitor (M)
  • Plastic protective cover for PTC, OLP
  • Mounting accessories (screws, washers, nuts, rubber bands)
Mbsm_dot_pro_private_PDF_LG_Refrigerator_Compressor_CatalogueTélécharger

Fixed-Frequency： ★ Series CMA R600a (Test Condition : Ashrae)

Rating Series Model Eva/Cond＇=23.3℃/54.4℃
PTC/*M～RSCR,*G～RSIR
Cooling Capacity Power COP EER
(kcal/hr) (W/hr) (Btu/hr)  (W) (W/W) (Btu/W.hr)
220~240V 50Hz CMA LBP CMA053LAEM 127 148 504 93 1.59  5.42
CMA057LAEM 141 163 558 102 1.61  5.50
CMA069LAEM 165 192 655 119 1.61  5.50
CMA075LAEM 188 219 746 130 1.68  5.74
CMA053LHEG 129 150 512 106 1.42  4.83
CMA053LHEM 129 150 512 102 1.48  5.05
CMA057LHEG 140 163 556 115 1.42  4.83
CMA057LHEM 138 160 548 110 1.46  4.98
CMA062LHEM 153 178 607 117 1.52  5.19
CMA062LHEG 153 178 607 122 1.46  4.98
CMA069LHEM 168 195 667 128 1.52  5.20
CMA069LBEM 168 195 667 116 1.68  5.75
115V 60Hz CMA042LHCG 111 129 441 91 1.42  4.84
CMA053LHCG 144 167 572 118 1.42  4.84
CMA042LHCM 111 129 441 88 1.47  5.01
CMA053LHCM 155 167 572 112 1.50  5.10
220~240V  50/60Hz **CMA053LKTM 120 140 486 96 1.45  4.96
**CMA057LKTM 129 150 512 102 1.47  5.02
220~240V 50Hz **CMA062LKEM 140 163 556 109 1.49  5.10
**CMA069LKTM 158 184 627 122 1.51  5.14
220v 60Hz CMA HBP CMA042HHDM 405 471 1608 183 2.58  8.80
220v 60Hz CMA053HHDM 514 598 2041 229 2.61  8.90
220v 60Hz CMA062HHDM 615 715 2442 277 2.58  8.80
220v 60Hz CMA075HADM 740 860 2938 334 2.58  8.80
Model Ref App.  Voltage Cooling Capacity Power  Wire
HP W/hr Btu/hr Input Type
CMA042LHEG R134a LBP 220V/50HZ 1/10HP 107W 365Btu 79W Al-wire
CMA053LHEG R134a LBP 220~240V/50HZ 1/6HP 150W 512Btu 102W Al-wire
CMA057LHEG R134a LBP 220~240V/50HZ 1/5HP 163W 556Btu 115W Al-wire
CMA069LHEM R134a LBP 220~240V/50HZ 1/4HP 195W 667Btu 128W Al-wire
NS36LAEG R134a LBP 220~240V/50HZ 1/10HP 77W 262Btu 89W Cu-wire
MSA43LBEG R134a LBP 220~240V/50HZ 1/8HP 116W 397Btu 106W Cu-wire
CMA053LAEM R134a LBP 220~240V/50HZ 1/6HP 148W 504Btu 93W Cu-wire
CMA057LAEM R134a LBP 220~240V/50HZ 1/5HP 163W 558Btu 102W Cu-wire
CMA069LBEM R134a LBP 220~240V/50HZ 1/4HP 195W 667Btu 116W Cu-wire
CMA075LAEM R134a LBP 220~240V/50HZ 1/3HP 219W 746Btu 130W Cu-wire
MA98LAEM R134a LBP 220~240V/50HZ 1/3HP 279W 953Btu 183W Cu-wire
LX95LHBM R134a LBP 220V/50HZ 1/3HP 267W 910Btu 173W Cu-wire
LX110LAJM R134a LBP 220~240V/50HZ 1/2HP 323W 1104Btu 232W Cu-wire
Model Ref App.  Voltage Cooling Capacity Power COP Wire
Hp W/hr  Input (W/W)  Type
CSB057NJEG R600a LBP 220V/50HZ 1/10HP 100W 77W 1.30  Al-wire
CSB069NJEG R600a LBP 220V/50HZ 1/8HP 126W 90W 1.40  Al-wire
CSB075NJEG R600a LBP 220V/50HZ 1/6HP 139W 102W 1.36  Al-wire
CSB089NJEG R600a LBP 220V/50HZ 1/5HP 160W 98W 1.64  Al-wire
CMA098NJEG R600a LBP 220V/50HZ 1/5+HP 180W 112W 1.60  Al-wire
CMA110NJEM R600a LBP 220V/50HZ 1/4HP 194W 122W 1.58  Al-wire
CMA121NBEM R600a LBP 220V/50HZ 1/4+HP 220W 119W 1.85  Al-wire
Model reference number application. energy Cooling capacity

energy

Input

wire

Type
mobile phone W/hour Btu/hr
CMA053LHEG R134a pulp 220~240V/50HZ 1/6HP 150W 512Btu 102W Al-wire
CMA057LHEG R134a pulp 220~240V/50HZ 1/5HP 163W 556Btu 115W Al-wire
CMA069LHEM R134a pulp 220~240V/50HZ 1/4HP 195W 667Btu 128W Al-wire
NS36LAEG R134a pulp 220~240V/50HZ 1/10HP 77W 262Btu 89W Cu-wire
MSA43LBEG R134a pulp 220~240V/50HZ 1/8HP 116W 397Btu 106W Cu-wire
CMA053LAEM R134a pulp 220~240V/50HZ 1/6HP 148W 504Btu 93W Cu-wire
CMA057LAEM R134a pulp 220~240V/50HZ 1/5HP 163W 558Btu 102W Cu-wire
CMA069LBEM R134a pulp 220~240V/50HZ 1/4HP 195W 667Btu 116W Cu-wire
CMA075LAEM R134a pulp 220~240V/50HZ 1/3HP 219W 746Btu 130W Cu-wire
MA98LAEM R134a pulp 220~240V/50HZ 1/3HP 279W 953Btu 183W Cu-wire
LX110LAJM R134a pulp 220~240V/50HZ 1/2 HP 323W 1104Btu 232W Cu-wire


Mbsm.pro, COMPRESOR, N1112dY, 1/6 Hp, N1116dY, 1/5 Hp, LBP, JIAXIPERA, R-600a, 4 µF, RSCR, 220-240~/50

written by Lilianne | 22 March 2022
COMPRESOR N1112dY R-600a 1/6 LBP JIAXIPERA
Heterogeneous power compressor

series

Compressor
Model
_

Displ.
Cylinder volume
(cm3)

Cooling
Type
_　

Motor
Type
_　

Vol./Fre.
Voltage/Frequency
(V~/Hz)

Cooling
Capacity (W)

COP
（W/W）

ASHRAE

CECOMAF

ASHRAE

CECOMAF

(-23.3℃)

(-25℃)

(-23.3℃)

(-25℃)
J JM1080FY 6.02 ST hatch 100~/50 100 75 1.48 1.15
100~/60 115 86 1.50 1.17
JM1090FY 6.49 ST hatch 100~/50 110 83 1.48 1.15
100~/60 127 95 1.50 1.17
JK1090FY 6.49 ST hatch 100~/50 110 83 1.58 1.23
100~/60 128 96 1.60 1.25
JK1111HY 6.49 ST hatch 115~/60 128 96 1.60 1.25
NOT N1080DY 5.0 ST hatch 200~/60 90 68 1.40 1.09
N1110DY 6.0 ST hatch 200~/60 123 92 1.40 1.09
N1114DY 8.9 ST hatch 200~/60 175 131 1.40 1.09
N1116DY 9.6 ST hatch 200~/60 185 139 1.40 1.09
N1110HY 6.0 ST hatch 115~/60 123 92 1.40 1.09
NU1118HY 10.05  ST RSCR 115~/60 204 153 1.58 1.23
NB1118HY  9.6  ST RSCR（ePTC） 115~/60 203 152 1.85 1.44

supply refrigeration parts refrigerator compressor
fridge compressor, refrigerator compressor, freezer compressor,refrigeration compressor.

Compressor
Model		 Displ.

(cm3)

 Cooling
Type		 Motor
Type		 Vol./Fre.
/
(V~/Hz)

Capacity(W)

 COP
(W/W)

Capacitor
(µF)

Certificate
ASHRAE CECOMAF SWP ASHRAE CECOMAF SWP
(-23.3ºC) (-25ºC) (-28/40ºC) (-23.3ºC) (-25ºC) (-28/40ºC)
N1080Y 5.5 ST RSIR 220-240~/50 95 71 / 1.40 1.09 / / VDE,CCC
N1090Y 6.0 ST RSIR 220-240~/50 100 75 / 1.40 1.09 / / VDE,CCC
N1110Y 6.7 ST RSIR 220-240~/50 114 86 / 1.40 1.09 / / VDE,CCC
N1111Y 7.2 ST RSIR 220-240~/50 130 98 / 1.40 1.09 / / VDE,CCC
N1112Y 8.1 ST RSIR 220-240~/50 140 105 / 1.40 1.09 / / VDE,CCC
N1113Y 8.9 ST RSIR 220-240~/50 154 114 / 1.40 1.09 / / VDE,CCC
N1114Y 9.6 ST RSIR 220-240~/50 168 126 / 1.42 1.11 / / VDE,CCC
NT1112Y 8.10 ST RSCR 220-240~/50 140 105 / 1.56 1.22 / 4.0 VDE,CCC
NT1113Y 8.9 ST RSCR 220-240~/50 154 116 / 1.56 1.22 / 4.0 VDE,CCC
NT1114Y 9.6 ST RSCR 220-240~/50 170 128 / 1.56 1.22 / 4.0/4.5 VDE,CCC
NT1117Y 11.2 ST RSCR 220-240~/50 198 149 / 1.56 1.22 / 4.0 CCC
NU1080Y 5.5 ST RSCR 220-240~/50 95 71 / 1.55 1.21 / 3.0 VDE,CCC
NU1090Y 6.0 ST RSCR 220-240~/50 102 77 / 1.58 1.23 / 4.0 VDE,CCC
NU1110Y 6.70 ST RSCR 220-240~/50 115 86 / 1.58 1.23 / 4.0 VDE,CCC
NU1111Y 7.2 ST RSCR 220-240~/50 130 98 / 1.62 1.26 / 3.5/4.0 VDE,CCC
NU1112Y 8.10 ST RSCR 220-240~/50 140 105 / 1.62 1.26 / 4.0 VDE,CCC
NU1113Y 8.9 ST RSCR 220-240~/50 154 116 / 1.62 1.26 / 4.0 VDE,CCC
NU1114Y 9.6 ST RSCR 220-240~/50 170 128 / 1.62 1.26 / 4.0/4.5 VDE,CCC
NU1116Y 10.5 ST RSCR 220-240~/50 186 140 / 1.60 1.25 / 4.5 VDE,CCC
NU1112GY 8.10 ST RSIR/RSCR 220-240~/50 140 105 / 1.54/1.62 1.20/1.26 / 3.5/4.0 VDE,CCC
NU1113GY 8.90 ST RSIR/RSCR 220-240~/50 154 116 / 1.54/1.62 1.20/1.26 / 4.0 VDE,CCC
NS1060Y 4.2 ST RSCR 220-240~/50 65 49 / 1.60 1.25 / 2.0 VDE,CCC
NS1080Y 5.5 ST RSCR 220-240~/50 95 71 / 1.62 1.26 / 3.0 VDE,CCC
NS1090Y 6.0 ST RSCR 220-240~/50 105 79 / 1.66 1.29 / 2.0/3.0 VDE,CCC
NS1110Y 6.7 ST RSCR 220-240~/50 116 87 / 1.66 1.29 / 3.0/4.0 VDE,CCC
NS1111Y 7.2 ST RSCR 220-240~/50 130 98 / 1.66 1.29 / 3.5/4.0 VDE,CCC
NS1112Y 8.1 ST RSCR 220-240~/50 142 107 / 1.68 1.31 / 3.5/4.0 VDE,CCC
NS1113Y 8.9 ST RSCR 220-240~/50 155 116 / 1.68 1.31 / 4.0 VDE,CCC
NS1114Y 9.6 ST RSCR 220-240~/50 172 129 / 1.68 1.31 / 4.0 VDE,CCC
NS1116Y 10.5 ST RSCR 220-240~/50 186 140 / 1.68 1.31 / 4.0/5.0 VDE,CCC
NS1117Y 11.2 ST RSCR 220-240~/50 198 149 / 1.68 1.31 / 4.0 CCC
NC1090Y 6.0 ST RSCR 220-240~/50 105 79 / 1.73 1.35 / 2.5 VDE,CCC
NC1110Y 6.7 ST RSCR 220-240~/50 116 87 / 1.75 1.37 / 3.0/4.0 VDE,CCC
NC1111Y 7.2 ST RSCR 220-240~/50 128 96 / 1.75 1.37 / 4.0 VDE,CCC
NC1112Y 8.1 ST RSCR 220-240~/50 142 107 / 1.75 1.37 / 4.0 VDE,CCC
NC1113Y 8.9 ST RSCR 220-240~/50 155 116 / 1.75 1.37 / 4.0 VDE,CCC
NC1114Y 9.6 ST RSCR 220-240~/50 172 129 / 1.75 1.37 / 3.0/4.0 VDE,CCC
NC1116Y 10.5 ST RSCR 220-240~/50 186 140 / 1.75 1.37 / 3.0 VDE,CCC
NX1080Y 5.5 ST RSCR 220-240~/50 96 72 / 1.83 1.43 / 2.0 VDE,CCC
NX1090Y 6.0 ST RSCR 220-240~/50 108 81 / 1.83 1.43 / 2.5 VDE,CCC
NX1110Y 6.7 ST RSCR 220-240~/50 117 88 / 1.83 1.43 / 2.5 VDE,CCC
NX1111Y 7.2 ST RSCR 220-240~/50 130 98 / 1.83 1.43 / 3.0 VDE,CCC
NX1112Y 8.1 ST RSCR 220-240~/50 145 109 / 1.83 1.43 / 3.0 VDE,CCC
NX1113Y 8.9 ST RSCR 220-240~/50 155 116 / 1.83 1.43 / 2.5 VDE,CCC
NX1114Y 9.6 ST RSCR 220-240~/50 172 129 / 1.83 1.43 / 4.0 VDE,CCC
NB1080Y 5.5 ST RSCR 220-240~/50 96 72 84 1.88 1.47 2.02 2.0 VDE,CCC
NB1090Y 6.0 ST RSCR 220-240~/50 108 81 95 1.88 1.47 2.02 2.5 VDE,CCC
NB1110Y 6.7 ST RSCR 220-240~/50 117 88 105 1.90 1.48 2.02 2.5 VDE,CCC
NB1111Y 7.2 ST RSCR 220-240~/50 130 98 114 1.90 1.48 2.02 3.0 VDE,CCC
NB1112Y 8.1 ST RSCR 220-240~/50 145 109 127 1.90 1.48 2.02 3.0 VDE,CCC
NB1113Y 8.9 ST RSCR 220-240~/50 155 116 136 1.90 1.48 2.02 2.5 VDE,CCC
NB1114Y 9.6 ST RSCR 220-240~/50 172 129 151 1.90 1.48 2.02 4.0 VDE,CCC
NB1116Y 10.5 ST RSCR 220-240~/50 186 140 163 1.90 1.48 2.02 4.0 VDE,CCC
NE1080Y 5.5 ST RSCR 220-240~/50 96 72 84 1.93 1.51 2.04 2.0 CCC
NE1090Y 6.0 ST RSCR 220-240~/50 108 81 95 1.93 1.51 2.04 2.5
NE1110Y 6.7 ST RSCR 220-240~/50 117 88 105 1.95 1.52 2.04 2.5 CCC
NE1111Y 7.2 ST RSCR 220-240~/50 130 98 114 1.95 1.52 2.04 3.0 CCC
NE1112Y 8.1 ST RSCR 220-240~/50 145 109 127 1.95 1.52 2.04 3.0 CCC



Mbsm.pro, Whirlpool, Compressor, Embraco , EMX70CLC, R600a, 1/5 hp, 182W, LBP, 220 – 240 V, 50 Hz

written by Lilianne | 22 March 2022

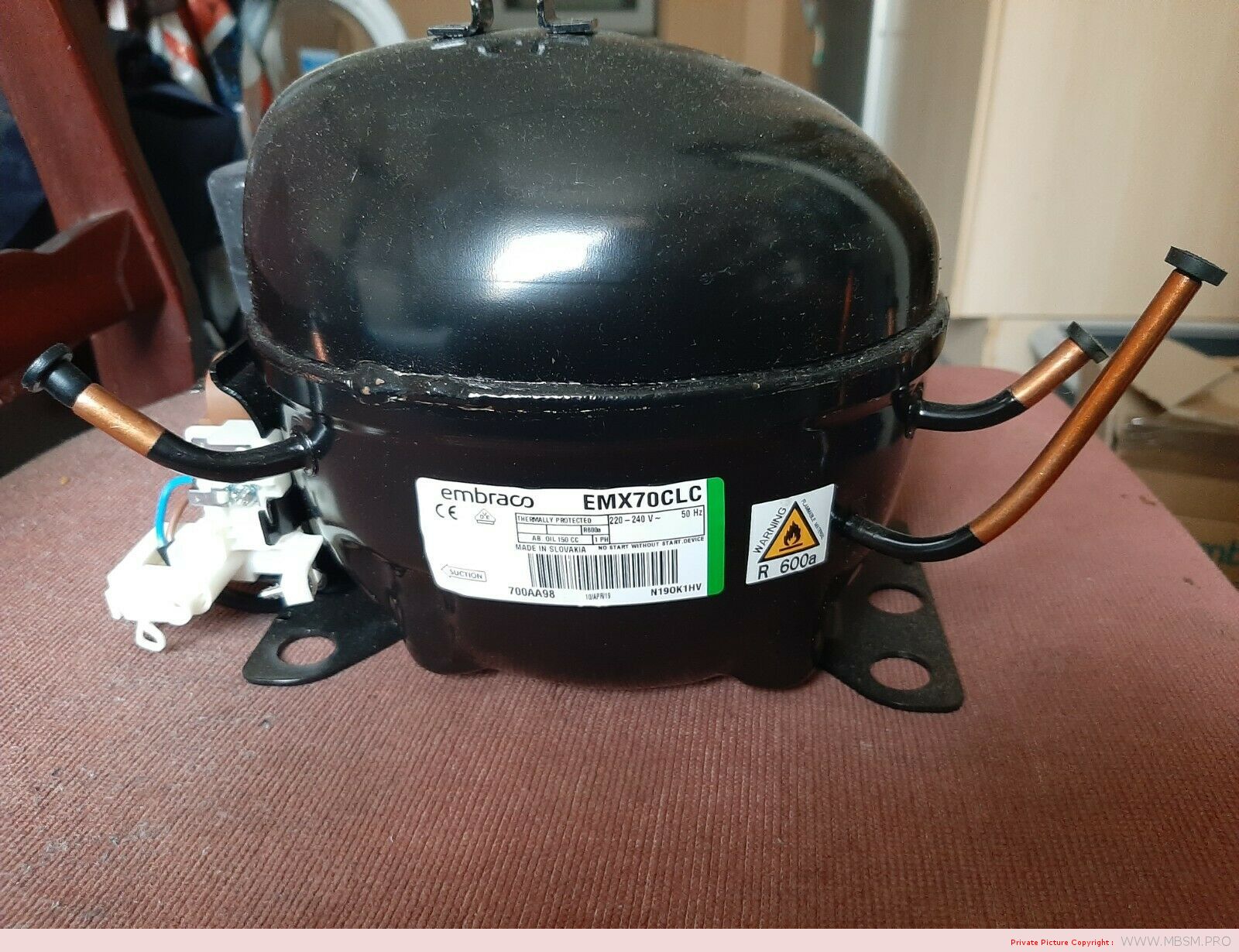

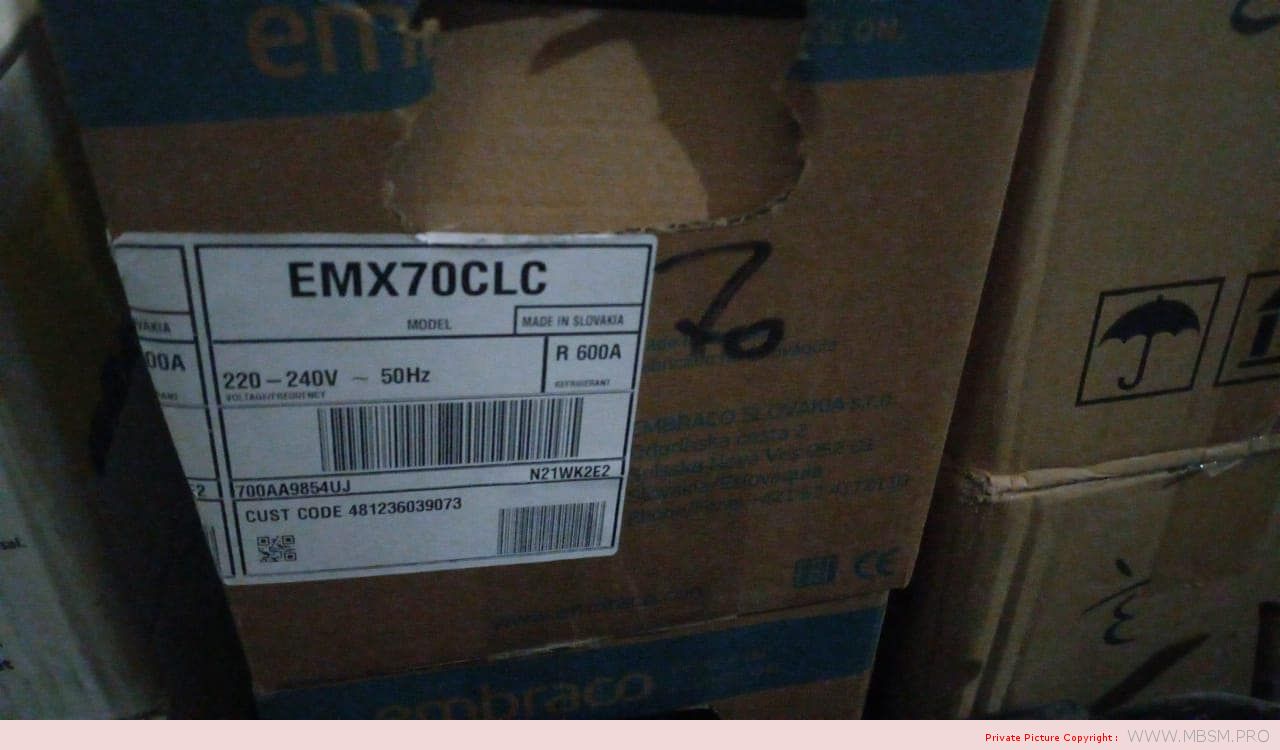

Compressor Embraco Aspera EMX70CLC, LBP – R600a, 220 – 240V/1/50Hz, 1/5 HP, discharge 11.14 cm3, motor type RSCR, lubricant type AB 5, lubricant charge 180 ml, LRA 6 A, 189 W at -23.3 / +54.4 °C, cooling: static, expansion device: capillary, weight 8.6 kg substitution for compressor NBM1116Y

Refrigerant: R600a
Power range(W): 101 – 200 W
Performance range (C): -30 C to -10 C
Working area: LBP
Design type: Hermetic
Model series: EMX
Use with: Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: AB5
Engine type: RSCR
Article condition: New
Info: Oil filled
Shipping weight: 9,60 Kg
Dimensions ( length × width × height ): 22,80 × 15,50 × 16,60 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: Embraco Aspera
Model: EMX70CLC
Stroke volume (cm3): 11,14
Performance condition: -23,3 / +54,4
Power (W): 189
Cooling capacity (W): 143
Power (HP): 0,25
Max. Starting current (A): 6
Engine type: RSCR
Note: Static cooling
Oil quantity (l): 0,18
Compressor type: Piston
Power range: -30 C to -10 C
Alternative: NBM1116Y , HPY14AA , HPY12AA , HTK12AA

Technical details
220V 50/60Hz
power 1/5L Hp – displacement 11.14 cc
gas R600a LBP
ASPERA

ARISTON
AristonWashingmachine BCB7030ECAAO3R

BAUKNECHT
BauknechtDomesticrefrigerator GKNC2801, KDI2800A, KDI2800ALH, KDIK2400A, KGA326OPTIMAIN, KGI2920B, KGI2920B1, KGI2920B1L, KGI2920B1LH, KGI2920BLH, KGI3100A, KGI3100A1, KGI3100ALH, KGI3100ALH1, KGI3102A, KGI3103A, KGIK3100A, KGIK3100A1, KGIK3109A+

ELECTROLUX
ElectroluxDomesticrefrigerator AU7716C, 92268456000 (AU8295C), AU8296C

FAGOR BRANDT
Fagor BrandtDomesticrefrigerator 904017610 (1FS-18LA), 904017692 (1FSC-19EL), BFC3852BS (BFC3852BS), BFL2232SW/1 (BFL2232SW), D30710A (D30710), D30710S (D30710), 904022481 (FA-165F), FA375/1 (FA375), 904016470 (FC-37LA), 904018343 (FD-289NF), 924010147 (FL1400S1), FL372 (FL372), 904690204 (SDA213MF), 904690133 (SDA213WE), 904690160 (SDA273WE)

HOTPOINT
HotpointDomesticrefrigerator BCB 7030 E C AA O3(1, BCB70301AA, BCB7030AA, BCB7030AAS, BCB7030CAA, BCB7030DAAS, BCB7030ECAA, BCB7030ECAAO3, BCB7030ECAAO3R, BCB7525AA, BCB7525AAS, BCB7525ECAA, BCB7525ECAAO3R, BCB7525ECAAS, HM7030ECAAO3, HMCB 7030 AA.UK, HMCB50501AA., HMCB50501AA.UK, HMCB5050AA.U, HMCB5050AA.UK, MSZ822DFHA, MSZ826DF-HA, MSZ922DFHA, MSZ926DFHA, ZCBB7030AA

HotpointWashingmachine WMTG 723 H R IT

IGNIS
IgnisChestfreezer SF401

IgnisDomesticrefrigerator DPA39, DPA39AL

IkeaDomesticrefrigerator electric 00157699CFS171FRIGORIFERI, 30245553CBEF181A+FRIGORIF, 30282296DD140COMBINAZIONE, 50245552CBEF180A+FRIGORIF, CFS101W00154686, CFS141W60154688, CFS600S, CFS700S80094684

IkeaDomesticrefrigerator gas 10182486CB181FRIGORIFERIC, 10282297CB1815COMBINAZION, 10282297CB1815FRIGORIFERI, 20094682CFS610S1, 30182485CB184FRIGORIFERIC, 40176554CFS660SFRIGORIFER, 60182484CB180FRIGORIFERIC, 70221866CFS191SSFRIGORIFER, 70245551CBRA160A+FRIGORIF, 80199501CB160FRIGORIFERIC, 90128240CFS640S1, 90221865CFS190SSFRIGORIFER, CB601W20123509, CB651WGB40123513, CB652WGB20123514, CB901W10123538, CBI611W84535810, CBI651W70016229, CFS111W80154687, CFS410AL, CFS600S140094681, CFS610S, CFS640S190128240, CFS660S40176554

IkeaDomesticrefrigerator glass-ceramics 40157697CFS170FRIGORIFERI, 60107847, CB641W00123510, CBI601W44535510, CBI641W90016228

KITCHENAID
KitchenaidDomesticrefrigerator KRCB6014

MAYTAG
MaytagChestfreezer MFC1210TAW

PHILIPS
PhilipsDomesticrefrigerator CFS610S



Mbsm_dot_pro_private_PDF_EMx70clcTélécharger



Mbsm.pro, compressor, Wansheng, QD Serie, Freezer, refrigerator, QD110Y, R600a, 1/5 hp, 183 w, Lbp

written by Lilianne | 22 March 2022

Household refrigerators, chest freezers

  • Maximum ambient temperature – 40.0 (deg.)
  • The minimum ambient temperature is -15.0 (deg.)
  • Cylinder volume – 11.0 cm3
  • Cooling capacity 183 W

 Application de tension de 220 à 240V

R600a WANSHENG  Low Back Pressure (LBP) Compressor
R600a WANSHENG  Low Back Pressure (LBP) Compressor  Test Conditions                Evap. Temp.: -23.3°C     Cond. Temp.: 54.4°C
               Amb. Temp.: 32.2°C     Suction. Temp.: 32.2°C
Subcooling Temp.: 32.2°C     LBP ASHRAE
Model Displacement
 (cm³)		 Cooling Capacity  (W) Rated Power   (W)  Nominal power     (HP) COP  (W/W) Motor Type Starting Capacitor
(μF)		 Running Capacitor
(μF)		 Starting Relay Cooling Type
WT series 220-240V~50Hz
QD110Y 11.0 187 134 1/5 1.4 RSIR / / PTC S
Model QD110Y
Voltage 220V/50Hz
Normal power 1/5HP
Refrigerant R600a refrigerator
Dimension 27.5*19.5*23cm
model valage  Frequency displacement capacity input power motor type oil charge cooling type weight
  (V) (Hz) (CC) (W) (W)   (CC)   (Kg)
QD85Y 220-240 50 8.5 142 102 RSIR 230 ST 8.2
QD91Y 220-240 50 9.1 151 105 RSCR 230 ST 8.2
QD110Y 220-240 50 11 183 128 RSCR 230 ST 8.4

Mbsm_dot_pro_private_PDF-qd110y-1Télécharger
Mbsm_dot_pro_private_PDF_qd110yTélécharger


Mbsm.pro, File, pdf, MSTM-12HR, Midea, 12500 btu/h, r22, 830 g, 220 v, 1 ph, T1, 1 ton, 1.5 HP

written by Lilianne | 22 March 2022

Mbsm.info, air conditioner, MSTM-12HR, Midea, 12500 btu/h, r22, 830 g, 220 v, 1 ph, T1, 1 ton, 1.5 HP

Technical details
Manufacturer Midea
Model MSE-12HR
Type Single Split
Mounting Wall Mounted
Cool Area up to 26 square meters
Invertor No
Air Control
Cooling Yes
Heating Yes
Airflow Direction Control No
System againt the frost\ice prevention No
Fan Mode No
Automatic Mode Yes
Capacity
Cooling Capacity 3500 W
Heating Capacity 3800
Efficiency
Energy Input (Heating) 1270 W
Energy Input (Cooling) 1300 W
Power Supply Three Phase
Dimensions
Indoor Unit Width 31 in (79 cm)
Indoor Unit Height 10.4 in (26.5 cm)
Indoor Unit Depth 7.5 in (19 cm)
Outdoor Unit Width 30.6 in (78 cm)
Outdoor Unit Height 21.2 in (54 cm)
Outdoor Unit Depth 9.8 in (25 cm)
Filters
Fine Air Filter Yes
Deodourising Filter Yes
Plasma Filter No
Anion Generator No
Features
Auto Restart Yes
Remote Control Yes
Programmable Timer Yes
Sleep Mode No
Indoor Noise Level 33 dB – 37 dB
Mbsm_dot_pro_private_PDF_www_mbsm_info_mstm_12hrTélécharger
Mbsm_dot_pro_private_PDF_Midea_MSE-12HRTélécharger


Mbsm.pro, Compressor, Copeland, Scroll, ZP90KCE-TFD-425, R410A, 380V*3, 50Hz, 7.5 Hp++, 74.500 Btu/h, HBP

written by Lilianne | 22 March 2022

Copeland Scroll ZP90KCE TFD

Refrigeration Type : R410A

Cooling Efficiency (EER) : 10.7

Capacity Range (BTU) : 74,500

Voltage : 380-420V ; 50Hz

Phase : 3

Application : Airconditioning

Compressor Copeland Scroll, ZP90KCE-TFD-425, R410A, 380V, 50Hz
Stroke Volume: 22,1 m3 / h,
Connectors: 1.1 / 8 “x7 / 8”,
Oil Capacity: 2.5 dm3 ,
Weight: 56.7 kg.
Noise level: 61 dB

Shipping Class Standard
Scope Of Application HBP
Lieferzeit Ca. 10-14 Tage
Type Of Construction Scroll
Maker Copeland
Manufacturer No. ZP90KCE-TFD-425
Style 1
Refrigerants R410A
Series ZP
Condensing Units Compressors Compressors
Suspense 380-420V
Weight In Kg 57

Mbsm_dot_pro_private_PDF_ZP90KCETélécharger

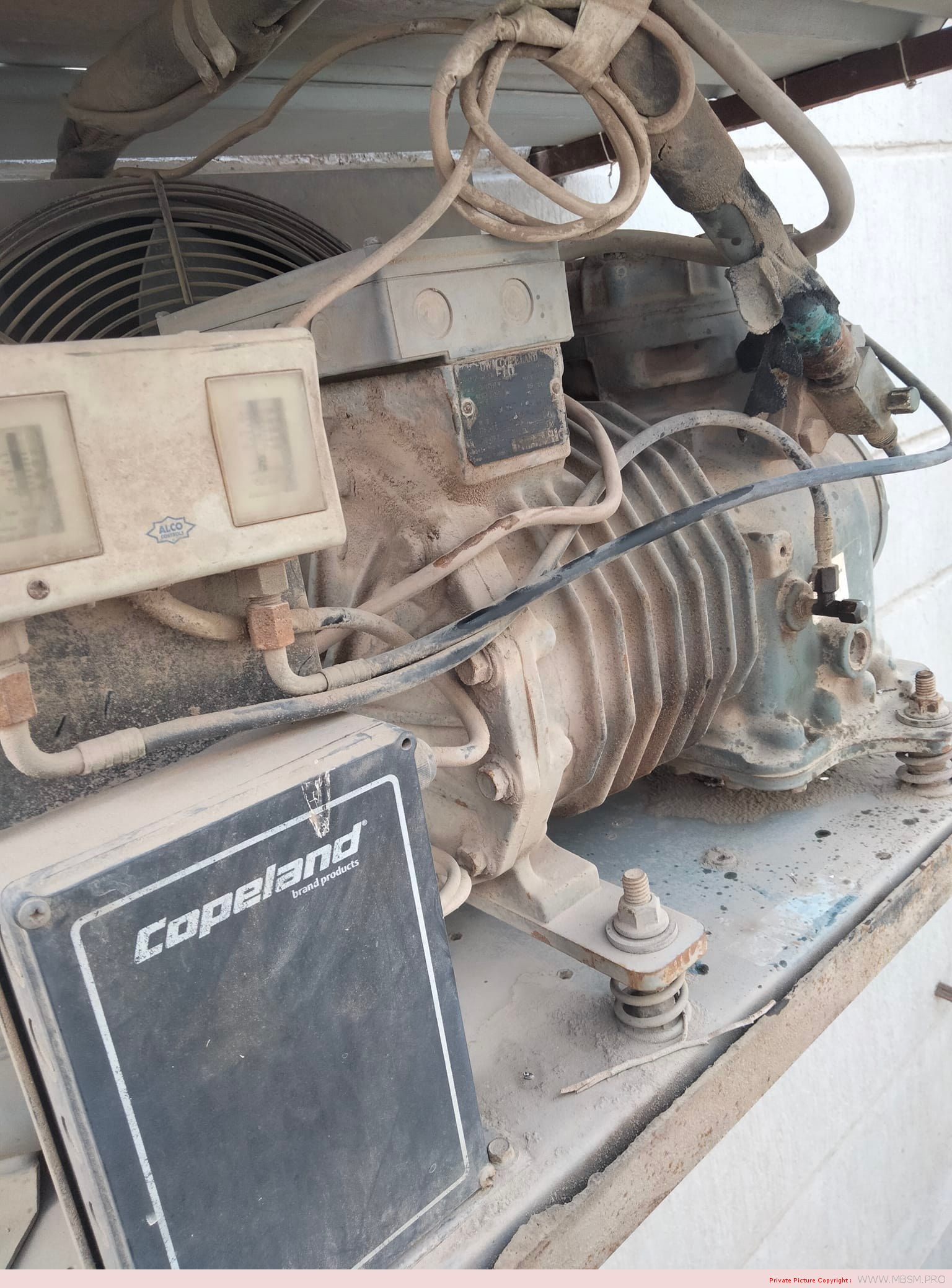

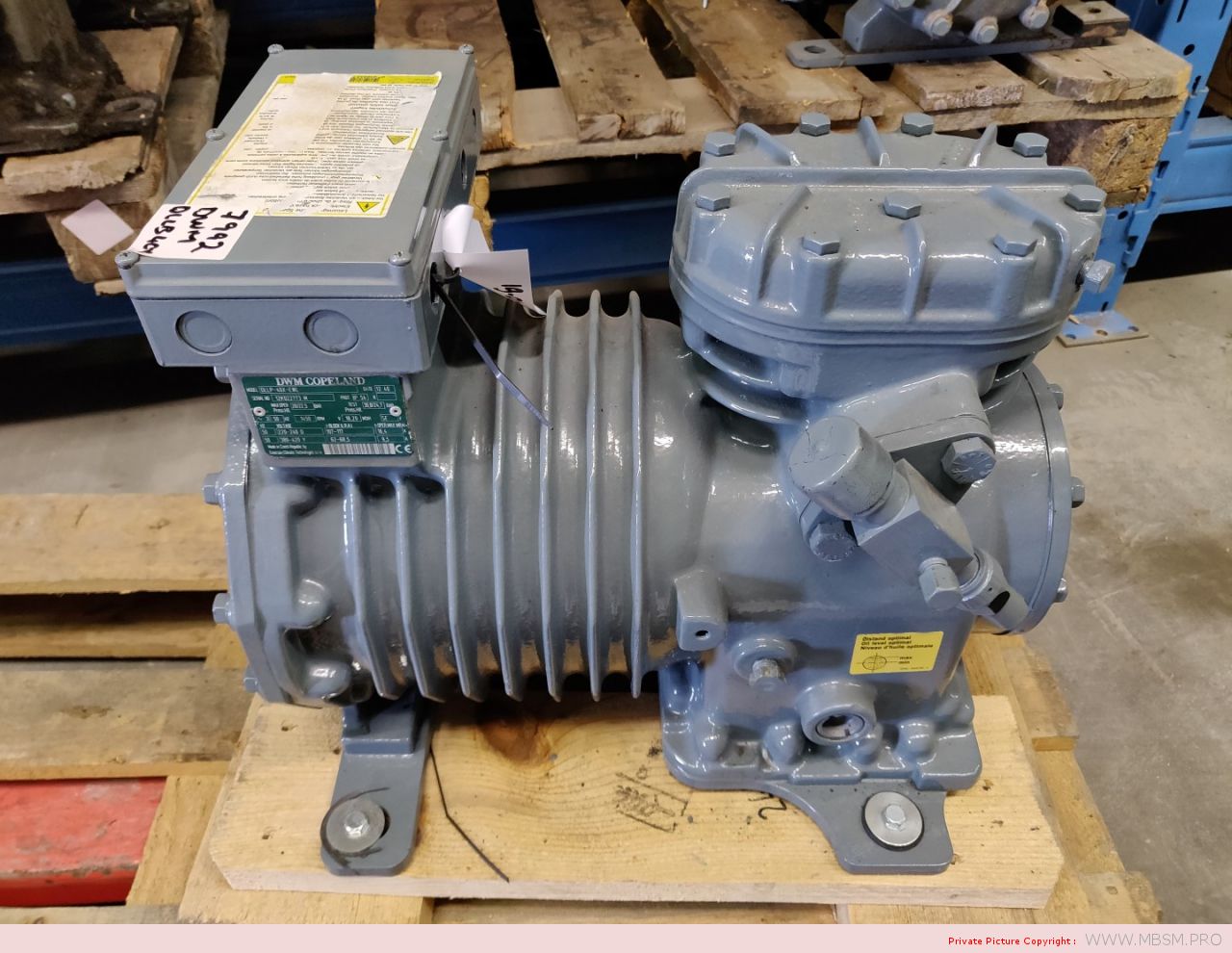

Mbsm.pro, Compressor, DLLP-40X, DLLP-40X-EWL, DWM, Copeland, Semi-Hermetic Compressor, 4 Hp, R507, 400V /3PH/ 50hz

written by Lilianne | 22 March 2022

Product Specifications

Size and Dimensions

Bolt Hole Size 295×279 mm
Connection Size (Liquid) 5/8″
Connection Size (Suction) 1 1/8″
Width 330 mm
Height 385 mm
Length 470 mm
Weight 93 kg

General Information

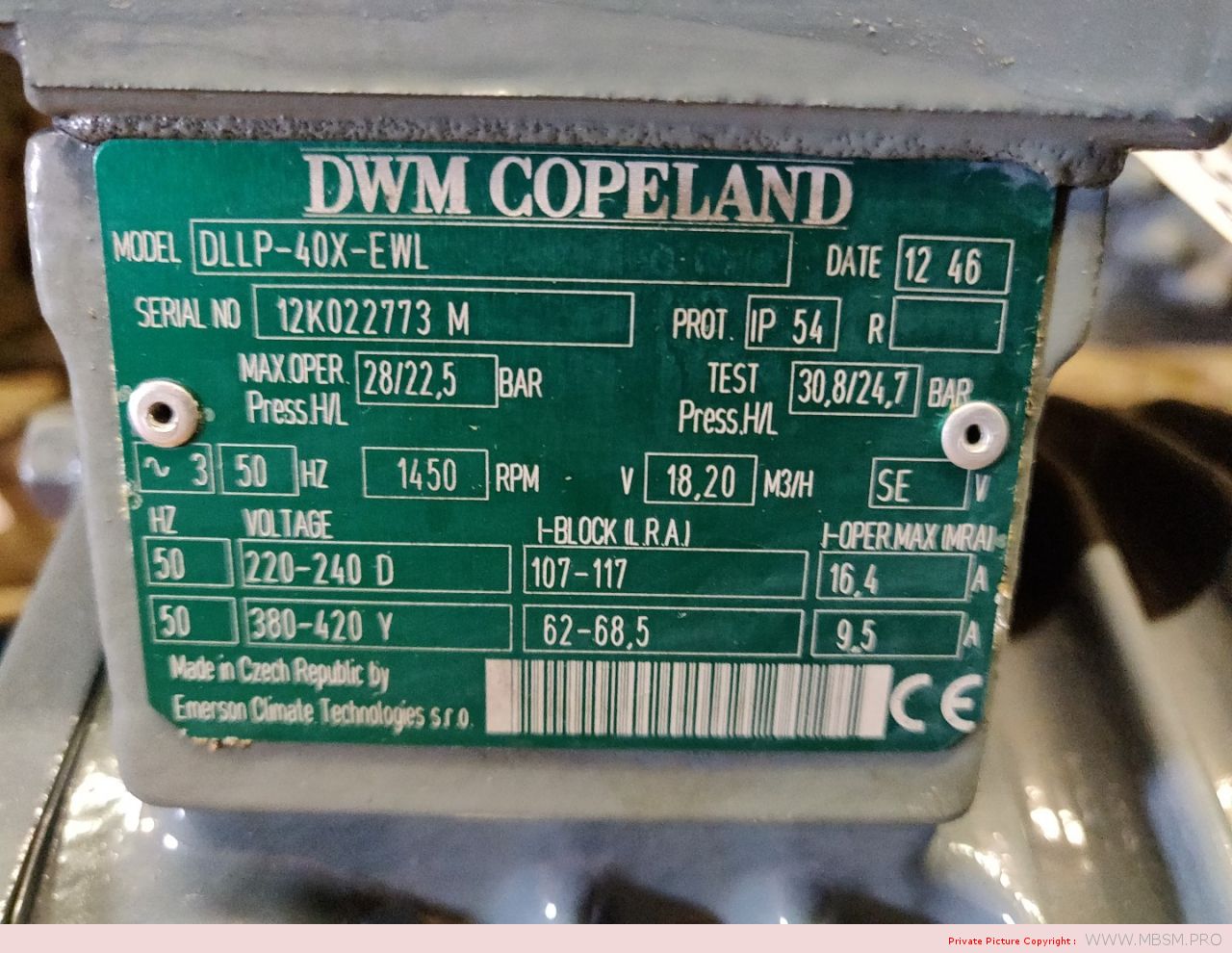

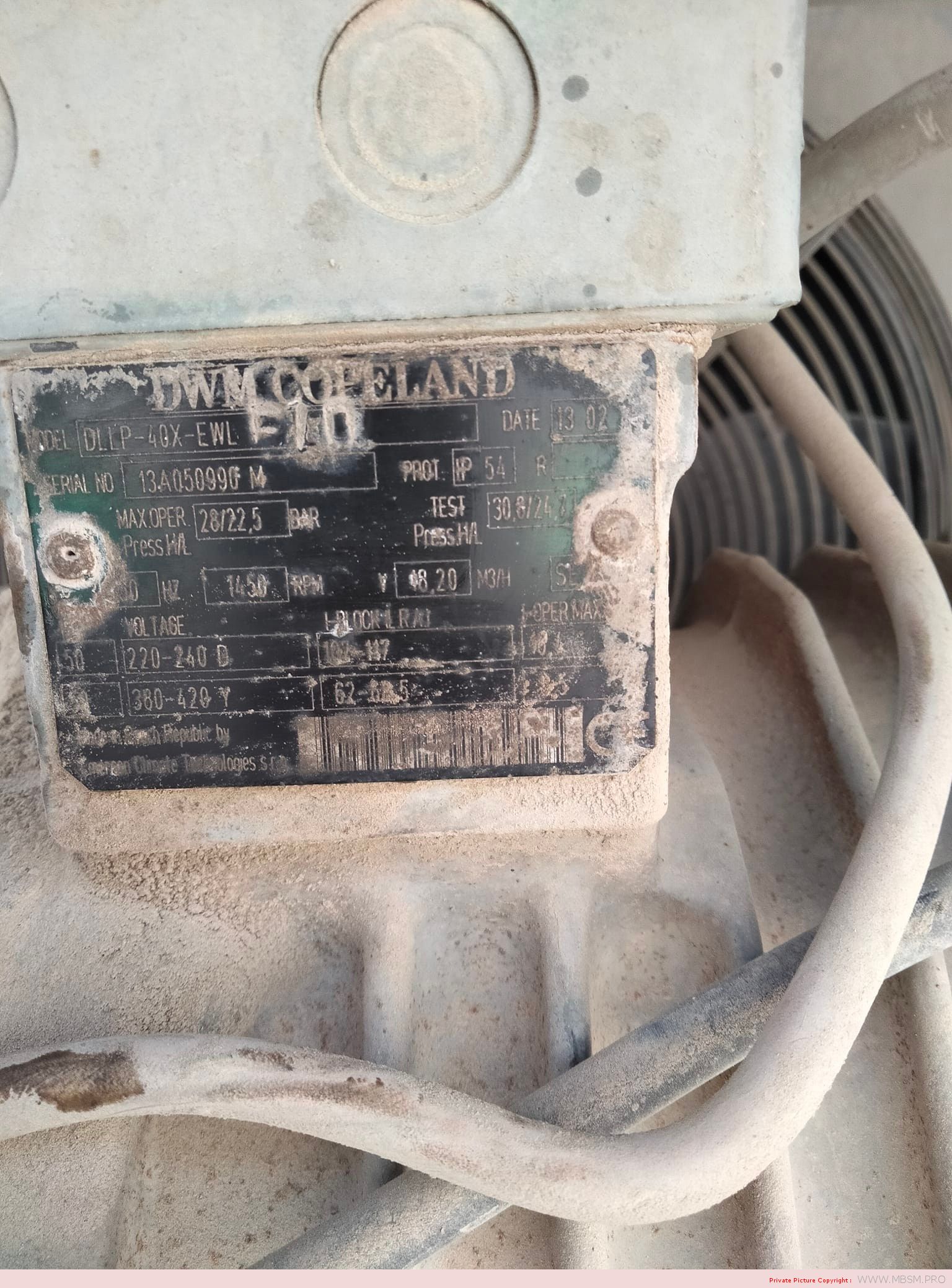

Model Number DLLP-40X-EWL
Product Range K, L & S Standard Series

Technical Information

Compressor Horsepower 4 HP
Optional Capacity Control % N/A
Compressor Displacement 18.2 m3/h
Number Of Cylinders 2
Oil Charge 2 ltr
Oil Switch Required No
Phase 3
VBIS Tag RE-Co-SHC

Power Information

Locked Rotor Current: (A) 68.5 A
Maximum Operating Current 9.5 A
Power Supply 415V

Info de Base.

N° de Modèle.
DLLP-40X-EWL

Description de Produit
Compresseur de réFrigéRation (DLLP Semi-Hermetic-40X-EWL)

Nsp/DL nouvelle séRie refroidis par air 1.0 à5 HP
R134A/R404a réFrigéRant R507

 Les compresseurs DWM sont adaptéS
Pour une large gamme d’applications soit sous la forme d’un seul des compresseurs, des unitéS de condensation ou comme éQuipement multi-compresseur

ModèLe Nom de HP DéPlacer le m3/hr TempéRature d’éVaporation (Capctiy R404A/R507) Ampli éLectrique s/ph
-35 -30 -25 -20 -15 -10 -5 0 5 Rla* Mcc* L.R.Un
DKSJ-15X-EWL 1.5 6.3 937 1260 1635 2075 2595 3200 3905     3.2 3.5 20.4
DLE-20X-EWL 2 9.9 871 1430 20700 2810 3665 4655 5805 7130 8655 4.6 5.7 37,6
DLJ-30X-EWL 3 14.5 1770 2540 3425 4460 5665 7070 8705 10590 12760 6.7 8.07 53
DLL-40X-EWL 4 18.1 2273 3330 4558 5996 7670 9615 11870 14460 17460 7.9 9.5 68.5
DLSG-40X-EWL 4 22,5 2980 4175 5625 7300           7.4 8.9 53.4
D2SC-65X-EWL 6.5 26.9   5100 6750 8700 10900 13500 16400 19800 23700 12.7 16.2 85,3
D3SA-75X-AWM 7.5 32.2   5600 7650 10500 12850 16100 19800 24100 28900 14.2 17.9 82
D3SC-100X-AWM 10 38   7150 9500 12250 15500 19300 23800 29000 35000 16.8 21.6 106
D3SS-150X-AWM 15 49,9   10350 13550 17200 21400 26300 32000 38500 46000 23.2 30.2 125
D4SA-200X-AWM 20 56   10650 14250 18400 23200 28800 35000 42500 51000 24.2 30.5 160
D4SH-250X-AWM 25 70,8   13300 17600 22600 28300 3500 42500 51500 62000 31.1 40.1 192
D4SJ-300X-AWM 30 84,7   15800* 21200 27400 34500 43000 52500 64000 76500 36,2 47,7 218
D6SH-350X-AWM 35 106   19600* 26000 33500 42000 52000 63500 76500 92000 49.6 62,4 284
D6SJ-400X-AWM 40 127   23100* 30500 39000 49000 60500 74000 89000 1e+05 55.2 71,8 347
D6SK-500X-AWM 50 151,8   27200* 36500 47000 59500 73500 90500 109500 1e+05 71 94,7 415
D8SJ600XB-1 60 181   33000 44000 56500 71500 88500 1e+05 13500 15800 84 107 544

DKL20X-EWL 2 7.4 940 1330 1790 2330 2950 3700 4500     2.6 3.83 20.4
DKSL20X-EWL 2 9.1 1390 1860 2410 3060 3820 4700 5700     3.2 4.7 20.4
DLL30X-EWL 3 18.2 2268 3293 4503 5918           5.5 7.3 53
D2SA-45X-EWL 4.5 22.4 3160* 4300 56500 7250 9100 11250 13700     7.4 11.4 68.5
D3SA-75X-AWM 7.5 32.2   5600 7650 10050 12850 16100 19800 24100 28900 10.5 17.9 82
D3SC-75X-AWM 7.5 38 5013* 6800 9000 11700 14850 18600 22900     12.4 18.7 82
D3SS-100X-AWM 10 49,9   9950 12900 16300 20300 24900 30500     16.3 26 109
D4SF-100X-AWM 10 56   11250 14600 18500 23200 28700 35000     16.9 27.1 105
D4SL-150X-AWM 15 70,8   14700 18900 23900 29700 36500 44000     21.7 35,6 156
D4ST-200X-AWM 20 84,7   17200 22400 28500 35500 44000 53500     24.2 42,4 175
D6SL-250X-AWM 25 106   21400 27700 35000 43500 53000 64000     31,4 56,5 199
D6ST-320X-AWM 32 127   25000 32000 40500 50500 62000 75000     39.2 62,9 255
D6SU-400X-AWM 40 151,8   29600 38500 49000 61500 75500 92000     47.3 78 304
D8SJ-450X-BWM 45 181   35500 46500 59000 74000 91000 1e+05     53.3 90,8 458

Mbsm_dot_pro_private_PDF_DLLP-40X-EWLTélécharger

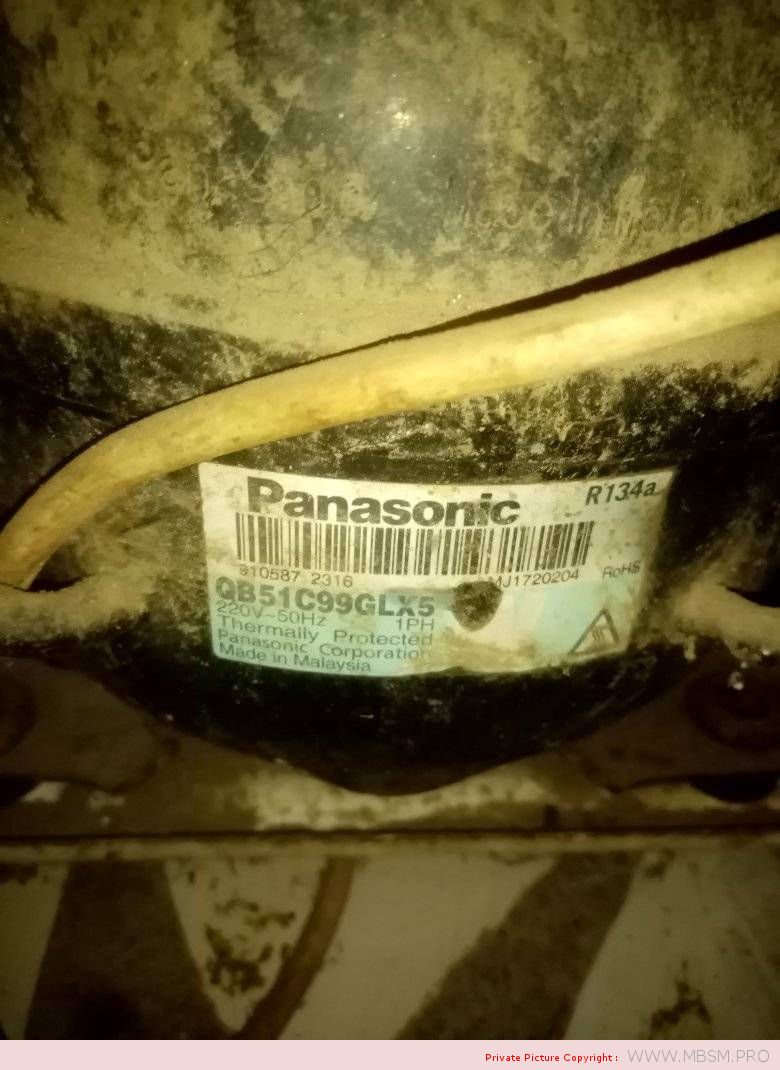

Mbsm.pro, Compressor, Water Cooler, Qb Serie, QB51C99GLX5, R-134, Panasonic, 128 W, lbp, 1/6 hp, 220 v

written by Lilianne | 22 March 2022

Specification

Item Performance characteristics
Refrigerant R134a
Displacement (cm³) 5.1
Voltage (V) 220
Frequency (Hz) 50
Motor Type RSIR
Capacity@ASHRAE 128
COP@ASHRAE 1.19
Capacity@CECOMAF –
COP@CECOMAF –

Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor LBP 220-240V 50Hz











R134a LBP 220-240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

DG51C89RAW5

5.1

145

495

1.53

ST/FC

RSCR

280

DG57C96RAW5

5.65

168

574

1.58

ST/FC

RSCR

280

DG66C11RAW5

6.55

187

638

1.6

ST/FC

RSCR

280

DG73C12RAW5

7.23

212

724

1.62

ST/OC

RSCR

280

DG77C14RAW5

7.69

225

768

1.62

ST/OC

RSCR

280

DG91C18RAW5

9.07

259

884

1.58

ST/FC

RSCR

280

| Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor HBP 240V 50Hz











R134a HBP 240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

QA51K13GAW5

5.1

450

1536

2.18

FC

RSIR

250

QA77K18CAW5

7.69

680

2322

2.34

FC

CSIR

250

QA91K21CAW5

9.07

800

2731

2.27

FC

CSIR

250

QA110K23CAW5

10.86

980

3346

2.3

FC

CSIR

250

















Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor LBP 220-240V 50Hz











R134a LBP 220-240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

DG51C89RAW5

5.1

145

495

1.53

ST/FC

RSCR

280

DG57C96RAW5

5.65

168

574

1.58

ST/FC

RSCR

280

DG66C11RAW5

6.55

187

638

1.6

ST/FC

RSCR

280

DG73C12RAW5

7.23

212

724

1.62

ST/OC

RSCR

280

DG77C14RAW5

7.69

225

768

1.62

ST/OC

RSCR

280

DG91C18RAW5

9.07

259

884

1.58

ST/FC

RSCR

280

| Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor HBP 240V 50Hz

Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor LBP 220-240V 50Hz











R134a LBP 220-240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

DG51C89RAW5

5.1

145

495

1.53

ST/FC

RSCR

280

DG57C96RAW5

5.65

168

574

1.58

ST/FC

RSCR

280

DG66C11RAW5

6.55

187

638

1.6

ST/FC

RSCR

280

DG73C12RAW5

7.23

212

724

1.62

ST/OC

RSCR

280

DG77C14RAW5

7.69

225

768

1.62

ST/OC

RSCR

280

DG91C18RAW5

9.07

259

884

1.58

ST/FC

RSCR

280

| Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor HBP 240V 50Hz











R134a HBP 240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

QA51K13GAW5

5.1

450

1536

2.18

FC

RSIR

250

QA77K18CAW5

7.69

680

2322

2.34

FC

CSIR

250

QA91K21CAW5

9.07

800

2731

2.27

FC

CSIR

250

QA110K23CAW5

10.86

980

3346

2.3

FC

CSIR

250

















Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor LBP 220-240V 50Hz











R134a LBP 220-240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

DG51C89RAW5

5.1

145

495

1.53

ST/FC

RSCR

280

DG57C96RAW5

5.65

168

574

1.58

ST/FC

RSCR

280

DG66C11RAW5

6.55

187

638

1.6

ST/FC

RSCR

280

DG73C12RAW5

7.23

212

724

1.62

ST/OC

RSCR

280

DG77C14RAW5

7.69

225

768

1.62

ST/OC

RSCR

280

DG91C18RAW5

9.07

259

884

1.58

ST/FC

RSCR

280

| Refrigerator Compressor >> Panasonic >> Panasonic Refrigerator Compressor HBP 240V 50Hz











R134a HBP 240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

QA51K13GAW5

5.1

450

1536

2.18

FC

RSIR

250

QA77K18CAW5

7.69

680

2322

2.34

FC

CSIR

250

QA91K21CAW5

9.07

800

2731

2.27

FC

CSIR

250

QA110K23CAW5

10.86

980

3346

2.3

FC

CSIR

250



























R134a HBP 240V 50Hz

model

Cylinder volume CM3

Cooling capacity

Coefficient of Performance W/W

cooling method

Motor type

Filling volume ml

W

BTU

QA51K13GAW5

5.1

450

1536

2.18

FC

RSIR

250

QA77K18CAW5

7.69

680

2322

2.34

FC

CSIR

250

QA91K21CAW5

9.07

800

2731

2.27

FC

CSIR

250

QA110K23CAW5

10.86

980

3346

2.3

FC

CSIR

250







Mbsm_dot_pro_private_PDF_QB51C99GLX5-Mbsm_dot_pro_private_PDF_d77c18rax5Télécharger
Mbsm_dot_pro_private_PDF_QB51C99GLX5-1Télécharger
Mbsm_dot_pro_private_PDF_QB51C99GLX5Télécharger

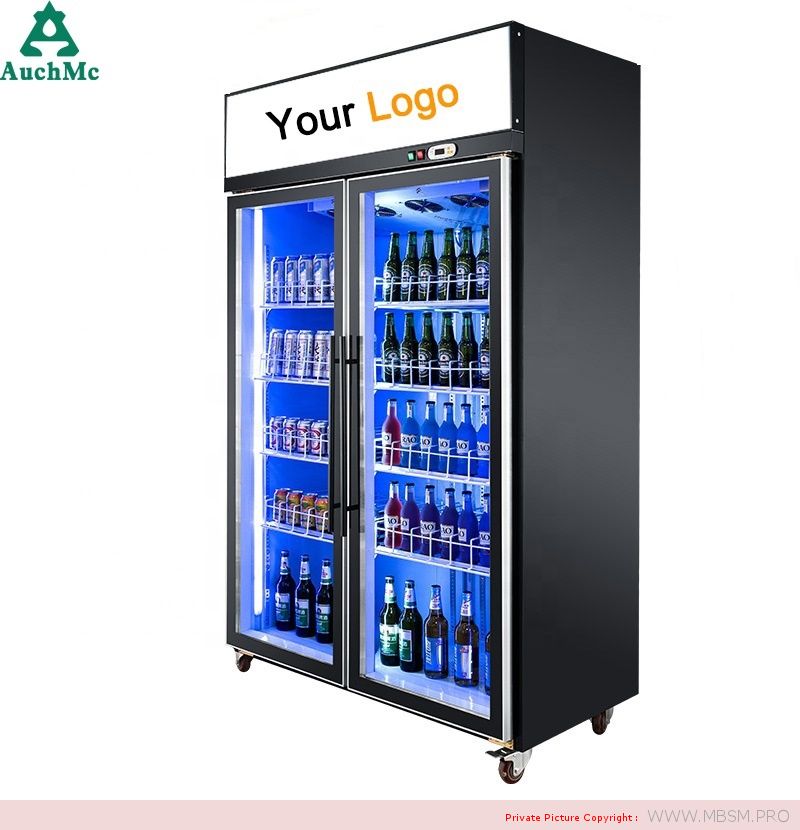

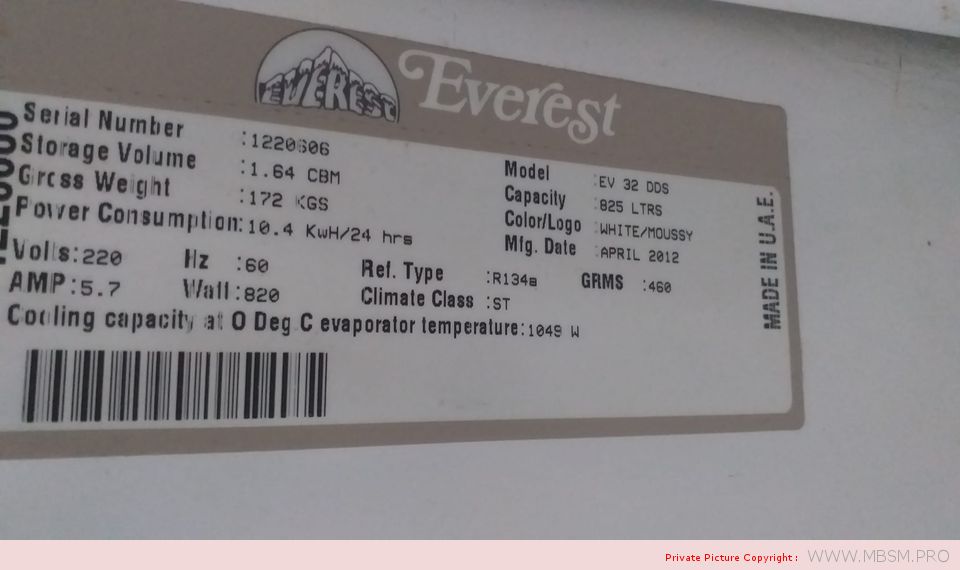

Mbsm.pro, upright, double door, cooler, ev32dds, visi cooler, makeeverest, captive, consumption, EV 32 DDS, 825 L, Compressor, 3/8 Hp++, R134A, 460 G, 0.9/1.2 bar, Filtre 30Gr, Capillary, 0.42, 180 psi

written by Lilianne | 22 March 2022

Mbsm.info, upright, double door, cooler, ev32dds, visi cooler, makeeverest, captive, consumption, EV 32 DDS, 825 L, Compressor, 3/8 Hp++, R134A, 460 G, 0.9/1.2 bar, Filtre 30Gr, Capillary, 0.42, 180 psi

Mbsm_dot_pro_private_PDF_www_mbsm_info_ev32ddsTélécharger

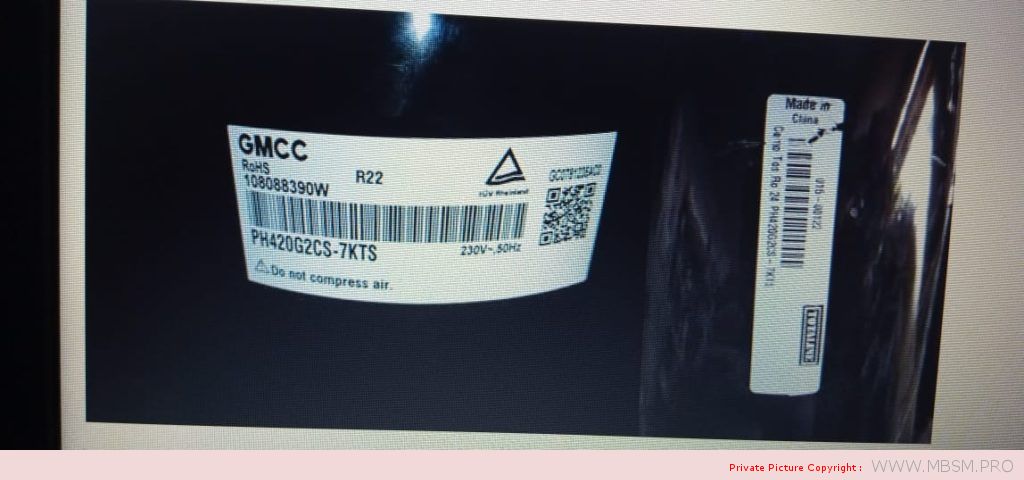

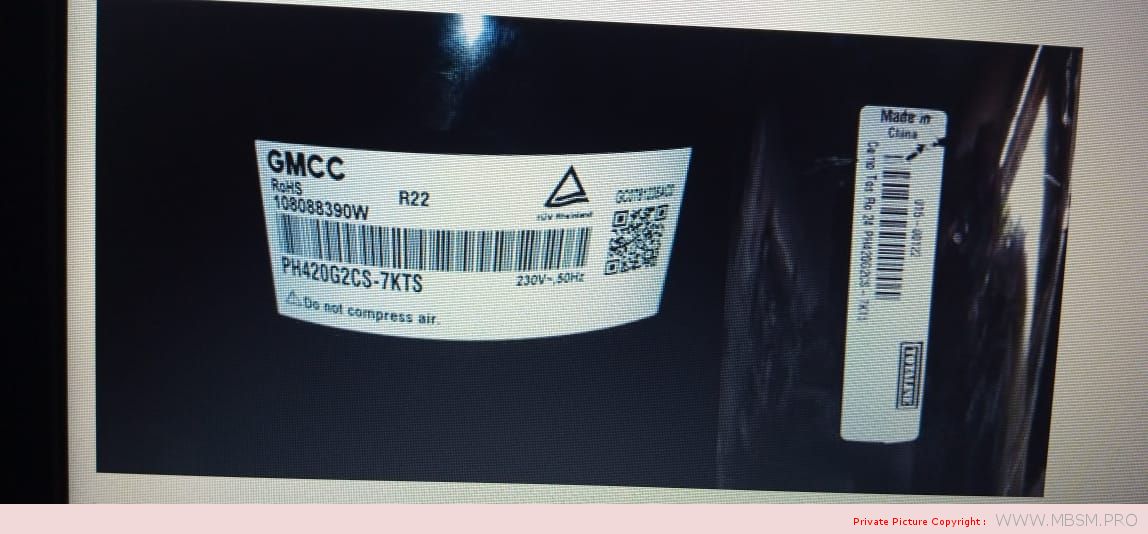

Mbsm.pro, compressor, Toshiba compressor, GMCC, Air Conditioner Rotary ,Toshiba, rotary compressor, PH420G2CS, PH420G2CS-4KU1, 1 PH – 50Hz – 220/240V, 25317 Btu/h, 7420w, 3 Hp++, r22 / 410A, MHBP, Fixed speed

written by Lilianne | 22 March 2022

Voltage: 1Φ – 50Hz – 220/240V

Model Displ.(cm3/rev) Cooling capacity Power (W) COP (W/W) Capacitor
W Btu/h
PH420G2CS-4KU1 42.3 7420 25317 2390 3.10 50/400


Data Sheet

Power supply 220/240 V-50 Hz-1 Ph
Displacement 42,3 cm3
Cooling capacity at ASHRAE HT conditions, R22 7,42 kW
Refrigerant R22
Suction pipe 1/2″
Discharge pipe 3/8″
Weight 20,2 kg
Rated current 11,8 A
LRA 65 A
MCC 17,12 A
Type of oil SUNISO 4GSD / NM56EP
Sound level ≤72 dB
Application MHBP
Technology Fixed speed
Maximum discharge temperature 125 ºC
Maximum shell bottom temperature 115 ºC
Resistance of coils Main:1,24 Ω/ Aux:2,77 Ω
Type of motor cooling Suction gas
Motor type 1-Ph Induction motor (PSC)
Motor protection type UP3-68 / HPA754
Speed 2900 rpm
Vibration 3,8 m/s2

PH420G2CS-4KU1 Air Conditional Compressor

Product Introduction:

Model PH420G2CS-4KU1
Voltage 220/240V/1ph/50Hz
Refrigerant gas R22
Displ. 30.8
Cooling capacity(Btu/h) 20370
COP(W/W) 4.52
Capacitor(μF/V) 55/400
Compressor Height(mm) 310
Dischargr Pipe ID (mm) 9.8
Sucition Pipe ID(mm) 12.9
Weight 23.3kg
Package 48sets/pallet

Application:
This compressor is mainly used in household air conditional.
Characteristics:
(A)Turbine anxial and redial flexibility techonology ensures reliability and efficiency of compressors.
(B)Wide range of rpoduct capacity.
(C)Lower cycle oil rate.
(D)Lower noise and vibration levels.

Mbsm_dot_pro_private_PDF_ph420G2CSTélécharger
