Mbsm.pro, Compressor, QD series, Compressor, Refrigeraator, R134, R12, R134A, R406, R12/R134A/R406-LBP compressor performance parameter

Category: Archivation,compressor
written by Lilianne | 12 April 2022

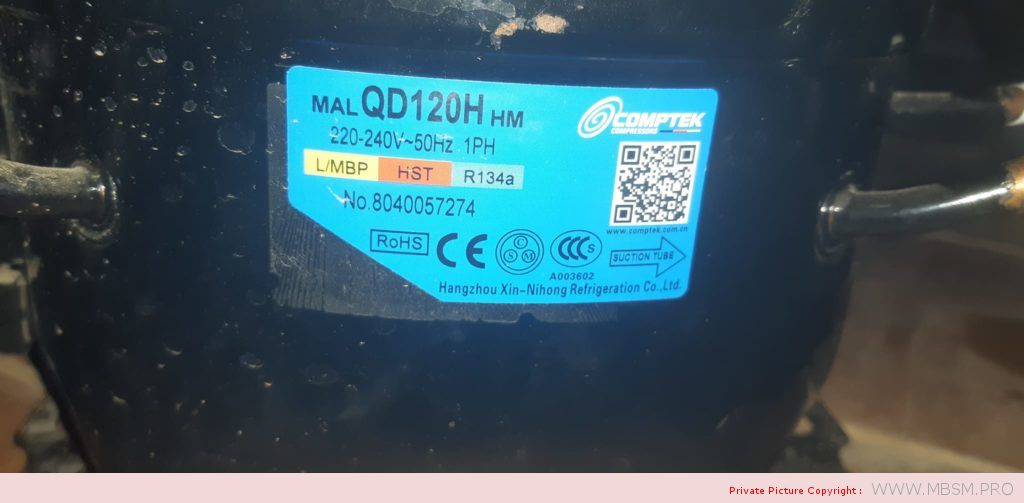

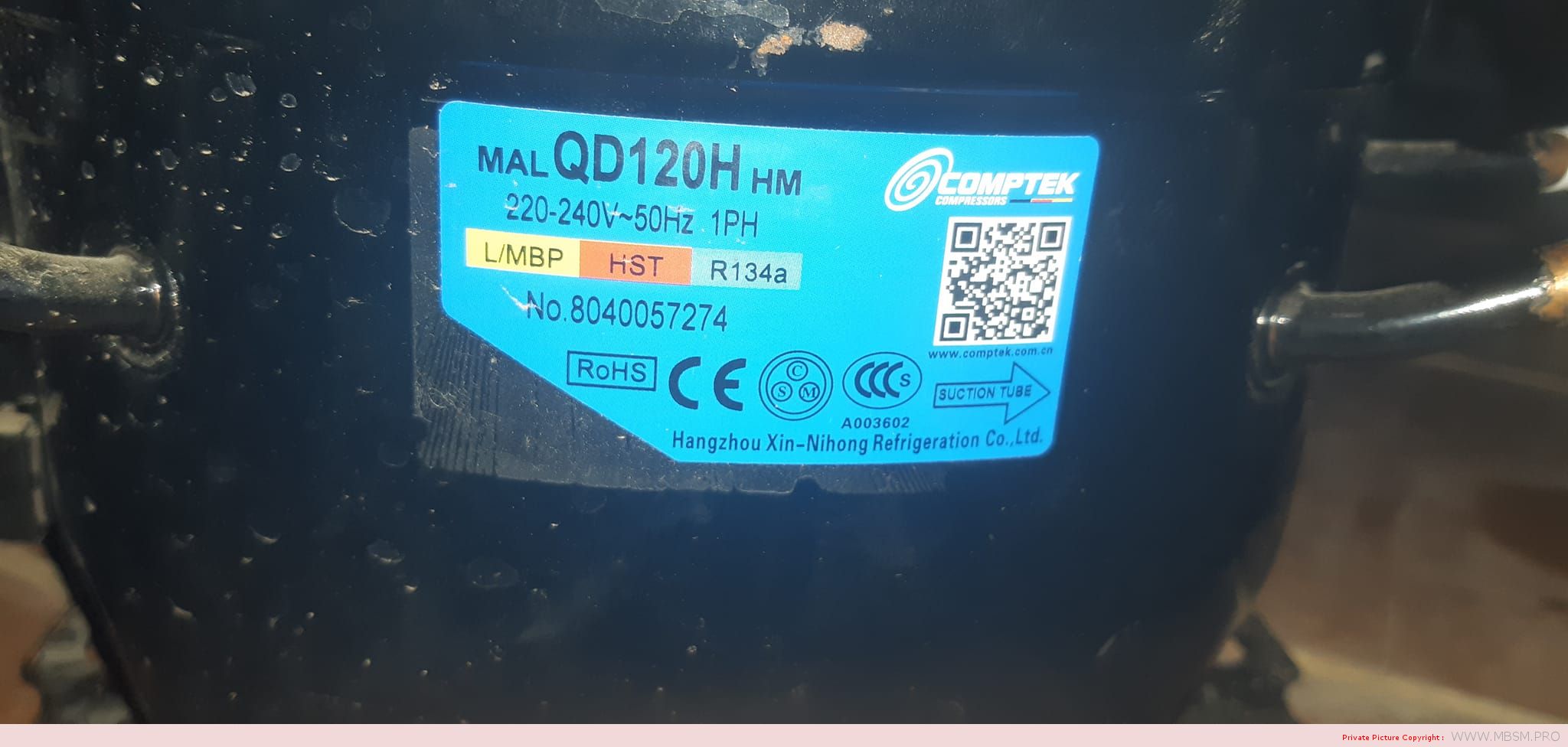

QD series Compressor For Refrigerator R134a

QD series LBP refrigerator compressor
The refrigeration is R134a, suitable for water dispenser or water cooler,small refrigerator and other small refrigeration appliances.The structure form is crank connection-rod reciprocating piston type,and employing indirect & semi-direct inlet.

The QD series compressor belongs to the hermetical piston rod type of electromotor driver. It adopts PTC starter or starting relay, and matches overload protection inside. Widely used for refrigerating show box and fin, for family and business refrigerator,freezing refrigeration,dehumidifier etc.



Test Conditions:

Evaoprating Temp:-23.3°c

Ambient Temp:32.2°c

Suction Temp:32.2°c

Subcooling Temp:32.2°c

Condensing Temp:54.4°c



R12/R134A/R406-LBP compressor performance parameter



Series Model HP Displacement (cm) Cooling Capacity (W) Input Power     (W) C.O.P Current    (A) Cooling Type Motor Type
QD Series 220V 50/60Hz QD43 1/6- 4.3 120 112 1.07 1.05 ST RSIR
QD53  1/6 5.3 136 127 1.07 1.25 ST RSIR
QD59 1/6+ 5.9 145 142 1.02 1.35 ST RSIR
QD70  1/5 7.0 160 152 1.05 1.4 ST RSIR
QD90  1/4 9.0 180 161 1.12 1.5 ST/OC RSIR
QD98 1/4+ 9.8 207 185 1.12 1.7 ST/OC RSIR
QD120  1/3 12.0 265 237 1.12 1.85 ST/OC RSIR
QD142  3/8 14.2 324 279 1.16 1.95 ST/OC RSIR
QD167  1/2 16.7 375 329 1.04 2.05 ST/OC RSIR
QD Series240V /50Hz QD43M 1/6- 4.3 117 111 1.05 1.02 ST RSIR
QD53M  1/6 5.3 134 125 1.07 1.23 ST RSIR
QD59M 1/6+ 5.9 142 135 1.05 1.28 ST RSIR
QD70M  1/5 7.0 158 151 1.05 1.32 ST RSIR
QD90M  1/4 9.0 178 159 1.12 1.38 ST/OC RSIR
QD98M 1/4+ 9.8 205 183 1.12 1.65 ST/OC RSIR
QD120M  1/3 12.0 263 235 1.12 1.83 ST/OC RSIR
QD142M  3/8 14.2 322 278 1.16 1.96 ST/OC RSIR
QD167M  1/2 16.7 373 327 1.14 2.02 ST/OC RSIR
QD Series 115v/60Hz QD43U6 1/6- 4.3 126 115 1.10 1.05 ST RSIR
QD53U6  1/6 5.3 143 128 1.12 1.26 ST RSIR
QD59U6 1/6+ 5.9 153 137 1.12 1.3 ST RSIR
QD70U6  1/5 7.0 168 146 1.15 1.35 ST RSIR
QD90U6  1/4 9.0 189 164 1.15 1.52 ST/OC RSIR
QD98U6 1/4+ 9.8 218 195 1.12 1.86 ST/OC RSIR
QD120U6  1/3 12.0 278 242 1.15 1.96 ST/OC RSIR
QD142U6  3/8 14.2 340 296 1.15 2.01 ST/OC RSIR
QD167U6  1/2 16.7 394 343 1.15 2.2 ST/OC RSIR
QD Series 110V/60Hz QD43T6 1/6- 4.3 124 113 1.1 1.03 ST RSIR
QD53T6  1/6 5.3 145 129 1.12 1.25 ST RSIR
QD59T6 1/6+ 5.9 155 138 1.12 1.32 ST RSIR
QD70T6  1/5 7.0 170 148 1.15 1.36 ST RSIR
QD90T6  1/4 9.0 191 166 1.15 1.55 ST/OC RSIR
QD98T6 1/4+ 9.8 220 196 1.12 1.87 ST/OC RSIR
QD120T6  1/3 12.0 280 243 1.15 1.98 ST/OC RSIR
QD142T6  3/8 14.2 343 298 1.15 2.02 ST/OC RSIR
QD167T6  1/2 16.7 398 346 1.15 2.23 ST/OC RSIR
QD Series 110V/60Hz QD43J6 1/6- 4.3 122 109 1.12 1.02 ST RSIR
QD53J6  1/6 5.3 142 127 1.12 1.25 ST RSIR
QD59J6 1/6+ 5.9 152 132 1.15 1.29 ST RSIR
QD70J6  1/5 7.0 165 143 1.15 1.34 ST RSIR
QD90J6  1/4 9.0 186 162 1.15 1.52 ST/OC RSIR
QD98J6 1/4+ 9.8 216 193 1.12 1.82 ST/OC RSIR
QD120J6  1/3 12.0 275 239 1.15 1.95 ST/OC RSIR
QD142J6  3/8 14.2 337 293 1.15 2.02 ST/OC RSIR
QD167J6  1/2 16.7 390 339 1.15 2.15 ST/OC RSIR





Mbsm_dot_pro_private_PDF_QD series Compressor For Refrigerator R134aTélécharger

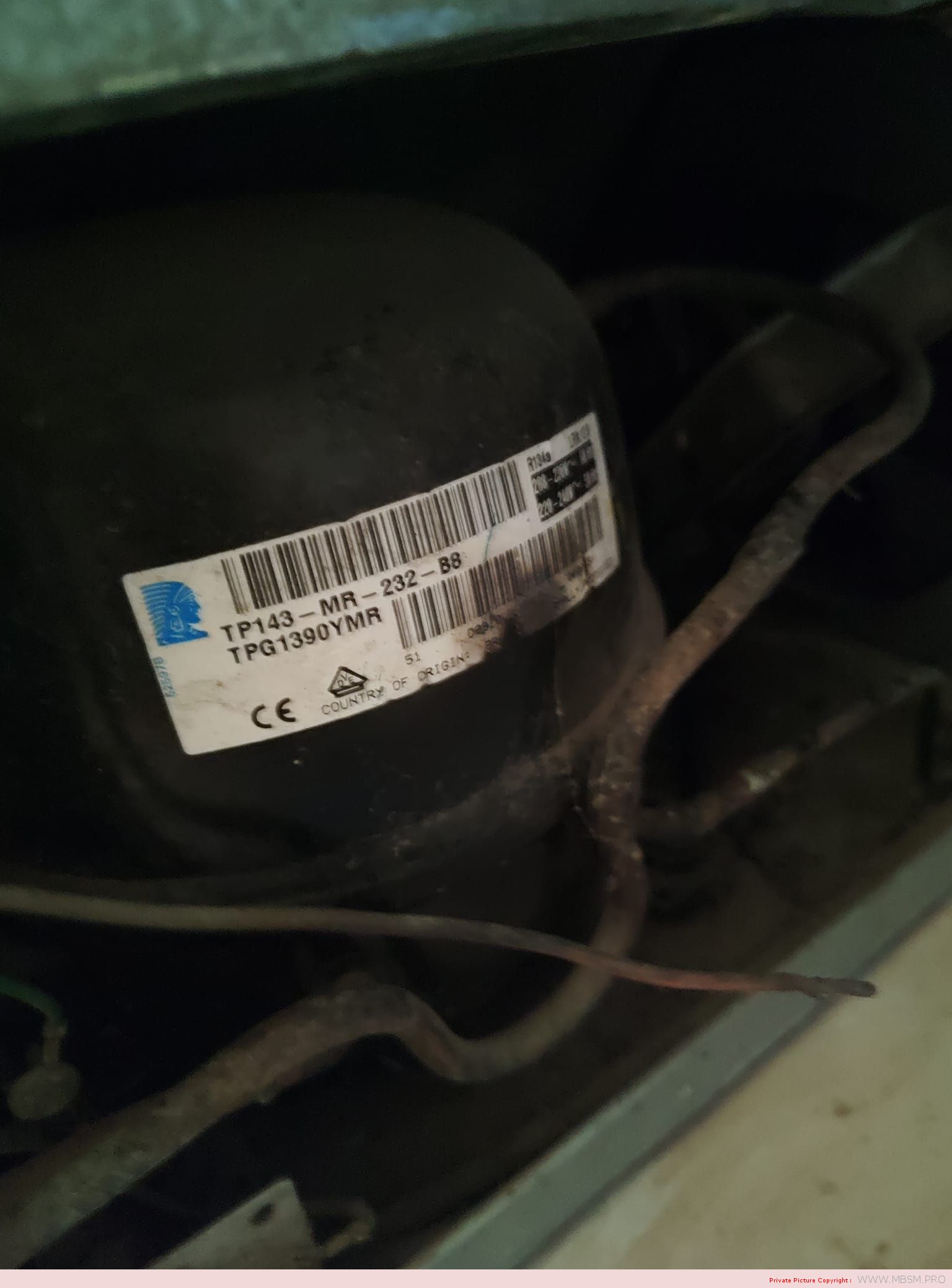

Mbsm.pro, Compressor, Tecumseh, TPG1390YMR, 805 btu/h, 236w, 1/3hp, LBP, Low Back Pressure, R134a, 208-230V ~ 60Hz, 220-240V ~ 50Hz, Reciprocating Compressor, TP143-MR-232-B8

Category: Archivation,compressor
written by Lilianne | 12 April 2022

Mbsm_dot_pro_private_PDF_TecumsehTpg1390YmrTechnicalDataSheet691736.639431510Télécharger

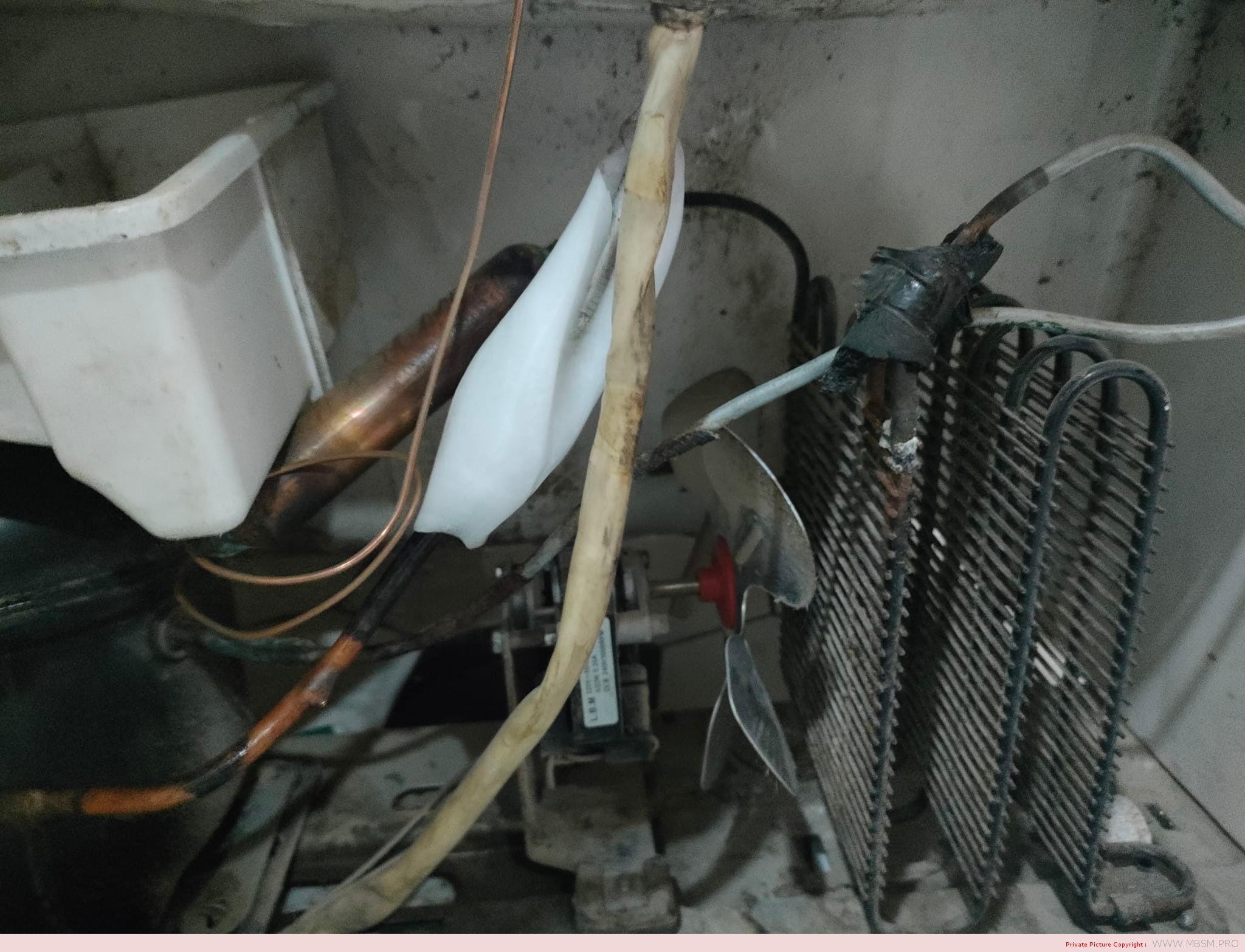

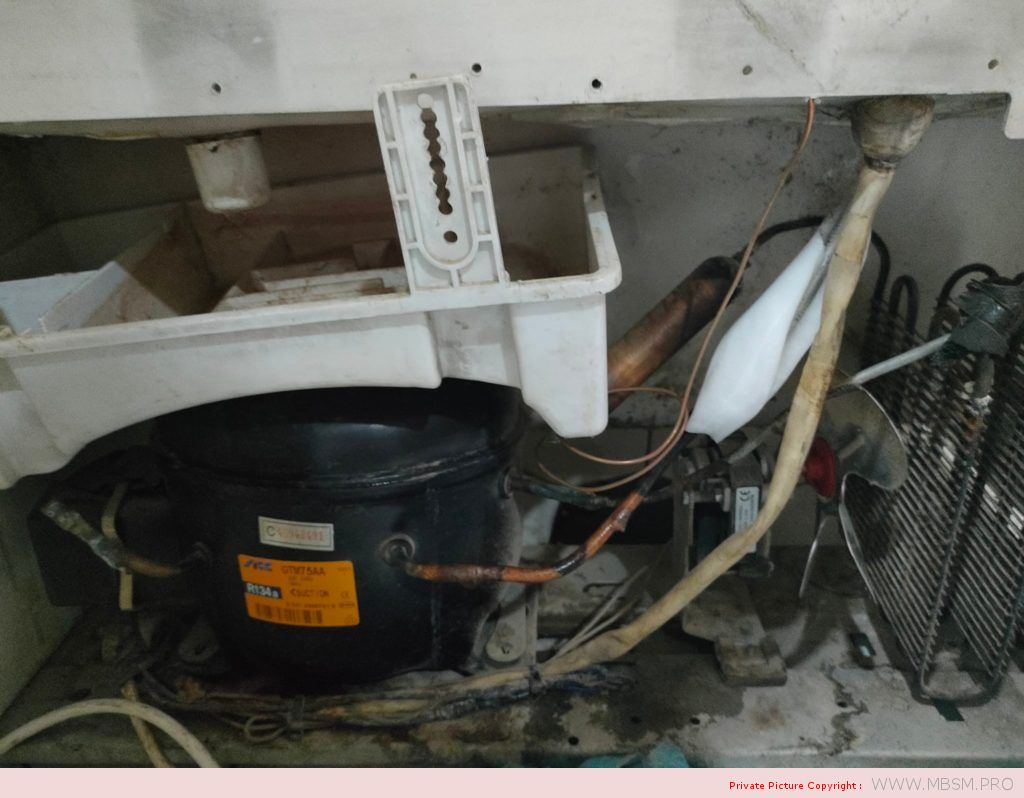

Mbsm.pro, Compressor, Gtm75aa, HERMETIC, Freezer, COMPRESSOR, ZEL, 1/5 hp, R134a, 220-240V/50HZ, Ariston no frost

Category: Archivation,compressor
written by Lilianne | 12 April 2022

https://www.mbsmgroup.tn/2433.htm


model motor Exhaust volume Motor
power		 Motor
type		 frequency Cooling capacity input
power		 Input
power
(RC)		 Coefficient of performance Performance
coefficient
(RC)		 run
capacitor		 high net weight
 GTM12AA With 12 1/3 CSIR 50 320 241 0 1.33 0 50 184 10
 GTM10AA With 10.6 1/3 CSIR 50 300 226 0 1.33 0 50 184 10
 GTM93AA With 10 1/3 hatch 50 280 207 0 1.35 0 0 184 9.5
 GTM75AA To the 7.5 1/5 CSIR 50 200 160 0 1.25 0 50 184 9
 GTM26AA Cu / Al 2.6 1/12 hatch 50 65 59 0 1.1 0 0 163 7.5
 GL10TB With 9.3 1/2 CSIR 50 880 429 0 2.05 0 50 184 10.2
 GL90TB To the 9.3 1/2 CSIR 50 860 420 0 2.05 0 50 184 10
 GL80TB With 7.5 1/2 CSIR 50 740 326 0 2.27 0 50 184 10
 HKD12FSL   12   PPM 0 96 49~122 0 Upto1.97 0 0 184 8.5
 HKD10FSK   10   PPM 0 83 44~122 0 Upto1.97 0 0 184 8
 HKD86FSL   8.6   PPM 0 67 34~88 0 Upto1.97 0 0 184 8.6
 GKD93AA With 9.3 1/4 RSCR 50 270   163   1.66 6 184 10.4
 GTT75AA With 7.5 1/5 RSCR 50 210   134   1.57 4 184 10.1
 GTT66AA Cu / Al 6.6 1/6 RSCR 50 200   125   1.6 4 184 9.5
 GTH93AA Cu / Al 9.3 1/4 RSIR/RSCR 50 260 187 174 1.39 1.49 5 184 9.7
 GTH86AA Cu / Al 8.6 1/4 RSIR/RSCR 50 240 175 163 1.37 1.47 5 174 9
 GVY75AA Cu / Al 7.5 1/5 RSIR/RSCR 50 200 153 140 1.31 1.43 4 174 8.9
 GVY66AA Cu / Al 6.6 1/5 RSIR/RSCR 50 180 134 124 1.34 1.45 4 174 8.6

Mbsm_dot_pro_private_picture_GTM 75 AATélécharger

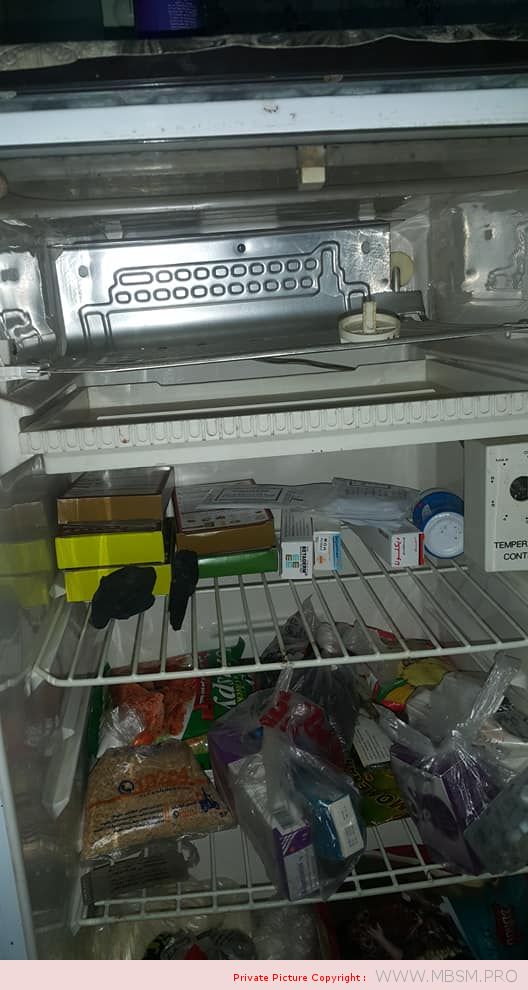

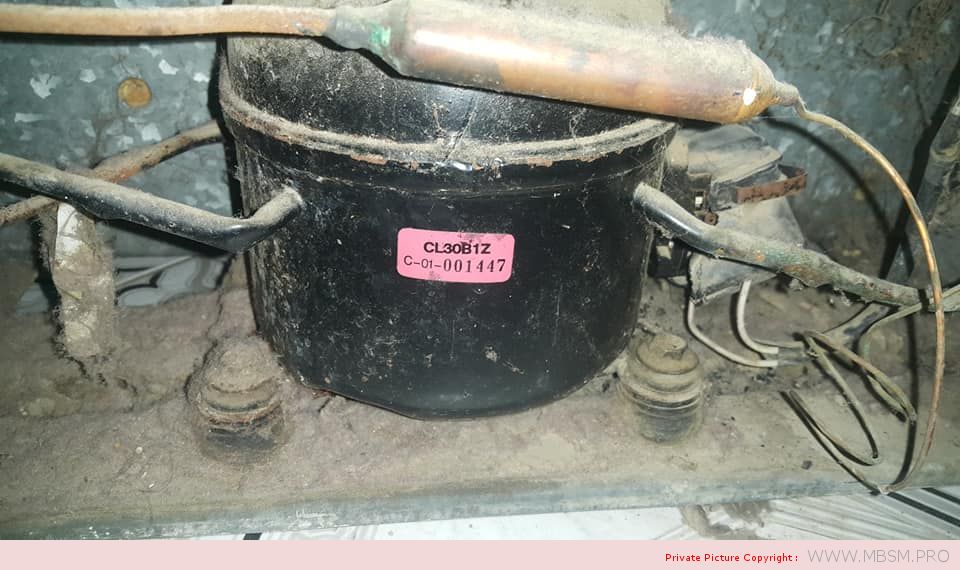

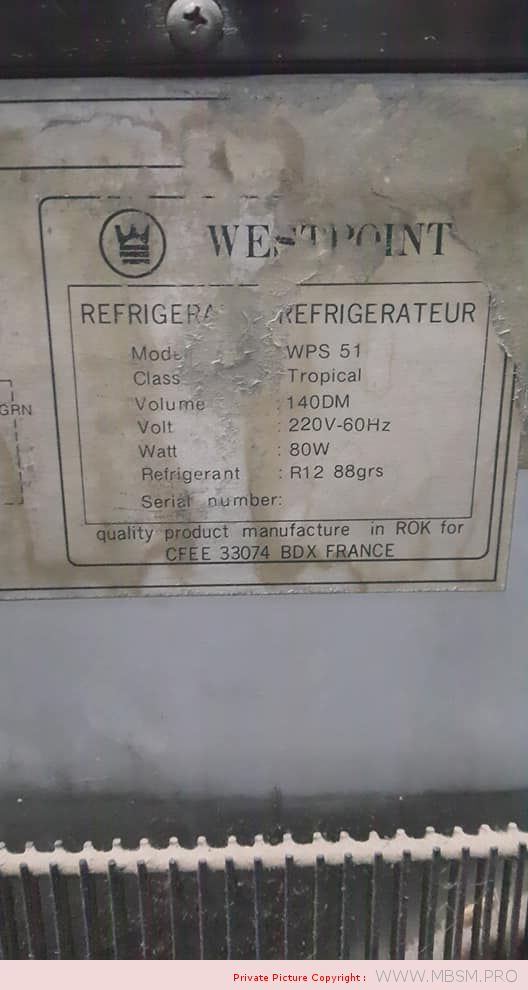

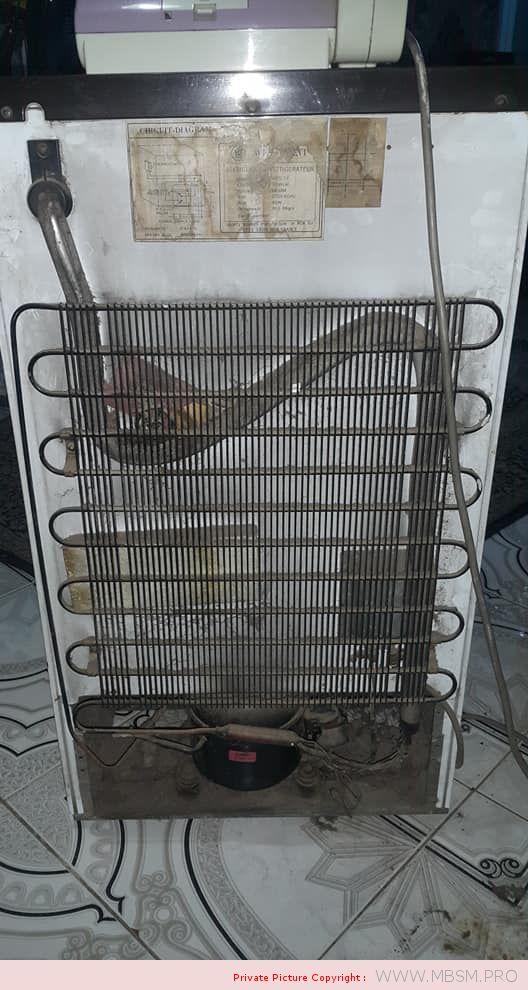

Mbsm.pro, Compressor, CL30B1Z, C-01-001 447, 1/10 Hp, 140 L, 220V 60 hz, 80w, R12, 88 Gr, Réfrigérator Westpoint, Réfrigérator desktop

Category: Archivation,compressor
written by Lilianne | 12 April 2022



Mbsm.pro, Compressor, NF34J9131AN, 1/3 hp, inverter compressor, form 94 w to 283 w, 240V~50Hz, 220V~60Hz, BLDC, R600a, LBP, Samsung

Category: Archivation,compressor
written by Lilianne | 12 April 2022



Mbsm_dot_pro_private_PDF_NF34J9131ANTélécharger


Mbsm.pro, Compressor, SEBERIA Hermetic Compressor, F Series, t Series, y Series, s Series, inverter dc

Category: Archivation,compressor
written by Lilianne | 12 April 2022



F Series

L/M/HBP
Compact Size
Low Noise & Vibration
High Efficiency & Raliablity
Specifications
Model
Power Hp
Displacement
Cooling Capacity
Motor Type
Input Power
Rated Current
COP
GFM44AA
1/6
4.6
120
RSIR
100
0.70
1.20
GFM53AA
1/6+
5.3
145
RSIR
114
0.88
1.27
GFM57AA
1/5
5.7
165
RSIR
132
0.97
1.25
GFM75AA
1/4+
7.5
215
RSIR
159
1.20
1.35
GFM10AA
1/3+
10.0
295
RSIR
220
1.55
1.34
GFM12AA
1/2-
12.0
330
RSIR
235
1.85
1.40
GFM12AA_S
1/2-
12.0
330
RSIR
235
1.85
1.40

F(F) Series 220-240V/50Hz

GFF44AA
1/6
4.6
130
RSIR/RSCR
99/93
0.65/0.53
1.31/1.40
GFF57AA
1/5
5.7
165
RSIR/RSCR
115/110
0.77/0.57
1.43/1.50
GFF66AA
1/4
6.6
195
RSIR/RSCR
143/129
0.92/0.74
1.36/1.51
GFF75AA
1/4+
7.5
215
RSIR/RSCR
156/147
1.15/0.83
1.38/1.46
GFF86AA
1/3
8.6
250
RSIR/RSCR
179/164
1.24/0.90
1.40/1.52

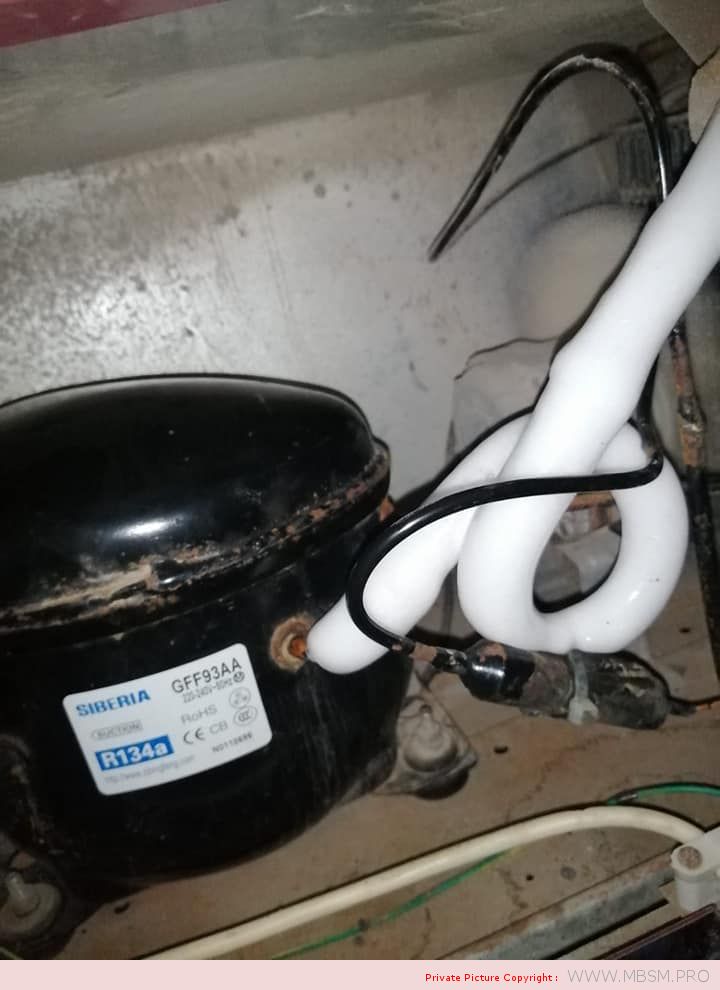

GFF93AA
1/3+
9.3
270
RSIR/RSCR
185/175
1.25/0.95
1.46/1.54

F(T)Series High Efficiency Compressor 220-240V/50Hz

GFT36AA
1/7
3.6
110
RSCR
68
0.32
1.62
GFT44AA
1/6
4.4
130
RSCR
81
0.43
1.60
GFT53AA
1/5-
5.3
145
RSCR
96
0.53
1.50
GFT57AA
1/5
5.7
165/168
RSCR
104/98
0.55/0.49
1.60/1.70
GFT61AA
1/5+
6.1
182
RSCR
107
0.53
1.70
GFT66AA
1/4
6.6
195
RSCR
115/113
0.58/0.55
1.68/1.72
GFT75AA
1/4+
7.5
220
RSCR
129
0.69
1.70
GFT86AA
1/3
8.6
250
RSCR
148
0.73
1.70
GFT93AA
1/3+
9.3
270
RSCR
166
0.84
1.65

F Series 115V/60Hz

GFM44AD
1/6+
4.6
145
RSIR
111
1.62
1.30
GFM53AD
1/4
5.3
185
RSIR
131
1.75
1.30
GFM57AD
1/4
5.7
195
RSIR
138
1.85
1.30
GFM61AD
1/4+
6.1
210
RSIR
168/150
2.75/1.90
1.25/1.40
GFR40AD
1/6
3.6
120
RSCR
84.6
7/8
1.42
GFR57AD
1/4
5.7
195
RSCR
116
1.2/7
1.55
GFM93AD
1/4
9.3
305
RSIR
218
3.2
1.40

F Series 200-220V/50Hz

GFF53AT
1/6+
5.3
150
RSCR
106
0.67
1.42
GFF57AT
1/5
5.7
165
RSCR
118
0.86
1.40
GFF66AT
1/4
6.6
196
RSCR
138
1.02
1.42
GFF75AT
1/4+
7.5
218
RSCR
147
1.07
1.48
GFF86AT
1/3
8.6
250
RSCR
168
1.14
1.49
GFF93AT
1/3+
9.3
275
RSCR
185
1.23
1.49

F Series 100V-50/60Hz

GFF66AJ
1/4
6.6
195/233
RSCR
135/152
2.15/1.95
1.44/1.53
GFF93AJ
1/3
9.3
270/305
RSCR
190/205
2.95/2.58
1.42/1.49

F Series Compressor M/HBP R134a



220-240V 50/60Hz

GFL60AG_AL
3/4
5.3
550/650
CSIR
245/265
1.88/1.69
2.24/2.45

220-240V 50Hz

GFL80AA
1
7.5
720
CSIR
317
1.96
2.27
GFL10AA
1.2
9.3
880
CSIR
430
2.50
2.0


F Series Compressor LBP R600a



F(M/F) Series 220-240V/50Hz

BFM86AA
1/6+
8.6
142
RSIR
101
0.82
1.40
BFF86AA
1/6
8.6
142
RSIR/RSCR
93/90
0.65/0.51
1.53/1.58
BFM93AA
1/5
9.3
155
RSIR
108
0.85
1.43
BFF93AA
1/5
9.3
160
RSIR/RSCR
103/98
0.73/0.58
1.55/1.63
BFM10AA
1/5+
10.0
168
RSIR
122
1.01
1.38
BFF11AA
1/4
10.5
185
RSIR
121
0.70
1.45
BFM12AA
1/4+
12.0
202
RSIR
144
1.10
1.40
BFF12AA
1/4+
12.0
202
RSIR/RSCR
130/123
1.04/0.75
1.55/1.64

F(T) Series High Efficiency Compressor 220-240V/50Hz

BFT57AA
1/7-
5.7
95
RSCR
53/50
0.28/0.24
1.80/1.90
BFT75AA
1/6
7.5
130
RSCR
75/72
0.35
1.73/1.80
BFT86AA
1/5
8.6
142
RSCR
82/74
0.43/0.36
1.73/1.92
BFT93AA
1/5
9.3
155
RSCR
82
0.50
1.90
BFT10AA
1/5+
10.0
175
RSCR
100/92
0.60/0.43
1.72/1.90
BFT11AA
1/4
10.0
180
RSCR
100
0.54
1.80
BFT12AA
1/4-
11.5
200/210
RSCR
116/114
0.54/0.52
1.72/1.86

F Series 200-220V/50Hz

BFF75AT
1/6
7.5
130
RSCR
80
0.46
1.63
BFF86AT
1/5
8.6
142
RSCR
91.5
0.65
1.55
BFM93AT
1/5
9.3
158
RSIR
112
0.93
1.41
BFF93AT
1/5
9.3
160
RSCR
100
0.66
1.60
BFF11AT
1/4
11
175
RSCR
110
0.76
1.60
BFT12AT
1/4
11.5
200
RSCR
130
1.0
1.50

F Series 115/60Hz

BFR57AD
1/6
5.7
120
RSCR
75
0.73
1.60
BFR75AD
1/5-
7.5
156
RSCR
92
0.90
1.70
BFM10AD
2/7
10.0
200
RSCR
133
1.55
1.50
BFR10AD
2/7
10.0
195
RSCR
116
1.32
1.65
BFM12AD
1/3
11.0
230
RSCR
153
1.65
1.50


F Series Compressor LBP R290a



220-240V/50Hz

PFT61AA
3/8
6.1
285
RSCR
183
1.55
PFT66AA
3/8
6.6
310
RSCR
200
1.56
PFT66AA©
3/8
6.6
310
RSCR
190
1.65
PFT75AA
1/2-
7.5
350
RSCR
216
1.62
PFT75AA©
1/2-
7.5
350
RSCR
206
1.70
PFT86AA
1/2
8.6
388
RSCR
258
1.50
PFT86AA©
1/2
8.6
421
RSCR
263
1.60
PFT93AA©
3/5
9.3
455
RSCR
284
1.60


F Series Compressor L/MBP R290



220-240V/50Hz



PFL57AA
1/3
5.7
255/490
CSIR
170/235
1.50/2.09
PFL75AA
1/2-
7.5
350/657
CSIR
248/324
1.41/2.03

T Series Compressor LBP R134a

220-240V/50Hz



Model
Power Hp
Displacement
Cooling Capacity
Motor Type
Input Power
Rated Current
COP
Oil Charge
GTF35AA
1/8
3.5
98
RSCR
70
0.36
1.40
180
GTF35AA©
1/8
3.5
98
RSIR
73
0.60
1.35
180
GTM45AA
1/6
4.5
125
RSIR
102
0.75
1.22
180
GTF45AA
1/6
4.5
125
RSCR
91
0.55
1.38
180
GTR45AA
1/6
4.5
125
RSCR
88
0.45
1.42
180
GTM52AA
1/6+
5.2
150
RSIR
120
0.82
1.25
180
GTF56AA
1/5
5.6
165
RSIR/RSCR
123/118
0.82/0.67
1.33/1.40
180
GTF56AA©
1/5
5.6
165
RSIR/RSCR
110/103
0.70/0.50
1.50/1.60
180
GTF66AA
1/4
6.6
195
RSIR/RSCR
135/129
0.85/0.65
1.45/1.50
180



T Series Compressor LBP R600a

220-240V/50Hz



BTF55AA
1/8
5.5
95
RSIR
68
0.15
1.42
180
BTF55AA®
1/8
5.5
95
RSIR/RSCR
63/59
0.43/0.30
1.50/1.60
180
BTF55AA©
1/8
5.5
95
RSIR/RSCR
58/54
0.38/0.28
1.65/1.75
180
BTF60AA
1/7
6.0
105
RSIR/RSCR
74/70
0.52/0.40
1.42/1.50
180
BTF60AA®
1/7
6.0
105
RSIR/RSCR
68/64
0.50/0.34
1.54/1.65
180
BTR60AA©
1/7
6.0
105
RSIR/RSCR
66/60
0.42/0.29
1.60/1.75
180
BTF65AA
1/7+
6.5
115
RSIR/RSCR
71/68
0.54/0.39
1.60/1.67
180
BTF70AA
1/6
7.0
125
RSIR/RSCR
81/76
0.57/0.42
1.55/1.65
180
BTF70AA©
1/6
7.0
125
RSCR
71
0.36
1.75
180
BTF85AA
1/6+
8.0
135
RSIR/RSCR
89/82
0.69/0.46
1.52/1.65
180
BTF85AA©
1/6+
8.0
135
RSCR
77
0.39
1.75
180
BTR88AA
1/5-
8.8
152
RSIR/RSCR
96/88
0.63/0.45
1.55/1.70
180
BTF92AA
1/5-
9.2
155
RSIR/RSCR
109/94
0.725/0.55
1.42/1.56
180
BTR92AA
1/5-
9.2
155
RSIR/RSCR
100/94
0.55/0.45
1.55/1.65
180
BTF92AA-2©
1/5-
9.2
155
RSIR/RSCR
94/88
0.50/0.45
1.65/1.75
180
BTF100AA
1/5
10
170
RSIR/RSCR
117/110
0.82/0.58
1.45/1.55
180

Y Series

LBP
High Raliablity
Very Compact Size
Low Noise & Vibration
Specifications

Y Series Compressor LBP R134a

220-240V/50Hz

Model
Power Hp
Displacement
Cooling Capacity
Motor Type
Input Power
Rated Current
COP
Oil Charge
GYM25AA
1/12
2.5
58
RSIR
58
0.45
1.00
130
GYF28AA
1/11
2.8
64
RSIR/RSCR
57/56
0.50/0.35
1.14/1.15
130
GYF30AA
1/10
3.0
75
RSIR/RSCR
66/62
0.51/0.35
1.14/1.21
130
GYM35AA
1/8
3.5
94
RSIR
83
0.68
1.14
130
GYF35AA©
1/8
3.5
94
RSIR/RSCR
83/80
0.66/0.50
1.14/1.21
130
GYM43AA©
1/7
4.3
112
RSIR
74
0.70
1.20
130

Y Series Compressor LBP R600a

220-240V/50Hz

BYM35AA
1/12
3.5
55
RSIR
46
0.39
1.20
130
BYF35AA
1/12
3.5
55
RSCR
36.6
0.20
1.50
130
BYR35AA
1/12
3.5
55
RSCR+EPTC
33
0.18
1.65
130
BYM43AA
1/11
4.3
68
RSIR
52
0.43
1.30
130
BYM48AA
1/10
4.8
75
RSIR
50
0.23
1.50
150
BYF52AA
1/9
5.2
85
RSIR/RSCR
65
0.50/0.30
1.45/1.55
150
BYF60AA
1/8
6.0
100
RSCR
62
0.32
1.60
150
BYF65AA
1/7
6.5
110
RSCR
85
0.40
1.60
150
BYF70AA
1/6
7.0
122
RSCR
78
0.42
1.60
150


115V 60Hz

BYF43AD
1/9
4.3
85
RSCR
55
0.57
1.55
130

S Series Compressor LBP R600a

Model
Power Hp
Displacement
Cooling Capacity
Motor Type
Input Power
Rated Current
COP
BSE35AA 1/12 3.5 52 RSIR 43.3 0.45 1.20
BSE41AA 1/11 4.1 68 RSIR 56.7 0.49 1.20
BSR41AA 1/11 4.1 68 RSCR 43.9 0.23 1.55
BSE55AA  1/8 5.5 92 RSIR 76.7 0.52 1.20
BSS55AA  1/8 5.5 92 RSCR 55.8 0.28 1.65
BSE60AA  1/7 6.0 102 RSIR 85.0 0.58 1.20
BSM60AA  1/7 6.0 102 RSIR 75.6 0.55 1.35
BSR60AA  1/7 6.0 102 RSCR 65.8 0.35 1.55
BSE67AA  1/6 6.7 115 RSIR 95.8 0.60 1.20
BSS67AA  1/6 6.7 115 RSCR 69.7 0.34 1.65
BSE72AA  1/6 7.2 123 RSIR 102.5 0.67 1.20
BSF72AA  1/6 7.2 123 RSCR 79.4 0.48 1.55
BSE80AA  1/5 8.1 138 RSIR 106.2 0.8 1.30
BSM80AA  1/5 8.1 138 RSIR 98.6 0.74 1.40

S Series Compressor LBP R600a

200-220V/50Hz
BSE35AT 1/12 3.5 52 RSIR 43.3 0.45 1.20
BSE60AT  1/7 6.0 102 RSIR 85.0 0.58 1.20
BSR60AT  1/7 6.0 102 RSCR 65.8 0.35 1.55

S Series Compressor LBP R134a

220-240V/50Hz
GSE28AA 1/11 2.8 64 RSIR 57.0 0.5 1.20
GSE30AA 1/10 3.0 75 RSIR 66.0 0.51 1.20
GSE35AA 1/8 3.5 94 RSIR 83.0 0.68 1.20
GSM45AA  1/6 4.5 122 RSCR 91.0 0.55 1.35

Inverter Compressor

High Raliablity
Variable Speed
Very Compact Size
Low Noise & Vibration
Specifications
Inverter Compressor R600a



220-240V 50/60Hz

Model
Displacement
Cooing Type
Motor Type
Speed
Cooling Capacity
Input Power
Rated Current
COP
Loading Quantity
VBE72A1

7.2
ST
BLDC
1200
55
29
0.25
1.89
2400PCS/20GP


1600
75
37
0.30
2.02
2400
108
56
0.44
1.93
3000
134
67
0.55
2.00
4500
180
100
0.76
1.80
BTF80FSL

8
ST
BLDC
1200
59
34.6
0.29
1.70
2400PCS/20GP



1600
81
43
0.35
1.87
2400
123
65
0.50
1.88
3000
142
79
0.60
1.80
4500
185
109
0.81
1.69

Mbsm_dot_pro_private_PDF__Compressor, SEBERIA Hermetic Compressor, inverter dcTélécharger
Mbsm_dot_pro_private_PDF__Compressor, SEBERIA Hermetic Compressor, s SeriesTélécharger
Mbsm_dot_pro_private_PDF__Compressor, SEBERIA Hermetic Compressor, y SeriesTélécharger
Mbsm_dot_pro_private_PDF__Compressor, SEBERIA Hermetic Compressor, y SeriesTélécharger
Mbsm_dot_pro_private_PDF_Compressor, SEBERIA Hermetic Compressor, F SeriesTélécharger
Mbsm_dot_pro_private_PDF_Compressor, SEBERIA Hermetic Compressor, t Series – CopieTélécharger
Mbsm_dot_pro_private_PDF_Compressor, SEBERIA Hermetic Compressor, t SeriesTélécharger


Mbsm.pro, Compressor, Refrigeration Compressor, 270W, GFF93AA, 1/3 HP++, FFI12HBK, TPH1410Y, F Series 200-220V/50Hz, SEBERIA Hermetic Compressor, lbp, hbp

Category: Archivation,compressor
written by Lilianne | 12 April 2022
Model
Power Hp
Displacement
Cooling Capacity
Motor Type
Input Power
Rated Current
COP
GFM44AA
1/6
4.6
120
RSIR
100
0.70
1.20
GFM53AA
1/6+
5.3
145
RSIR
114
0.88
1.27
GFM57AA
1/5
5.7
165
RSIR
132
0.97
1.25
GFM75AA
1/4+
7.5
215
RSIR
159
1.20
1.35
GFM10AA
1/3+
10.0
295
RSIR
220
1.55
1.34
GFM12AA
1/2-
12.0
330
RSIR
235
1.85
1.40
GFM12AA_S
1/2-
12.0
330
RSIR
235
1.85
1.40

Product details of Refrigeration Compressor GFF44AA/57/66/86/93(1/8HP-1/3HP)

. Refrigerator compressor

.GAS use R134A

. Brand new and high quality

. Durable

.GFF44AA (1/8HP)

.GFF57AA(1/6HP)

.GFF66AA(1/5HP)

.GFF86AA(1/4HP) – compressor for Chest Freezer(LY450LD) or 2 door counter Chiller

.GFF93AA(1/3HP) – compressor for Chest Freezer(LY600LD) or 3 door counter Chiller

Specifications of Refrigeration Compressor GFF44AA/57/66/86/93(1/8HP-1/3HP)

Wanbao Model ( R134a ) Siberia Displmnt(cc) Cooling C O P Horse Motor type
Model Capacity Power
AS43 – 84W, 0.94COP GVF35AA 3.5 90 W 1.05  1/8 HP RSIR
GFM44AA 4.4 125 W 1.2 1/6 HP RSIR
ASD53K – 144W, 1.04COP GFM53AA 5.3 145 W 1.25 1/6 HP RSIR
AQAW66X – 153W, 1.20COP GFF57AA 5.7 165 W 1.36 1/5 HP RSIR
AQAW77X – 180W, 1.20COP GFF66AA 6.6 190 W 1.36 1/4 HP RSIR
AQAW91 – 218W, 1.20COP GFF75AA 7.5 215 W 1.36 1/4 HP RSIR
GFF86AA 8.6 250 W 1.38 1/3+ HP RSIR
AQAW110 – 260W, 1.20COP GFF93AA 9.3 270 W 1.38 1/3+ HP RSIR



GFF44AA
1/6
4.6
130
RSIR/RSCR
99/93
0.65/0.53
1.31/1.40
GFF57AA
1/5
5.7
165
RSIR/RSCR
115/110
0.77/0.57
1.43/1.50
GFF66AA
1/4
6.6
195
RSIR/RSCR
143/129
0.92/0.74
1.36/1.51
GFF75AA
1/4+
7.5
215
RSIR/RSCR
156/147
1.15/0.83
1.38/1.46
GFF86AA
1/3
8.6
250
RSIR/RSCR
179/164
1.24/0.90
1.40/1.52
GFF93AA
1/3+
9.3
270
RSIR/RSCR
185/175
1.25/0.95
1.46/1.54



F(T)Series High Efficiency Compressor 220-240V/50Hz



GFT36AA
1/7
3.6
110
RSCR
68
0.32
1.62
GFT44AA
1/6
4.4
130
RSCR
81
0.43
1.60
GFT53AA
1/5-
5.3
145
RSCR
96
0.53
1.50
GFT57AA
1/5
5.7
165/168
RSCR
104/98
0.55/0.49
1.60/1.70
GFT61AA
1/5+
6.1
182
RSCR
107
0.53
1.70
GFT66AA
1/4
6.6
195
RSCR
115/113
0.58/0.55
1.68/1.72
GFT75AA
1/4+
7.5
220
RSCR
129
0.69
1.70
GFT86AA
1/3
8.6
250
RSCR
148
0.73
1.70
GFT93AA
1/3+
9.3
270
RSCR
166
0.84
1.65

F Series 115V/60Hz



GFM44AD
1/6+
4.6
145
RSIR
111
1.62
1.30
GFM53AD
1/4
5.3
185
RSIR
131
1.75
1.30
GFM57AD
1/4
5.7
195
RSIR
138
1.85
1.30
GFM61AD
1/4+
6.1
210
RSIR
168/150
2.75/1.90
1.25/1.40
GFR40AD
1/6
3.6
120
RSCR
84.6
7/8
1.42
GFR57AD
1/4
5.7
195
RSCR
116
1.2/7
1.55
GFM93AD
1/4
9.3
305
RSIR
218
3.2
1.40

F Series 200-220V/50Hz



GFF53AT
1/6+
5.3
150
RSCR
106
0.67
1.42
GFF57AT
1/5
5.7
165
RSCR
118
0.86
1.40
GFF66AT
1/4
6.6
196
RSCR
138
1.02
1.42
GFF75AT
1/4+
7.5
218
RSCR
147
1.07
1.48
GFF86AT
1/3
8.6
250
RSCR
168
1.14
1.49
GFF93AT
1/3+
9.3
275
RSCR
185
1.23
1.49



F Series 100V-50/60Hz



GFF66AJ
1/4
6.6
195/233
RSCR
135/152
2.15/1.95
1.44/1.53
GFF93AJ
1/3
9.3
270/305
RSCR
190/205
2.95/2.58
1.42/1.49



F Series Compressor M/HBP R134a





220-240V 50/60Hz



GFL60AG_AL
3/4
5.3
550/650
CSIR
245/265
1.88/1.69
2.24/2.45



220-240V 50Hz



GFL80AA
1
7.5
720
CSIR
317
1.96
2.27
GFL10AA
1.2
9.3
880
CSIR
430
2.50
2.0


F Series Compressor LBP R600a





F(M/F) Series 220-240V/50Hz



BFM86AA
1/6+
8.6
142
RSIR
101
0.82
1.40
BFF86AA
1/6
8.6
142
RSIR/RSCR
93/90
0.65/0.51
1.53/1.58
BFM93AA
1/5
9.3
155
RSIR
108
0.85
1.43
BFF93AA
1/5
9.3
160
RSIR/RSCR
103/98
0.73/0.58
1.55/1.63
BFM10AA
1/5+
10.0
168
RSIR
122
1.01
1.38
BFF11AA
1/4
10.5
185
RSIR
121
0.70
1.45
BFM12AA
1/4+
12.0
202
RSIR
144
1.10
1.40
BFF12AA
1/4+
12.0
202
RSIR/RSCR
130/123
1.04/0.75
1.55/1.64



F(T) Series High Efficiency Compressor 220-240V/50Hz



BFT57AA
1/7-
5.7
95
RSCR
53/50
0.28/0.24
1.80/1.90
BFT75AA
1/6
7.5
130
RSCR
75/72
0.35
1.73/1.80
BFT86AA
1/5
8.6
142
RSCR
82/74
0.43/0.36
1.73/1.92
BFT93AA
1/5
9.3
155
RSCR
82
0.50
1.90
BFT10AA
1/5+
10.0
175
RSCR
100/92
0.60/0.43
1.72/1.90
BFT11AA
1/4
10.0
180
RSCR
100
0.54
1.80
BFT12AA
1/4-
11.5
200/210
RSCR
116/114
0.54/0.52
1.72/1.86



F Series 200-220V/50Hz



BFF75AT
1/6
7.5
130
RSCR
80
0.46
1.63
BFF86AT
1/5
8.6
142
RSCR
91.5
0.65
1.55
BFM93AT
1/5
9.3
158
RSIR
112
0.93
1.41
BFF93AT
1/5
9.3
160
RSCR
100
0.66
1.60
BFF11AT
1/4
11
175
RSCR
110
0.76
1.60
BFT12AT
1/4
11.5
200
RSCR
130
1.0
1.50



F Series 115/60Hz



BFR57AD
1/6
5.7
120
RSCR
75
0.73
1.60
BFR75AD
1/5-
7.5
156
RSCR
92
0.90
1.70
BFM10AD
2/7
10.0
200
RSCR
133
1.55
1.50
BFR10AD
2/7
10.0
195
RSCR
116
1.32
1.65
BFM12AD
1/3
11.0
230
RSCR
153
1.65
1.50



F Series Compressor LBP R290a





220-240V/50Hz



PFT61AA
3/8
6.1
285
RSCR
183
1.55
PFT66AA
3/8
6.6
310
RSCR
200
1.56
PFT66AA©
3/8
6.6
310
RSCR
190
1.65
PFT75AA
1/2-
7.5
350
RSCR
216
1.62
PFT75AA©
1/2-
7.5
350
RSCR
206
1.70
PFT86AA
1/2
8.6
388
RSCR
258
1.50
PFT86AA©
1/2
8.6
421
RSCR
263
1.60
PFT93AA©
3/5
9.3
455
RSCR
284
1.60

F Series Compressor L/MBP R290
220-240V/50Hz

PFL57AA
1/3
5.7
255/490
CSIR
170/235
1.50/2.09
PFL75AA
1/2-
7.5
350/657
CSIR
248/324
1.41/2.03
Mbsm_dot_pro_private_PDF_mbsm_pro_46025_html-1Télécharger
Mbsm_dot_pro_private_PDF_gff93aa-1-1Télécharger

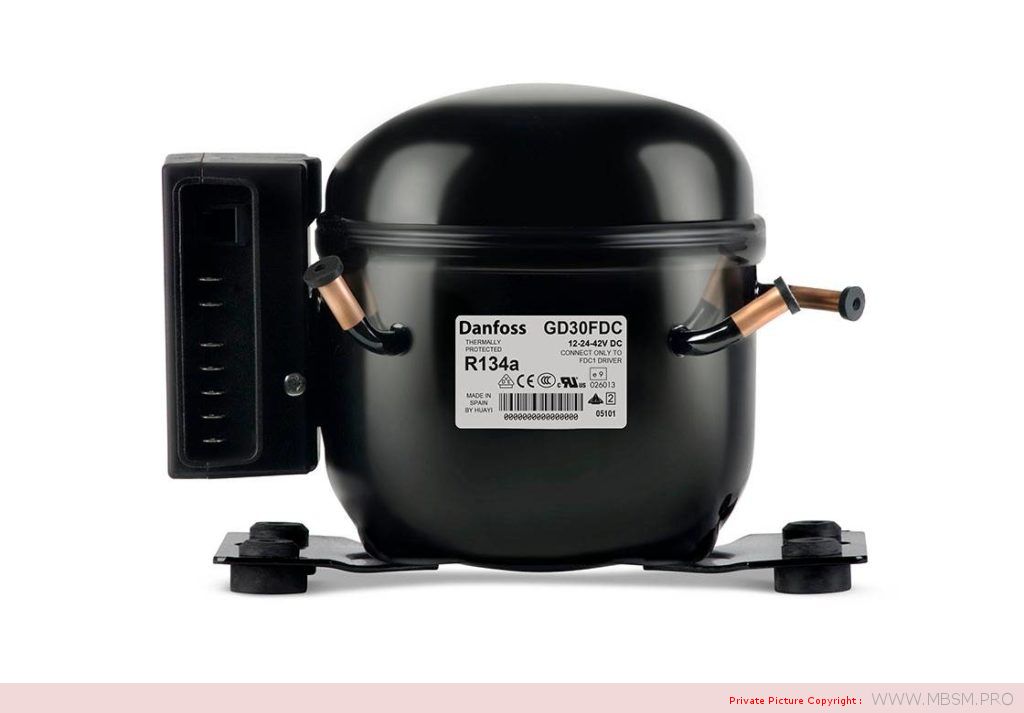

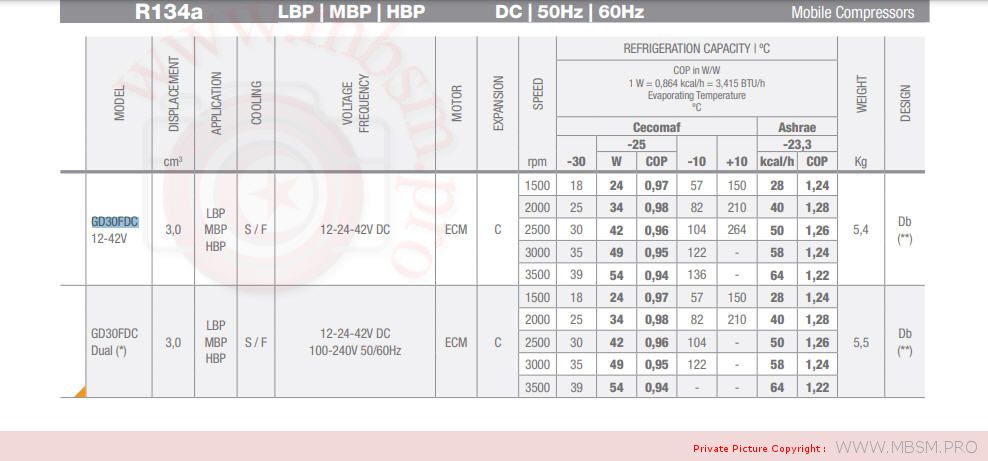

Mbsm.pro, Compressor, gd30fdc, 1/8 Hp, 0 to 100 w, Inverter, bdc, 12 v/ 24 V, Car compressor, Compressor ACC, R-134A, Cubigel, Huayi, Electrolux, ZEM, GD30FDC, LBP-MBP-HBP

Category: Archivation,compressor
written by Lilianne | 12 April 2022
Refrigerant: R134a
Power range(W): 0 – 100 W
Performance range (C): -30 C to +10 C
Working area: HBP MBP LBP
Design type: Hermetic
Model series: GD
Use with: Capillary
Power supply: 12-42 V
Oil type: ISO VG 22 Ester
Engine type: ECM
Article condition: New
Info: Oil filled
Shipping weight: 6,40 Kg
customs tariff number: 84143081
Cooling capacity condition: 1500 to 3500 rpm
Manufacturer: ACC Cubigel Huayi Electrolux ZEM
Model: GD30FDC
Stroke volume (cm3): 3
Cooling capacity (W): 32-74
Type: ECM
Compressor: Piston
Engine type: ECM
Oil quantity (l): 0,24
Compressor type: Piston
Cooling: Static / fan
RPM: 1500-3500
Power range: -30 C to +10 C

Mbsm_dot_pro_private_PDF_ACC-CATALOGUE-2013Télécharger
Mbsm_dot_pro_private_PDF_catalogo_cubigel_R134aTélécharger

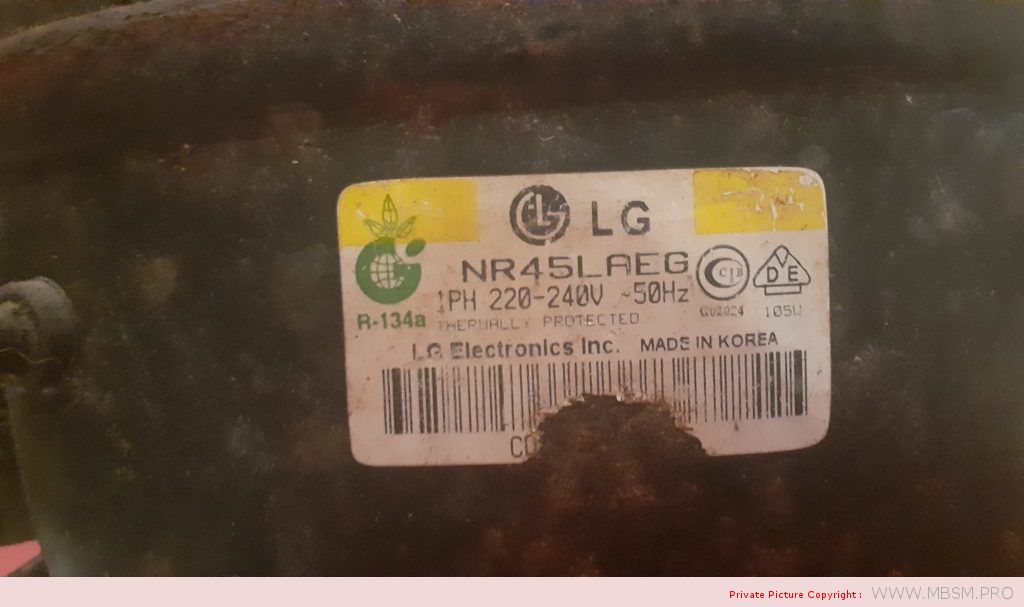

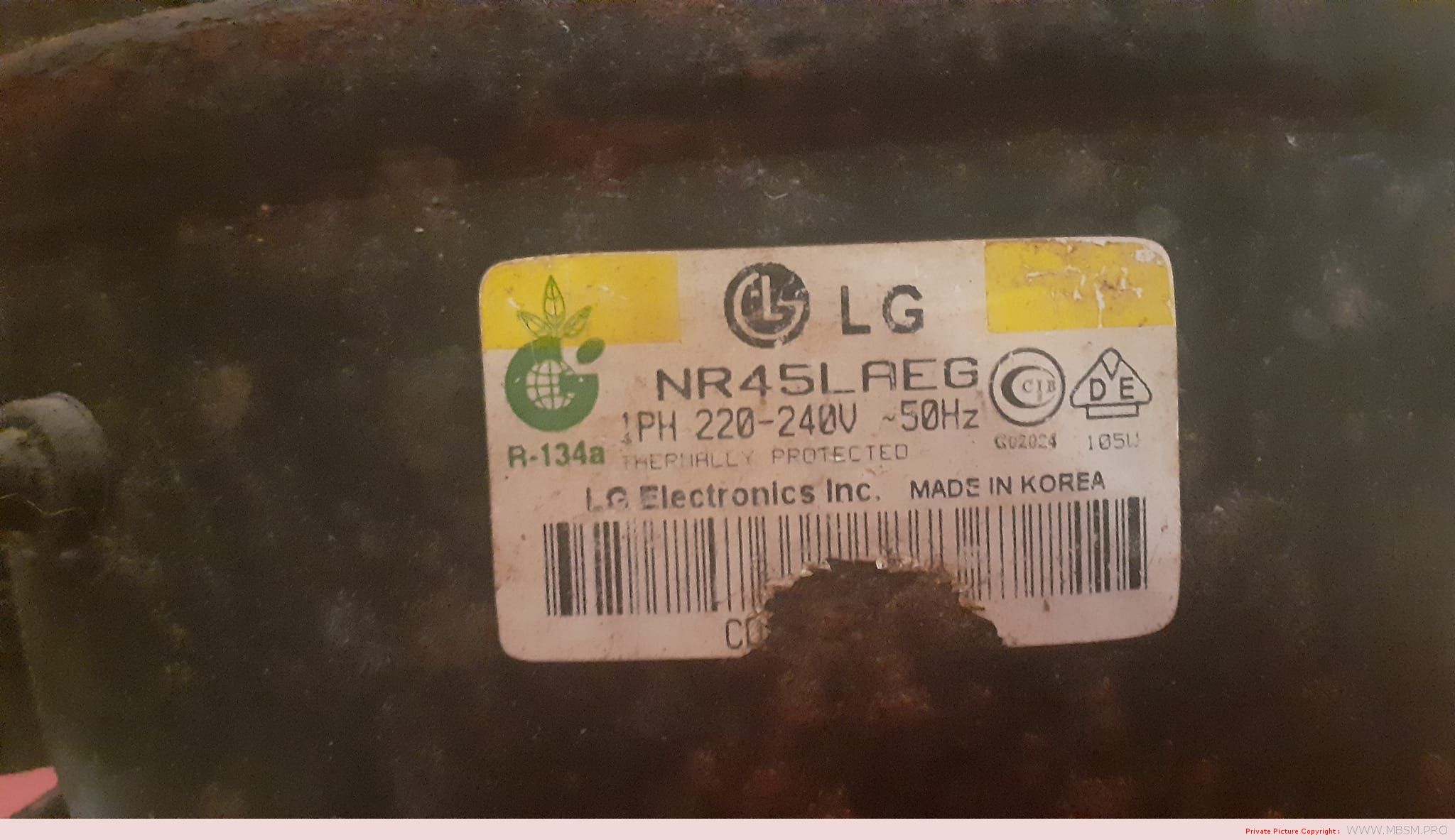

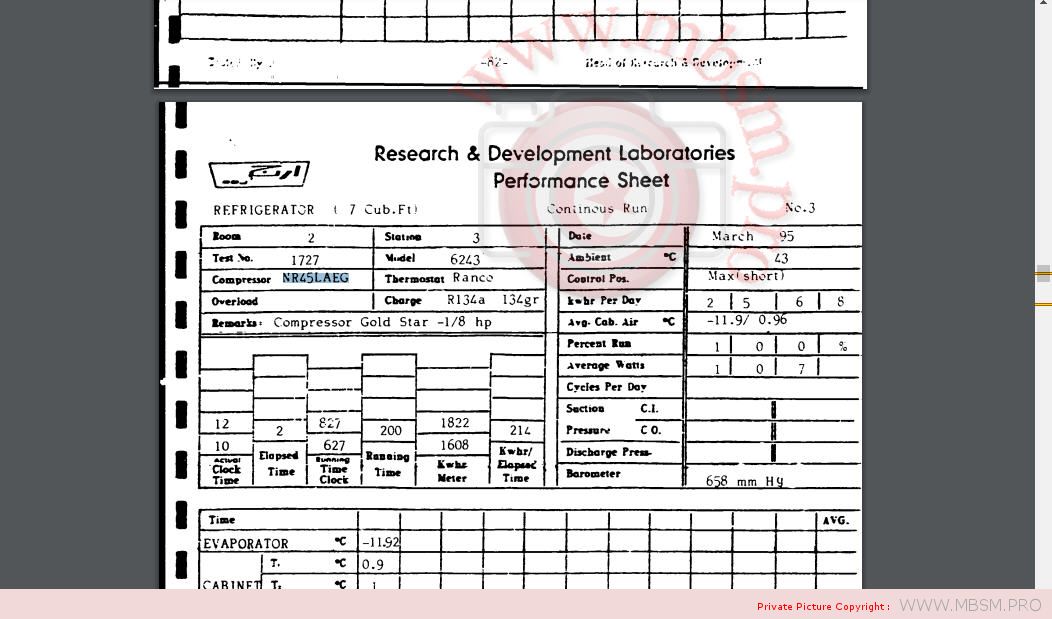

Mbsm.pro, Compressor, Beko, Compressor, NR45LAEG, R134A, 1/8 hp

Category: Archivation,compressor
written by Lilianne | 12 April 2022

Mbsm_dot_pro_private_PDF_nr45laegTélécharger

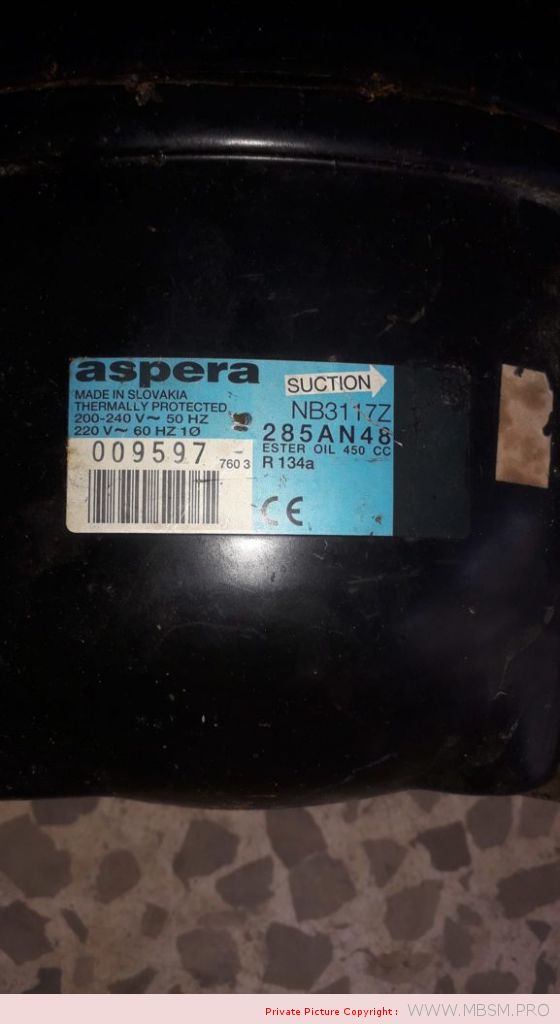

Mbsm.pro, Compressor, 1/5hp, Low-temperature, hermetic, refrigeration, compressor Embraco, Aspera, (Embrako Aspera), NB3117Z, LBP, R-134a, 174W at Ti=-23.3С, Tк=54.4С

Category: Archivation,compressor
written by Lilianne | 12 April 2022

Specifications/Description/Parameters :

  • Cooling capacity at Тsp=-23.3С, Tcond=54.4С: 174 W
  • Voltage/Frequency : 220-240V 50Hz 1
  • Engine type : RSIR
  • Lubricant : 350cc, POE22
  • Weight : 10.4 kg
  • Height : 200 mm
  • Embraco is constantly striving to improve the characteristics of its products, so they are subject to change without notice.
    Compressor brand NB3117Z
    Cooling capacity at T test =  -23.3 C, T c = +54.4 C, W 174
    Voltage, V / Frequency, Hz 220-240V / 50Hz
    engine’s type hatch
    Oil consumption, cm3 350
    Oil type POE22
    Weight, kg 10.4
    Height, mm 200

Mbsm_dot_pro_private_PDF_nb3117z-1-1Télécharger
Mbsm_dot_pro_private_PDF_nb3117z-4Télécharger
