Mbsm.pro, compressor, 1/4 hp++,NL80FB, NL 80 FB, CUBIGEL, NL 80FB, HMBP, R290, 220-240V / 50HZ

Category: compressor
written by Lilianne | 28 June 2022

NL80FB; Cubigel / Huayi NL80FB compressor, HMBP – R290, 220 – 240V / 1 / 50Hz, 1/4 [HP], discharge 8.10 [cm3], engine type CSIR, oil type ISO VG 46 mineral, oil volume 400 [cm3] , 232 [W] at -25 / +55 [°], power 274 [W], 1.87 [A], use with capillary or valve, fan cooling, weight: 10.00 [kg]

Mbsm_dot_pro_private_PDF_NL80FBTélécharger


Mbsm.pro, Compressor, Americold, rf209-12, 1/3 hp ++, hbp, Deep freezer, Kelvinator, no frost, 21 feet, 617 L, Fla 1.7 A, Lra 11 A, 220 v 50 hz, r134a, 190 g

Category: compressor,expertise
written by Lilianne | 28 June 2022

Mbsm.pro, Compressor, Americold, rf209-12, 1/3 hp ++, hbp, Deep freezer, Kelvinator, no frost, 21 feet, 617 L, Fla 1.7 A, Lra 11 A, 220 v 50 hz, r134a, 190 g



Mbsm.pro, Huayi, Compressor, HY131MTU, 235 w, 1/3 hp, lbp, 30 feets, Unionaire, 2 doors, r600a

Category: compressor
written by Lilianne | 28 June 2022
Mbsm_dot_pro_private_PDF_hy131mtuTélécharger


Mbsm.pro, refrigerant, Replacement, R12, r22, r134a

Category: Chaud&Froid
written by Lilianne | 28 June 2022

R404a replaces R22 in cold storage

R404a have not a replace

R409a replace r12

R410 have not a replace

r600a have not replace

r134a replace not r12

r22 replace not r410

R409A Refrigerant

Product Type: HCFC

A blend of R-22, R-142b, and R-124 intended for retrofitting R-12 refrigeration systems. The pressure and system capacity match R-12 when the blend is running in a 10°F to 20°F evaporator, and there is typically 13°F temperature glide in the evaporator. Applications: direct expansion refrigeration and air conditioning systems designed for R-12 or R-500; good success in any size system, minor adjustment of controls needed. Discharge pressure and temperature increases compared to R-12, which may be a problem in very hot ambient conditions. Capacity holds well into lower application temperatures (-30°F). R-409A mixes well with mineral oil down to 0°F. As a result it may not be necessary to change oil in systems which do not run colder than 0°F in the evaporator (below that alkylbenzene should replace some mineral oil).

Replaces:

R12

Application:

Low temp ref, Med temp ref

Oil:

Mineral, Alkylbenzene, Polyolester

Tank Sizes:

30 lb

125 lb

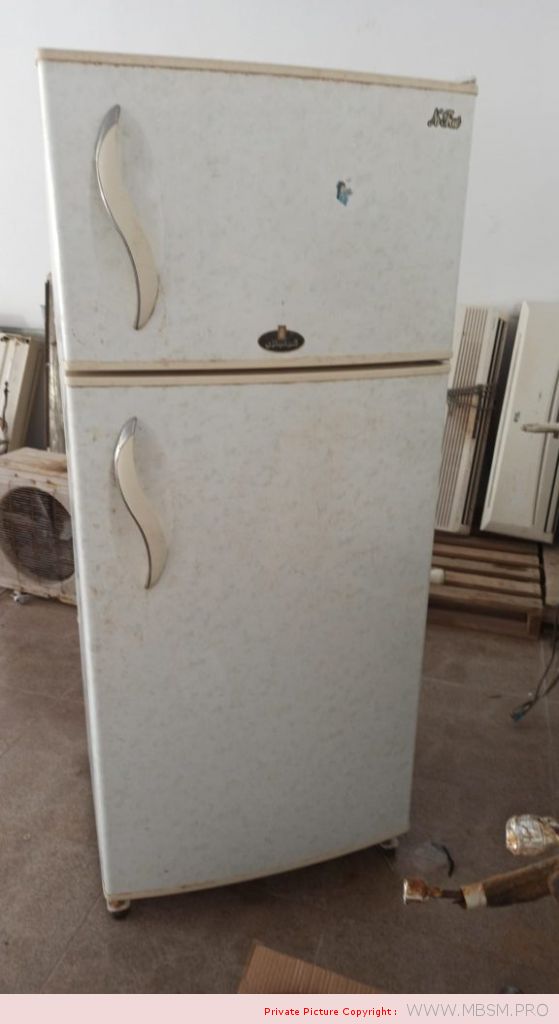

Mbsm.pro, KIRIAZI, REFRIGERATOR, 16 FEET, NO FROST, E450N, Compressor, 1/4 hp, R134a, 180 g

Category: Refrigerator
written by Lilianne | 28 June 2022

Mbsm.pro, KIRIAZI, REFRIGERATOR, 16 FEET, NO FROST, E450N, Compressor, 1/4 hp, R134a, 180 g



Mbsm.pro, Compressor, AE 1370, AE1370, 1/5 hp ++, 158 w, 1/4 hp–, lbp, R134a, replaced by HYE69YK, raded Amp 1.5 A

Category: Non classé
written by Lilianne | 28 June 2022
MODEL     1/4 HP
SODA     R134a
    Watt ± 5%  185
  ABILITY Kcal/h ± 5%  215.1
    btu/h ± 5%  631.2
  STREAM   0.69
PERFORMANCE ENERGY CONSUMPTION  127.6 W
  COP (W / W ± 5%) 1.45
  EER (BTU/(Wh)±5%) 4.9
  NOISE   45
  OVERLOAD PROTECTOR  DRB186P61A2/BT48-125
  BT48-125A61D3
COMPONENTS LAST TRIP CURRENT 1.05～1.35A
ELECTRICAL OPENING TEMPERATURE 125±5℃
  CLOSING TEMPERATURE 61±9℃

Mbsm_dot_pro_private_PDF_ae1370dbx_Télécharger


Mbsm.pro, compressor, aez1380a, 1/4 hp++, 1/3 hp –, r12, 193 w, HBP

Category: compressor
written by Lilianne | 28 June 2022
Mbsm_dot_pro_private_PDF__aez1380aTélécharger
Description

Refrigerating capacity at – 23,3C 193 W.

Piston and rotary hermetic LUNITE HERMETIQUE TECUMSEH EUROPE refrigeration compressors are perfectly known in the world thanks to the unique qualities: reliability, durability, noiselessness and profitability. The highest accuracy of production of parts excludes possibility of backlashes, wear and noise, provides insignificant friction and allows to reach great values of mechanical efficiency of the refrigeration compressor. More than 30 years they are the best decision for coolers of drinks, show-windows, refrigeration chambers, ice generators and for other refrigerating appliances

Model

compressor

Price

USD

kompr

Volume

tsil-Wad Dra

cm ³

Model

unit

Price

USD

unit

Refrigerating capacity, Wt ***



– 35C

– 30 C

– 25 C

– 23,3 C

– 20 C

– 15C

– 10 C

power supply

R – 12

AZ 1355 D



5,60



67

94

103

136

160

201

247

220-240V

50Hz

AEZ 1360 A

115

7,55



67

98

114

154

187

246

314

AEZ 1380 A

112

8,85



84

124

144

193

232

298

373

AEZ 2380 C

130

8,10



98

136

154

205

244

313

398

AE 1410 A

139

12,05



121

169

189

251

298

379

467

AE 1412 A

144

14,15



141

202

232

311

376

496

634


Mbsm.pro, PDF, LG, compressor, msa43lbeg, 116 w, 1/8 hp, lbp, r134a

Category: Files
written by Lilianne | 28 June 2022
Mbsm_dot_pro_private_PDF_msa43lbegTélécharger

Mbsm_dot_pro_private_PDF__msa43lbegTélécharger


Mbsm.pro, Compressor, DONPER, NE 2125 CE, NE2125CE, r22, 3/8hp++, HMBP, 266 w

Category: compressor
written by Lilianne | 28 June 2022

Compressors DONPER NE 2125 CE

CHARACTERISTICS OF THE COMPRESSOR COMPRESSOR DONPER NE 2125 CE

  • Weight (kg): 11.4
  • Dimensions (WxD mm): 151.6 x 192.4
  • Engine type: CSIR
  • Height (h, mm): 232
  • Power (W at -23.3°):285
  • Cylinder volume (cm³):9
  • Cooling type: F
  • Operating mode: Low temperature HMBP
  • Gas: R22

Other Model

R134a Series
Refrige-rant Applica-tion Model Series Power Cool-ing

Motor

 type

Power

supply

 Cooling capacity COP W/W

*ASHRAE

 -23.3

*CECOMAF

 -25

*ASHRAE

 -23.3

*CECOMAF

 -25
R134a LBP W25CZ W   1/14 S RSIR 220/50 60 42 0.85 0.65
R134a LBP W30CZ W   1/12 S RSIR 220/50 66 48 0.85 0.68
R134a LBP W25BZ W   1/14 S RSIR 115/60 65 47 0.8 0.62
R134a LBP W30BZ W   1/10 S RSIR 115/60 72 53 0.83 0.65
R134a LBP S53CZ S 1/6- S RSIR 220/50 118 86 1.15 0.89
R134a LBP S30BZ S   1/10 S RSIR 220/50 72 53 0.96 0.74
R134a LBP S43BZ S 1/6- S RSIR 115/60 125 91 1.16 0.89
R134a LBP S53BZ S 1/6+ S RSIR 115/60 145 106 1.18 0.91
R134a LBP L58CZ L 1/6+ S RSIR 115/60 140 117 1.2 0.94
R134a LBP L65CZ L  1/5 S RSCR 220/50 160 102 1.23 0.95
R134a LBP E1112CZ B 1/6+ S RSCR 220/50 140 117 1.18 0.91
R134a LBP E1120CZA E  1/3 F1 RSCR 220/50 230 197 1.15 0.9
R134a LBP E1121CZA E  3/8 F1 RSCR 220/50 270 237 1.16 0.96
R134a LBP E1130CZA E 3/8+ F1 CSIR 220/50 325 273 1.16 0.96
R134a LBP E1134CZA E   1/2 F1 CSIR 220/50 375 151 1.25 0.96
R134a LBP E1118BZ E  1/4+ S RSIR 115/60 207 197 1.16 0.89
R134a LBP E1121BZ E  3/8 F1 RSIR 115/60 270 237 1.16 0.89
R134a LBP E1130BZ E  3/8 F1 CSIR 115/60 325 151 1.2 0.92
R134a LBP NE1118BZ NE 1/4+ S RSIR 220/50 207 197 1.16 0.95
R134a LBP NE1121BZ NE  3/8 F1 RSIR 220/50 270 237 1.16 0.96
R134a LBP NE1130BZ NE 3/8+ F1 CSIR 220/50 325 288 1.16 0.96
R134a LBP CT2134CZ CJ  1/2 F2 RSIR 220/50 395 288 1.08 0.83
R134a LBP CJ2140CZ CJ  3/4 F3 RSIR 220/50 450
R134a LBP CJ2152CZ CJ 1     F3 RSIR 220/50 760
R134a LBP SK30CZ S   1/10 S RSCR 220/50 80 58 1.25 0.96
R134a LBP SK36CZ S  1/8 S RSCR 220/50 95 69 1.25 0.96
R134a LBP SK43CZ S 1/6- S RSCR 220/50 115 84 1.3 1
R134a LBP SK53CZ S  1/6 S RSCR 220/50 130 95 1.3 1
R134a LBP SK30BZ S  1/8 S RSCR 115/60 95 69 1.25 0.96
R134a LBP SK36BZ S 1/6- S RSCR 115/60 120 88 1.3 1
R134a LBP SK43BZ S  1/6 S RSCR 115/60 140 102 1.35 1.04
R134a LBP SK53BZ S  1/5 S RSCR 115/60 158 115 1.35 1.04
Mbsm_dot_pro_private_PDF_NE-2125-CETélécharger



Mbsm.pro, compressor, CUBIGEL, ELECTOLUX, ACC, R404a, R507, MP14FB, 220-240V 50Hz, LBP, 1/2HP

Category: compressor
written by Lilianne | 28 June 2022

Description

Compresseur hermétique Cubigel MP14FB – LBP – R404A – T0 > -40°C / -10°C – TK > 43°C 220-240/1/50 – CSIR Volume balayé : 14.17 cm³ – Détente : capillaire – détendeur

Caractéristiques techniques

  • Marque : CUBIGEL ELECTOLUX ACC
  • Modèle : MP14FB
  • CYLINDRÉE (CM³)14,17
  • FLUIDER404A , R448A , R449A, R452A
  • APPLICATIONLBP
  • PLAGE D’APPLICATION-40/-10
  • PUISSANCE (W)560
  • PUISSANCE FRIGORIFIQUE (TK+40°C)-10/710 -20/573 -30/445 -40/325
  • TENSION (V)240/1/50
  • DÉMARRAGECSIR
  • I.MAX (A)3,4
  • Ø ASPIRATION8,1
  • Ø REFOULEMENT6,5
  • DIMENSIONS (MM)240x162x210,5

Mbsm_dot_pro_private_PDF_compresseur-acc-cubigell-electrolux-MP14FBTélécharger
