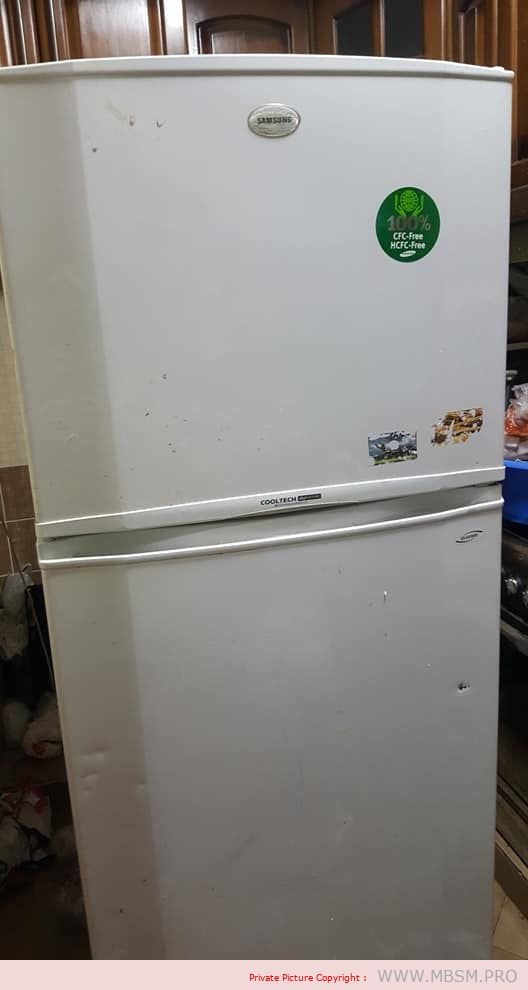

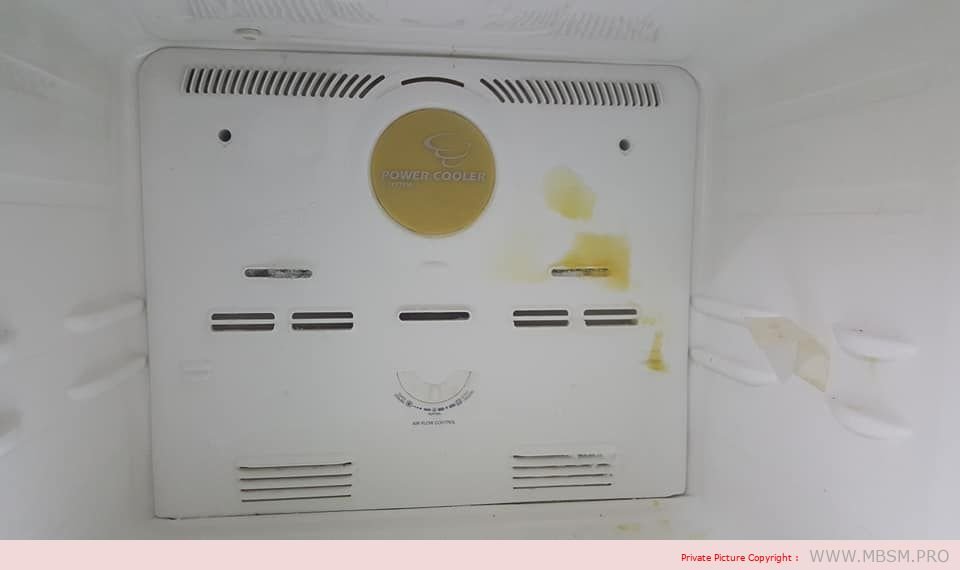

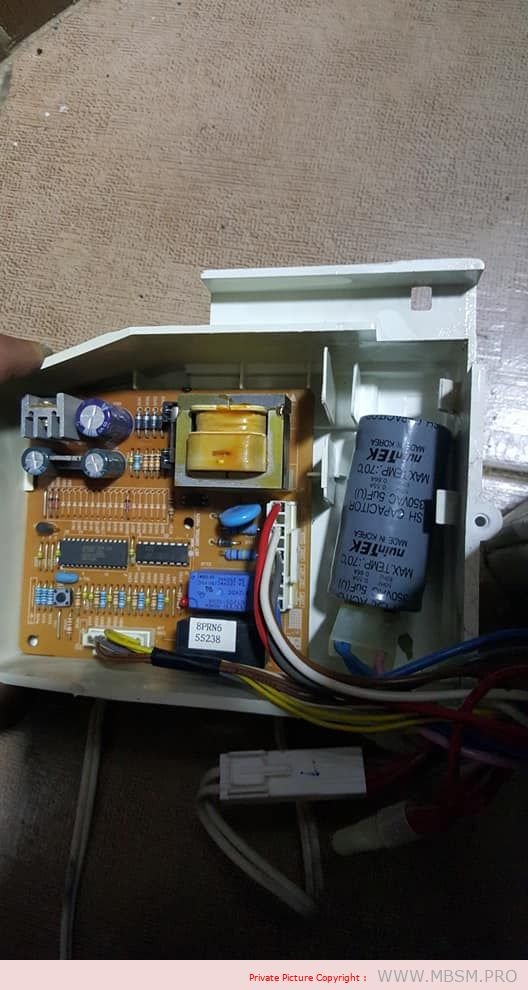

Samsung SR-40RMB Refrigerator compressor sk170h-l1u 1/4 hp

written by Lilianne | 11 September 2022

Mbsm.pro, Samsung, SR-40RMB, Refrigerator, compressor, sk170h-l1u, 1/4 hp, r134, lbp, 195 w

Mbsm_dot_pro_private_PDF_sk170h-louaTélécharger


Samsung 55A250JTAEM-SS 25300 btu Compressor

written by Lilianne | 11 September 2022

Mbsm.pro, Samsung, 55A250JTAEM-SS, 55A250JTAEM, 25300 btu, Compressor, 3 hp, r22

Mbsm_dot_pro_private_PDF_55A250JTAEM-SSTélécharger


Samsung Compressor EU4A5Q-L2X EU4A5QL2X 1/4 hp lbn

written by Lilianne | 11 September 2022

mbsm.pro, Samsung, Compressor, EU4A5Q-L2X, EU4A5QL2X, (VEGZ11C Compatible Embraco) , 1/4 hp, inverter, r600

GENERAL DATA
Application: LBP
Refrigerant: R600a
Evaporating Temperature Range: -35°C to -10°C
Compressor Cooling: Static
Type: Hermetic reciprocating
Technology Type: VCC
Expansion Device: Capillary Tube
Displacement: 11.14 cm3
Horse power: 1/4 hp

Mbsm_dot_pro_private_PDF_VEGZ11CTélécharger

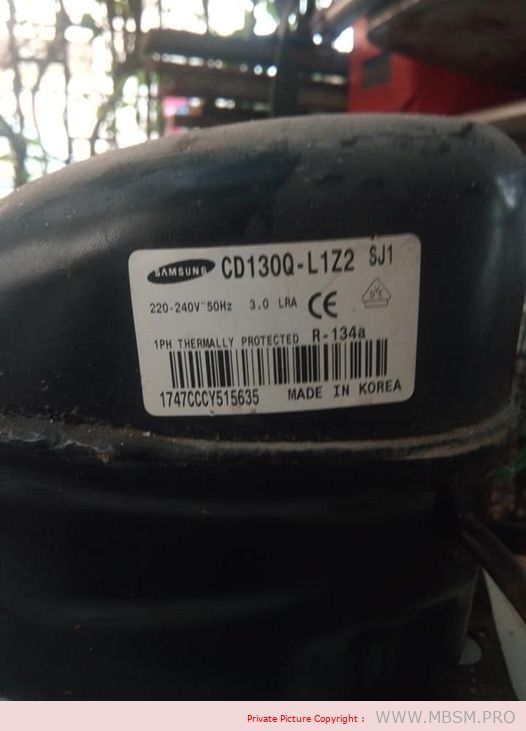

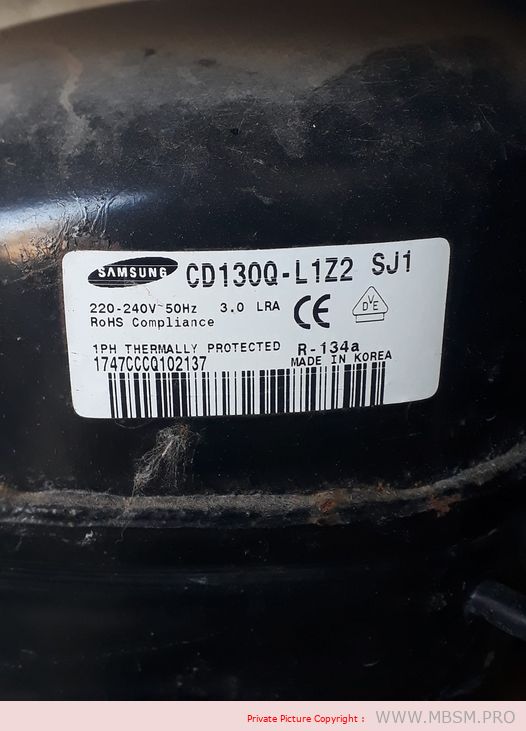

Compressor 1/10 HP R-134A Samsung CD130

written by Lilianne | 11 September 2022

Mbsm.pro, Refrigeration, Compressor, 1/10 HP, R-134A, 220V, Samsung

Mbsm.pro, Compressor,Samsung, refrigerator, MK183Q-L2Ub, R134a, 1/3 Hp, lbp, 220-240V/50HZ, refrigerator, RT61MBPN, 22 feet, 460 L



La72Laem compressor 135 w 1/5 hp

written by Lilianne | 11 September 2022

Mbsm.pro, La72Laem, compressor, 135 w, 1/5 hp, LG Compressor, r134a

Product Description

R134A R600A Refrigeration Refrigerator Freezer Fridge Parts Compressor

Suitable for Commercial refrigerators,freezers,wine cabinets,dispenser and other refrigeration appliance.


 LX/LA/LC/LD Series : R134a
Power Source Series  Model   Cooling Capacitry
(Kcal/Hr) 		  Motor Input
(Watts) 		  EER
(Btu/W.Hr) 		  Starting Voltage   Noise
(dBA) 		  Oil
 50Hz   60Hz   50Hz   60Hz   50Hz   60Hz   Cold   Warm   Break Down   50Hz   60Hz   viscosity
110-115V,60Hz LA LA80LAQH   245   203   4.80 82 77 82   42 15
LA LA80LBQH   252   184   5.45 97 88 93   42 10
LA LA86LAQH   275   214   5.10 88 82 88   42 10
LA LA95LAQH   312   243   5.10 93 88 93 42   10
LC LC62LBQH   190   136   5.55 98 88 93   41 10
LX LX67LAQG   187   177   4.19 88 83 88   41 15
LX LX67LAQM   195   166   4.65 93 88 93   41 15
LX LX72LAQG   213   185   4.57 94 88 94   41 15
LX LX72LBQG   213   198   4.27 88 83 94   41 15
LX LX72LBQM   213   181   4.67 93 82 93   41 15
LX LX86HAQG   850   450   7.50 94 88 94   53 22
LX LX86HPQF   850   450   7.50 82 88 93   53 22
LX LX86LAQM   245   198   4.91 98 92 98   42 15
LX LX95HPQF   950   523   7.20 176 187 187   50 22
LX LX95LAQH   285   230   4.92 98 88 94   42 15
LX LX95LBQH   280   240   4.63 88 82 94   41 15
110V,50-60Hz LC LC86LAAH 208 276 164 197 5.05 5.55 88 80 85 42 42 10
LX LX110LAAH 270 300 255 255 4.20 4.67 80 75 85 41 41 15
LX LX72LAAM 170 213 157 180 4.30 4.70 80 75 80 41 41 15
LX LX95LAAH 230 280 203 227 4.50 4.90 85 80 85 41 41 15
110V,50Hz LX LX72LAPG 170   169   3.99   88 83 94 41   15
115-127V,60Hz LC LC80LAUH   249   177   5.60 95 92 98   42 10
LC LC86LAUH   276   196   5.60 97 92 98   42 10
115V,60Hz LA LA62LACM   188   138   5.40 98 86 98   42 10
LA LA62LBCM   188   142   5.25 92 86 98   40 15
LA LA67LACM   209   154   5.40 97 92 97   41 10
LA LA67LBCM   210   152   5.50 97 92 97   42 10
LA LA80LACH   249   183   5.40 98 92 98   42 15
LA LA80LACM   268   165   6.45 98 92 98   42 10
LA LA86LACH   270   202   5.30 98 93 98 43   15
LC LC62LBCM   190   136   5.55 92 86 98   41 10
LC LC86LACH   277   196   5.60 98 92 98   42 10
LD LD72LACH   241   162   5.90 97 86 98   40 7
LX LX110HACF   1040   618   6.68 86 98 98   54 22
LX LX72HACG   720   370   7.73 92 98 98   53 22
LX LX86HACF   860   448   7.62 92 86 98   51 22
LX LX86HACG   860   448   7.62 98 92 98   51 22
LX LX86LACM   245   198   4.91 98 92 98   42 15
LX LX95HACF   950   524   7.20 92 98 98   54 22
127V,60Hz LA LA86LAFH   272   212   5.10 108 102 108   42 15
LC LC62LAFM   195   140   5.55 92 86 92   41 10
LX LX67LAFM   195   153   5.06 102 95 108   41 15
LX LX86LAFH   250   208   4.77 108 102 108   42 15
LX LX95LAFH   280   232   4.79 102 95 108   41 15
200-220V,50Hz
220V,60Hz		 LX LX72LASG 170 213 157 181 4.30 4.67 176 165 176 40 41 15
220-240V,50Hz LA LA62LAEM 145   113   5.16   176 165 187 40   15
LA LA72LAEM 177   135   5.20   165 165 176 42   15
LA LA95LAEM 240   181   5.25   176 165 187 42   15
LC LC80LAEM 200   148   5.36   176 165 176 40   10
LC LC86LAEM 220   162   5.40   176 165 187   41 10
LC LC95LAEH 245   178   5.45   187 165 187 42   10
LC LC95LAEM 245   178   5.45   176 165 187 42   10
LD LD95LAEH 244     171 5.65   187 176 187   41 7
LX LX110HAEM 950   503   7.50   187 176 187 52   22
LX LX110HAEP 910   503   7.18   165 176 187 52   22
LX LX110LAEH 270   215   4.99   187 176 187 41   15
LX LX110LAEM 270   215   4.99   176 165 187 42   15
LX LX67LBEG 155   151   4.08   165 165 165 40   15
LX LX72HAEG 630   325   7.70   176 187 187 50   22
LX LX72HAEP 600   315   7.56   165 176 176 50   22
LX LX72LAEG 170   154   4.38   176 165 187 41   15
LX LX72LAEM 170   146   4.62   176 165 187 40   15
LX LX72LBEG 170   154   4.38   176 165 187 41   15
LX LX86HAEG 745   385   7.68   176 165 187 50   22
LX LX86HAEP 710   385   7.32   165 176 176 50   22
LX LX86LAEG 205   177   4.60   187 176 187 41   15
LX LX86LAEM 194   159   4.84   187 176 187 41   15
LX LX86LBEG 194   179   4.30   176 165 187 41   15
LX LX86LCEG 194   182   4.23   176 165 176 41   15
LX LX95HAEG 830   440   7.49   176 187 187 50   22
220-240V,50Hz
220V,60Hz		 LX LX72LATF 170 213 159 181 4.24 4.67 176 165 176 40 41 15
LX LX72LATG 170 213 159 181 4.24 4.67 176 165 176 40 41 15
LX LX72LATH 170 213 157 175 4.30 4.83 176 165 176 40 41 15
220V,50-60Hz LX LX67LABG 155 195 145 167 4.24 4.64 176 165 187 41 41 15
LX LX67LABH 160 196 142 158 4.47 4.93 176 165 187 40 41 15
LX LX67LABM 155 195 128 152 4.81 5.09 176 165 187 41 41 15
LX LX72LPBP 166 206 153 180 4.30 4.54 187 176 187 42 42 15
LX LX86LABM 194 250 159 193 4.84 5.14 187 176 187 41 41 15
LX LX86LPBP 196 247 190 218 4.10 4.50 187 176 187 44 44 15
LX LX95LABH 230 280 210 224 4.35 4.96 176 165 165 41 41 15
220V,50Hz LA LA95LAJH   240   198   4.81 165 154 165   41 10
LX LX110LAJH 270   236   4.54   176 165 187 41   15
LX LX110LAJM 270   236   4.54   176 165 187 42   15
LX LX125LAJM 315   278   4.50   176 165 176 42   15
LX LX86LAJG 194   182   4.23   176 165 176 41   15
  LA LA62LADM   188   141   5.30 176 165 187   40 15
LA LA72LADM   229   165   5.50 187 165 187   41 15
LA LA80LADM   246   181   5.40 176 165 187   42 15
LA LA86LADH   268   197   5.40 176 165 187   42 15
LC LC62LADM   193   138   5.55 187 176 187   41 10
LC LC62LBDM   193   139   5.50 176 165 176   41 10
LC LC72LADM   229   159   5.70 187 176 187   40 10
LC LC86LADH   277   193   5.70 187 176 187   42 10
LD LD62LADM   195   136   5.70 182 165 187   41 7
LD LD72LADM   241   164   5.85 187 176 187   40 7
LD LD72LADM   241   161   5.95 187 176 187   40 7
LT LTA62LADH   190   142   5.30 176 165 187   42 10
LX LX110HPDP   1000   630   6.30 176 187 187   54 22
LX LX110LPDP   300   290   4.11 187 176 187   44 15
LX LX125HPDP   1200   760   6.27 176 187 176   53 22
LX LX67LADG   195   168   4.61 176 165 176   41 15
LX LX72HPDG   695   397   7.00 165 176 187   51 22
LX LX72HPDP   700   385   7.20 176 187 187   51 22
LX LX72LADM   213   169   5.00 176 165 187   41 15
LX LX86HPDP   840   460   7.25 176 187 187   52 22
LX LX86LADM   250   193   5.14 187 176 187   41 15
LX LX95LADH   280   224   4.96 176 165 165   41 15
 L Series : R600a
Power Source Series  Model   Cooling Capacitry
(Kcal/Hr) 		  Motor Input
(Watts) 		  COP
(W/W) 		  Starting Voltage   Noise
(dBA) 		  Oil
 50Hz   60Hz   50Hz   60Hz   50Hz   60Hz   Cold   Warm   Break Down   50Hz   60Hz   viscosity
220-240V,50Hz LX LX95NAEM 115   102   1.13   176 165 187 39
LX LX110NAEM 134   117   1.15   176 165 187 39

Any needs,pls contact me,
Best regards!

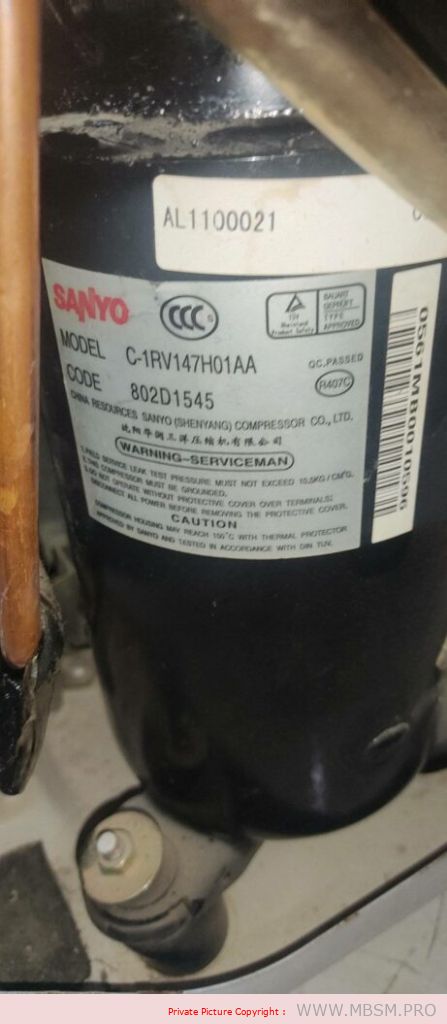

SANYO COMPRESSOR c-1rv147h01aa 12000btu

written by Lilianne | 11 September 2022

SANYO COMPRESSOR , c-1rv147h01aa,12000 btu, 1.5 hp, 1 ton, r22



Compressor 5/8HP 470W R134A Refrigerator Sc21g 104G8140

written by Lilianne | 11 September 2022

Mbsm.pro, Compressor, Secop, Original, New, 5/8HP, 470W, R134A, Refrigerator, Sc21g, 104G8140

SECOP original new 5/8HP 470W R134a refrigerator SC21G 104G8140   Product Description:

1.Easy to install ,low cost

2.Low noise and high performance

3.Strong and durable

4.Adapt to unstable power source

5.High reliability, long service life

Key Features:

1. Adopt high efficient rotary compressor and Japan made motors, save power 10% or above.

2. The horizontal designed series can save much space.

3. Optimized design can be tightly built inside the equipment, which can save installation time and labor cost.

4. Widely used in freezing storage, cold room, automatic vendor machine, cold tanks on the ship, etc. as well as in the home use, commercial, refrigerator, refrigeration machine, dehumidifier, low-temperature laboratory device and some special refrigeration equipment.

Refrigerator Compressor Models and Parameter:

Model Number Voltage Horse Power(HP) Refrigerant Back Pressure
SC10G 220~240V, 50Hz 5/16HP,235W R134a Low/high
SC12G 220~240V, 50Hz 1/3HP, 250W R134a Low/high
SC15G 220~240V, 50Hz 3/8HP,280W R134a Low/high
SC18G 220~240V, 50Hz 1/2HP,375W R134a Low/high
SC21G 220~240V, 50Hz 5/8HP,470W R134a Low/high
SC10GH 220~240V,60Hz 5/8HP, 475W R134a low
SC15GH 220~240V, 50Hz 3/8HP,280W R134a low

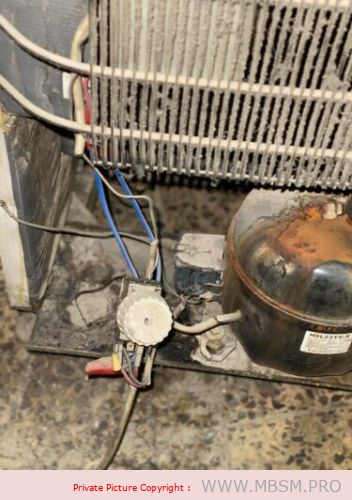

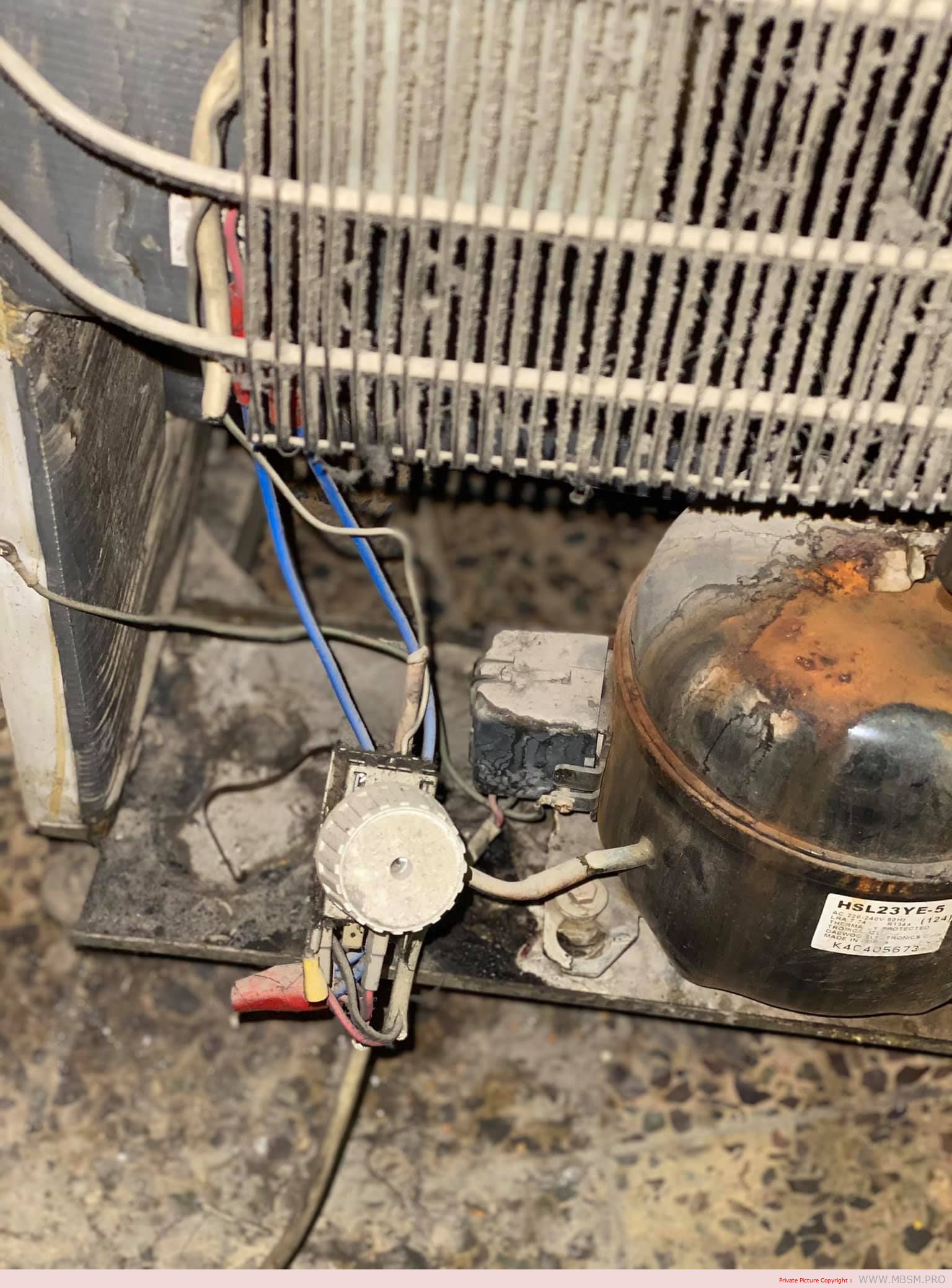

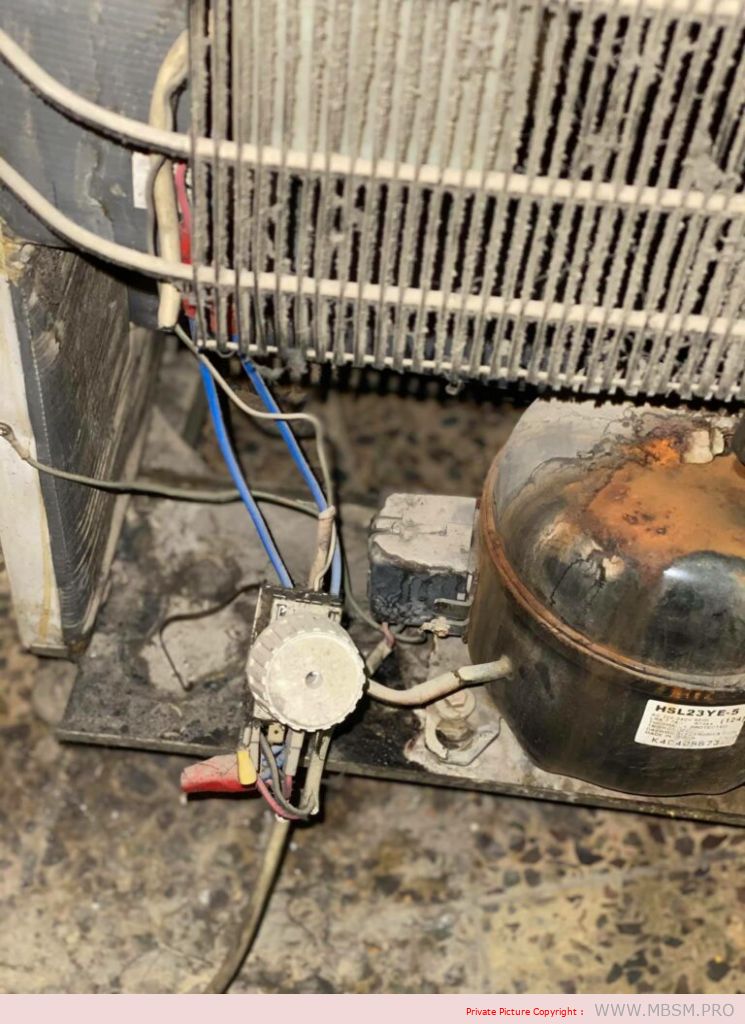

Mbsm.pro, hsl23ye-5, compressor 1/5 hp, DAEWOO COMPRESSOR

written by Lilianne | 11 September 2022
R134a 220-240V 50Hz



Model

Cooling Capacity

Efficiency

Motor Type

Cooling Type

NetWeight [kg]

OilQty. [cc]

Kcal/h

Watt

Btu/h

EFF

COP

EER

Kcal/Wh

W/W

Btu/Wh

HPL21YE-5-K

155

180

615

1.00

1.16

3.97

RSCR

ST/OC/FC

9

290

HPL21YE-5-L

155

180

615

1.04

1.2

4.11

RSCR

ST/OC/FC

8.9

290

HSL21YE-5

155

180

615

1.04

1.21

4.13

RSIR

ST/OC/FC

9

290

HPL23YE-5

171

199

635

1.1

1.27

4.35

RSCR

ST/OC/FC

9.5

290

HPL23YE-5-K

171

199

679

1.14

1.19

4.52

RSCR

ST/OC/FC

9

290

HSL23YE-5

171

199

679

1.06

1.16

4.21

RSIR

ST/OC/FC

9.3

290

HGH23YE-5

581

676

2306

1.94

2.25

7.69

CSIR

OC/FC

9.3

290

HKL25YE-5

180

209

714

0.97

1.19

3.84

CSIR

ST/OC/FC

9.5

290

HPL25YE-5-K

180

209

714

1.22

1.29

4.86

RSCR

ST/OC/FC

9

290

HPL25YE-5-L

180

209

714

1.07

1.31

4.23

RSCR

ST/OC/FC

9

290

HGH25YE-5

631

734

2504

1.88

2.19

7.47

CSIR

OC/FC

9.5

290

HKL27YE-5

210

244

833

1.01

1.17

4.27

CSIR

ST/OC/FC

9.5

290

HPL27YE-5

210

244

833

1.01

1.31

4.63

RSCR

ST/OC/FC

9.5

290

HPL27YE-5-K

210

244

833

1.01

1.2

4.90

RSCR

ST/OC/FC

9

290

HSL27YE-5

210

244

833

1.01

1.2

4.32

RSIR

ST/OC/FC

9.5

290

HSL27YE-5A

210

244

833

1.01

1.22

4.32

RSIR

ST/OC/FC

9.5

290

HKH27YE-5

732

851

2817

1.92

2.23

7.61

CSIR

OC/FC

9.5

290

HSH27YE-5

732

851

2817

1.88

2.19

7.47

RSIR

OC/FC

9.5

290

HKL30YE-5

230

267

913

1.01

1.1

3.61

CSIR

ST/OC/FC

9.5

290

HPL30YE-5-K

230

267

913

1.01

1.28

4.75

RSCR

ST/OC/FC

9

290

HSL30YE-5

230

267

913

1.01

1.05

3.61

RSIR

ST/OC/FC

9.5

290

HSH30YE-5

780

907

3095

1.01

2.13

6.57

RSIR

OC/FC

9.5

290

HKL30YE-5

230

267

913

1.01

1.1

3.61

CSIR

ST/OC/FC

9.5

290

HPL30YE-5-K

230

267

913

1.01

1.28

4.41

RSCR

ST/OC/FC

9

290

HSL30YE-5

230

267

913

1.01

1.05

3.61

RSIR

ST/OC/FC

9.5

290

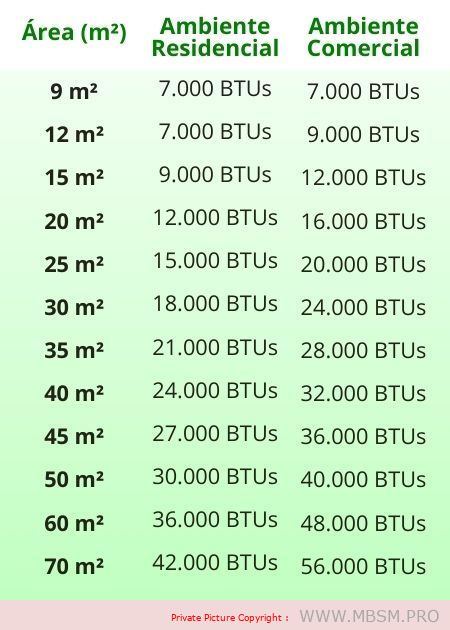

Mbsm.pro, Air conditioner BTU table

written by Lilianne | 11 September 2022

Mbsm.pro, Air conditioner BTU table

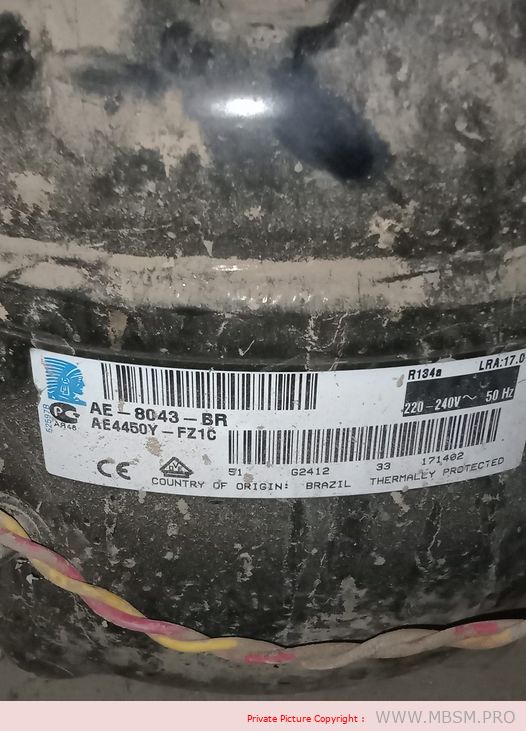

Compressor Tecumseh AE 4450 Z – AE4450Z – AE4450Y-AA1A 0.3 hp++

written by Lilianne | 11 September 2022

Mbsm.pro, compressor, AE 4450 Z, AE4450Z, AE4450-Z-FZ, AE4450Y-AA1A, AE4450Z-FZ1A, HMBP,r134a , 1/3 hp ++, Cooling compressor for cola display refrigerators, water coolers

Description

Compressor Hermetic unit Tecumseh AE4450-Z-FZ – HMBP – r134a 220-240/1/50 – CSIR Swept volume: 8.8 cm³

Technical characteristics

  • Brand: TECUMSEH HERMETIC UNIT
  • Model: AE4450Z-FZ1A
  • DISPLACEMENT (CM³)8.85
  • FLUIDR r134a
  • APPLICATIONHBP
  • POWER (W)1151
  • COOLING CAPACITY (TK+40°C)T0 +15 / 2006
  • TENSION (V)220-240V / 50Hz
  • STARTUPCSIR
  • I.MAX (A)5.1
  • Ø ASPIRATION1/4
  • Ø DISCHARGE3/16
  • DIMENSIONS (MM)180X114.3

Mbsm_dot_pro_private_PDF_Compresseurs-AE-4450-ZTélécharger
Mbsm_dot_pro_private_PDF_ae4450z-aa1aeb_32v389-4_rev1Télécharger
