Mbsm.pro, compressor, DANFOSS, 1/4 hp, R404a/R507, NL8.4CLX, LBP, 105F3800

• 220/230V 50Hz power 1/4 Hp – displacement 8,35 cc
• gas R404a/R507 LBP 105F3800-HST DANFOSS

Technical data

Kältemittel	R404a/R507
Typ	NL8.4CLX
Leistung	1/4 HP
Hubraum	8,35 cm³
Motorsystem	RSIR/CSIR
Spannung	220-240 V
Frequenz	50 Hz
Anwendung	LBP
Testverfahren	ASHRAE
Leistung bei -15°C	683 W
Leistung bei -20°C	549 W
Leistung bei -25°C	434 W
Leistung bei -30°C	254 W
Leistung bei -5°C	1.015 W
Leistung bei -10°C	838 W
Gewicht	10,51 kg

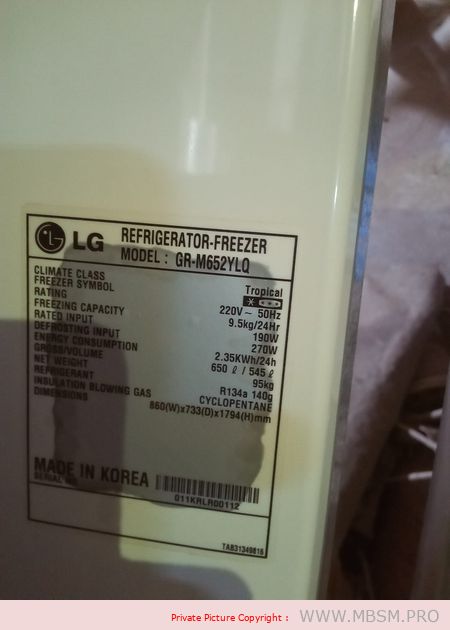

Mbsm.pro, GR-M652YLQ, LG, refrigerator, 24 feet, 650 L, Compressor, LX86HAEP, 1/2 hp, 330 w, r134a, 140 g

LG Refrigeration Compressor ,LX86HAEP , serie LX, LX86, 226 w , 220 v 50Hz , R134A ,1/3 Hp, Lbp

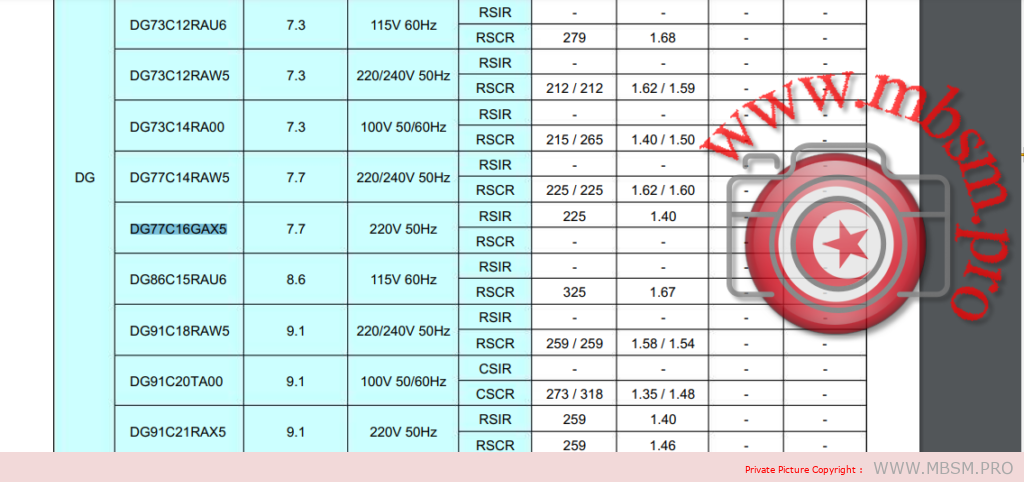

Mbsm.pro, Compressor, DG77C16GAX5, 1/5 hp++, 1/4 hp–, 225 w, Low Back Pressure, Refrigerant: R134a, Panasonic Industrial Devices

DG77C16GAX5(RSIR) : Reciprocating Compressors (Fixed Speed)

ProductReciprocating Compressors (Fixed Speed)

Series/TypeD Series (Reciprocating Fixed Speed, R134a, LBP)

Parts no DG77C16GAX5(RSIR)

Item	Performance characteristics
Refrigerant	R134a
Displacement (cm³)	7.7
Voltage (V)	220
Frequency (Hz)	50
Motor Type	RSIR
Capacity@ASHRAE	225
COP@ASHRAE	1.4
Capacity@CECOMAF	–
COP@CECOMAF	–

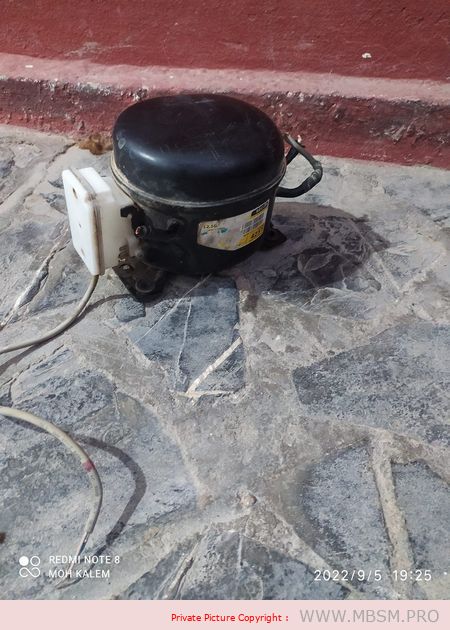

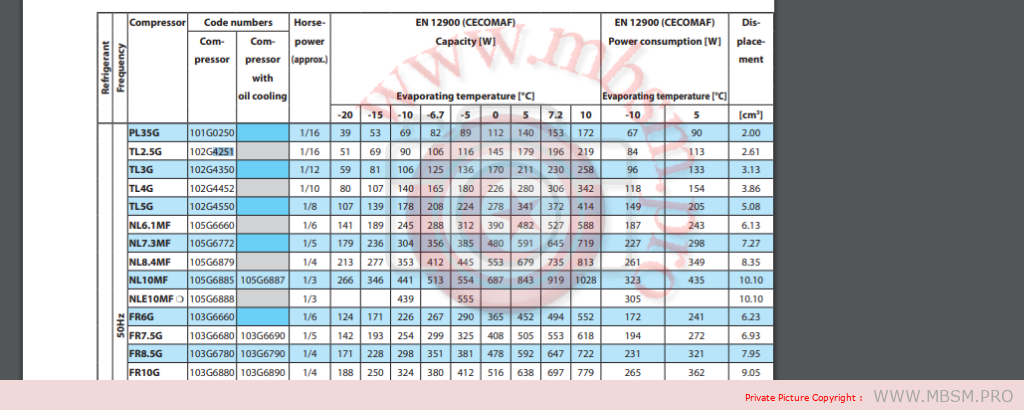

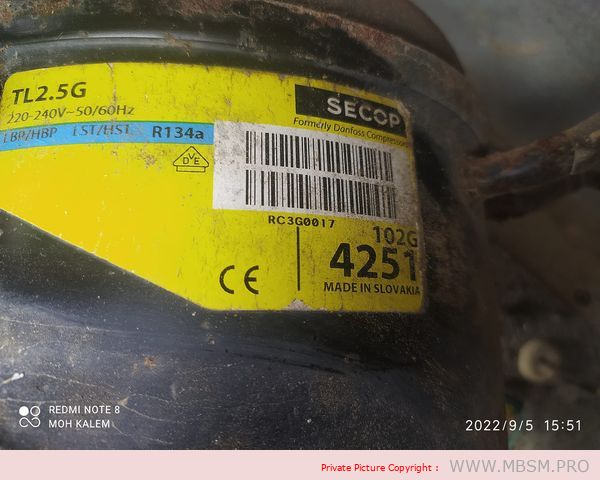

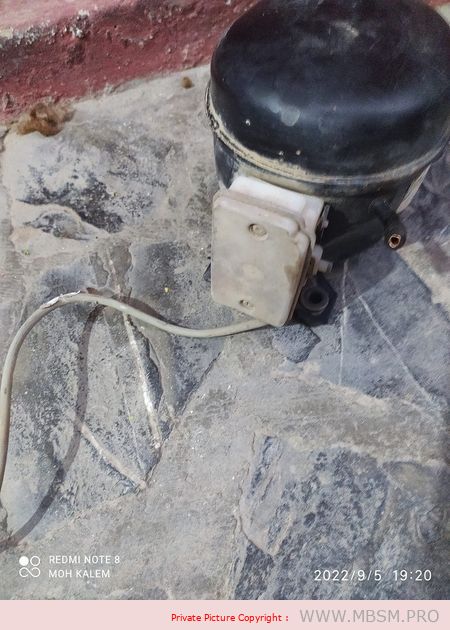

Mbsm.pro, TL2.5G, 102G4251, 1/16 hp, Danfoss Compressors

Mbsm.pro, air conditioner, Kf-50gw, 18000 btu, 1.5 ton, 2.25 hp, 8.1 a, inverter, r410, 1600 g

Mbsm.pro, carrier, 51gr18e, 18000 btu, 25 a

Mbsm.pro, Refrigerator, RT25fajedww, 250 L, no frost, inverter, Compressor, BDC, 1/6 hp, lbp, R600a, 46g, 220v

Main features

Net capacity of refrigerator:181L

Net freezer capacity:53L

Annual energy consumption:

253 kWh

Total net capacity:234L

Noise level:

42 dB

Height:1545 millimeters

Depth:688 millimeters

Width:555 millimeters

Product color:

White

All features

Fridge

No Frost (fridge):

Yes

Net capacity of refrigerator:181L

Fridge door balconies:4

Fridge interior light:Yes

Number of refrigerator shelves/baskets:3

Multi-Airflow system (fridge):

Yes

Egg balcony:Yes

Number of vegetable drawers:1

Lamp type:

LED

Freezer

Net freezer capacity:53L

Freezer position:

Top-placed

Freezing capacity:3.5 kilos/24 hours

Storage time during power failure:

11 h

Star na marka:4*

Design

Product color:White

Shelves material:

Tempered glass

Built-in display:

No

Power

Annual energy consumption: 253 kWh

Energy efficiency class (old):

A+

Performance

Total net capacity:234L

Total capacity: 250L

Noise level: 42 dB

Other features

Door hinge:

Right

Icemaker:

Yes

Weight & dimensions

Package weight:

53000 g

Height:1545 millimeters

Width:555 millimeters

Depth:688 millimeters

Package depth:710 millimeters

Package height:1610 millimeters

Package width:582 millimeters

Depth without handle:637 millimeters

Mbsm.pro, Kulthorn, AE 3414Y, Compressor, Small, 1,570 BTU/Hr, 1/8HP, R134a, 208-230V, 60Hz, 1Ph, HBP, overload Plus Relay, AE3414Y

Description

Make sure this fits by entering your model number..

Kulthorn hermetically sealed reciprocating refrigeration compressors.Use for household and commercial refrigerators & water coolers.

small size, low weight, low noise output, enery saving compressor, direct replacement.

1,570 BTU/Hr, 1/8HP, R134a, 208-230V, 60Hz, 1Ph, HBP, overload Plus Relay.

RSIR Motor with current relay, the motors have a normal starting torque and are designed for completely self-equalizing capillary tube.

This is a Kulthorn replacement part.

Part Number AE 3414Y-2.

This is an O.E.M. part.

Kulthorn hermetically sealed reciprocating refrigeration compressors; Use for household and commercial refrigerators & water coolers.

Small size, low weight, low noise output, energy saving compressor, direct replacement.

1,570 BTU/Hr, 1/8HP, R134a, 208-230V, 60Hz, 1Ph, HBP, overload Plus Relay.

RSIR Motor with current relay, the motors have a normal starting torque and are designed for completely self-equalizing capillary tube.

This is a Kulthorn replacement part.

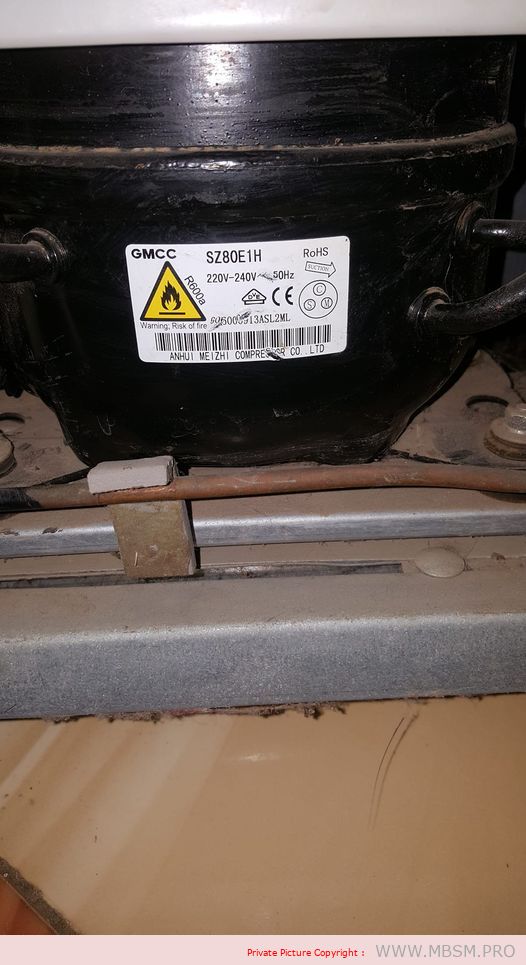

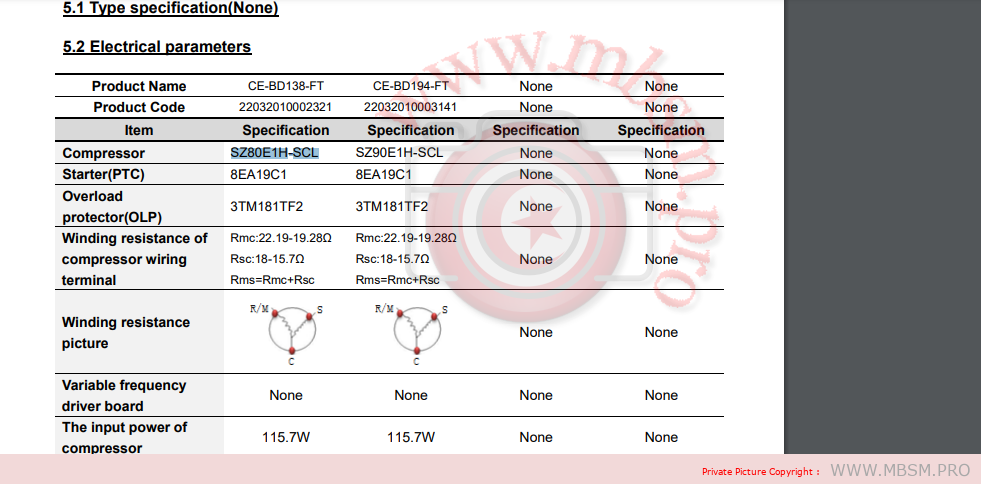

SZ80E1H-SCL SZ90E1H-SCL

CE-BD138-FT

• Freezer 138 Litres
• Compressor 1/6 hp SZ80E1H-SCL
• Refrigerator compressor GMCC-TOSHIBA
• Part number: SZ80E1H
• Engine type: RSIR
• Refrigerant: R-600
• Pa220-240V:50Hz
• Low temperature: LBP
• Power: 137W at -23.3 C
• Starting relay: QP2-15 AM EP
• Thermal relay: 158SF2 KAK0AB

CE-BD194-FT

• Refrigerant Compressor R600a
• GMCC
• PZ90H1Y SXF-562JA
• 1 / 5hp
