Mbsm.pro, compressor, Panasonic, 1/3 hp, Lbp, E Series, R134a, ETI57C13DCH, ENI68C13DCH, Reciprocating, Compressors, Variable Speed, inverter, BLCD, from 63 to 240 w, 240v+-, from 60 to 268 hz, from 25 rps to 72 rps

written by Jamila | 28 November 2022
Specification
Mbsm.pro, compressor, Panasonic, Lbp, E Series, R134a, ETI57C13DCH, ENI68C13DCH, Reciprocating, Compressors, Variable Speed, inverter, from 63 to 240 w, 240v+-, from 60 to 268 hz, from 25 rps to 72 rps
Mbsm_dot_pro_private_PDF_ENI68C13DCH
Item Performance characteristics
Refrigerant R134a
Displacement (cm³) 6.8
Voltage (V) 100
Frequency (Hz) 50
Speed (s⁻¹) 25
Capacity@ASHRAE –
COP@ASHRAE –
Capacity@PREF 78
COP@PREF 1.70


Mbsm.pro, Compressor, GL60AA, GL60AB, GL50AA, GL50AB, AZ107Y, AZ90, YGVM44AA, GLY45AA, GLY45AA, TLS5F, 1/6 hp, lbp

written by Jamila | 28 November 2022

TMbsm_dot_pro_private_PDF_GL50AA Mbsm_dot_pro_private_PDF_GL50AA-1

Compressor ACC Cubigel Huayi Electrolux ZEM GL50AA / GVM44AA > new model GLY45AA
Refrigerant:
R134a
Power range(W):
0 – 100 W
Connecting size:
5,9 mm
Suction:
7,5 mm
Working area:
LBP
Design type:
Hermetic
Model series:
GL
Use with:
Capillary
Power range(HP):
0-2
Power supply:
230 V
Temperature range:
-35 to -10
Oil type:
ISO VG 22 Ester
Engine type:
RSIR
Article condition:
New
Info:
Oil filled
Shipping weight:
8,50 kg
Dimensions ( Length × Width × Height ):
20,40 × 16,20 × 17,50 cm
Cooling capacity condition:
-25 / +55 °C
customs tariff number:
84143081
Manufacturer:
ACC Cubigel Huayi Electrolux ZEM
Size:
7.5 + 5.9 mm
Model:
GL50AA
Modelname:
Mbsm_dot_pro_private_PDF____GL50AA1 Mbsm_dot_pro_private_PDF___GL50AA1 Mbsm_dot_pro_private_PDF__GL50AA
Stroke volume (cm3):
3,38
Cooling capacity (W):
90
Power (HP):
0,15
Max. Starting current (A):
8,1
Max. Operating current (A):
0,72
Engine type:
RSIR
COP:
0,83
Note:
Static cooling
Oil quantity (l):
0,21
Compressor type:
Piston
Alternative:
GLY45AA, TLS5F
Pressure line (mm):
5,9
Suction line (mm):
7,5

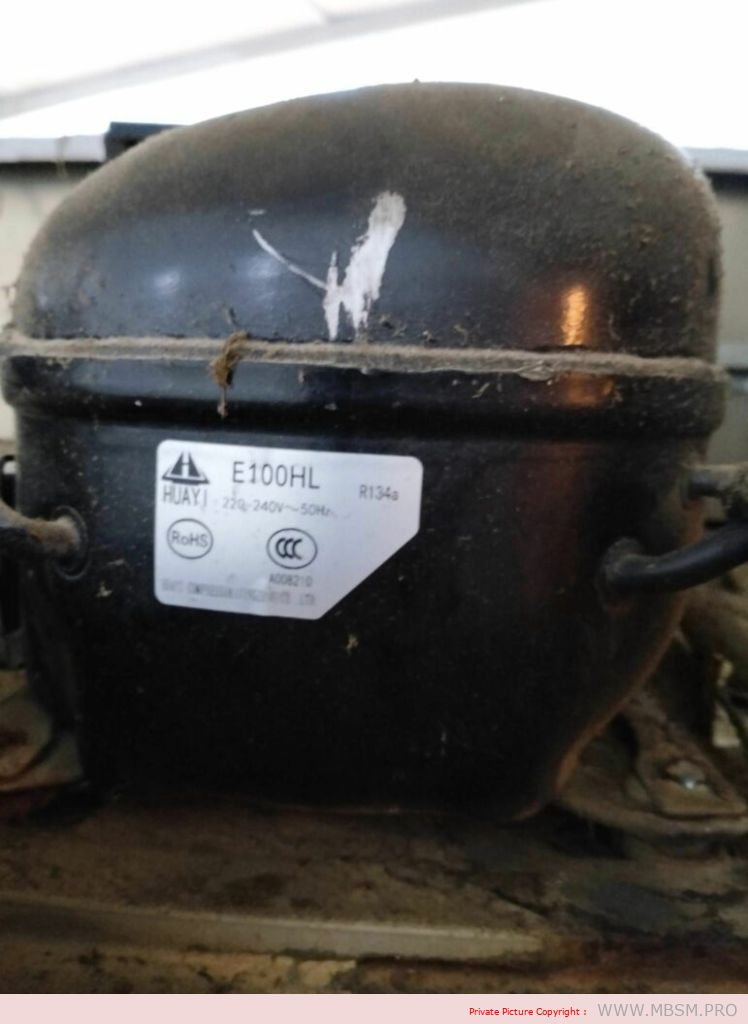

Mbsm.pro, Compressor, Eateron, E100HL, R-134, 23.3C, 280W, HUAYI, LBP

written by Jamila | 28 November 2022

HUAYI R134a COMPRESSOR LBP MODELS

Model Power supply (V/Hz) Displacement (cm3) Cooling Capacity(W) COP (W/W) Motor Type
L22HL 220~240/50 2.2 47 0.80 RSIR
220~240/60 2.2 55 0.95 RSIR
L22H5 110~120/60 2.2 55 0.80 RSIR
L22H5L 110~120/60 2.2 55 0.90 RSIR
L22H7L   127/60 2.2 55 0.90 RSIR
L25H 220~240/50 2.6 55 0.85 RSIR
220~240/60 61 0.90
L25H5 110~120/60 2.6 61 0.90 RSIR
L25H5L 110~120/60 2.6 61 0.90 RSIR
L30H 220~240/50 3.1 67 0.90 RSIR
L30HL 220~240/50 3.1 67 0.90 RSIR
220~240/60 75 1.00 RSIR
L30H5L 110~120/60 3.1 75 1.00 RSIR
L30H5 110~120/60 3.1 75 1.00 RSIR
B22H 220~240/50 2.2 47 0.72 RSIR
220~240/60 54 0.80 RSIR
B22HL 220~240/50 2.2 47 0.85 RSIR
220~240/60 54 1.00 RSIR
B22H5 110~120/60 2.2 54 0.80 RSIR
B22H5L 110~120/60 2.2 54 0.90 RSIR
B25H 220~240/50 2.6 55 0.85 RSIR
220~240/60 63 0.94 RSIR
B25H0 100~50/60 2.6 63 0.90 RSIR
B25H5 110~115/60 2.6 63 0.88 RSIR
63 1.10 RSCR
63 1.25 RSCR
B25H5B 110~115/60 2.6 63 1.00 RSIR
63 1.10 RSCR
63 1.25 RSCR
B25H5L 110~120/60 2.6 63 0.95 RSIR
63 1.10 RSIR
63 1.20 RSCR
B25H7    127/60 2.6 63 0.90 RSIR
B30H 220~240/50 3.1 70 0.88 RSIR
220~240/60 80 0.98 RSIR
B30H0    100~50/60 3.1 80 0.90 RSIR
B30H5 110~115/60 3.1 80 0.98 RSIR
80 1.15 RSCR
80 1.25 RSCR
B30H7   127/60 3.1 80 1.05 RSIR
B35H 220~240/50 3.5 79 0.90 RSIR
220~240/60 90 0.95 RSIR
B38H 220~240/50 3.8 86 0.95 RSIR
220~240/60 97 1.10 RSIR
B38H5 110~115/60 3.8 97 1.10 RSIR
110~115/60 97 1.30 RSCR
B38H7   127/60 3.8 97 1.10 RSIR
B43H 220~240/50 4.3 97 0.95 RSIR
220~240/60 110 1.10 RSIR
B43HB 220~240/50 4.3 97 1.25 RSCR
220~240/60 110 1.40 RSCR
B43H5 110~115/60 4.3 110 1.10 RSIR
B43H5L 110~120/60 4.3 110 1.10 RSIR
B48H 220~240/50 4.8 110 1.05 RSIR
K38HL 220~240/50 3.8 95 1.10 RSIR
K43HL 220~240/50 4.3 110 1.10 RSIR
K48HL 220~240/50 4.8 120 1.15 RSIR
K52HL 220~240/50 5.2 145 1.25 RSIR
F52HL 220~240/50 5.2 145 1.25 RSIR
F60HL 220~240/50 6.0 165 1.25 RSIR
F70HL 220~240/50 6.9 190 1.25 RSIR
F80HL 220~240/50 7.9 220 1.35 RSIR
F85HL 220~240/50 8.4 235 1.20 RSIR
E80HL 220~240/50 8.1 220 1.35 RSIR
E95HL 220~240/50 9.3 265 1.20 RSIR
E100HL 220~240/50 9.8 280 1.20 RSIR
E110HL 220~240/50 11.3 300 1.20 CSIR
E130HL 220~240/50 13.1 360 1.25 CSIR
X130HL 220~240/50 13.1 360 1.25 CSIR
X150H 220~240/50 15.3 410 1.25 CSIR
X150HL 220~240/50 15.3 410 1.25 CSIR
X165HL 220~240/50 16.4 450 1.25 CSIR
Test conditions According to ASHRAE
Evaporating temperature -23.3℃
Condensing temperature 54.4℃
Subcooling temperature 32.2℃
Suction temperature 32.2℃
Ambient temperature 32.2℃

Working condition limit：R134a

Max ambient temperature 43[℃]
Working voltage range 0.85×Ue~1.06×Ue [V]
Max discharge pressure 1.79[Mpa] (gauge pressure)
Max allowable housing temperature 95[℃]
Max discharge temperature 130[℃]
Max pressure housing endured 3.5 [Mpa] (gauge pressure)

R134a-LBP COMPRESSORS – E SERIES



 Model
Power supply
(V/Hz)

 		  Displacement
（cm3）		  Cooling

Capacity(W)

  C.O.P

(W/W)

  Motor Type  Certification
E Series
E80HL 220～240/50 8.1 225 1.35 RSIR
E85HL 220～240/50 8.7 240 1.25 RSIR
*E95HL 220～240/50 9.3 265 1.20 RSIR
E100HL 220～240/50 9.8 280 1.20 RSIR

* TOLERANCE: Capacity: ≥95%,  Input Power: ≤115%,  Current: ≤110%,  C.O.P≥93%;  HBP-Evaporator Temperature: -5℃~15℃
* COOLING  TYPE:  ST=Static Cooling,  FC=Fan Cooling,  OC=Oil Cooling

Test Conditions LBP MHBP Conversion Table
ASHRAE CECOMAF ASHRAE CECOMAF 1 Kcal/h×1.163=W
Evaporator Temp.℃ -23.3 7.2 2 Kcal/h×3.968=Btu/h
 Ambience Temp.℃ 32.2 35.0 3 W×3.412=Btu/h
Condenser Temp.℃ 54.4 54.4 4 W×0.864= Kcal/h
Suction Temp.℃ 32.2 35.0 5 EER=COP×3.412
Subcooling Temp.℃ 32.2 46.1 6 Capacity(at 50Hz)×1.16=Capacity(at 60Hz)


Mbsm.pro, Dongbei compressor, aluminum wire, R600a, R134a, S65CY1, S75CY1, S80CY1, S96CY1, H170CY1, L118CY1, L126CY1, L140CY1, K270CY1, D40CY1, D53CY1, D65CY1, A80CY1, A100CY1, A120CY

written by mahdi miled | 28 November 2022
Model Power Displacement Run Capacitor Start Capacitor
HP cm³ uF uF
LBP
220-240V 50Hz R600a
D40CY 1/14 4.0
D43CY 1/11 4.3
D53CY 1/10 5.3
D65CY 1/8 6.5
DG40CY 1/14 4.0 2.5
DG53CY 1/10 5.3 3
DU40CY 1/14 4.0 2
DU53CY 1/10 5.3 3
220-240V 50Hz R600a (Aluminum wire motor)
D40CY1 1/14 4.0
115V 60Hz R600a
D55BY 1/8 5.5
100V 50/60Hz R600a
DG40AY 1/11 4.0
220-240V 50Hz R134a
D25CZ 1/14 2.5
D30CZ 1/12 3.0
220-240V 50/60Hz R134a
D25DZ 1/10 2.5
100V 50/60Hz R600a
DG40AY 1/11 4.0
115V 60Hz R134a
*D25BZ 1/10 2.5
D30BZ 1/9 3.0
D36BZ 1/8 3.6
DK25BZ 1/10 2.5 12
115V 60Hz R134a (Aluminum wire motor)
D25BZ1 1/10 2.5
DK25BZ1 1/10 2.5 12
220-240V 50/60 Hz R134a (Aluminum wire motor)
D25DZ 1/10 2.5 75



Mbsm_dot_pro_private_PDF_______D40CY1B



Mbsm.pro, compressor, Highly, hitachi, rotary, SHX33 , 2 hp, 17750 btu, R22

written by Jamila | 28 November 2022
Essential details
Type:
COMPRESSOR
Place of Origin:
Shanghai, China
Brand Name:
Hitachi
Certification:
ce, CCC
After-sales Service Provided:
No overseas service provided
key words:
Highly hitachi rotary compressor SHX33 made in China
cooling capacity(w):
5200
cooling capacity(btu):
refrigerant:
R22
voltage:
220V-240V 50HZ
condition:
used
horse power:
2hp
Capacitor:
50/420
Dis.(cc):
33.6
COP.:
3

Packaging & delivery

Selling Units:
Multiple of 50
Package size per batch:
115X110X92 cm
Gross weight per batch:
940.000 kg
Package Type:
packing with carton,1 unit(pcs) in a carton;

packing with wood pallet,50 cartons in a pallet.
Quantity(units) 1 – 250 >250
Lead time (days) 5 To be negotiated

Highly hitachi rotary compressor SHX33 made in China

Specifications

 1.Higher efficiency ;

2.Lower sound levels;

3.Superior durability

Models Availability



Hitachi compressor
Model Cooling capacity Dis.(cc) COP. Capacitor Height Diameter
SHX33 2 5200 17740 33.6 3 50/420 293.4 139.1
SHY33 2 5200 17740 30.7 3.15 50/400 307.8 139.1
SL222 1.5 3740 12761 22.2 3.05 35/450 264 129.1
500DH(scroll) 5 16000 54560



Product Description

Highly hitachi rotary compressor SHX33 made in China





Mbsm.pro, Danfoss, Reciprocating, compressor, NLX11KK.2, 105H6971, NLX11KK.2 105H6971, 1/4 hp++, 1/3 hp–, r600a

written by mahdi miled | 28 November 2022

Description

Product details

Gross weight 12.47 kg
Net weight 12.47 kg
Gross weight 12.47 kg
Net weight 12.47 kg

Application energy level High Energy-optimized
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 31.8 Ohm
Base plate type EU small
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Cut in current LST [A] 6.4 A
Description NLX11KK.2
Discharge connection angle [°] 21 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 5 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 2360 cm3
Frequency [Hz] 50
Height from baseplate [mm] 197 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
Length [mm] 252 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
LRA LST [A] 3.5 A
Main winding resistance for single-phase compressors [Ohm] 18.5 Ohm
Model number NLX11KK.2
Motor type RSCR
No. of phases (compressor) 1
Oil quantity [cm3] 270 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Process connection angle [°] 25 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R600a
Refrigerant charge [kg] [Max] 0.15 kg
RLA 0.70 A
Rotational speed at 50Hz [rpm] 3000 rpm
Run capacitor capacitance 2 µF
Segment usage Refrigeration LT
Speed Platform Fixed-speed
Suction connection angle [°] 2 °
Suction connection comments Al-cap
Suction connection diameter [mm] 6.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 11.15 cm3
Technology Reciprocating
Total height [mm] 203 mm
Type NL
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Width [mm] 166 mm
Winding temperature short term [°C] [Max] 110 °C
Winding temperature stat [°C] [Max] 95 °C
Application energy level High Energy-optimized
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 31.8 Ohm
Base plate type EU small
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Cut in current LST [A] 6.4 A
Description NLX11KK.2
Discharge connection angle [°] 21 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 5 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 2360 cm3
Frequency [Hz] 50
Height from baseplate [mm] 197 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
Length [mm] 252 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
LRA LST [A] 3.5 A
Main winding resistance for single-phase compressors [Ohm] 18.5 Ohm
Model number NLX11KK.2
Motor type RSCR
No. of phases (compressor) 1
Oil quantity [cm3] 270 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Process connection angle [°] 25 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R600a
Refrigerant charge [kg] [Max] 0.15 kg
RLA 0.70 A
Rotational speed at 50Hz [rpm] 3000 rpm
Run capacitor capacitance 2 µF
Segment usage Refrigeration LT
Speed Platform Fixed-speed
Suction connection angle [°] 2 °
Suction connection comments Al-cap
Suction connection diameter [mm] 6.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 11.15 cm3
Technology Reciprocating
Total height [mm] 203 mm
Type NL
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Width [mm] 166 mm
Winding temperature short term [°C] [Max] 110 °C
Winding temperature stat [°C] [Max] 95 °C

Refrigerant: R600a, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 220-240/1/50Mbsm_dot_pro_private_PDF_nlx11kk.2

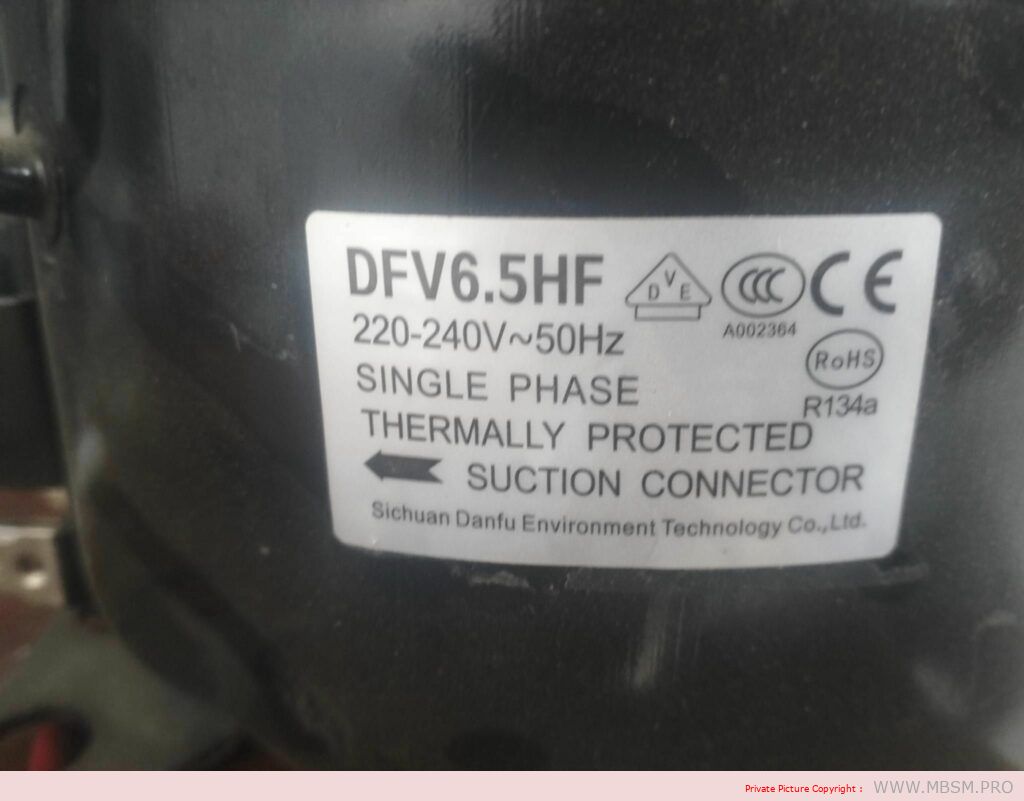

Mbsm.pro, compressor, PW3.5VK, DFV4.0HF, DFV4.5HF, DFV5.5HF, DFV6.5HF, DFV6.5HF, DFV7.5HF,

written by mahdi miled | 28 November 2022

Main Technical Data
Application
HBP version of TF compressors are ideally suited for air
dehumidifiers, liquid coolers and various commercial
refrigeration appliances.
For applications with non-typical requirements, we are
able to redesign the compressor to match. Please contact
us to discuss further.
R134a • 220-240V • 50 Hz
HBP
Model PW3.5VK DFV4.0HF DFV4.5HF DFV5.5HF DFV6.5HF DFV6.5HF DFV7.5HF
Evaporating temperature -20 to 15°C / -4 to 59°F
Ambient temperature 10 to 38°C / 50 to 100°F
Voltage range/frequency 220-240V | 50Hz
Mbsm_dot_pro_private_PDF_Hermetic Compressor CONTACT WEB. ADDRESS Fremont, CA, TELEPHONE +1 (800) (510)



Mbsm.pro, Compressor, nf10fx, Danfoss, 1/3 hp, LBP, MBP, 1046 btu, 115 v

written by Jamila | 28 November 2022

NF10FX Danfoss Hermetic Compressors

Specifications

Colour
Black
Low value of nominal voltage at 50Hz [V]
0
Low value of nominal voltage at 60Hz [V]
100
Low value of voltage range at 60Hz [V]
95
Nominal Cooling capacity 60 kBTU/h
3.67
Nominal Cooling capacity at 60Hz
1.1
Oil charge [L or Kg]
320
Packing format
Industrial pack
Packing quantity
80
Phase
1
Displacement (cm³)
10.09
Voltage/Frequency
115-127V 60Hz
Application energy level
Universal LBP/MBP compressor
Applications
LBP; MBP
Oil quantity [cm3]
320
Cover electrics
117U1021
Cover electrics Description
COVER ASSY. SMALL TF,TT,NF,NT,FF – 115V
Type designation
Compressor
Net weight
9.45
Specs
–
Product Type:

Compressor
Horse Power:

1/3
Voltage:

115v
Capacity (BTU):

1046
Refrigerant Type:

R-134A
Hertz:

60
