Mbsm.pro, Compressor, v75, 1/4 hp, 190 w, lbp, r12

written by Jamila | 31 December 2022

Mbsm.pro, Compressor, r12, 1/6 hp, 125 w, FNE125W, fne125ws7ad, fne125ws, 230V/50HZ

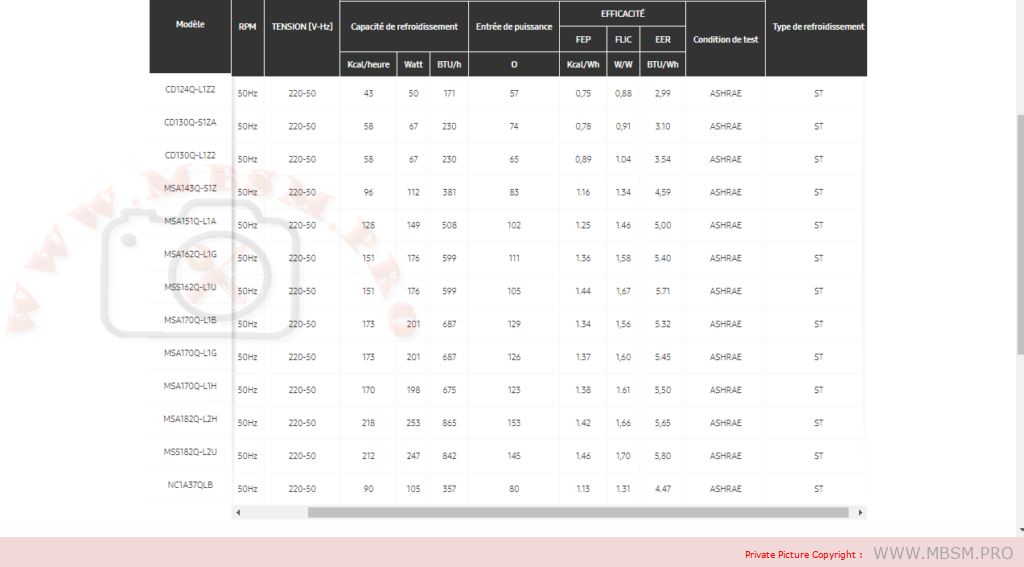

Mbsm.pro, Compressor, Samsung, r134a, lbp, CD124Q, L1Z2CD130Q, S1ZACD130Q, L1Z2MSA143Q, S1ZMSA151Q, L1AMSA162Q, L1GMSS162Q, L1UMSA170Q, L1BMSA170Q, L1GMSA170Q, L1HMSA182Q, L2HMSS182Q, L2UNC1A37QLB

written by mahdi miled | 31 December 2022

AC R134a LBP

SPÉCIFICATION

AC200-240V~50Hz

CD124Q, L1Z2CD130Q, S1ZACD130Q, L1Z2MSA143Q, S1ZMSA151Q, L1AMSA162Q, L1GMSS162Q, L1UMSA170Q, L1BMSA170Q, L1GMSA170Q, L1HMSA182Q, L2HMSS182Q, L2UNC1A37QLB

Mbsm.pro, Danfoss, compressors, R134a, medium, temperature, HMBP

written by Jamila | 31 December 2022

NL	Compressor type
8,4	Compressor size
MF	Refrigerant type GX, FX, MF = R134a CL, DL = R404A/R50

Condensing temperature = +55°C R134a

Code	Type	Power (hp)	Cooling capacity (Watt)					Height (mm)
Code	Type	Power (hp)	-15	-10	-5	0	7,2	Height (mm)
R134a
7096103	TL4G	1/10	107	140	180	226	306	173
7096104	TL5G	1/8	139	178	224	278	372	173
7096141	NL6.1MF	1/6	189	245	312	390	527	190
7096142	NL7.3MF	1/5	236	304	385	480	645	197
7096143	NL8.4MF	1/4	277	353	445	553	735	197
7096145	NL10MF	1/3	346	441	554	687	919	203
7096110	SC12G	1/3	348	464	603	768	1054	209
7096111	SC15G	3/8	424	568	728	908	1207	209
7096112	SC18G	1/2	526	684	870	1087	1459	219
7096113	SC21G	5/8	606	793	1013	1269	1700	219

Mbsm.pro, Subcool, compressor, commercial display fridge, gqr90tg, 1/3 hp–, 480 w, R134a, 220V, mbp

written by mahdi miled | 31 December 2022

Mbsm_dot_pro_private_PDF_gqr90tgEssential details

Type:: Water Dispenser Parts

Place of Origin:: Zhejiang, China

Brand Name:: SIKELAN

Model Number:: GQR90TG

Displacement:: 9.0cm3

Refrigerant:: R134a

Application:: MBP

Voltage/frequency:: 220-240V/50-60HZ

Horse power:: 1/3-HP

Input power:: 480W

Motor type:: RSIR

Starting device:: PTC/Current relay

Starting capacitor:: NO

Running capacitor:: NO

1.Product Performance
1)GQR90TG, MK series, use R134a refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: RSIR;
5)Cooling type: FAN;
6)Starting device is PTC / CURRENT Relay;
7)Application: MIDDILE Back Pressure;
8)Nominal power is 1/3-HP;
9)COP is 2.20 with the cooling capacity 910W.

Basing on Test Condition(ASHRAE)
Evaporating Temperature: 7.2 degree
Ambient Temperature: 35 degree
Subcooling Temperature: 46.1 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 35 degree

Mbsm.pro, Compressor, kx69Lbeg, LG, Serie Kx, 1/5 hp++, 1/4 hp–, Lbp, r134a, 220-240v, RSIR, PTC, 190 w/input 150 w, capillary 0.040

written by mahdi miled | 31 December 2022

Mbsm_dot_pro_private_PDF_LG_Refrigerator_Compressor_Catalogue

Modèle	Réf	App.	Puissance	Capacité de refroidissement			Puissance Entrée	Fil métallique Type
Modèle	Réf	App.	Puissance	HP	W/hr	Btu/hr	Puissance Entrée	Fil métallique Type
Référence: CMA053LHEG	Référence: R134a	LBP	220 ~ 240V/50HZ	1/6HP	150W	512Btu	102W,	Fil d’Al-
Référence: CMA057LHEG	Référence: R134a	LBP	220 ~ 240V/50HZ	1/5HP	163W	556Btu	115W	Fil d’Al-
Référence: CMA069LHEM	Référence: R134a	LBP	220 ~ 240V/50HZ	1/4HP	195W,	667Btu	128W	Fil d’Al-
Référence: NS36LAEG	Référence: R134a	LBP	220 ~ 240V/50HZ	1/10HP	77W	262Btu	89W	Cu-fil
Référence: MSA43LBEG	Référence: R134a	LBP	220 ~ 240V/50HZ	1/8HP	116W,	397Btu	106W,	Cu-fil
Référence: CMA053LAEM	Référence: R134a	LBP	220 ~ 240V/50HZ	1/6HP	148W	504Btu	93W	Cu-fil
Référence: CMA057LAEM	Référence: R134a	LBP	220 ~ 240V/50HZ	1/5HP	163W	558Btu	102W,	Cu-fil
Référence: kx69Lbeg	Référence: R134a	LBP	220 ~ 240V/50HZ	1/4HP	195W,	667Btu	150W,	Cu-fil
Référence: CMA075LAEM	Référence: R134a	LBP	220 ~ 240V/50HZ	1/3HP	219W	Référence: 746Btu	130W	Cu-fil
Référence: MA98LAEM	Référence: R134a	LBP	220 ~ 240V/50HZ	1/3HP	279W,	953Btu	183W,	Cu-fil
LX110LAJM	Référence: R134a	LBP	220 ~ 240V/50HZ	1/2HP	323W,	1104Btu	232W	Cu-fil

Mbsm.pro, Table Ah pour la consommation en W

written by Jamila | 31 December 2022

Mbsm.pro, Table Ah pour la consommation en W

Mbsm.pro, Formule AMP, KW, KVA, HP pour les tensions AC et DC.

written by mahdi miled | 31 December 2022

Mbsm.pro, Formule AMP, KW, KVA, HP pour les tensions AC et DC.

Mbsm.pro, Compressor, AQAW66X, r134a, FKD66ML, r600a, 1/5 hp, Freezer, Wanbao Refrigerator Compressor

written by mahdi miled | 31 December 2022

Wanbao Refrigerator Compressor we have stock :

Size	Model	Gas
1/6HP	AQAW57K	R134a
1/5HP	AQAW66X, FKD66ML	R134a
1/4HP	AQAW77X	R134a
1/4HP Big	AQAW91	R134a
1/3HP	AQAW110	R134a
3/8HP	AL120	R134a
1/2HP	AL150	R134a
1/2HP,big	AL180	R134a

https://www.mbsm.pro/wp-content/uploads/2022/08/Mbsm_dot_pro_private_PDF_AQAW77X-2.pdf

Mbsm.pro, Compressor, R134a, FR7.5G, 103G6680, 220-240V 50/60Hz, LBP/HBP, 1/5HP++, 1/4 hp–

written by Jamila | 31 December 2022

Mbsm_dot_pro_private_PDF_fr7.5 compressorrefrigerants

R134a

Writes

FR7.5G

power

1/5 HP

power input

175W

cylinder capacity

6.93 cm³

engine system

RSIR/CSIR

Voltage

220-240 V

Height

196 mm

power at -10°C

254W

power at -5°C

325W

power at 0°C

408W

power at +5°C

505W

power at -30°C

62W

power at -25°C

99W

power at -20°C

142W

power at -15°C

193 W

power at +10°C

618 W

test method

ASHRAE

Order

HMBP

repeat

50 Hz

Weight

10.6 kg

Mbsm.pro, Compressor Acc, hmk95at, 1/5 hp, r600a, 160 w

written by mahdi miled | 31 December 2022

Technical data

Click over each model for complete details and technical sheet.

Model	Refrigerant	Rated Voltage	Frequency	Displacement	Motor Type	Cooling Capacity		COP without R.C.		COP with R.C.		Approval	Height	Net Weight
						ASHRAE	CECOMAF	ASHRAE	CECOMAF	ASHRAE	CECOMAF
						-23.3℃	-25℃	-23.3℃	-25℃	-23.3℃	-25℃
		[V]	[Hz]	[cc]		[W]	[W]	[W/W]	[W/W]	[W/W]	[W/W]		[mm]	[Kg]
HMK70AA	R600a	220-240	50	6.6	RSIR	116	87	1.49	1.18	–	–	VDE, CE, EAC	159	7.2
HMK80AA	R600a	220-240	50	8.1	RSIR	136	102	1.50	1.18	–	–	VDE, CE, EAC	159	7.2
HMK95AA	R600a	220-240	50	9.6	RSIR	167	125	1.53	1.20	–	–	VDE, CE, EAC	159	7.5
HMK12AA	R600a	220-240	50	11.1	RSIR	198	149	1.53	1.20	–	–	VDE, CE, EAC	167	8.4
HMK95AT	R600a	200-240	50	9.6	RSIR	167	126	1.53	1.20	–	–	CE	167	8.4

Mbsm_dot_pro_private_PDF__hmk95at Mbsm_dot_pro_private_PDF_hmk95at
