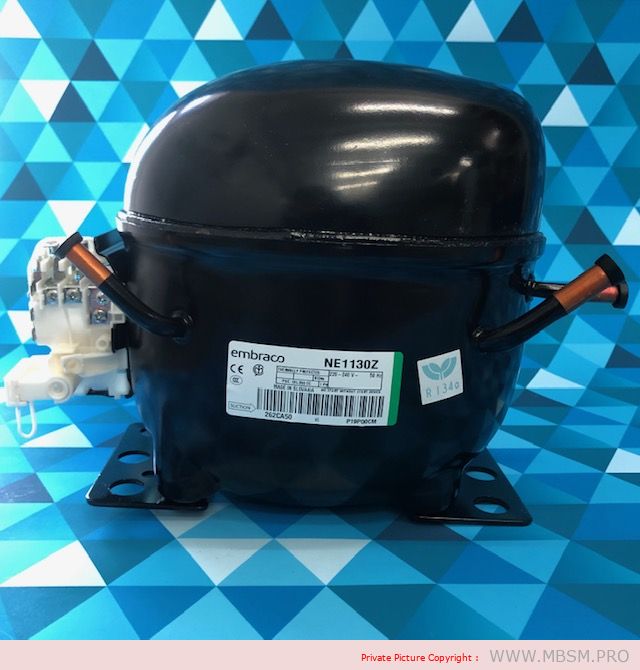

Compressor, hermetic, piston, Embraco, NE1130Z, 1/3 hp, LBP, 12.11 cm3, r134a

written by Amina | 19 October 2023

Data Sheet

Power supply 220/240 V-50 Hz-1 Ph
Horsepower 1/3 hp
Displacement 12,11 cm3
Application LBP
Cooling capacity at EN12900 MT conditions, R134a 0,37 kW
Cooling capacity at ASHRAE LT conditions, R134a 0,32 kW
Cooling capacity at EN12900 LT conditions, R134a 0,16 kW
Refrigerant R134a
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 10,90 kg
Max height 200 mm
LRA 16,30 A
Recharge oil 350 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type RSIR
Motor protection type External


Compressor, sh307mv-c7hu1g, sh307mv, r22, 1 ph, 6000 w, 18000 btu/h

written by Amina | 19 October 2023

Applicable air conditioners: constant speed 1.5-2.0 hp, variable frequency 2.5-3.0HP; Utilizing various environmental friendly refrigerants like R22, R410A, R407C, With various power specification to be selected, Variable frequency utilizing R410A, dual spool structure, high efficency, enviormental friendness and small vibration.
Constant-Speed/R22 230V 50Hz
6400 w
21837 btu/h

Product number SH307MV-C7HU
Rated voltage: 220-240V
frequency: 50Hz
Phase: 1PH
use: T3 working condition
refrigerant: R-22
Exhaust volume: 30.7ml/rev
Rated cooling capacity (W): 5200
Allowable refrigerant charge: 1650g
net weight: 17.5kg
Motor form: SHW33K2/SHW83K1A
Voltage variation range: Rated voltage Rated voltage ±11%
Protector form: Built-in protector
Test conditions: 220V
Refrigeration capacity test conditions (R22)
Return air temperature 35.0℃
condensation temperature 54.4℃
Liquid temperature before expansion valve 46.1℃
Evaporation temperature 7.2℃
ambient temperature 35.0℃

Highly/Hitachi H series R22 fixed speed compressor product list:

model use refrigerant exhaust volume power supply Cooling capacity Remark
W BTU/h
SH295UY-C7HU T1 working condition R-22 29.5ml/rev 230V/50Hz/1PH 5090 17356 Certification in progress
SH380MV-C7PU T3 working condition R-22 38.0ml/rev 220-240V/50Hz/1PH 6600 22506 Certification in progress
SH280MV-C7NQ T3 working condition R-22 28.0ml/rev 220-240V/50Hz/1PH 4815 16419 Certification in progress
SH410MV-C8LU T3 working condition R-22 41.0ml/rev 220-240V/50Hz/1PH 7165 24432 Certification in progress
SH315MV-C8LU T3 working condition R-22 31.5ml/rev 220-240V/50Hz/1PH 5470 18652 Certification in progress
TH380MV-C8FU T3 working condition R-22 38.0ml/rev 220-240V/50Hz/1PH 6590 22471 Certification in progress
TH380MV-C8FQ T3 working condition R-22 38.0ml/rev 220-240V/50Hz/1PH 6590 22471 Certification in progress
SH315MV-C8LG T3 working condition R-22 31.5ml/rev 220-240V/50Hz/1PH 5470 18652 Certification in progress
SH417GV-C8DUT T1 working condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7200 24552 Certification in progress
SH380MV-C7PG T3 working condition R-22 38.0ml/rev 220-240V/50Hz/1PH 6600 22506 Certification in progress
SH370UY-C7PU1 T1 working condition R-22 37.0ml/rev 230V/50Hz/1PH 6440 21960 Certification in progress
SH410UV-C8DG T1 working condition R-22 41.0ml/rev 220-240V/50Hz/1PH 7050 24040 Certification in progress
SH380RY-C8DU1 IN T1 working condition R-22 38.0ml/rev 230V/50Hz/1PH 6530 22267 Certification in progress
SH336MV-C7AG2 T3 working condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5810 19812 Certification in progress
SH307UV-C7HQ1 T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5230 17834 Certification in progress
SH417UV-C8DG T1 working condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7140 24347 Certification in progress
SH325UV-C7HL T1 working condition R-22 32.5ml/rev 220-240V/50Hz/1PH 5600 19096 Certification in progress
SH310UV-C8DU T1 working condition R-22 31.0ml/rev 220-240V/50Hz/1PH 5300 18073 Certification in progress
SH286RY-C7PU2A T1 working condition R-22 28.6ml/rev 230V/50Hz/1PH 4880 16640 Certification in progress
TH454RV-C9EU T1 working condition R-22 45.4ml/rev 220-240V/50Hz/1PH 7630 26018 Certification in progress
TH508MV-C9EU1 T3 working condition R-22 50.8ml/rev 220-240V/50Hz/1PH 8750 29837 Certification in progress
SH290UY-C7HUA T1 working condition R-22 29.0ml/rev 230V/50Hz/1PH 4960 16913 Certification in progress
SH315UY-C7NU T1 working condition R-22 31.5ml/rev 230V/50Hz/1PH 5410 18448 Certification in progress
ASH244MV-C7HU T3 working condition R-410A 24.4ml/rev 220-240V/50Hz/1PH 5930 20221 Certification in progress
SH300UY-C7PQA T1 working condition R-22 29.8ml/rev 230V/50Hz/1PH 5100 17391 Certification in progress
SH325UV-C8DU T1 working condition R-22 32.5ml/rev 220-240V/50Hz/1PH 5600 19096 Certification in progress
SH307DG-C8LUA T3 working condition R-22 30.5ml/rev 230V/60Hz/1PH 6400 21824 Certification in progress
SH370RY-C8LU T1 working condition R-22 37.1ml/rev 230V/50Hz/1PH 6395 21806 Certification in progress
SH255DG-C7HQ2 T3 working condition R-22 25.5ml/rev 230V/60Hz/1PH 5380 18345 Certification in progress
SH325DG-C8LQ T3 working condition R-22 32.5ml/rev 230V/60Hz/1PH 6860 23392 Certification in progress
SH401MY-C7NQH T1 working condition R-22 40.1ml/rev 230V/50Hz/1PH 6950 23699 Certification in progress
SHV73YC2GU T1 working condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053 Certification in progress
SH356UV-C8LU T1 working condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 20766 Certification in progress
SH264DG-C7HG2G T3 working condition R-22 26.4ml/rev 230V/60Hz/1PH 5550 18925 Certification in progress
SH300DG-C7HUA T3 working condition R-22 29.8ml/rev 230V/60Hz/1PH 6290 21448 Certification in progress
SH370UY-C8LU T1 working condition R-22 37.1ml/rev 230V/50Hz/1PH 6380 21755 Certification in progress
SH336MV-C7HG1 T3 working condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5750 19607 Certification in progress
SH255DG-C7HQ1 T3 working condition R-22 25.5ml/rev 230V/60Hz/1PH 5350 18243 Certification in progress
SH264DG-C7HQ1 T3 working condition R-22 26.4ml/rev 230V/60Hz/1PH 5580 19027 Certification in progress
SH438MV-C8CU T3 working condition R-22 43.8ml/rev 220-240V/50Hz/1PH 7480 25506 Certification in progress
SH295GV-C7HQ1A T1 working condition R-22 29.5ml/rev 220V/50Hz/1PH 5180 17663 Certification in progress
SH330DG-C8LU T3 working condition R-22 33.0ml/rev 230V/60Hz/1PH 6950 23699 Certification in progress
SH325DG-C8LU T3 working condition R-22 32.5ml/rev 230V/60Hz/1PH 6860 23392 Certification in progress
SH336MV-C7PU1 T3 working condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5750 19607 Certification in progress
SH300UY-C7HUA T1 working condition R-22 29.8ml/rev 230V/50Hz/1PH 5100 17391 Certification in progress
SH280UY-C7HUA T1 working condition R-22 28.0ml/rev 230V/50Hz/1PH 4810 16402 Certification in progress
SH356DG-C8DQ3 T3 working condition R-22 35.6ml/rev 230V/60Hz/1PH 7450 25404 Certification in progress
SH325DG-C7HQG T3 working condition R-22 32.5ml/rev 230V/60Hz/1PH 6860 23392 Certification in progress
SH307HV-C7HG1A T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5300 18073 Certification in progress
SH264DG-C7HU2G T3 working condition R-22 26.4ml/rev 230V/60Hz/1PH 5550 18925 Certification in progress
SH356DG-C8DU3 T3 working condition R-22 35.6ml/rev 230V/60Hz/1PH 7450 25404 Certification in progress
SH325DG-C7HQH T3 working condition R-22 32.5ml/rev 230V/60Hz/1PH 6860 23392 Certification in progress
SH286UY-C7HUA T3 working condition R-22 28.6ml/rev 230V/50Hz/1PH 4910 16743 Certification in progress
SH264DG-C7HQ1H T3 working condition R-22 26.4ml/rev 230V/60Hz/1PH 5580 19027 Certification in progress
SH295GV-C7HU1A T1 working condition R-22 29.5ml/rev 220V/50Hz/1PH 5180 17663 Certification in progress
SH255DG-C8LQ T3 working condition R-22 25.5ml/rev 230V/60Hz/1PH 5380 18345 Certification in progress
SHW33TC2-S2 T1 working condition R-22 35.6ml/rev 220V/50Hz/1PH 5380 18345 Certification in progress
SH370GV-C8LU T1 working condition R-22 37.1ml/rev 220V/50Hz/1PH 6370 21721 Certification in progress
SH370DG-C8LU T3 working condition R-22 37.1ml/rev 220V/60Hz/1PH 7780 26529 Certification in progress
SH356MV-C7HQ1 T3 working condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6130 20903 Certification in progress
SH295GV-C7HUA T1 working condition R-22 29.5ml/rev 220V/50Hz/1PH 5155 17578 Certification in progress
SH264DG-C7HU1G T3 working condition R-22 26.4ml/rev 220V/60Hz/1PH 5520 18823 Certification in progress
SH370SV-C8LU T1 working condition R-22 37.1ml/rev 220-240V/50Hz/1PH 6410 21858 Certification in progress
SH336DG-C7PU1 T3 working condition R-22 33.6ml/rev 220V/60Hz/1PH 7125 24296 Certification in progress
SH295RY-C7PU1A T1 working condition R-22 29.5ml/rev 230V/50Hz/1PH 5050 17220 Certification in progress
THU33WC6-S1 T1 working condition R-22 48.09ml/rev 220-240V/50Hz/1PH 5050 17220 Certification in progress
SH356MV-C7NU T3 working condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5050 17220 Certification in progress
SHW73TC2UP1 null R-22 35.6ml/rev 208-230V/60Hz/1PH 5050 17220 Certification in progress
SH307RV-C8LU T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5050 17220 Certification in progress
THK33XC6-G null R-22 45.4ml/rev 200-240V/50Hz/1PH 5050 17220 Certification in progress
SH356DG-C8LU T3 working condition R-22 35.6ml/rev 220V/60Hz/1PH 5050 17220 Certification in progress
SH336DG-C8LU T3 working condition R-22 33.6ml/rev 220V/60Hz/1PH 5050 17220 Certification in progress
SH286DG-C7HU T3 working condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 20101 Certification in progress
SHV73YC1-E T3 working condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053 Certification in progress
SH307MV-C7HU T3 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732 Certification in progress
SHY33MC2US T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732 Certification in progress
SH336MV-C8LU T3 working condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 19283 Certification in progress
SHX33SC2US T1 working condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5710 19471 Certification in progress
SHY33MC2-S T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732 Certification in progress
SHX33SC2UU T1 working condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5630 19198 Certification in progress
SHV33YC6-S T1 working condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 23938 Certification in progress
SHV33ZC1-S T1 working condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 23085 Certification in progress
SHZ33LC2-S T1 working condition R-22 28.6ml/rev 220-240V/50Hz/1PH 4820 16436 Certification in progress
SHW73TC2UU T1 working condition R-22 35.6ml/rev 208-230V/60Hz/1PH 7305 24910 Certification in progress
SHV73YC1-U T1 working condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053 Certification in progress
SHW33TC4-S T1 working condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 20657 Certification in progress
SHY33MC2UU T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5165 17612 Certification in progress
SHW73TC4-E T3 working condition R-22 35.6ml/rev 208-230V/60Hz/1PH 7330 24995 Certification in progress
SHW73TC9GU T1 working condition R-22 35.6ml/rev 208-230V/60Hz/1PH 7440 25370 Certification in progress
SHW83TC4-P1 T3 working condition R-22 35.6ml/rev 220V/60Hz/1PH 7330 24995 Certification in progress
SHV33ZC1-U T1 working condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 22983 Certification in progress
SHV33YC1-E T3 working condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 23699 Certification in progress
SHW33TC4-E T3 working condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 20766 Certification in progress
SHZ33QC2-G T1 working condition R-22 27.5ml/rev 220V/50Hz/1PH 4620 15754 Certification in progress
SHV33YC6-U T1 working condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 24211 Certification in progress
SHY33MC2-E T3 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732 Certification in progress
SHY73MC4-U T1 working condition R-22 30.7ml/rev 208-230V/60Hz/1PH 6615 22557 Certification in progress
SHW73TC4-U T1 working condition R-22 35.6ml/rev 208-230V/60Hz/1PH 7440 25370 Certification in progress
SHV33YC6-G T1 working condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 24211 Certification in progress
SHZ73LC2-U T1 working condition R-22 28.6ml/rev 208-230V/60Hz/1PH 5935 20238 Certification in progress
SHY33MC2-U T1 working condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5165 17612 Certification in progress
SHZ33LC2-U T1 working condition R-22 28.6ml/rev 220-240V/50Hz/1PH 4820 16436 Certification in progress
SHW33TC2-U(invalid) T1 working condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5990 20425 Certification in progress




Nouvelle page 1

Constant-Speed/India/R22 230V 50Hz

Series
Model
Displacement (cc/rev)
Cooling capacity (w)
Cooling capacity (btu/h)
Cop
Capacitor (Hf/v)
Height (mm)
Test condition
H SH286RY-C7PU1A 28.6 4900 16719 3.27 45/450 307.8 ASHRAE/T
SH295RY-C7PUA 29.5 5060 17265 3.24 35/450 293.4 ASHRAE/T
SH295RY-C7PU1A 29.5 5035 17179 3.25 45/450 307.8 ASHRAE/T
SH307RY-C8DUA 30.7 5250 17913 3.26 45/450 307.8 ASHRAE/T
SH370RY-C8LU 37 6400 21837 3.25 65/450 320.9 ASHRAE/T
SH380RY-C8DU 38 6555 22366 3.24 50/450 320.9 ASHRAE/T
SH417RY-C8DU 41.7 7160 24430 3.21 45/450 330.9 ASHRAE/T
SH280UY-C7HUA 28 4810 16412 16412 45/450 307.8 ASHRAE/T
SH286UY-C7PUA 28.6 4930 16821 3.36 45/450 307.8 ASHRAE/T
SH300UY-C7HUA 30 5100 17401 3.36 45/450 307.8 ASHRAE/T
SH370UY-C8LU 37 6400 21837 3.3 60/450 330.9 ASHRAE/T
Constant-Speed/India/R22/Tropical 230V
50Hz

Series
Model
Displacement (cc/rev)
Cooling capacity (w)
Cooling capacity (btu/h)
Cop
Capacitor (Hf/v)
Height (mm) Test condition
Test condition
H SH307MV*1 30.7 5250 17913 3.2 45/450 293.4 ASHRAE/T
SH336MV-1 33.6 5750 19619 3.18 55/450 307.8 ASHRAE/T
SH356MVM 35.6 6130 20916 3.11 50/450 307.8 ASHRAE/T
SH417MV-1 41.7 7170 24464 3.17 65/450 330.9 ASHRAE/T
Constant-Speed/R32 220V/240V 50Hz

Series
Model
Displacement (cc/rev)
Cooling capacity (w)
Cooling capacity (btu/h)
Cop
Capacitor (Hf/v)
Height (mm) Test condition
Test condition
H GSH190TV 19.0 4954 16903 3.00 40/450 293.5 ASHRAE/T
GSH232SV 23.2 5896 20117 2.91 60/400 298.5 ASHRAE/T
Constant-Speed/India/R41 OA 230V 50Hz

Series
Model
Displacement (cc/rev)
Cooling capacity (w)
Cooling capacity (btu/h)
Cop
Capacitor (Hf/v)
Height (mm) Test condition
Test condition
H ASH184TV 18.4 4440 15149 2.96 40/450 293.5 ASHRAE/T
ASH193TV 19.3 4575 15610 2.96 40/450 293.5 ASHRAE/T
ASH201RY 20.1 4845 16531 2.95 40/450 293.5 ASHRAE/T
ASH210RY 21.0 5120 17469 2.98 40/450 293.5 ASHRAE/T
ASH244RY 24.4 5770 19687 2.95 55/450 301.1 ASHRAE/T
Constant-Speed/R290 220V/240V 50Hz

Series
Model
Displacement (cc/rev)
Cooling capacity (w)
Cooling capacity (btu/h)
Cop
Capacitor (Hf/v)
Height (mm) Test condition
Test condition
H PSH307CV-C7HU 30.7 4566 15579 3.22 60/450 307.8 ASHRAE/T
PSH307HV-C8DU 30.7 4565 15576 3.45 45/450 307.8 ASHRAE/T
Constant-Speed/Middle East/R22 230V 60Hz

Series
Model
Displacement (cc/rev)
Cooling capacity (w)
Cooling capacity (btu/h)
Cop
Capacitor (Hf/v)
Height (mm) Test condition
Test condition
H SH264DG*2 26.4 5550 18937 3.2 40/450 288.4 ASHRAE/T
SH307DG*1 30.7 6580 22451 3.22 55/450 307.8 ASHRAE/T
SH325DG 32.5 6860 23406 3.22 55/450 307.8 ASHRAE/T
SH356DG-3 35.6 7450 25419 3.24 50/450 317.8 ASHRAE/T










Compressor, 170 w, 1/5 hp, FF6BKW, RFN73, FR7.5A, PW7.5K14, B1116A, BY116A, M7J, M7KJ, ESM7.7K, L76AT, T520NA, lbp

written by Amina | 19 October 2023
FF6BKW RFN73 FR7.5A PW7.5K14 B1116A BY116A M7J, M7KJ, ESM7.7K L76AT T520NA

Domestic R12 – Low Suction Temperature

Capacity range
(watts)		 Embraco Goldstar Kirby Matsushita Danfoss L’Unite Hermetique Aspera Necchi Unidad Kelvinator Email
44-49 M2-5J
50-55 FNE50W PW3K6 E1042A
56-60 VS24 TL2.5A
61-70 VS28 VS30 AE1322A AZ30LY FNE65W A1055A (B) E1065A M3J ES3 L33AS
71-80 PW3.5A AE12Z7 AZ33LY PW3.5K6 TL3A AEZ1332 M3.5J ES3.5
81-90 VS36 AE8ZA7 AZ36LY FNE75W RFN35 AEZ1336A A1075A
91-100 PW4.5A AZ40LY PW4.5K9 TL4A M4J ES4 L40AS
101-100 AE6ZD7 RFN51 AEZ1343A A1085A E1085A
111-120 NR45 FNE100W RFN43 A1090A L45AS S88ND
121-130 RFN51 TL5A A1111A A1112A M5J ES5
131-140 PW5.5A NR52 AZ56LY FNE125W PW5.5K11 L55AT
141-160 NR62 AE5ZF9 AEV6LY FNE140W RFN66 AEZ1360A T44E
161-180 FF6BKW RFN73 FR7.5A PW7.5K14 B1116A BY116A M7J, M7KJ, ESM7.7K L76AT T520NA
181-200 FF7.5BKW V75 AE4ZF11 AEV7LY FNE175W PW9K18 FR8.5A AEZ1380A A1116A A1117A M8J L88BS L88FW S54ND S54FD
201-240 FF8.5BKW FF10BKW AE4ZG12 AEV8LY RFN91 PW11K22 FR10A A1118A A2118A M9J, M9KJ, A9/A9V, VK, ESM9, 9K
241-260 AE1385A AEV9LY FR11A AE1410A E2121A E1121A M11, A11V, A11VK P12BW T630NA-
261-280 RFN110 M11K, ESM11K S44ND T69E0
281-300 FF11.5BKW T1124A T2124A
301-320 RFN126 SC12A AE1412A E2130B E1130B A13, A13V, A13K, M13, ESM13 SC33C T76E0
321-340 FFI12BKW AE1411A AE14LY T1128A T2128A S34FDL S34CFDL


Daewoo, HSL17Y-5 , Compresseur hermétique, R-134a, 134 W, RSIR , 1/6Hp, lbp, freezer, ch140

written by Amina | 19 October 2023



Compressor, Danfoss, fr8.5g, 103g6780, 103g 6780, 1/4 hp, LBP / HBP, r134a

written by Amina | 19 October 2023

103G6780, compressor Secop / Danfoss FR8.5G, LBP / HBP – R134, 220 – 240V / 1 / 50 Hz, discharge 7.95 cm3, motor type RSIR/CSIR, oil type POE, oil charge 450 cm3, 126 W at -25 / 55° C, LRA 8.2 A, maximum refrigerant charge 900 g, height: 196 mm, weight 10.6 kg

Discover the powerful FR8.5G compressor from SECOP-DANFOSS for various refrigeration applications. This compressor works with R134a refrigerant and offers an impressive output of 1/4 HP. With a power consumption of 261 W and a displacement of 7.95 cm³, it is efficient and reliable.

The FR8.5G compressor has an RSIR/CSIR motor system and works with a voltage of 220-240 V. With a height of 196 mm, it is compact and space-saving.

This compressor offers impressive performance at various temperatures. The performance data at -10°C, -5°C, 0°C, +5°C, -30°C, -25°C, -20°C, -15°C and +10°C show its versatility and Efficiency. It is ideal for medium and high pressure (HMBP) applications.

The FR8.5G compressor is suitable for the manufacturers Dexion and La-Sommelier and is suitable for use in refrigerators, cooling tables, refrigerated display cases and warming display cases.

Order the FR8.5G compressor from SECOP-DANFOSS today and benefit from its reliable performance and efficiency in your refrigeration applications.

Attribute list:

– Refrigerant: R134a

– Type: FR8.5G

– Power: 1/4 HP

– Power consumption: 261 W

– Displacement: 7.95 cm³

– Engine system: RSIR/CSIR

– Voltage: 220-240V

– Height: 196mm

– Power at -10°C: 298 W

– Power at -5°C: 381 W

– Power at 0°C: 478 W

– Power at +5°C: 592 W

– Power at -30°C: 85 W

– Power at -25°C: 123 W

– Power at -20°C: 171 W

– Power at -15°C: 228 W

– Power at +10°C: 722 W

– Application: HMBP

– Frequency: 50Hz

– Weight: 10.6kg



Defrost refrigerator, ES320DF, Electrstar, 320 L, compressor, 1/5 hp, 147 w, r134a, 170 g, 220 v / 50 hz, lbp

written by Amina | 19 October 2023


Compressor, SF211-12, Pn2827, 1/3 hp, r12, 1100 Btu/h, 233 w, 1.75 A FLa, 15 A LRA, 220 v / 50 Hz, LBP

written by Amina | 19 October 2023


Compressor, R-600, LBP, 100 w, Jiaxipera, JM1080Y, 1/8 hp, disp 6.2 cm3

written by Amina | 19 October 2023


Excellent, Compressor, GS66AF, 1/6 hp, LBP, r134a, disp 6.6 cm3, 165 w, 1Ph, 220 v/50hz , GS77AF, 1/5 Hp, GS-90TB, 1/3 hp

written by Amina | 19 October 2023

Excellent, Compressor, GS66AF, 1/6 hp, LBP, r134a, disp 6.6 cm3, 165 w, 1Ph, 220 v/50hz , GS77AF, 1/5 Hp, GS-90TB, 1/3 hp



Beko, refrigerator, DS13901S, D70410e, b670,340 L, Compressor Acc, hmk95at, 1/5 hp, r600a, 80 g, 160 w

written by Amina | 19 October 2023

Mbsm.pro, Compressor Acc, hmk95at, 1/5 hp, r600a, 160 w

https://www.mbsm.pro/wp-content/uploads/2022/12/Mbsm_dot_pro_private_picture_____hmk95at-352x500.jpg
