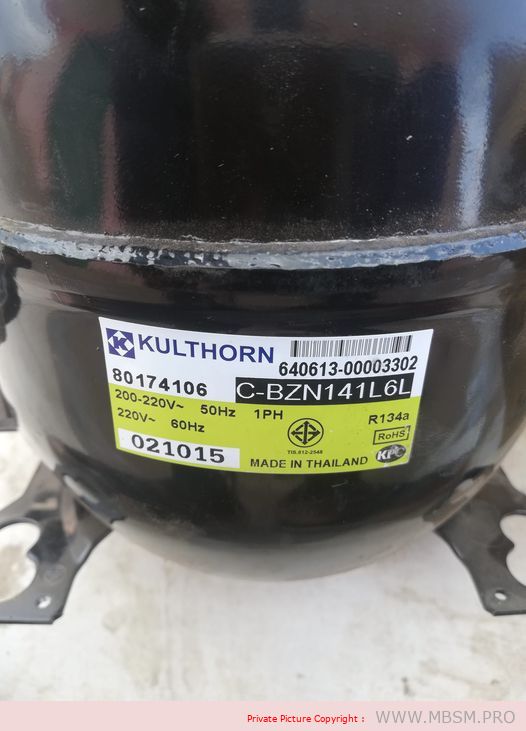

Info, Compressor, CbzN141L6L, 1/8 hp, All KuIthorn, Compressor, Pdf

written by Lilianne | 7 October 2023

Mbsm_dot_pro_private_PDF_CbzN141L6L


Fuji brand refrigerator compressor.
refrigerator compressor type SR 36.
Refrigerator compressor capacity 1/10 pk / hp.
Freon type R 134a

Fuji brand refrigerator compressor. refrigerator compressor type SR 43.
Refrigerator compressor capacity 1/8 pk / hp.
Freon type R 134a.

Fuji brand refrigerator compressor.
refrigerator compressor type SR 52.
Refrigerator compressor capacity 1/6 pk / hp.
Freon type R 134a.

Fuji brand refrigerator compressor. refrigerator compressor type SR 75.

Refrigerator compressor capacity 1/5 pk / hp

Freon type R 134a.


Fuji brand refrigerator compressor.
refrigerator compressor type SR 91.
Refrigerator compressor capacity 1/4 pk / hp.
Freon type R 134a.

Fuji brand refrigerator compressor.
refrigerator compressor type SR 110.
Refrigerator compressor capacity 1/3 pk / hp.
Freon type R 134a.

Fuji brand refrigerator compressor.
refrigerator compressor type SR 880.
Refrigerator compressor capacity 1/2 pk / hp.
Freon type R 134a.

Panasonic brand refrigerator compressor.
refrigerator compressor type QB 43.
Refrigerator compressor capacity 1/10 pk / hp.
Freon type R 134a.

Panasonic brand refrigerator compressor.
refrigerator compressor type QB 57.
Refrigerator compressor capacity 1/8 pk / hp.
Freon type R 134a.

Panasonic brand refrigerator compressor.
refrigerator compressor type QB 66.
Refrigerator compressor capacity 1/6 pk / hp.
Freon type R 134a.

Panasonic brand refrigerator compressor.
refrigerator compressor type QB 77.
Refrigerator compressor capacity 1/5 pk / hp.
Freon type R 134a.

Panasonic brand refrigerator compressor.
refrigerator compressor type QB 91.
Refrigerator compressor capacity 1/4 pk / hp.
Freon type R 134a.

Panasonic brand refrigerator compressor.
refrigerator compressor type QB 110.
Refrigerator compressor capacity 1/3 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type AS 35.
Refrigerator compressor capacity 1/10 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type AS 43.
Refrigerator compressor capacity 1/8 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type ASD 53.
Refrigerator compressor capacity 1/6 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
ASD 65 small body refrigerator compressor type.
Refrigerator compressor capacity 1/5 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type ATA 72 x small body.
Refrigerator compressor capacity 1/5 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type AQ ​​AW 77.
Refrigerator compressor capacity 1/5pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type AQ ​​AW 91.
Refrigerator compressor capacity 1/4 pk / hp.
Freon type R 134a.

Matsushita brand refrigerator compressor.
refrigerator compressor type AQ ​​AW 110.
Refrigerator compressor capacity 1/3 pk / hp.
Freon type R 134a.
– refrigerator compressor capacity 1/10 pk National brand type QB 43 freon R 134a.
– refrigerator compressor capacity 1/8 pk National brand type QB 57 freon R 134a.
– refrigerator compressor capacity 1/6 pk National brand type QB 66 freon R 134a.
– refrigerator compressor capacity 1/5 pk National brand type QB 77 freon R 134a.
– refrigerator compressor capacity 1/4 pk National brand type QB 91 freon R 134a.
– refrigerator compressor capacity 1/10 pk Handen brand type ADW 43 freon R 134a.
– refrigerator compressor capacity 1/8 pk brand Handen type ADW 51 freon R 134a.
– refrigerator compressor capacity 1/6 pk brand Handen type ADW 66 freon R 134a.
– refrigerator compressor capacity 1/5 pk brand Handen type ADW 77 freon R 134a.
– 1/4 pk capacity refrigerator compressor, Handen brand type ADW 91 freon R 134a.
– 1/3 pk capacity refrigerator compressor, Handen brand type ADW 110 freon R 134a.
– 1/2 pk capacity refrigerator compressor, Handen brand type ADW 142 freon R 134a.
– refrigerator compressor capacity 1/10 pk brand Panasonic type QB 43 freon R 134a.
– refrigerator compressor capacity 1/8 pk brand Panasonic type QB 57 freon R 134a.
– 1/6 pk capacity refrigerator compressor, Panasonic brand type QB 66 freon R 134a.
– refrigerator compressor capacity 1/5 pk brand Panasonic type QB 77 freon R 134a.
– 1/4 pk capacity refrigerator compressor, Panasonic brand type QB 91 freon R 134a.
– refrigerator compressor capacity 1/10 pk brand Tecumseh type THK 1330 Y freon R 134a.
– refrigerator compressor capacity 1/8 pk brand Tecumseh type THK 1340 freon R 134a.
– refrigerator compressor capacity 1/6 pk brand Tecumseh type THK 1351 freon R 134a.
– refrigerator compressor capacity 1/5 pk brand Tecumseh type THK 1365 freon R 134a.
– refrigerator compressor capacity 1/4 pk brand Tecumseh type THK 1374 freon R 134a.
– refrigerator compressor capacity 1/3 pk brand Tecumseh type THK 2390 freon R 134a.
– refrigerator compressor capacity 1/10 pk brand Sikeland type ADW 43 – CU. freon R 134a.
– refrigerator compressor capacity 1/8 pk brand Sikeland type ADW 57 – CU. freon R 134a.
– refrigerator compressor capacity 1/6 pk brand Sikeland type ADW 66 – CUMK. freon R 134a.
– refrigerator compressor capacity 1/5 pk brand Sikeland type ADW 77 – CUMK freon R 134a.
– refrigerator compressor capacity 1/4 pk brand Sikeland type ADW 91 – CUWQ. freon R 134a.
– refrigerator compressor capacity 1/3 pk Sikeland brand type ADW 110 – CUWKQ freon R 134a.
– refrigerator compressor capacity 1/2 pk brand Sikeland type ADW 153 – CUWQ. freon R 134a.
– refrigerator compressor capacity 1/10 pk Sanyo brand type BZN 90 L6Z. freon R 134a.
– refrigerator compressor capacity 1/8 pk Sanyo brand type BZN 110 L6Z freon R 134a.
– refrigerator compressor capacity 1/6 pk Sanyo brand type BZN 120 L6Z freon R 134a.
– refrigerator compressor capacity 1/5 pk Sanyo brand type BZN 141 L6Z freon R 134a.
– refrigerator compressor capacity 1/4 pk Sanyo brand type BZN 178 L6Z freon R 134a.
– refrigerator compressor capacity 1/3 pk Sanyo brand type BZN 200 L6Z freon R 134a.



Mbsm.pro, Compressor, Zel, of789d, 1/8 hp

written by Lilianne | 7 October 2023

Mbsm_dot_pro_private_PDF_of789d



CSIR, CSIR(relay)

written by Lilianne | 7 October 2023



Certificate, LG, Compressor, MA Series, MA62LCEG, R134A, lbp, 1/5 hp

written by Lilianne | 7 October 2023
Model Number MA57LBEG
Brand Name LG
origin China

Key Specifications/ Special Features:

LG gives you the worldwide product leadership with the best performance and best quality. All the LG compressor with high -technology and quality is doing for customer’s competitiveness in the global market.

Model     Capacity     Input Power     COP     Motor type     N.W     Packing
W     BTU/H     W     W/W     KGS      pcs/pallet
NS30LAEG     63     214     84     0.78     RSIR, PTC     6.4     125
NS36LAEG     77     262     89     0.86     RSIR, PTC     6.4     125
MSA43LBEG     116     396     106     1.11     RSIR, PTC     6.3     125
MA53LAEG     142     484     106     1.34     RSIR, PTC     7.9     80
MA57LBEG     160     548     119     1.35     RSIR, PTC     8.4     80
MA62LCEG     174     596     127     1.38     RSIR, PTC     9.1     80
MA69LCEG     200     683     148     1.35     RSIR, PTC     9.0     80
MA98LAEM     279     953     183     1.52     RSCR, PTC     9.6     80

Product type Refrigeration Compressor
Series MA Series
Size Middle Frame
Displacement 6.2 cc/rev
Refrigerant R134a
Improvement order Cu Wire
Rated voltage 220-240 V
Frequency 50 Hz
Motor type RSIR, PTC
Application LBP, Middle & Large size refrigerator, freezer & Showcase
Evaporating temperature -23.3°C
Condensing temperature 54.4°C
Ambient temperature 32.2°C

Exif_JPEG_420

Mbsm_dot_pro_private_PDF_MA62LCEG

The LG Compressor is high quality! We can also provide the following models
