Mbsm.pro, Panasonic, Compressor, DB66C10RAW5, RSCR, 1/5 hp, Lbp
Parameter
| Series | D Series |
| Type of Compressor | Reciprocating Fixed Speed |
| Application | LBP |
| Refrigerant | R134a |
| Displacement (cm³) | 6.6 |
| Voltage (V) | 220/240 |
| Frequency (Hz) | 50 |
| Motor Type | RSCR |
| Capacity@ASHRAE | 187 |
| COP@ASHRAE | 1.52/1.5 |

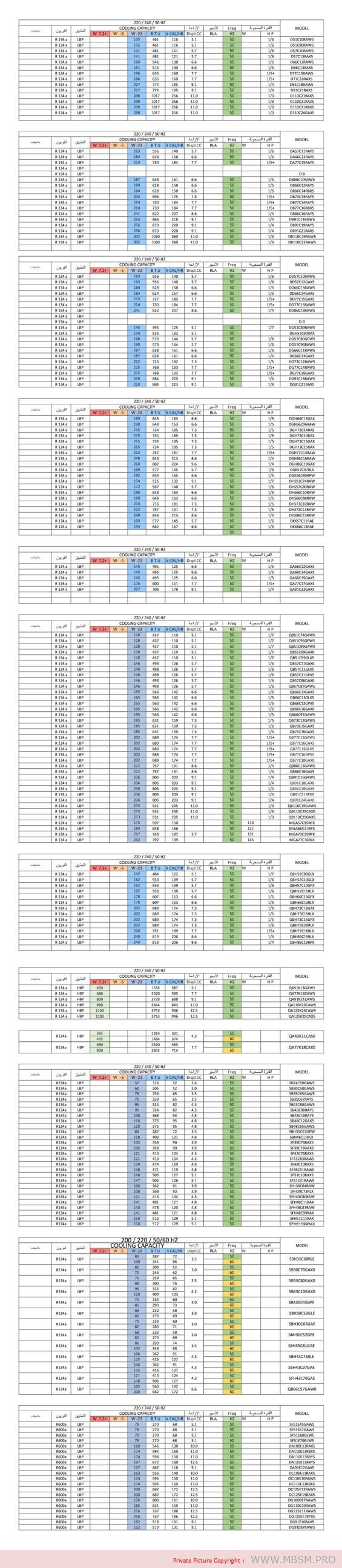

The Model we can supply :
| Rated Voltage | Model | Specification | Voltage Range | |||||||
| 50Hz | 60Hz | |||||||||
| W | kcal/hr | RSIR | RSCR | W | kcal/hr | RSIR | RSCR | |||
| 220V,
50Hz/60Hz |
QB51C99GAX0 | 128 | 110 | 1.14 | / | 157 | 135 | 1.17 | / | 170-250V/50HZ 187-242V/60HZ |
| QB57C11GAX0 | 146 | 126 | 1.18 | / | 175 | 151 | 1.22 | / | ||
| QB66C16GAX0 | 165 | 142 | 1.2 | / | 200 | 172 | 1.27 | / | ||
| QB77C18GAX0 | 202 | 174 | 1.21 | / | 224 | 193 | 1.27 | / | ||
| QB91C24GAX0 | 236 | 203 | 1.19 | / | 255 | 219 | 1.22 | / | ||
| QB110C25CAX0 | 273 | 235 | 1.18 | / | 279 | 240 | 1.19 | / | 170V-250V 50Hz,198V-242V 60Hz | |
