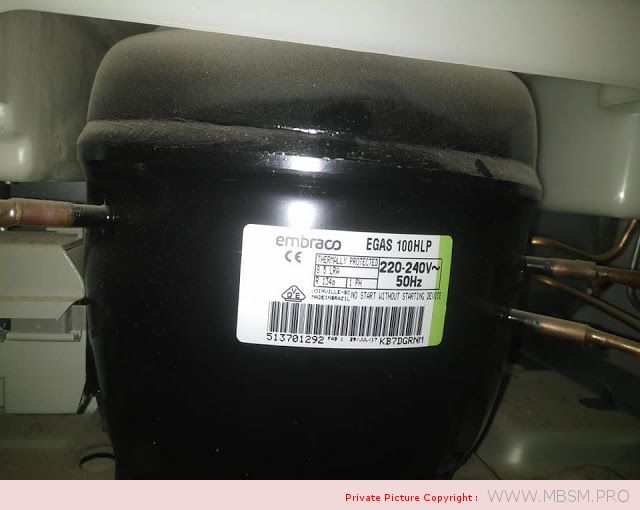

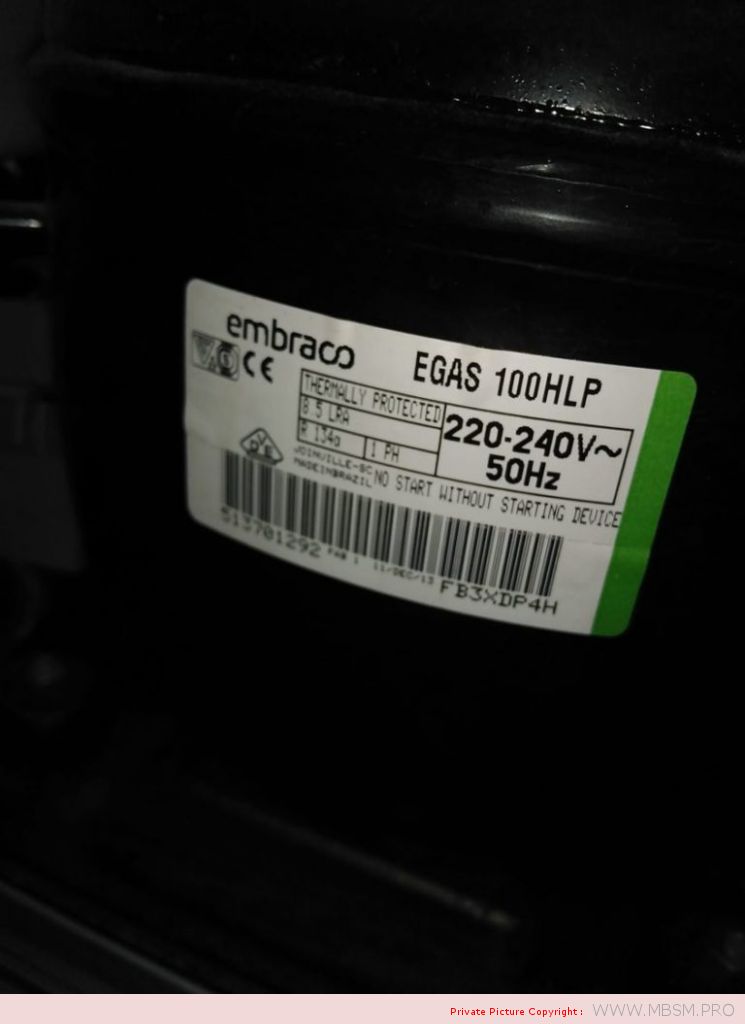

General Data
| Type | Hermetic reciprocating |
| Technology Type | On-Off |
| Displacement | 7.95 cm³ |
| Compressor Cooling | Static/NotControled/220 |
| Expansion Device | Capillary Tube |
| Horse Power | 1/3 hp |
| Power Supply | 220-240 V 50 Hz |
Mechanical Data
| Oil Type Configuration | ESTER |
| Oil Type Viscosity | ISO10 |
| Oil Charge | 230 ml |
| Weight | 10.99 Kg |
Electrical Components
| Name | Description |
| Starting Device | PTC | 7M220MC1 8EA17C1 8M220MC1 QPS2-A22MG1 QPS2-A22MG1 092 |
| Motor Protection | 4TM232RFBYY-53 |
Electrical Data
| Motor type | RSIR |
| Starting Torque | LST |
| Start Winding Resistance | 29.83 Ω at 25ºC |
| Run Winding Resistance | 15.65 Ω at 25ºC |
| Locked Rotor Amperage (LRA) | 6.8 A |
| Rated Load Amperage (RLA) at 50 Hz | 1.15 A |
| Rated Load Amperage (RLA) at 60 Hz | 1.1 A |
