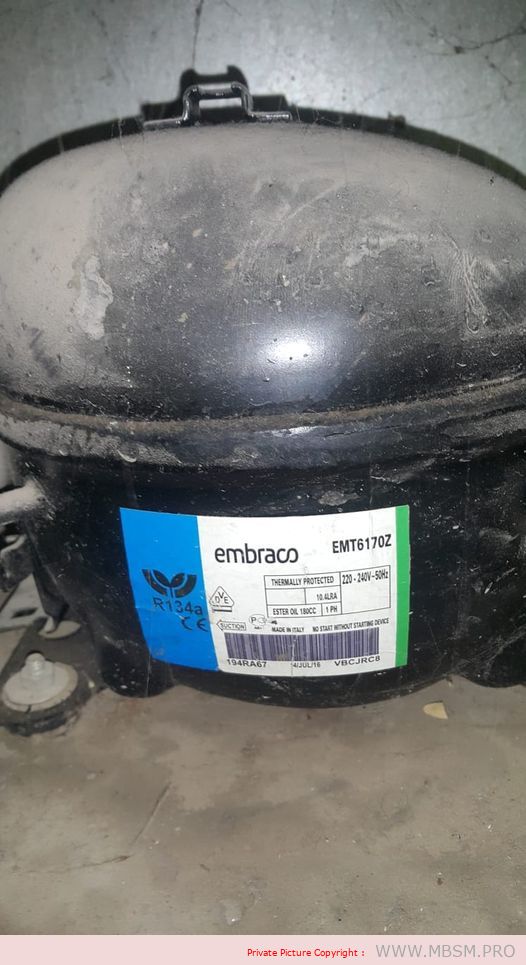

Compressor EMBRACO EMT6170Z, HBP – R134a, 220-240V/1F/50Hz. Power: 1/4 HP. Stroke volume: 7.69 cm3. Motor type: CSIR. Oil filling: POE 22 180 ml. Starting current (LRA): 10.4 A. Power at +7.2 / +54.4 °C: 806 W. Cooling with fan. Air flow: 520 m3/h. Capillary tube/expansion valve operation. Weight: 7.8 kg Cooling capacity measured for condensation temperature 45°C, suction gas temperature 20°C, frequency 50 Hz, measurement conditions: EN12900

Capacitor :	Starting capacitor: 53-64 UF
Refrigerant:	R134a
Dimensions ( length × width × height ):	22,80 × 15,50 × 16,60 cm
Scope of application:	HBP
Power (W):	806
Cooling capacity (W):	411
Cooling capacity (W) at To -15°C:	330
Cooling capacity (W) at To -10°C:	418
Cooling capacity (W) at To -5°C:	771
Cooling capacity (W) at To 0°C:	559
Cooling capacity (W) at To 5°C:	522
Cooling capacity (W) at To 10°C:	915
starting torque:	HST
Connection:	solder terminals
Connection size:	4,94 mm
Design type:	Hermetic , reciprocating
Manufacturer:	Aspera , Embraco Aspera
Hubvolumen (cm3):	7.69
Info:	Oil pre-filled
Contents:	1.00 pcs.
Condensation temperature:	45°C
Performance condition:	+7.2°C to +54.4°C
Power range (C):	-15 C to +10 C
Power range (hp):	0-2
Power range (W):	401 – 500 W 701 – 1000 W
Max. starting current (A):	10.4
Measurement conditions:	EN12900
Engine type:	CSIR
Rated power (hp):	0.3
suction side:	6,1 mm
Series:	EMT
Tension:	220-240V
Power supply:	230 V
Compressor type:	reciprocating
Condensing Units Compressors:	compressor
To be used with:	Capillary/expansion
Olmenge (l):	0.18
Oil type:	ISO22, POE22 ISO22
