Embraco Fractional Domestic Compressor Data

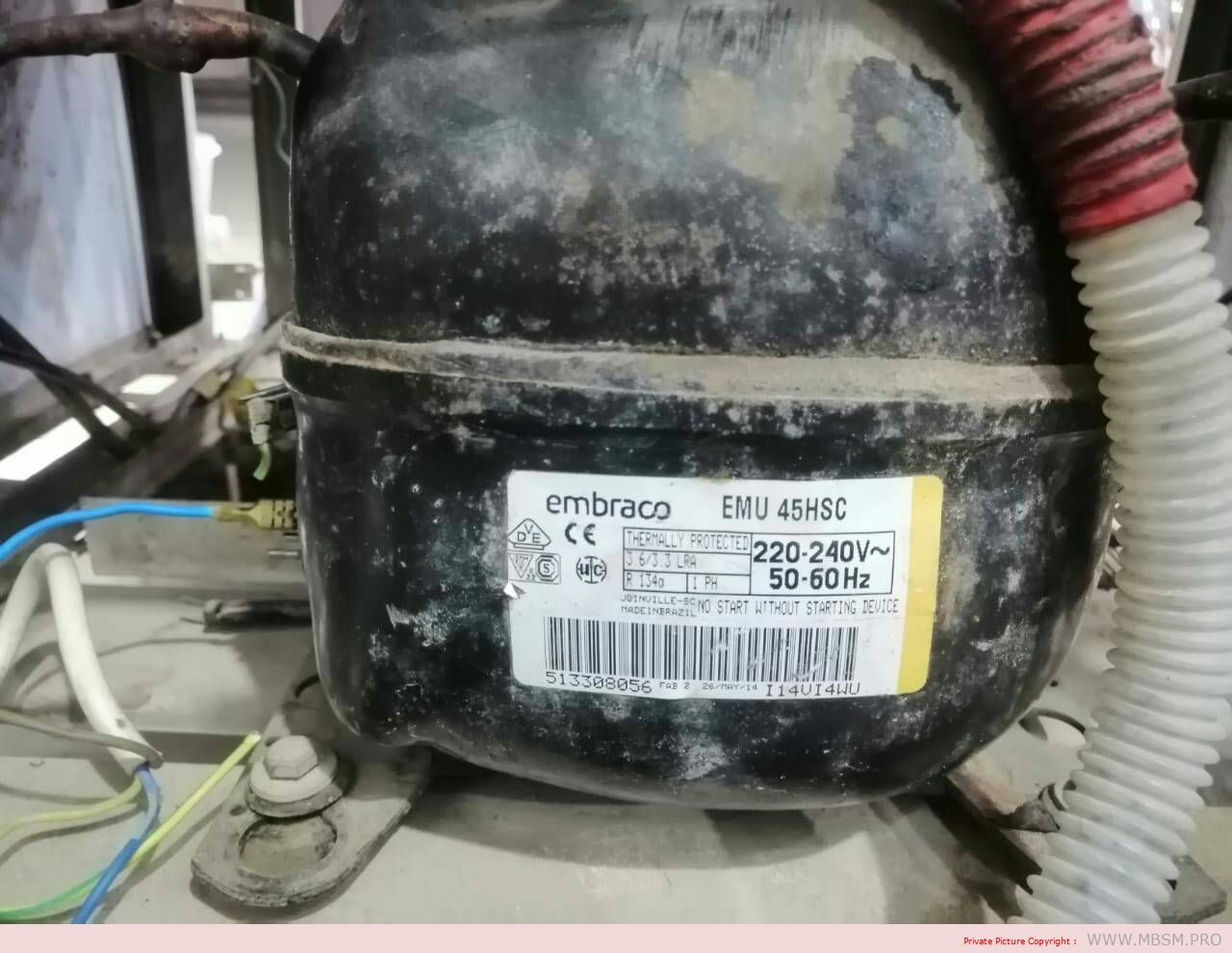

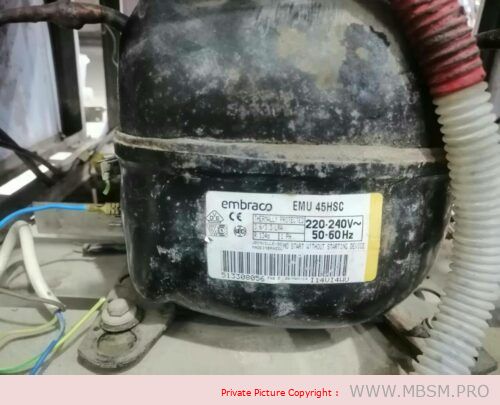

Embraco/Embraco R134a series EMU45HSC

Wholesale and Retail Embraco/Embraco Compressor, Embraco/Embraco Piston Compressor Model: emu45hsc, Refrigerant: R134a, Supply Voltage: 220-240V, 50-60Hz, Horsepower: 1/6 HP, Provide Embraco / Embraco emu45hsc models, specifications, parameters, pictures, prices and other data. Embraco, a company focused on refrigeration solutions, is the leader in the hermetic compressor market
Product model: EMU45HSC
Refrigerant: R134a
Power frequency: 50/60Hz
Power supply voltage: 220-240V
Product horsepower: 1/6 HP
Model Refrigerator Voltage Frequency / Rotation Application HP Efficiency (Kcal/wh) Capacity (Kcal/h) Displacement (cm³) Type of oil Type of motor Starting torque Type of test
EMI30HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,92 69 3 ISO22 RSIR-CSIR LST ASHRAE32
EMIE30HJR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,03 76 2,83 ISO10 RSIR LST ASHRAE32
EMI30HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,03 77 3 ISO10 RSIR-CSIR LST ASHRAE32
EM30HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,93 77 3 ISO22 RSIR-CSIR LST ASHRAE32
EM30HHR R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,81 78 3 ISO22 CSIR LST ASHRAE32
EM30HHR R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,81 78 3 ISO22 RSIR LST ASHRAE32
EM30HHR R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,81 78 3 ISO22 RSIR-CSIR LST ASHRAE32
EMT30HSC R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,08 78 3 ISO10 RSCR – 12 µF LST ASHRAE32
EMI28HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,01 81 3 ISO10 RSIR-CSIR LST ASHRAE32
EMU30HSC R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,21 83 3 ISO10 RSCR – 12 µF LST ASHRAE32
EMI40HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,05 94 3,77 ISO10 RSIR-CSIR LST ASHRAE32
EMI45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,13 106 3,77 ISO10 RSIR LST ASHRAE32
EMI45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,08 106 3,77 ISO22 RSIR LST ASHRAE32
EM45HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1 106 3,77 ISO10 RSIR-CSIR LST ASHRAE32
EM45HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 0,98 106 3,77 ISO22 RSIR-CSIR LST ASHRAE32
EMU45HEP R-134a 100 V 50-60 Hz 1 ~ 60 Hz LBP 1/6 1,14 110 3,77 ISO10 RSIR LST ASHRAE32
EMU45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,19 113 3,77 ISO7 RSIR LST ASHRAE32
EMU45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,22 113 3,77 ISO10 RSCR – 20 µF LST ASHRAE32
EMU45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,25 113 3,77 ISO10 RSCR – 15 µF LST ASHRAE32
EMU45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,25 113 3,77 ISO10 RSCR – 12 µF LST ASHRAE32
EMI30HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,92 69 3 ISO22 RSIR-CSIR LST ASHRAE32
EMIE30HJR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,03 76 2,83 ISO10 RSIR LST ASHRAE32
EMI30HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,03 77 3 ISO10 RSIR-CSIR LST ASHRAE32
EM30HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,93 77 3 ISO22 RSIR-CSIR LST ASHRAE32
EM30HHR R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,81 78 3 ISO22 CSIR LST ASHRAE32
EM30HHR R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,81 78 3 ISO22 RSIR LST ASHRAE32
EM30HHR R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 0,81 78 3 ISO22 RSIR-CSIR LST ASHRAE32
EMT30HSC R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,08 78 3 ISO10 RSCR – 12 µF LST ASHRAE32
EMI28HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,01 81 3 ISO10 RSIR-CSIR LST ASHRAE32
EMU30HSC R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,21 83 3 ISO10 RSCR – 12 µF LST ASHRAE32
EMI40HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/10 1,05 94 3,77 ISO10 RSIR-CSIR LST ASHRAE32
EMI45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,13 106 3,77 ISO10 RSIR LST ASHRAE32
EMI45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,08 106 3,77 ISO22 RSIR LST ASHRAE32
EM45HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1 106 3,77 ISO10 RSIR-CSIR LST ASHRAE32
EM45HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 0,98 106 3,77 ISO22 RSIR-CSIR LST ASHRAE32
EMU45HEP R-134a 100 V 50-60 Hz 1 ~ 60 Hz LBP 1/6 1,14 110 3,77 ISO10 RSIR LST ASHRAE32
EMU45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,19 113 3,77 ISO7 RSIR LST ASHRAE32
EMU45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,22 113 3,77 ISO10 RSCR – 20 µF LST ASHRAE32
EMU45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,25 113 3,77 ISO10 RSCR – 15 µF LST ASHRAE32
EMU45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,25 113 3,77 ISO10 RSCR – 12 µF LST ASHRAE32
EMY45HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,22 115 3,77 ISO10 RSIR LST ASHRAE32
EMY45HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/8 1,33 115 3,77 ISO10 RSCR – 12 µF LST ASHRAE32
EM2U50HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,2 126 4,5 ISO10 RSIR LST ASHRAE32
EM55HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,02 129 4,6 ISO22 RSIR-CSIR LST ASHRAE32
EM55HNX R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,01 129 4,6 ISO22 CSIR HST ASHRAE32
EMI55HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,12 129 4,6 ISO22 RSIR-CSIR LST ASHRAE32
EM2Y50HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,42 130 4,5 ISO10 RSCR – 12 µF LST ASHRAE32
EM2Y50HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,42 130 4,5 ISO10 RSCR – 15 µF LST ASHRAE32
EM3U50HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,35 140 4,5 ISO10 RSIR LST ASHRAE32
EMI60HEP R-134a 100 V 50-60 Hz 1 ~ 60 Hz LBP 1/6 1,09 141 4,99 ISO22 RSIR LST ASHRAE32
EMI60HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,06 144 4,99 ISO22 RSIR-CSIR LST ASHRAE32
EMI60HEP R-134a 100 V 50-60 Hz 1 ~ 60 Hz LBP 1/6 1,14 144 4,99 ISO10 RSIR LST ASHRAE32
NEK2116Z R-134a 115 V 60 Hz 1~ 60 Hz LBP 1/5 0,79 147 7,37 ISO22 CSIR HST ARI4
EMU60HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,25 149 4,99 ISO10 RSCR – 12 µF LST ASHRAE32
EGD60HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,5 149 5,17 ISO10 RSCR – 12 µF LST ASHRAE32
EGD60HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,54 149 5,17 ISO10 RSCR – 12 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,46 150 5,09 ISO10 RSCR – 12 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,46 150 5,09 ISO10 RSCR – 15 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,46 150 5,09 ISO10 RSCR – 20 µF LST ASHRAE32
EMY60HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,36 152 4,99 ISO10 RSCR – 12 µF LST ASHRAE32
EMYS60HEP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5+ 1,29 153 5,19 ISO10 RSCR – 12 µF LST ASHRAE32
EMY60HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,27 154 4,99 ISO10 RSIR LST ASHRAE32
EMY60HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6 1,34 154 4,99 ISO10 RSCR – 12 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,48 154 5,09 ISO10 RSCR – 12 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,48 154 5,09 ISO10 RSCR – 15 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,48 154 5,09 ISO10 RSCR – 20 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,51 154 5,09 ISO10 RSCR – 12 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,51 154 5,09 ISO10 RSCR – 15 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,51 154 5,09 ISO10 RSCR – 20 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,52 154 5,09 ISO7 RSCR – 12 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,52 154 5,09 ISO7 RSCR – 15 µF LST ASHRAE32
EGZS60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,52 154 5,09 ISO7 RSCR – 20 µF LST ASHRAE32
EGX60HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,53 154 5,09 ISO10 RSCR – 12 µF LST ASHRAE32
ONE 60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,4 154 5,09 ISO10 RSIR LST ASHRAE32
ONE 60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,41 154 5,09 ISO7 RSIR LST ASHRAE32
FF7,5HBK R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/5+ 0,94 159 6,92 ISO22 RSIR-CSIR LST ASHRAE32
EM2U60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,32 162 5,54 ISO10 RSCR – 12 µF LST ASHRAE32
EM2U60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,26 162 5,54 ISO10 RSIR LST ASHRAE32
EMH60HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,27 163 5,19 ISO7 RSIR LST ASHRAE32
EM3D60HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,58 163 5,19 ISO10 RSCR – 12 µF LST ASHRAE32
EM3D60HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,58 163 5,19 ISO10 RSCR – 15 µF LST ASHRAE32
EM65HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6+ 0,99 164 5,54 ISO10 RSIR-CSIR LST ASHRAE32
EM65HNR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/6+ 0,98 164 5,54 ISO22 RSIR-CSIR LST ASHRAE32
EM2Y60HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,44 165 5,54 ISO10 RSCR – 12 µF LST ASHRAE32
EGD70HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,56 169 5,64 ISO10 RSCR – 12 µF LST ASHRAE32
EM2Z60HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,48 170 5,54 ISO10 RSCR – 12 µF LST ASHRAE32
EM2Z60HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,48 170 5,54 ISO10 RSCR – 15 µF LST ASHRAE32
FFV6HAK R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,19 170 6,23 ISO22 RSIR-CSIR LST ASHRAE32
FEE6HAK R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,07 171 6,23 ISO22 RSIR-CSIR LST ASHRAE32
EMY70HER R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,21 171 5,72 ISO10 RSIR-CSIR LST ASHRAE32
EMYE70HEP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,31 173 5,96 ISO10 RSIR LST ASHRAE32
EMYE70HEP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,37 173 5,96 ISO10 RSIR-RSCR – 12 µF LST ASHRAE32
EMYE70HEP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,37 173 5,96 ISO10 RSIR-RSCR – 15 µF LST ASHRAE32
EMYE70HEP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5 1,3 173 5,96 ISO10 RSIR LST ASHRAE32
EGAS70HLR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5+ 1,29 174 5,56 ISO10 RSIR LST ASHRAE32
FGS70HA R-134a 100 V 50-60 Hz 1 ~ 60 Hz LBP 1/5+ 1,32 174 6,36 ISO10 RSCR – 20 µF LST ASHRAE32
EMX70HSC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/5+ 1,44 175 5,96 ISO10 RSCR – 12 µF LST ASHRAE32
EGX70HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,55 175 5,56 ISO10 RSCR – 15 µF LST ASHRAE32
EGX70HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,56 175 5,56 ISO10 RSCR – 12 µF LST ASHRAE32
EGX70HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,57 175 5,56 ISO7 RSCR – 15 µF LST ASHRAE32
EGX70HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,58 175 5,56 ISO7 RSCR – 12 µF LST ASHRAE32
EGZS70HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,54 175 5,56 ISO7 RSCR – 12 µF LST ASHRAE32
EGZS70HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,54 175 5,56 ISO7 RSCR – 15 µF LST ASHRAE32
EGZS70HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,54 175 5,56 ISO7 RSCR – 20 µF LST ASHRAE32
ONE 70HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,43 175 5,56 ISO10 RSIR LST ASHRAE32
ONE 70HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,44 175 5,56 ISO7 RSIR LST ASHRAE32
ONE 70HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,39 176 5,56 ISO10 RSIR LST ASHRAE32
FF8,5HBK R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 0,94 186 7,95 ISO22 RSIR-CSIR LST ASHRAE32
FFU70HAK R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,29 189 6,36 ISO10 RSIR-CSIR LST ASHRAE32
EM3Z70HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,5 189 5,96 ISO10 RSCR – 12 µF LST ASHRAE32
EM3Z70HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,5 189 5,96 ISO10 RSCR – 15 µF LST ASHRAE32
EM3D70HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,57 193 5,96 ISO10 RSCR – 12 µF LST ASHRAE32
EM3D70HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,57 193 5,96 ISO10 RSCR – 15 µF LST ASHRAE32
FFI7,5HAK R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,16 193 6,76 ISO22 RSIR-CSIR LST ASHRAE32
EM2U80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,32 197 6,76 ISO10 RSIR LST ASHRAE32
EM2U80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,32 197 6,76 ISO10 RSCR – 12 µF LST ASHRAE32
EM2U80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,32 197 6,76 ISO10 RSCR – 15 µF LST ASHRAE32
EM2U80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,46 199 6,76 ISO10 RSCR – 12 µF LST ASHRAE32
EM2U80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,46 199 6,76 ISO10 RSCR – 15 µF LST ASHRAE32
EM2U80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,42 199 6,76 ISO10 RSIR LST ASHRAE32
EGUS80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,38 203 6,36 ISO10 RSIR LST ASHRAE32
EGD80HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,59 204 6,44 ISO10 RSCR – 12 µF LST ASHRAE32
EGAS80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,24 204 6,44 ISO10 RSIR LST ASHRAE32
EGAS80HLR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,32 205 6,36 ISO10 RSIR-CSIR LST ASHRAE32
EGX80HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,55 205 6,36 ISO10 RSCR – 12 µF LST ASHRAE32
EM2Z80HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,51 205 6,76 ISO10 RSCR – 12 µF LST ASHRAE32
EM2Z80HLT R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,51 205 6,76 ISO10 RSCR – 15 µF LST ASHRAE32
ONE 80HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,44 207 6,36 ISO10 RSIR LST ASHRAE32
EGX80HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,55 207 6,36 ISO10 RSCR – 12 µF LST ASHRAE32
EGX80HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,57 207 6,36 ISO10 RSCR – 15 µF LST ASHRAE32
EGX80HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,59 207 6,36 ISO7 RSCR – 15 µF LST ASHRAE32
EGX80HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4 1,59 207 6,36 ISO7 RSCR – 12 µF LST ASHRAE32
FFI8,5HAK R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,18 209 7,15 ISO22 RSIR-CSIR LST ASHRAE32
FF10HBX R-134a 115 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 0,98 212 9,04 ISO22 CSIR HST ASHRAE32
EGUS90HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,42 234 7,15 ISO10 RSIR LST ASHRAE32
ONE 90HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,45 236 7,15 ISO10 RSIR LST ASHRAE32
EGAS90HLR R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/3- 1,37 236 7,15 ISO10 RSIR-CSIR LST ASHRAE32
EGX90HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,58 239 7,15 ISO7 RSCR – 15 µF LST ASHRAE32
EGX90HLC R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,58 239 7,15 ISO7 RSCR – 12 µF LST ASHRAE32
EGZS90HLP R-134a 115-127 V 60 Hz 1 ~ 60 Hz LBP 1/4+ 1,54 239 7,15 ISO7 RSCR – 12 µF LST ASHRAE32

Embraco/Embraco piston compression emu45hsc detailed parameters:

Refrigerant: R-134a Displacement (cm³): 3.77
Voltage: 220-240V 50-60Hz 1~ Lubricant category: ISO10
frequency(Hz): 50 Lubricating oil volume (ml): 160
application: LBP motor model: RSCR
horsepower: 1/6 Starting torque: LST
efficiency: 1.40 Test type: ASHRAE32
Cooling capacity: 109

Number: 513308034 513308056 513308063

Appearance

shape material Dimensions (mm)
suction port Slanted Copper 6.50
exhaust port Straight Copper 4.94
Process interface Straight Copper 6.50
Oil cooler:
Floor: Universal EG/F/AMEM version 2
bracket: No
Weight(kg): 7.74

application

Maximum ambient temperature (°C): 43
Expansion device: Capillary
cool down: Straight cold
Air Velocity:

mechanical data

Bill of Materials: 513308034
Starting torque: low starting torque
Bore (mm): 19.00
Stroke(mm): 6.65
Weight(kg): 7.74

digital data

motor model: RSCR
Wireset Resistance (25°C) – Startup (25°C) – Startup: 19.00
Cordset Resistance (26°C) – Operating (25°C) – Operating: 27.10



Check point – condensing temperature 54.4 °C

Evaporation temperature Cooling capacity +/-5% Energy consumption +/-5% Now energy efficient +/-5% Energy efficiency +/-7%
°C (kcal/h) (IN) (Btu/h) (IN) (A) (kcal/Wh) (W/W) (Btu/Wh)
-23.3 94 109 372 75 0.36 1.25 1.46 4.98

Condensing temperature 45°C

Evaporation temperature Cooling capacity +/-5% Energy consumption +/-5% Now energy efficient +/-5% Gas flow rate +/-5% Energy efficiency +/-7%
°C (kcal/h) (IN) (Btu/h) (IN) (A) (kg/h) (kcal/Wh) (W/W) (Btu/Wh)
-35 49 56 193 57 0.28 1.09 0.85 0.99 3.38
-30 74 86 293 64 0.30 1.66 1.16 1.35 4.60
-25 98 114 390 71 0.34 2.21 1.39 1.61 5.50
-20 125 145 496 79 0.38 2.82 1.59 1.84 6.29
-15 157 183 623 87 0.42 3.56 1.80 2.09 7.13
-10 197 229 783 97 0.47 4.49 2.04 2.37 8.10

Condensing temperature 55°C

Evaporation temperature Cooling capacity +/-5% Energy consumption +/-5% Now energy efficient +/-5% Gas flow rate +/-5% Energy efficiency +/-7%
°C (kcal/h) (IN) (Btu/h) (IN) (A) (kg/h) (kcal/Wh) (W/W) (Btu/Wh)
-35 39 45 154 55 0.25 0.87 0.70 0.81 2.77
-30 62 72 247 63 0.29 1.40 0.99 1.15 3.92
-25 85 99 337 72 0.34 1.91 1.18 1.38 4.70
-20 110 127 435 81 0.39 2.47 1.35 1.57 5.35
-15 139 162 552 92 0.45 3.15 1.52 1.77 6.03
-10 177 206 702 103 0.50 4.02 1.72 2.00 6.82

Condensing temperature 65°C

Evaporation temperature Cooling capacity +/-5% Energy consumption +/-5% Now energy efficient +/-5% Gas flow rate +/-5% Energy efficiency +/-7%
°C (kcal/h) (IN) (Btu/h) (IN) (A) (kg/h) (kcal/Wh) (W/W) (Btu/Wh)
-35 29 33 114 56 0.29 0.65 0.51 0.59 2.03
-30 51 60 204 64 0.33 1.15 0.80 0.93 3.16
-25 73 84 288 74 0.37 1.64 0.99 1.15 3.91
-20 96 111 380 84 0.41 2.16 1.14 1.32 4.52
-15 124 144 491 96 0.45 2.80 1.29 1.50 5.12
-10 159 185 632 109 0.48 3.62 1.47 1.71 5.82

Embraco/Embraco Piston Compression Product List:

model Refrigerant Voltage frequency application horsepower frequency/rotation Cooling capacity Displacement(cm³) Lubricant category motor model starting torque test type
EM2U80HLP R-134a 115-127V 60Hz 1~ 60Hz LBP 1/4 1.70 232 6.76 ISO10 RSCR-12µF LST ASHRAE32
EM2U80HLP R-134a 115-127V 60Hz 1~ 60Hz LBP 1/4 1.70 232 6.76 ISO10 RSCR-15µF LST ASHRAE32
EM2U80HLP R-134a 115-127V 60Hz 1~ 60Hz LBP 1/4 1.65 232 6.76 ISO10 RSIR LST ASHRAE32
EM2U80HLP R-134a 220V 60Hz 1~ 60Hz LBP 1/4 1.67 232 6.76 ISO10 RSCR-4µF LST ASHRAE32
EM2U80HLP R-134a 220V 60Hz 1~ 60Hz LBP 1/4 1.61 232 6.76 ISO10 RSIR LST ASHRAE32
EM2Z80HLT R-134a 115-127V 60Hz 1~ 60Hz LBP 1.76 239 6.76 ISO10 RSCR-12µF LST ASHRAE32
EM2Z80HLT R-134a 115-127V 60Hz 1~ 60Hz LBP 1.76 239 6.76 ISO10 RSCR-15µF LST ASHRAE32
EM20HHR R-134a 220-240V 50-60Hz 1~ 50Hz HBP 1/12 2.51 246 2.27 ISO22 RSIR-CSIR LST CECOMAF
EM20HBR R-134a 115V 60Hz 1~ 60Hz HBP 1/12 2.37 289 2.27 ISO22 RSIR LST ASHRAE32
EM20HHR R-134a 220-240V 50-60Hz 1~ 60Hz HBP 1/12 2.48 292 2.27 ISO22 RSIR-CSIR LST ASHRAE32
EM20HHR R-134a 115-127V 60Hz 1~ 60Hz HBP 1/12 2.53 299 2.27 ISO22 RSIR-CSIR LST ASHRAE32
EMIS20HHR R-134a 115-127V 60Hz 1~ 60Hz HBP 1/12 2.49 308 2.27 ISO22 RSIR-CSIR LST ASHRAE32
EMIS20HHR R-134a 220V 60Hz 1~ 60Hz HBP 1/12 2.37 308 2.27 ISO22 RSIR-CSIR LST ASHRAE32

- Mbsm.pro, Compressor, Embraco, Fractional, Domestic, Compressor Data, EMU45HSC, 1/6 hp, lbp Mbsm_dot_pro_private_PDF_emu45hsc

1/6 HPCompressorCompressor DataDomesticEmbracoEMU45HSCFractionalLBPmbsm.pro
Tags: , , , , , , , ,
