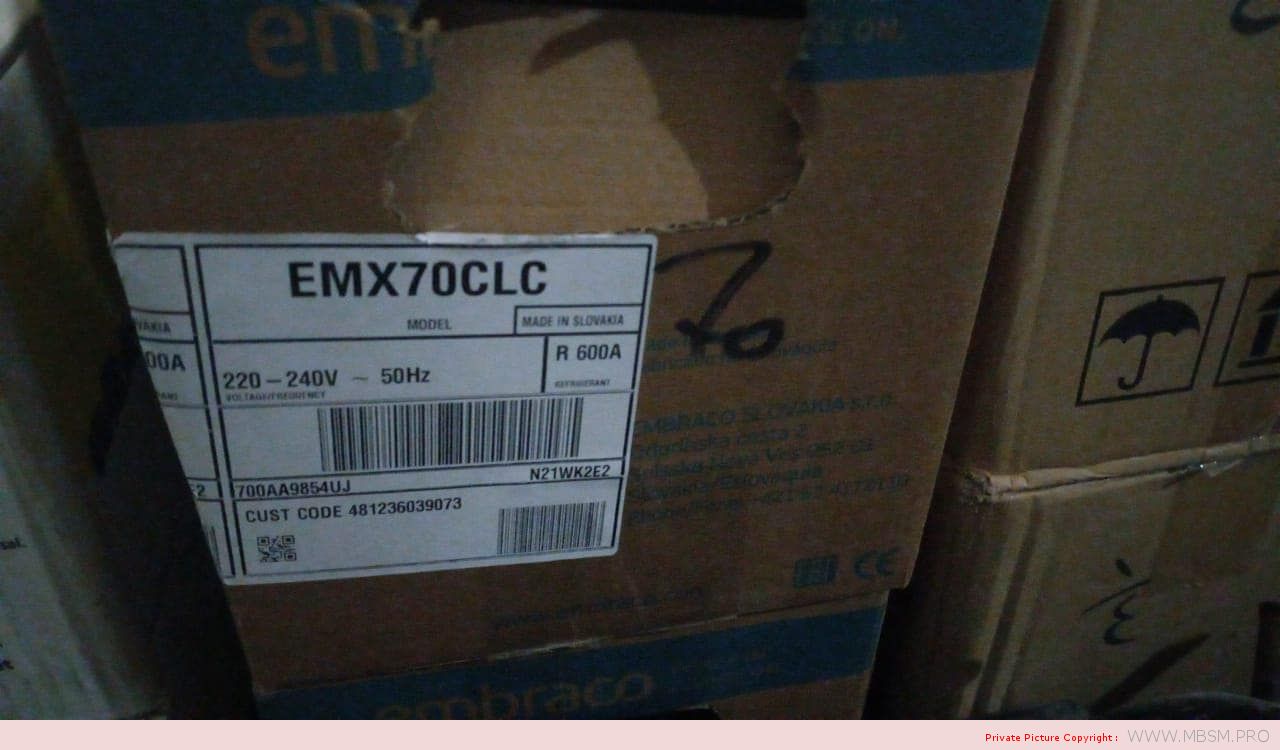

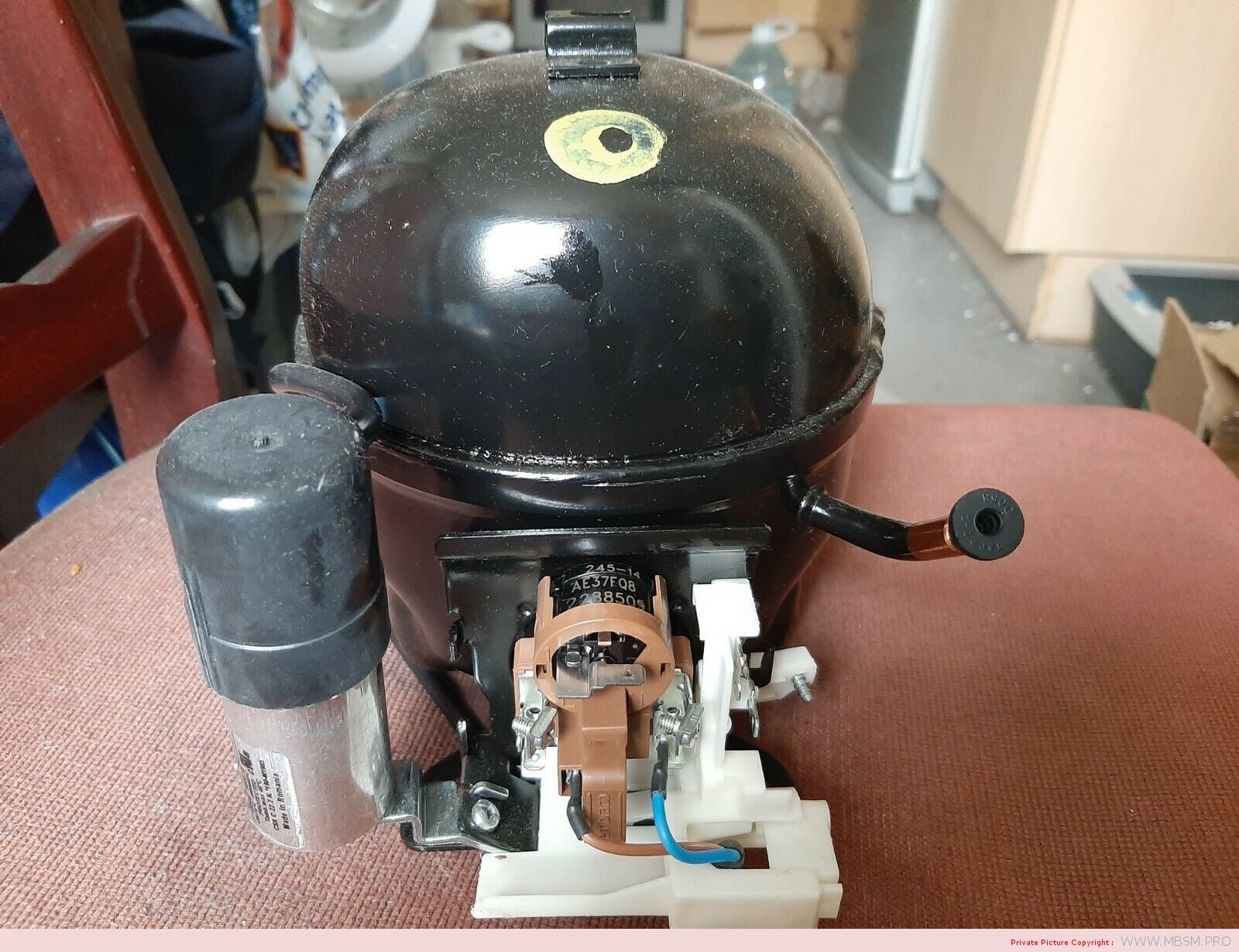

Compressor Embraco Aspera EMX70CLC, LBP – R600a, 220 – 240V/1/50Hz, 1/5 HP, discharge 11.14 cm3, motor type RSCR, lubricant type AB 5, lubricant charge 180 ml, LRA 6 A, 189 W at -23.3 / +54.4 °C, cooling: static, expansion device: capillary, weight 8.6 kg substitution for compressor NBM1116Y
| Refrigerant: | R600a |
| Power range(W): | 101 – 200 W |
| Performance range (C): | -30 C to -10 C |
| Working area: | LBP |
| Design type: | Hermetic |
| Model series: | EMX |
| Use with: | Capillary |
| Power range(HP): | 0-2 |
| Power supply: | 230 V |
| Oil type: | AB5 |
| Engine type: | RSCR |
| Article condition: | New |
| Info: | Oil filled |
| Shipping weight: | 9,60 Kg |
| Dimensions ( length × width × height ): | 22,80 × 15,50 × 16,60 cm |
| customs tariff number: | 84143081 |
| Cooling capacity condition: | T0 -25 C, Tk +55 C |
| Manufacturer: | Embraco Aspera |
| Model: | EMX70CLC |
| Stroke volume (cm3): | 11,14 |
| Performance condition: | -23,3 / +54,4 |
| Power (W): | 189 |
| Cooling capacity (W): | 143 |
| Power (HP): | 0,25 |
| Max. Starting current (A): | 6 |
| Engine type: | RSCR |
| Note: | Static cooling |
| Oil quantity (l): | 0,18 |
| Compressor type: | Piston |
| Power range: | -30 C to -10 C |
| Alternative: | NBM1116Y , HPY14AA , HPY12AA , HTK12AA |
Technical details
220V 50/60Hz
power 1/5L Hp – displacement 11.14 cc
gas R600a LBP
ASPERA
ARISTON
AristonWashingmachine BCB7030ECAAO3R
BAUKNECHT
BauknechtDomesticrefrigerator GKNC2801, KDI2800A, KDI2800ALH, KDIK2400A, KGA326OPTIMAIN, KGI2920B, KGI2920B1, KGI2920B1L, KGI2920B1LH, KGI2920BLH, KGI3100A, KGI3100A1, KGI3100ALH, KGI3100ALH1, KGI3102A, KGI3103A, KGIK3100A, KGIK3100A1, KGIK3109A+
ELECTROLUX
ElectroluxDomesticrefrigerator AU7716C, 92268456000 (AU8295C), AU8296C
FAGOR BRANDT
Fagor BrandtDomesticrefrigerator 904017610 (1FS-18LA), 904017692 (1FSC-19EL), BFC3852BS (BFC3852BS), BFL2232SW/1 (BFL2232SW), D30710A (D30710), D30710S (D30710), 904022481 (FA-165F), FA375/1 (FA375), 904016470 (FC-37LA), 904018343 (FD-289NF), 924010147 (FL1400S1), FL372 (FL372), 904690204 (SDA213MF), 904690133 (SDA213WE), 904690160 (SDA273WE)
HOTPOINT
HotpointDomesticrefrigerator BCB 7030 E C AA O3(1, BCB70301AA, BCB7030AA, BCB7030AAS, BCB7030CAA, BCB7030DAAS, BCB7030ECAA, BCB7030ECAAO3, BCB7030ECAAO3R, BCB7525AA, BCB7525AAS, BCB7525ECAA, BCB7525ECAAO3R, BCB7525ECAAS, HM7030ECAAO3, HMCB 7030 AA.UK, HMCB50501AA., HMCB50501AA.UK, HMCB5050AA.U, HMCB5050AA.UK, MSZ822DFHA, MSZ826DF-HA, MSZ922DFHA, MSZ926DFHA, ZCBB7030AA
HotpointWashingmachine WMTG 723 H R IT
IGNIS
IgnisChestfreezer SF401
IgnisDomesticrefrigerator DPA39, DPA39AL
IkeaDomesticrefrigerator electric 00157699CFS171FRIGORIFERI, 30245553CBEF181A+FRIGORIF, 30282296DD140COMBINAZIONE, 50245552CBEF180A+FRIGORIF, CFS101W00154686, CFS141W60154688, CFS600S, CFS700S80094684
IkeaDomesticrefrigerator gas 10182486CB181FRIGORIFERIC, 10282297CB1815COMBINAZION, 10282297CB1815FRIGORIFERI, 20094682CFS610S1, 30182485CB184FRIGORIFERIC, 40176554CFS660SFRIGORIFER, 60182484CB180FRIGORIFERIC, 70221866CFS191SSFRIGORIFER, 70245551CBRA160A+FRIGORIF, 80199501CB160FRIGORIFERIC, 90128240CFS640S1, 90221865CFS190SSFRIGORIFER, CB601W20123509, CB651WGB40123513, CB652WGB20123514, CB901W10123538, CBI611W84535810, CBI651W70016229, CFS111W80154687, CFS410AL, CFS600S140094681, CFS610S, CFS640S190128240, CFS660S40176554
IkeaDomesticrefrigerator glass-ceramics 40157697CFS170FRIGORIFERI, 60107847, CB641W00123510, CBI601W44535510, CBI641W90016228
KITCHENAID
KitchenaidDomesticrefrigerator KRCB6014
MAYTAG
MaytagChestfreezer MFC1210TAW
PHILIPS
PhilipsDomesticrefrigerator CFS610S
