Compressors Danfoss R134a FR11G 195B0028 / 103G6980
Mbsm_dot_pro_private_PDF__103g6980 Mbsm_dot_pro_private_PDF_103g6980
Singlepack kits are complete compressor kits with all electrical and mounting accessories required for an installation or replacement. The singlepack lists provide the code numbers that are included in the kits. For comprehensive technical data on these code numbers, please refer to the individual code numbers.
TECHNICAL DATA
| Model | Displacement | Refrigerant | Voltage | Evaporating temperature range |
Lubricant (Charge/Type |
Weight | Max. Height |
| FR11G | 11,15 cm3 | R-134a | 187-254V / 50Hz | -30°C~+5°C | – /450 ml | 11,1 kg | 196 mm |
Cooling Capacity
| Model | Evaporating Temp. / Cooling Capacity R-134a | ||||||||
| Condensing Temp. | -30ºC | -25ºC | -20ºC | -15ºC | -10ºC | -5ºC | 0ºC | +5ºC | |
| FR11G | 55 ºC | 115 W | 170 W | 233 W | 307 W | 395 W | 501 W | 628 W | 780 W |

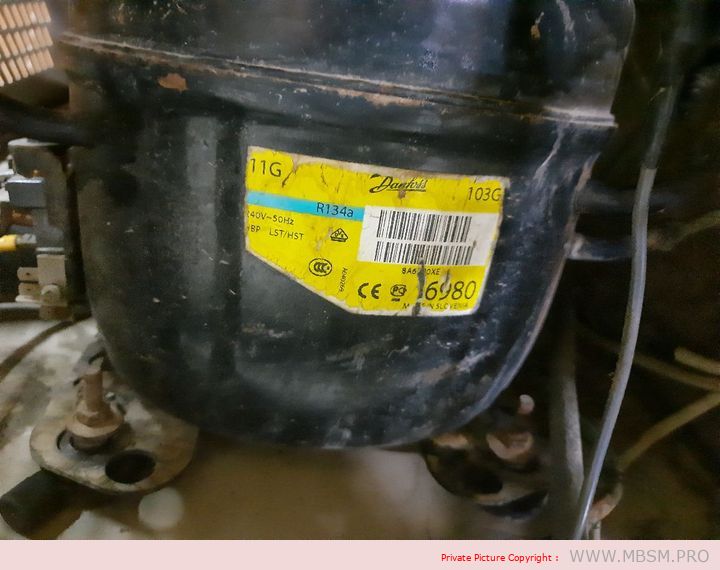

103G6980, compressor Secop / Danfoss FR11G, LBP / HBP- R134, 220
– 240V/1/50 Hz, discharge 11.15 cm3, motor type RSIR/CSIR, oil
type POE, oil charge 450 cm3, 170 W at -25 / 55° C, LRA 10 A,
maximum refrigerant charge 900 g, height: 196 mm, weight 10.6 kg
– 240V/1/50 Hz, discharge 11.15 cm3, motor type RSIR/CSIR, oil
type POE, oil charge 450 cm3, 170 W at -25 / 55° C, LRA 10 A,
maximum refrigerant charge 900 g, height: 196 mm, weight 10.6 kg
Refrigerant:
R134a
Power range(W):
101 – 200 W
Working area:
HBP LBP
Design type:
Hermetic
Model series:
Fr
Use with:
Expansion/Capillary
Power supply:
230 V
Oil type:
POE
Engine type:
CSIR RSIR
Article condition:
New
Info:
Oil filled
Shipping weight:
12,60 kg
Content:
1,00 Pieces
Dimensions ( Height ):
19,60 cm
customs tariff number:
84143081
Cooling capacity condition:
-25 / +55 °C
Manufacturer:
Danfoss Secop
Model:
FR11G
Modelname:
103G6980
Modellname 3:
FR11GX
Stroke volume (cm3):
11,15
Cooling capacity (W):
170
Max. Starting current (A):
10
Engine type:
RSIR
Note:
Maximum refrigerant quantity 900 g
Oil quantity (l):
0,45
Compressor type:
Piston
