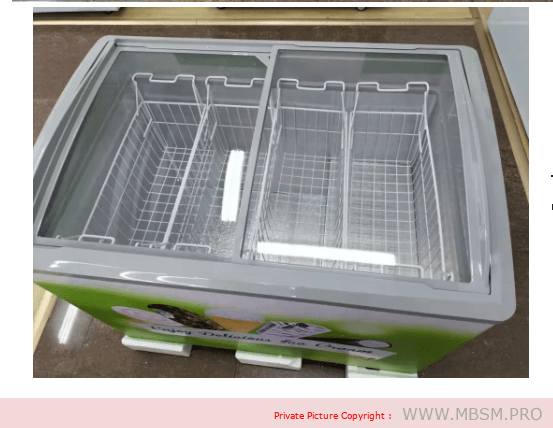

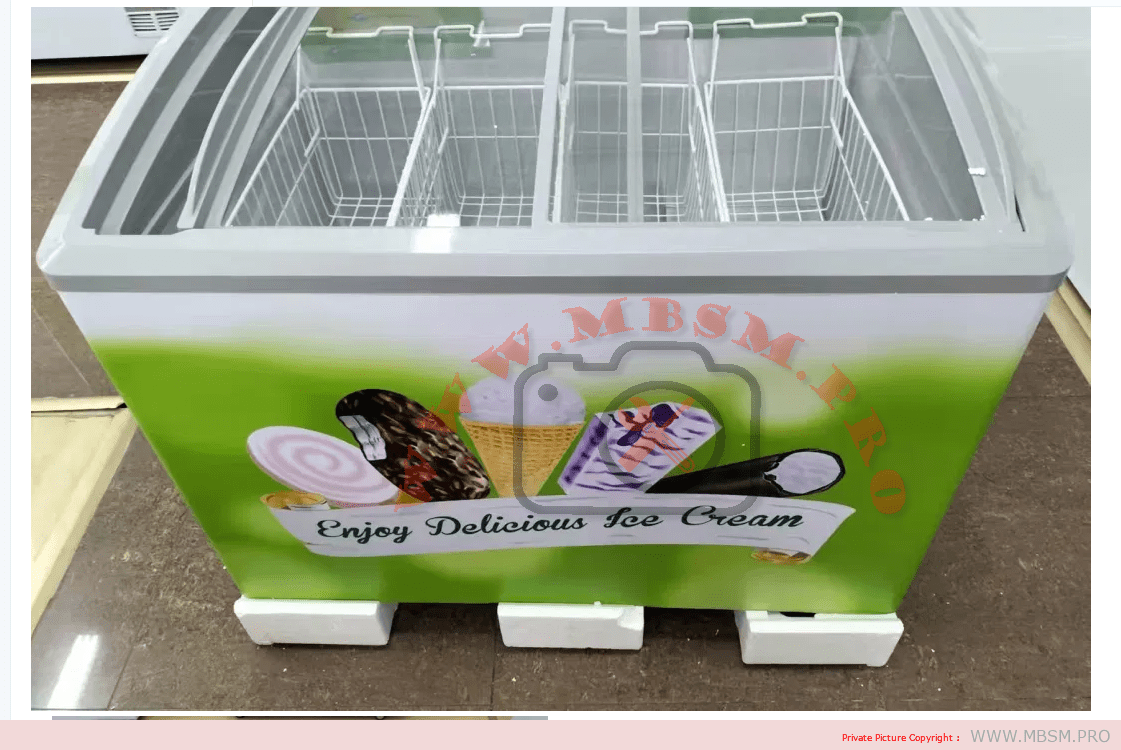

Mbsm.pro, Huaguang, Wanbao, Compressor, FTA66L, 1/3 hp, FT serie, 320 w, LBP, 1092 btu, r290, OEM, ODM, SKD, CKD, freezer, 325L, 220V Mechanical Temperature Controller ABS+PVC, Ice Cream Chest Freezer

			SD-325K	SD-405K	SD-511K
Capacity
	Capacity Gross / Net	L	325/250	405/314	511/400
Dimension / Weight
	External Dimension	WDH (mm)	1045700860	1245700860	1500700860
	Packing Dimension	WDH (mm)	1090760885	1290760885	1550760885
Net/Gross weight		kg	53/62	65/75	78/90
thickness		mm	75	75	75
Specification
Climate type		(Class / °C, %RH)	4(N)	4(N)	4(N)
Product Temperature (Full load)		°C	<-18	<-18	<-18
Refrigerant		(Type / Charge , kgs)	R290	R290	R290
Temperature Control		Method , Model	Mechanical/WPF32	Mechanical/WPF32	Mechanical/WPF32

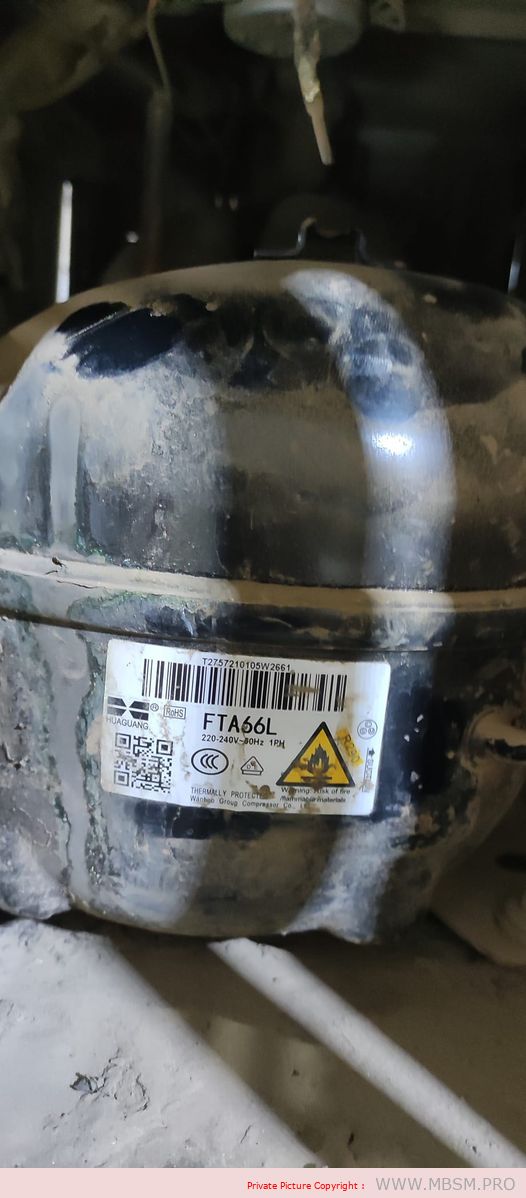

Compressor		Brand , Model	Wan Bao/FTA66L	Wan Bao/FTA66L	Wan Bao/FTA66L
Compressor Capacity		W	325w	395w	395w
Noise		(dB(A))	<42db	<42db	<42db
Voltage Supply		V/Hz	220/50	220/50	220/50
Nominal Current		A	1.5	1.5	1.5
Fan			WEIGUANG/YZF	WEIGUANG/YZF	WEIGUANG/YZF
Plug and cableType (include ground pin or not)			EU Plug/Include ground pin	EU Plug/Include ground pin	EU Plug/Include ground pin
Structure
Lids frame material			ABS+PVC	ABS+PVC	ABS+PVC
Inner Body Material			Embossed aluminum oxide plate	Embossed aluminum oxide plate	Embossed aluminum oxide plate
Glass			Tempered coating	Tempered coating	Tempered coating
Evaporator Material			Bundy tube	Bundy tube	Bundy tube
Condenser Material			External+Internal+Air cooling	External+Internal+Air cooling	External+Internal+Air cooling
External Color			Advertising spraying	Advertising spraying	Advertising spraying
Internal Color			Grey	Grey	Grey
Blowing Agent			Cyclopentane	Cyclopentane	Cyclopentane
Feature
Thermometer		Yes/No	Yes	Yes	Yes
Caster		Yes/No	4	4	4
Lock & Key		Yes/No	Yes	Yes	Yes
Basket		Material / quantity	4	5	6
Drain Tube		Yes/No	yes	yes	yes
Loading Capacity
40′ HQ(With Castors)			96	81	66
