GQR12TG Freezing

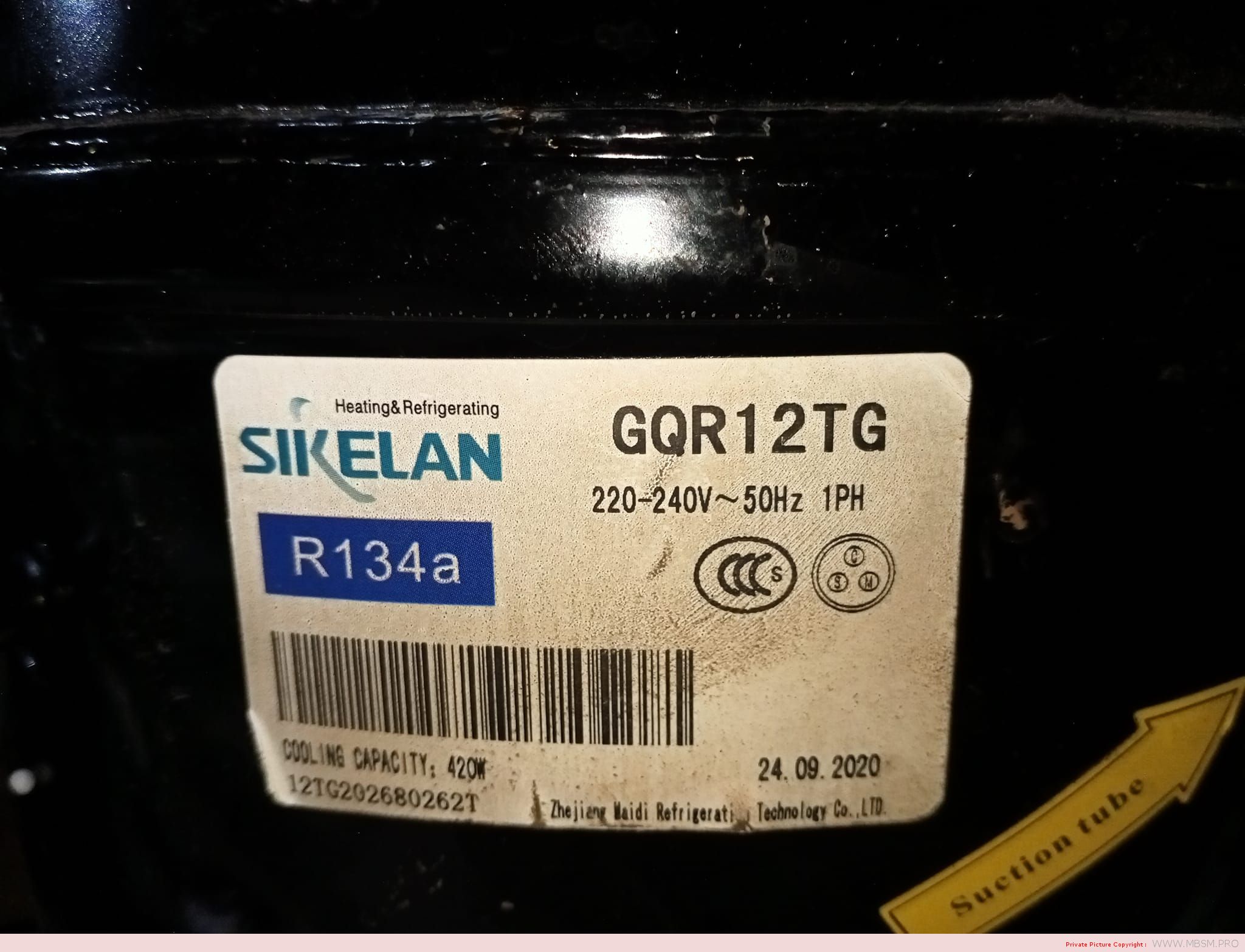

The GQR12TG is a hermetic reciprocating compressor manufactured by Sikelan. It is a 3/8 HP compressor that uses R134a refrigerant. It is designed for use in commercial refrigeration applications, such as water dispensers, ice machines, and small freezers.
The GQR12TG has a displacement of 12.8 cc and a cooling capacity of 1168 W. It has a voltage rating of 220-240 V and a frequency rating of 50-60 Hz. The compressor is also equipped with a current relay for starting.
Here are some of the key features of the GQR12TG compressor:
- 3/8 HP
- R134a refrigerant
- 12.8 cc displacement
- 1168 W cooling capacity
- 220-240 V voltage
- 50-60 Hz frequency
- Current relay for starting
- High back pressure design
| Vol./Freq.： | 220-240V / 50-60Hz |
| Cooling Capacity： | 1168W |
| C.O.P： | 2.20 |
| Horse Power： | 3/8+ |
| Refrigerant： | R134A |
| Application： | HBP |
| The Evaporating Temperature (W)： | 7.2°C |
1)GQR12TG, WZ series, use R134A refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: CSIR;
5)Cooling type: Fan;
6)Starting device is Current Starting Relay;
7)Application: Middle/Hight Back Pressure;
8)Nominal power is 3/8+HP;
9)COP is 2.3 with the cooling capacity 1168W.
1. Product Performance
1)GQR12TG, WZ series, use R134A refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: CSIR;
5)Cooling type: Fan;
6)Starting device is Current Starting Relay;
7)Application: Middle/Hight Back Pressure;
8)Nominal power is 3/8+HP;
9)COP is 2.2 with the cooling capacity 1168W.
Basing on Test Condition(ASHRAE)
Evaporating Temperature: -23.3 degree
Ambient Temperature: 35 degree
Subcooling Temperature: 46.1 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 35 degree
2.Compressor Specification
| Serial | Model | HP | (V/Hz) | Displacement (cm3) | Cooling Capacity -ASHRAE | Motor type | Starting Device | Starting capacitor (uF) | Running capacitor (uF) | Cooling | |||||||||||||||
| -15ºC(5F) | -10ºC(10F) | -5ºC(23F) | 0ºC(32F) | Test Conditions:+7.2ºC(45F) | 10ºC(50F) | ||||||||||||||||||||
| W | Btu/h | W | Btu/h | W | Btu/h | W | Btu/h | Capacity (W) | Capacity (Btu/h) | lnput Power(w) | Current (A) | COP (W/W) | COP (Btu/Wh) | W | Btu/h | ||||||||||
| L | GQR30TG | 1/10 | 220V/50Hz | 3.0 | 115 | 392 | 145 | 495 | 185 | 631 | 230 | 785 | 310 | 1058 | 140 | 0.9 | 2.2 | 7.56 | 365 | 1245 | RSIR | PTC/Current Starting Relay | / | / | F |
| GQR35TG | 1/9 | 220V/50Hz | 3.5 | 135 | 461 | 175 | 597 | 195 | 665 | 285 | 972 | 430 | 1467 | 195 | 1.1 | 2.2 | 7.52 | 475 | 1621 | RSIR | / | / | F | ||
| MS | GQR45TG | 1/6 | 220V/50Hz | 4.5 | 176 | 601 | 230 | 785 | 280 | 955 | 350 | 1194 | 480 | 1638 | 220 | 1.2 | 2.2 | 7.44 | 525 | 1791 | RSIR | PTC/Current Starting Relay | / | / | F |
| GQR55TG | 1/6+ | 220V/50Hz | 5.5 | 188 | 641 | 245 | 836 | 310 | 1058 | 390 | 1331 | 525 | 1791 | 250 | 1.3 | 2.1 | 7.17 | 575 | 1962 | RSIR | / | / | F | ||
| MK | GQR60TG | 1/4 | 220V/50Hz | 6.5 | 258 | 880 | 335 | 1143 | 435 | 1484 | 545 | 1860 | 665 | 2269 | 290 | 1.7 | 2.3 | 7.82 | 705 | 2405 | RSIR | PTC/Current Starting Relay | / | / | F |
| GQR70TG | 1/4 | 220V/50Hz | 7.0 | 285 | 972 | 370 | 1262 | 480 | 1638 | 595 | 2030 | 720 | 2457 | 340 | 1.9 | 2.1 | 7.23 | 765 | 2610 | RSIR | / | / | F | ||
| GQR80TG | 1/4+ | 220V/50Hz | 8.0 | 324 | 1105 | 420 | 1433 | 550 | 1877 | 680 | 2320 | 810 | 2764 | 370 | 2.0 | 2.2 | 7.47 | 855 | 2917 | RSIR | / | / | F | ||
| GQR90TG | 1/3- | 220V/50Hz | 9.1 | 365 | 1245 | 474 | 1617 | 621 | 2119 | 768 | 2620 | 910 | 3105 | 420 | 2.2 | 2.2 | 7.39 | 955 | 3258 | RSIR | / | / | F | ||
| WZ | GQR80TG | 1/4+ | 220V/50Hz | 8.0 | 324 | 1105 | 420 | 1433 | 550 | 1877 | 680 | 2320 | 810 | 2764 | 370 | 2.0 | 2.2 | 7.47 | 855 | 2917 | CSIR | Current Starting Relay | 80 | / | F |
| GQR90TG | 1/3- | 220V/50Hz | 9.1 | 365 | 1245 | 474 | 1617 | 621 | 2119 | 768 | 2620 | 910 | 3105 | 420 | 2.2 | 2.2 | 7.39 | 955 | 3258 | CSIR | 80 | / | F | ||
| GQR11TG | 3/8 | 220V/50Hz | 11.0 | 412 | 1406 | 536 | 1829 | 702 | 2395 | 868 | 2962 | 1034 | 3528 | 450 | 2.7 | 2.3 | 7.84 | 1079 | 3682 | CSIR | 80 | / | F | ||
| GQR12TG | 3/8+ | 220V/50Hz | 12.8 | 467 | 1593 | 606 | 2068 | 793 | 2706 | 981 | 3347 | 1168 | 3985 | 530 | 3.2 | 2.2 | 7.52 | 1208 | 4122 | CSIR | 80 | / | F | ||
| GQR14TG | 1/2 | 220V/50Hz | 14.2 | 527 | 1798 | 685 | 2337 | 896 | 3057 | 1108 | 3780 | 1320 | 4504 | 580 | 3.4 | 2.3 | 7.77 | 1365 | 4657 | CSIR | 80 | / | F | ||
| GQR16TG | 1/2+ | 220V/50Hz | 15.3 | 580 | 1979 | 754 | 2573 | 1012 | 3453 | 1252 | 4272 | 1492 | 5091 | 640 | 3.8 | 2.3 | 7.95 | 1535 | 5237 | CSIR | 80 | / | F | ||
| GQR19TG | 3/4 | 220V/50Hz | 19.0 | 755 | 2576 | 940 | 3207 | 1175 | 4009 | 1255 | 4282 | 1850 | 6312 | 804 | 4.5 | 2.3 | 7.85 | 1895 | 6466 | CSIR | 80 | / | F |
| KONOR | Displ. | power | Motor type | V/Hz | Cooling capacity W | Net Weight KG |
| GQR60AA | 6 | 1/6 | RSIR | 220-240V/50Hz | 140 | 9.4 |
| GQR70AA | 6.6 | 1/5 | RSIR | 220-240V/50Hz | 165 | 9.4 |
| GQR80AA | 8.1 | 1/4 | RSIR | 220-240V/50Hz | 198 | 9.4 |
| GQR90AA | 9.1 | 1/4 | RSIR | 220-240V/50Hz | 220 | 10.1 |
| GQY99AA | 9.9 | 1/4 | RSIR | 220-240V/50Hz | 270 | 10.9 |
| GQY12AF | 11.8 | 1/3 | CSIR | 220-240V/50Hz | 325 | 10.56 |
| GQY16AF | 16.2 | 3/8 | CSIR | 220-240V/50Hz | 380 | 12.1 |
| GP16MG | 16.2 | 5/8 | CSIR | 220-240V/50Hz | 870 | 12.5 |
| GP12MG | 11.8 | 5/8 | CSIR | 220-240V/50Hz | 656 | 10.9 |
| GP12TG | 11.8 | 3/8 | CSIR | 220-240V/50Hz | 1140 | 11.8 |
| GQR80TG | 8.1 | 1/4 | CSIR | 220-240V/50Hz | 730 | 9.8 |
| GQR90TG | 9.1 | 1/4 | CSIR | 220-240V/50Hz | 830 | 10.5 |
| GQR60TG | 6 | 1/5 | CSIR | 220-240V/50Hz | 520 | 9.8 |
