Product Description
HYE69Y63 is a refrigeration compressor made by HUAYI. It uses R134a refrigerant and has a voltage of 220-240V/50-60Hz
. The compressor has a cooling capacity of 190W and a displacement of 6.7
. It is a FC (full copper) compressor with RSIR (resistance start induction run) technology
. The compressor has a power input of 141W – 1/4 hp and an EER (energy efficiency ratio) of 3.75
Huayi R134a Refrigerator Compressor

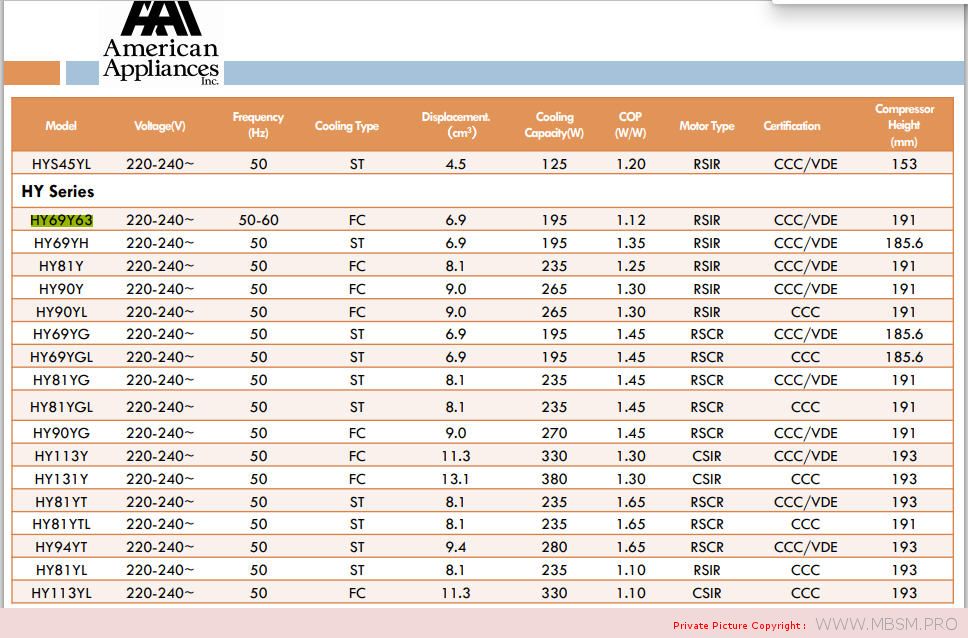

Product parameters
| Model | Voltage(V) | Frequency (Hz) |
Cooling Type |
Displacement.(cm3) | Cooling Capacity(W) | COP (W/W) |
Motor Type |
| HY69Y63 | 220-240~ | 50-60 | FC | 6.9 | 195 | 1.12 | RSIR |

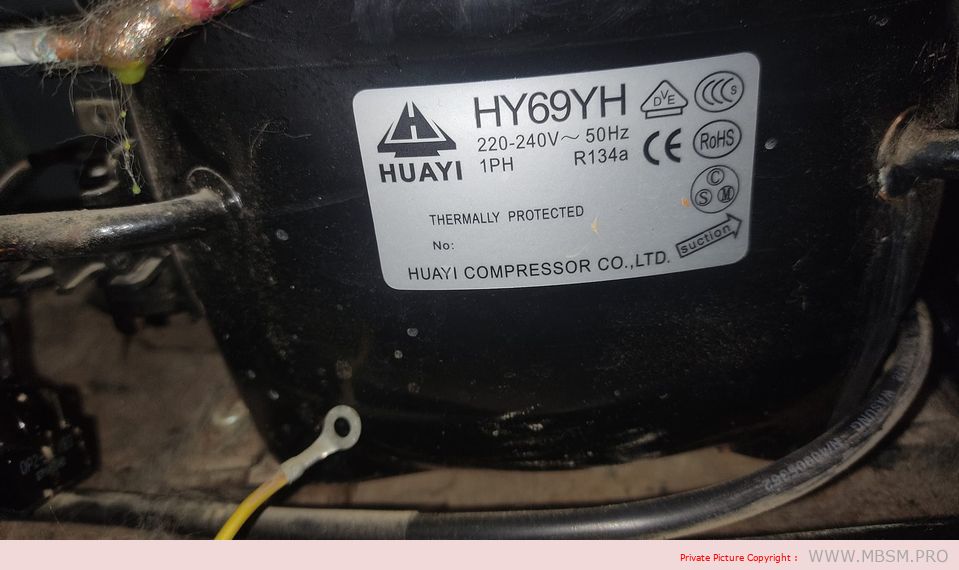

| HY69YH | 220-240~ | 50 | ST | 6.9 | 195 | 1.35 | RSIR |
| HY81Y | 220-240~ | 50 | FC | 8.1 | 235 | 1.25 | RSIR |
| HY90Y | 220-240~ | 50 | FC | 9.0 | 265 | 1.30 | RSIR |
| HY69YG | 220-240~ | 50 | ST | 6.9 | 195 | 1.45 | RSCR |
| HY81YG | 220-240~ | 50 | ST | 8.1 | 235 | 1.45 | RSCR |
| HY90YG | 220-240~ | 50 | FC | 9.0 | 270 | 1.45 | RSCR |
| HY69Y42 | 115~ | 60 | FC | 6.9 | 225 | 1.25 | RSIR |
| HY113Y | 220-240~ | 50 | FC | 11.3 | 315 | 1.30 | CSR |
| HY131Y | 220-240~ | 50 | FC | 13.1 | 370 | 1.30 | CSR |
| HYE55Y63 | 220-240~ | 50-60 | ST | 5.5 | 150 | 1.28 | RSIR |
| HYE60Y63 | 220-240~ | 50-60 | ST | 6.0 | 170 | 1.28 | RSIR |
| HYE60YG | 220-240~ | 50 | ST | 6.0 | 170 | 1.43 | RSCR |
| HYE60YK | 220-240~ | 50 | ST | 6.0 | 175 | 1.52 | RSCR |
| HYE69YK | 220-240~ | 50 | ST | 6.6 | 195 | 1.52 | RSCR |
| HYE55Y42 | 115~ | 60 | ST | 5.5 | 175 | 1.28 | RSIR |
| HYE60Y42 | 115~ | 60 | ST | 6.0 | 200 | 1.28 | RSIR |
| HYE51YG42 | 115~ | 60 | ST | 5.1 | 165 | 1.43 | RSCR |
